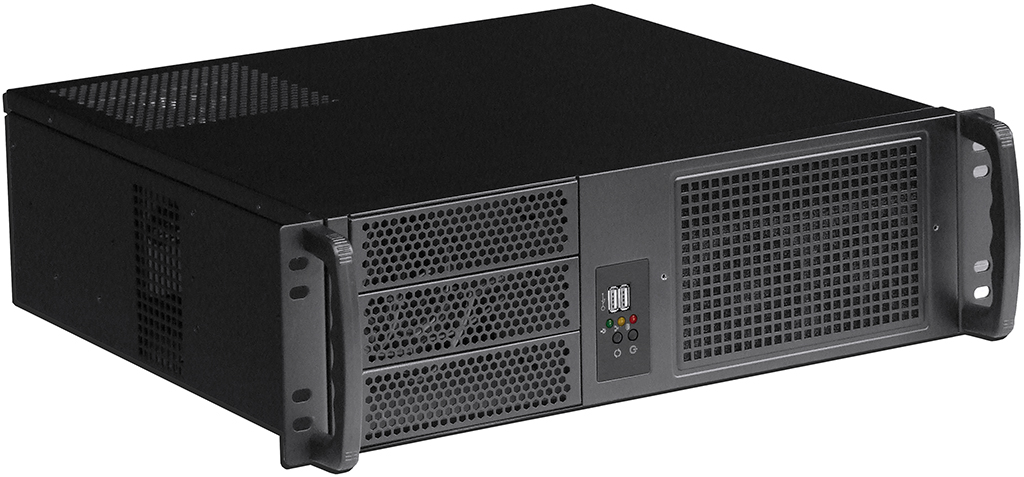

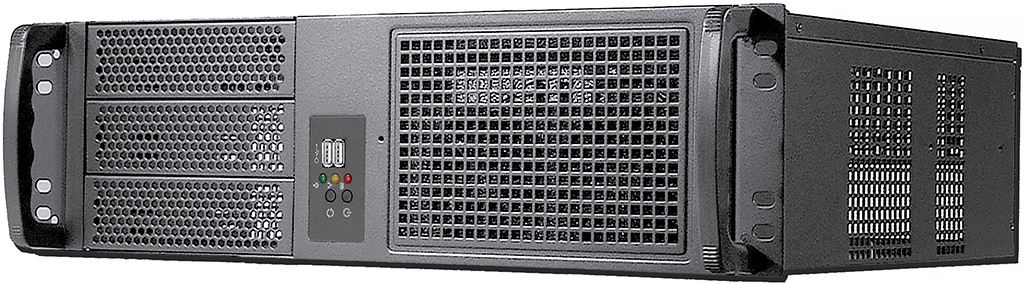

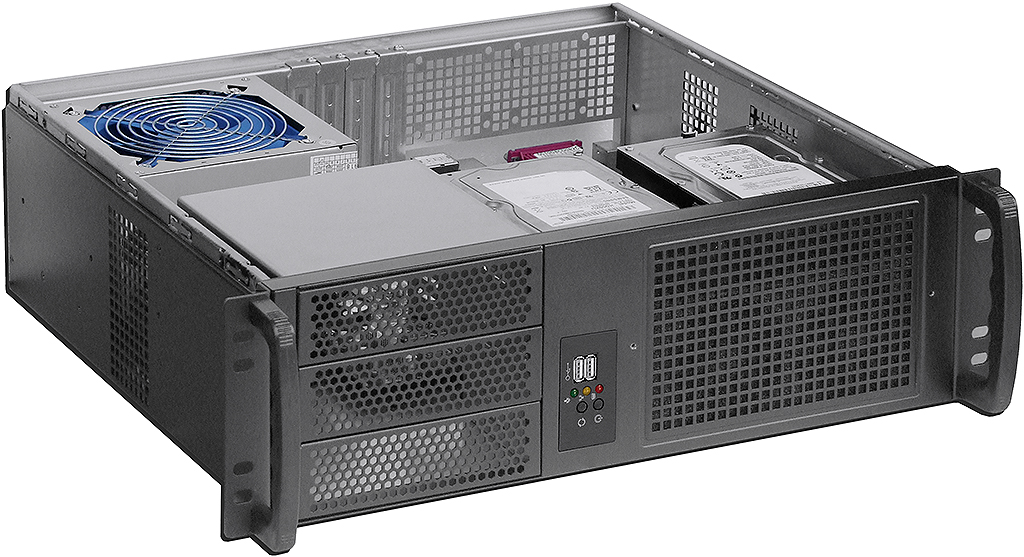

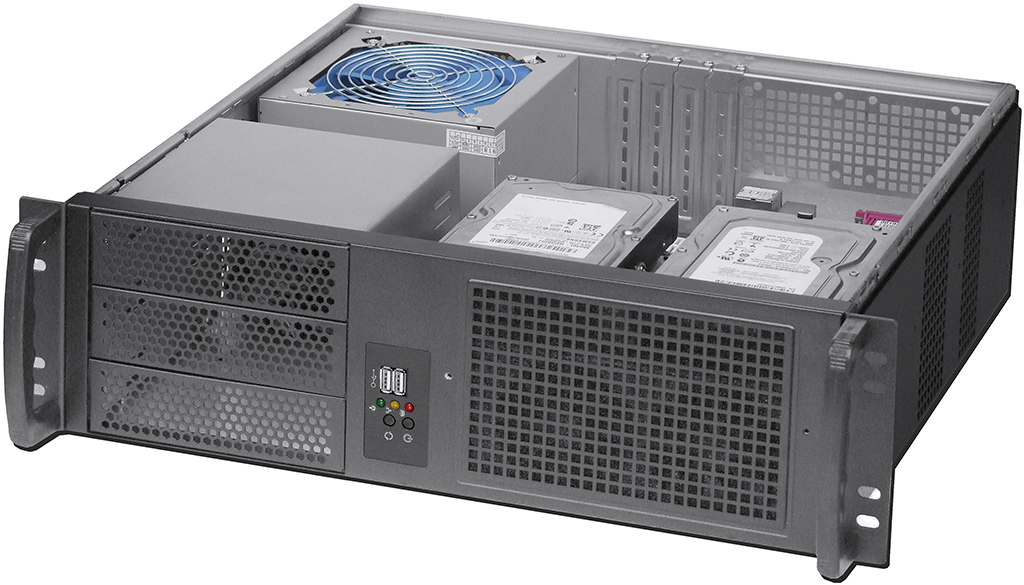

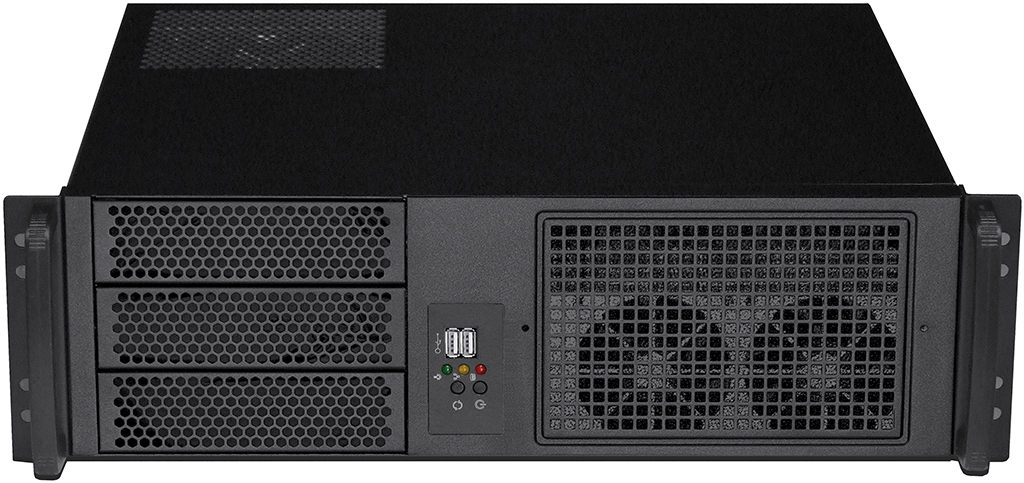

C338 3U ATX ULTRA COOL SERVER CHASSIS
webpage updated on January 29, 2018

Meet the newest motherboard solution for LGA 1155, LGA 1156 and LGA 2011, it uses 1.2mm~2.0mm thickness high-grade sheet metal as main structure of chassis, it's durable and strong features have been entirely considered, all parts including electronic components certified by international official approvals, and global 3 years warranty supported. The most major feature of this C338 chassis is the depth is merely 380mm deep, its cost effective but very high quality, standard equipped with two Sunon 80mmx25mm 2ball bearing fans behind the front bezel with dust-prevent filter, optional two Sunon 60mmx25mm 2ball bearing fans installed at rear panel of chassis, which is the best solution for regular server or enterprise environment, welcome distribution world wide.





* 7~9 Drive Capacity:

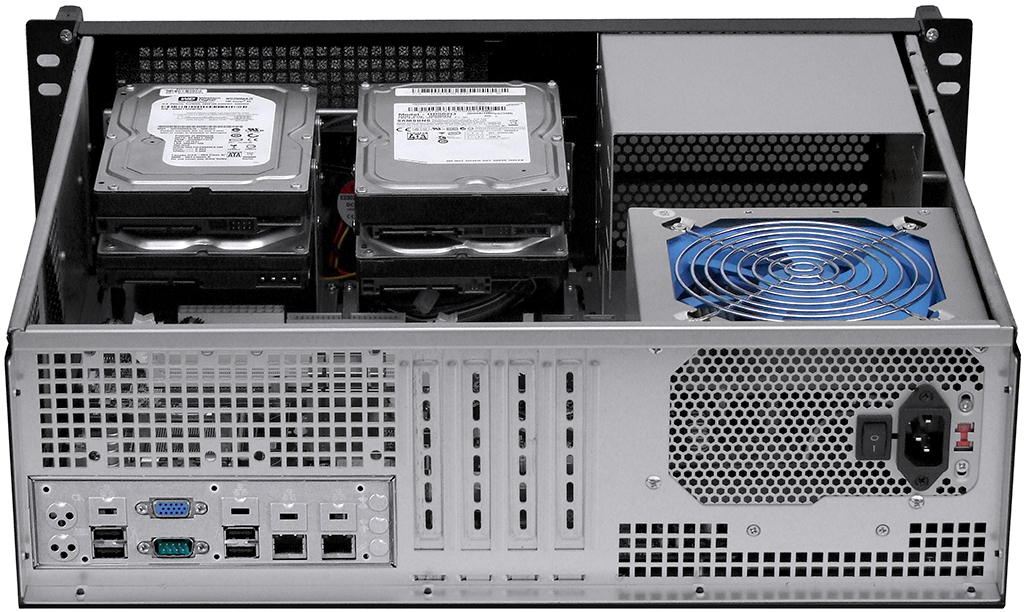

   2x5.25" ODD, 5x3.5" HDD bay (if 12"x9.6" ATX MB installed)

   or 3x5.25" ODD, 5x3.5" HDD bay (if 9.6"x9.6" MicroATX MB installed)

   or 2x5.25" ODD, 6x3.5" HDD bay (if 9.6"x9.6" MicroATX MB installed)

   or 2x5.25" ODD, 5x3.5" HDD, 2x2.5" HDD bay (if 9.6"x9.6" MicroATX MB installed)
* Drive bay supported with anti-vibration function that HDD life time extended

* Main structure of sheet metal by high-class SGCC 1.2mm~2.0mm thickness
* E

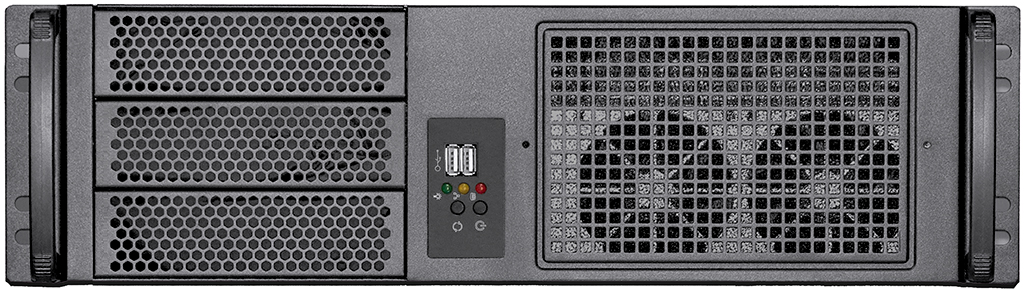

quipped two USB 2.0 port at front bezel
* Two brand new

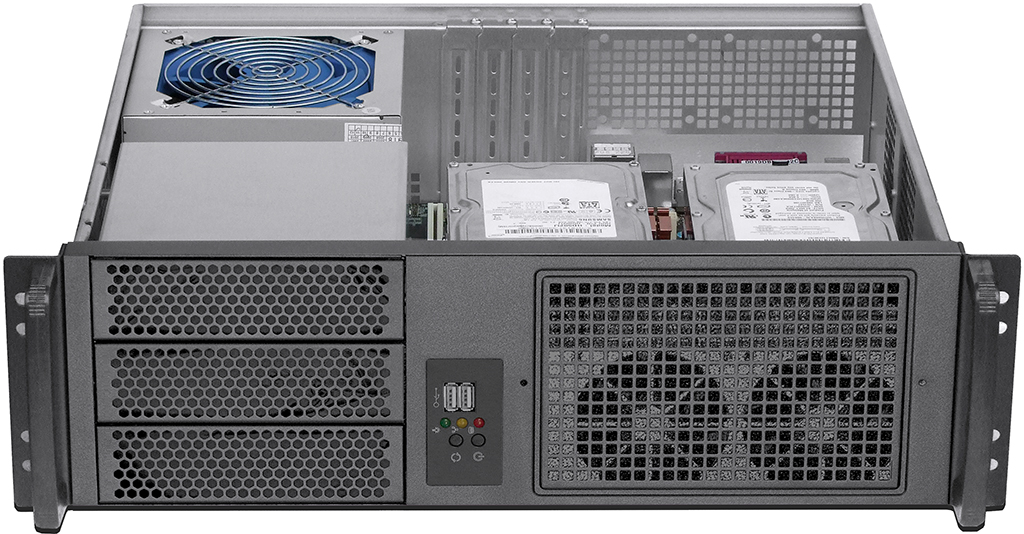

Sunon EE80251B1-000C-G99 80mmx25mm 2ball fans behind front bezel

* Room noise without fan activated is 45dBA, tested by 10cm distance to the running fan is

   76dBA (including room noise)

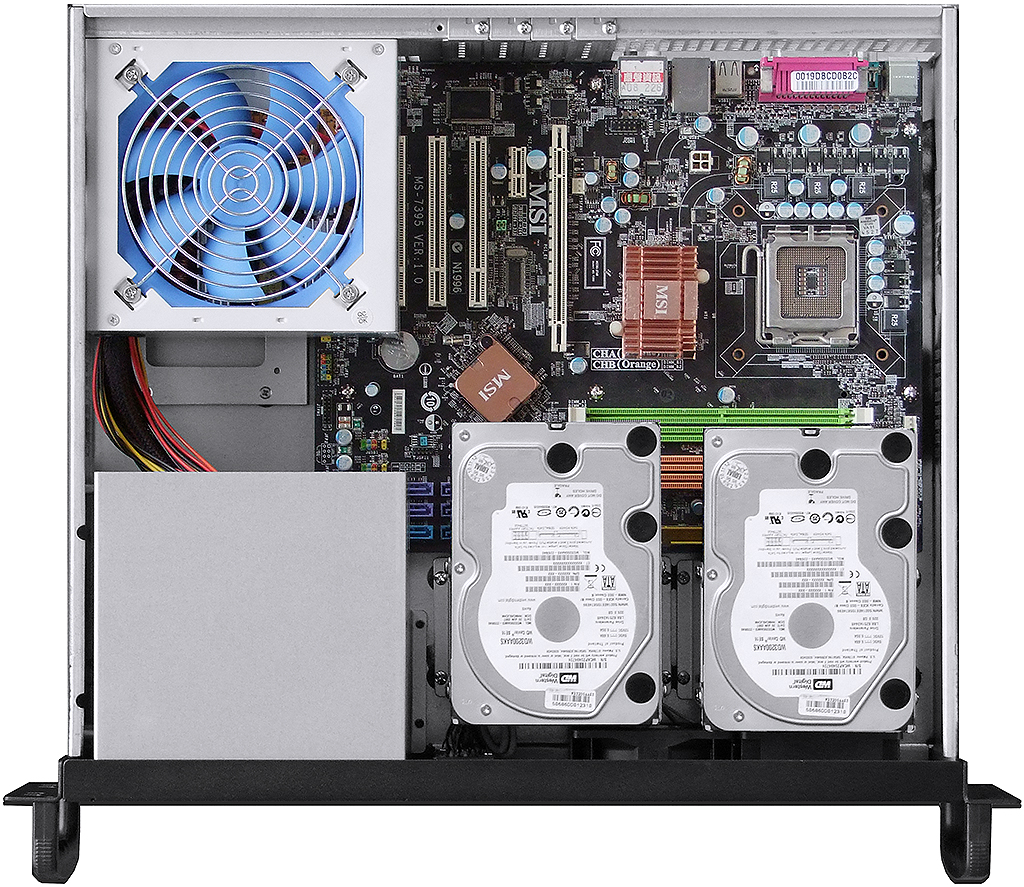

* MB: ATX(12"x9.6")‧MicroATX(9.6"x9.6")‧Mini-ITX(6.7"x6.7")
* Support PS2
8cm or 12cm~14cm fan version psu (max. psu depth at 140mm~180mm)

* If 140mm deep PS2 psu installed, 5.25" ODD device by 210mm deep also compatible

* If 180mm deep PS2 psu installed, 5.25" ODD device by 170mm deep also compatible

* If front fixed with 3.5" HDD, 4 slot full high plugin cards (max. depth at 170mm)

* If front fixed w/o 3.5" HDD & bracket, 4 slot full high plugin cards (max. depth at 330mm)
* standard paint: black

* Genesys Group branded server chassis model (with build-in fans) global 3 years warranty
* chassis dimension: 19" x 3U x 380mm (14.96"deep)

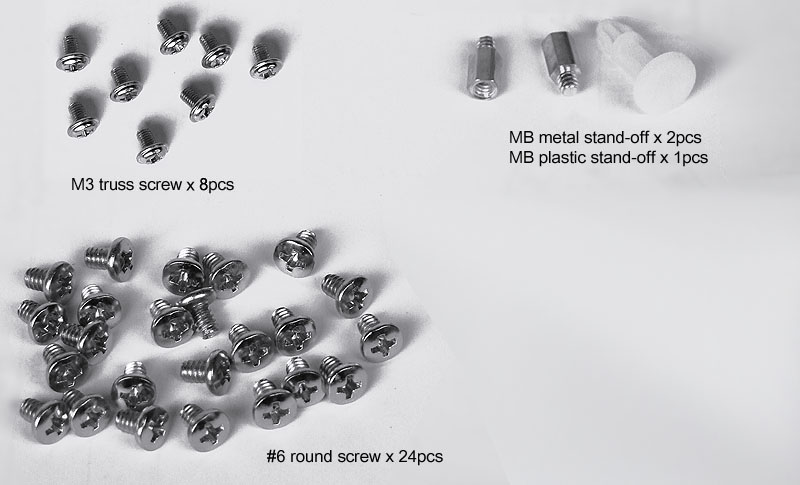

* Accessory pack: M3 round head nickel screw x8pcs, #6 round head nickel screw x24pcs,

   MB metal standoff x2pcs, MB plastic standoff x1pcs

* package: NW 6 KGM, GW 8 KGM, 2.22 CUFT (56x51x22cm, single box packed)

Model#

:

C338B

3U black ATX ultra cool server chassis

Option A

:

PSU

PS2 8cm or 12cm~14cm fan version power supply (max. psu depth at 140mm~180mm)

Option B

:

SUNON6025

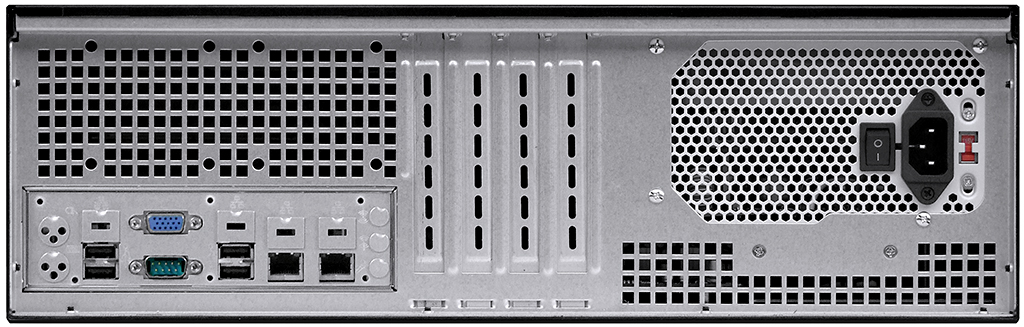

60mm x 25mm exhaust fan at rear panel (part# is 1pcs)

Option C-1

:

NJ-600

600mm 2-layer 3-travel universal rail (part# is 1 pair, cabinet internal depth 600~1200mm compliant)

Option C-2

:

1234U-RMK

1234U rear mounting kit (part# is 1 pair)

Option D

:

25-35-BK

5.25" 3.5" 2.5" multiple HDD bracket

Option E-1

:

2525TO3HDBK

2x5.25" ODD space to 3x3.5" bracket

Option E-2

:

3525TO5HDBK

3x5.25" ODD space to 5x3.5" bracket

Option E-3

:

RW225-12G

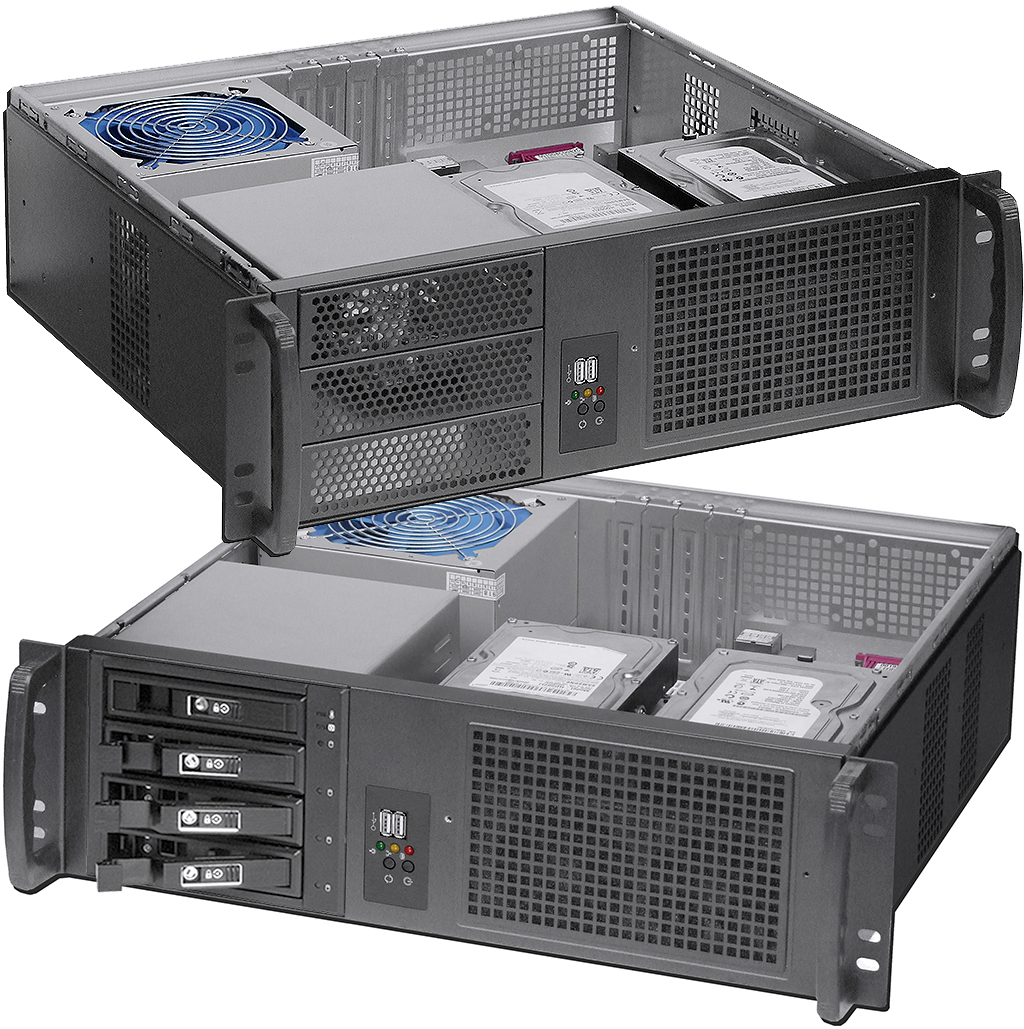

1x5.25" to 2x2.5" SAS/SATA Hot-Swap Cage & 4xUSB3.0

Option E-4

:

RW425-12G

1x5.25" to 4x2.5" SAS12G Hot-Swap Cage

Option E-5

:

RW825-12G

2x5.25" to 8x2.5" SAS12G Hot-Swap Cage

Option E-6

:

RW1225-12G

3x5.25" to 12x2.5" SAS12G Hot-Swap Cage

Option E-7

:

RW425

1x5.25" to 4x2.5" SAS/SATA Hot-Swap Cage

Option E-8

:

RW825-1525

1x5.25" to 8x2.5" SAS/SATA Hot-Swap Cage

Option E-9

:

RW825

2x5.25" to 8x2.5" SAS/SATA Hot-Swap Cage

Option E-10

:

RW1225

3x5.25" to 12x2.5" SAS/SATA Hot-Swap Cage

Option E-11

:

RW335

2x5.25" to 3x3.5" SAS/SATA Hot-Swap Cage

Option E-12

:

RW435

3x5.25" to 4x3.5" SAS/SATA Hot-Swap Cage

Option E-13

:

RW535

3x5.25" to 5x3.5" SAS/SATA Hot-Swap Cage

Option E-14

:

TL335

2x5.25" to 3x3.5" TrayLess SAS/SATA Hot-Swap Cage

Option E-15

:

TL435

3x5.25" to 4x3.5" TrayLess SAS/SATA Hot-Swap Cage

Option E-16

:

TL535

3x5.25" to 5x3.5" TrayLess SAS/SATA Hot-Swap Cage

Option E-17

:

TL135

1x5.25" to 1x3.5" TrayLess SAS/SATA Hot-Swap Cage

Option E-18

:

RW135

1x5.25" to 1x3.5" SAS/SATA Hot-Swap Cage

Option F-1

:

1MSAS-4SATA-500MM

SFF-8087 Mini-SAS (Host) to Four SATA (Device) cable

Option F-2

:

SFF-8643-500MM

SFF-8643 Mini-SAS HD (Host) to SFF-8643 Mini-SAS HD (Device) cable 12G

Option F-3

:

4SATA-SFF-8643-500MM

Four SATA (Host) to SFF-8643 Mini-SAS HD (Device) cable 12G

Option G-1

:

2U2011A-8080

2U Intel LGA2011 active CPU cooler Square (2U 3U 4U chassis compatible)

Option G-2

:

2U2011A-5694

2U Intel LGA2011 active CPU cooler Narrow (2U 3U 4U chassis compatible)
