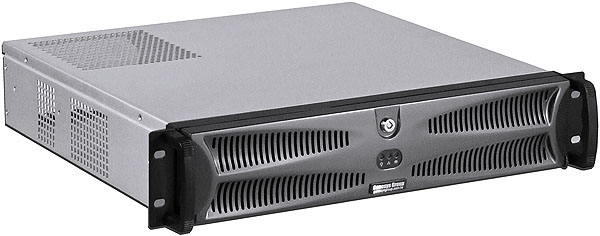

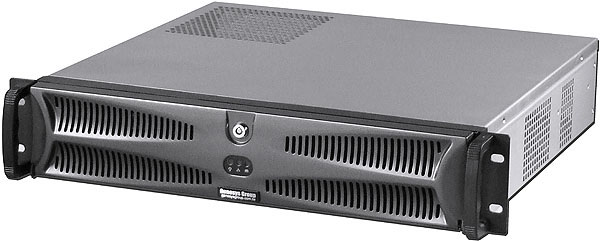

E238B 2U MicroATX ENTERPRISE SERVER CHASSIS
webpage updated on April 08, 2022

The era of MicroATX constructed with Multi-Core CPU platform has been the mainstream nowadays, the fast and stable server system is also presented by this model of design, the major feature of this brand new design is the depth of this chassis has 380mm only, it supports the most cost effective and stable quality, combines with two intake 80mm fans at front side, comes with totally 4 drive bay with the chassis configuration, fits all standard MicroATX 9.6""x9.6" motherboard form factor and standard PS2 power supply, meets regular server system application, welcome worldwide distribution.





Genesys Group 2U E238B showed up in the movie Black & White Episode 2

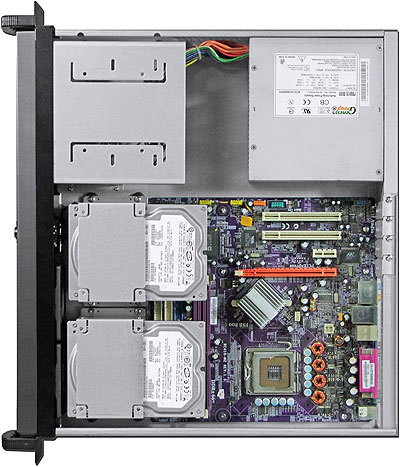

* Total drive bay: 2 x 5.25" ODD and 2 x 3.5" HDD bay
* Drive bay equipped with anti-vibration function, extend storage appliance life

* Two USB 2.0 ports and LAN/HDD/Power LED at front bezel (two USB 3.0 as option)

* Major SGCC sheet metal thickness at 1.2mm with protective sheet on surface

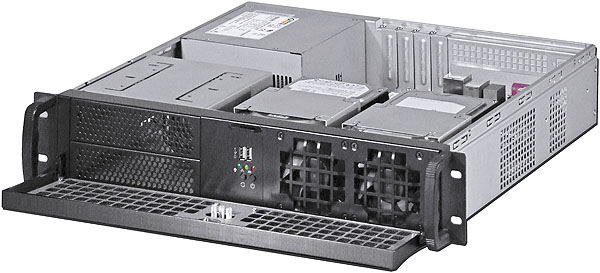

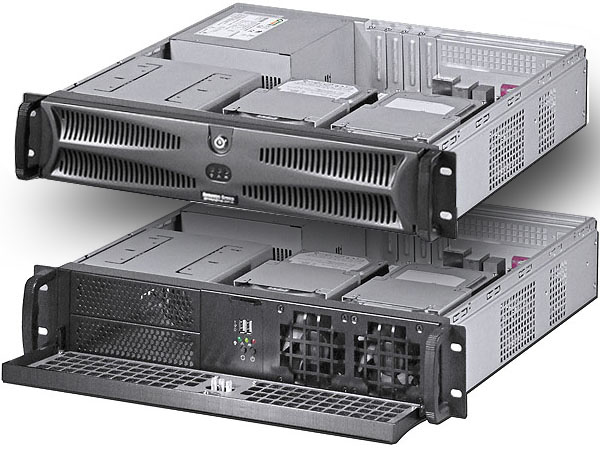

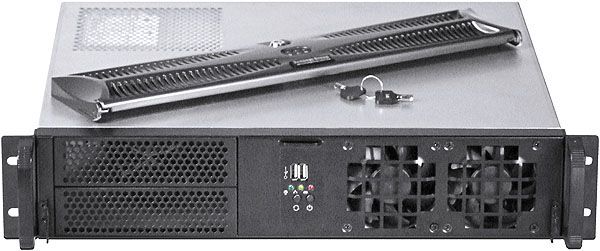

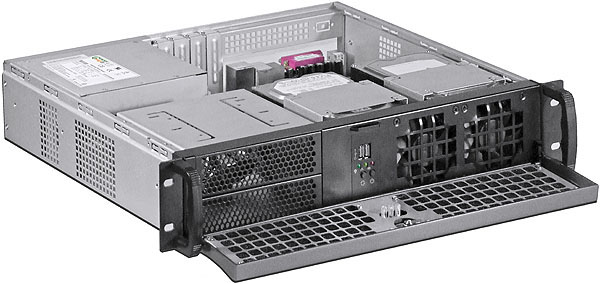

* Removable front door with security keylock and air filter function
* Two brand new 80mmx25mm intake 2-ball bearing fans (fan part# SunTai8025)
* Compatible MB: MicroATX(9.6"x9.6"), Mini-ITX(6.7"x6.7")
* Support PS2 8cm or 12cm~14cm fan version psu (max. psu depth at 140mm~180mm)

* If 140mm deep PS2 psu installed, max. 210mm deep 5.25" ODD device compatible

* If 180mm deep PS2 psu installed, max. 170mm deep 5.25" ODD device compatible

* If front fixed with 3.5" HDD, 4 slot low profile cards (max. depth at 170mm)

* If front fixed w/o 3.5" HDD & bracket, 4 slot low profile cards (max. depth at 330mm)

* Standard paint: scratch-resistant black textured at front side of chassis
* Genesys Group chassis with build-in electronics in global 3 years warranty
* Chassis dimension: 19" x 2U x 380mm (14.96" deep)

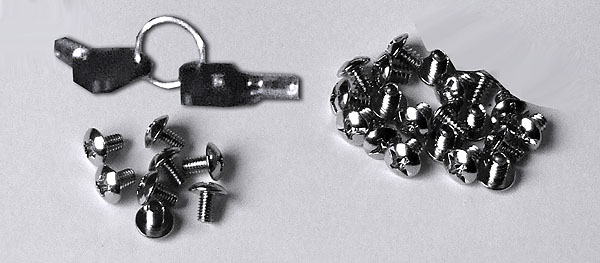

* Accessory: M3 round x 8pcs, #6 round x 20pcs, key x 2pcs
* package: NW 5.5 KGM, GW 7.5 KGM, 1.72 CUFT (carton size at 56x51x17cm)

Model#

:

E238B

2U black MicroATX enterprise server chassis

Option A

:

PSU

PS2 8cm or 12cm~14cm fan version power supply (max. psu depth at 140mm~180mm)

Option B-1

:

NJ-600

600mm 2-layer 3-travel universal rail (cabinet internal depth 600~1200mm compliant)

Option B-2

:

1234U-RMK

1234U rear mounting kit

Option C-1

:

25-35-BK

1x5.25" to 1x3.5" HDD or 1x3.5" to two 2.5" SSD bracket

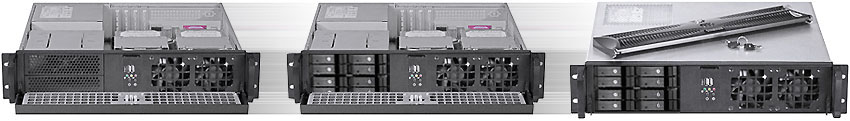

Option C-2

:

RW135-12G

1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 12G

Option C-3

:

RW135

1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 6G

Option C-4

:

TL135-12G

1x5.25" to 1x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option C-5

:

TL135

1x5.25" to 1x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option C-6

:

RW225-NVMe-U

1x5.25" to 2xUSB3 2x2.5" SSD Removable Cage U.2 NVMe 32G

Option C-7

:

RW225-NVMe

1x5.25" to 2x2.5" SSD Removable Cage U.2 NVMe 32G

Option C-8

:

RW225-12G

1x5.25" to 2x2.5" HotSwap Cage SATA/SAS 12G

Option C-9

:

RW625-12G

1x5.25" to 6x2.5" HotSwap Cage SATA/SAS 12G

Option C-10

:

RW825-1525

1x5.25" to 8x2.5" HotSwap Cage SATA/SAS 6G

Option C-11

:

RW425-NVMe

1x5.25" to 4x2.5" SSD Removable Cage U.2 NVMe 32G

Option C-12

:

RW425-12G-MS

1x5.25" to 4x2.5" HotSwap Cage SFF-8643 12G

Option C-13

:

RW425-12G

1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 12G

Option C-14

:

RW425

1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 6G

Option D-1

:

2525TO3HDBK

2x5.25" to 3x3.5" bracket

Option D-2

:

RW335-12G

2x5.25" to 3x3.5" HotSwap Cage SATA/SAS 12G

Option D-3

:

RW335

2x5.25" to 3x3.5" HotSwap Cage SATA/SAS 6G

Option D-4

:

TL335-12G

2x5.25" to 3x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option D-5

:

TL335

2x5.25" to 3x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option E-1

:

1MSAS-4SATA-500MM

SFF-8087 Mini-SAS (Host) to Four SATA (Device) cable

Option E-2

:

SFF-8643-500MM

SFF-8643 Mini-SAS HD (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option E-3

:

4SATA-SFF-8643-500MM

Four SATA (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option E-4

:

SFF-8643-4SATA-500MM

SFF-8643 Mini-SAS HD (Host) to Four SATA (Device) cable

Option F-1

:

2U2011A-8080

2U Intel LGA2011 LGA2066 active CPU cooler Square (2U 3U 4U chassis compatible)

Option F-2

:

2U2011A-5694

2U Intel LGA2011 active CPU cooler Narrow (2U 3U 4U chassis compatible)

Option F-3

:

2U115XA

2U Intel LGA115x Xeon 1230 active CPU cooler (2U 3U 4U chassis compatible)

Option F-4

:

2U4094A-SP3

2U AMD EPYC LGA4094 active CPU cooler SP3 (2U 3U 4U chassis compatible)

Option F-5

:

2U1331A-AM4

2U AMD LGA1331 active CPU cooler AM4 (2U 3U 4U chassis compatible)

Option F-6

:

2U3647A-S82

2U Intel LGA3647 active CPU cooler Square (2U 3U 4U chassis compatible)

Option F-7

:

2U3647A-R82-1

2U Intel LGA3647 active CPU cooler Narrow (2U 3U 4U chassis compatible)

Option F-8

:

2U4189A-M82

2U Intel LGA4189 active CPU cooler (2U 3U 4U chassis compatible)

Option F-9

:

2U1700A-V15

2U Intel LGA1700 active CPU cooler (2U 3U 4U chassis compatible)
