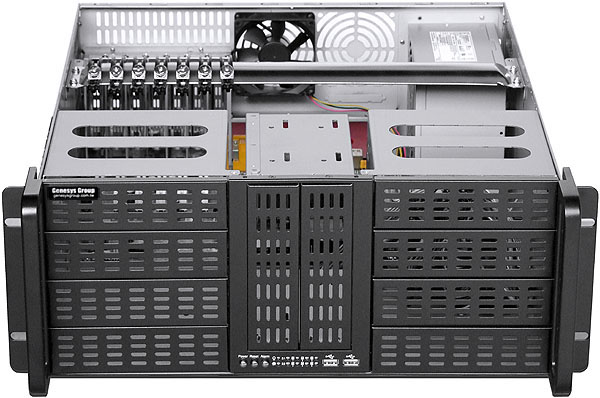

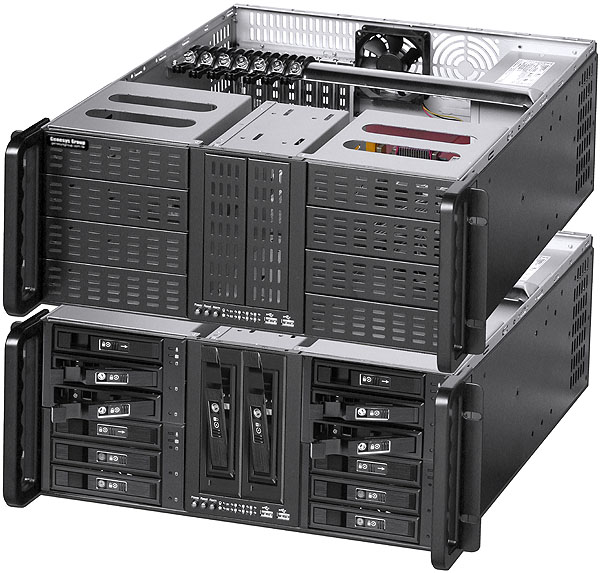

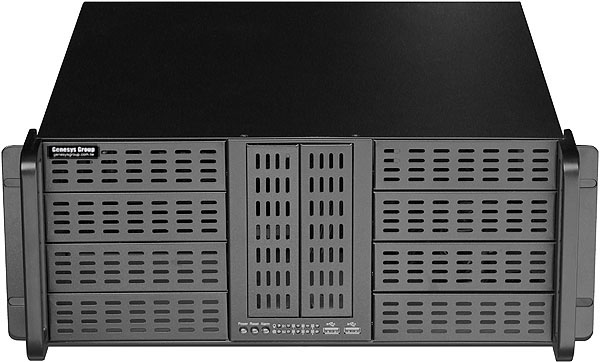

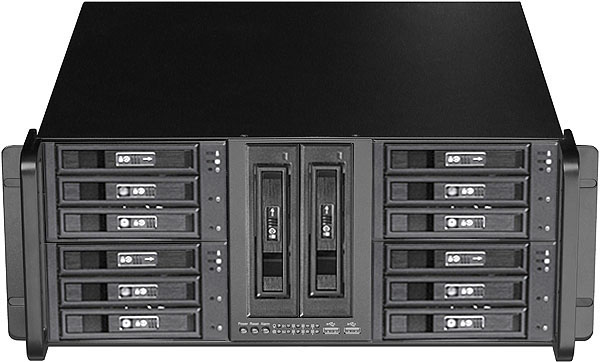

* Storage Capacity: 10 x 5.25" ODD (option for various hotswap HDD cages installable)

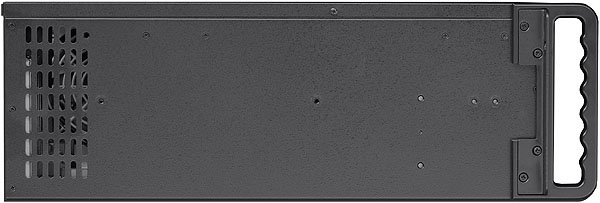

* Equipped with heavy duty durable die-casting handles

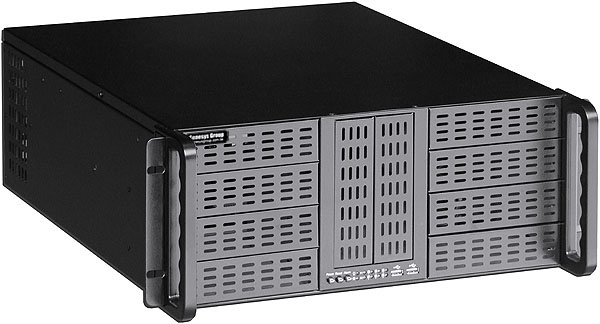

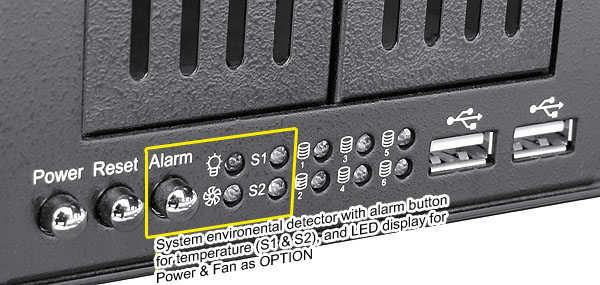

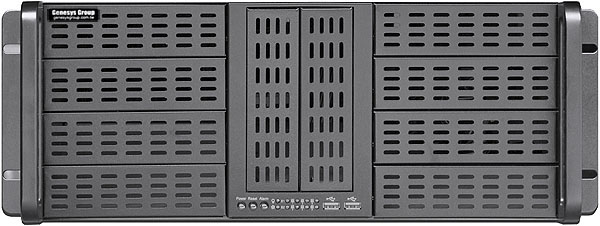

* Equipped with two USB 2.0 ports & Power/Reset buttons & LED display on front bezel
* The main sheet metal constructed by 1.2mm ~ 2.0mm Japanese SECC mechanism

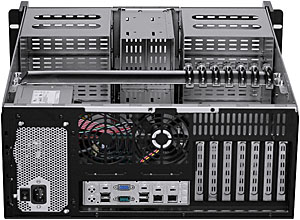

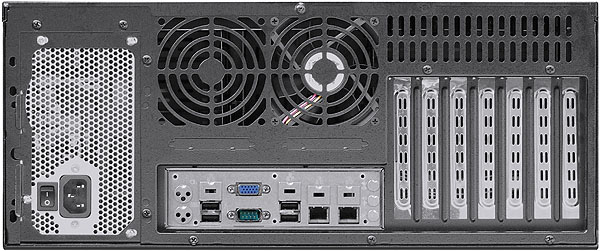

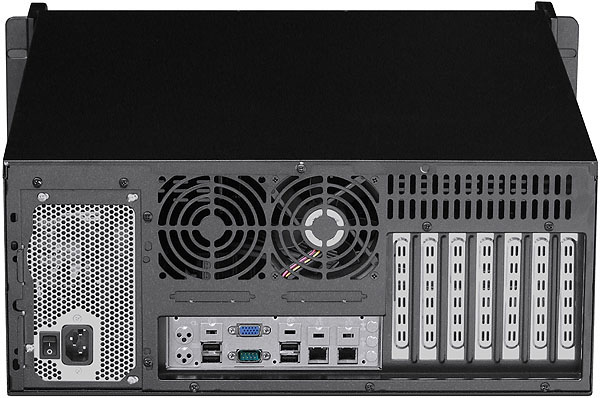

* Equipped with one 80mmx25mm 2ball bearing fan at rear panel (part# KM128025HB)

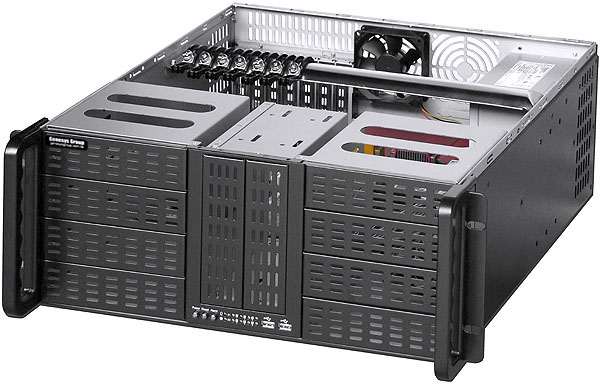

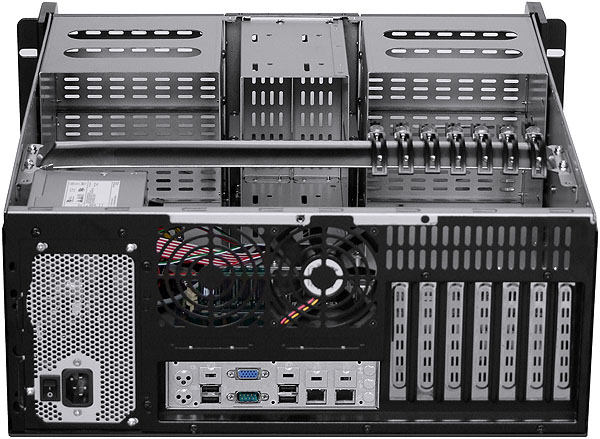

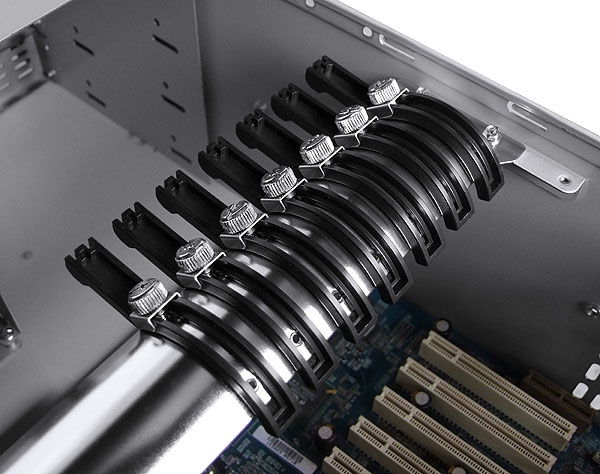

* Forward & backward adjustable hold-down card clamp with 7 height adjustable holders

* Support MB: CEB (12"×10.5"), ATX(12"x9.6"), MicroATX(9.6"x9.6"), Mini-ITX(6.7"x6.7")

* Support 8cm or 12cm~14cm fan version standard PS2 PSU max. 200mm compatible

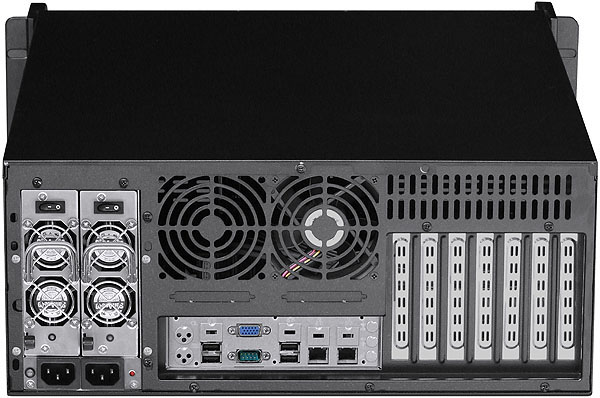

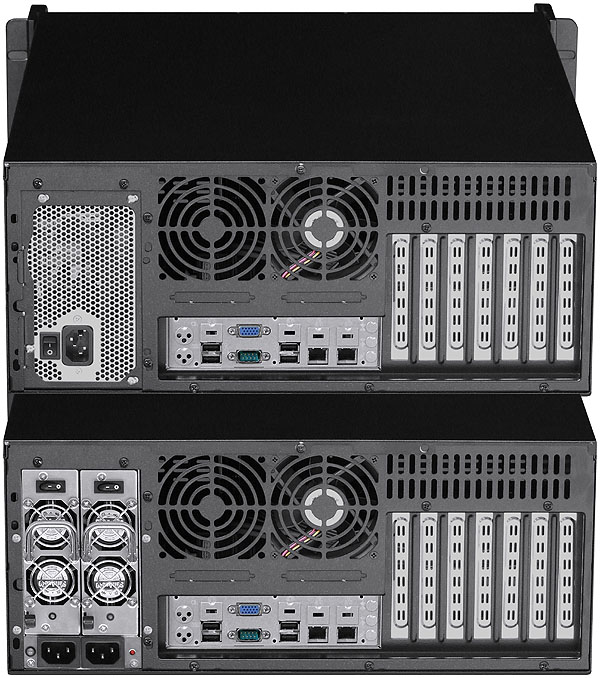

* Support SureStar R4S series 400W~500W PS2 Mini Redundant PS (depth 174mm)
* Support Zippy MRT & MRW series 300W~600W PS2 Mini Redundant PS (depth 185mm)
* Support SureStar R4B series 600W~800W PS2 Mini Redundant PS (depth 199mm)
* Support Zippy MRG series 500W~800W PS2 Mini Redundant PS (depth 200mm)

* Support 7 slot full height expansion cards max. 260mm deep if 5.25" ODD 170mm deep
* Standard paint: scratch-resistant Black sprinkle paint

* Genesys Group branded server chassis model (with build-in fan) global 3 years warranty

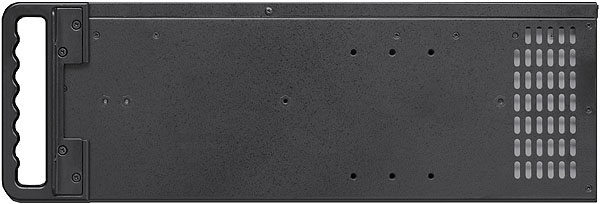

* Chassis dimension: 19" x 4U x 480mm (18.89" deep)

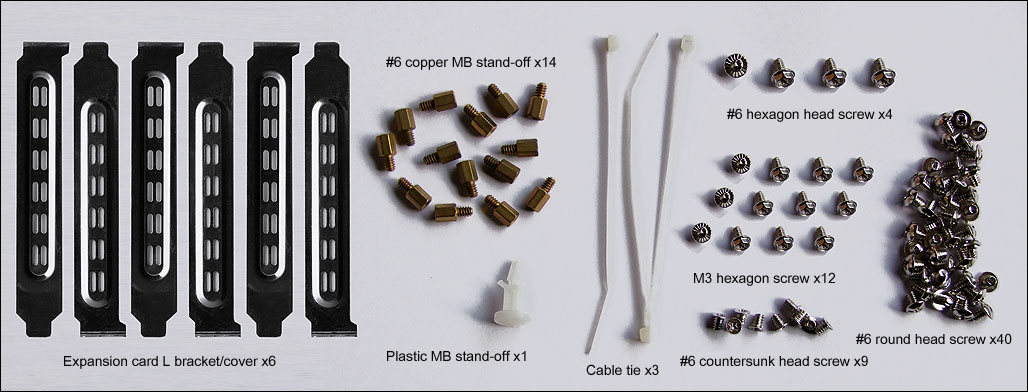

* Accessory pack: #6 MB stand-off x14, plastic MB stand-off x1, cable tie x3, #6 hexagon

   head screw x4, M3 hexagon head screw x12, #6 countersunk screw x9, #6 round head

   screw x40, expansion car L bracket/cover x6
* Package: NW 12 KGM, GW 15.00 KGM, 3.54 CUFT (carton size at 53.8x66x28cm)

Model#

:

E480B

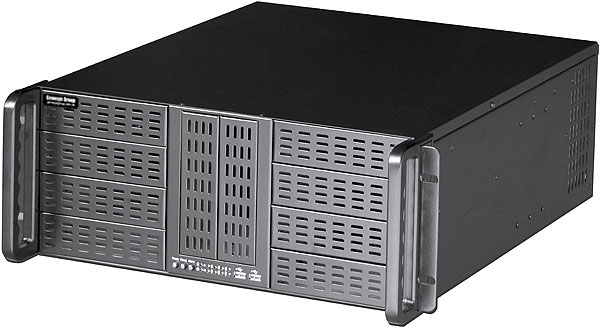

4U black enterprise server chassis

Option A-1

:

PS2 PSU

8cm & 12cm & 14cm fan version PS2 power supply (maximum depth at 200mm)

Option A-2

:

PS2 RPS

SureStar R4S series 400W/500W PS2 Mini Redundant PS (depth at 174mm)

Option A-3

:

PS2 RPS

Zippy MRT & MRW series 300W~600W PS2 Mini Redundant power supply (depth at 185mm)

Option A-4

:

PS2 RPS

SureStar R4B series 600W/700W/800W PS2 Mini Redundant PS (depth at 199mm)

Option A-5

:

PS2 RPS

Zippy MRG series 500W~800W PS2 Mini Redundant power supply (depth at 200mm)

Option B-1

:

NJ-600

600mm 2-layer 3-travel universal rail (cabinet internal depth 600~1200mm compliant)

Option B-2

:

1234U-RMK

1234U rear mounting kit

Option C

:

25-35-BK

5.25" 3.5" 2.5" multiple HDD bracket

Option D-1

:

2525TO3HDBK

2x5.25" ODD space to 3x3.5" bracket

Option D-2

:

3525TO5HDBK

3x5.25" ODD space to 5x3.5" bracket

Option D-3

:

RW135-12G

1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 12G

Option D-4

:

RW135

1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 6G

Option D-5

:

TL135-12G

1x5.25" to 1x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option D-6

:

TL135

1x5.25" to 1x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option D-7

:

RW225-12G

1x5.25" to 2x2.5" HotSwap Cage SATA/SAS 12G

Option D-8

:

RW625-12G

1x5.25" to 6x2.5" HotSwap Cage SATA/SAS 12G

Option D-9

:

RW825-1525

1x5.25" to 8x2.5" HotSwap Cage SATA/SAS 6G

Option D-10

:

RW425-NVMe

1x5.25" to 4x2.5" SSD Removable Cage U.2 NVMe 32G

Option D-11

:

RW425-12G-MS

1x5.25" to 4x2.5" HotSwap Cage SFF-8643 12G

Option D-12

:

RW425-12G

1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 12G

Option D-13

:

RW425

1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 6G

Option D-14

:

RW825

2x5.25" to 8x2.5" HotSwap Cage SATA/SAS 6G

Option D-15

:

RW335-12G

2x5.25" to 3x3.5" HotSwap Cage SATA/SAS 12G

Option D-16

:

RW335

2x5.25" to 3x3.5" HotSwap Cage SATA/SAS 6G

Option D-17

:

TL335-12G

2x5.25" to 3x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option D-18

:

TL335

2x5.25" to 3x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option D-19

:

RW1225

3x5.25" to 12x2.5" HotSwap Cage SATA/SAS 6G

Option D-20

:

RW435-12G-MS

3x5.25" to 4x3.5" HotSwap Cage SFF-8643 12G

Option D-21

:

RW435-12G

3x5.25" to 4x3.5" HotSwap Cage SATA/SAS 12G

Option D-22

:

RW435

3x5.25" to 4x3.5" HotSwap Cage SATA/SAS 6G

Option D-23

:

TL435-12G-MS

3x5.25" to 4x3.5" TrayLess HotSwap Cage SFF-8643 12G

Option D-24

:

TL435-12G

3x5.25" to 4x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option D-25

:

TL435

3x5.25" to 4x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option D-26

:

RW535-12G

3x5.25" to 5x3.5" HotSwap Cage SATA/SAS 12G

Option D-27

:

RW535

3x5.25" to 5x3.5" HotSwap Cage SATA/SAS 6G

Option D-28

:

TL535-12G

3x5.25" to 5x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option D-29

:

TL535

3x5.25" to 5x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option E-1

:

1MSAS-4SATA-500MM

SFF-8087 Mini-SAS (Host) to Four SATA (Device) cable

Option E-2

:

SFF-8643-500MM

SFF-8643 Mini-SAS HD (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option E-3

:

4SATA-SFF-8643-500MM

Four SATA (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option E-4

:

SFF-8643-4SATA-500MM

SFF-8643 Mini-SAS HD (Host) to Four SATA (Device) cable

Option F-1

:

2U2011A-8080

2U Intel LGA2011 LGA2066 active CPU cooler Square (2U 3U 4U chassis compatible)

Option F-2

:

2U2011A-5694

2U Intel LGA2011 active CPU cooler Narrow (2U 3U 4U chassis compatible)

Option F-3

:

2U1150A

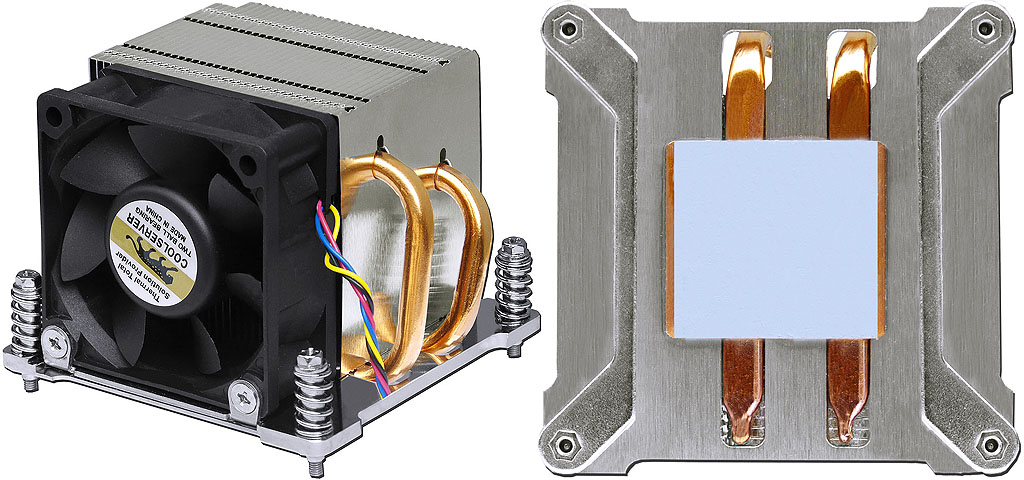

2U Intel LGA115x Xeon 1230 active CPU cooler (2U 3U 4U chassis compatible)

Option F-4

:

2U4094A-SP3

2U AMD EPYC LGA4094 active CPU cooler SP3 (2U 3U 4U chassis compatible)

Option F-5

:

2U1331A-AM4

2U AMD LGA1331 active CPU cooler AM4 (2U 3U 4U chassis compatible)

Option F-6

:

2U3647A-S82

2U Intel LGA3647 active CPU cooler Square (2U 3U 4U chassis compatible)

Option F-7

:

2U3647A-R82-1

2U Intel LGA3647 active CPU cooler Narrow (2U 3U 4U chassis compatible)
