MINI-202B BLACK MINI-ITX NAS DESKTOP/WALLMOUNT CHASSIS

Design announcement dated on April 15, 2014, webpage updated on April 23, 2024

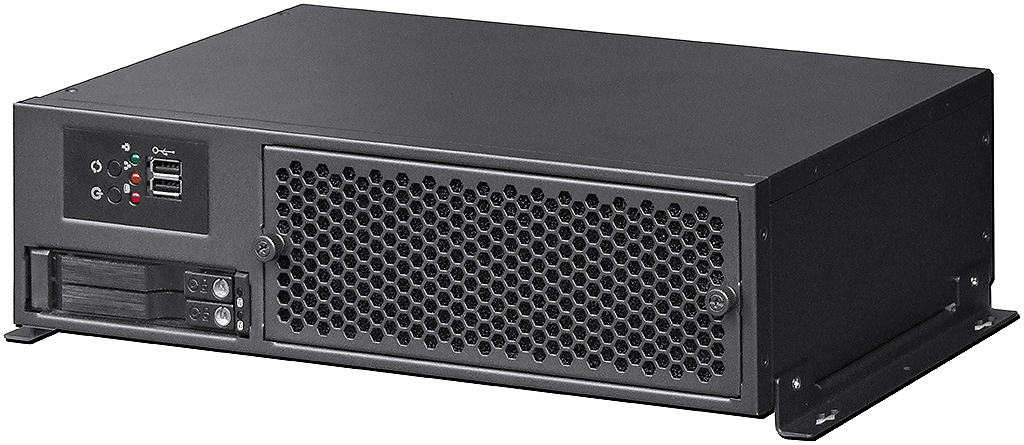

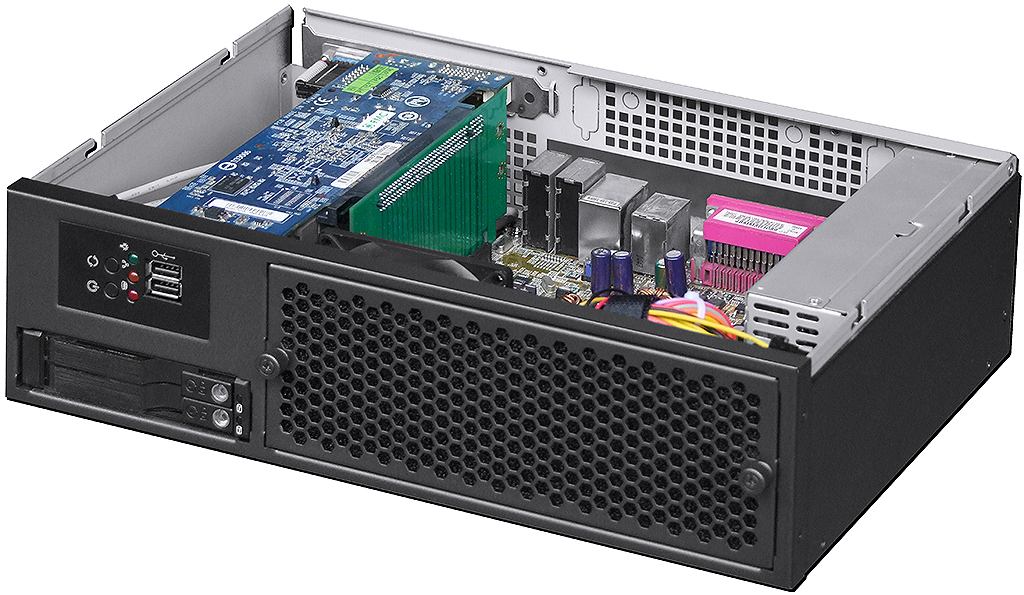

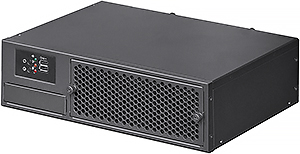

MINI-ITX 5G LTE-U NAS Desktop or Wallmount solution
The features of this new Mini-ITX chassis are compliant with 5G LTE-U or high speed WiFi networks and cloud transmission as well as NAS storage application for enterprises and Soho purpose. It can support maximum two 2.5" hotswap drives and one more 3.5" hard drive with this chassis. This chassis mechanism uses very durable and high end SECC 1.0mm thickness, and the optional wall mount bracket can be installed in harsh industrial environment very well. This chassis also designed with screwless air dust-proof shield to keep away from the dust into the system. Cooling system also equipped with one silent 80mmx25mm fan and one more 80mmx25mm fan and 40mmx20mm fan as option. It supports one expansion card via riser card as well. Welcome distribution world wide.









* Space: 3.5" HDD x2, or 3.5" FDD x1 & 3.5" HDD x1, or 3.5" FDD x1 & 2.5" HDD x1
* Two USB 2.0 ports and LAN/HDD/Power LED at front bezel (two USB 3.0 as option)
* Screwless top cover design for quick system installation
* Screwless dust-proof air filter shield for quick maintenance

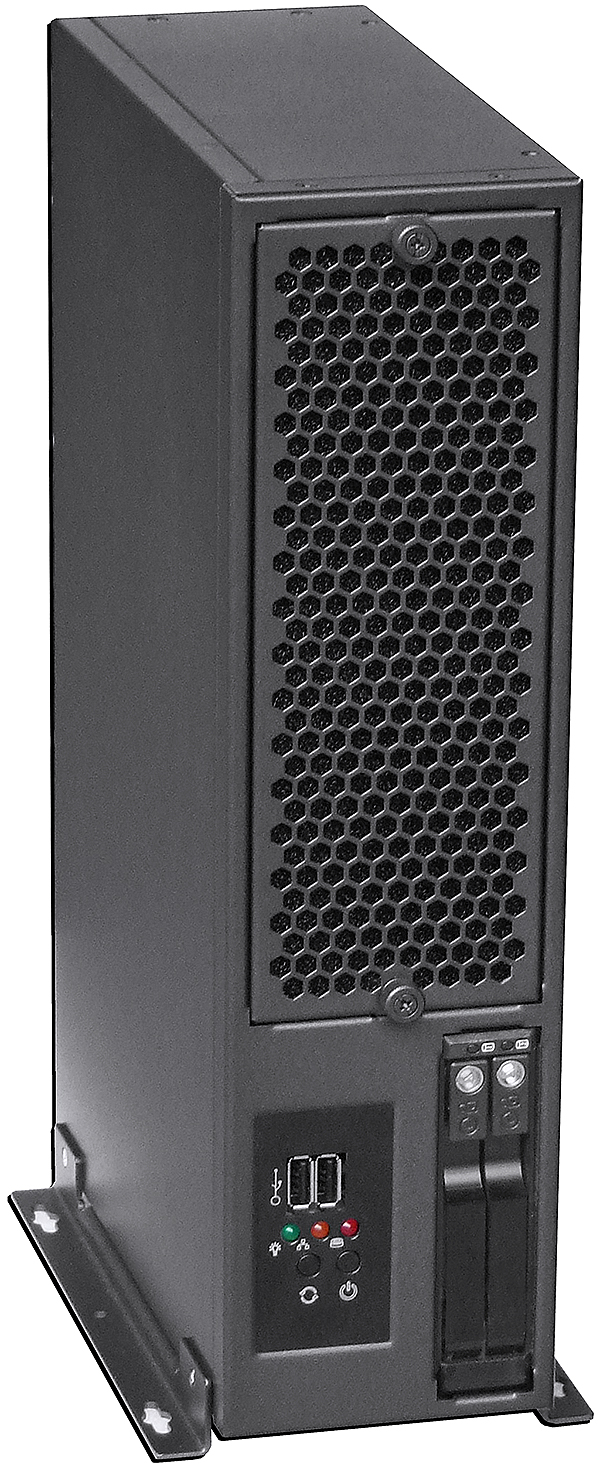

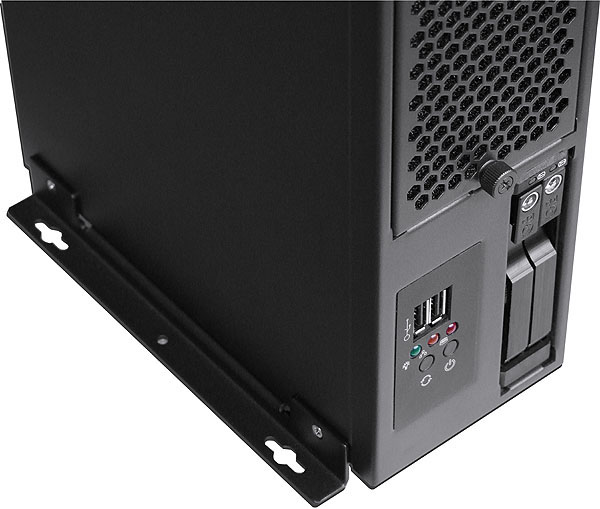

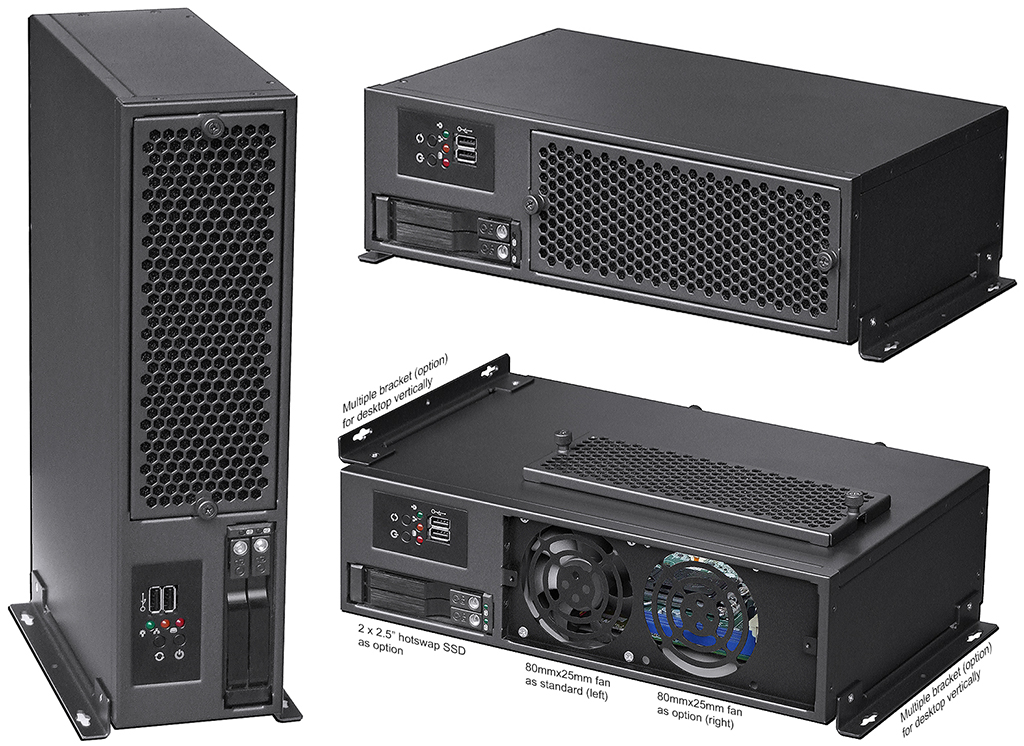

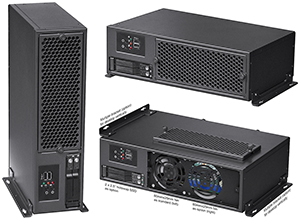

* Multi-functional wallmount bracket for vertical desktop or wallmount platform (option)
* SECC 1.0mm high grade sheet metal as durable mechanism
* Equipped with one 80mmx25mm silent fan (fan part# D80SM-12)

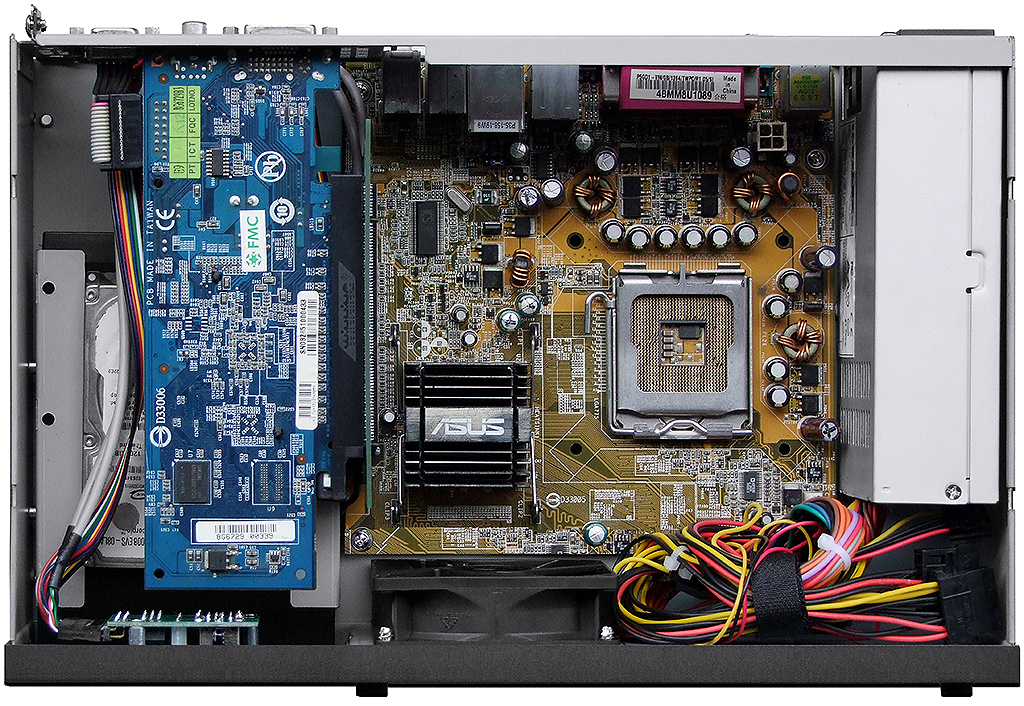

* Support Mini-ITX MB mounting at 6.7" x 6.7" (170mm x 170mm)

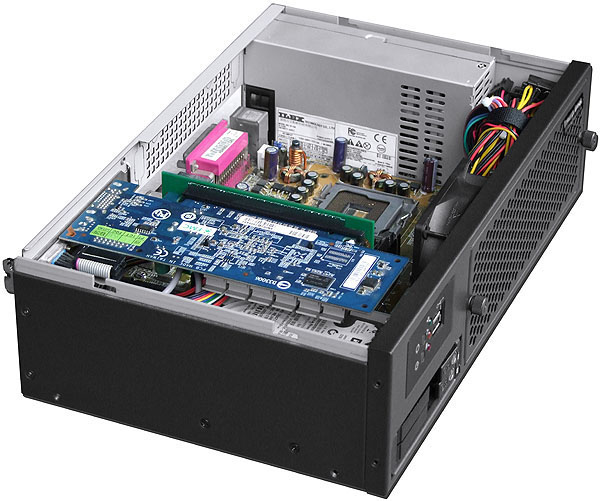

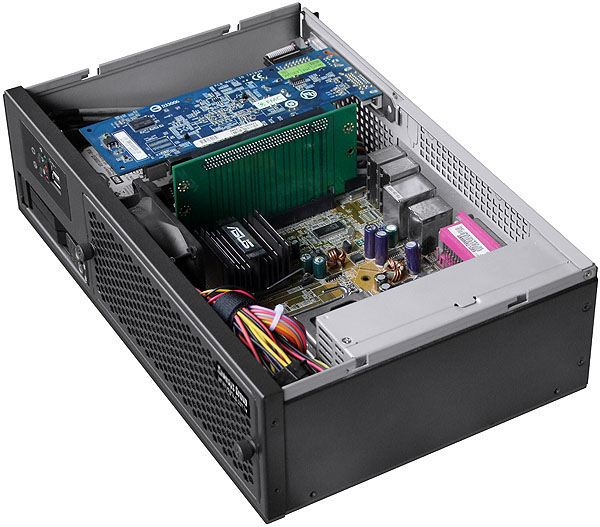

* One expansion card compatible (max. card depth at 185mm via optional riser card)

* Support standard 1U FlexATX 250W power supply (max. psu depth: 150mm)
* Standard paint: scratch-resistant Black textured
* Genesys Group chassis with build-in electronics in global 3 years warranty

* Chassis dimension: 328mm x 88.7mm x 220.9mm (W x H x D)

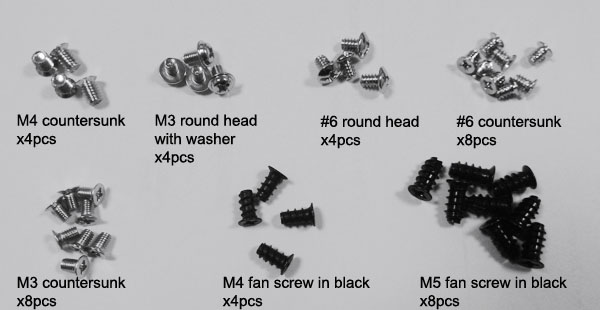

* Accessory Pack: M4 countersunk x4, M3 round head with washer x4, #6 round head

   x4, #6 countersunk x8, M3 countersunk x8, M4 fan screw x4, M5 fan screw x8

* Package: NW 2.35KG, GW 2.86KG, 0.8 CUFT (carton size at 41x29x19cm)

Model#

:

MINI-202B

Black Mini-ITX NAS Desktop/Wallmount chassis

Option A

:

Mini-202B-WALL-BK-B

Black wall mount bracket (MINI-202B & MINI-203B & MINI-204B & MINI-207B compatible)

Option B

:

D80SM-12

80mmx25mm intake cooling fan (one piece as a unit, can install one more at front bezel)

Option C

:

D40SM-12C

40mmx20mm exhaust cooling fan (one piece as a unit, can install 1pcs at rear panel)

Option D-1

:

ENP-7025B

1U FlexATX 250W power supply with PFC (psu size 81.5 x 40.5 x 150/mm)

Option D-2

:

MINI-202-POWER-COVER-B

Black PSU blanking plate for MINI-202B-204B

Option E

:

25-35-BK

1x5.25" to 1x3.5" HDD or 1x3.5" to two 2.5" SSD bracket

Option F-1

:

RW225-M2

1x3.5" FDD to 2 x M.2 SSD Removable Cage M.2 NVMe 64G

Option F-2

:

RW125-NVMe

1x3.5" FDD to 1x2.5" SSD Removable Cage U.2 NVMe 32G

Option F-3

:

RW125-12G

1x3.5" FDD to 1x2.5" HotSwap Cage SATA/SAS 12G

Option F-4

:

TL125-12G

1x3.5" FDD to 1x2.5" TrayLess HotSwap Cage SATA/SAS 12G

Option F-5

:

TL225

1x3.5" FDD to 2x2.5" TrayLess HotSwap Cage SATA/SAS 12G

Option G-1

:

2U1E1XL

 2U 1Express 1X left angle riser card

Option G-2

:

2U1E4XL

 2U 1Express 4X left angle riser card

Option G-3

:

2U1E8XL

 2U 1Express 8X left angle riser card

Option G-4

:

2U1E16XL

 2U 1Express 16X left angle riser card

Option H-1

:

2U2011A-8080

2U Intel LGA2011 LGA2066 active CPU cooler Square (2U 3U 4U chassis compatible)

Option H-2

:

2U2011A-5694

2U Intel LGA2011 active CPU cooler Narrow (2U 3U 4U chassis compatible)

Option H-3

:

2U115XA

2U Intel LGA115x Xeon 1230 active CPU cooler (2U 3U 4U chassis compatible)

Option H-4

:

2U4094A-SP3

2U AMD EPYC LGA4094 active CPU cooler SP3 (2U 3U 4U chassis compatible)

Option H-5

:

2U1718A-AM5

2U AMD AM4 AM5 active CPU cooler (2U 3U 4U chassis compatible)

Option H-6

:

2U3647A-S82

2U Intel LGA3647 active CPU cooler Square (2U 3U 4U chassis compatible)

Option H-7

:

2U3647A-R82-1

2U Intel LGA3647 active CPU cooler Narrow (2U 3U 4U chassis compatible)

Option H-8

:

2U4189A-M82

2U Intel LGA4189 active CPU cooler (2U 3U 4U chassis compatible)

Option H-9

:

2U1700A-V15

2U Intel LGA1700 active CPU cooler (2U 3U 4U chassis compatible)
