S208B-eATX 2U HOTSWAP SYMMETRICAL SERVER CHASSIS
1U 2U 3U 4U front/rear symmetrical compartment patent & copyright officially announced on August 20, 2013 in Taiwan, China, Thailand, Korea, Japan, USA, England, EU, Russia, India. Official Taiwan patent# M468864 & China patent# 3434937. Product announcement & 1st production, dated on April 19, 2018, webpage updated on August 25, 2023

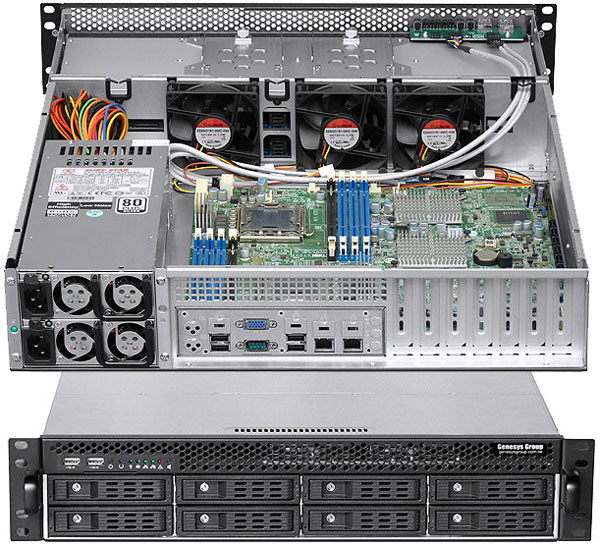

The most prominent feature of S208B-eATX is the short depth at 624mm, compatible with 8 sets of 3.5" hotswap drives as well as 2 sets of 2.5" internal hard drive space, excellent matching and application of RAID controller card installed to comply with this storage server in the cloud environment. A large number and variety of choice of hard disk access space, front and rear symmetrical bodies patented design can also enhance the system integration flexibility and overall strength, the whole bodies do not skew or distort to achieve robust and ensure the security and stability of the system. Cooling as standard three 80mmx25mm 2ball bearing fans (80mmx38mm 2ball fans as option) as effective cooling system, combines the advantages of multi-functional and competitive price, welcome worldwide distribution.

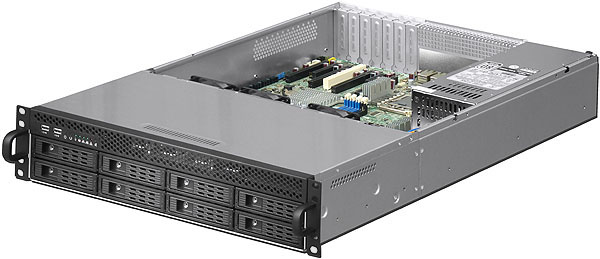

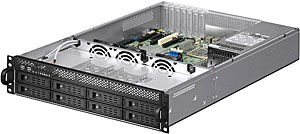

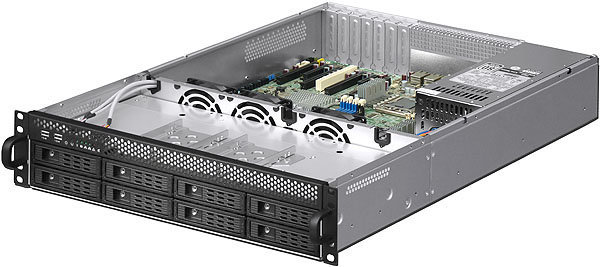

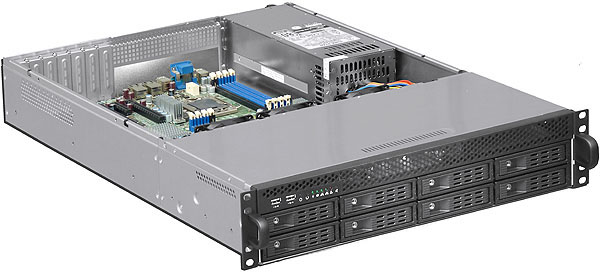

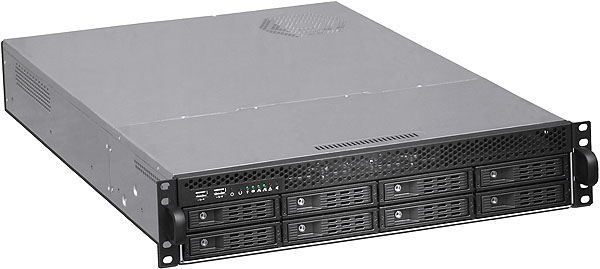

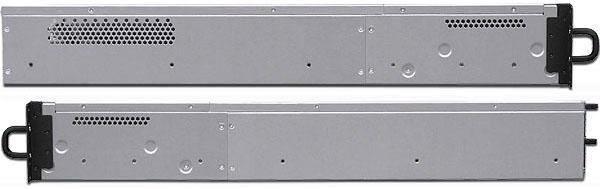

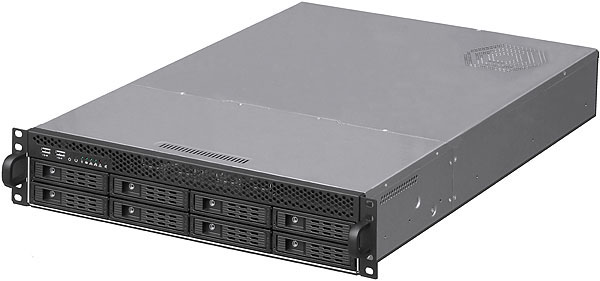

    S208B-mATX front view    stainless tray  stainless 3.5" HDD tray

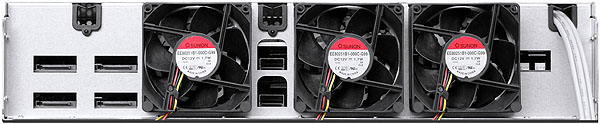

            S208B-mATX backplane view

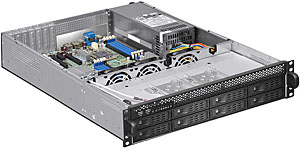

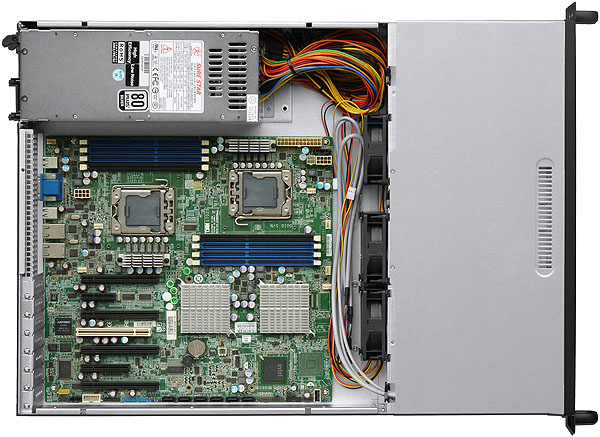

S208B-eATX

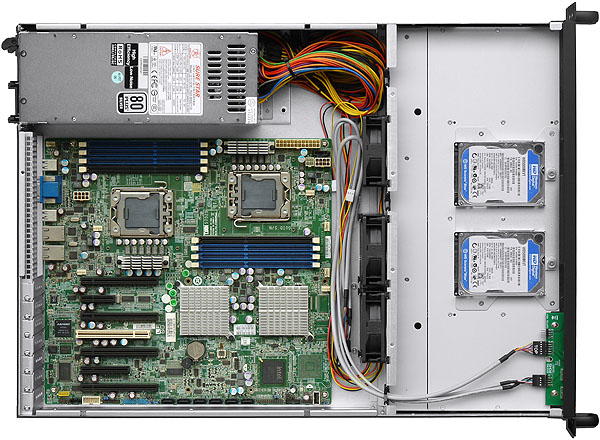

* Two internal 2.5" SSD/HDD bay:

   7mm~15mm height of 2.5" HDD/SSD compatible at front compartment
* 8 hotswap 3.5" HDD bay (2.5" SSD also installable in 3.5" HDD space):

   SATA1/2/3 & SAS1/2 HDD 6Gbps, max. height at 26.1mm (RAID card required)

   or SATA3.2/3.3 & SAS3 HDD 12Gbps, max. height at 26.1mm (RAID card required)

* Mobile rack Left LED: Green power LED

* Mobile rack Right LED: Blue access LED (solid Red light if HDD temp over 60-degree C)
* Stainless & Hair surface proceeded mobile rack structure with security keylock

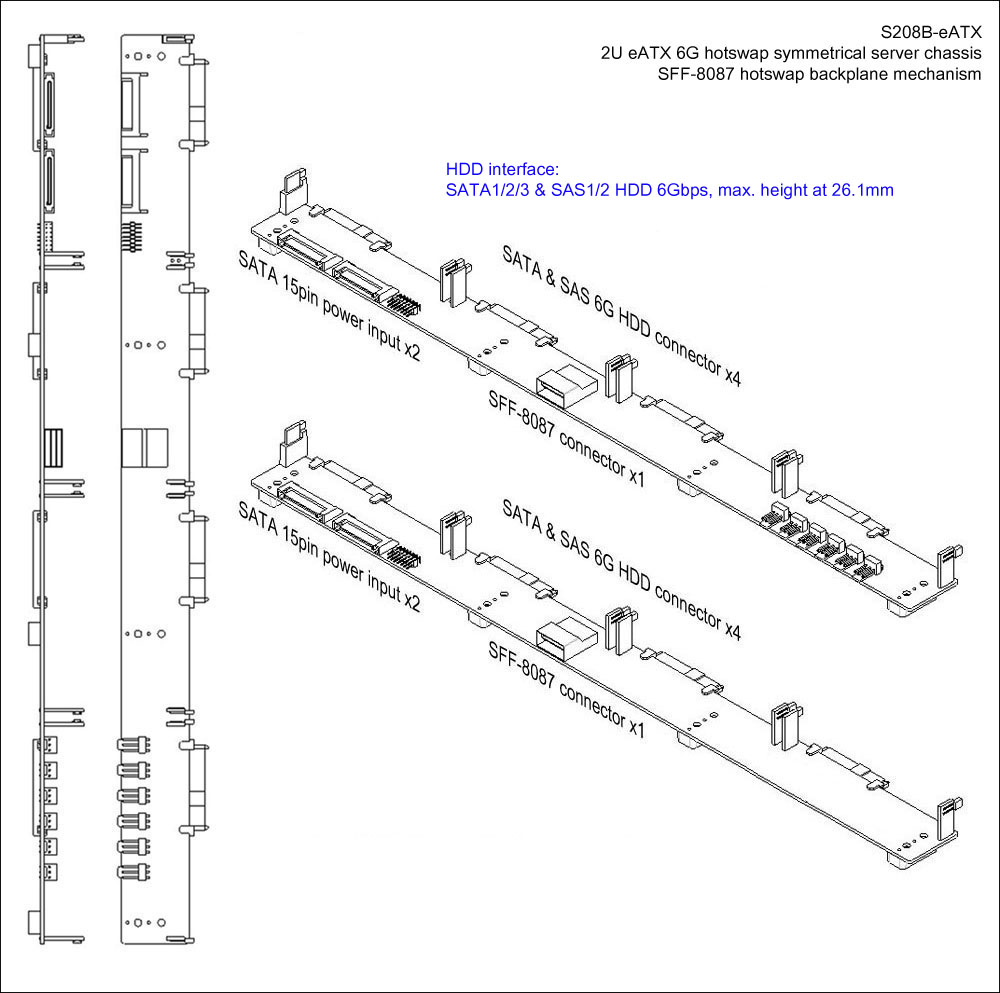

* Hotswap 6G SFF-8087 backplane: 1 to 4port MiniSAS connector (S208B-eATX)

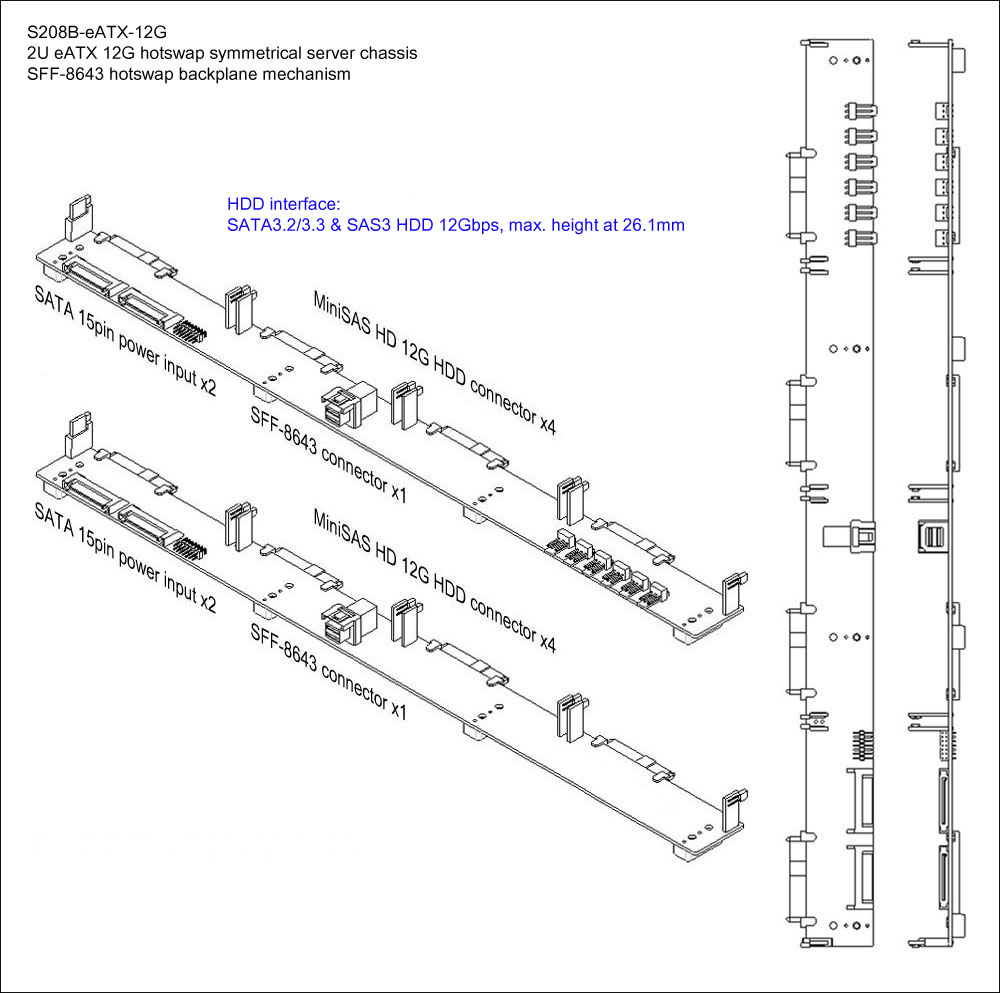

* Hotswap 12G SFF-8643 BP: 1 to 4port MiniSAS HD connector (S208B-eATX-12G)

* Front bezel equipped with two USB 2.0 ports

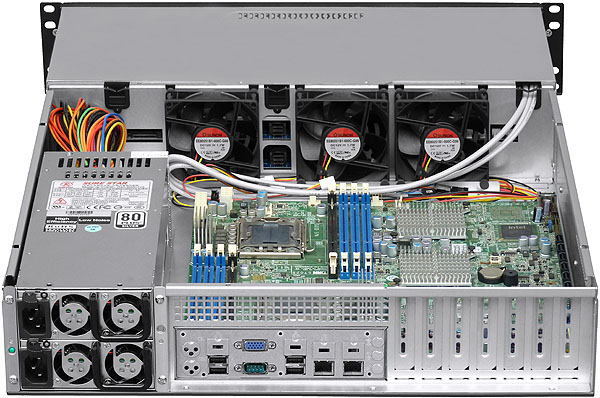

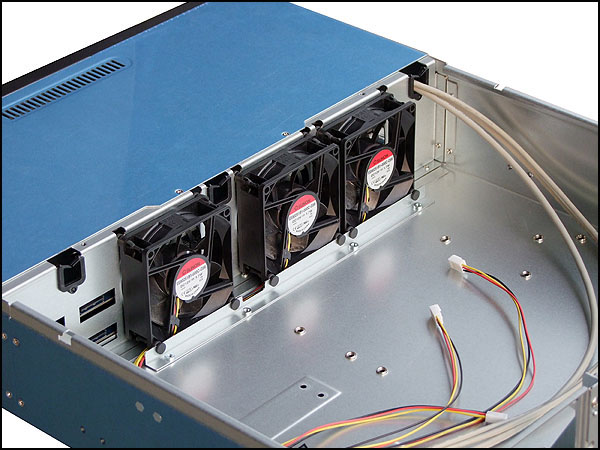

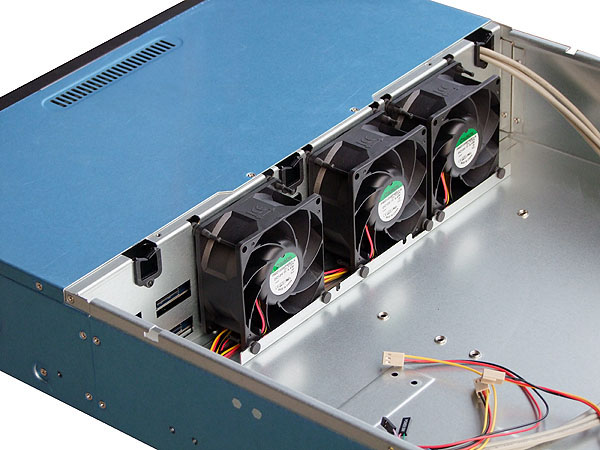

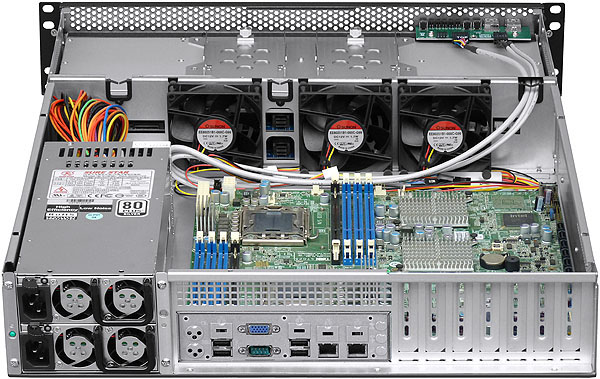

* Three EasySwap SunTai 80mmx25mm 2ball fans (three 80mmx38mm fans as option)

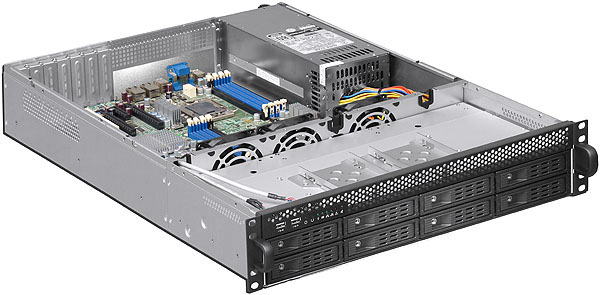

* Compatible MB: LGA2011 & EEB3.61 (12"×13"), CEB1.01 (12"x10.5"), ATX (12"x9.6")
* Compatible with Zippy P2G-5600V, 2U 600W PSU size at 240x100x70mm

* Compatible with Zippy P2G-5650G, 2U 650W PSU size at 240x100x70mm

* Compatible with SureStar SS-2U70EL, 2U 700W PSU size at 225x100x70mm

* Compatible with Zippy P2M-5800V, 2U 800W PSU size at 280x100x70mm

* Compatible with SureStar RA2 and RB2, 2U 460W~1KW RPS size at 217x82x84mm

* Compatible with Zippy G1W2-5760V2V, 2U 760W RPS size at 300x101.2x84mm

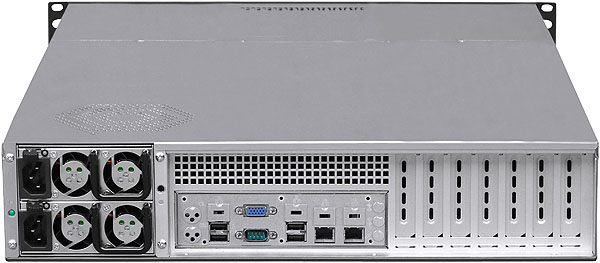

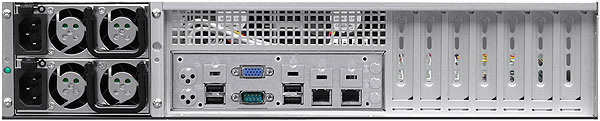

* Compatible with 7-slot Low profile expansion cards at maximum 340mm deep
* Major sheet metal by SGCC 1.2mm~2.0mm thickness with no burr & sharp corners

* Patented front/rear symmetrical body design makes system flexibility & durable
* Standard paint: scratch-resistant black textured at front
* Genesys Group chassis with build-in electronics in global 3 years warranty
* Chassis dimension: 19" x 2U x 624mm (24.57" deep)
* Accessory: Key x2, MB stand-off x11, various screw x38, tray ID sign x1
* Package: NW 10 KGM, GW 12 KGM, 3.11 CUFT (carton size at 76x58x20cm)

Model#

:

S208B-eATX

2U eATX 6G hotswap symmetrical server chassis (6G version and three 80mm x 25mm fans)

Model#

:

S208B-eATX-8038

2U eATX 6G hotswap symmetrical server chassis (6G version and three 80mm x 38mm fans)

Model#

:

S208B-eATX-12G

2U eATX 12G hotswap symmetrical server chassis (12G version and three 80mm x 25mm fans)

Model#

:

S208B-eATX-12G-8038

2U eATX 12G hotswap symmetrical server chassis (12G version and three 80mm x 38mm fans)

Option A-1

:

2U PSU

Zippy P2G-5600V, 2U 600W PSU size at 240x100x70mm

Option A-2

:

2U PSU

Zippy P2G-5650G, 2U 650W PSU size at 240x100x70mm

Option A-3

:

2U PSU

SureStar SS-2U70EL, 2U 700W PSU size at 225x100x70mm

Option A-4

:

2U PSU

Zippy P2M-5800V, 2U 800W PSU size at 280x100x70mm

Option A-5

:

2U Redundant PS

SureStar RA2 and RB2, 2U RPS size at 217x82x84mm (mounting bracket is option)

Option A-6

:

2U Redundant PS

Zippy G1W2-5760V2V, 2U 760W RPS size at 300x101.2x84mm

Option B-1

:

NJ-S632

632mm 3-travel slimline slide rail (part# is 1 pair, compatible rack external depth 700~1000mm)

Option B-2

:

SRMK-550

550mm Slimline rear mounting kit (part# is 1 pair)

Option C-1

:

4SATA-1MSAS-500MM

Four SATA (Host) to SFF-8087 Mini-SAS (Device) cable

Option C-2

:

1MSAS-1MSAS-500MM

SFF-8087 Mini-SAS (Host) to SFF-8087 Mini-SAS (Device) cable

Option C-3

:

SFF-8643-500MM

SFF-8643 Mini-SAS HD (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option C-4

:

4SATA-SFF-8643-500MM

Four SATA (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option D-1

:

2U2011A-8080

2U Intel LGA2011 LGA2066 active CPU cooler Square (2U 3U 4U chassis compatible)

Option D-2

:

2U2011A-5694

2U Intel LGA2011 active CPU cooler Narrow (2U 3U 4U chassis compatible)

Option D-3

:

2U115XA

2U Intel LGA115x Xeon 1230 active CPU cooler (2U 3U 4U chassis compatible)

Option D-4

:

2U4094A-SP3

2U AMD EPYC LGA4094 active CPU cooler SP3 (2U 3U 4U chassis compatible)

Option D-5

:

2U1331A-AM4

2U AMD LGA1331 active CPU cooler AM4 (2U 3U 4U chassis compatible)

Option D-6

:

2U3647A-S82

2U Intel LGA3647 active CPU cooler Square (2U 3U 4U chassis compatible)

Option D-7

:

2U3647A-R82-1

2U Intel LGA3647 active CPU cooler Narrow (2U 3U 4U chassis compatible)

Option D-8

:

2U4189A-M82

2U Intel LGA4189 active CPU cooler (2U 3U 4U chassis compatible)

Option D-9

:

2U1700A-V15

2U Intel LGA1700 active CPU cooler (2U 3U 4U chassis compatible)
