ATX-100B BLACK ATX DESKTOP-MINITOWER-WALLMOUNT CHASSIS

1st production and shipment launched on November 06, 2020, webpage updated on February 18, 2021

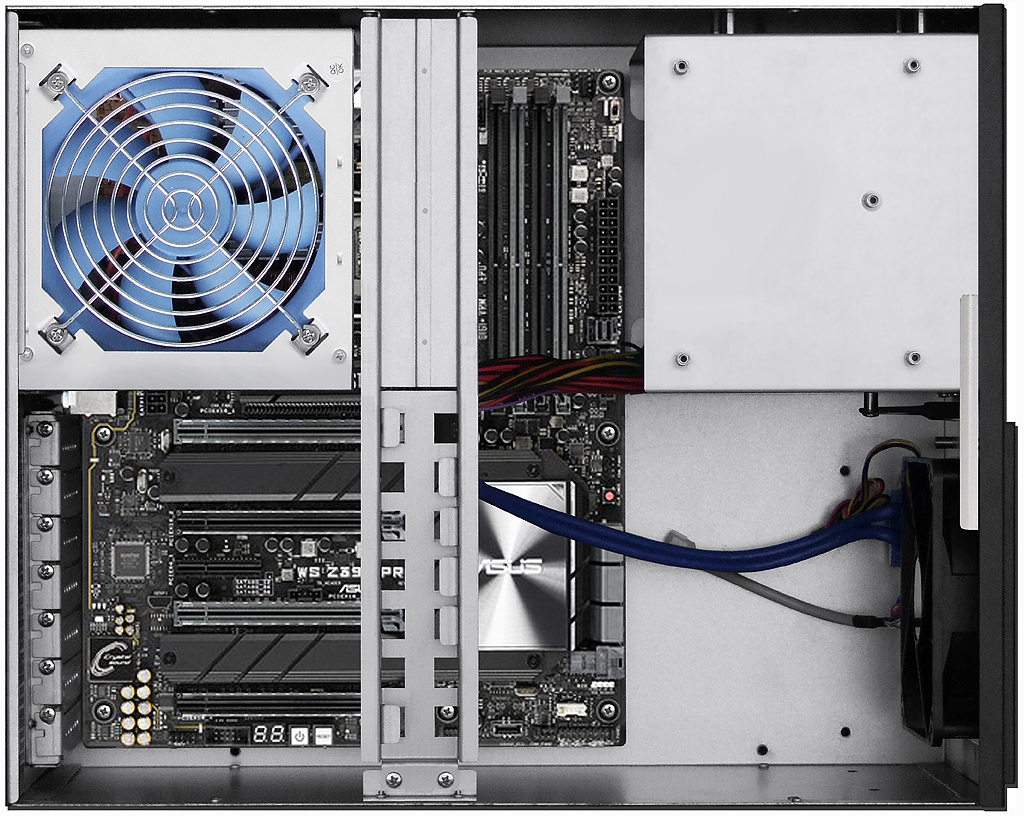

GPU and NAS Cloud Storage solution recommended. A server with multi-function architecture, DeskTop, MiniTower, and wall-mounted environment are all suitable. GPU computing uses up to 3 RTX 3070 or 3 RTX 3080, or 2 RTX 3090 GPU graphic cards compatible. In terms of heat dissipation, a 120mmx25mm silent fan with 59CFM air flow as standard, or a 120mmx38mm two-ball bearing cooling fan with 155CFM air flow can be installed as an option. Standard storage capacity can be installed with 3 sets of 5.25" ODD that can rotate 90 degrees and 2 sets of 2.5" U.2 SSD, it can also choose to install a variety of hot-swappable HDD trays. Standard ATX 7-slot motherboard and PS2 single or redundant power supply can be installed, welcome customers distribution all over the world.



* Drive bay: Three 90-degree rotatable 5.25" ODD and two 2.5" SSD or U.2 SSD

* SGCC 1.0mm high grade sheet metal thickness as durable & rugged mechanism

* Front shield by 12cm dust filter with captive hand screws

* One 120mmx25mm silent cooling fan behind dust filter (fan part# D12SM-12, CFM @59)

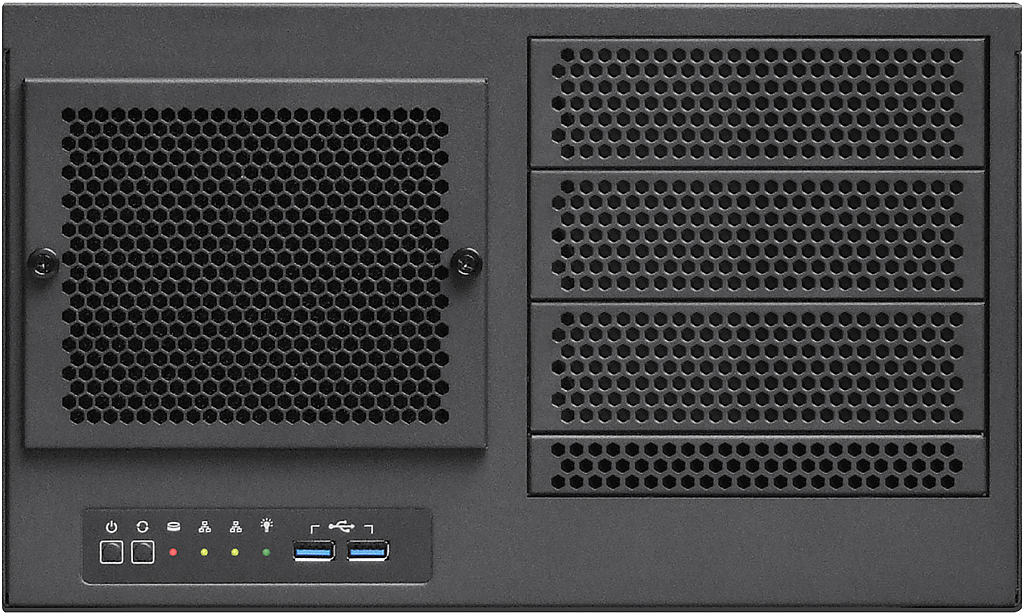

* Two USB 3.0 ports and control devices at front bezel (USB 2.0 also compatible)

* Upward & downward hold-down card clamp with height adjustable clamps x7

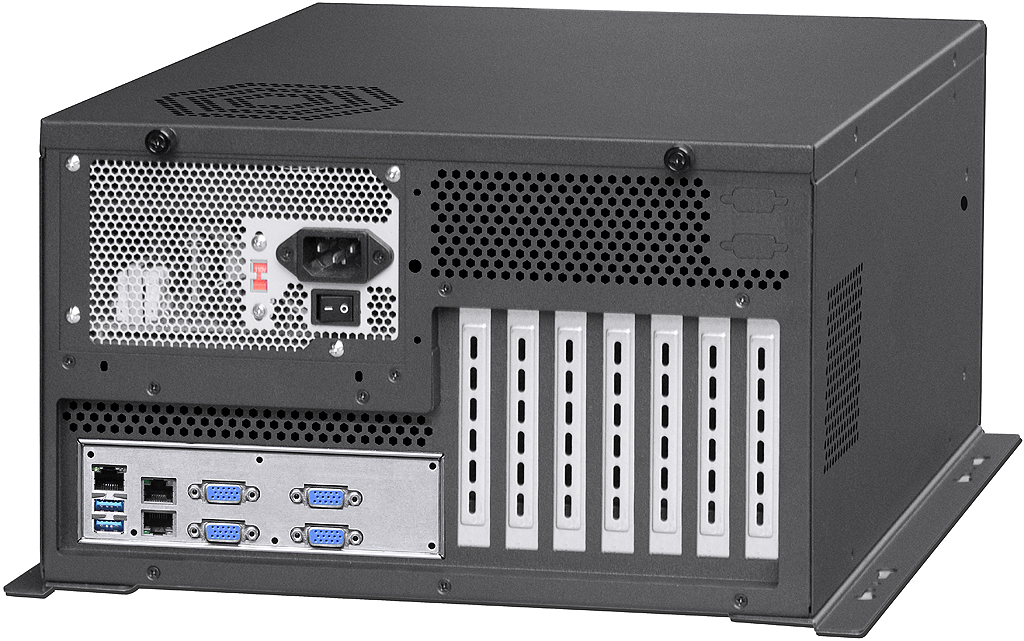

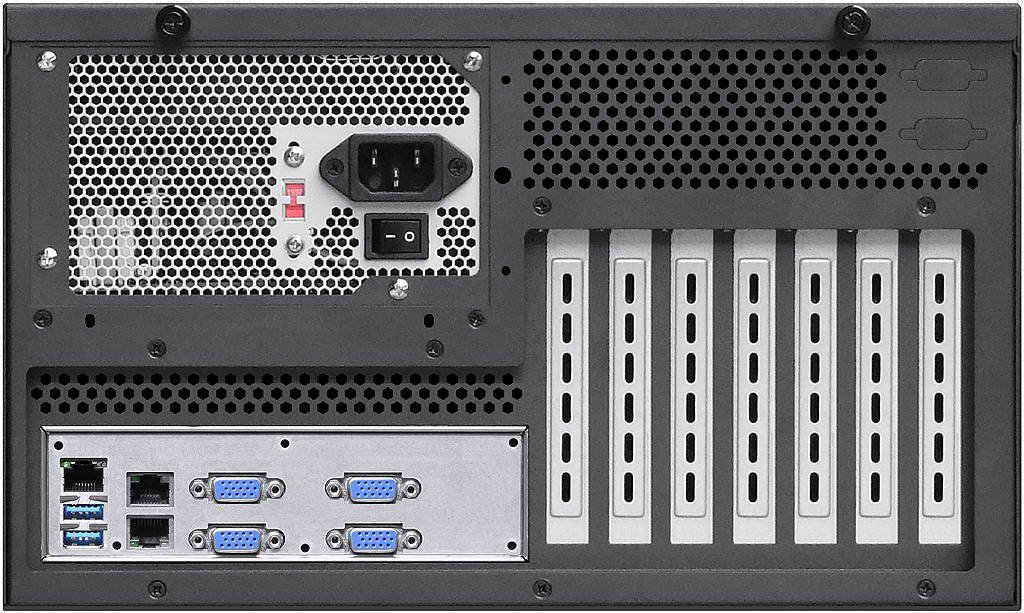

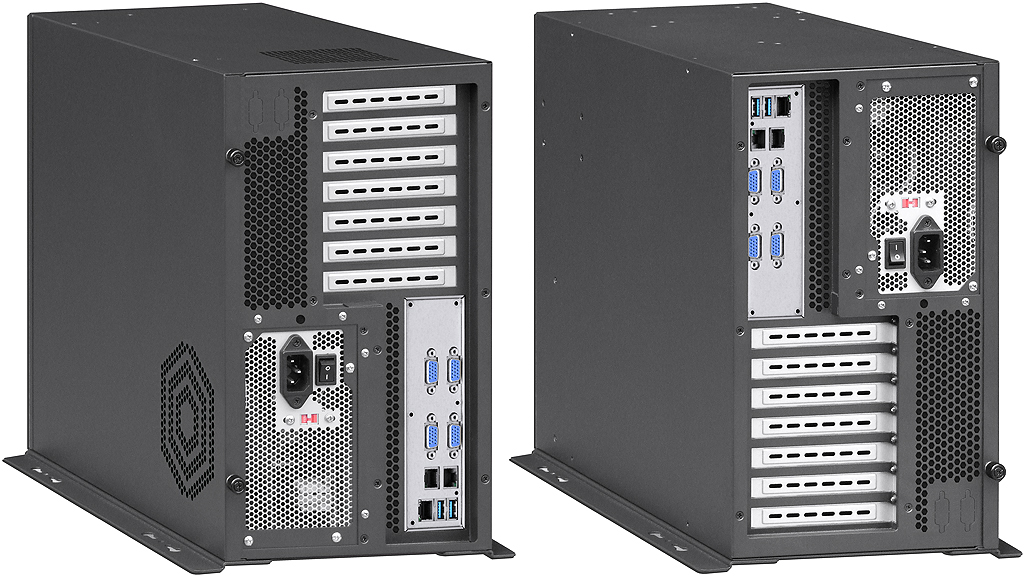

* 7-slot full height & size expansion cards at max. 360mm (if 120mmx25mm fan installed)

* 7-slot full height & size expansion cards at max. 340mm (if 120mmx38mm fan installed)

* Compatible MB: ATX(12"x9.6"), MicroATX(9.6"x9.6"), Mini-ITX(6.7"x6.7")

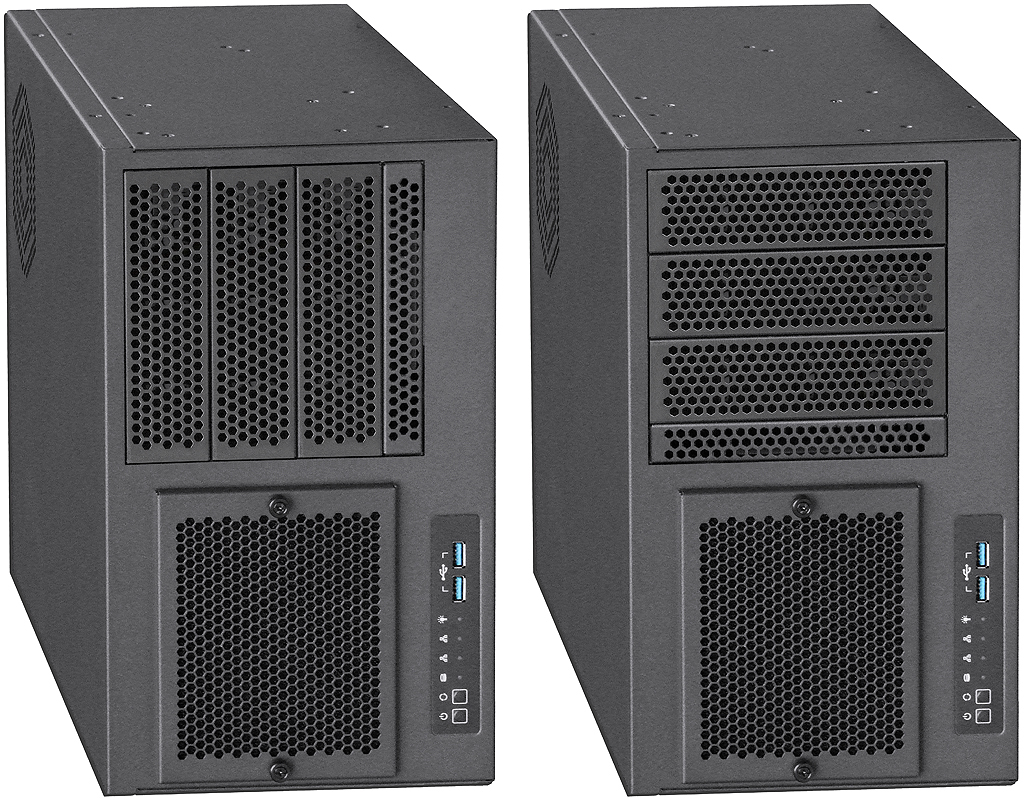

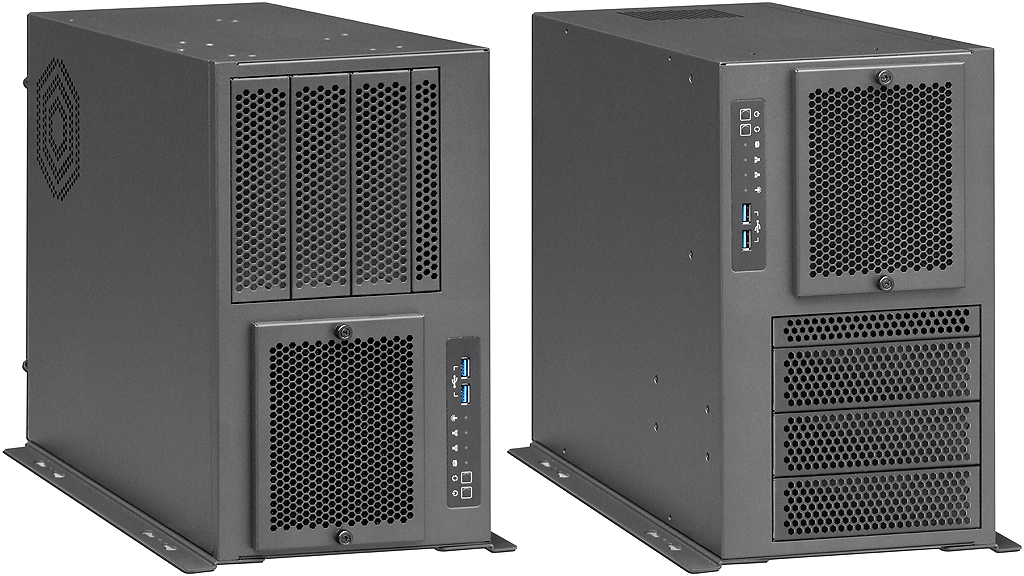

* Compatible with DeskTop, MiniTower, and wall-mounted platform solution

* Black wallmount kit as option (part# ATX-100B-WALL-BK, one pair)

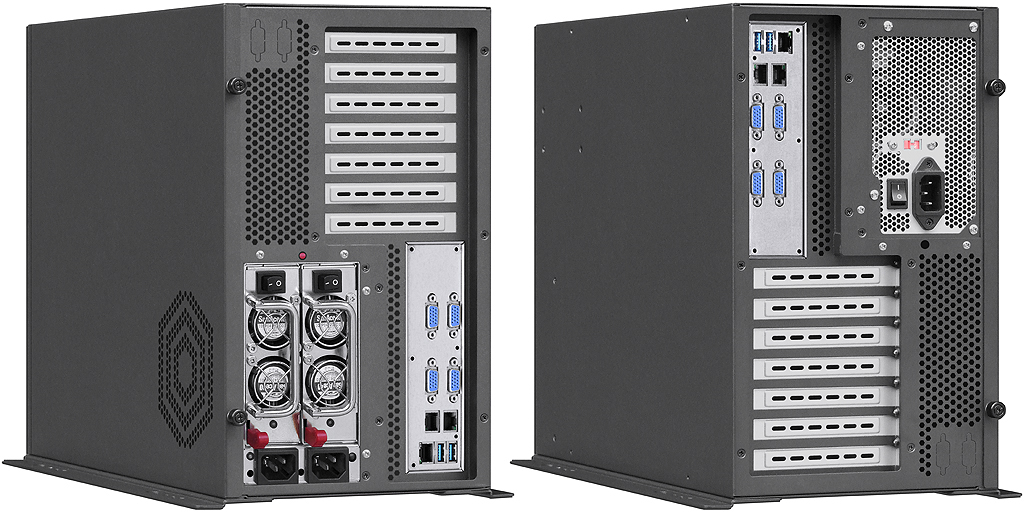

* 8cm or 12cm~14cm fan version PS2 PS or RPS compatible (max. depth at 200mm)

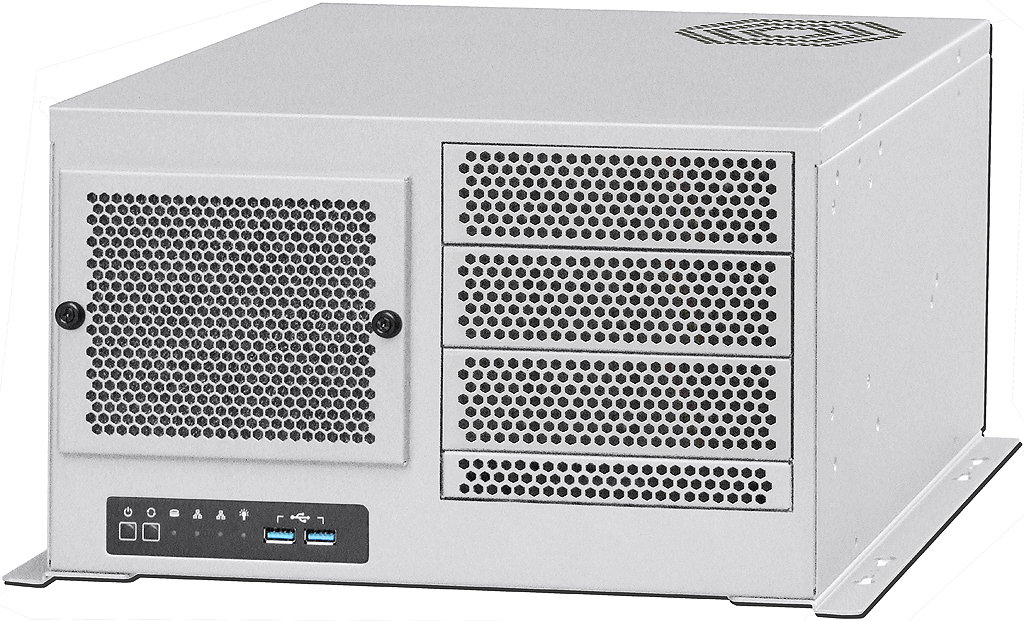

* Standard paint: scratch-resistant Black textured or scratch-resistant Beige RAL 9018

* Genesys Group chassis with build-in electronics in global 3 years warranty

* Chassis dimension: D.410 x W.330 x H.196 /mm

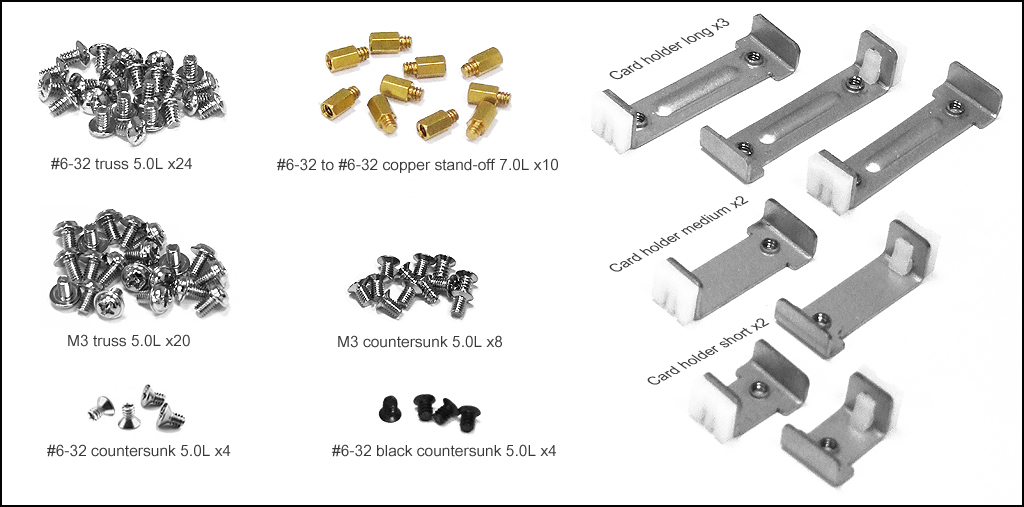

* Accessory: #6 & M3 screw x60, #6 MB stand-off x10, hold-down card clamp x7

* Package: NW 6.77KG, GW 7.96KG, 2.70 CUFT (carton size at 53.5x44.5x32cm)











Model#

:

ATX-100B

Black ATX desktop-minitower-wallmount chassis (Model# as ATX-100 if beige color painted)

Option A

:

SUNTAi12038

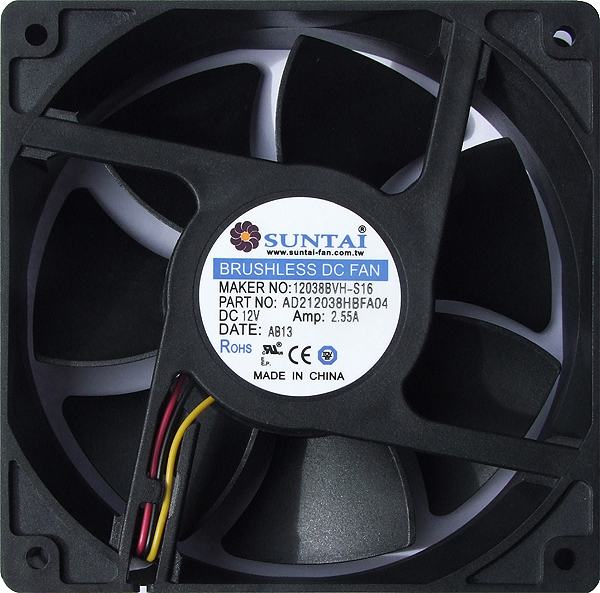

Suntai 120mm x 38mm two-ball bearing fan (CFM 155.34, Air pressure 16.23mm H2O)

Option B

:

ATX-100B-WALL-BK Black wallmount kit (part# ATX-100-WALL-BK if beige, one pair, thickness at 1.6mm, NW at 0.56KG)

Option C-1

:

PS2 PSU

8cm & 12cm & 14cm fan version PS2 power supply (depth at 140mm~200mm)

Option C-2

:

PS2 RPS

SureStar R4S series 400W/500W PS2 Mini Redundant PS (depth at 174mm)

Option C-3

:

PS2 RPS

Zippy MRT & MRW series 300W~600W PS2 Mini Redundant power supply (depth at 185mm)

Option C-4

:

PS2 RPS

SureStar R4B series 600W/700W/800W PS2 Mini Redundant PS (depth at 199mm)

Option C-5

:

PS2 RPS

Zippy MRG series 500W~800W PS2 Mini Redundant power supply (depth at 200mm)

Option D-1

:

25-35-BK

1x5.25" to 1x3.5" HDD or 1x3.5" to two 2.5" SSD bracket

Option D-2

:

RW135-12G

1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 12G

Option D-3

:

RW135

1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 6G

Option D-4

:

TL135-12G

1x5.25" to 1x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option D-5

:

TL135

1x5.25" to 1x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option D-6

:

RW225-12G

1x5.25" to 2x2.5" HotSwap Cage SATA/SAS 12G

Option D-7

:

RW625-12G

1x5.25" to 6x2.5" HotSwap Cage SATA/SAS 12G

Option D-8

:

RW825-1525

1x5.25" to 8x2.5" HotSwap Cage SATA/SAS 6G

Option D-9

:

RW425-NVMe

1x5.25" to 4x2.5" SSD Removable Cage U.2 NVMe 32G

Option D-10

:

RW425-12G-MS

1x5.25" to 4x2.5" HotSwap Cage SFF-8643 12G

Option D-11

:

RW425-12G

1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 12G

Option D-12

:

RW425

1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 6G

Option E-1

:

2525TO3HDBK

2x5.25" to 3x3.5" bracket

Option E-2

:

RW825

2x5.25" to 8x2.5" HotSwap Cage SATA/SAS 6G

Option E-3

:

RW335-12G

2x5.25" to 3x3.5" HotSwap Cage SATA/SAS 12G

Option E-4

:

RW335

2x5.25" to 3x3.5" HotSwap Cage SATA/SAS 6G

Option E-5

:

TL335-12G

2x5.25" to 3x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option E-6

:

TL335

2x5.25" to 3x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option F-1

:

3525TO5HDBK

3x5.25" to 5x3.5" bracket

Option F-2

:

RW1225

3x5.25" to 12x2.5" HotSwap Cage SATA/SAS 6G

Option F-3

:

RW435-12G-MS

3x5.25" to 4x3.5" HotSwap Cage SFF-8643 12G

Option F-4

:

RW435-12G

3x5.25" to 4x3.5" HotSwap Cage SATA/SAS 12G

Option F-5

:

RW435

3x5.25" to 4x3.5" HotSwap Cage SATA/SAS 6G

Option F-6

:

TL435-12G-MS

3x5.25" to 4x3.5" TrayLess HotSwap Cage SFF-8643 12G

Option F-7

:

TL435-12G

3x5.25" to 4x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option F-8

:

TL435

3x5.25" to 4x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option F-9

:

RW535-12G

3x5.25" to 5x3.5" HotSwap Cage SATA/SAS 12G

Option F-10

:

RW535

3x5.25" to 5x3.5" HotSwap Cage SATA/SAS 6G

Option F-11

:

TL535-12G

3x5.25" to 5x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option F-12

:

TL535

3x5.25" to 5x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option G-1

:

1MSAS-4SATA-500MM

SFF-8087 Mini-SAS (Host) to Four SATA (Device) cable

Option G-2

:

SFF-8643-500MM

SFF-8643 Mini-SAS HD (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option G-3

:

4SATA-SFF-8643-500MM

Four SATA (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option G-4

:

SFF-8643-4SATA-500MM

SFF-8643 Mini-SAS HD (Host) to Four SATA (Device) cable

Option H-1

:

2U2011A-8080

2U Intel LGA2011 LGA2066 active CPU cooler Square (2U 3U 4U chassis compatible)

Option H-2

:

2U2011A-5694

2U Intel LGA2011 active CPU cooler Narrow (2U 3U 4U chassis compatible)

Option H-3

:

2U1150A

2U Intel LGA115x Xeon 1230 active CPU cooler (2U 3U 4U chassis compatible)

Option H-4

:

2U4094A-SP3

2U AMD EPYC LGA4094 active CPU cooler SP3 (2U 3U 4U chassis compatible)

Option H-5

:

2U1331A-AM4

2U AMD LGA1331 active CPU cooler AM4 (2U 3U 4U chassis compatible)

Option H-6

:

2U3647A-S82

2U Intel LGA3647 active CPU cooler Square (2U 3U 4U chassis compatible)

Option H-7

:

2U3647A-R82-1

2U Intel LGA3647 active CPU cooler Narrow (2U 3U 4U chassis compatible)
