MINI-206B BLACK MINI-ITX DESKTOP/VESA CHASSIS

Announced date: January 09, 2014, webpage updated on September 18, 2014

Intel Atom (BAY Trail) E3815~E3845 and Intel LGA1150, VIA C series platform recommended
Focusing on customer requirements and the latest operating environment are our development philosophy. This platform of Mini-ITX chassis design can effectively meet the educational system, the financial system of thin client terminals, as well as the stability of the Government automatic Office system use. MINI-206B is very cost effective structure, which features a low power consumption, low heat and low cost. Native of small size with high stability of the system is one of the design features of this platform, its ultra-quiet characteristics would be more appropriate for the general user or office use, and trading platforms such as point-of-sale POS/POI systems, KIOSK, ATM, Web payphone terminals, industrial hosts, and so on. Besides this MINI-206B can be tower or desktop or optional wall mount / VESA mount , which can be flexibly integrated infrared bar code scanners, ID card identification device, credit card machine, and other external devices. Space compact design known as thin clients is the best platform than the old and traditional PC solutions.

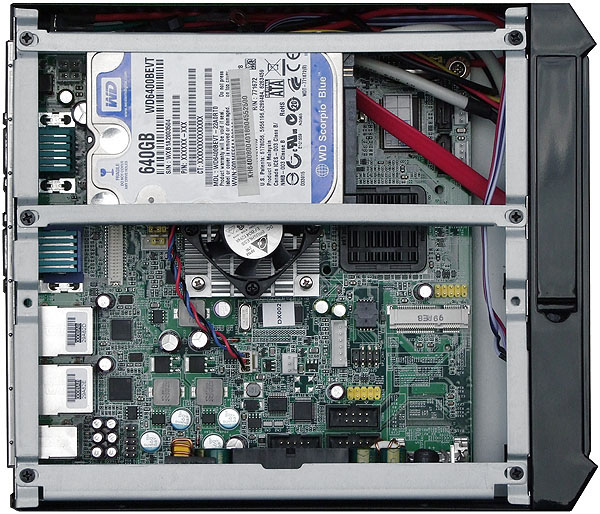

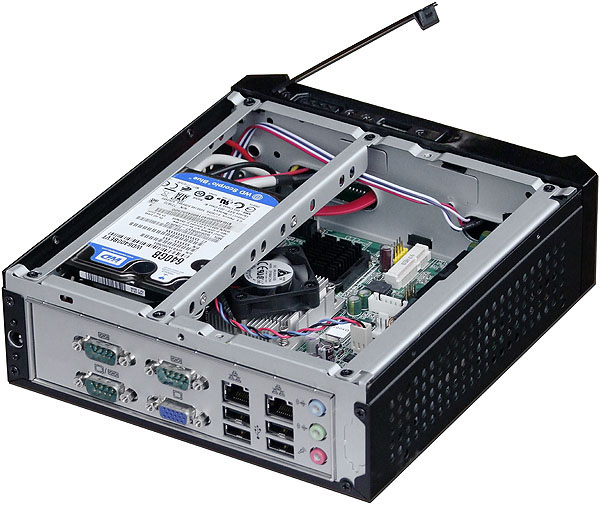

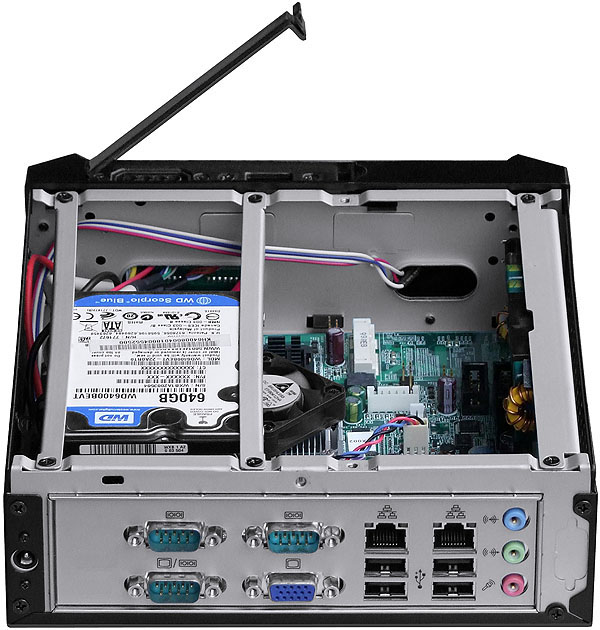

* Drive bay: 1 x 2.5" HDD bay

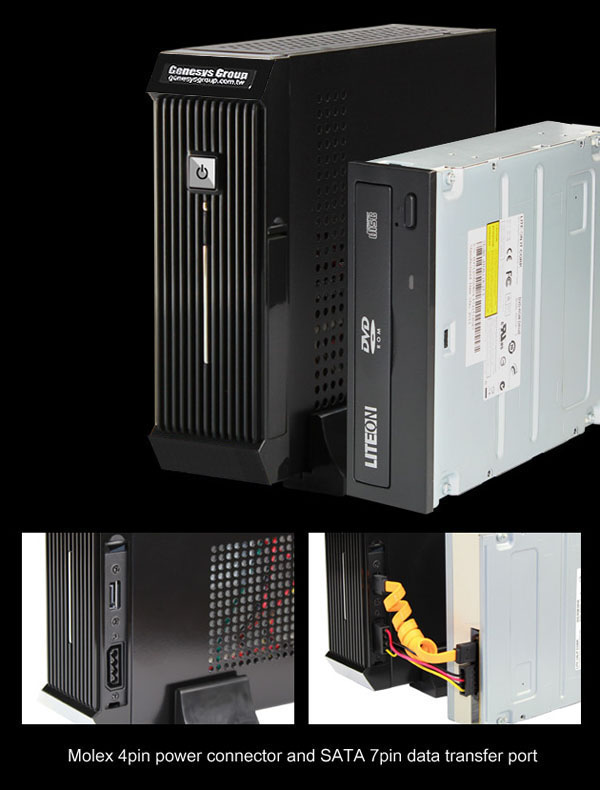

* Upper side equipped with 1 x Molex power connector & 1 x SATA 7pin data transfer port

* Bottom side equipped with 2 x USB port & 1 x Audio port

* With internal 120W DC to DC power PCB module
* With external
60W AC 100V~240V to DC 12V adapter (input 50/60Hz 2A, output 12V 5A)

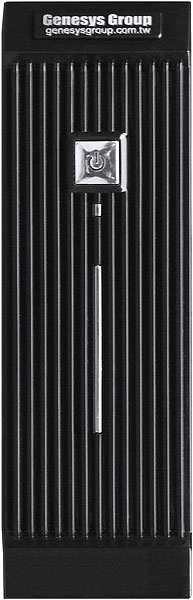

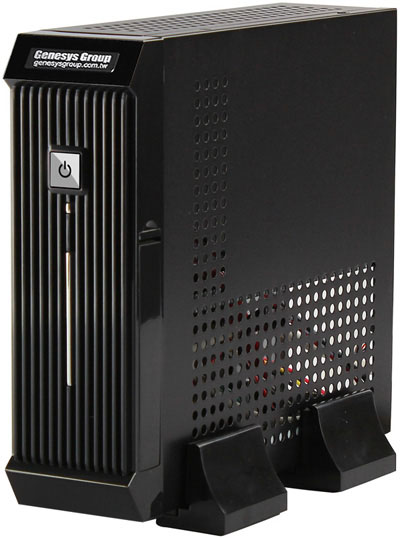

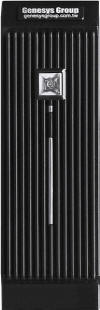

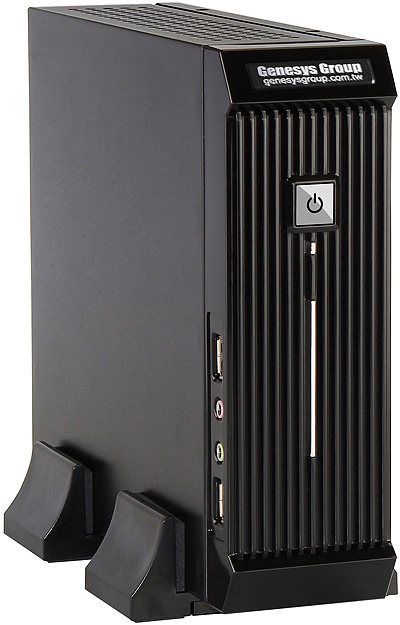

* With black ABS foot pads as vertical platform

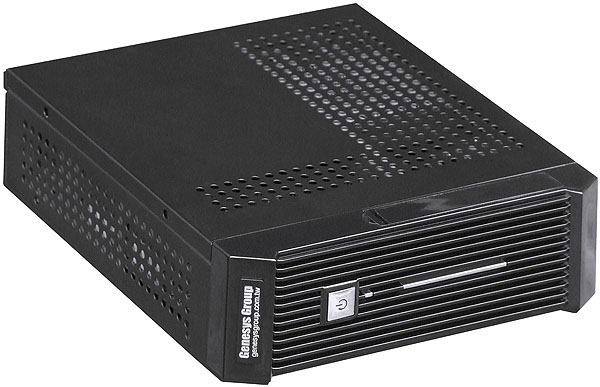

* With transparent circular paws as horizontal platform

* One VESA mount bracket can be fixed behind LCD monitor (option)

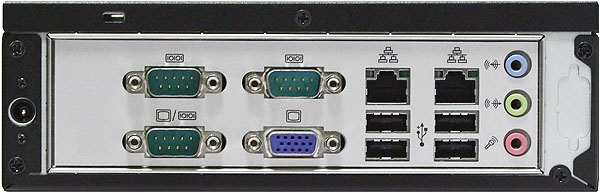

* Rear panel supported with one DB9 knock-off design

* Support Mini-ITX MB mounting at 6.7" x 6.7" (170mm x 170mm)

* Support 1U CPU cooler (max. height suggested at 40mm if CPU located beneath HDD)

* Durable mechanism by high grade SECC 0.6mm sheet metal

* Standard paint: black

* Genesys Group branded server chassis model (with build-in fans) global 3 years warranty
* C
hassis dimension: 190mm x 60mm x 218mm (W x H x D)

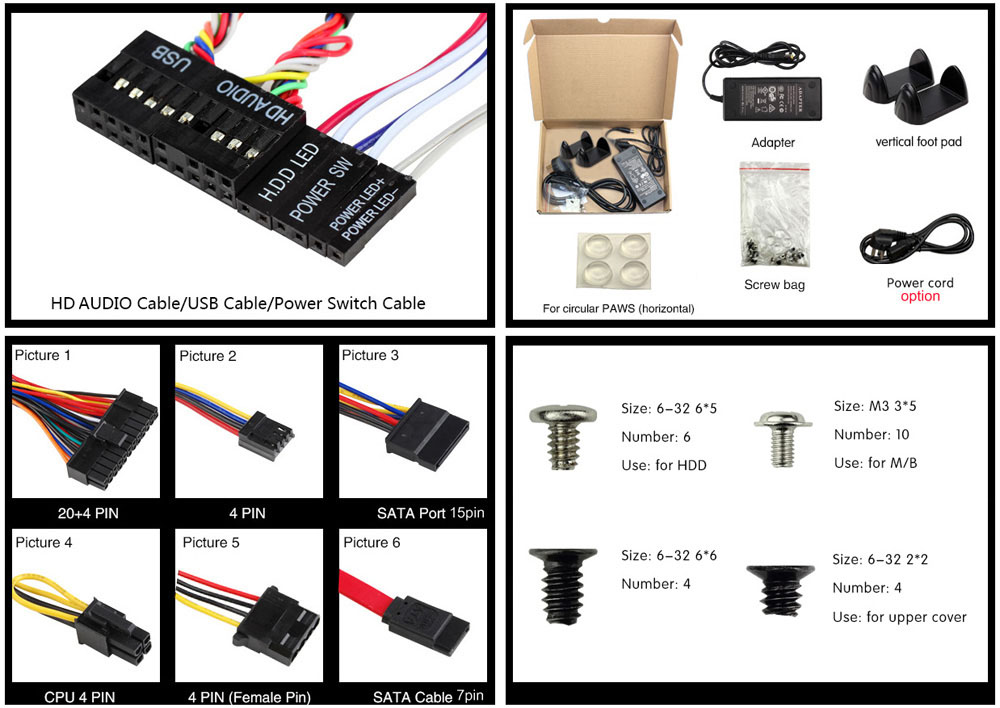

* Accessory Pack: EPS 24pin, ATX 4pin power and 2.5" SATA 15pin power connectors...etc.

* Package per unit: NW 1.0KG, GW 1.7KG, 0.29 CUFT (24 x 26.5 x 13cm, one box packed)

* Mass package: Mass carton for 8 units, each one has 3.24 CUFT, size 58.5 x 28.5 x 55cm

Model#

:

MINI-206B

Black Mini-ITX desktop/VESA chassis

Option 1-0

:

1U active CPU Cooler

JB15C-8080 or JB15C-5694 LGA2011 or JB18A LGA1150/1155/1156/Xeon1230 active CPU cooler

Option 2-0

:

MINI-205B-206B-VESA

MINI-205B-206B black VESA mount kit






Catalogue          Dimension Drawing
