S208B 2U HOTSWAP SYMMETRICAL SERVER CHASSIS
1U 2U 3U 4U front/rear symmetrical compartment patent & copyright officially announced on August 20, 2013 in Taiwan, China, Thailand, Korea, Japan, USA, England, EU, Russia, India. Official Taiwan patent# M468864 & China patent# 3434937.

Product announcement & 1st production dated on July 09, 2015, webpage updated on January 29, 2018

The MicroATX and Mini-ITX with multi-core processor structure and the newest Intel X99 platform have already the trend nowadays, the most prominent feature of S208B-mATX is the short depth at 548mm, and also compatible with eight 3.5" hotswap drives as well as two 2.5" internal hard drive space, excellent matching and application of RAID controller card installed to comply with this storage server in the cloud environment. A large number and variety of choice of hard disk access space, front and rear symmetrical bodies patented design can also enhance the system integration flexibility and overall strength, also the whole bodies do not skew or distort to achieve robust and ensure the security and stability of the system. Cooling as standard three 80mm x 25mm 2-ball bearing fans (three 80mm x 38mm fans as option) as effective cooling system, combines the advantages of multi-functional and competitive price, welcome worldwide distribution.

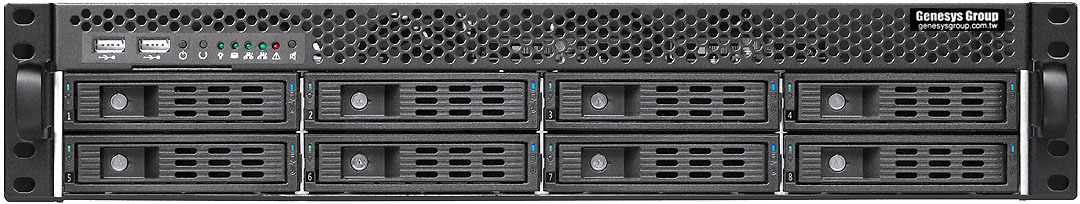

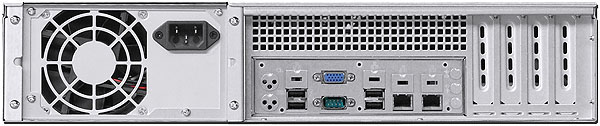

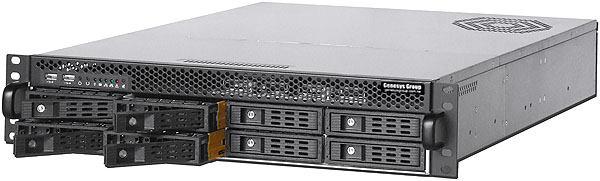

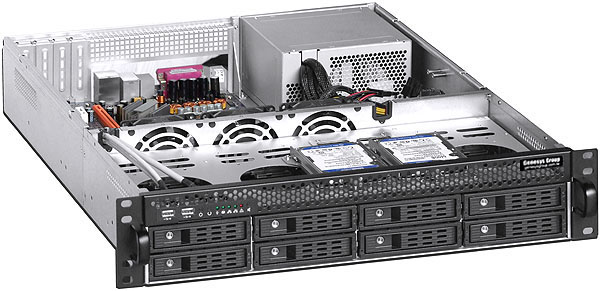

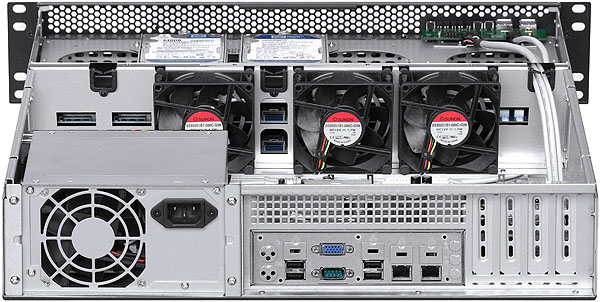

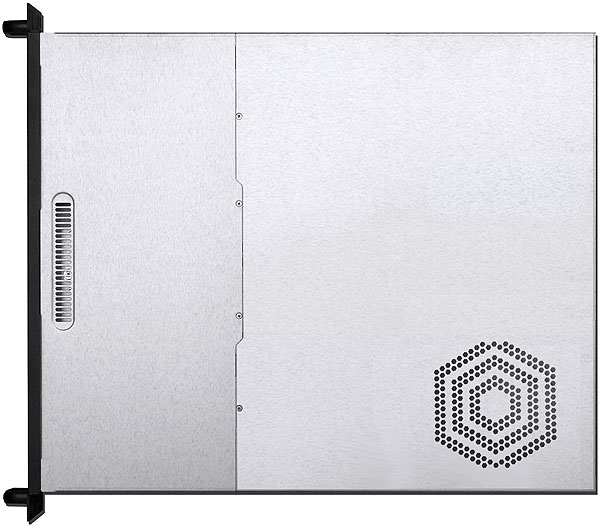

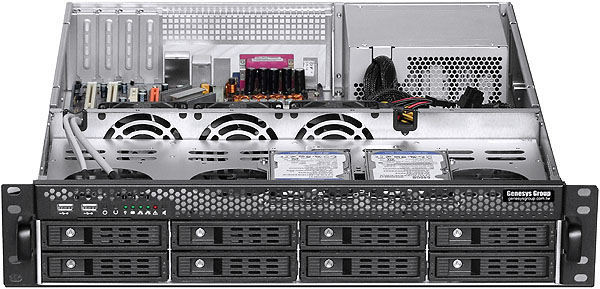

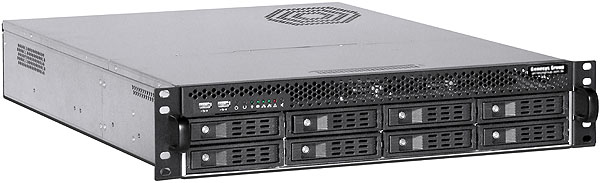

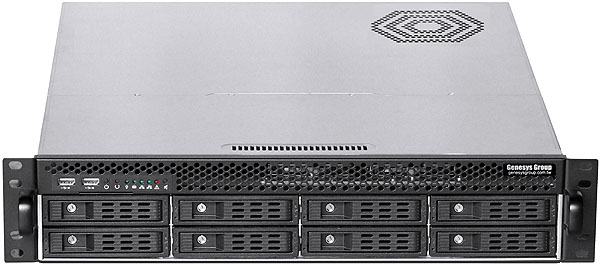

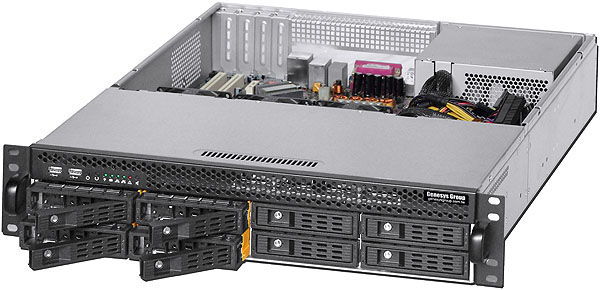

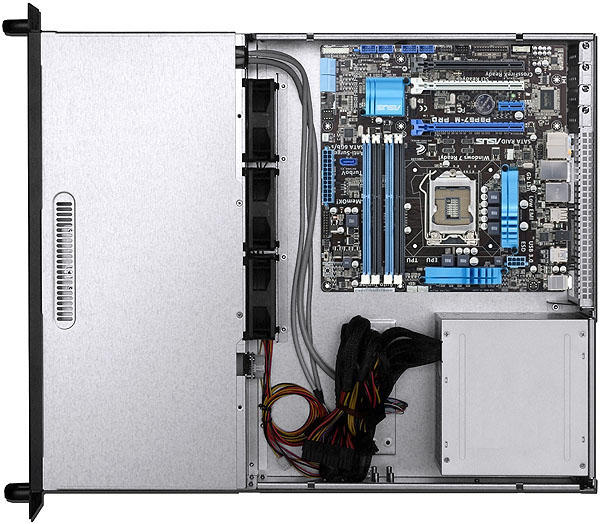

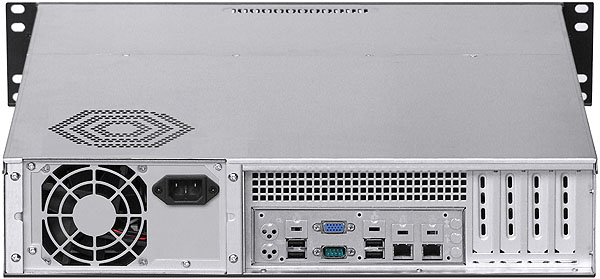

2U S208B-mATX right top view  S208B-mATX right open view  S208B-mATX front view  S208B-mATX left open view  S208B-mATX left top view  S208B-mATX front open view  2U S208B-mATX chassis rear top  S208B-mATX rear panel with PS2 single power  S208B-mATX rear open view  2U S208B-mATX front top view

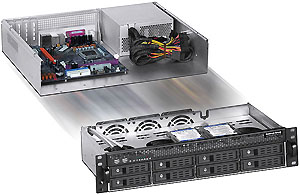

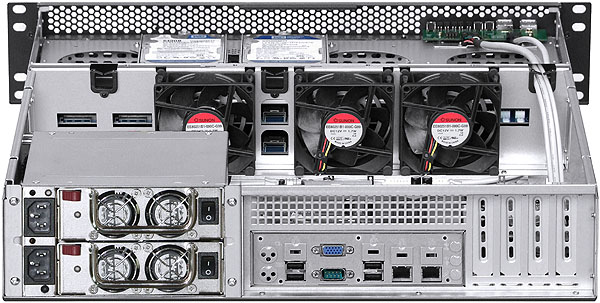

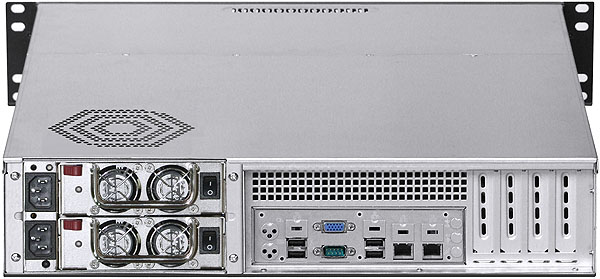

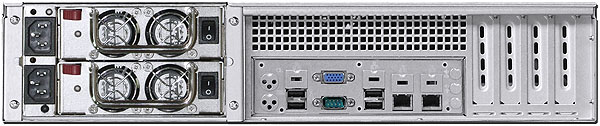

S208B-mATX rear top view with PS2 redundant power supply  2U hotswap chassis with hotswap PS2 redundant power supply  2U S208B-mATX rear open view with RPS   2U right side view  2U left side view  S208B-mATX backplane view  2U symmetrical chassis with patent  stainless tray  stainless 3.5" HDD tray



S208B-mATX



S208B-ITX (click here)

S208B-eATX (stay tune)

* Two internal 2.5" HDD bay:

   7mm~15mm height of 2.5" EasySwap HDD/SSD compatible

* 8 hotswap 3.5" HDD bay (2.5" HDD/SSD also compatible):

   SATA2/SATA3(6G) & SAS-1/SAS-2(6G) HDD, max. 25.4mm height of HDD compatible

   or MiniSAS HD (12G) HDD, max. 26.1mm height of HDD compatible (RAID card required)

* Mobile rack Left LED: Green power LED

* Mobile rack Right LED: Blue access LED (solid Red light if HDD temp over 60-degree C)

* Stainless & Hair surface proceeded mobile rack structure with security keylock

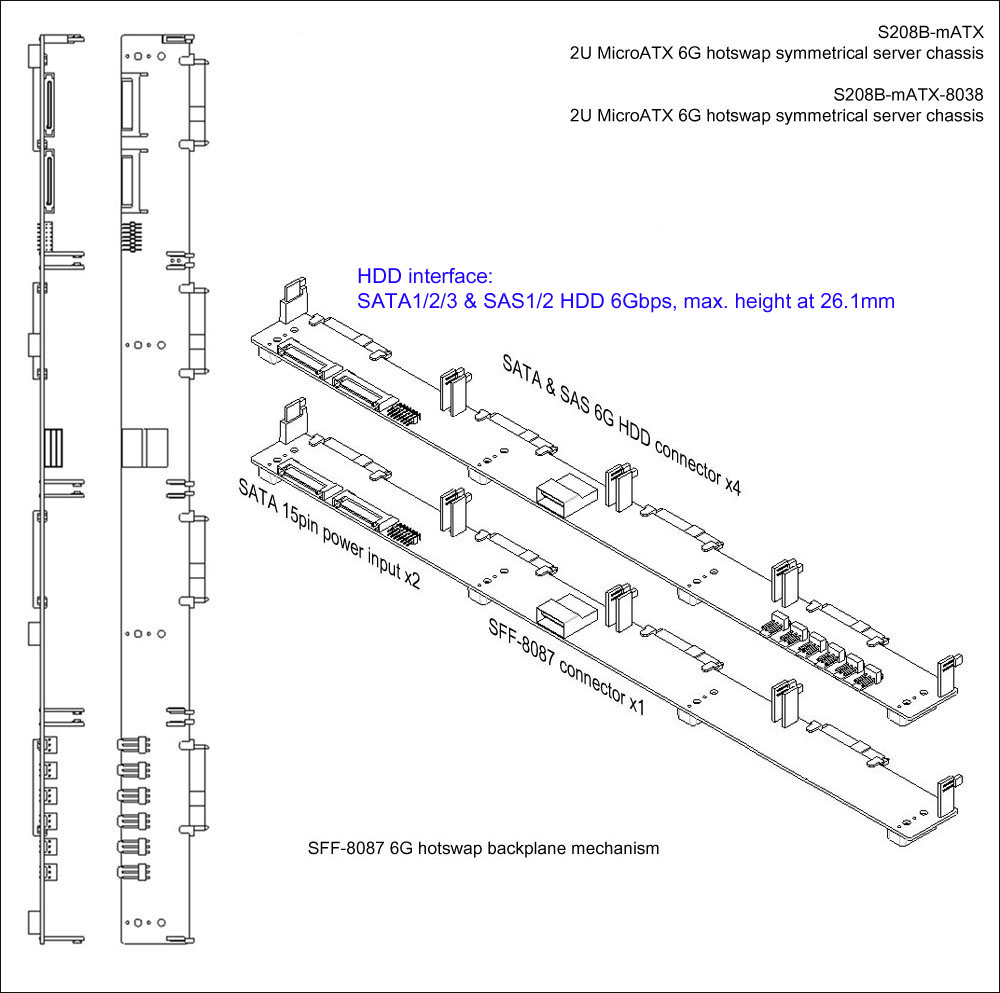

* 2 Hotswap 6G SFF-8087 backplanes: 1 to 4port MiniSAS connector (6G version)

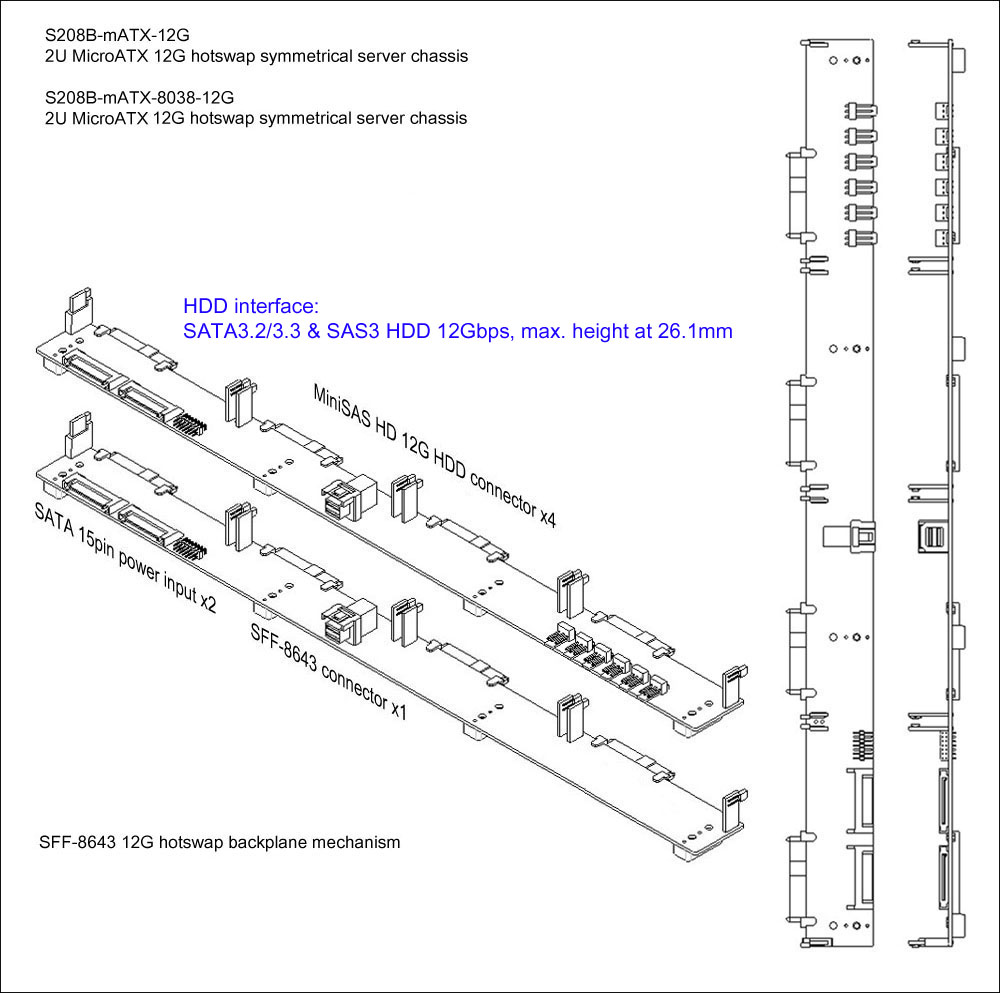

* 2 Hotswap 12G SFF-8643 backplanes: 1 to 4port MiniSAS HD connector (12G version)

* Front bezel equipped with two USB 2.0 ports

* Three EasySwap Sunon 80mmx25mm 2ball fans against HDD (model# S208B-mATX)
* Three EasySwap Sunon 80mmx38mm 2ball fans against HDD (model# S208B-mATX-8038)
* Room noise without fans activated is 49dBA, tested by 10cm distance to the running fans is

   60dBA (including room noise)

* Compatible MB: MicroATX(9.6"x9.6"), Mini-ITX(6.7"x6.7")
* 8cm or 12cm~14cm fan version standard PS2 PSU compatible (max. depth at 280mm)

* Support SureStar R4S series 400W~500W PS2 Mini Redundant PS (depth 174mm)
* Support Enhance ENR0500 400W~600W PS2 Mini Redundant PS (depth 185mm)
* Support Zippy MRT & MRW series 300W~600W PS2 Mini Redundant PS (depth 185mm)
* Support Etasis EFRP-2402/2462/S2502 400W~500W PS2 Mini RPS (depth 190mm)
* Support SureStar R4B series 600W~800W PS2 Mini Redundant PS (depth 199mm)
* Support Zippy MRG series 500W~800W PS2 Mini Redundant PS (depth 200mm)

* Support 4 slot Low profile expansion cards at max. 280mm deep (S208B-mATX)

* Support 4 slot Low profile expansion cards at max. 270mm deep (S208B-mATX-8038)
* Major sheet metal by SGCC 1.2mm~2.0mm thickness with no burr & sharp corner design

* Patented front/rear symmetrical body design makes system flexibility & durable strength
* Standard paint: black at front
* Genesys Group branded server chassis model (with build-in fans) global 3 years warranty
* Chassis dimension: 19" x 2U x 548mm (21.57" deep)
* Accessory pack: Key x2, MB stand-off x11, #6 truss screw x20, M3 countersunk screw x10,

   #6 countersunk screw x35

* Package: NW 9 KGM, GW 11 KGM, 2.83 CUFT (68x59x20cm, one durable box packed)

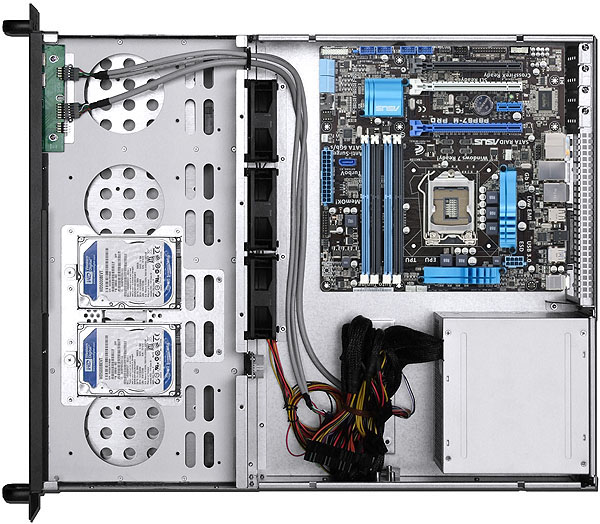

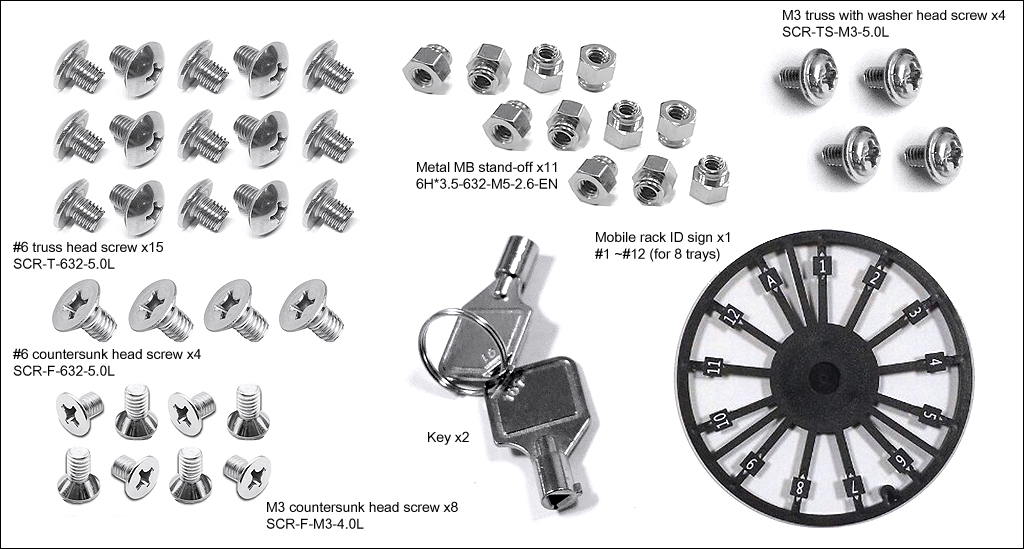

Two 2.5" internal HDD/SSD easy swap design  Easy swap 8025 fans  Easy Swap 8038 fans as option  top cover view  top open view  Top open view  S208B-mATX accessary pack



Model#

:

S208B-mATX

2U MicroATX 6G hotswap symmetrical server chassis (Three Sunon 80mmx25mm version)

Model#

:

S208B-mATX-8038

2U MicroATX 6G hotswap symmetrical server chassis (Three Sunon 80mmx38mm version)

Model#

:

S208B-mATX-12G

2U MicroATX 12G hotswap symmetrical server chassis (Three Sunon 80mmx25mm & 12G version)

Model#

:

S208B-mATX-8038-12G

2U MicroATX 12G hotswap symmetrical server chassis (Three Sunon 80mmx38mm & 12G version)

Option A-1

:

PS2 PSU

Support 8cm & 12cm & 14cm fan version PS2 power supply (max. depth at 200mm)

Option A-2

:

PS2 RPS

Support SureStar R4S series 400W/500W PS2 Mini Redundant PS (depth at 174mm)

Option A-3

:

PS2 RPS

Support Enhance ENR0500 series 400W/500W/600W PS2 Mini Redundant PS (depth at 185mm)

Option A-4

:

PS2 RPS

Support Zippy MRT & MRW series 300W~600W PS2 Mini Redundant power supply (depth at 185mm)

Option A-5

:

PS2 RPS

Etasis 400W/460W/500W EFRP-2402 & EFRP-2462 & EFRP-S2502 PS2 Mini RPS (depth 190mm)

Option A-6

:

PS2 RPS

Support SureStar R4B series 600W/700W/800W PS2 Mini Redundant PS (depth at 199mm)

Option A-7

:

PS2 RPS

Support Zippy MRG series 500W~800W PS2 Mini Redundant power supply (depth at 200mm)

Option B-1

:

NJ-S628

628mm 3-travel slimline slide rail (part# is 1 pair, compatible cabinet external depth 700~1000mm)

Option B-2

:

SRMK-550

550mm Slimline rear mounting kit (part# is 1 pair)

Option C-1

:

4SATA-1MSAS-500MM

Four SATA (Host) to SFF-8087 Mini-SAS (Device) cable

Option C-2

:

1MSAS-1MSAS-500MM

SFF-8087 Mini-SAS (Host) to Mini-SAS (Device) cable

Option C-3

:

SFF-8643-500MM

SFF-8643 Mini-SAS HD (Host) to SFF-8643 Mini-SAS HD (Device) cable 12G

Option C-4

:

4SATA-SFF-8643-500MM

Four SATA (Host) to SFF-8643 Mini-SAS HD (Device) cable 12G

Option D-1

:

2U2011A-8080

2U Intel LGA2011 active CPU cooler Square (2U 3U 4U chassis compatible)

Option D-2

:

2U2011A-5694

2U Intel LGA2011 active CPU cooler Narrow (2U 3U 4U chassis compatible)

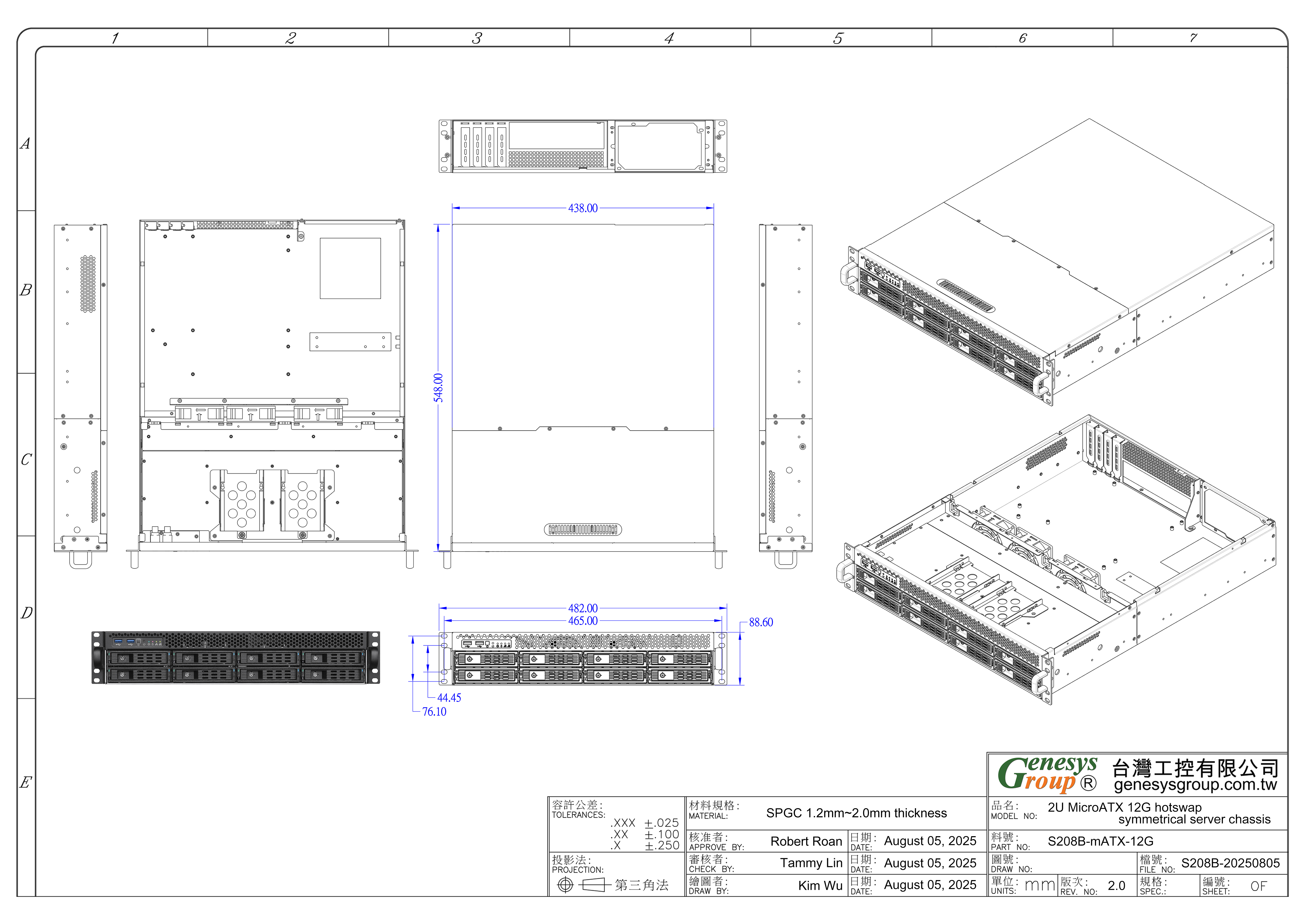

Catalogue       Dimension Drawing       Chassis Quick Assembly Manual
