* 存儲空間: 1 x slim ODD, 4 x 2.5吋SSD/HDD

* 機殼板金件主架構採用1.0mm厚度SGCC超高強度無花鋼板

* 前部標準配備2組USB 3.0, 紅色HDD/橘色網路/綠色Power LED燈號顯示, 電源/Reset開關

* 前部標準配備2組內吸式80mmx25mm靜音風扇 (風扇料號D80SM-12)

* 支援主機板: MicroATX(9.6"x9.6"), Mini-ITX(6.7"x6.7")
* 支援4 slot半高介面卡最大深度為280mm

* 支援標準1U FlexATX 250W或300W power supply (PSU最深之深度可至150mm)

* 支援璧掛式支架, 厚度2.0mm (選配, 料號Mini-202B-WALL-BK-B, 每單位為雙)
* 標準烤漆顏色: 高強度耐刮傷黑色織紋烤漆
* 台灣工控品牌標示全球品質保固三年(含標準配備風扇)
* 機型外型尺寸: D.355 x W.350 x H.88.2 /mm

* 零件包明細: M3沉頭螺絲x16顆, #6傘頭螺絲x13顆, M2圓頭螺絲x4顆, #6沉頭螺絲x12顆

* 包裝明細: NW 3.0KG, GW 4.2KG, 1.19 CUFT (44x42.5x18cm, one carton packed)

機種型號

:

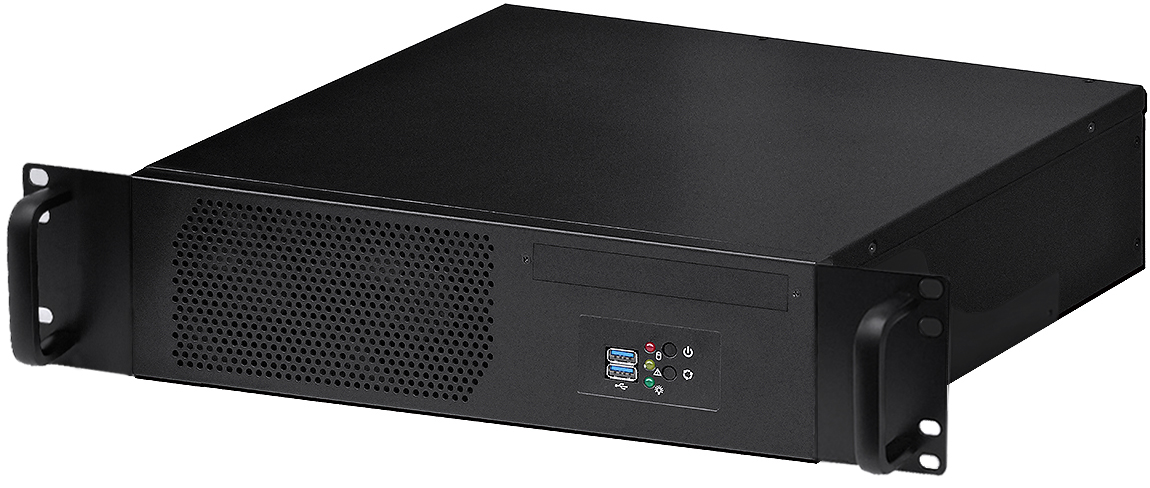

MICRO-103B

Black MicroATX desktop-minitower-wallmount chassis

選配A

:

MICRO-103B-35BK02

1x3.5"/2.5" HDD磁碟架 (前方1 x slim ODD不可裝, 1顆3.5吋或者1顆2.5吋硬碟可裝)

選配B

:

MICRO-103B-35BK01

2x3.5" HDD磁碟架 (MicroATX主機板不可裝, Mini-ITX主機板可裝)

選配C

:

Mini-202B-WALL-BK-B

黑色壁掛式支架, 板金厚度2.0mm (每單位為雙, MINI-202B與MINI-203B與MICRO-103B共用)

選配D-1

:

ENP-7025B

1U FlexATX 250W power supply with PFC (psu size at W.81.5 x H.40.5 x L.150/mm)

選配D-2

:

ENP-7130B

1U FlexATX 300W power supply with PFC (psu size at W.81.5 x H.40.5 x L.150/mm)

選配D-3

:

ENP7140B

1U FlexATX 400W power supply with PFC (psu size at W.81.5 x H.40.5 x L.150/mm)

選配D-4

:

1U FlexATX 500W power supply with PFC (psu size at W.81.5 x H.40.5 x L.150/mm)

選配D-5

:

1U FlexATX 600W power supply with PFC (psu size at W.81.5 x H.40.5 x L.150/mm)

選配E-1

:

2U2011A-8080

2U Intel LGA2011 LGA2066 active CPU cooler Square (2U 3U 4U chassis compatible)

選配E-2

:

2U2011A-5694

2U Intel LGA2011 active CPU cooler Narrow (2U 3U 4U chassis compatible)

選配E-3

:

2U115XA

2U Intel LGA115x Xeon 1230 active CPU cooler (2U 3U 4U chassis compatible)

選配E-4

:

2U4094A-SP3

2U AMD EPYC LGA4094 active CPU cooler SP3 (2U 3U 4U chassis compatible)

選配E-5

:

2U1718A-AM5

2U AMD AM4 AM5 active CPU cooler (2U 3U 4U chassis compatible)

選配E-6

:

2U3647A-S82

2U Intel LGA3647 active CPU cooler Square (2U 3U 4U chassis compatible)

選配E-7

:

2U3647A-R82-1

2U Intel LGA3647 active CPU cooler Narrow (2U 3U 4U chassis compatible)

選配E-8

:

2U4189A-M82

2U Intel LGA4189 active CPU cooler (2U 3U 4U chassis compatible)

選配E-9

:

2U1700A-R67

2U Intel LGA1700 active CPU cooler (2U 3U 4U chassis compatible)

產品型錄          三視尺寸圖
