1U ACCESSORY
webpage updated on August 29, 2018


1U I/O SHIELD

..........................................................................................................................................................................................................................................................................................

1U size I/O shield standard by GeneSys Group Corporation
* If you need the other I/O shield for different motherboard, please
click here to see the one you required
* Black colored I/O shield shall be -B after part number, for example 1UIOD945GCLF2-B
* If you can not find the suitable I/O, please inform us the MB model number, then we can make it for you



1U 2U 3U 4U SLIDE RAIL OR 1U 2U 3U 4U REAR MOUNTING KIT

..........................................................................................................................................................................................................................................................................................

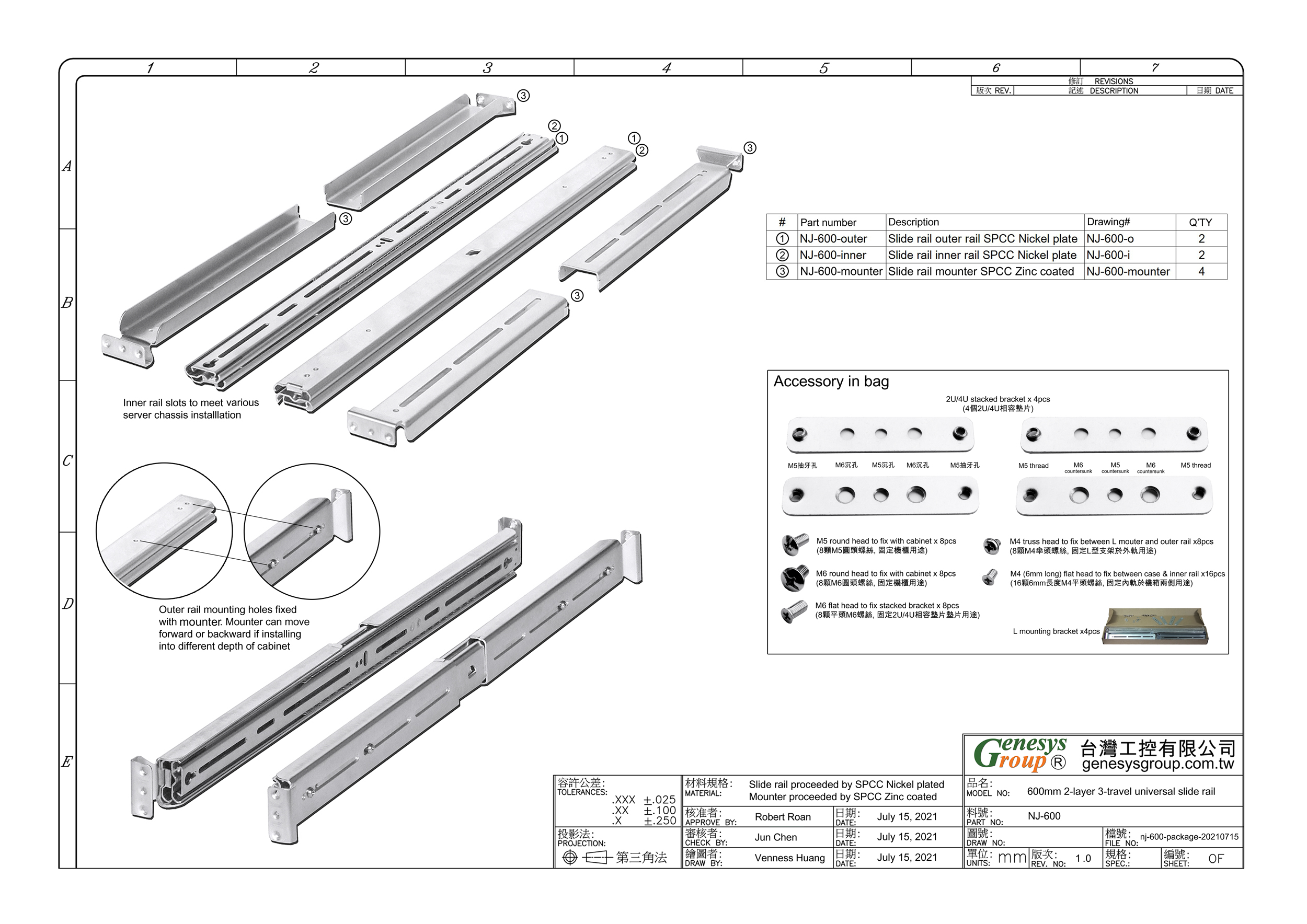

NJ-600

600mm 2-layer 3-travel universal slide rail
* Unique universal design compatible with all height 1234U chassis,
one unit means one pair
* Compatible with chassis width between
422mm~430mm, supported chassis depth at 600mm~1200mm

* Slide rail depth at minimum 600mm and maximum at 1200mm while fixing the L brackets with slide rail

* Different mounting holes at two side of chassis also compatible, using 3 stage with 3 travel design
* Using

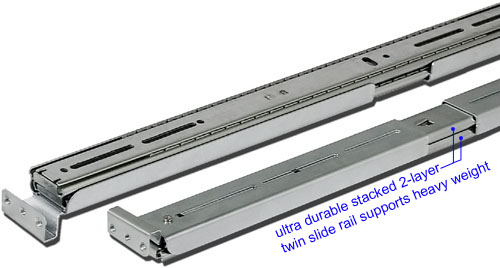

ultra durable stacked 2-layer slide rail design for maximum 65kg loading (installation guide)

* Package: 1 pair/box, NW.2.9KG, GW.3.1KG, 0.12 CUFT (60cm x 5.5cm x 10cm single box packed)
5 boxes/carton, NW.15.5KG, GW.16.5KG, 0.75 CUFT (60.5cm x 28cm x 12.5cm single carton packed)

* Accessory pack: 2U/4U stacked bracket x 4pcs, M4 flat head screw for chassis mounting 16pcs,

   M4 screw nut x 8pcs for spare, M5 round head screw for cabinet mounting x 8pcs, M6 flat head screw for

   cabinet mounting x 8pcs, M6 round head screw for cabinet mounting x 8pcs, M6 washer for spare x 8pcs

..........................................................................................................................................................................................................................................................................................

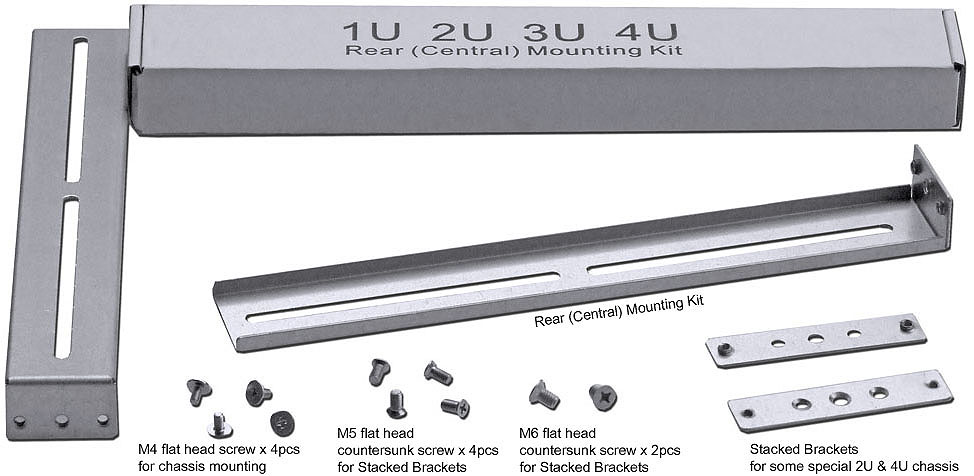

1234U-RMK

1234U rear mounting kit
* Unique universal design compatible with all height 1234U chassis
* and compatible with chassis width between
424mm~430mm, one unit means one pair
*
Different mounting holes at two side of chassis also compatible, rear mounting kit depth at 300mm
*
Accessory pack: two L brackets, two stacked brackets, M4 flat head screw for chassis mounting 4pcs,

   four flat head countersunk M5 12mm screw for special 2U/4U Stacked Brackets, two flat head 12mm

   countersunk M6 screw for special 2U/4U Stacked Brackets
* Package: 1 pair/white box, NW.0.40KG, GW.0.44KG, 0.02 CUFT (35.3cm x 5.1xcm x 3.0cm box size)

..........................................................................................................................................................................................................................................................................................

NJ-S628

628mm 3-travel slimline slide rail
* Compatible cabinet internal depth at 628.20mm~928.20mm, cabinet external depth at 700mm~1000mm
* 3-travel rails design, slide rail's minimum depth is 628.20mm, maximum depth is 928.20mm
* Durable heavy duty design that can support maximum 75 ponds or 34 KGS
* Support rackmount chassis width at
438mm, and one Pair as one unit
* Package: 1 pair/box, NW.2.50KG, GW.3.00KG, 0.35 CUFT (71x14x10cm, single box packed)

* Installation guide

..........................................................................................................................................................................................................................................................................................

SRMK-550

550mm Slimline rear mounting kit
* Unique universal design compatible with chassis width at 438mm, and chassi sheight for 1234U chassis
* Different mounting holes at two side of chassis also compatible, rear mounting kit depth at 550mm

..........................................................................................................................................................................................................................................................................................

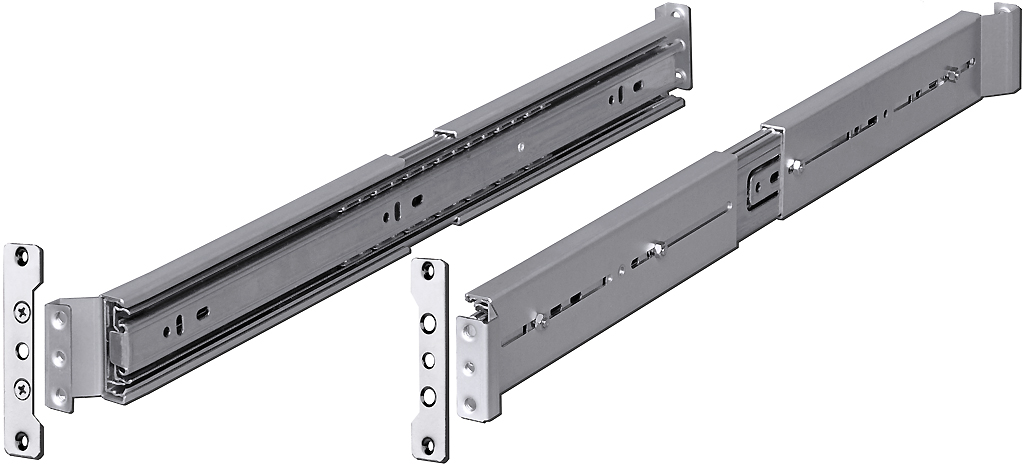

NJ-2020-18

18 inch full extension slide rail
* Unique universal design compatible with all height 1234U chassis, one unit means one pair
* Compatible with chassis width between
422~430mm, supported cabinet internal depth at 456.7~810mm

* Slide rail depth at minimum 18" (456.7mm) and maximum at 31.8" (810mm) installed with the L brackets

* Package (box): 1 pair, NW.1.6 KG, GW.1.79 KG, 0.09 CUFT (box size: 49.5cm x 7.5cm x 7cm)
* Package (carton): 5 pairs in 1 carton, NW.9.0 KG, GW.9.6 KG, 0.5 CUFT (carton size: 50cm x 8cm x 36cm)

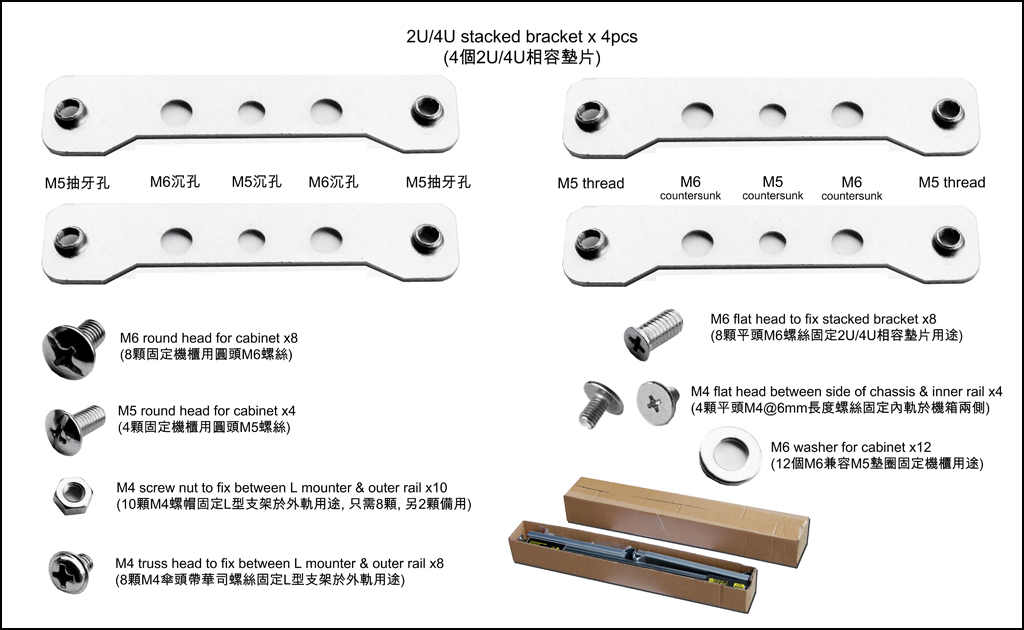

* Accessory pack: 2U/4U chassis compatible stacked bracket x4, M6 round x8, M5 round x4, M4 nut x10,

   M6 countersunk x8, M4 countersunk x4, M6 & M5 compatible washer x12, M4 truss with washer x14

* Installation guide



1U RISER CARD

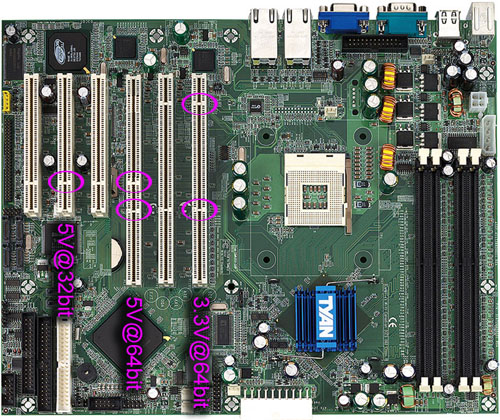

5V or 3.3V identification between PCI 32bit and 64bit

..........................................................................................................................................................................................................................................................................................

1U1PCIE1XL

1U 1PCI-Express 1X left angle riser card
* gold finger direct inserted at the 6th PCI-Express 1X slot
* 12V or 3.3V compatible

..........................................................................................................................................................................................................................................................................................

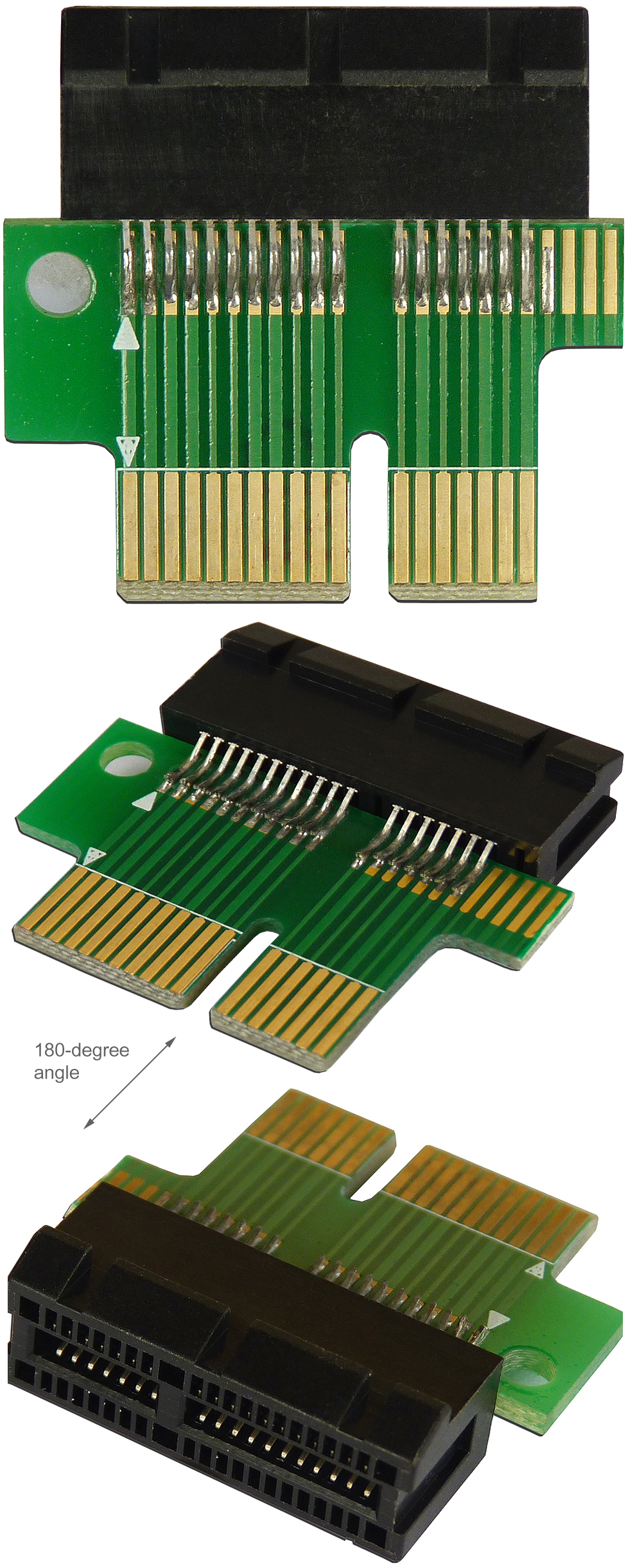

1U1PCIE1XL-EXT

1U 1PCI-Express 1X left angle riser card extender
* extended to the next slot (6th slot) position of 12V or 3.3V PCI-Express 1X slot
* should consolidate 1U1PCIE1XL to use

..........................................................................................................................................................................................................................................................................................

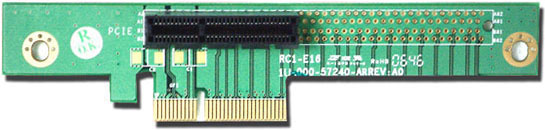

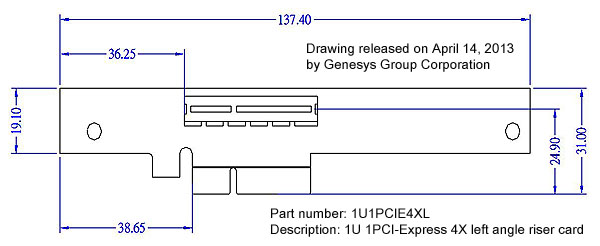

1U1PCIE4XL

1U 1PCI-Express 4X left angle riser card
* gold finger direct inserted at the 6th PCI-Express 4X slot
* 12V or 3.3V compatible

..........................................................................................................................................................................................................................................................................................

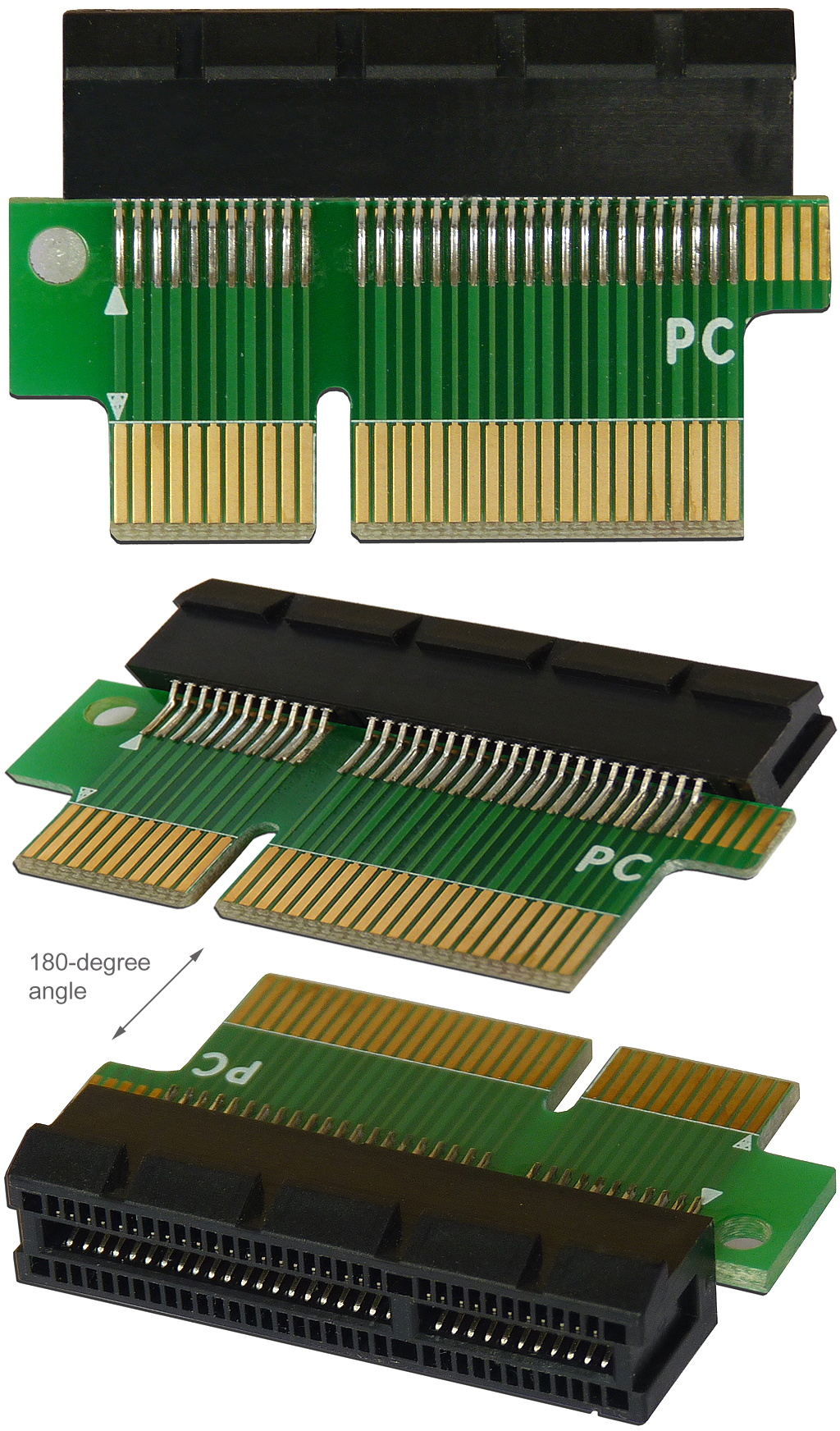

1U1PCIE4XL-EXT

1U 1PCI-Express 4X left angle riser card extender
* extended to the next slot (6th slot) position of 12V or 3.3V PCI-Express 4X slot
* should consolidate 1U1PCIE4XL to use

..........................................................................................................................................................................................................................................................................................

1U1PCIE8XL

1U 1PCI-Express 8X left angle riser card
* gold finger direct inserted at the 6th PCI-Express 8X slot
* 12V or 3.3V compatible

..........................................................................................................................................................................................................................................................................................

1U1PCIE8XL-EXT

1U 1PCI-Express 8X left angle riser card extender
* extended to the next slot (6th slot) position of 12V or 3.3V PCI-Express 8X slot
* should consolidate 1U1PCIE8XL to use

..........................................................................................................................................................................................................................................................................................

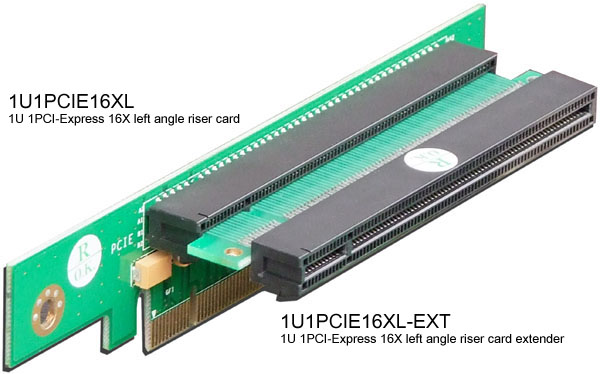

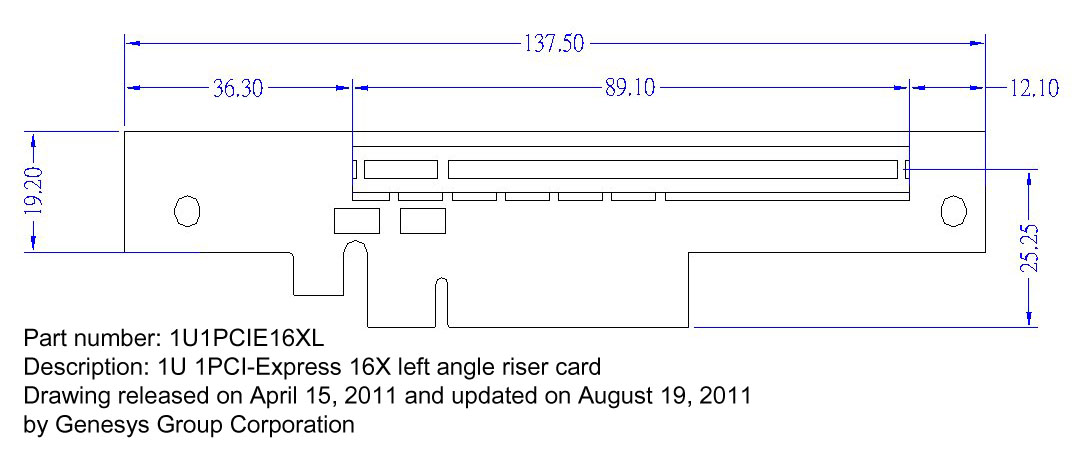

1U1PCIE16XL

1U 1PCI-Express 16X left angle riser card
* gold finger direct inserted at the 6th PCI-Express 16X slot
* 12V or 3.3V compatible

..........................................................................................................................................................................................................................................................................................

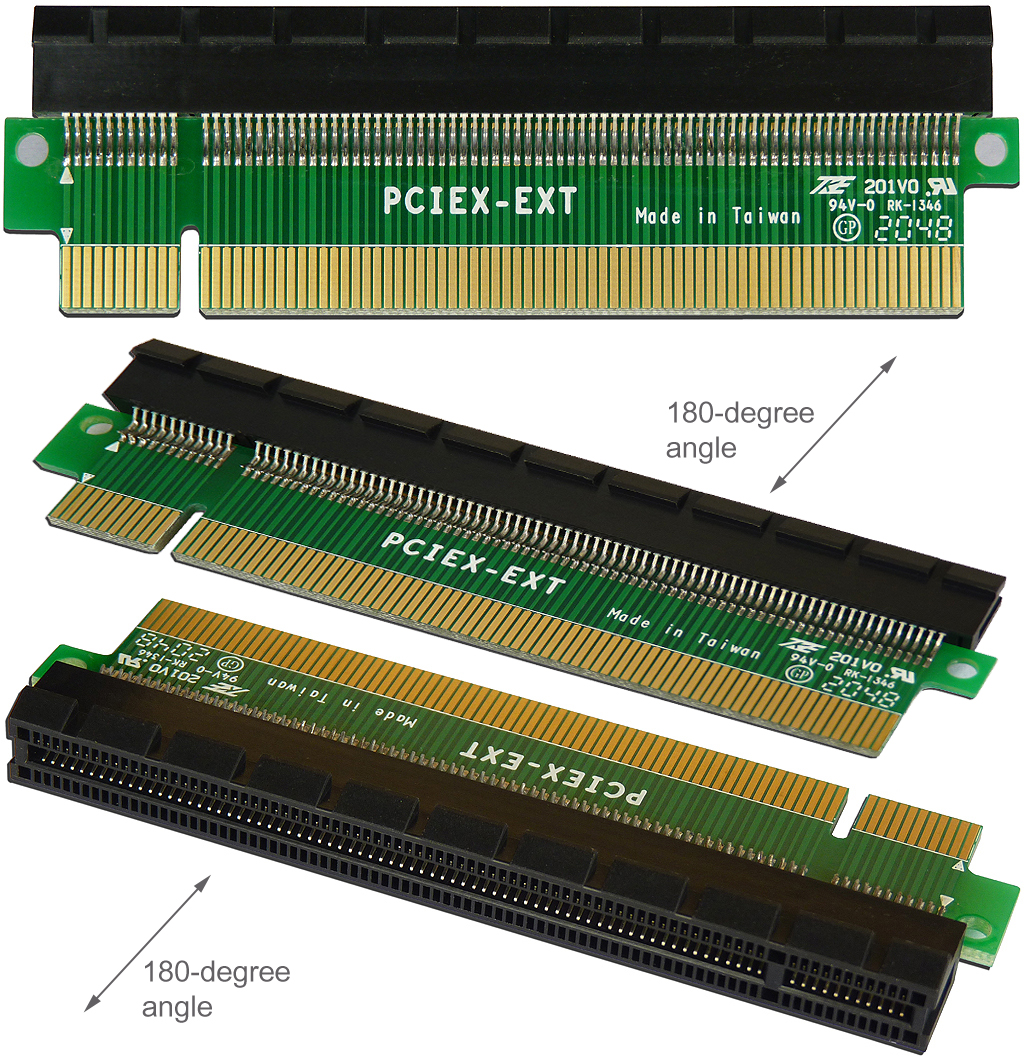

1U1PCIE16XL-EXT

1U 1PCI-Express 16X left angle riser card extender
* extended to the next slot (6th slot) position of 12V or 3.3V PCI-Express 16X slot
* should consolidate 1U1PCIE16XL to use (
zoom-in)

..........................................................................................................................................................................................................................................................................................

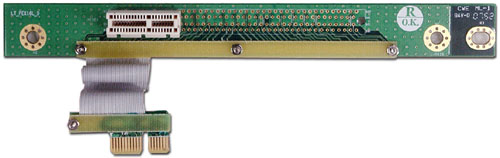

1U1PCIE1XLC

1U 1PCI-Express 1X left angle riser card
* located at the 6th slot position
* extended to the 1st~7th position of 12V or 3.3V PCI-Express 1X slot
(cable 105mm long)
* 12V or 3.3V compatible

..........................................................................................................................................................................................................................................................................................

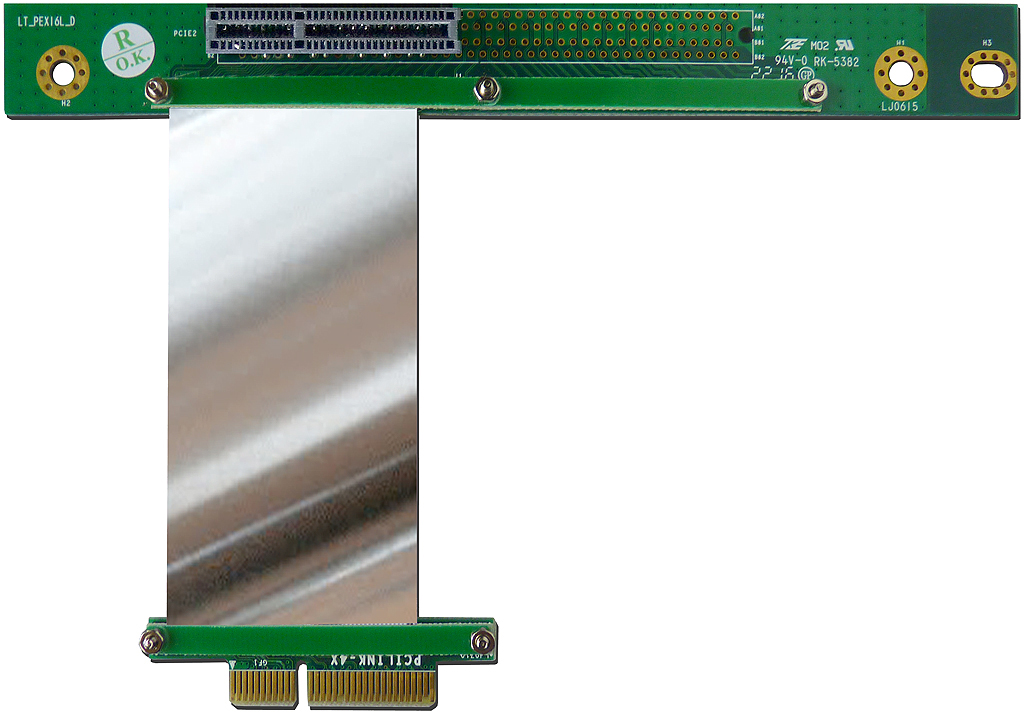

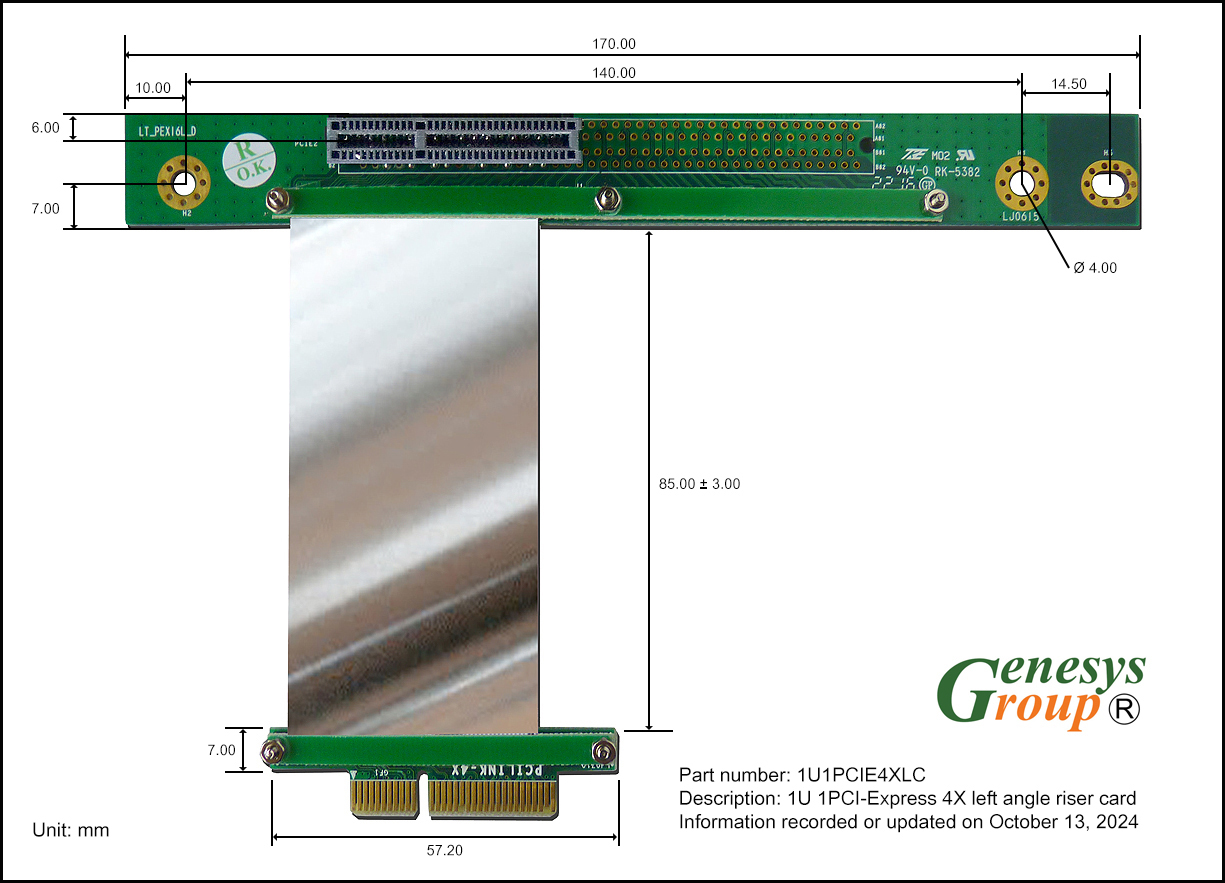

1U1PCIE4XLC

1U 1PCI-Express 4X left angle riser card
* located at the 6th slot position
* extended to the 2nd~7th position of 12V or 3.3V PCI-Express 4X slot
(cable 90mm long)
* 12V or 3.3V compatible

..........................................................................................................................................................................................................................................................................................

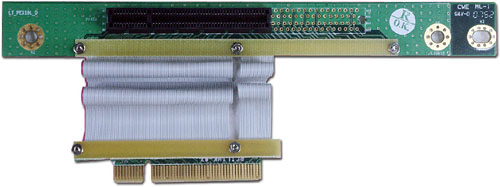

1U1PCIE8XLC

1U 1PCI-Express 8X left angle riser card
* located at the 6th slot position
* extended to the 2nd~7th position of 12V or 3.3V PCI-Express 8X slot
(cable 85mm long)
* 12V or 3.3V compatible

..........................................................................................................................................................................................................................................................................................

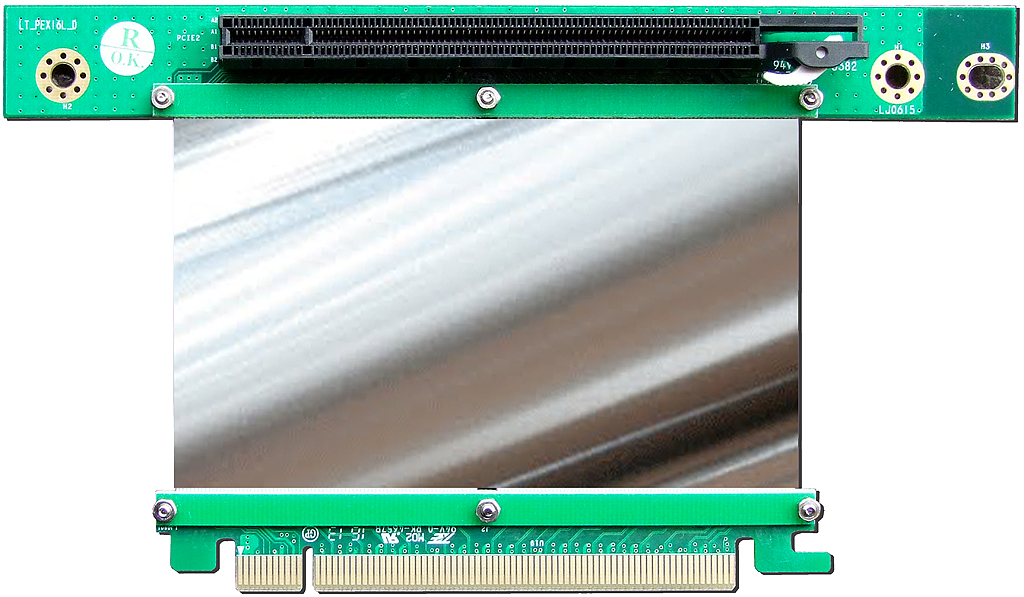

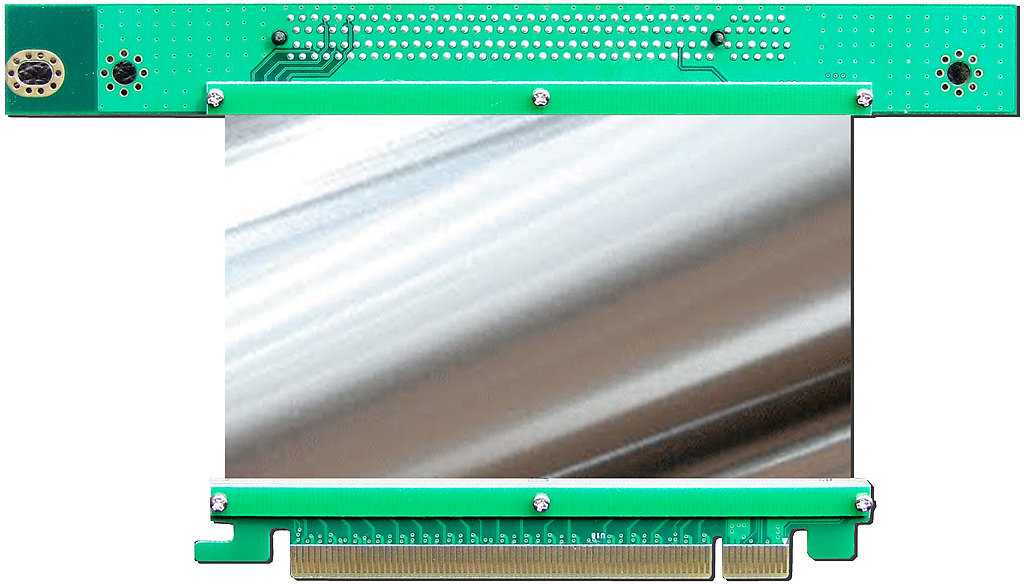

1U1PCIE16XLC

1U 1PCI-Express 16X left angle riser card
* located at the 6th slot position (cable packed with
Aluminum Foil protection as Option due to different cost)
* extended to the 4th~7th position of 12V or 3.3V PCI-Express 16X slot
(cable 60mm long)
* 12V or 3.3V compatible

..........................................................................................................................................................................................................................................................................................

1U 1PCI 32bit left angle riser card
* gold finger direct inserted at the 6th 32bit PCI 5V slot position

..........................................................................................................................................................................................................................................................................................

1U1PCI32L-EXT

1U 1PCI 32bit riser card extender
* extended to the next slot (6th slot) position of 33 MHz PCI 32bit 5V slot
* should consolidate
1U1PCI32L to use (zoom-in)

..........................................................................................................................................................................................................................................................................................

1U1PCI32R

1U 1PCI 32bit right angle riser card
* gold finger direct inserted at the 1st 32bit PCI 5V slot position
, insert expansion card from right side
* special made right angle chassis rear panel such as
E100B 1U chassis compatible

..........................................................................................................................................................................................................................................................................................

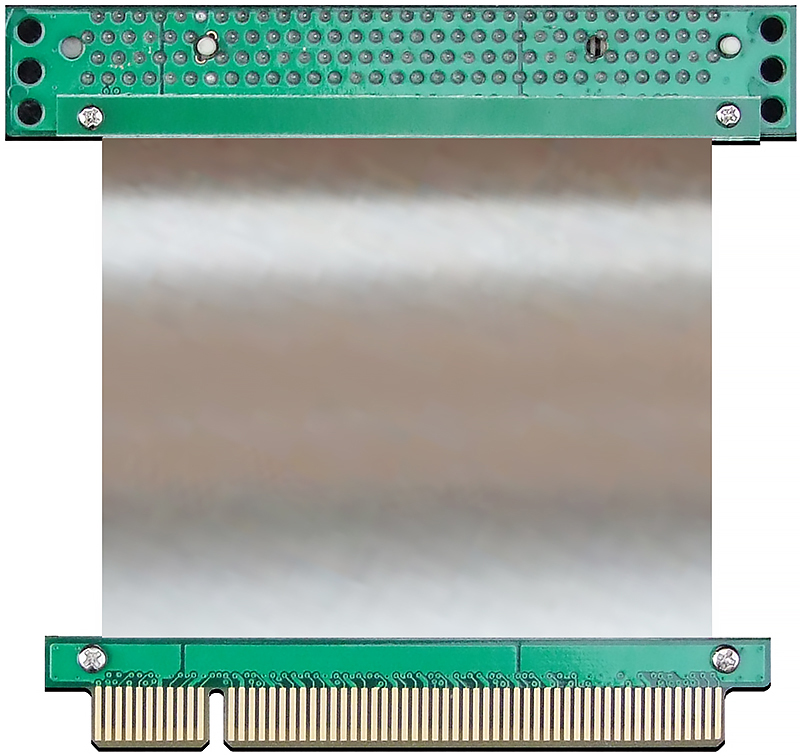

1U1PCI32LC

1U 1PCI 32bit left angle riser card
* located at the 6th slot position
* extended to the 4th or 7th 32bit PCI 5V slot position
(cable length 60mm)

..........................................................................................................................................................................................................................................................................................

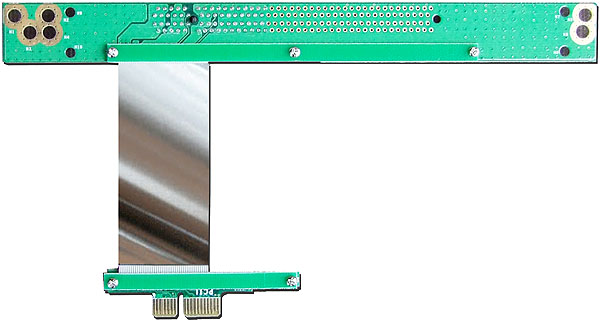

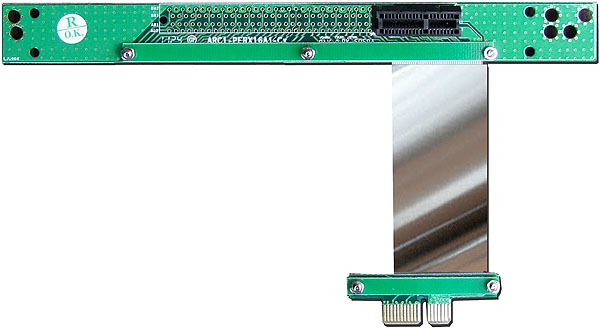

1U1PCIE1XRC





1U 1PCI-Express 1X right angle riser card
*
cable with Aluminum Foil protection at 70mm length, 12V or 3.3V compatible
* riser card slot direction toward to the I/O position, insert expansion card from right side

..........................................................................................................................................................................................................................................................................................

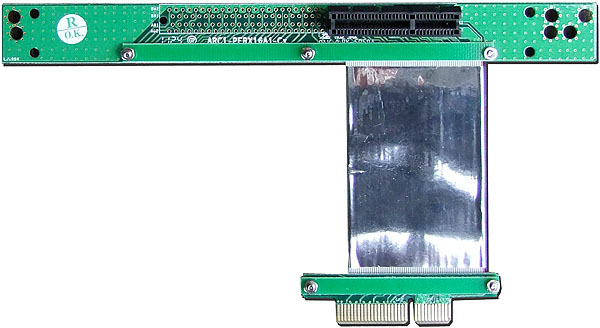

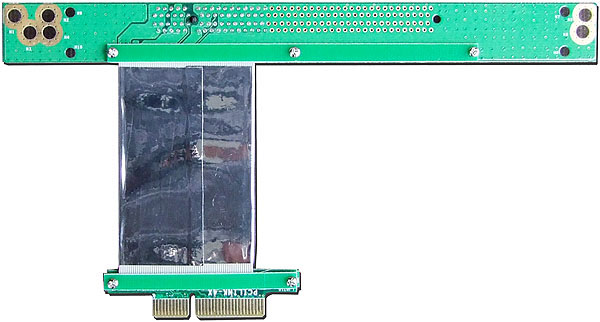

1U1PCIE4XRC





1U 1PCI-Express 4X right angle riser card
*
cable with Aluminum Foil protection at 70mm length, 12V or 3.3V compatible
* riser card slot direction toward to the I/O position, insert expansion card from right side

..........................................................................................................................................................................................................................................................................................

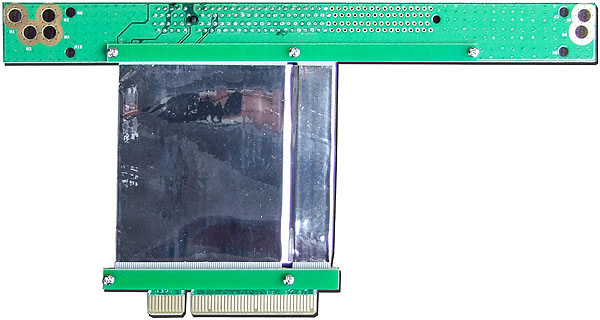

1U1PCIE8XRC





1U 1PCI-Express 8X right angle riser card
*
cable with Aluminum Foil protection at 70mm length, 12V or 3.3V compatible
* riser card slot direction toward to the I/O position, insert expansion card from right side

..........................................................................................................................................................................................................................................................................................

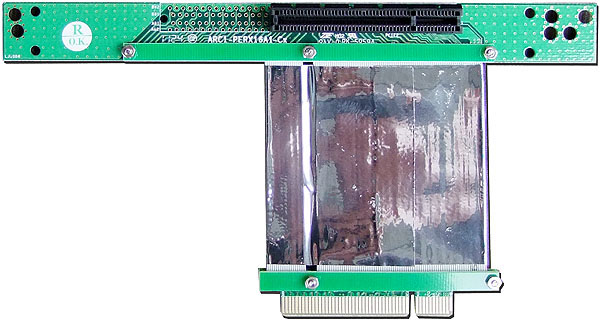

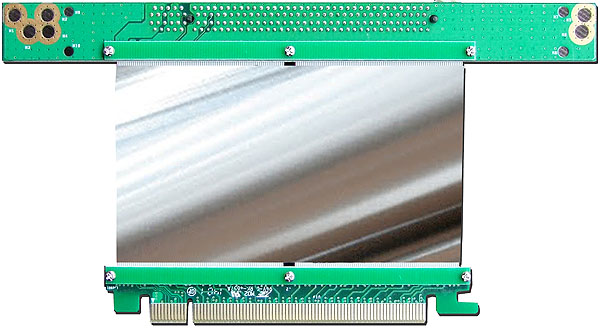

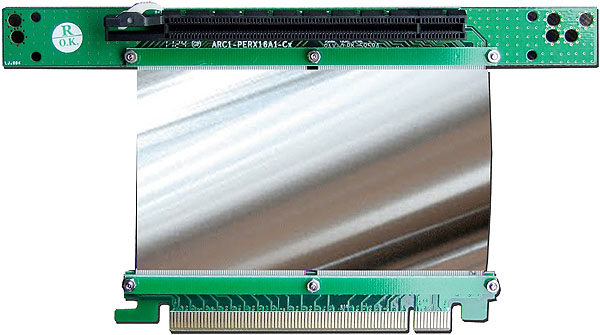

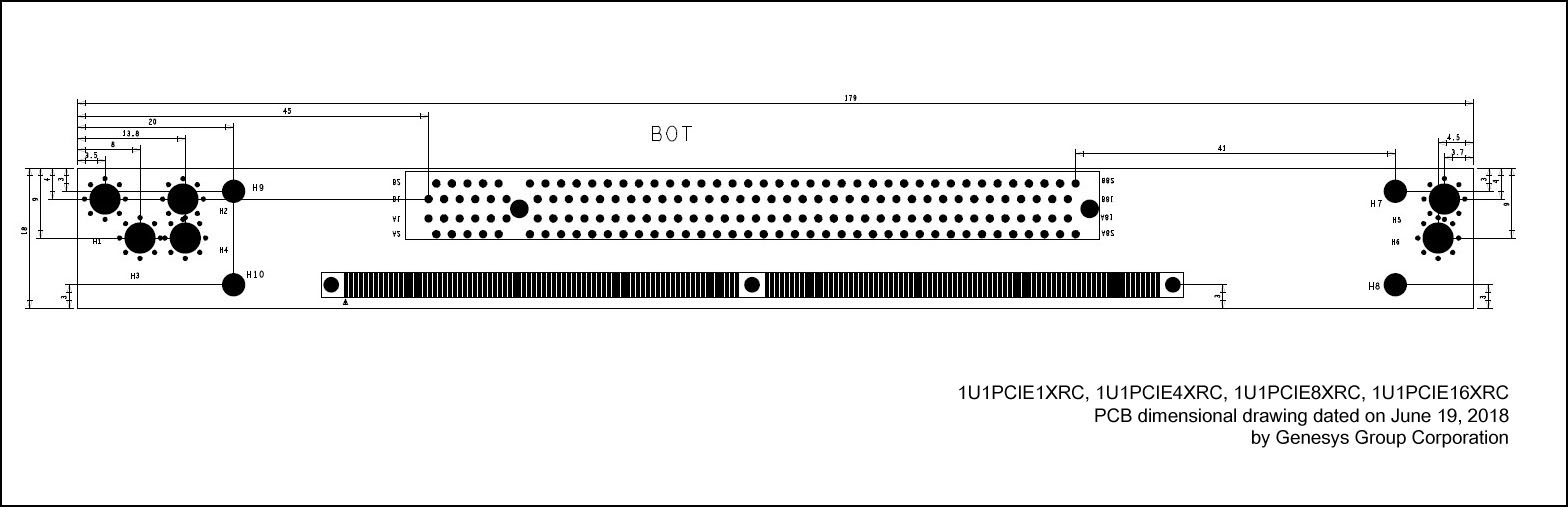

1U1PCIE16XRC





1U 1PCI-Express 16X right angle riser card
*
cable with Aluminum Foil protection at 70mm length, 12V or 3.3V compatible
* riser card slot direction toward to the I/O position, insert expansion card from right side

..........................................................................................................................................................................................................................................................................................

PCI-E-8X-EXTENDER-15CM

PCI-E 8X-15cm extender
*
Cable length 15cm between male and female PCIE 8X connectors

* view1  view2



1U SLIM ACTIVE CPU COOLER AND PASSIVE HEATSINK
due to the capacitors might interfere the heatsink, please inform MB number in order to check the compatibility in advance

..........................................................................................................................................................................................................................................................................................

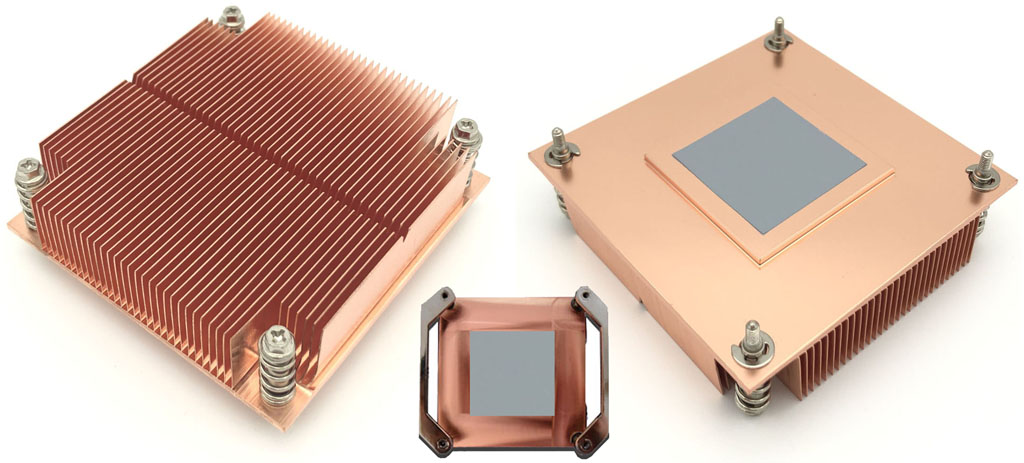

JB18C

1U Intel LGA1150 LGA1155 LGA1156 Xeon 1230 passive heatsink
* Total dimension: 88Lx88Wx24H(mm)
* Heatsink material: Copper C1000 series
* Weight: 457g
* Fastener: screw + spring + CPU mounting sheet metal bracket

* Intel Hoswell LGA1150 CPU also compatible

..........................................................................................................................................................................................................................................................................................

JB18A

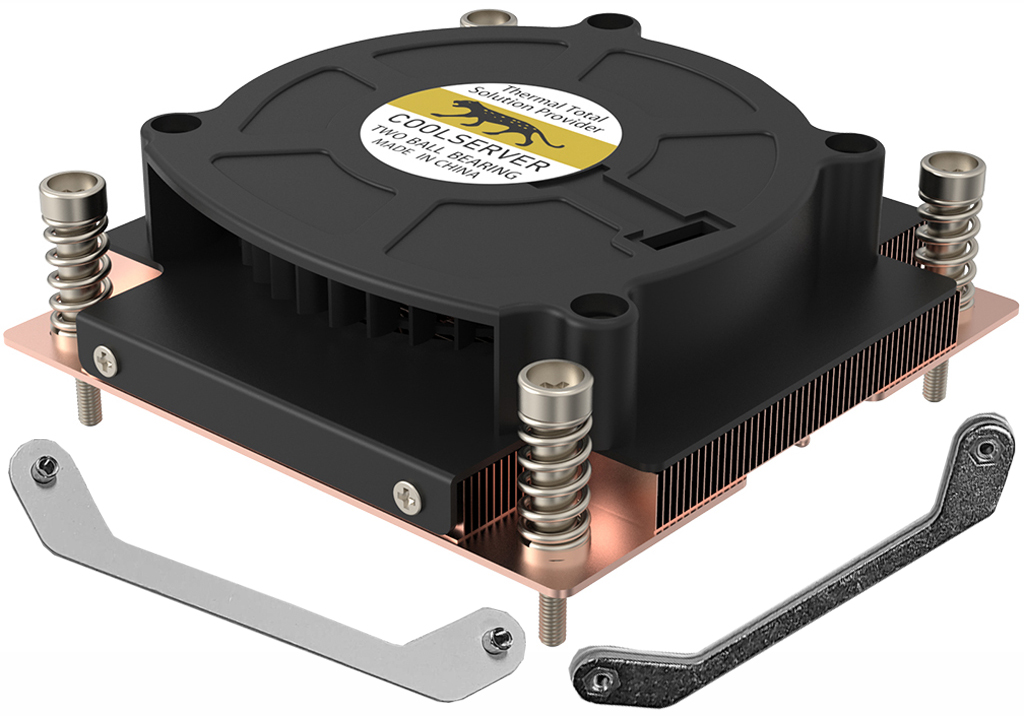

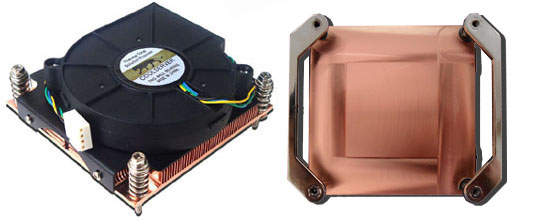

1U Intel LGA1150 LGA1155 LGA1156 Xeon 1230 active CPU cooler
* Total dimension: 83Lx84.6x28H(mm)
* Blower size: 75L x 75W x 15H(mm), blower specification: 5000rpm / 10.75 CFM
* Heatsink material: Copper C1000 series
* Fastener: screw + spring + CPU mounting sheet metal bracket

* Intel Hoswell LGA1150 CPU also compatible

* Package: NW 0.3 KGM, GW 0.4 KGM, 0.017 CUFT (94x100x50mm, deep blue colored box packed)

..........................................................................................................................................................................................................................................................................................

JB04C-8080

1U Intel LGA2011 LGA2066 passive heatsink
* Heatsink size: 88Lx88Wx24H(mm)
* Heatsink material: Copper C1000 series
* Weight: 485g
* Fastener: M4 screw + spring
* Support LGA2011 size version: 80mm x 80mm

..........................................................................................................................................................................................................................................................................................

JB15C-8080

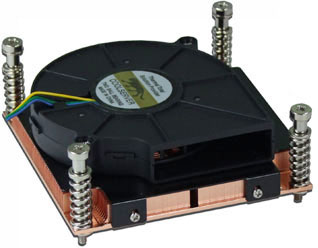

1U Intel LGA2011 LGA2066 active CPU cooler
* Total dimension: 88Lx88Wx28H(mm), dimension drawing
* Blower size: 75Lx75Wx15H(mm), FD7015H12D blower specification: 5000rpm / 10.75 CFM, DC12V @ 0.42A
* Heatsink material: Copper C1000 series
* Heatsink skiving: 1.4mm distance between skiving, 0.3mm thickness per skiving
* Fastener: M4 screw + spring
* Support LGA2011 size version: 80mm x 80mm
* Package: NW 0.40 KGM, GW 0.50 KGM, 0.017 CUFT (94x100x50mm, one box packed)

..........................................................................................................................................................................................................................................................................................

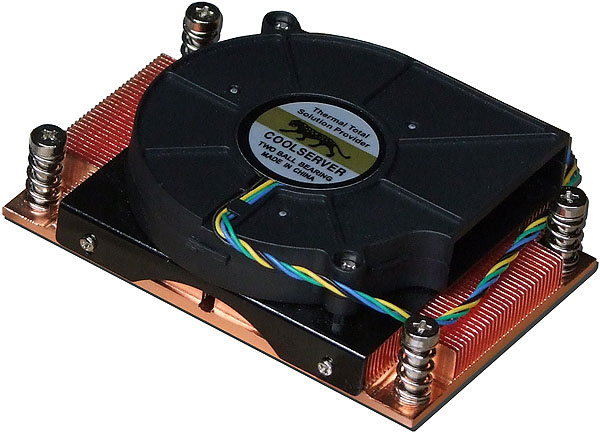

JB15C-5694

1U Intel LGA2011 active CPU cooler
* Total dimension: 104Lx71.6Wx28H(mm)
* Blower size: 75Lx75Wx15H(mm), FD7015H12D blower specification: 5000rpm / 10.75 CFM, DC12V @ 0.42A
* Heatsink material: Copper C1000 series
* Fastener: M4 screw + spring
* Support LGA2011 size version: 56mm x 94mm

* Package: NW 0.42 KGM, GW 0.44 KGM, 0.018 CUFT (83x122x50mm, one box packed)

..........................................................................................................................................................................................................................................................................................

JB15C-5694P

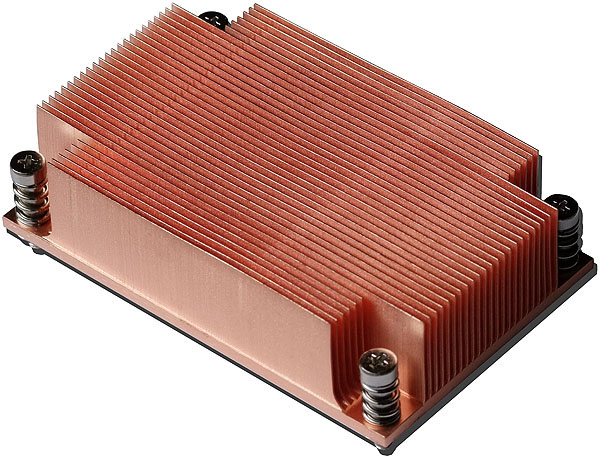

1U Intel LGA2011 passive heatsink
* Heatsink size: 104Lx65Wx24H(mm)
* Heatsink material: Copper C1000 series
* Heatsink skiving: 1.9mm distance between skiving, 0.4mm thickness per skiving
* Fastener: M4 screw + spring
* Support LGA2011 size version: 56mm x 94mm
* Package: NW 0.43 KGM, GW 0.48 KGM, 0.018 CUFT (83x122x50mm, one colored box packed)



1U POWER SUPPLY

..........................................................................................................................................................................................................................................................................................

EFAP-S250

1U Flex ATX 250W power supply with PFC
* AC input: full range 100V~240V
* One 4cm ball bearing fan and 80plus bronze high efficiency 82% at 115VAC or 230VAC full load
* Dimensions: D.150 x W.81 x H.40 /mm
*
Power supply wiring harness (part# EFAPS250-S20-OD01X0 and EFAPS250-S20-OL01C)

* Safety: CCC, TUV, UL, FCC, CE, RoHS
* Power supply bracket included

..........................................................................................................................................................................................................................................................................................

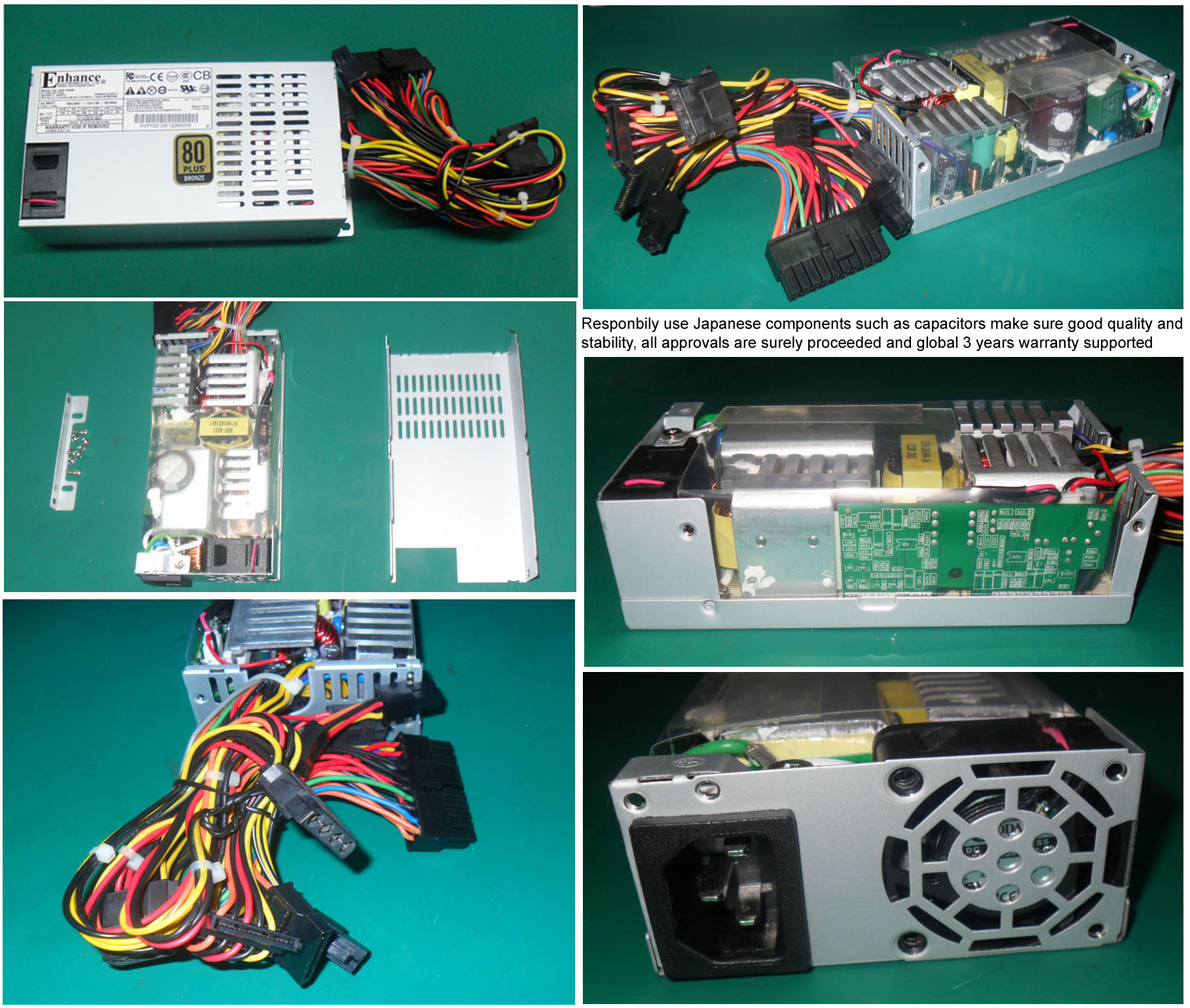

ENP-7025B

1U Flex ATX 250W power supply with PFC
* AC input: full range 100V~240V
* One 4cm ball bearing fan
* 80Plus Bronze certified class (high efficiency 82%)
and build-in temperature control device
* Dimensions: D.150 x W.81 x H.40 /mm
*
Power supply wiring harness

* Safety: CCC, CE, Nemko, UL, FCC, RoHS, BSMI
* Power supply bracket included (bracke# 360220037-00 included as standard)

..........................................................................................................................................................................................................................................................................................

ENP-7130B

1U Flex ATX 300W power supply with PFC
* AC input: full range 100V~240V
* One 4cm ball bearing fan
* 100VAC input: 80Plus Silver certified class (high efficiency 85%)
and build-in temperature control device

* 240VAC input: 80Plus Gold certified class (high efficiency 87%)and build-in temperature control device
* Dimensions: D.150 x W.81 x H.40 /mm
* Safety: CCC, CE, Nemko, UL, FCC, RoHS, BSMI
*
Power supply wiring harness (power supply bracket part# 360220037-00 included as standard)

..........................................................................................................................................................................................................................................................................................

ENP-7025D

1U 250W power supply with PFC
* AC input: full range 100V~240V
* One 4cm ball bearing fan
* Dimensions: D.180 x W.100 x H.40.5 /mm
* Safety: CCC, CE, Nemko, UL, FCC, RoHS, BSMI

* Standard installed with power supply bracket (bracket part# 360220032-02)

* Power supply wiring harness drawing# ENP7025D-32YGB-N, identified on August 22, 2014

..........................................................................................................................................................................................................................................................................................

ENH-1930

1U 300W power supply with PFC
* AC input: full range 100V~240V
* One 4cm ball bearing fan

* 80Plus Bronze certified class (high efficiency 82%)
* Dimensions: D.180 x W.100 x H.40.5 /mm
*
Power supply wiring harness
* Safety: CCC, Nemko, UL, CE, FCC

* Standard installed with power supply bracket

..........................................................................................................................................................................................................................................................................................

P1G-6300P

1U 300W power supply with PFC
* AC input: full range 90V~264V
* Two 4cm ball bearing fans
* Dimensions: D.205 x W.100 x H.40.5 /mm
*
Power supply wiring harness

..........................................................................................................................................................................................................................................................................................

TC-1U35

1U 350W power supply with PFC
* AC input: 90~132 or 180~264V (115/230 auto)
* Two 4cm ball bearing fans
* Dimensions: D.200 x W.100 x H.40.5 /mm
*
Power supply wiring harness

* Safety: UL, CB, TUV, CE, FCC, ATE

..........................................................................................................................................................................................................................................................................................

P1H-5400V

1U 400W power supply with PFC
* AC input: full range 90V~264V, 47-63Hz
* One 4cm ball bearing fan
* Dimensions: D.225 x W.100 x H.40.5 /mm

* Safety: UL, CUL, TUV, CCC, FCC, CE, CB
*
Power supply wiring harness

..........................................................................................................................................................................................................................................................................................

ENH-1655

1U 550W power supply with PFC
* AC input: full range 100V~240V, 8-4A, 60-50Hz
* Two 40mm x 28mm ball bearing fans
* 80Plus Gold certified class ((high efficiency 88%) and
build-in temperature control device
* Dimensions: D.245 x W.100 x H.40.5 /mm
*
Power supply wiring harness (standard mounting bracket compatible with 250mm deep power supply)

* Safety: CE, FCC
