2U ACCESSORY
webpage updated on April 30, 2018


1U 2U 3U 4U SLIDE RAIL OR 1U 2U 3U 4U REAR MOUNTING KIT

..........................................................................................................................................................................................................................................................................................

NJ-600

600mm 2-layer 3-travel universal slide rail
* Unique universal design compatible with all height 1234U chassis,
one unit means one pair
* Compatible with chassis width between
422mm~430mm, supported chassis depth at 600mm~1200mm

* Slide rail depth at minimum 600mm and maximum at 1200mm while fixing the L brackets with slide rail

* Different mounting holes at two side of chassis also compatible, using 3 stage with 3 travel design
* Using
ultra durable stacked 2-layer slide rail design for maximum 65kg loading (installation guide)

* Package: 1 pair/box, NW.2.9KG, GW.3.1KG, 0.12 CUFT (60cm x 5.5cm x 10cm single box packed)
5 boxes/carton, NW.15.5KG, GW.16.5KG, 0.75 CUFT (60.5cm x 28cm x 12.5cm single carton packed)

* Accessory pack: 2U/4U stacked bracket x 4pcs, M4 flat head screw for chassis mounting 16pcs,

   M4 screw nut x 8pcs for spare, M5 round head screw for cabinet mounting x 8pcs, M6 flat head screw for

   cabinet mounting x 8pcs, M6 round head screw for cabinet mounting x 8pcs, M6 washer for spare x 8pcs

..........................................................................................................................................................................................................................................................................................

1234U-RMK

1234U rear mounting kit
* Unique universal design compatible with all height 1234U chassis
* and compatible with chassis width between
424mm~430mm, one unit means one pair
*
Different mounting holes at two side of chassis also compatible, rear mounting kit depth at 300mm
*
Accessory pack: two L brackets, two stacked brackets, M4 flat head screw for chassis mounting 4pcs,

   four flat head countersunk M5 12mm screw for special 2U/4U Stacked Brackets, two flat head 12mm

   countersunk M6 screw for special 2U/4U Stacked Brackets
* Package: 1 pair/white box, NW.0.40KG, GW.0.44KG, 0.02 CUFT (35.3cm x 5.1xcm x 3.0cm box size)

..........................................................................................................................................................................................................................................................................................

NJ-S628

628mm 3-travel slimline slide rail
* Compatible cabinet internal depth at 628.20mm~928.20mm, cabinet external depth at 700mm~1000mm
* 3-travel rails design, slide rail's minimum depth is 628.20mm, maximum depth is 928.20mm
* Durable heavy duty design that can support maximum 75 ponds or 34 KGS
* Support rackmount chassis width at
438mm, and one Pair as one unit
* Package: 1 pair/box, NW.2.50KG, GW.3.00KG, 0.35 CUFT (71x14x10cm, single box packed)

* Installation guide

..........................................................................................................................................................................................................................................................................................

SRMK-550

550mm Slimline rear mounting kit
* Unique universal design compatible with chassis width at 438mm, and chassi sheight for 1234U chassis
* Different mounting holes at two side of chassis also compatible, rear mounting kit depth at 550mm



2U RISER CARD (All designed and made in Taiwan)
5V or 3.3V identification between PCI 32bit and 64bit

..........................................................................................................................................................................................................................................................................................

2U1PCI2PCIELC

2U 1PCI 32bit 1PCIe 16X 1PCIe 4X left angle riser card
* Gold finger direct inserted at the 6th PCI 32bit 5V slot
* and extended to the 7th PCIe 16X 5V or 12V slot position (cable 60mm long)
* and extended to the 4th PCIe 4X 5V or 12V slot position (cable 45mm long)

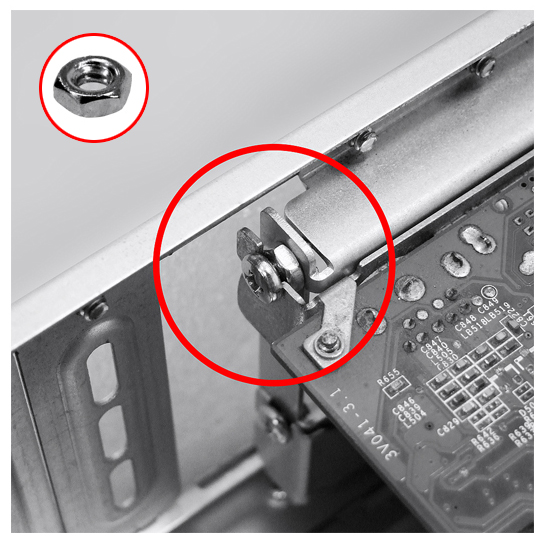

* Cables packed with Aluminum Foil protection & one #6 screw nut as standard
* Compatible MB such as ASRock IMB-780 motherboard

..........................................................................................................................................................................................................................................................................................

2U3PCI32LC



2U 3PCI 32bit left angle riser card
* riser card located at the 6th slot position of motherboard
* the 1st cable length 75mm, maximum distance to the 3rd 32bit PCI 5V slot of motherboard
* the 2nd & 3rd cables length 165mm, maximum distance to the 1st 32bit PCI 5V slot of motherboard

..........................................................................................................................................................................................................................................................................................

2U3PCI32L

2U 3PCI 32bit left angle riser card
* gold finger direct inserted at the 6th 32bit PCI 5V slot position
* and extended to the 1st~5th 32bit PCI 5V slot position
(cable 160mm long)
* and extended to the 1st~5th 32bit PCI 5V slot position
(cable 160mm long)

..........................................................................................................................................................................................................................................................................................

2U3PCI32R

2U 3PCI 32bit right angle riser card
* gold finger direct inserted at the 1st 32bit PCI 5V slot position
, insert expansion card from right side
* and extended to the 2nd 32bit PCI 5V slot position
* and extended to the 3rd 32bit PCI 5V slot position
* special made right angle chassis rear panel necessary

..........................................................................................................................................................................................................................................................................................

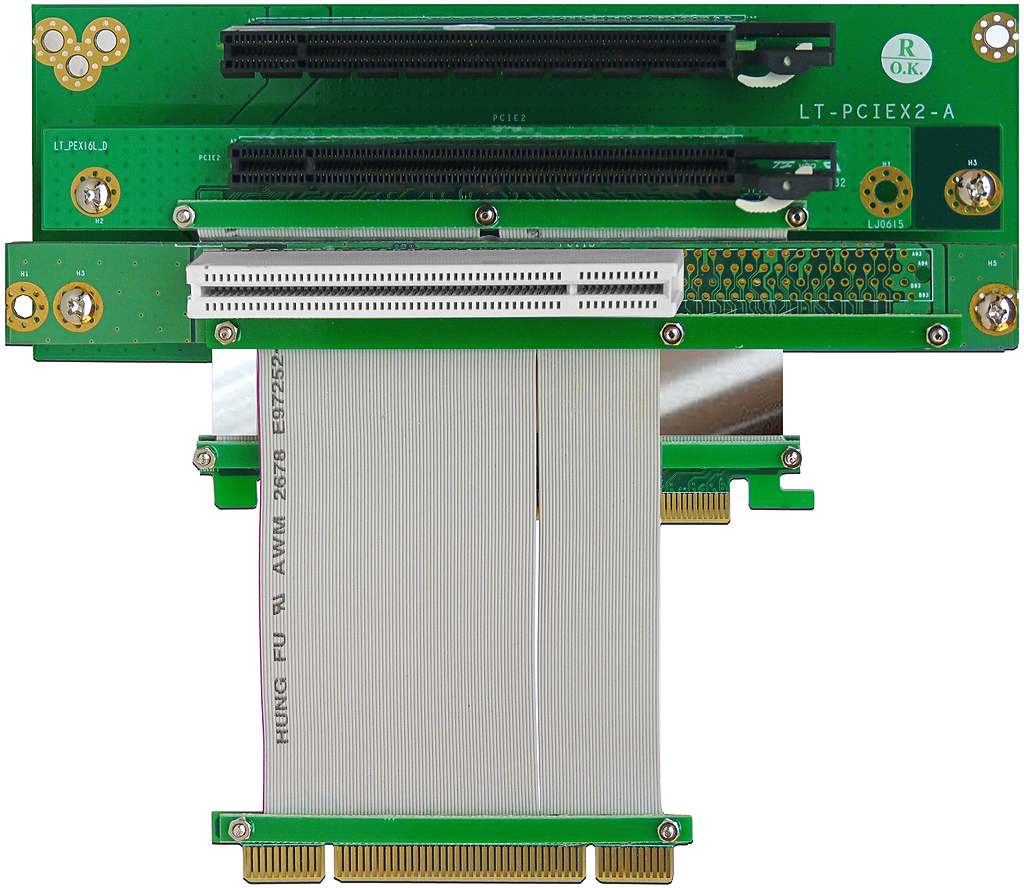

2U1E162PCI32LC

2U 1PCI-Express 16X 2PCI 32bit left angle riser card
*
gold finger direct inserted at the 6th PCI-Express 16X slot
* and extended to the 5th or 4th or 3rd 32bit PCI 5V slot position
(cable 67mm long)
* and extended to the 5th or 4th or 3rd or 2nd or 1st 32bit PCI 5V slot position (cable 200mm long)
*
compatible MB such as Epox EP-9NPA+SLi

..........................................................................................................................................................................................................................................................................................

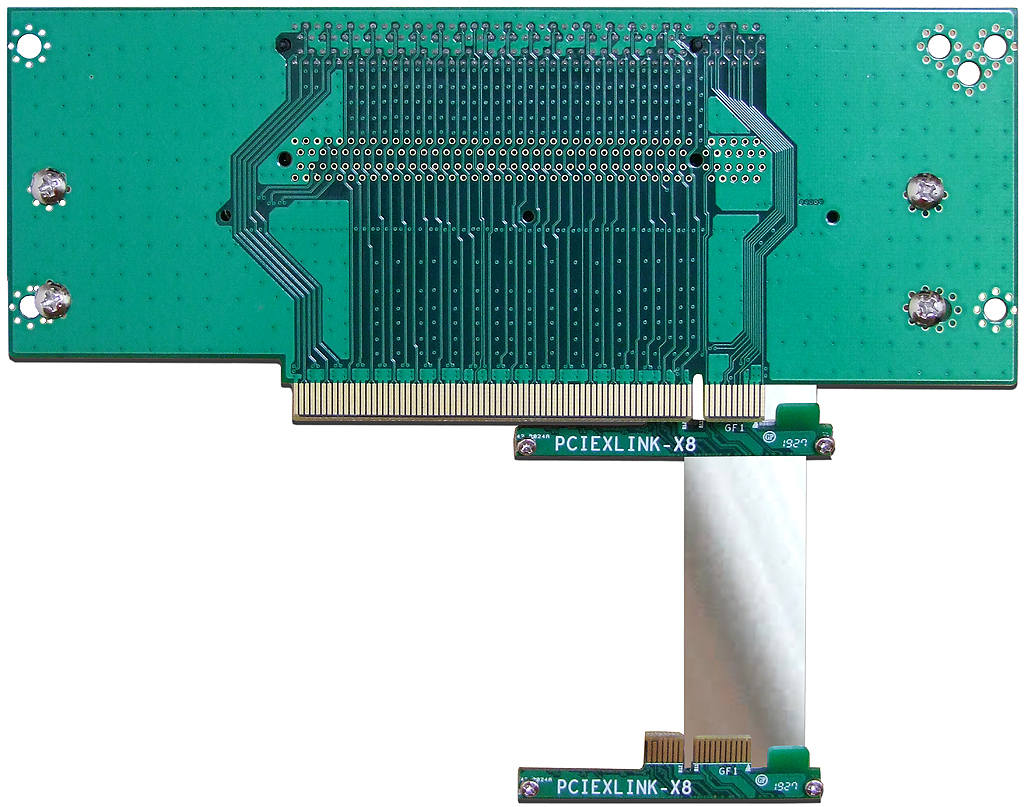

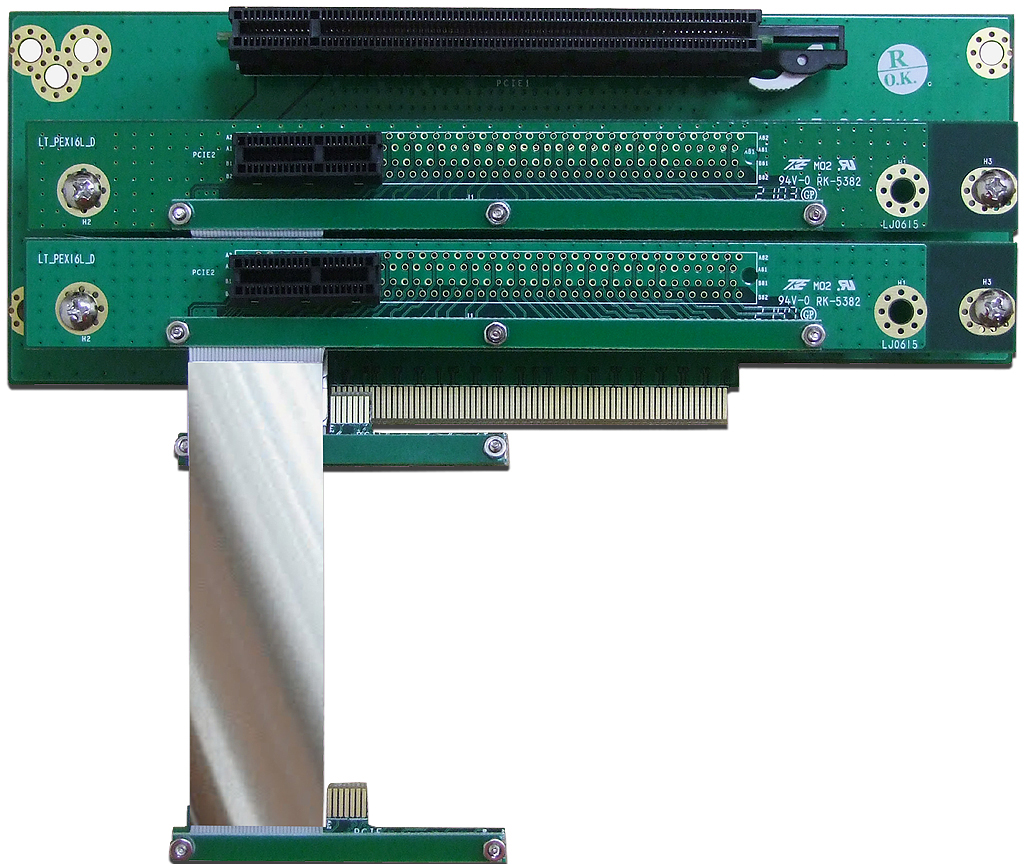

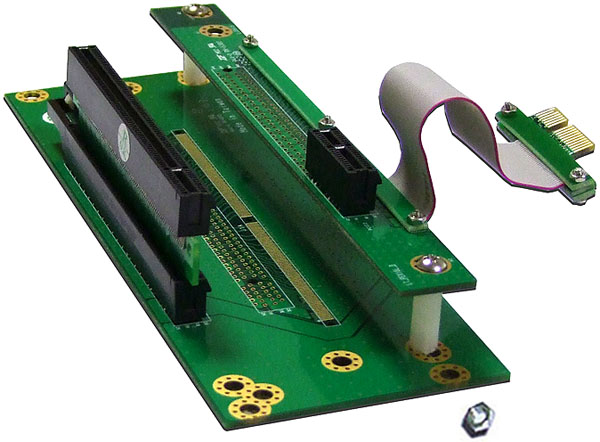

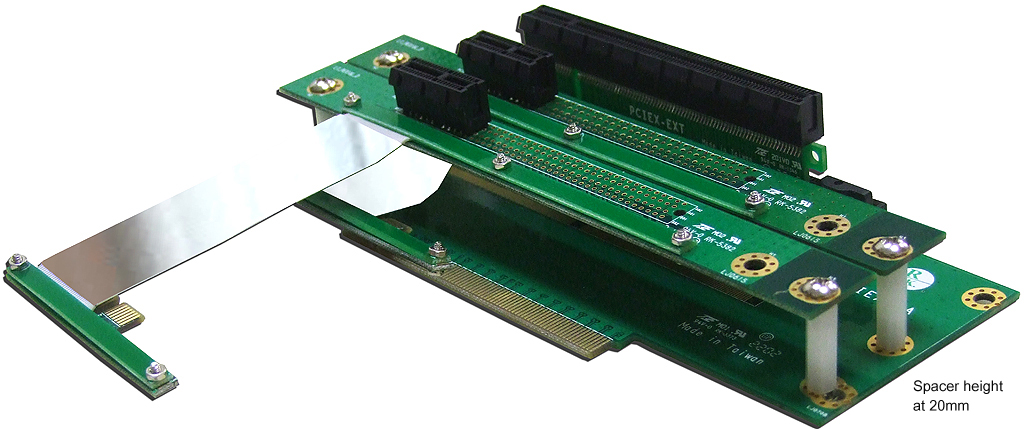

2U1E162E1XLC

2U 1PCI-Express 16X 2PCI-Express 1X left angle riser card
*
gold finger direct inserted at the 7th PCI-Express 16X slot
*
and extended to the 6th PCI-Express 1X slot position (cable 25mm long)
*
and extended to the 3rd PCI-Express 1X slot position (cable 90mm long)
* 12V or 3.3V compatible (note: two screw nuts and one 16X extended card must be included)
*
compatible MB such as Intel Dual Core LGA775 DG965WH and DG965RY MB

..........................................................................................................................................................................................................................................................................................

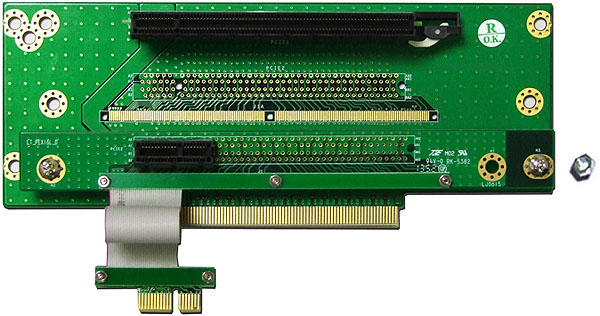

2U1E161E1XLC

2U 1PCI-Express 16X 1PCI-Express 1X left angle riser card
*
gold finger direct inserted at the 7th PCI-Express 16X slot but converted to 6th slot of 2U rear panel
*
and extended to the 3rd PCI-Express 1X slot position (cable 80mm long)
* 12V or 3.3V compatible (note: one screw nut and one 16X extended card must be included)
*
totally 2 slots can be inserted on the MB

..........................................................................................................................................................................................................................................................................................

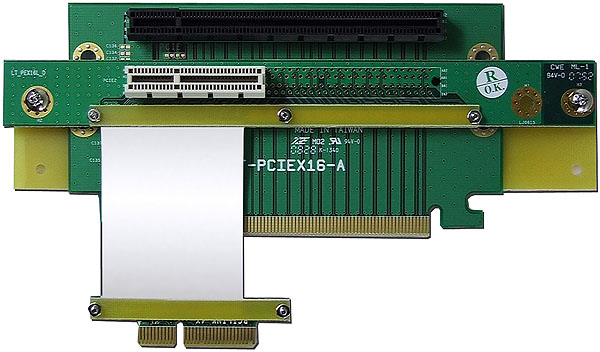

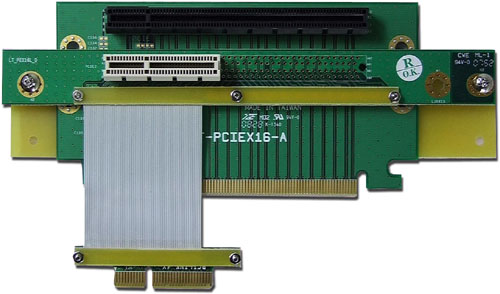

2U1E161E4XLC

2U 1PCI-Express 16X 1PCI-Express 4X left angle riser card
*
Gold finger direct inserted at the 6th PCI-Express 16X slot
*
And extended to the 4th PCI-Express 4X slot position (cable 50mm long)
* 12V or 3.3V compatible
*
Cable packed with Aluminum Foil protection as Option due to different cost

..........................................................................................................................................................................................................................................................................................

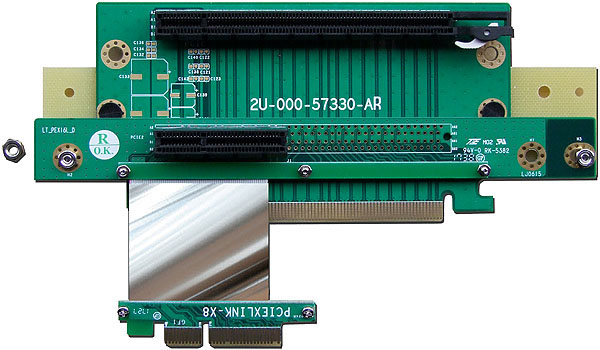

2U1E161E4XLC-A



2U 1PCI-Express 16X 1PCI-Express 4X left angle riser card
*
Gold finger direct inserted at the 6th PCI-Express 16X slot
*
And extended to the 4th PCI-Express 4X slot position (cable 45mm long)
* 12V or 3.3V compatible
*
Cable packed with Aluminum Foil protection as standard

..........................................................................................................................................................................................................................................................................................

2U1PCI321E16L



2U 1PCI 32bit 1PCI-Express 16X left angle riser card
*
extended to the 6th 32bit PCI 5V slot position (cable 45mm long)
*
and extended to the 5th or 4th or 3rd PCI-Express 16X slot position (cable 65mm long)
*
PCI-Express 12V or 3.3V compatible
*
compatible MB such as Asus P5Q Premium LGA775 MB

..........................................................................................................................................................................................................................................................................................

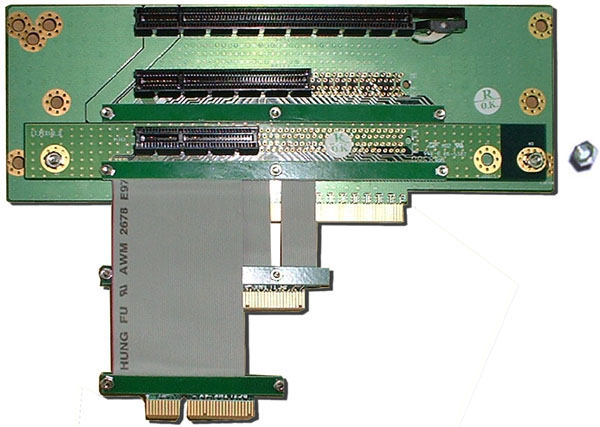

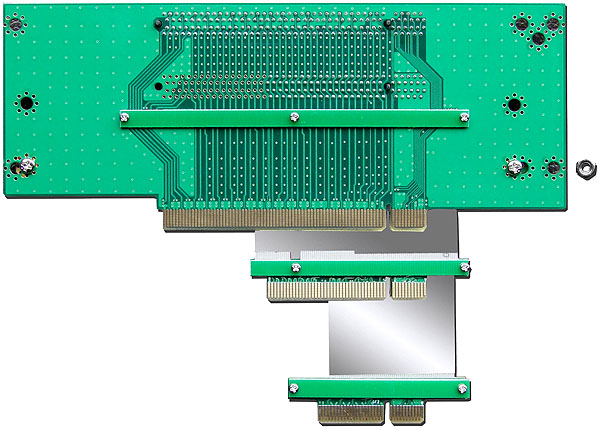

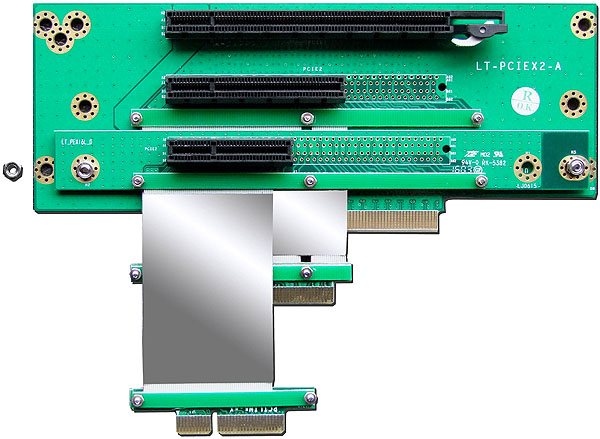

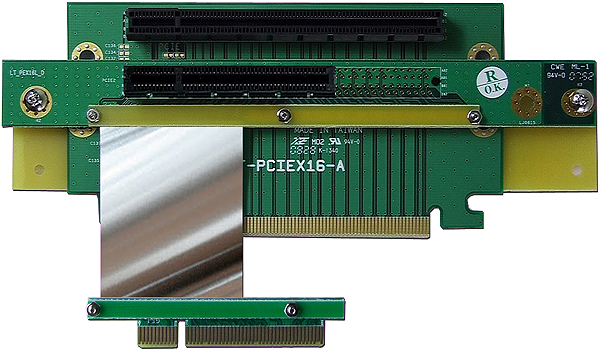

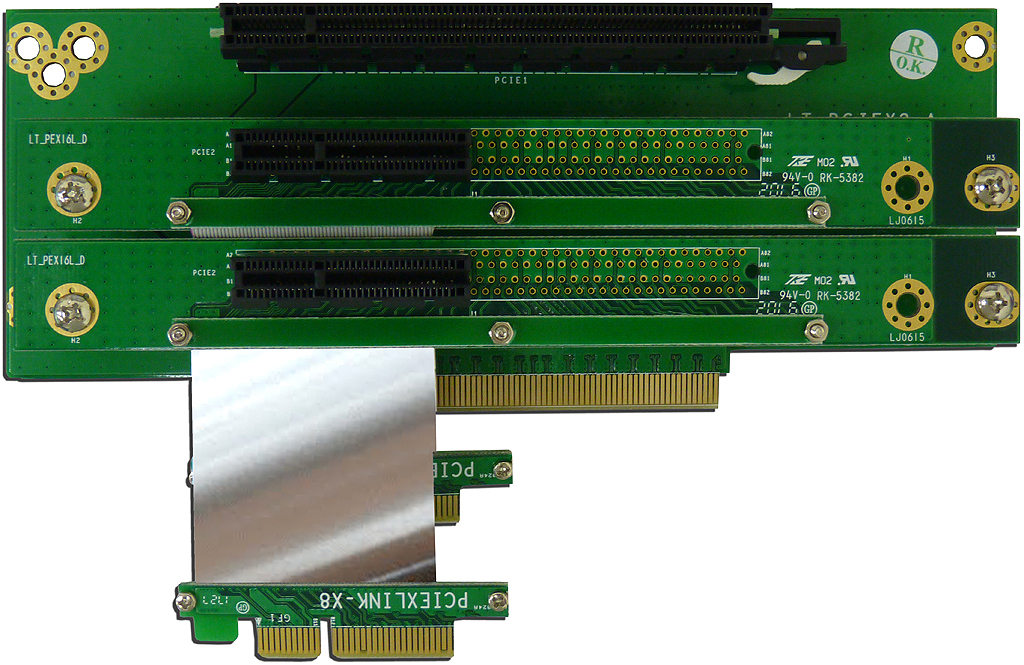

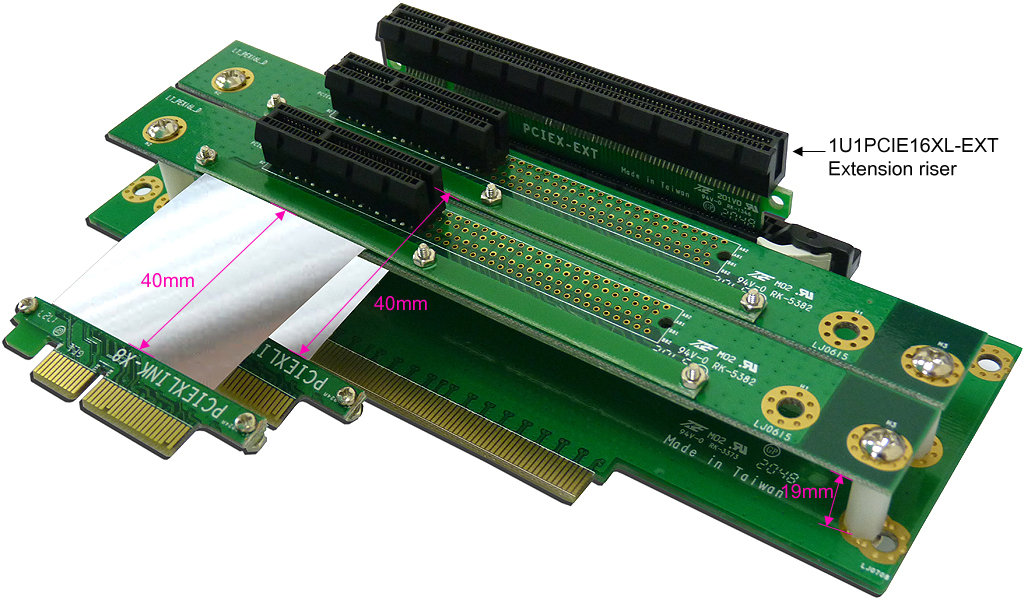

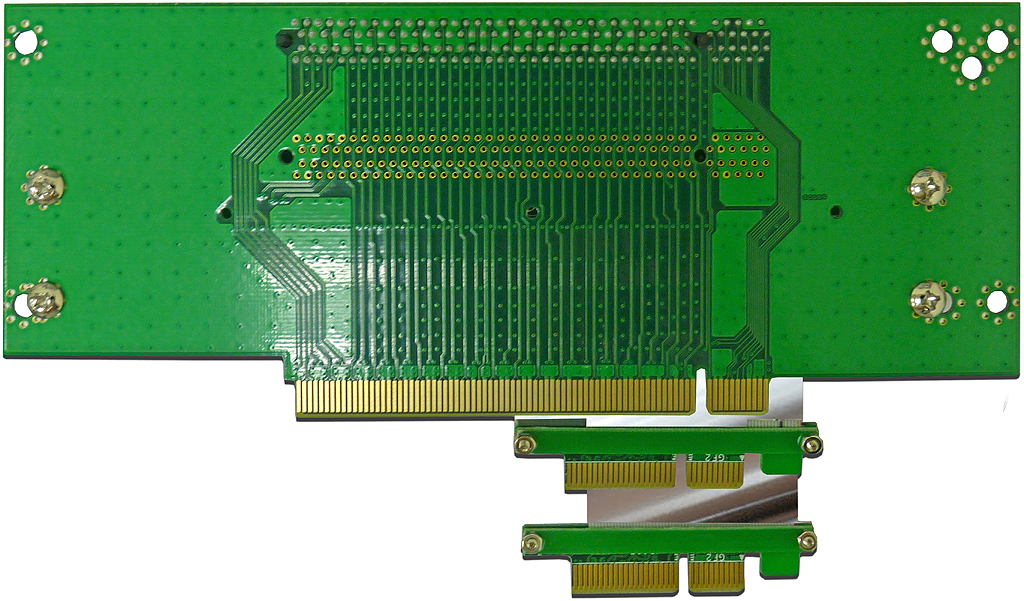

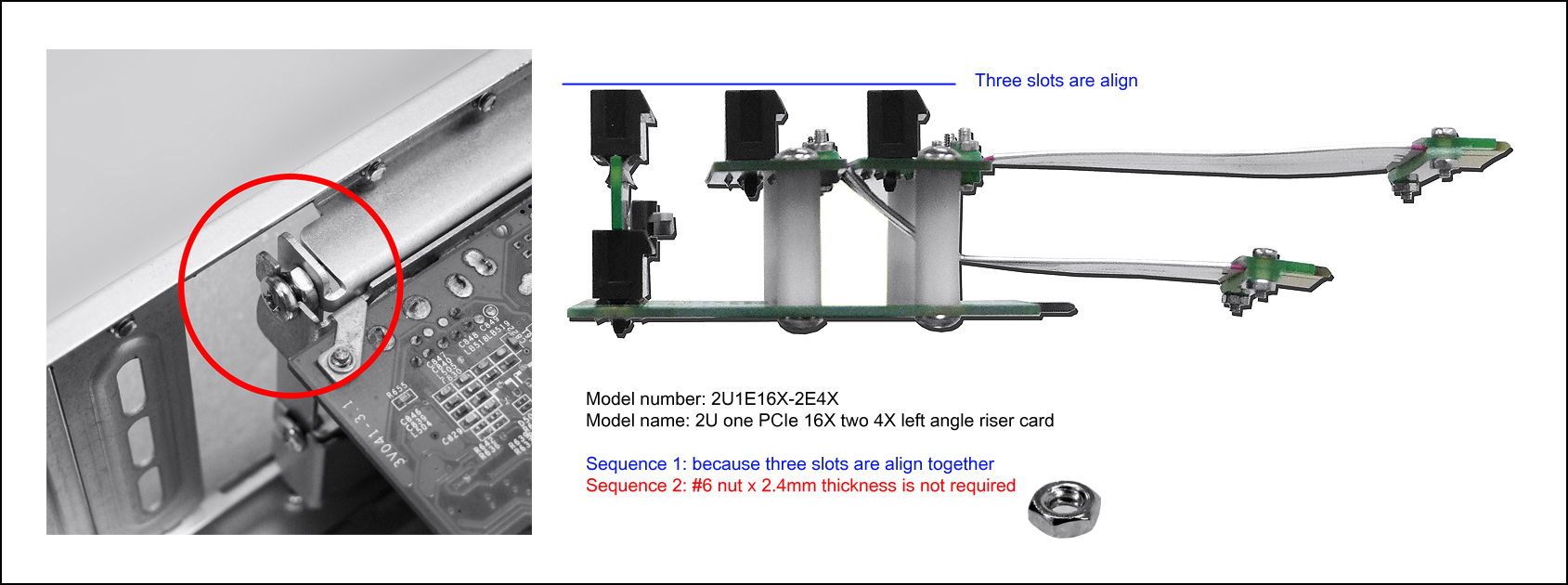

2U16X8X4XC

2U 1PCI-Express 16X 8X 4X left angle riser card
*
gold finger direct inserted at the 6th PCI-Express 16X slot
* and extended to the 5th PCI-Express 8X slot position (cable 35mm long)
*
and extended to the 3rd PCI-Express 4X slot position (cable 65mm long)
* PCI-Express 12V or 3.3V compatible
*
cable packed with Aluminum Foil protection as Option due to different cost

..........................................................................................................................................................................................................................................................................................

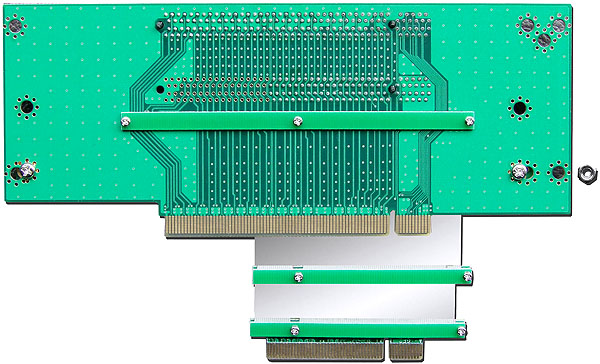

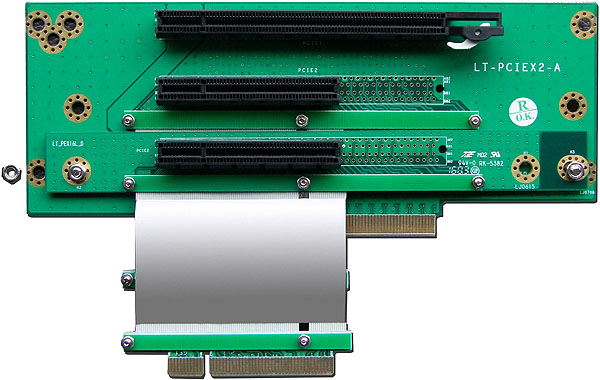

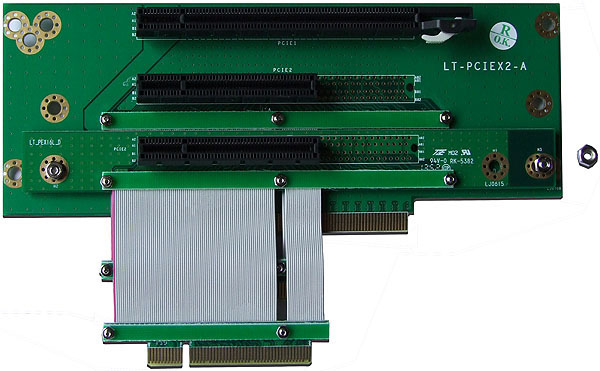

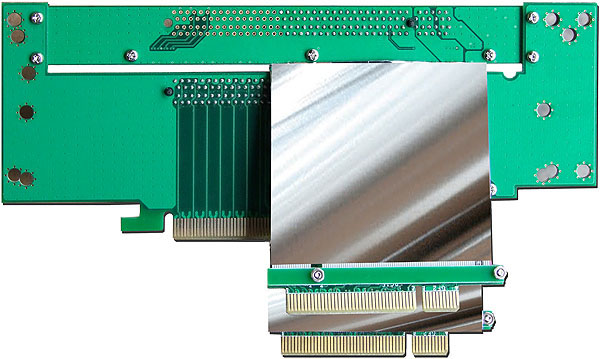

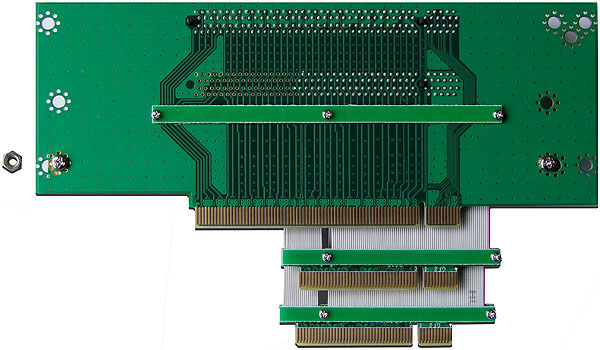

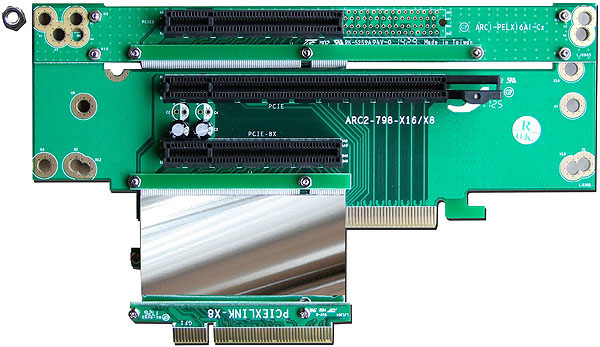

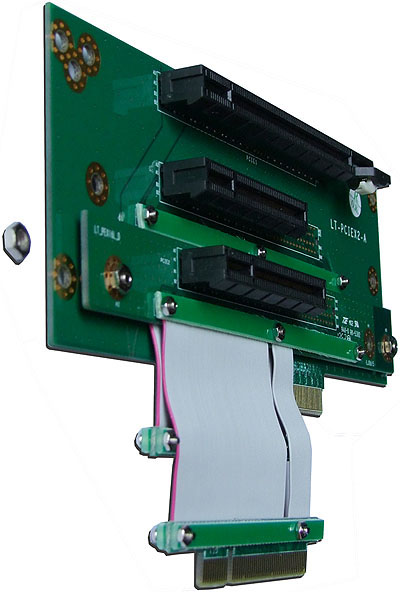

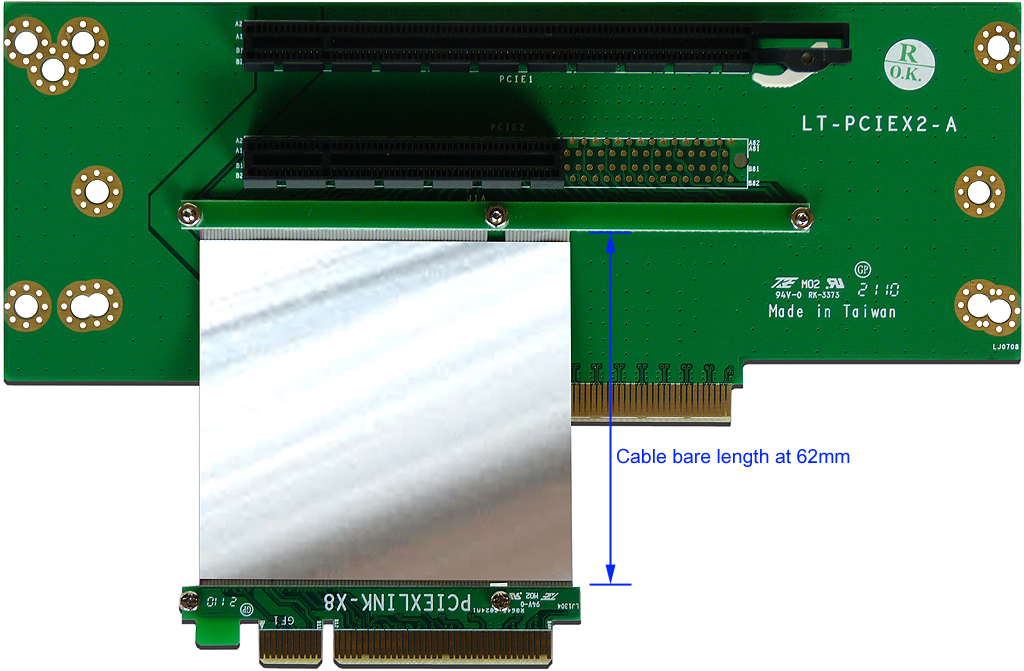

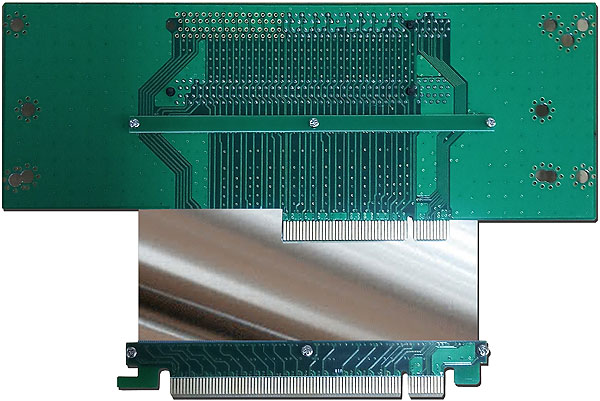

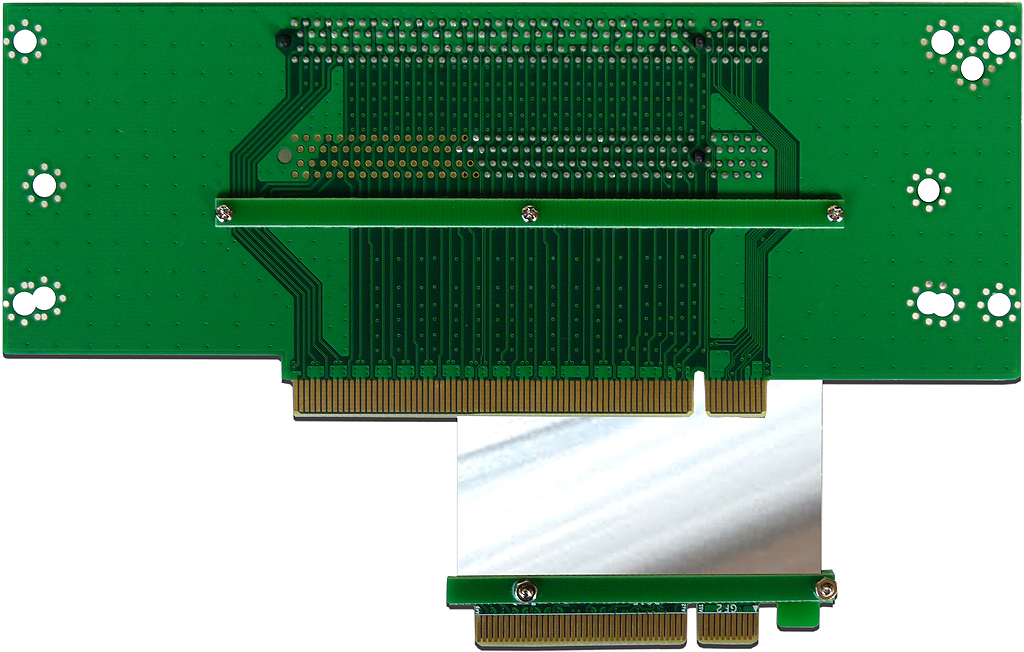

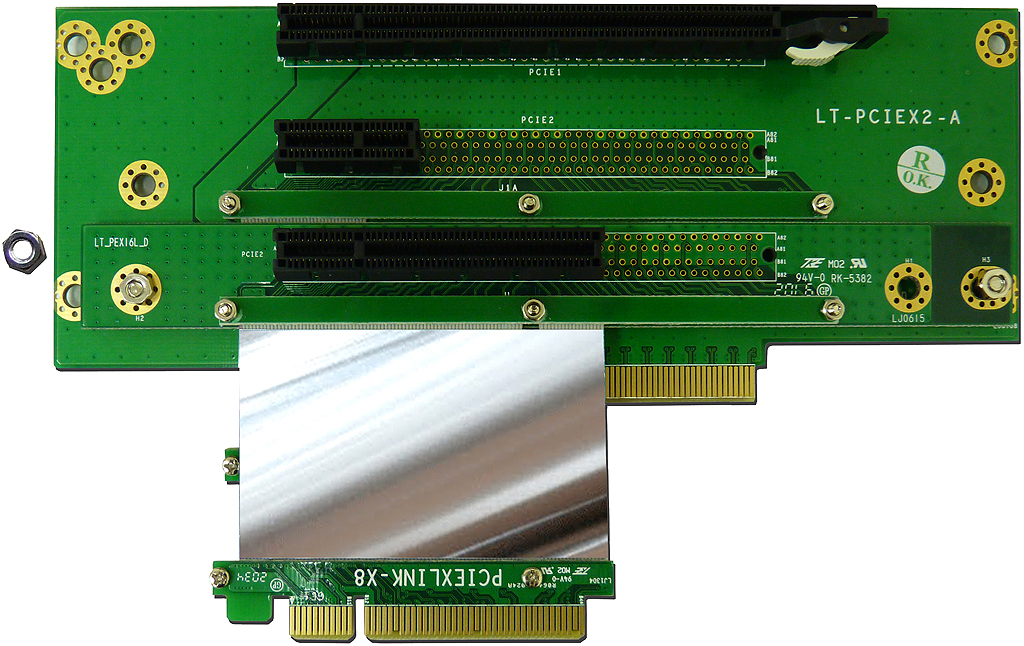

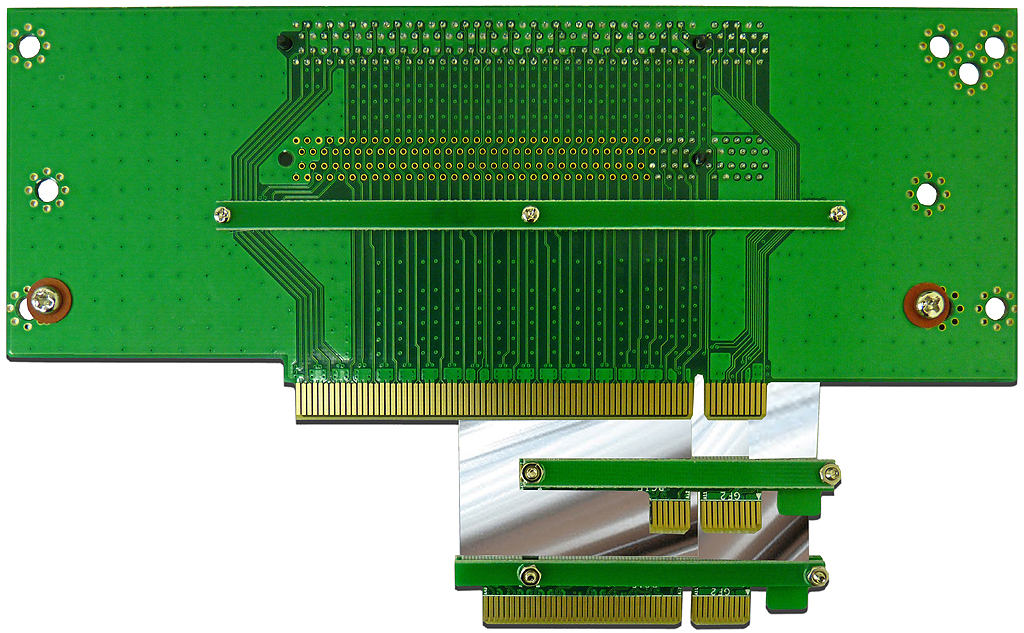

2U16X8X8XC



2U 1PCI-Express 16X 8X 8X left angle riser card
*
gold finger direct inserted at the 6th PCI-Express 16X slot
* and extended to the 5th PCI-Express 8X slot position (cable 22mm long)
*
and extended to the 4th PCI-Express 8X slot position (cable 42mm long)
* PCI-Express 12V or 3.3V compatible (side view)
*
cable packed with Aluminum Foil protection as Option due to different cost

..........................................................................................................................................................................................................................................................................................

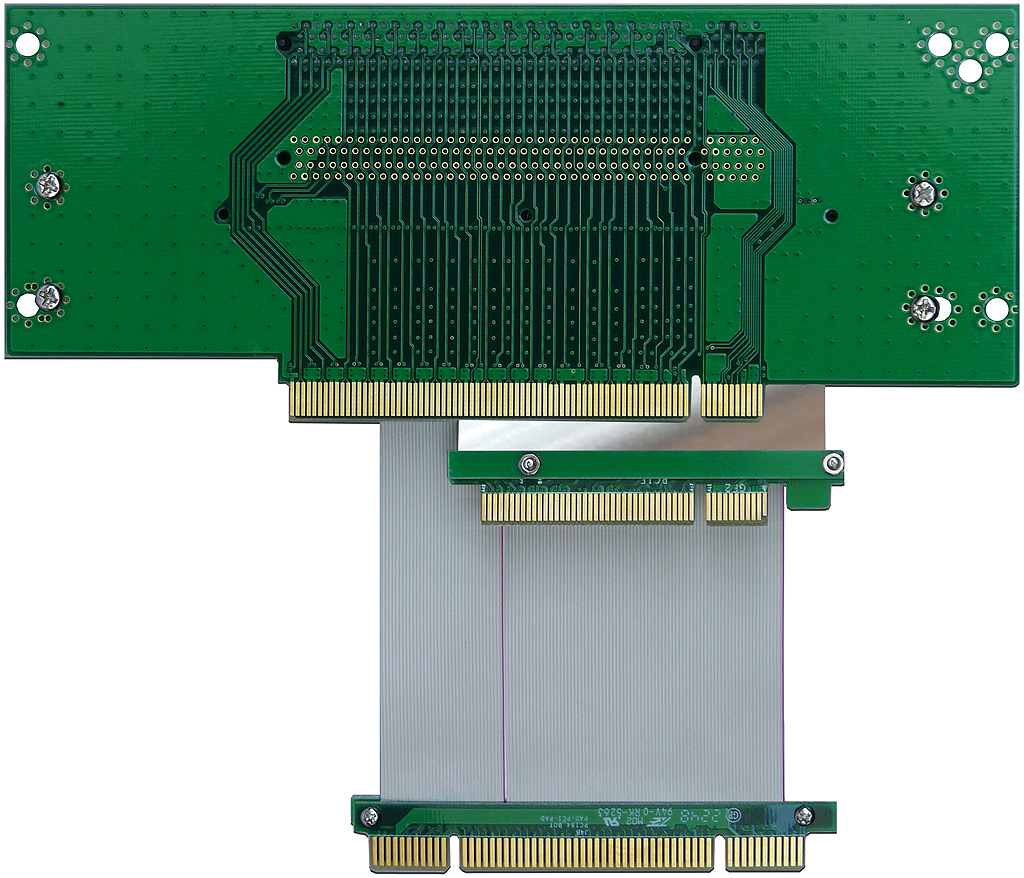

2U8XPCI32LC



2U 1PCIE 8X 1PCI 32bit riser card
*
gold finger direct inserted at the 6th PCI-Express 8X slot
* and extended to the 4th PCI 32bit slot position (cable 100mm long)
* PCI-Express 12V or 3.3V compatible, PCI 32bit 5V compatible
*
compatible MB such as Supermicro X8SIL-F MicroATX motherboard

..........................................................................................................................................................................................................................................................................................

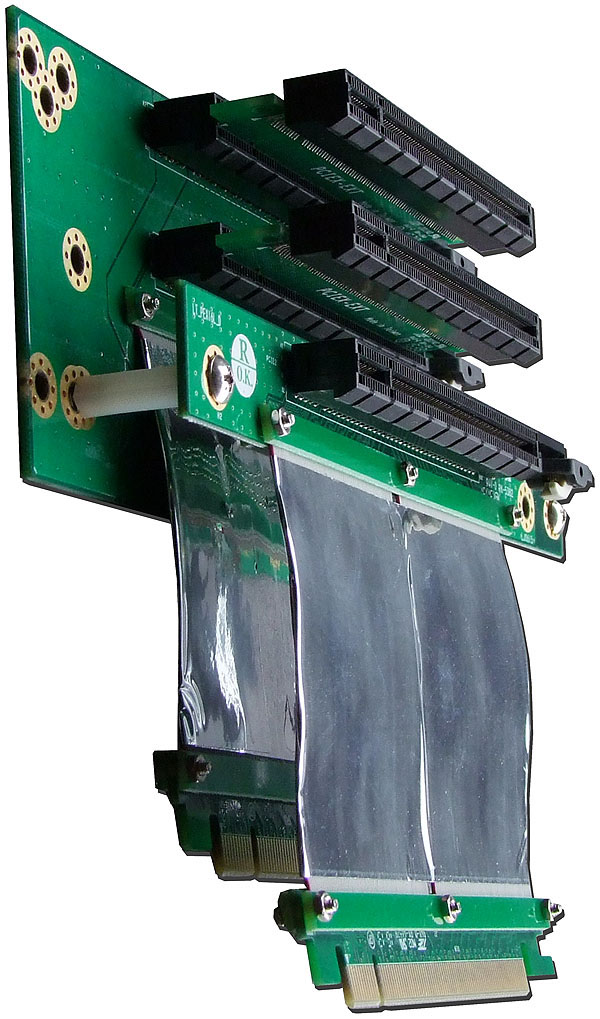

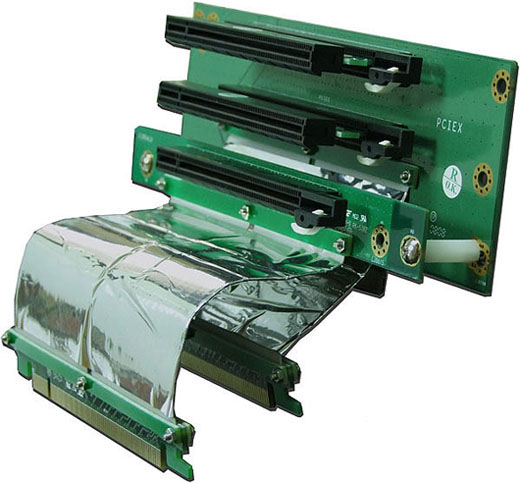

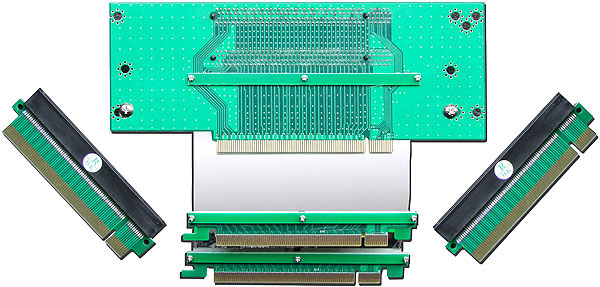

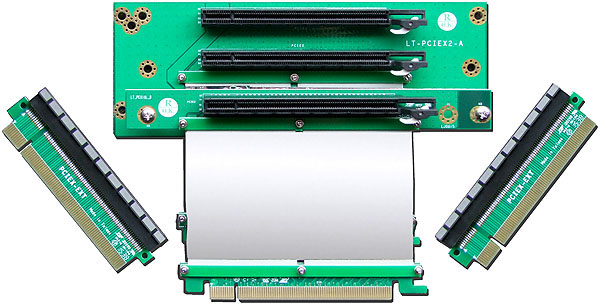

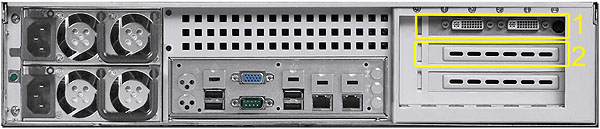

2U3E16XLC



2U 3PCI-Express 16X left angle riser card
*
gold finger direct inserted at the 7th PCI-Express 16X slot, and converted into 6th position by extender

* and extended to the 5th PCI-Express 16X slot position (cable 65mm long packed with Aluminum Foil)
*
and extended to the 4th PCI-Express 16X slot position (cable 65mm long packed with Aluminum Foil)

* 12V or 3.3V compatible (note: two 16X extended cards must be included, side view 1 and side view 2)
*
compatible some special made customized MB

..........................................................................................................................................................................................................................................................................................

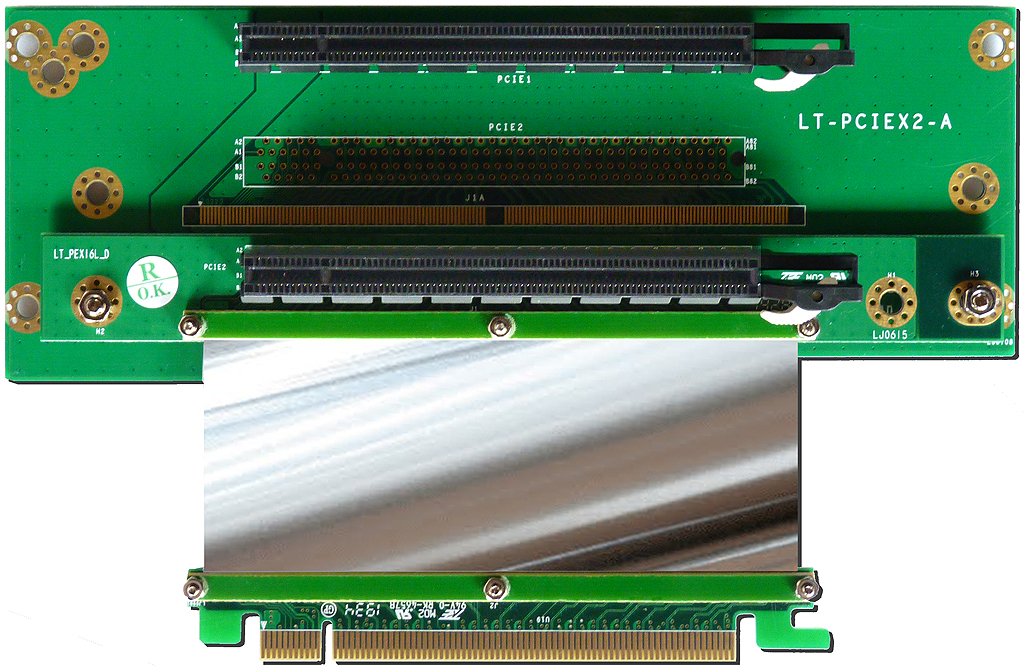

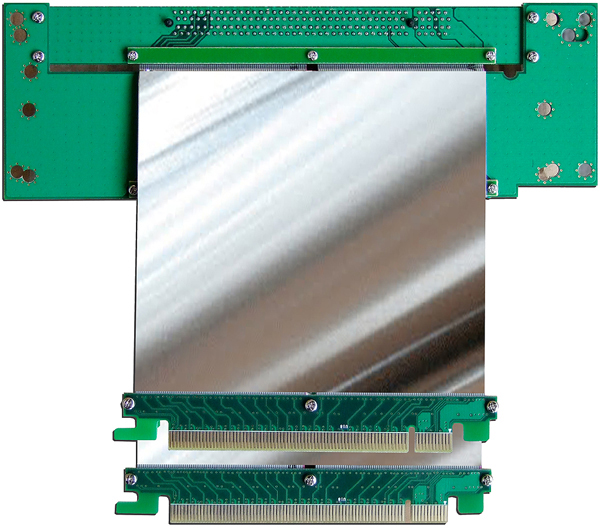

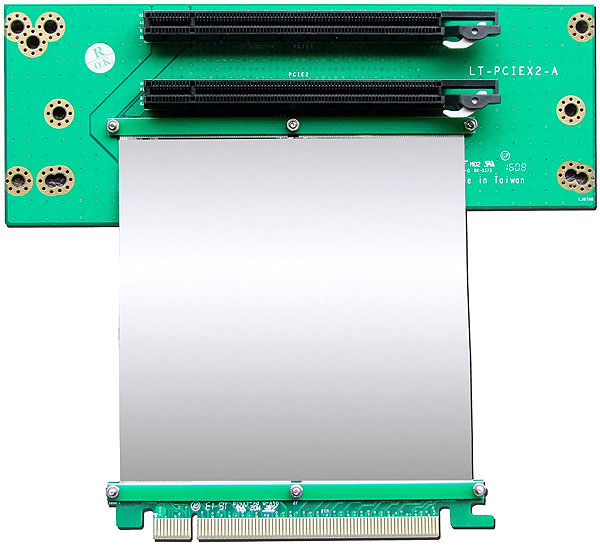

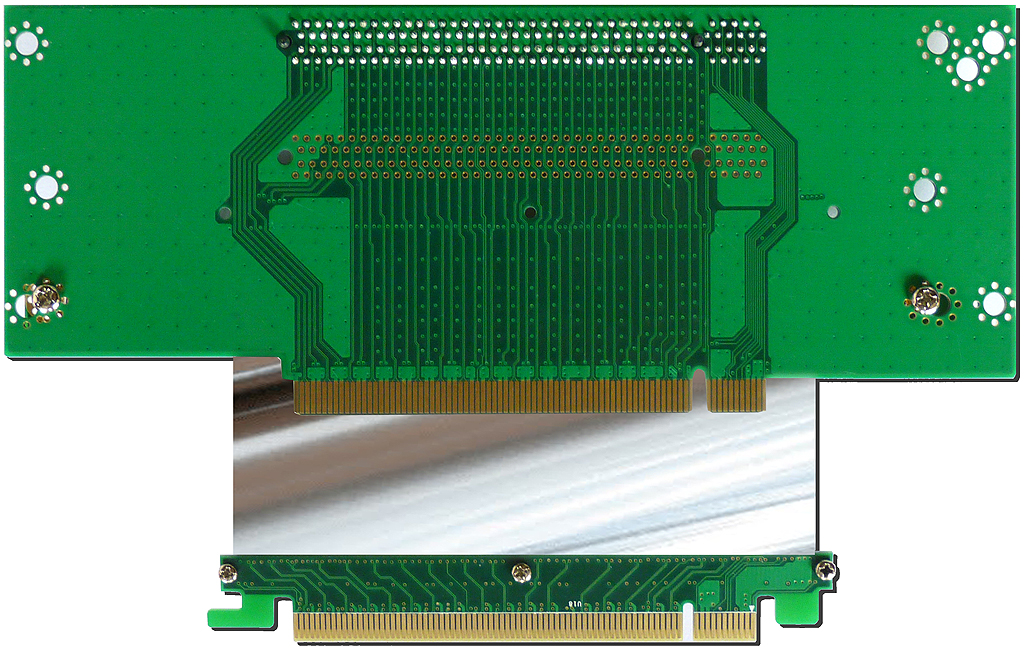

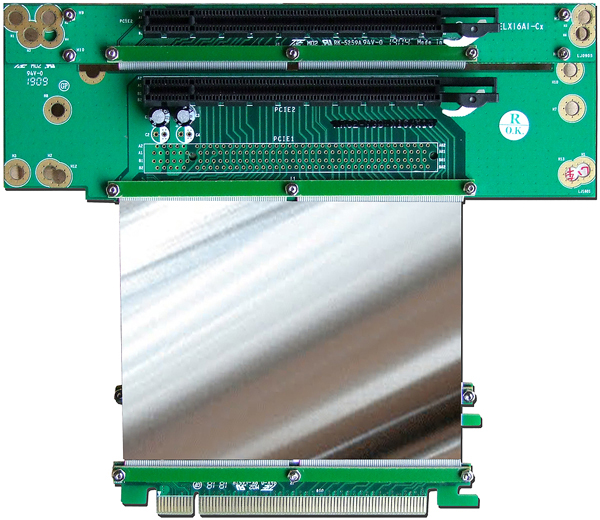

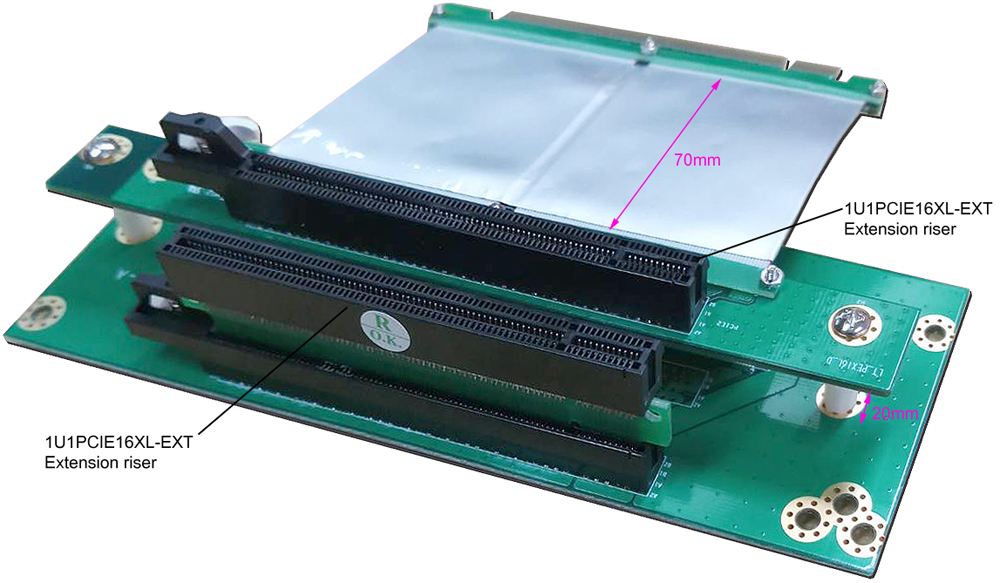

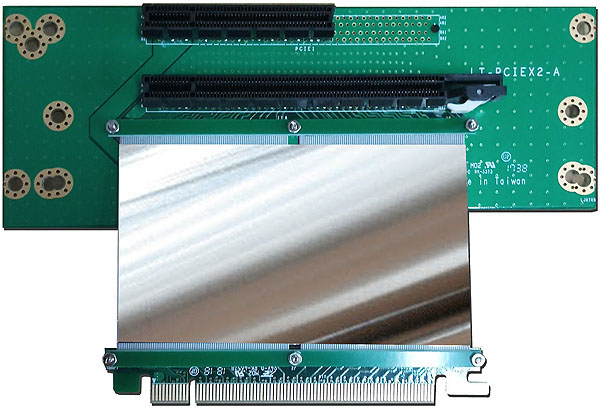

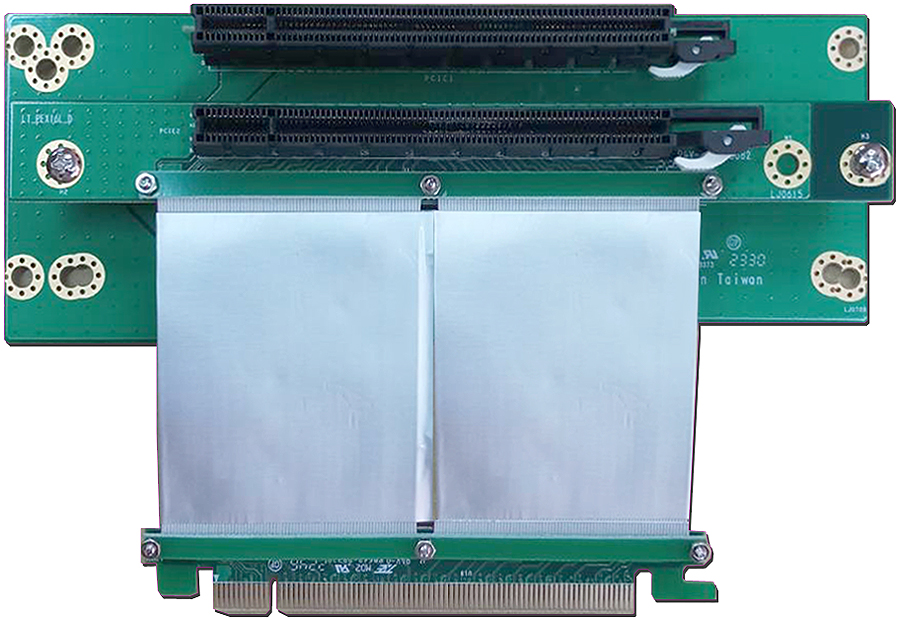

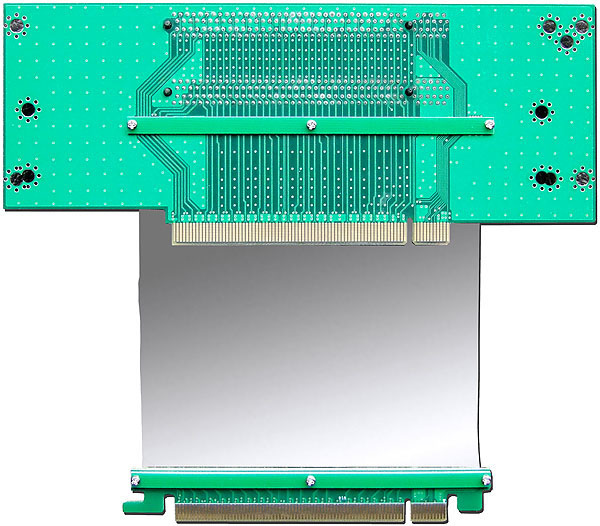

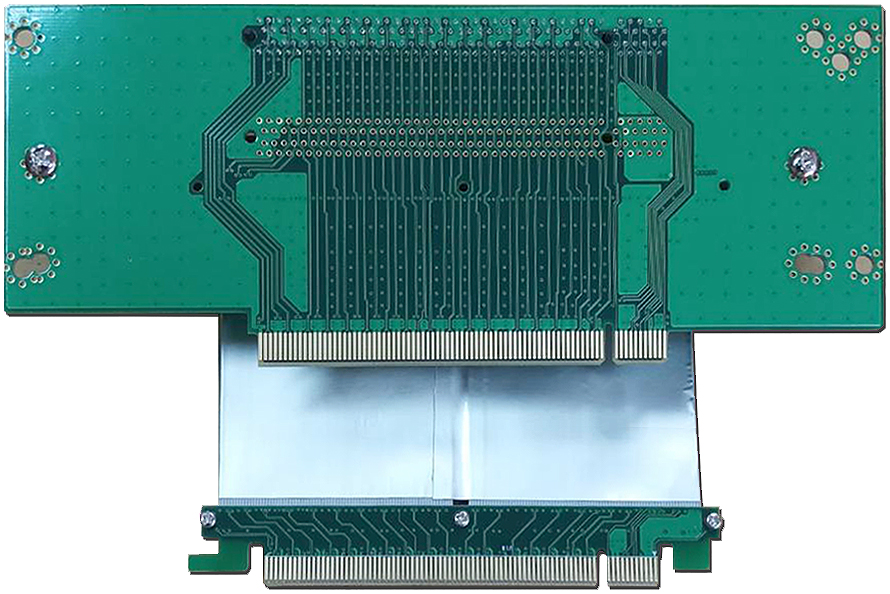

2U2E16XLC



2U 2PCI-Express 16X left angle riser card
*
gold finger direct inserted at the 6th PCI-Express 16X slot of motherboard

* and extended to the 5th~3rd PCI-Express 16X slot position (cable 105mm long packed with Aluminum Foil)
*
compatible some special made customized MB      dimension statement

..........................................................................................................................................................................................................................................................................................

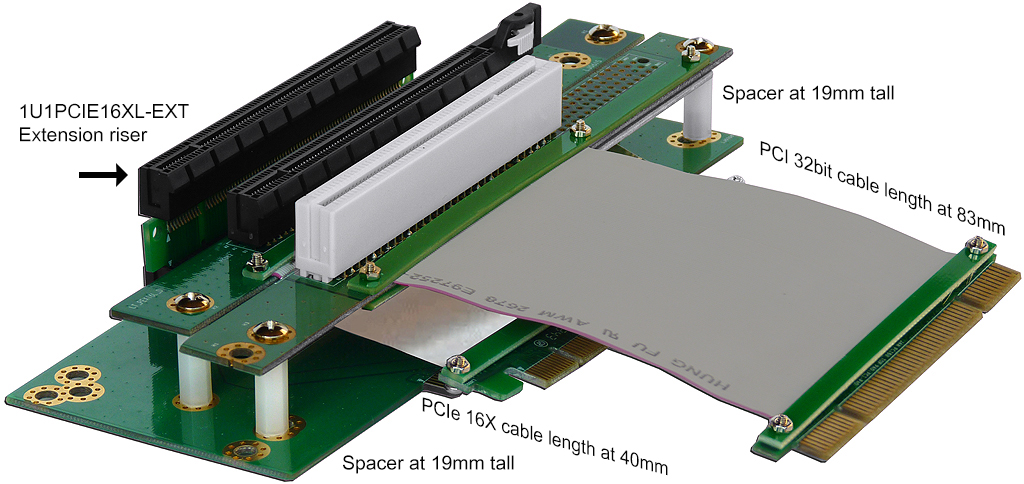

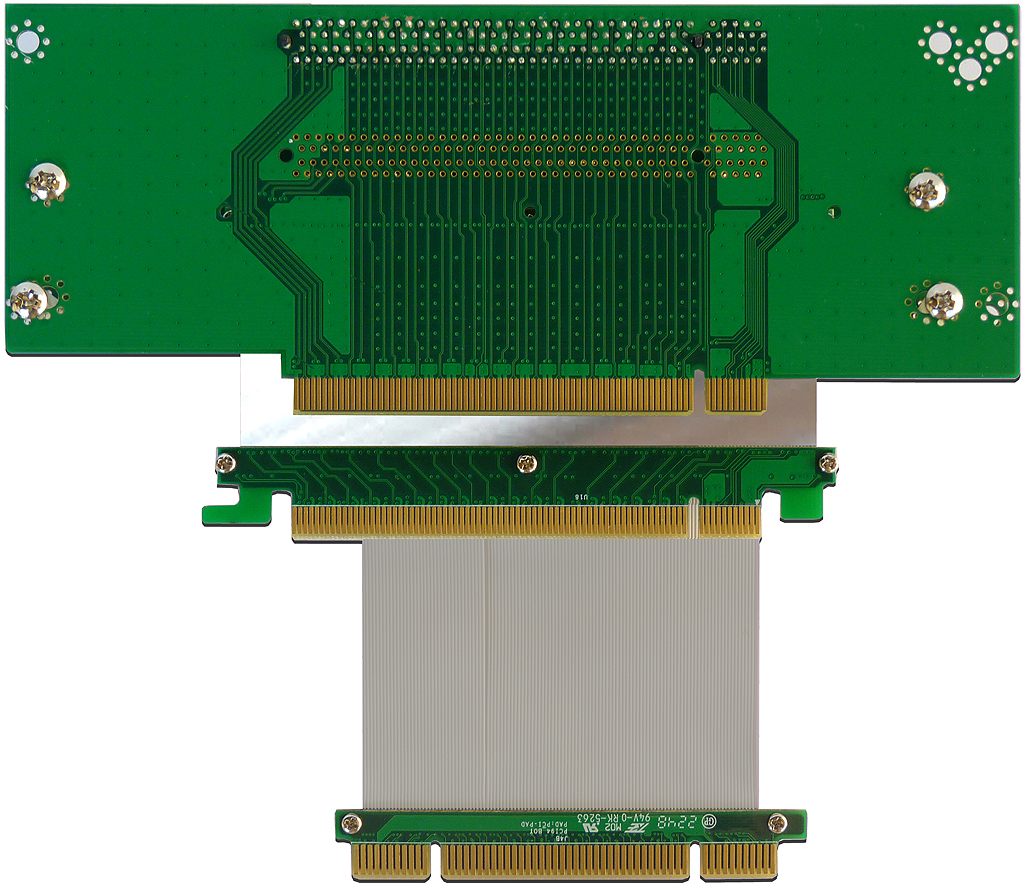

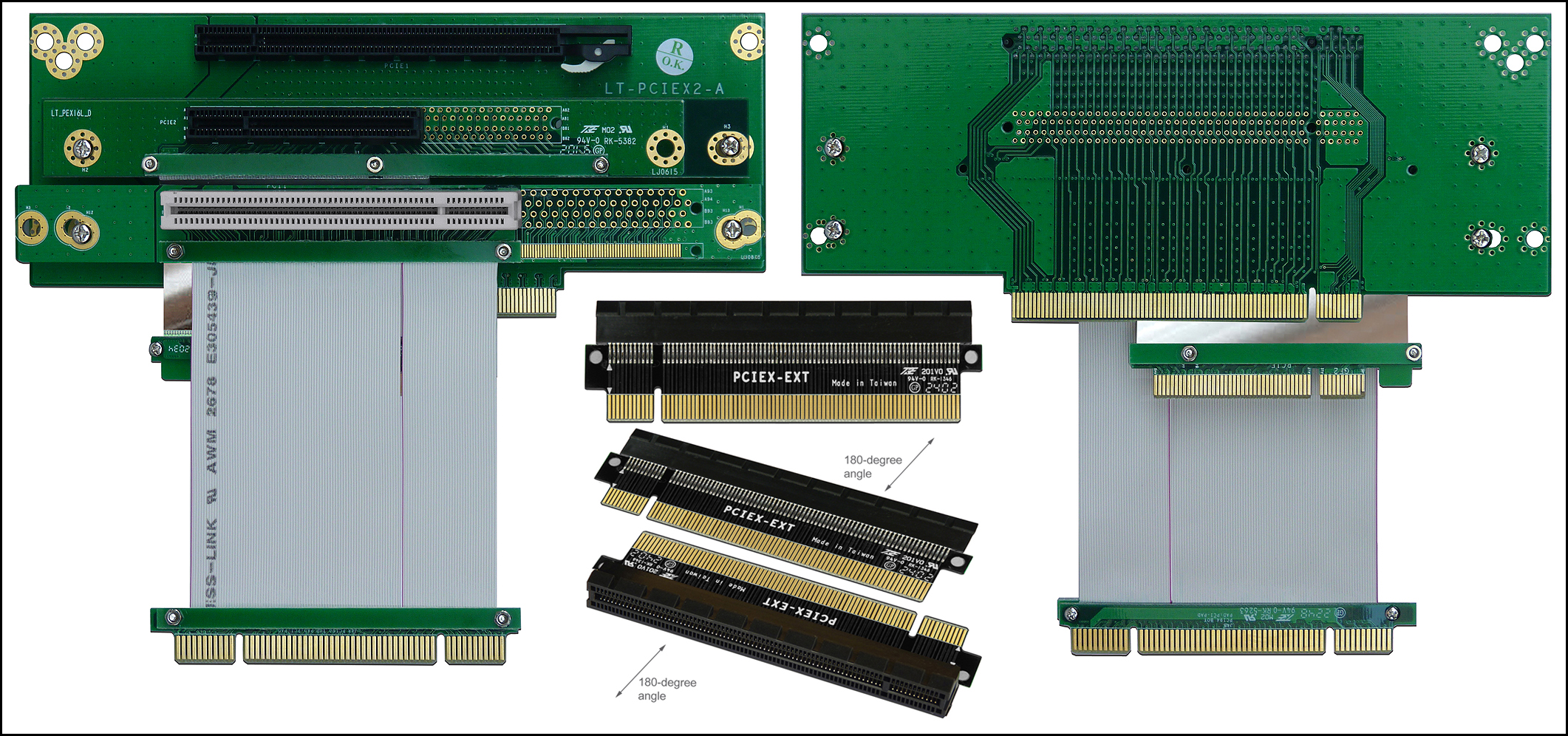

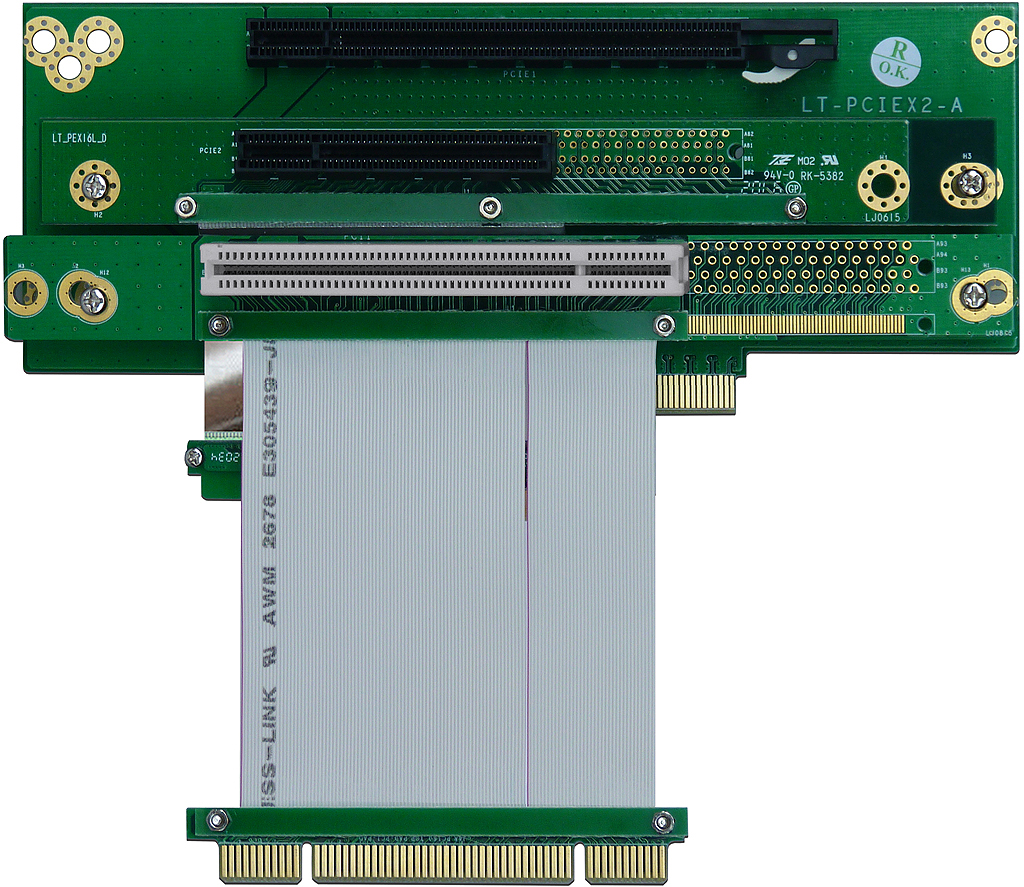

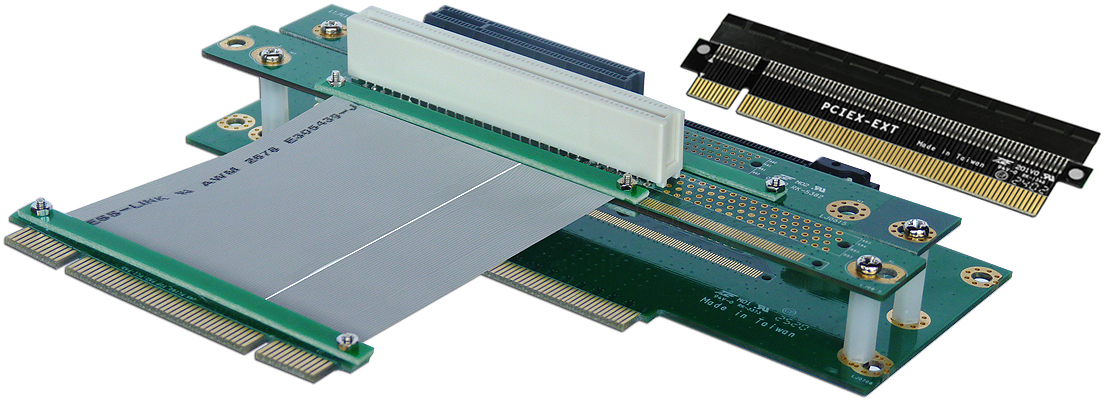

2U2PCI32-1PCIE16X



2U 2PCI 32bit 1Express 16X left angle riser card
*
gold finger direct inserted at the 7th PCI-Express 16x slot, and converted into 6th position by extender

* gold finger direct inserted at the 5th PCI 32bit slot position

* and extended to the 4th PCI 32bit slot position (cable 105mm long)
*
compatible with regular MicroATX 9.6" x 9.6" MB, side view    dimension statement

..........................................................................................................................................................................................................................................................................................

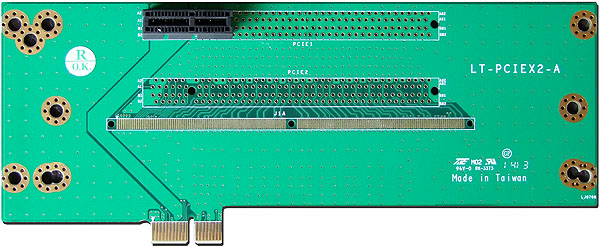

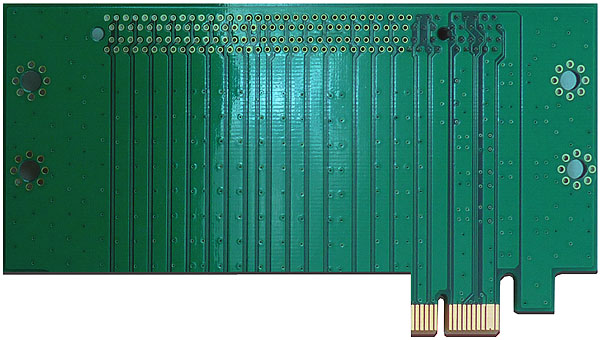

2U1E1XL



2U 1Express 1X left angle riser card
*
gold finger direct inserted at the 7th PCI-Express 1x slot position
* 12V or 3.3V compatible, special made and compatible with
MINI-202B chassis and 2U G2250 chassis only

..........................................................................................................................................................................................................................................................................................

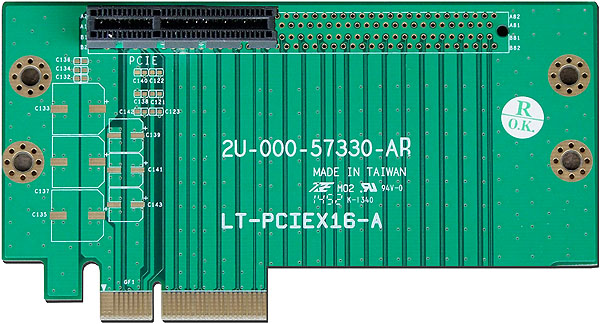

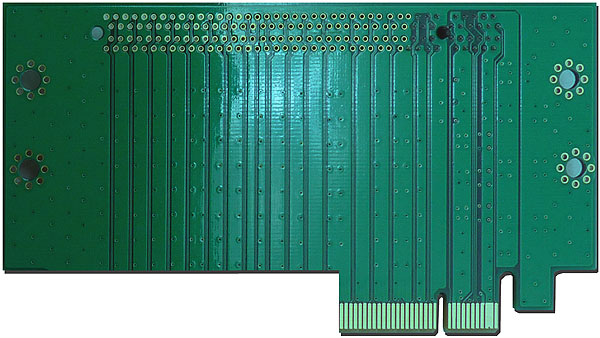

2U1E4XL



2U 1Express 4X left angle riser card
*
gold finger direct inserted at the 7th PCI-Express 4x slot position
* 12V or 3.3V compatible, special made and compatible with
MINI-202B chassis and 2U G2250 chassis only

..........................................................................................................................................................................................................................................................................................

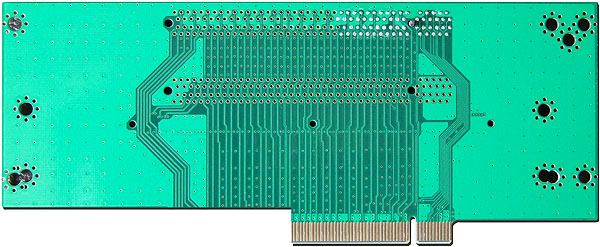

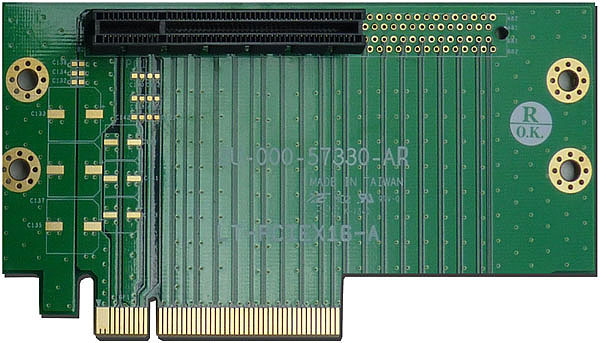

2U1E8XL

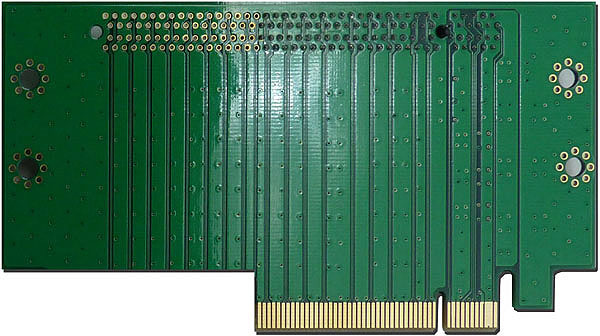

2U 1Express 8X left angle riser card
*
gold finger direct inserted at the 7th PCI-Express 8x slot position
* 12V or 3.3V compatible, special made and compatible with
MINI-202B chassis and 2U G2250 chassis only

..........................................................................................................................................................................................................................................................................................

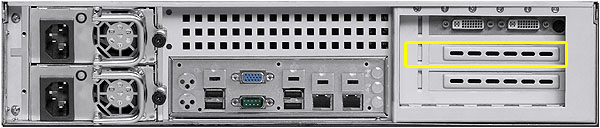

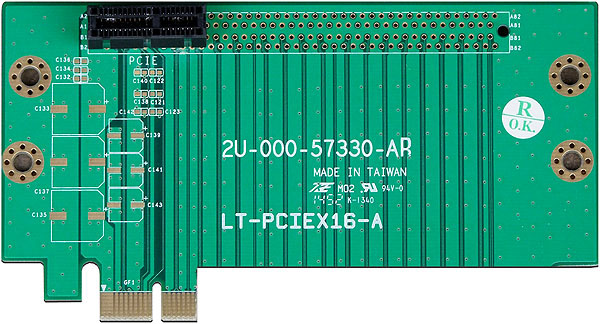

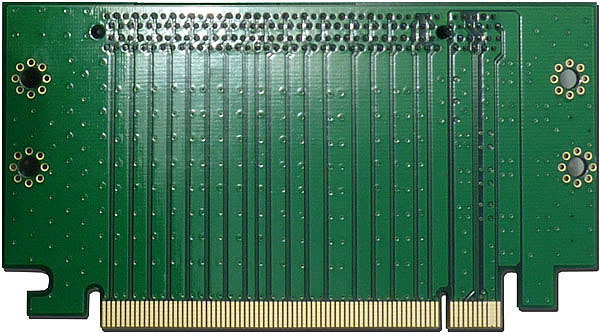

2U1E16XL



2U 1Express 16X left angle riser card
*
gold finger direct inserted at the 7th PCI-Express 16x slot position
* 12V or 3.3V compatible, special made and compatible with
MINI-202B chassis and 2U G2250 chassis only

..........................................................................................................................................................................................................................................................................................

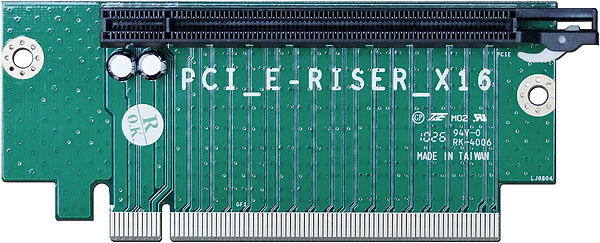

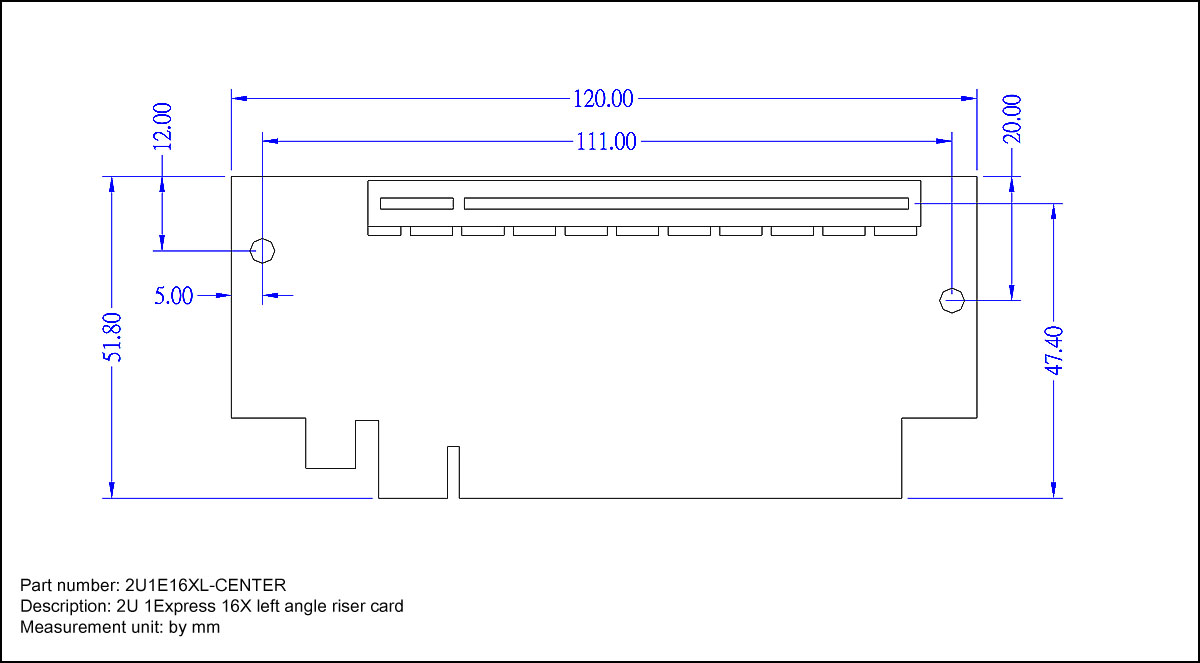

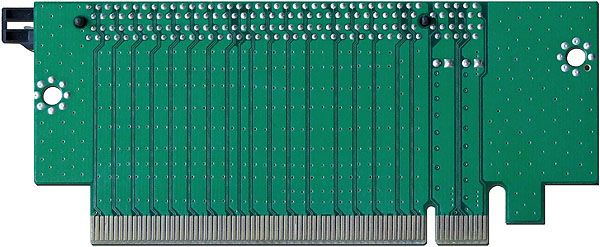

2U1E16XL-CENTER





2U 1Express 16X left angle riser card
*
gold finger direct inserted at the 6th PCI-Express 16X slot position
* 12V or 3.3V compatible

..........................................................................................................................................................................................................................................................................................

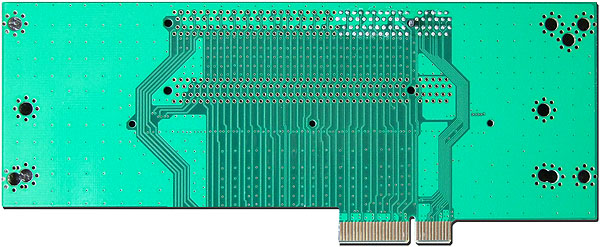

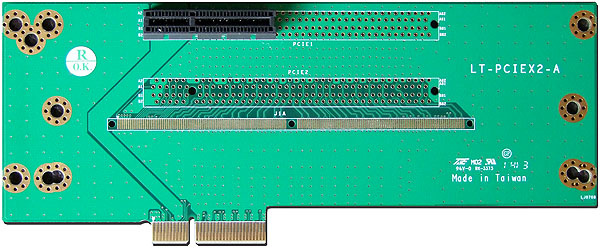

2U1PCIE4XL



2U 1PCI-Express 4X left angle riser card
*
gold finger direct inserted at the 6th PCI-Express 4X slot position
* 12V or 3.3V compatible

..........................................................................................................................................................................................................................................................................................

2U1PCIE8XL

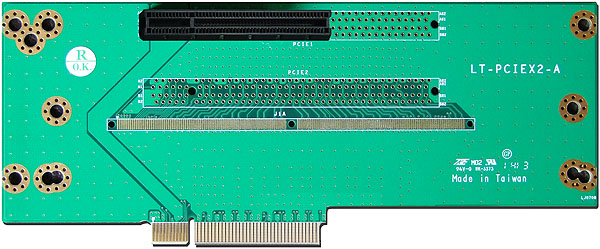

2U 1PCI-Express 8X left angle riser card
*
gold finger direct inserted at the 6th PCI-Express 8X slot position
* 12V or 3.3V compatible

..........................................................................................................................................................................................................................................................................................

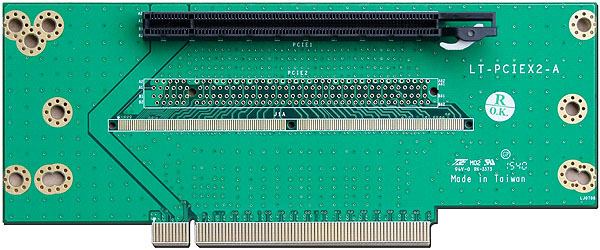

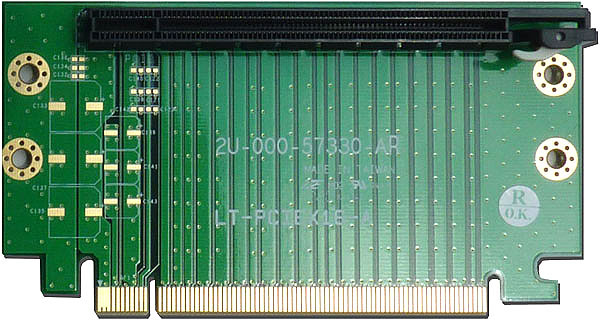

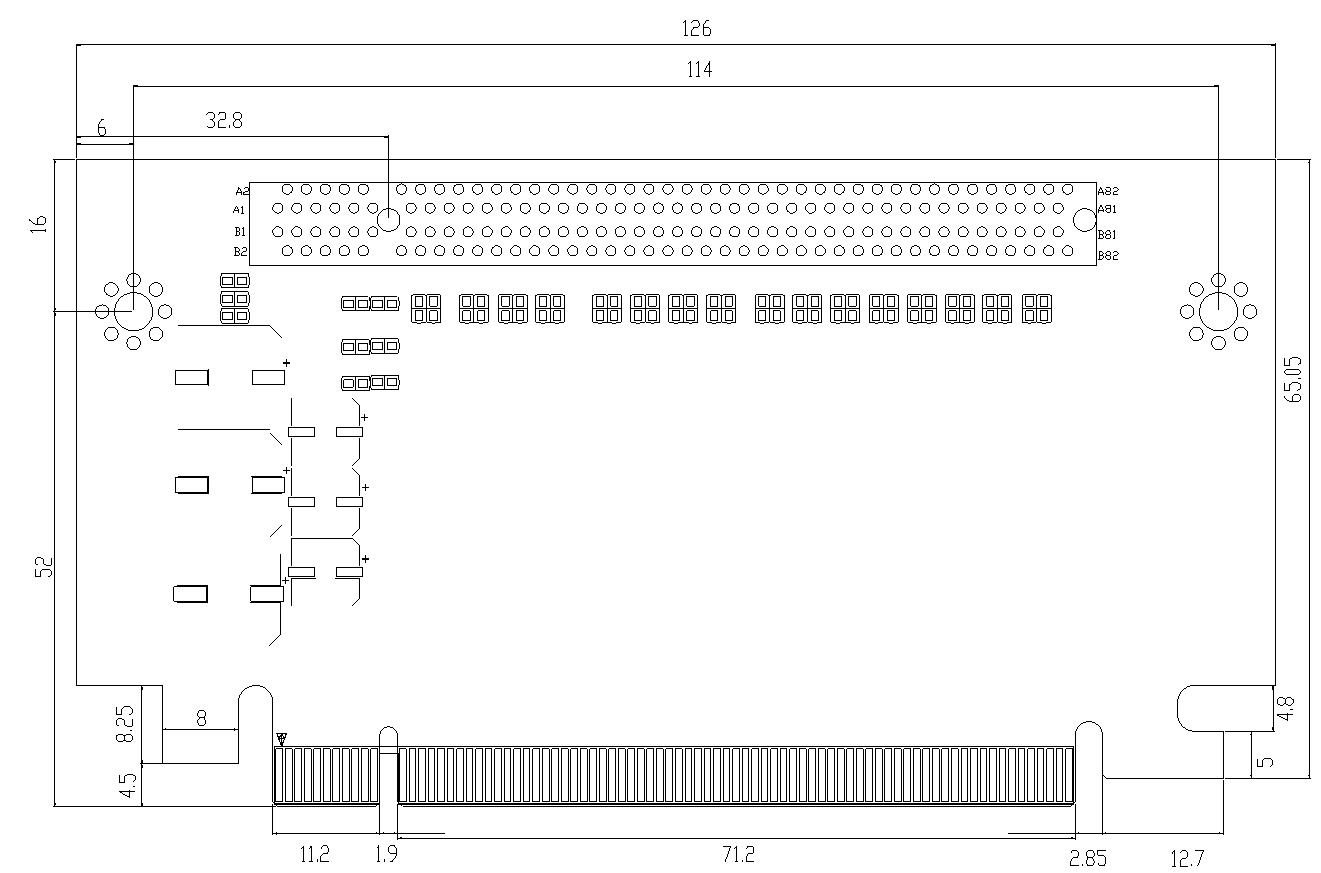

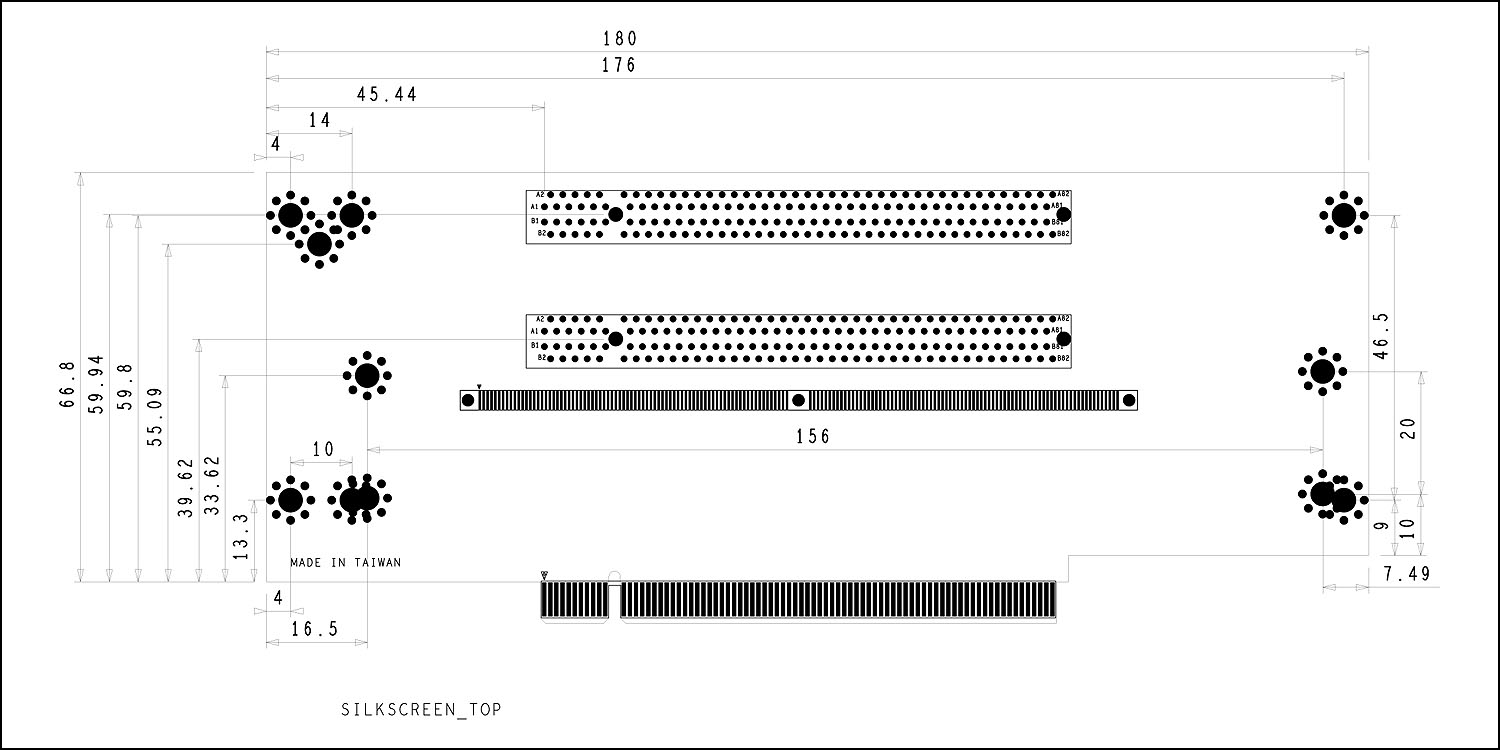

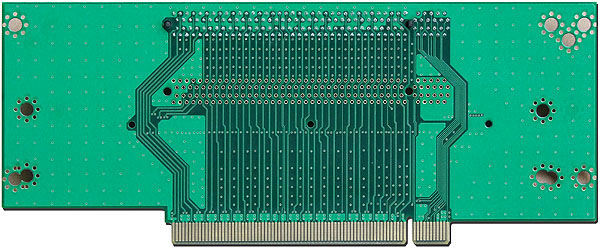

2U1PCIE16XL



2U 1PCI-Express 16X left angle riser card
*
gold finger direct inserted at the 6th PCI-Express 16X slot position
* 12V or 3.3V compatible

..........................................................................................................................................................................................................................................................................................

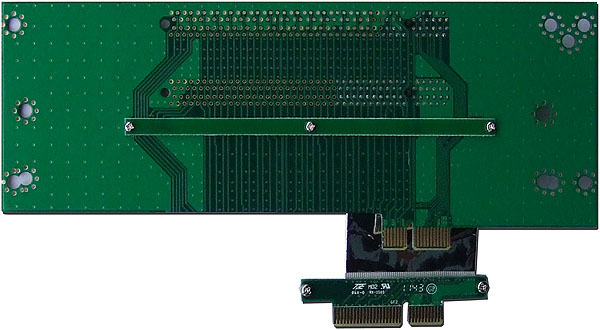

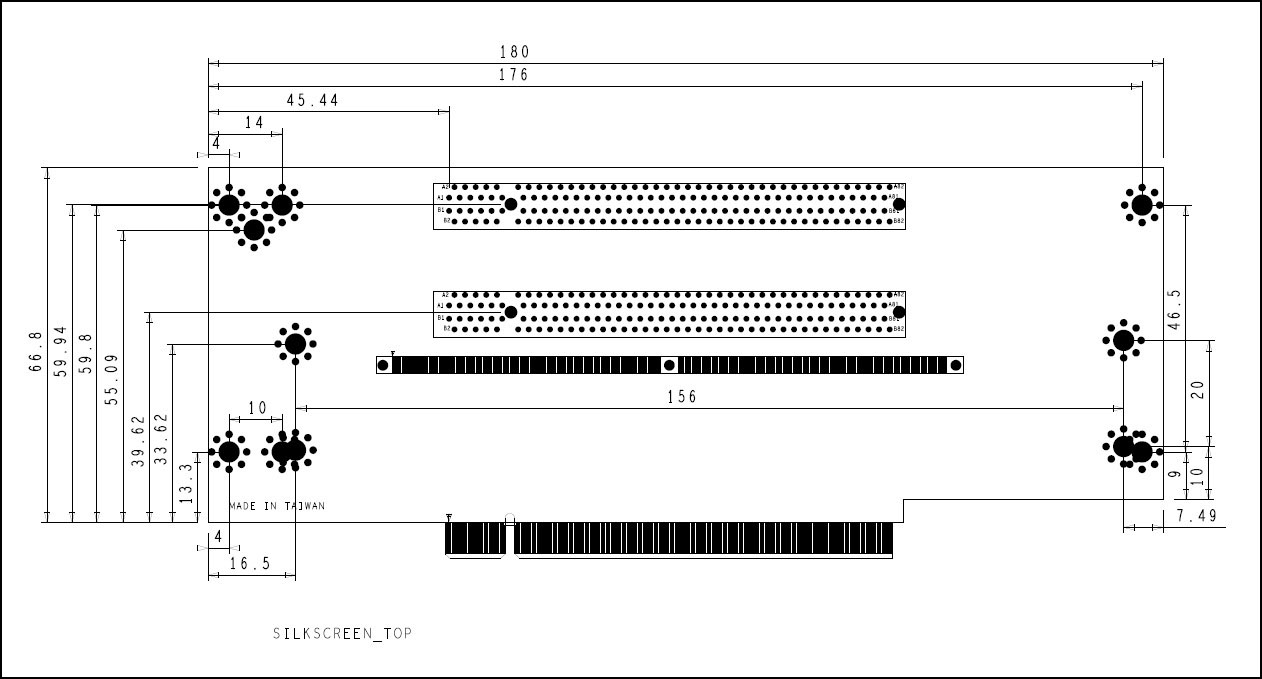

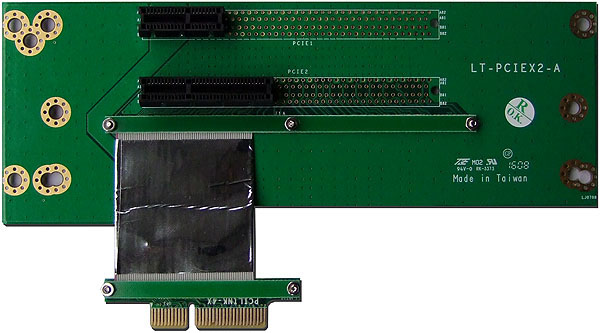

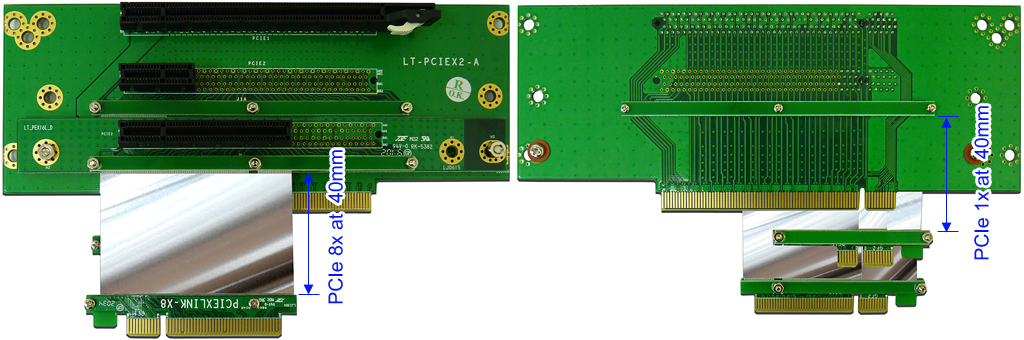

2U1E1X1E4XLC



2U 1PCI-Express 1X PCI-Express 4X left angle riser card
*
gold finger direct inserted at the 6th PCI-Express 1X slot position
* a
nd extended to the 5th PCI-Express 4X slot position (cable 40mm long packed with Aluminum Foil)
* 1
2V or 3.3V compatible

..........................................................................................................................................................................................................................................................................................

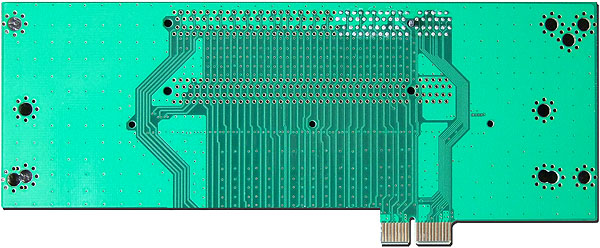

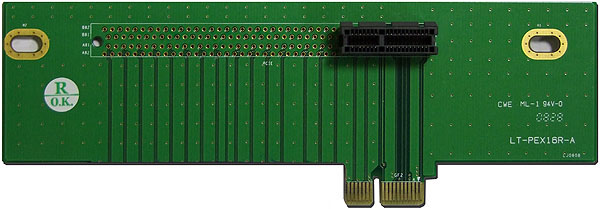

2U1E1XR

dimension statement

2U 1Express 1X right angle riser card
*
gold finger direct inserted at the 6th or 7th PCI-Express 1x slot position, 12V or 3.3V compatible
*
riser card slot direction toward to the I/O position, insert expansion card from right side

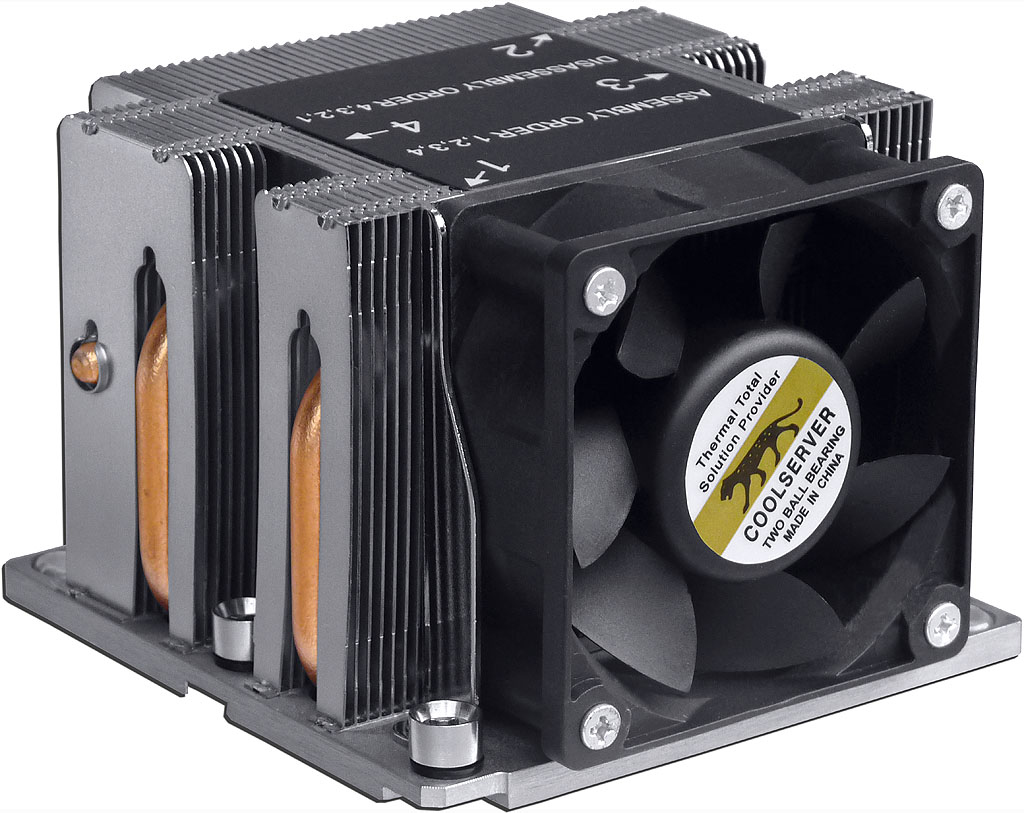

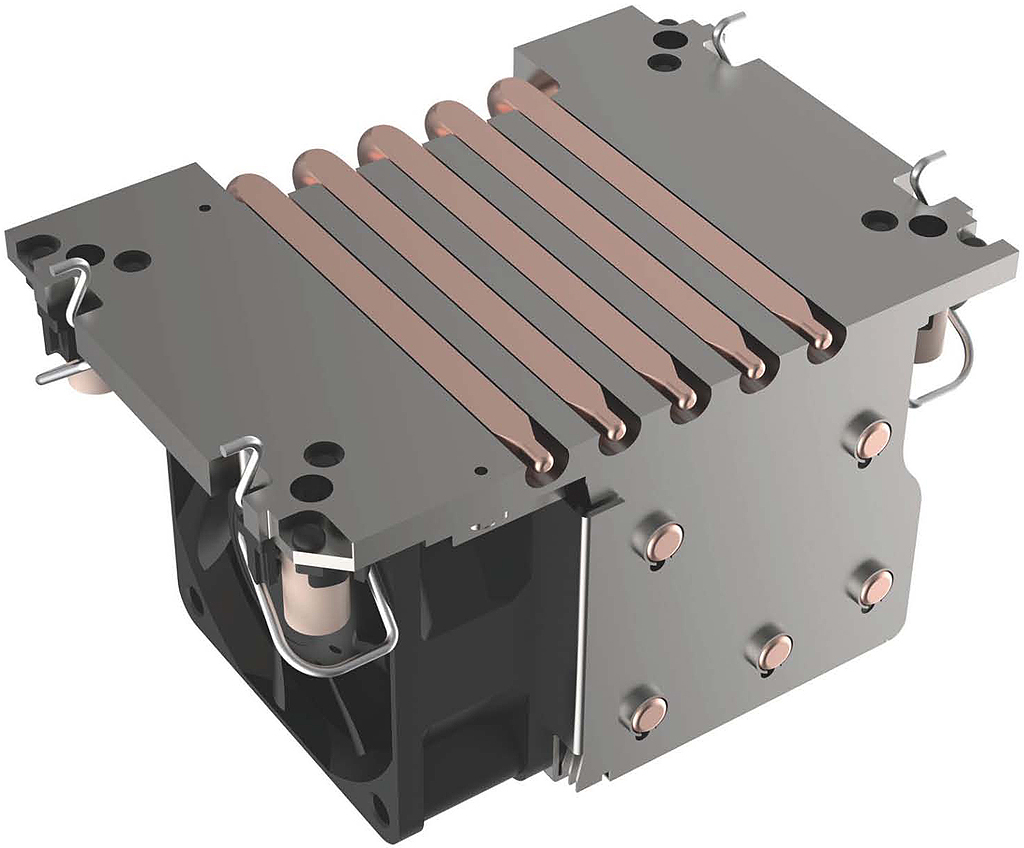

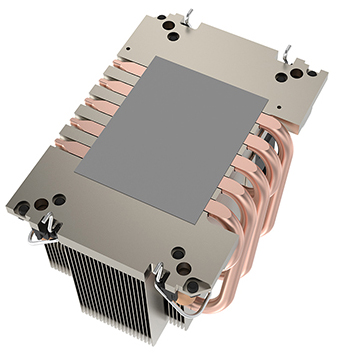

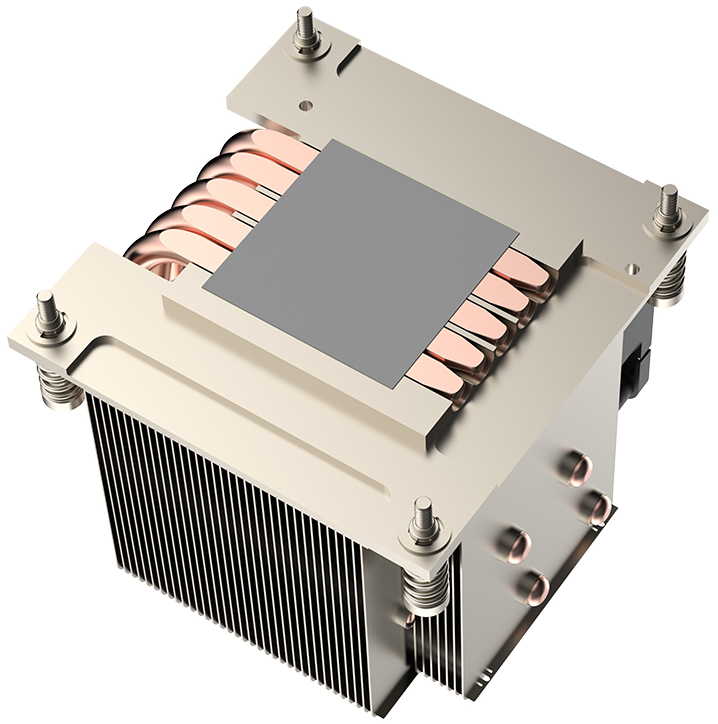

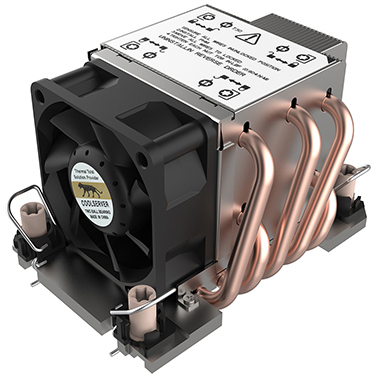

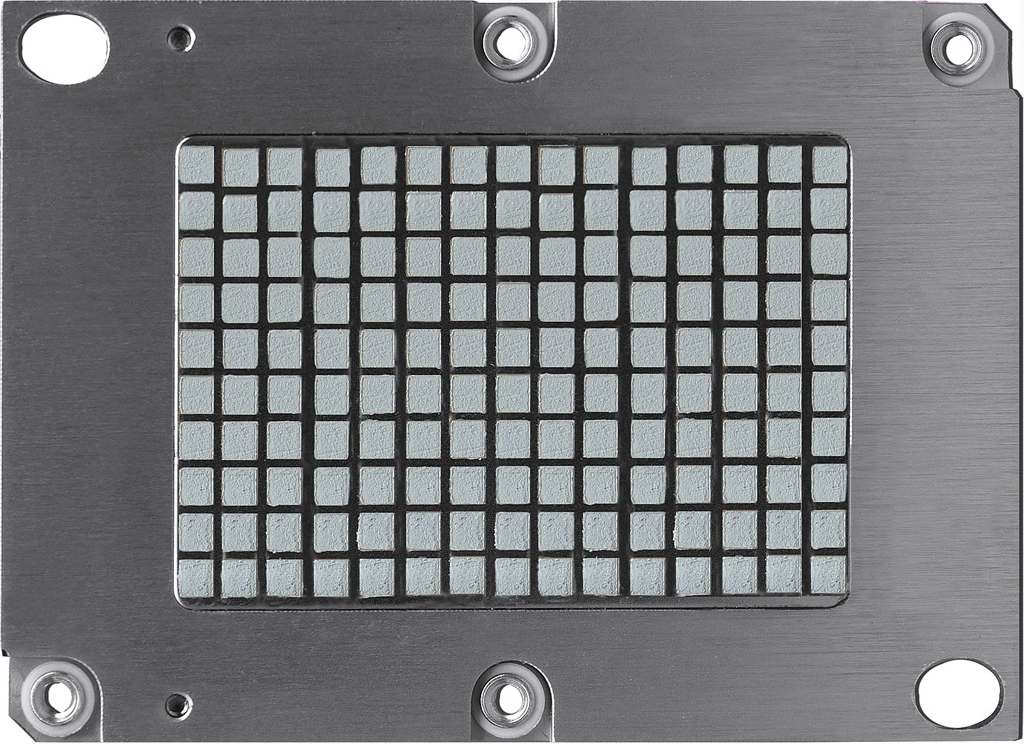

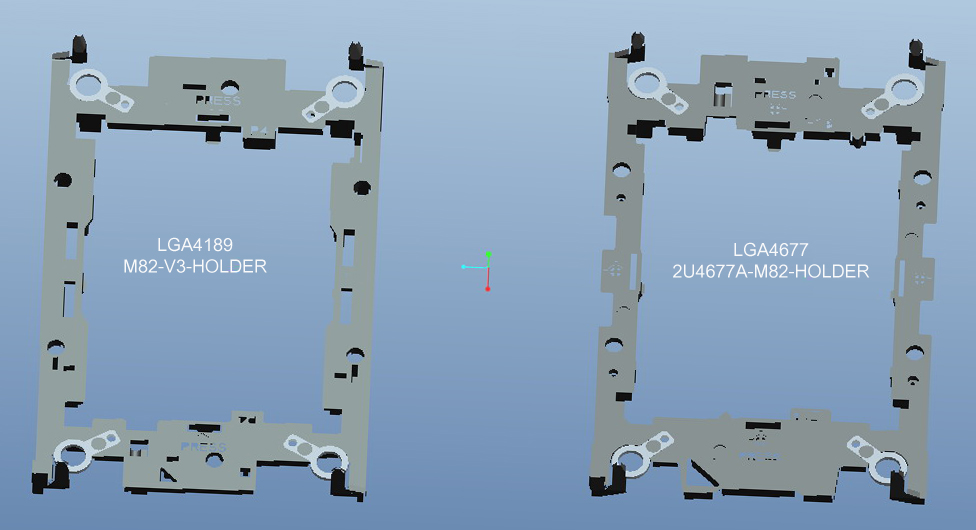

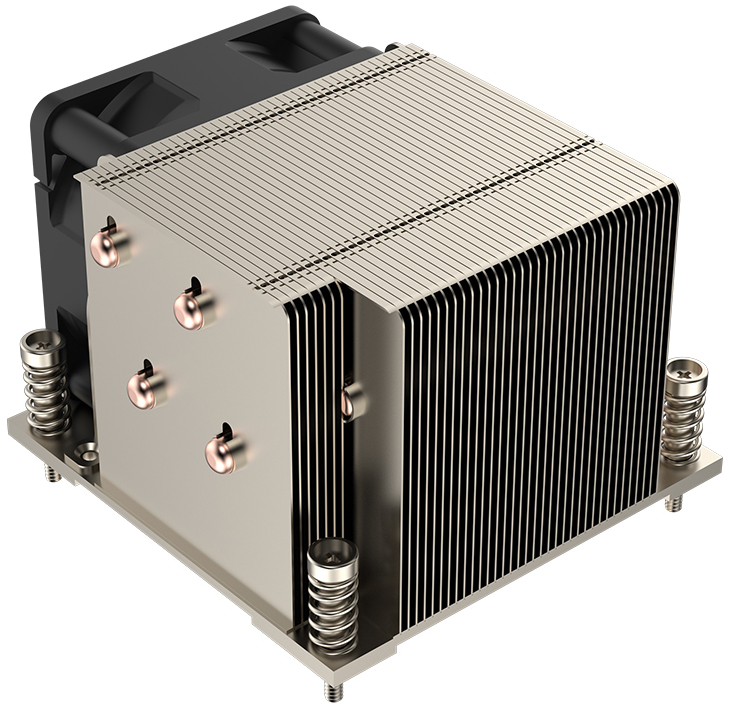

2U 3U 4U CPU COOLER

..........................................................................................................................................................................................................................................................................................

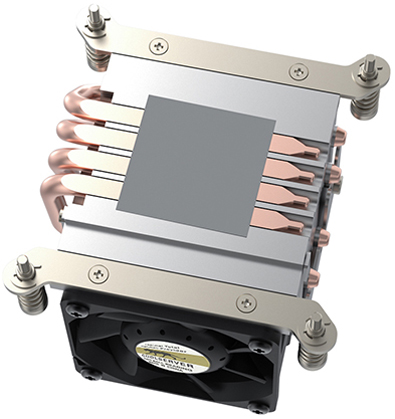

2U2011A-8080

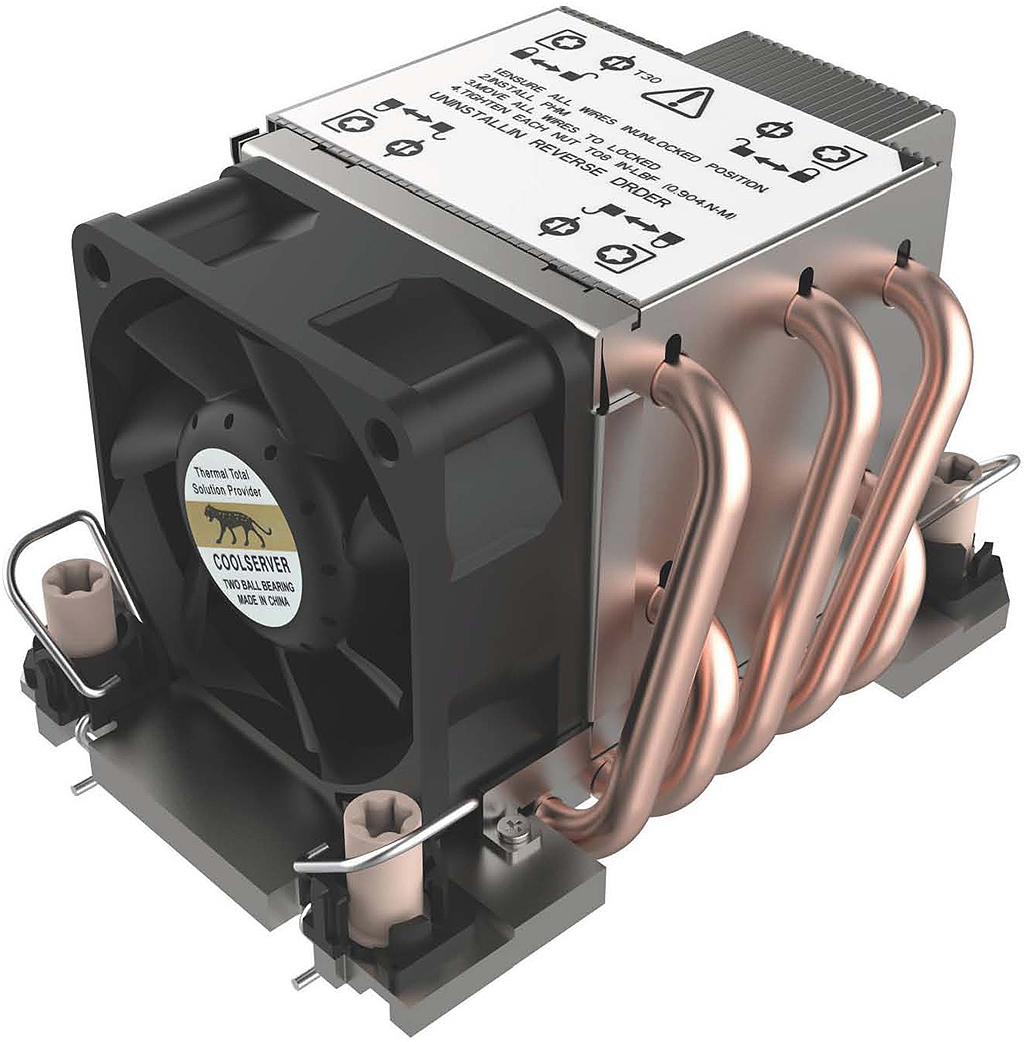

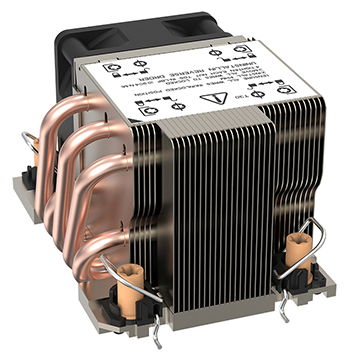

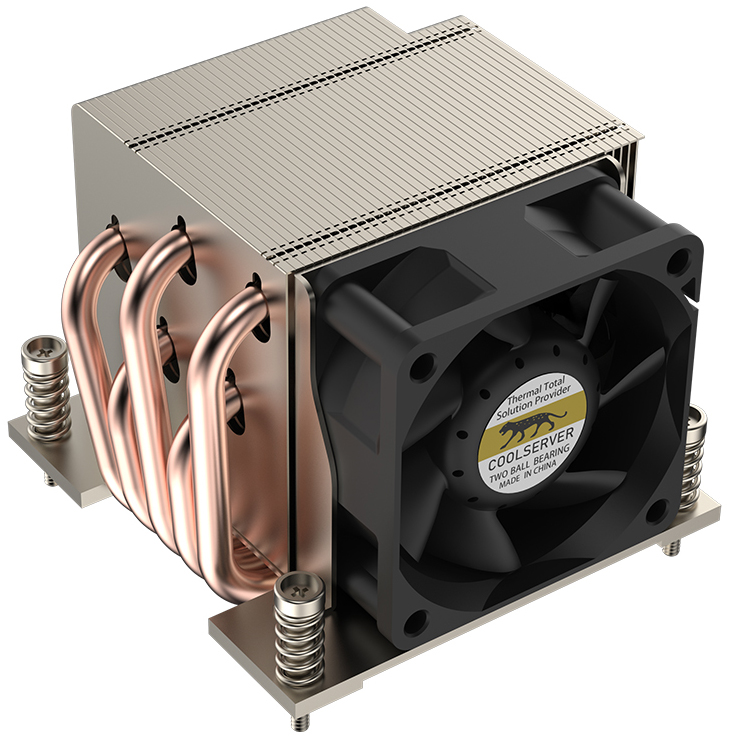

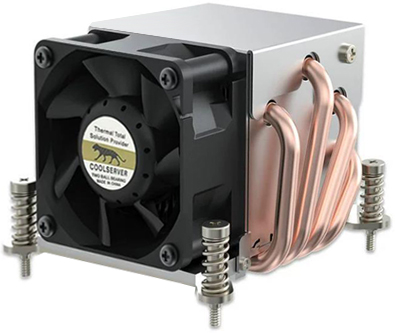

2U Intel LGA2011 LGA2066 active CPU cooler Square
* Heatsink with fan size: 89Lx89Wx65.5H(mm)
* Fan size & specification: 60L x 60W x 25T(mm), 6000rpm / 50dBA, CFM 33.52, DC12V @ 0.55A
* Heatsink material: Aluminum 1050, copper CU1100 core and
copper heat pipe x3
* Fastener: M4 screws + springs + 8080 Square brackets
* Support LGA2011 CPU version as
80mm x 80mm
* 2U 3U 4U server chassis compatible
* Package: NW 361g, GW 380g, 0.04 CUFT (105x105x90mm, box packed)

..........................................................................................................................................................................................................................................................................................

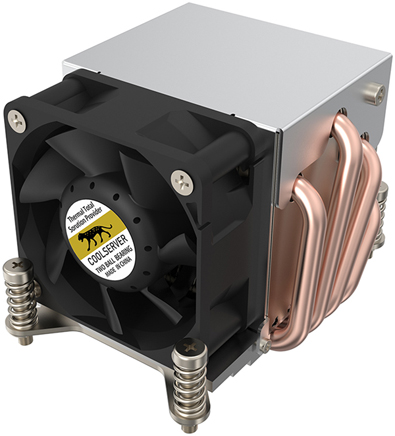

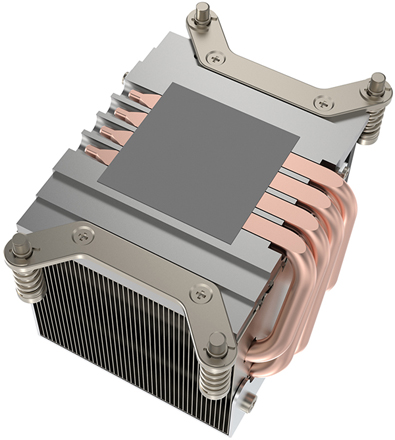

2U2011A-5694

2U Intel LGA2011 active CPU cooler Narrow
* Heatsink with fan size: 89Lx89Wx65.5H(mm)
* Fan size & specification: 60L x 60W x 25T(mm), 6000rpm / 50dBA, CFM 33.52, DC12V @ 0.55A
* Heatsink material: Aluminum 1050, copper CU1100 core and
copper heat pipe x3
* Fastener: M4 screws + springs + 8080 Narrow brackets
* Support LGA2011 CPU version as
56mm x 94mm
* 2U 3U 4U server chassis compatible
* Package: NW 361g, GW 380g, 0.04 CUFT (105x105x90mm, box packed)

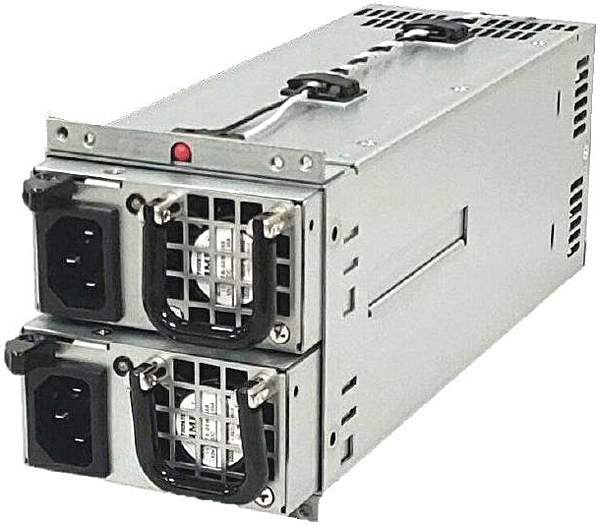

2U POWER SUPPLY

..........................................................................................................................................................................................................................................................................................

P2G-6510P

2U 510W power supply with PFC
*
AC input voltage: 90V~264V (worldwide compatible)
* model size & spec: D.240 x W.100 x H.70 /mm, 6cm ball bearing fan
* power supply wiring harness

..........................................................................................................................................................................................................................................................................................

P2M-6600P

2U 600W power supply with PFC
*
AC input voltage: 90V~264V (worldwide compatible)
* model size & spec: D.270 x W.100 x H.70 /mm, 6cm ball bearing fan
* remark: 12V enhanced output at 48A
* power supply wiring harness

..........................................................................................................................................................................................................................................................................................

P2W-6700P

2U 700W power supply with PFC
*
AC input voltage: 95V~265V (worldwide compatible)
* model size & spec: D.300 x W.100 x H.82.5 /mm, 8cm ball bearing fan
* 3U S316LB chassis application recommended
* power supply wiring harness

..........................................................................................................................................................................................................................................................................................

SS-2U70EL

2U 700W power supply with PFC
*
AC input voltage: 100V~240V (worldwide compatible), 47 to 63 Hz
* PSU size & spec: D.225 x W.100 x H.70 /mm, 6cm ball bearing fan
* Input current: 10.0 A (RMS) for 115VAC /5.0 A (RMS) for 230VAC
* Inrush current: 35A MAX. for 115 VAC / 55A MAX. for 230 VAC
* EMI: FCC class B, CISPR22 class B
* Approvals: UL, CUL, TUV, CE, 80% plus high efficiency
* power supply wiring harness

..........................................................................................................................................................................................................................................................................................

R1S2-5300V4V

2U 300W redundant power supply with PFC
*
AC input voltage: 90V~264V (worldwide compatible)
* model size & spec: D.207 x W.85 x H.84 /mm, two 4cm ball bearing fans

* high efficiency: 84% typical at full load 115VAC

* frequency: 47~63HZ
* input current: 4.5A (RMS) for 115 VAC, 2.0A (RMS) for 230 VAC
* inrush current: 60A MAX. for 115 VAC per module, 80A MAX. for 230 VAC per module

* recommended 2U model: OEM based 2U C238B-P chassis

* power supply wiring harness

..........................................................................................................................................................................................................................................................................................

R2G-6300P

2U 300W redundant power supply with PFC
*
AC input voltage: 95V~264V (worldwide compatible)
* model size & spec: D.300 x W.101 x H.82 /mm, two 4cm ball bearing fans

..........................................................................................................................................................................................................................................................................................

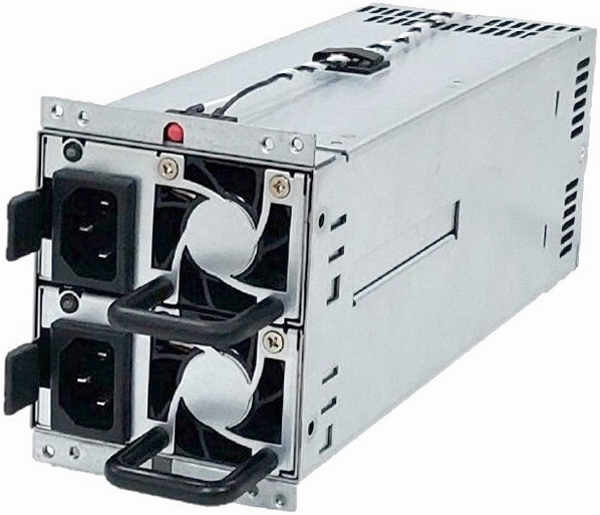

R2Z-6400P

2U 400W redundant power supply with PFC
*
AC input voltage: 90V~264V (worldwide compatible)
* model size & spec: D.265 x W.101 x H.84 /mm, four 4cm ball bearing fans

..........................................................................................................................................................................................................................................................................................

R2W-6460P

2U 460W redundant power supply with PFC
*
AC input voltage: 90V~264V (worldwide compatible)
* model size & spec: D.300 x W.101 x H.84 /mm, four 3.8cm ball bearing fans

..........................................................................................................................................................................................................................................................................................

R2W-6500P

2U 500W redundant power supply with PFC
*
AC input voltage: 105V~264V (worldwide compatible)
* model size & spec: D.300 x W.101 x H.84 /mm, four 3.8cm ball bearing fans
* 2U S208LB and S212LB chassis application recommended
* power supply wiring harness

..........................................................................................................................................................................................................................................................................................

R2W-5600P3V

2U 600W redundant power supply with PFC
*
AC input voltage: 90V~264V (worldwide compatible)
* model size & spec: D.300 x W.101 x H.84 /mm, four 3.8cm ball bearing fans
* 2U S208LB and S212LB chassis application recommended
* power supply wiring harness
