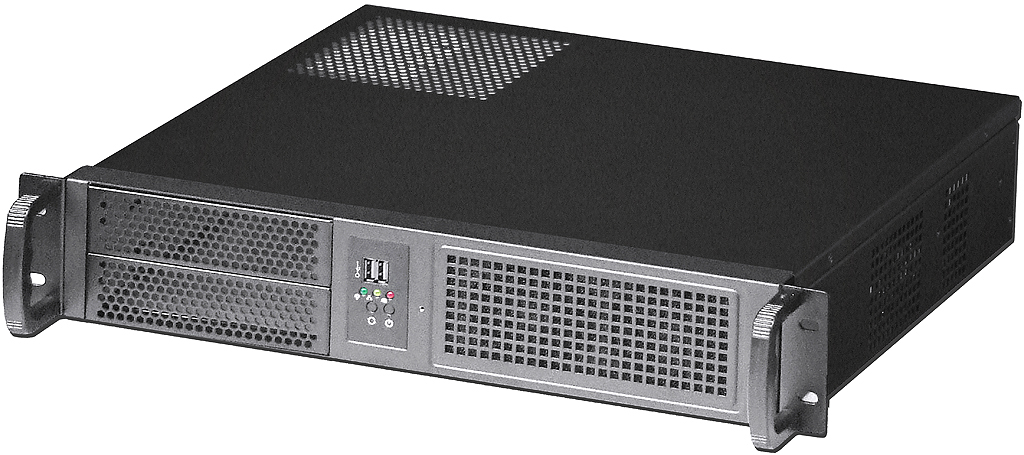

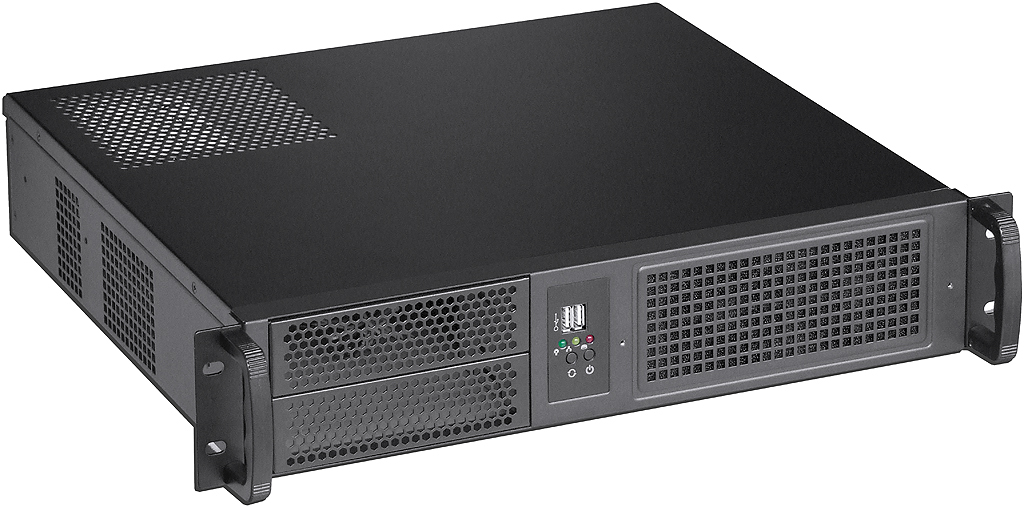

C238 2U MicroATX ULTRA COOL SERVER CHASSIS
webpage updated on January 29, 2018

The era of MicroATX constructed Dual-core and Quad-Core CPU platform has been the mainstream nowadays, the fast and stable server system is also presented by this model of design, the major feature of this brand new design is the depth of this chassis has 380mm only, it supports the most cost effective and stable quality, combines with two intake 80mm fans at front side, comes with totally 4 drive bay with the chassis configuration, fits all standard MicroATX 9.6""x9.6" motherboard form factor and standard PS2 power supply, meets regular server system application, welcome worldwide distribution.

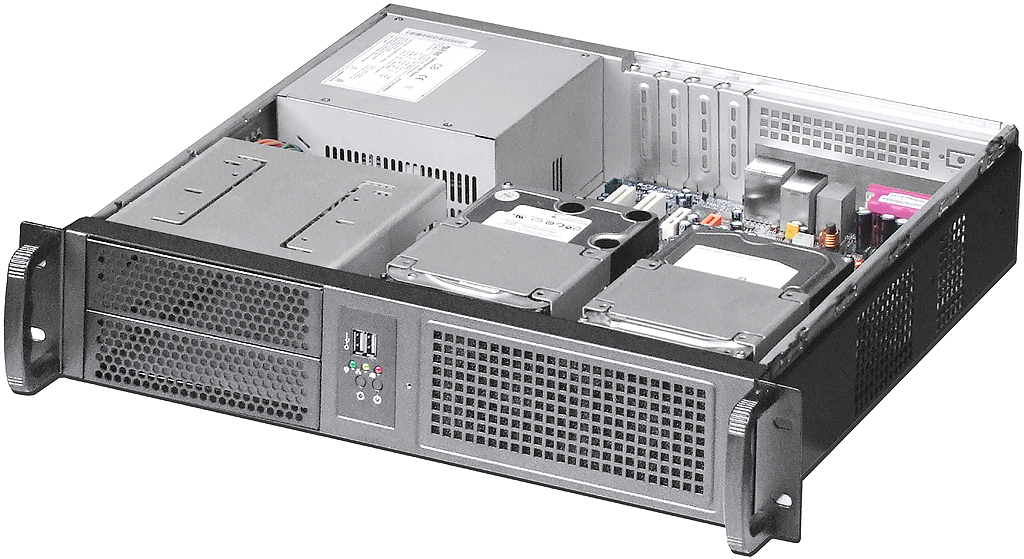

* Total drive bay: 2 x 5.25" CD and 2 x 3.5" HDD bay
* HDD bay with anti-vibration function supported
* Equipped two USB 2.0 port

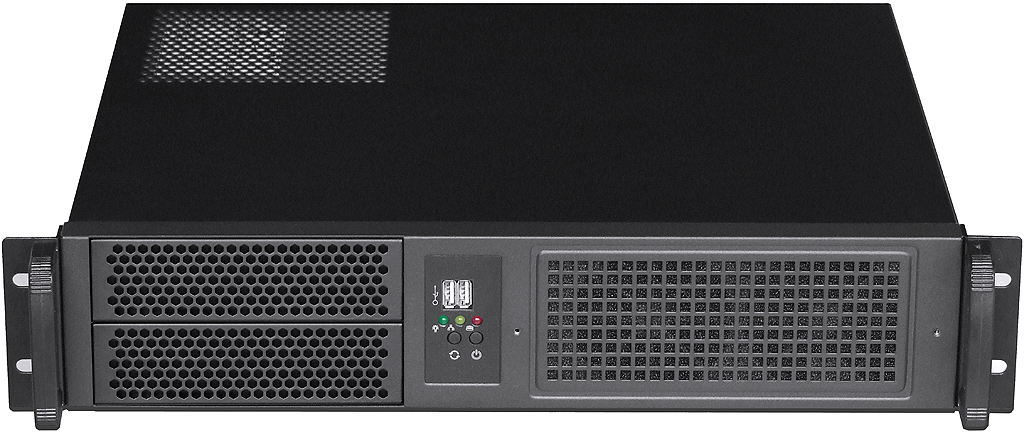

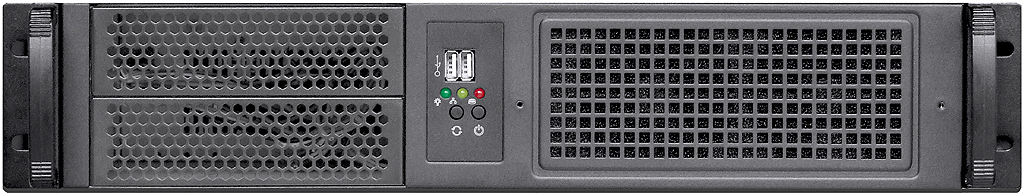

* Two Sunon EE80251B1-000C-G99 80mmx25mm intake fans with air filter at front bezel
* MB: MicroATX(9.6"x9.6"), Mini-ITX(6.7"x6.7")
* Support PS2 8cm or 12cm~14cm fan version psu (max. psu depth at 140mm~180mm)

* If 140mm deep PS2 psu installed, max. 210mm deep 5.25" ODD device compatible

* If 180mm deep PS2 psu installed, max. 170mm deep 5.25" ODD device compatible

* If front fixed with 3.5" HDD, 4 slot low profile cards (max. depth at 170mm)

* If front fixed w/o 3.5" HDD & bracket, 4 slot low profile cards (max. depth at 330mm)

* Standard paint: black
* Genesys Group branded server chassis model (with build-in fans) global 3 years warranty
* Chassis dimension: 19" x 2U x 380mm (14.96" deep)

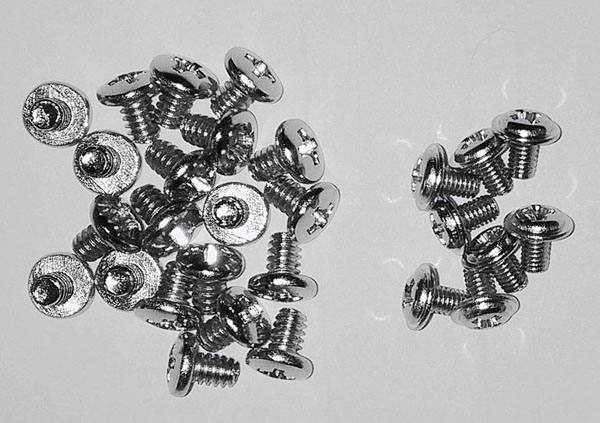

* Accessory pack: M3 round head nickel screw x 8pcs, #6 round head nickel screw x 20pcs
* Package: NW 5 KGM, GW 7 KGM, 1.72 CUFT (56x51x17cm, single box packed)

Model#

:

C238B

2U black MicroATX ultra cool server chassis

Option A

:

PSU

PS2 8cm or 12cm~14cm fan version power supply (max. psu depth at 140mm~180mm)

Option B-1

:

NJ-600

600mm 2-layer 3-travel universal rail (part# is 1 pair, cabinet internal depth 600~1200mm compliant)

Option B-2

:

1234U-RMK

1234U rear mounting kit (part# is 1 pair)

Option C

:

25-35-BK

5.25" 3.5" 2.5" multiple HDD bracket

Option D-1

:

2525TO3HDBK

2x5.25" ODD space to 3x3.5" bracket

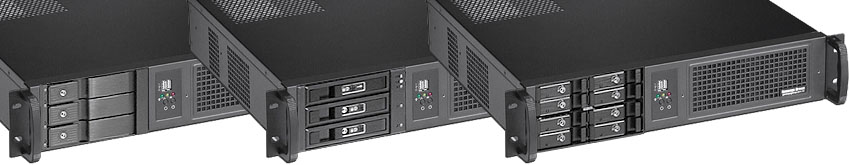

Option D-2

:

RW225-12G

1x5.25" to 2x2.5" SAS/SATA Hot-Swap Cage & 4xUSB3.0

Option D-3

:

RW425-12G

1x5.25" to 4x2.5" SAS12G Hot-Swap Cage

Option D-4

:

RW825-12G

2x5.25" to 8x2.5" SAS12G Hot-Swap Cage

Option D-5

:

RW425

1x5.25" to 4x2.5" SAS/SATA Hot-Swap Cage

Option D-6

:

RW825-1525

1x5.25" to 8x2.5" SAS/SATA Hot-Swap Cage

Option D-7

:

RW825

2x5.25" to 8x2.5" SAS/SATA Hot-Swap Cage

Option D-8

:

RW335

2x5.25" to 3x3.5" SAS/SATA Hot-Swap Cage

Option D-9

:

TL335

2x5.25" to 3x3.5" TrayLess SAS/SATA Hot-Swap Cage

Option D-10

:

TL135

1x5.25" to 1x3.5" TrayLess SAS/SATA Hot-Swap Cage

Option D-11

:

RW135

1x5.25" to 1x3.5" SAS/SATA Hot-Swap Cage

Option E-1

:

1MSAS-4SATA-500MM

SFF-8087 Mini-SAS (Host) to Four SATA (Device) cable

Option E-2

:

SFF-8643-500MM

SFF-8643 Mini-SAS HD (Host) to SFF-8643 Mini-SAS HD (Device) cable 12G

Option E-3

:

4SATA-SFF-8643-500MM

Four SATA (Host) to SFF-8643 Mini-SAS HD (Device) cable 12G

Option F-1

:

2U2011A-8080

2U Intel LGA2011 active CPU cooler Square (2U 3U 4U chassis compatible)

Option F-2

:

2U2011A-5694

2U Intel LGA2011 active CPU cooler Narrow (2U 3U 4U chassis compatible)
