S208B-ITX 2U HOTSWAP SYMMETRICAL SERVER CHASSIS
1U 2U 3U 4U front/rear symmetrical compartment patent & copyright officially announced on August 20, 2013 in Taiwan, China, Thailand, Korea, Japan, USA, England, EU, Russia, India. Official Taiwan patent# M468864 & China patent# 3434937.

Product announcement & 1st production dated on July 25, 2017, webpage updated on August 25, 2023



The Mini-ITX with multi-core processor structures have already the trend nowadays, the most prominent feature of S208B-ITX is the short depth at 453mm, and also compatible with eight 3.5" hotswap drives as well as two 2.5" internal hard drive space, excellent matching and application of RAID controller card installed to comply with this storage server in the cloud environment. A large number and variety of choice of hard disk access space, front and rear symmetrical bodies patented design can also enhance the system integration flexibility and overall strength, also the whole bodies do not skew or distort to achieve robust and ensure the security and stability of the system. Cooling as standard two 80mmx25mm 2-ball bearing fans as effective cooling system, combines the advantages of multi-functional and competitive price, welcome worldwide distribution.

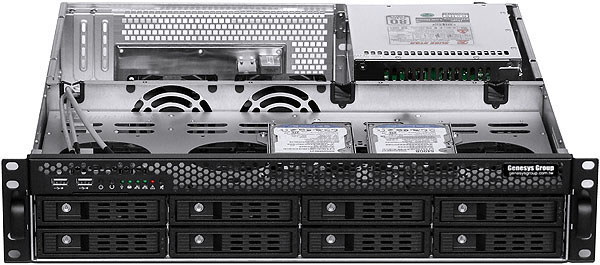

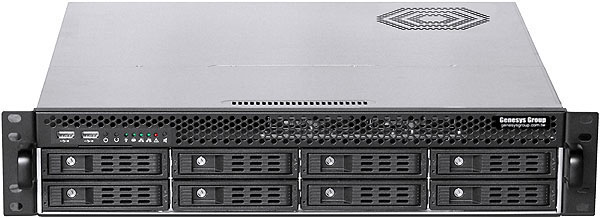

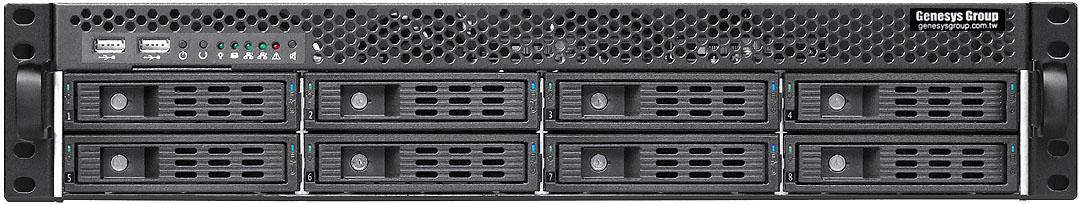

    S208B-mATX front view



               stainless tray  stainless 3.5" HDD tray



S208B-ITX

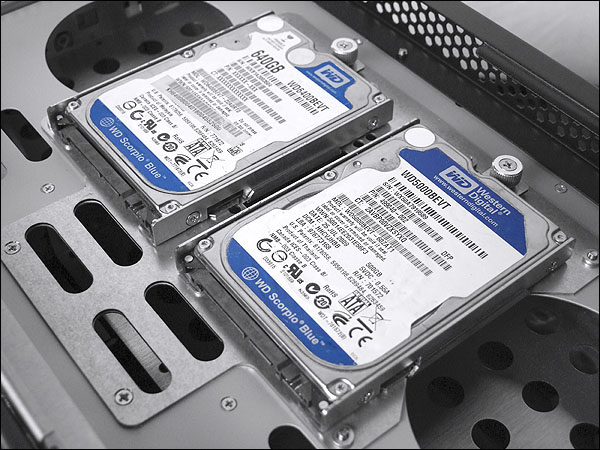

* Two internal 2.5" HDD bay:

   7mm~15mm height of 2.5" EasySwap HDD/SSD compatible

* 8 hotswap 3.5" HDD bay (2.5" SSD also installable in 3.5" HDD space):

   SATA1/2/3 & SAS1/2 HDD 6Gbps, max. height at 26.1mm (RAID card required)

   or SATA3.2/3.3 & SAS3 HDD 12Gbps, max. height at 26.1mm (RAID card required)

* Mobile rack Left LED: Green power LED

* Mobile rack Right LED: Blue access LED (solid Red light if HDD temp over 60-degree C)

* Stainless & Hair surface proceeded mobile rack structure with security keylock

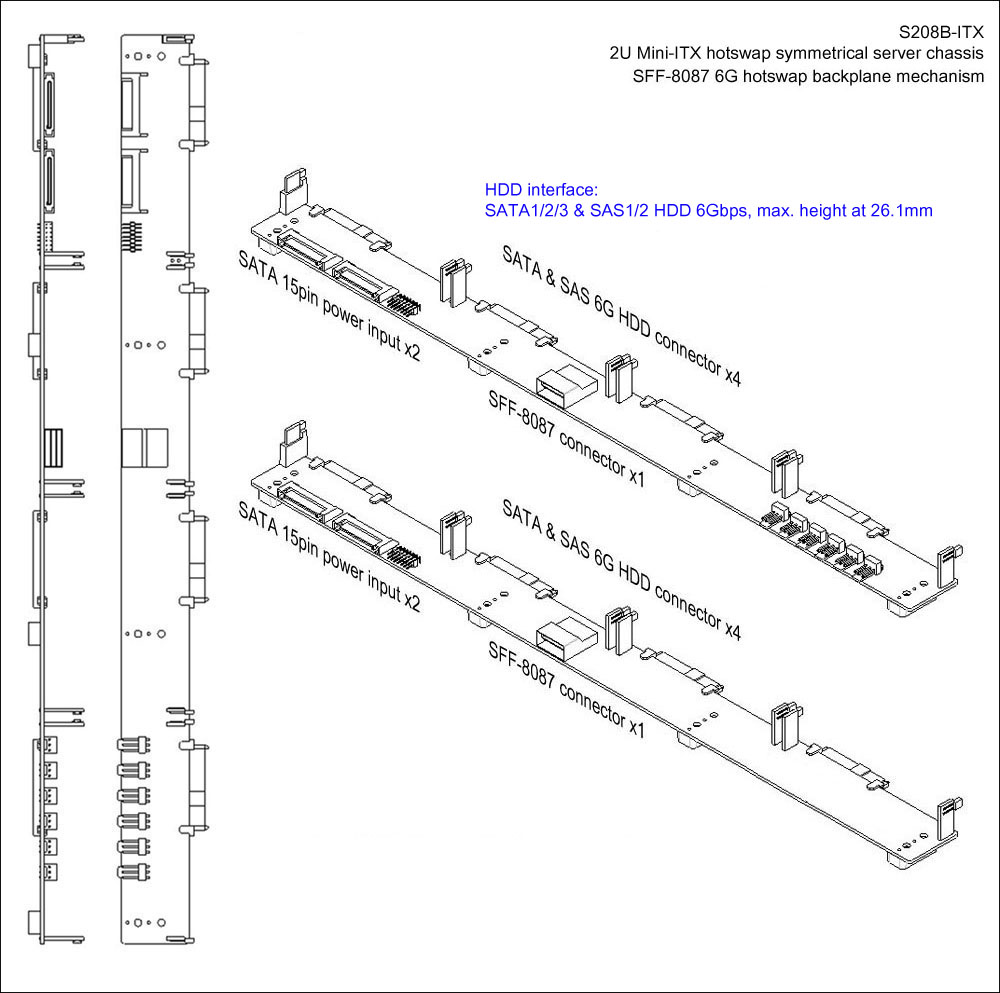

* 2 Hotswap 6G SFF-8087 backplanes: 1 to 4port MiniSAS connector (6G version)

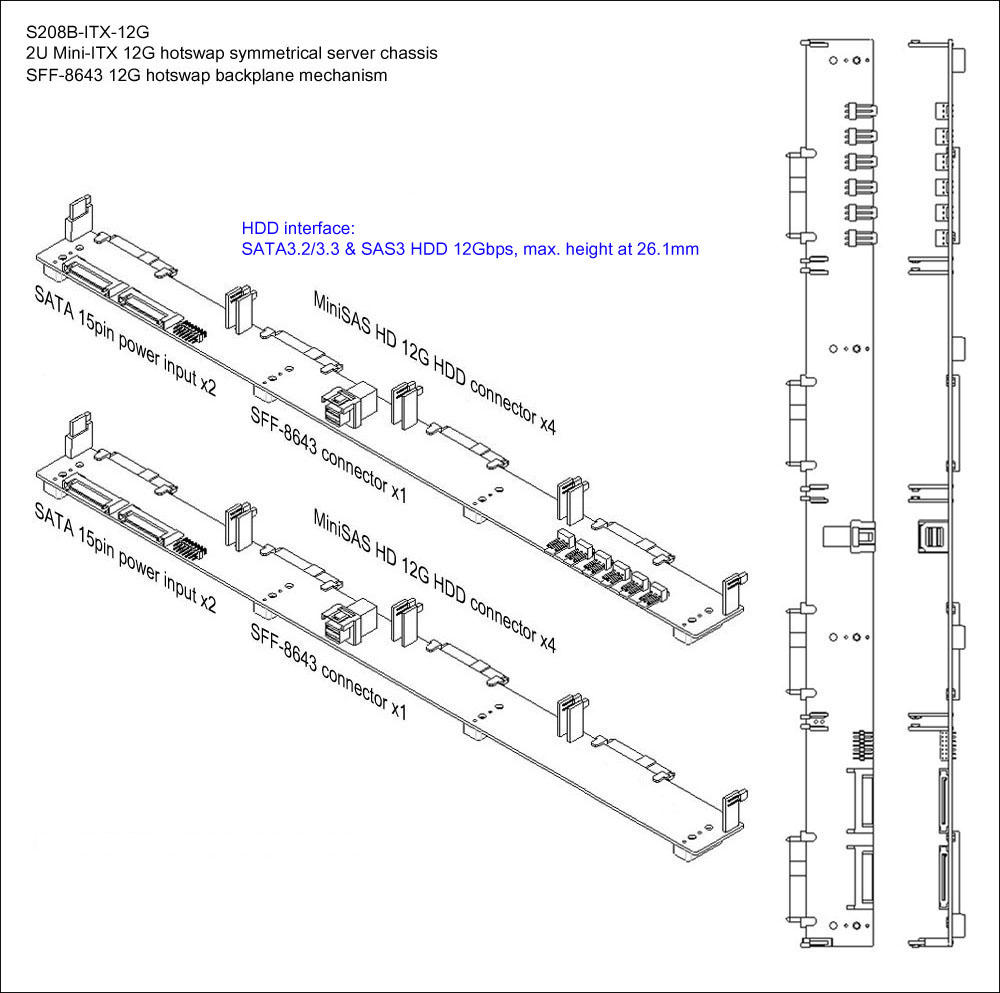

* 2 Hotswap 12G SFF-8643 backplanes: 1 to 4port MiniSAS HD connector (12G version)

* Front bezel equipped with two USB 2.0 ports

* Two EasySwap 2-ball bearing 80mmx25mm fans against HDD (fan part# SunTai8025)
* Compatible MB: Mini-ITX(6.7"x6.7")

* 8cm or 12cm~14cm fan version standard PS2 PSU compatible (max. depth at 205mm)

* Support SureStar R4S series 400W~500W PS2 Mini Redundant PS (depth 174mm)
* Support Zippy MRT & MRW series 300W~600W PS2 Mini Redundant PS (depth 185mm)
* Support SureStar R4B series 600W~800W PS2 Mini Redundant PS (depth 199mm)
* Support Zippy MRG series 500W~800W PS2 Mini Redundant PS (depth 200mm)

* Support 2 slot Low profile expansion cards at max. 205mm deep

* Major sheet metal by SGCC 1.2mm~2.0mm thickness with no burr & sharp corner design

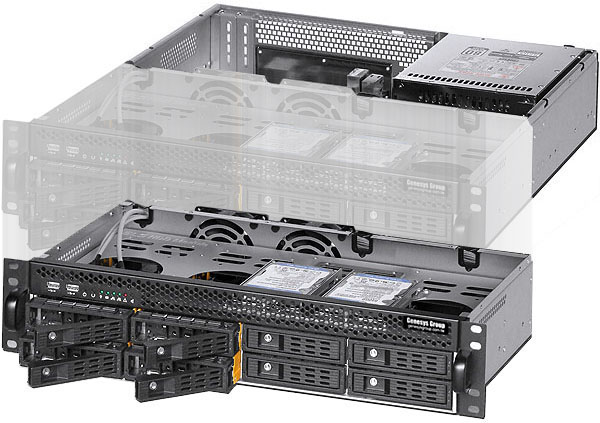

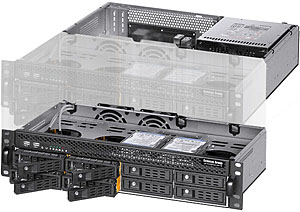

* Patented front/rear symmetrical body design makes system flexibility & durable strength
* Standard paint: scratch-resistant black textured at front
* Genesys Group chassis with build-in electronics in global 3 years warranty
* Chassis dimension: 19" x 2U x 453mm (17.83" deep)

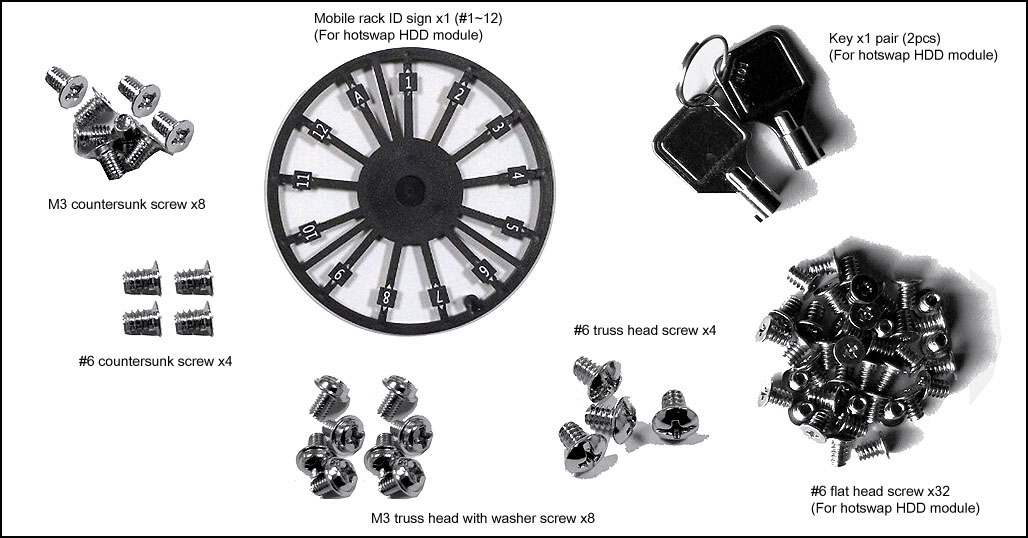

* Accessory: Key x2, various screw x56, hotswap HDD cage module's ID sign & parts x1

* Package: NW 8 KGM, GW 10 KGM, 2.44 CUFT (carton size at 58.5x59x20cm)

Model#

:

S208B-ITX

2U Mini-ITX 6G hotswap symmetrical server chassis (6G version)

Model#

:

S208B-ITX-12G

2U Mini-ITX 12G hotswap symmetrical server chassis (12G version)

Option A-1

:

PS2 PSU

8cm & 12cm & 14cm fan version PS2 power supply (depth at 205mm)

Option A-2

:

PS2 RPS

SureStar R4S series 400W/500W PS2 Mini Redundant PS (depth at 174mm)

Option A-3

:

PS2 RPS

Zippy MRT & MRW series 300W~600W PS2 Mini Redundant power supply (depth at 185mm)

Option A-4

:

PS2 RPS

SureStar R4B series 600W/700W/800W PS2 Mini Redundant PS (depth at 199mm)

Option A-5

:

PS2 RPS

Zippy MRG series 500W~800W PS2 Mini Redundant power supply (depth at 200mm)

Option B-1

:

NJ-S632

632mm 3-travel slimline slide rail (part# is 1 pair, compatible rack external depth 700~1000mm)

Option B-2

:

SRMK-550

550mm Slimline rear mounting kit (part# is 1 pair)

Option C-1

:

4SATA-1MSAS-500MM

Four SATA (Host) to SFF-8087 Mini-SAS (Device) cable

Option C-2

:

1MSAS-1MSAS-500MM

SFF-8087 Mini-SAS (Host) to SFF-8087 Mini-SAS (Device) cable

Option C-3

:

SFF-8643-500MM

SFF-8643 Mini-SAS HD (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option C-4

:

4SATA-SFF-8643-500MM

Four SATA (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option D-1

:

2U2011A-8080

2U Intel LGA2011 LGA2066 active CPU cooler Square (2U 3U 4U chassis compatible)

Option D-2

:

2U2011A-5694

2U Intel LGA2011 active CPU cooler Narrow (2U 3U 4U chassis compatible)

Option D-3

:

2U115XA

2U Intel LGA115x Xeon 1230 active CPU cooler (2U 3U 4U chassis compatible)

Option D-4

:

2U4094A-SP3

2U AMD EPYC LGA4094 active CPU cooler SP3 (2U 3U 4U chassis compatible)

Option D-5

:

2U1331A-AM4

2U AMD LGA1331 active CPU cooler AM4 (2U 3U 4U chassis compatible)

Option D-6

:

2U3647A-S82

2U Intel LGA3647 active CPU cooler Square (2U 3U 4U chassis compatible)

Option D-7

:

2U3647A-R82-1

2U Intel LGA3647 active CPU cooler Narrow (2U 3U 4U chassis compatible)

Option D-8

:

2U4189A-M82

2U Intel LGA4189 active CPU cooler (2U 3U 4U chassis compatible)

Option D-9

:

2U1700A-V15

2U Intel LGA1700 active CPU cooler (2U 3U 4U chassis compatible)
