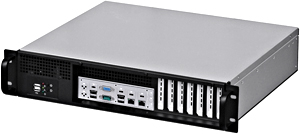

C235B 2U BLACK ATX I/O FRONT-ACCESS CHASSIS
1st production and shipment launched on August 30, 2017, webpage updated on February 17, 2021

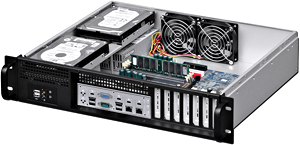

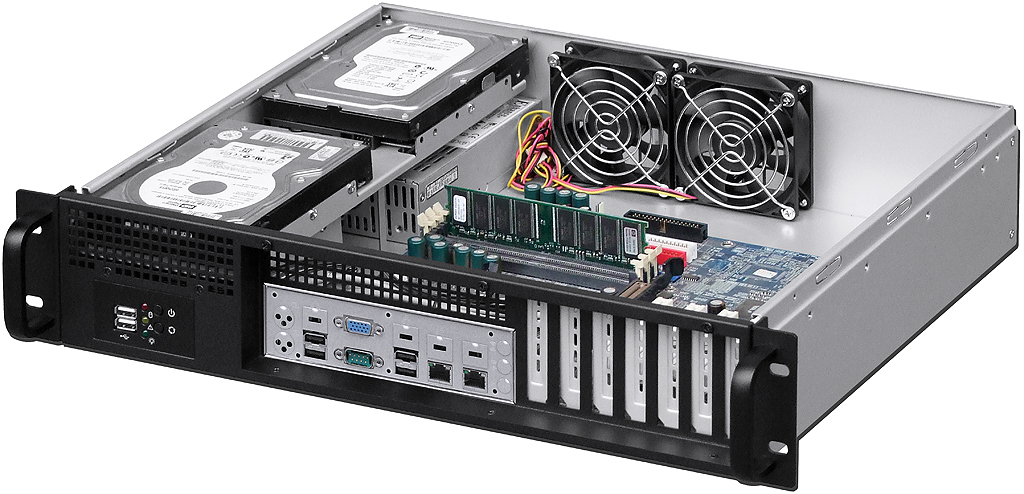

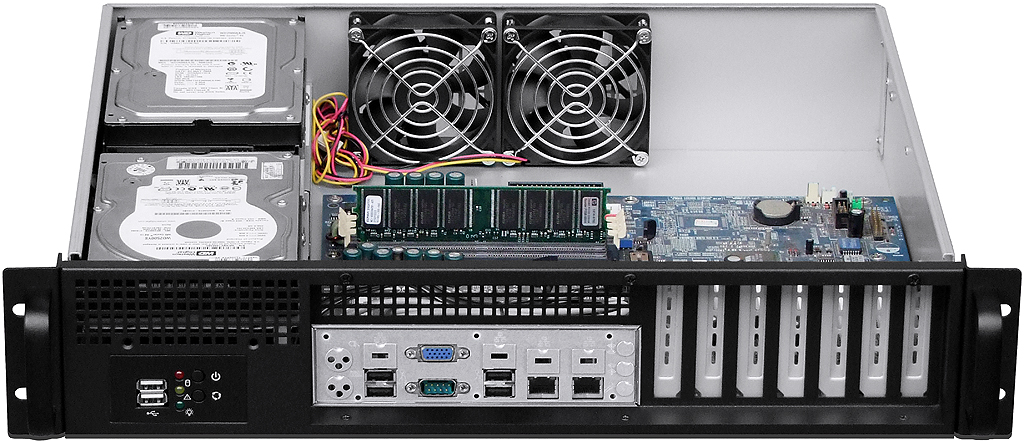

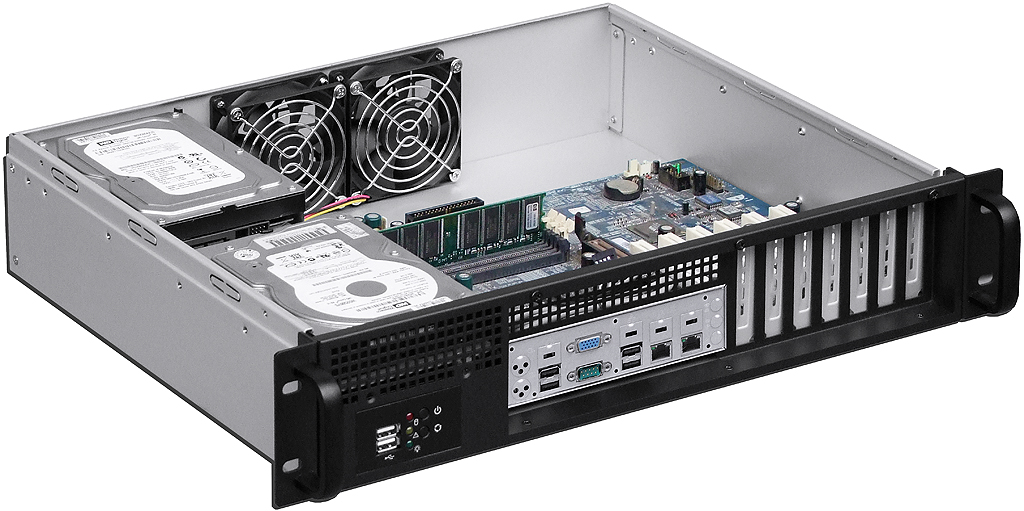

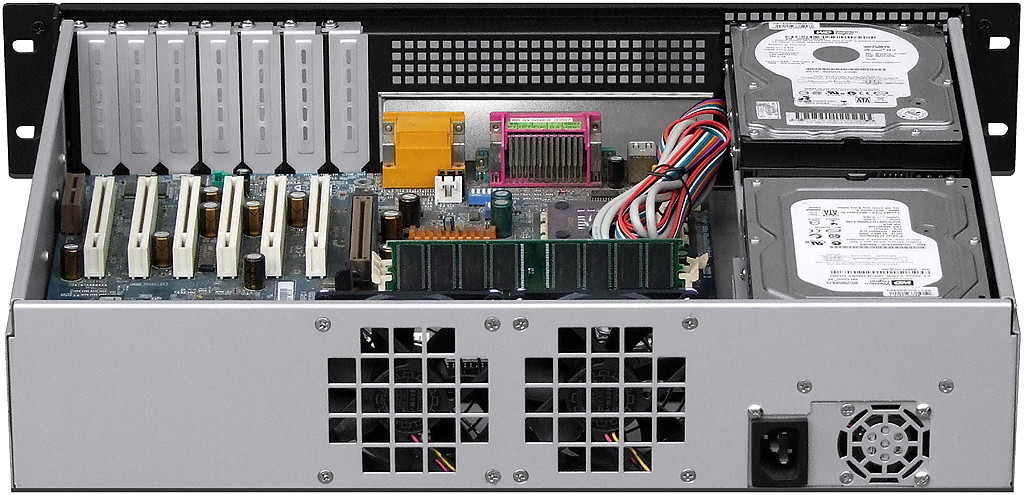

Multi-core processor era has been the main stream nowadays, the major features of this 2U C235B chassis are the I/O front-access and 7-slot low profile expansion cards design, chassis depth is merely 350mm, and allow maximum two 3.5" and four 2.5" SSD or HDD at 7mm~15mm height compatible, also it's compliant with the latest 12G 2.5" SAS SSD interface. The motherboard form factors are compatible with maximum CEB1.01 ATX 12"x10.5" or smaller size MB form factor as well. Cooling solution for two 80mmx25mm exhaust silent fans at rear panel, the front bezel also equipped with two USB 2.0 ports as standard, welcome customers distribution all over the world.

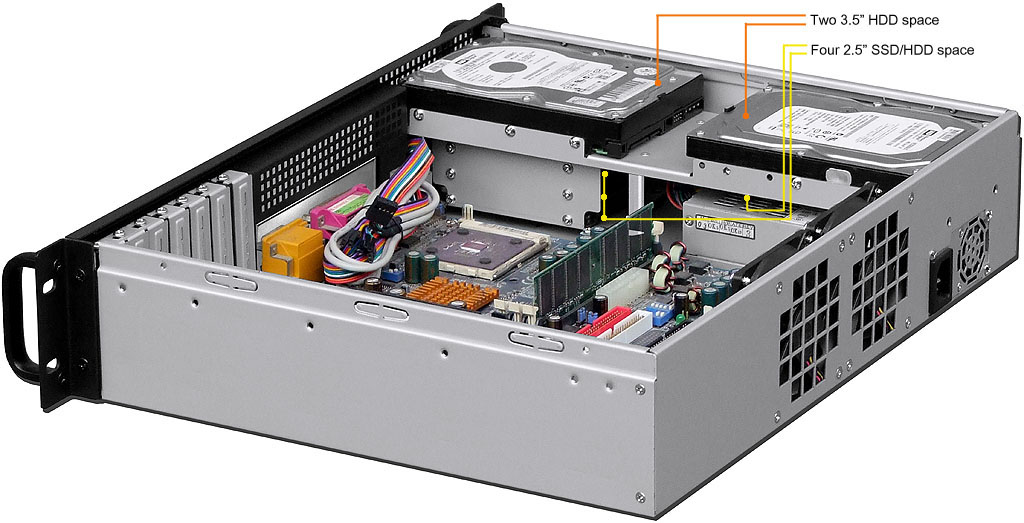

* Drive capacity: two 3.5" HDD & four 2.5" SSD (7mm~15mm height compatible)

* Drive bay equipped with anti-vibration function, extend storage appliance life

* Durable strength aluminum alloy die-casting handles

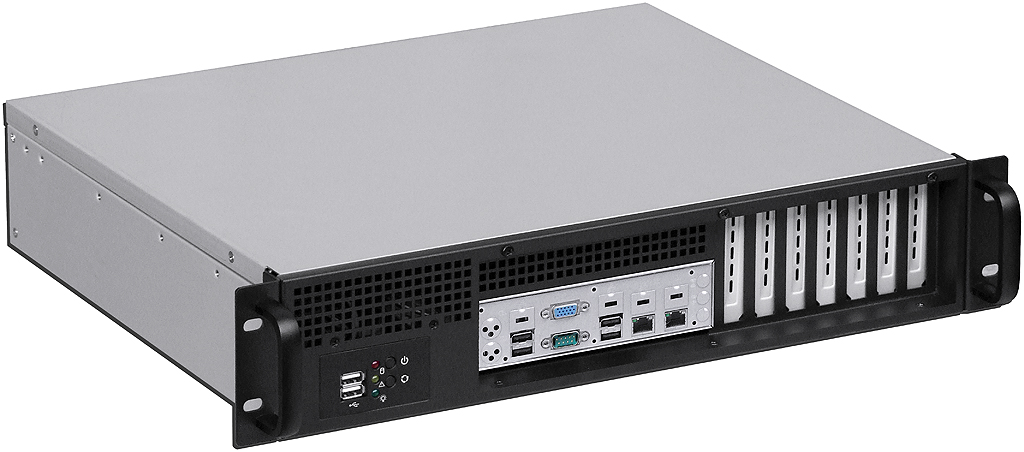

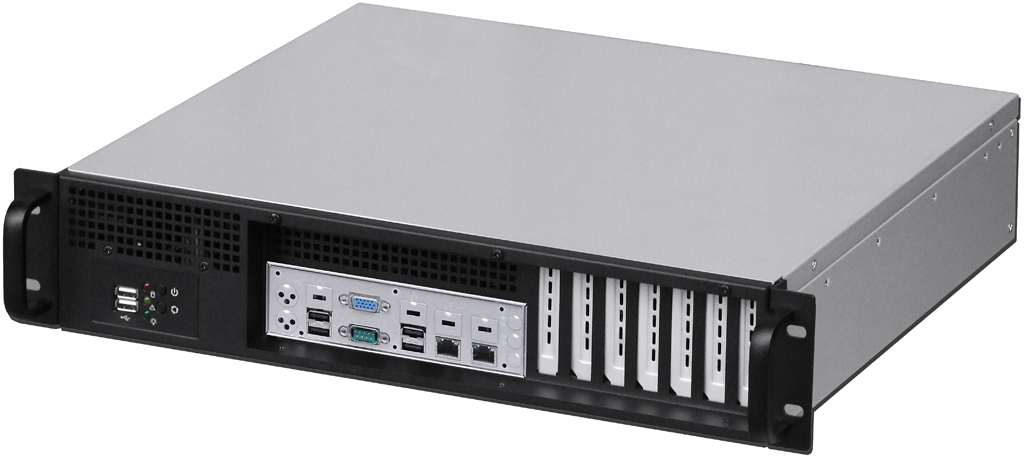

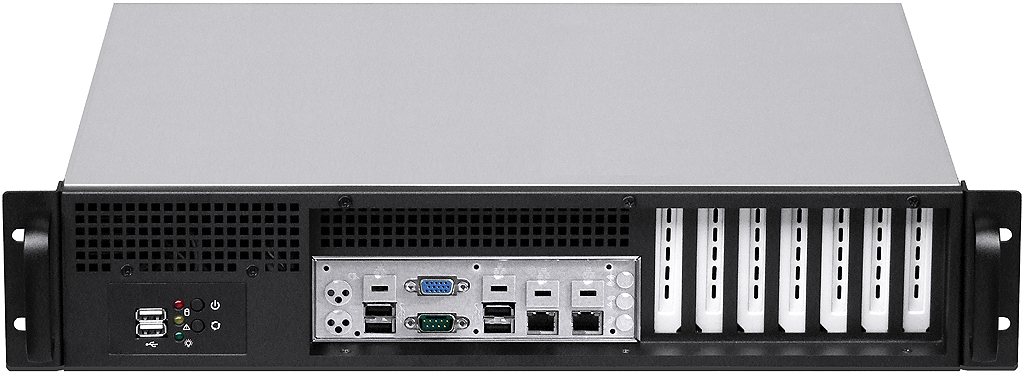

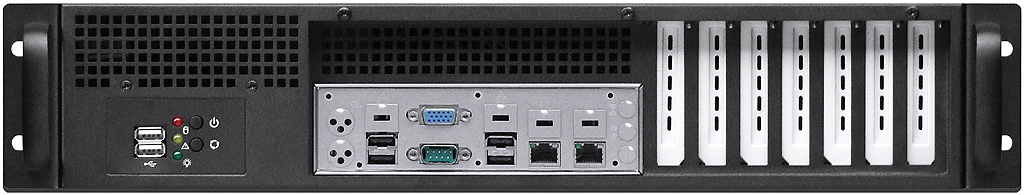

* Two USB 2.0 ports and LAN/HDD/Power LED at front bezel (two USB 3.0 as option)

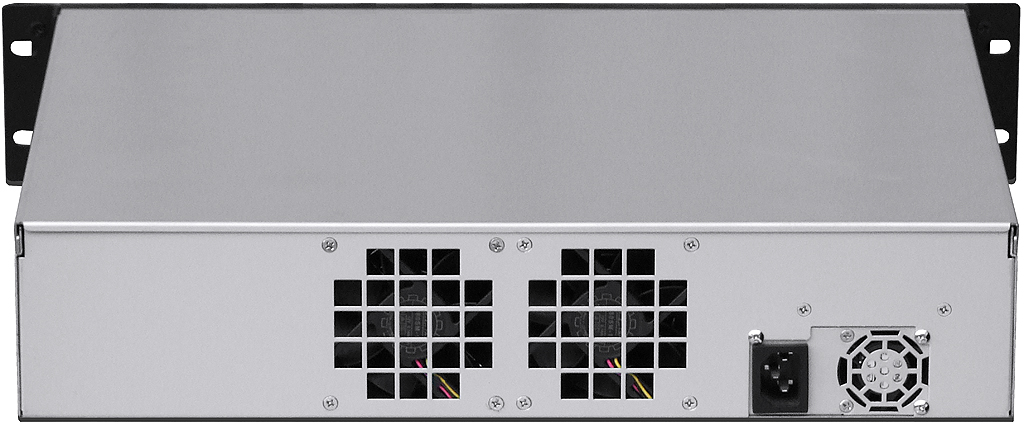

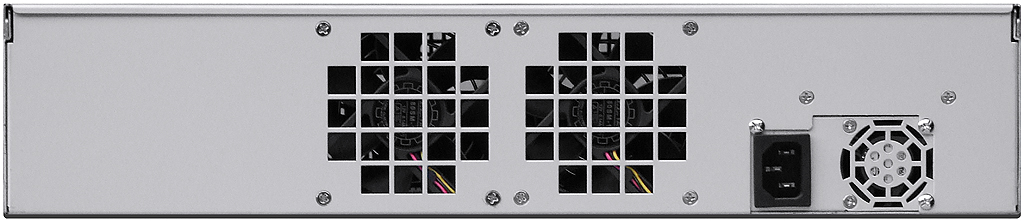

* Two 80mmx25mm exhaust silent fans at rear panel (fan part# D80SM-12)

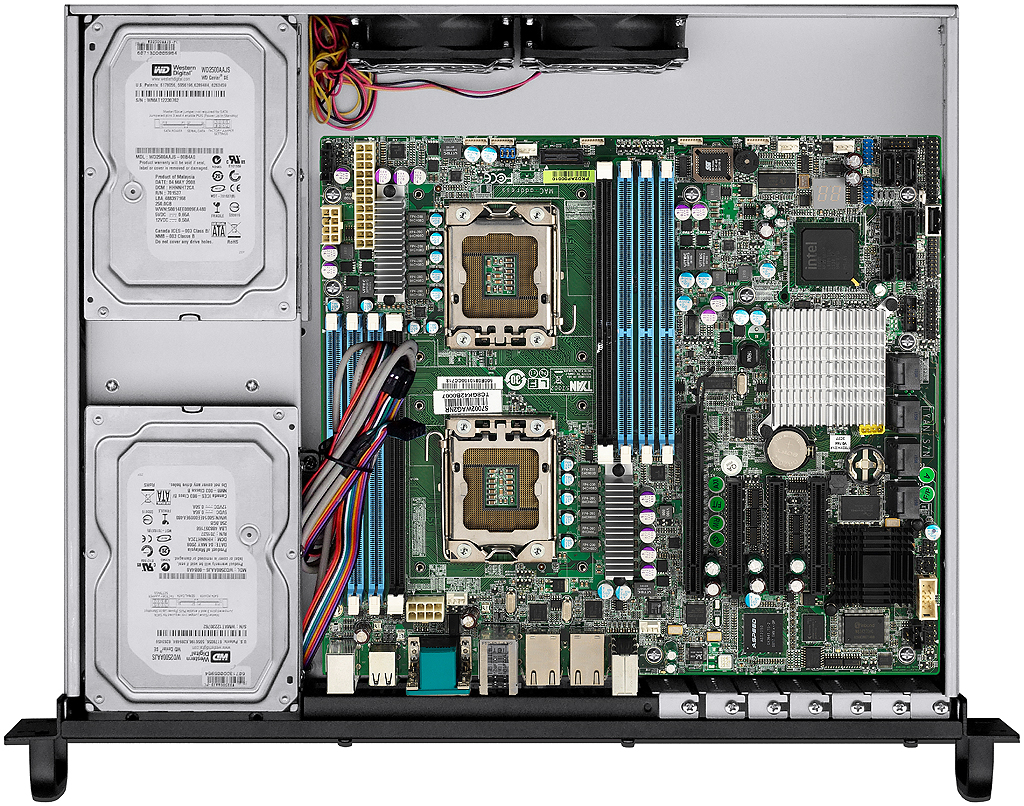

* MB: CEB(12"×10.5"), ATX(12"x9.6"), MicroATX(9.6"x9.6"), Mini-ITX(6.7"x6.7")
* Compliant PSU: 1U FlexATX 250W~600W psu (size at W.81.5 x H.40.5 x L.150/mm)

* Compliant 7 slot Low Profile expansion cards (maximum 300mm deep allowed)
* The main sheet metal constructed by 1.2mm ~ 2.0mm SECC mechanism
* Standard paint: scratch-resistant Black textured at front

* Genesys Group chassis with build-in electronics in global 3 years warranty

* Chassis dimension: 19" x 2U x 350mm (13.78" deep)

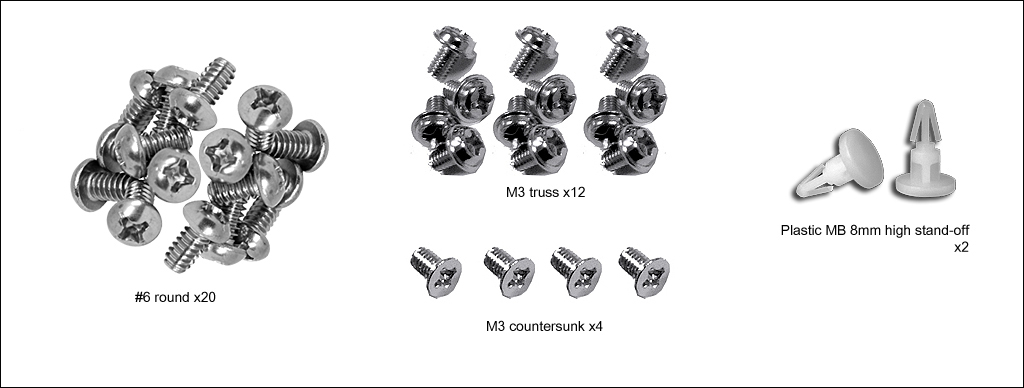

* Accessory: #6 round x20, M3 truss x12, M3 countersunk x4, 8mm MB stand-off x2
* Package: NW 4.67 KGM, GW 6.02 KGM, 1.55 CUFT (carton size at 55x47x17cm)

Model#

:

C235B

2U black ATX I/O front-access chassis

Option A-1

:

NJ-600

600mm 2-layer 3-travel universal rail (cabinet internal depth 600~1200mm compliant)

Option A-2

:

NJ-2020-18

18-inch full extension slide rail (cabinet internal depth 456.7mm~810mm compliant)

Option A-3

:

1234U-RMK

1234U rear mounting kit

Option B-1

:

ENP-7130B

1U FlexATX 300W power supply with PFC (psu size at W.81.5 x H.40.5 x L.150/mm)

Option B-2

:

ENP-7140B

1U FlexATX 400W power supply with PFC (psu size at W.81.5 x H.40.5 x L.150/mm)

Option B-3

:

 ENP-7650B

1U FlexATX 500W power supply with PFC (psu size at W.81.5 x H.40.5 x L.150/mm)

Option B-4

:

 ENP-7660B

1U FlexATX 600W power supply with PFC (psu size at W.81.5 x H.40.5 x L.150/mm)

Option C-1

:

1MSAS-4SATA-500MM

SFF-8087 Mini-SAS (Host) to Four SATA (Device) cable

Option C-2

:

SFF-8643-4SATA-500MM

SFF-8643 Mini-SAS HD (Host) to Four SATA (Device) cable

Option D-1

:

2U2011A-8080

2U Intel LGA2011 LGA2066 active CPU cooler Square (2U 3U 4U chassis compatible)

Option D-2

:

2U2011A-5694

2U Intel LGA2011 active CPU cooler Narrow (2U 3U 4U chassis compatible)

Option D-3

:

2U115XA

2U Intel LGA115x Xeon 1230 active CPU cooler (2U 3U 4U chassis compatible)

Option D-4

:

2U4094A-SP3

2U AMD EPYC LGA4094 active CPU cooler SP3 (2U 3U 4U chassis compatible)

Option D-5

:

2U1331A-AM4

2U AMD LGA1331 active CPU cooler AM4 (2U 3U 4U chassis compatible)

Option D-6

:

2U3647A-S82

2U Intel LGA3647 active CPU cooler Square (2U 3U 4U chassis compatible)

Option D-7

:

2U3647A-R82-1

2U Intel LGA3647 active CPU cooler Narrow (2U 3U 4U chassis compatible)

Option D-8

:

2U4189A-M82

2U Intel LGA4189 active CPU cooler (2U 3U 4U chassis compatible)

Option D-9

:

2U1700A-V15

2U Intel LGA1700 active CPU cooler (2U 3U 4U chassis compatible)
