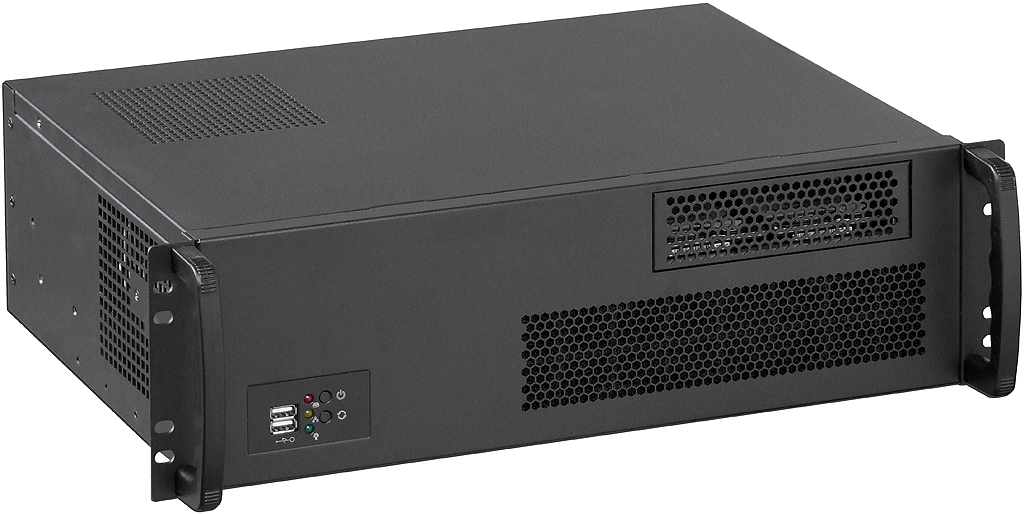

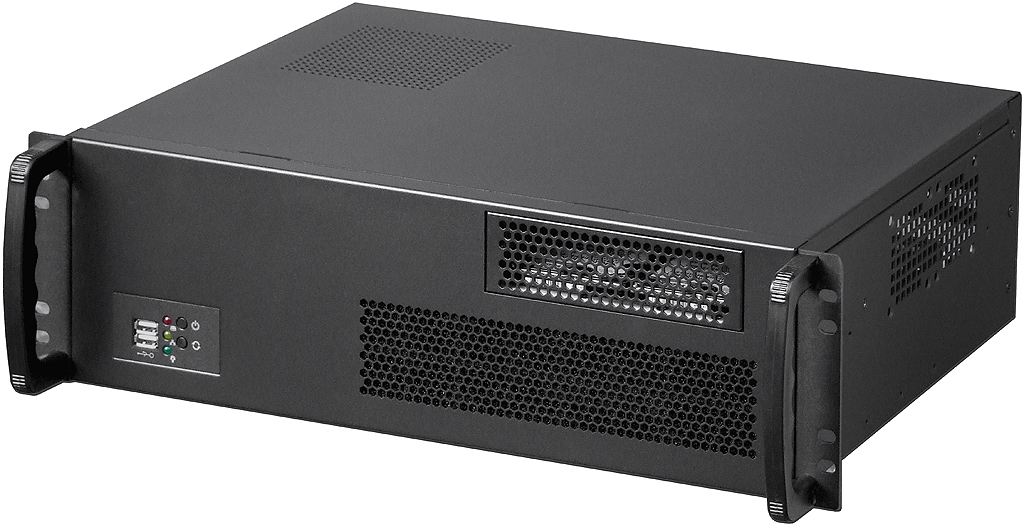

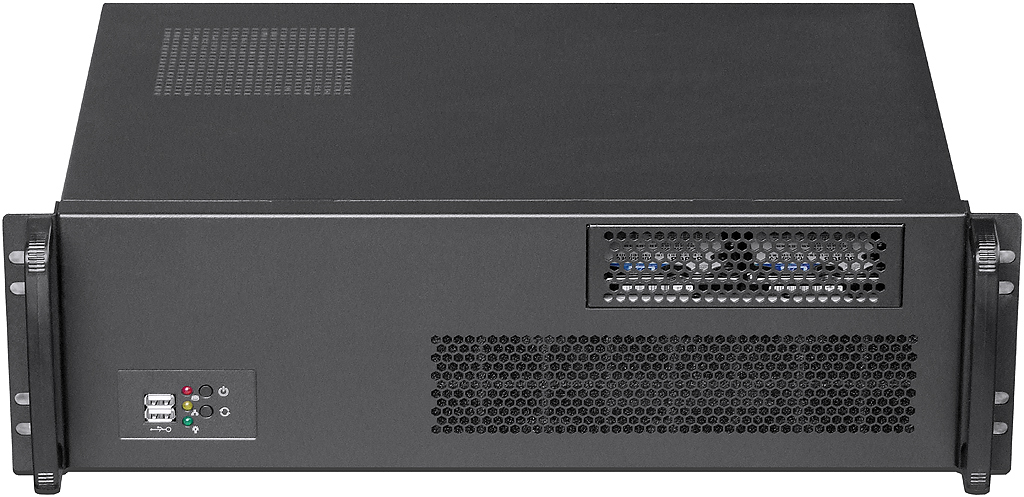

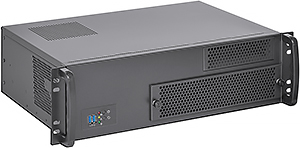

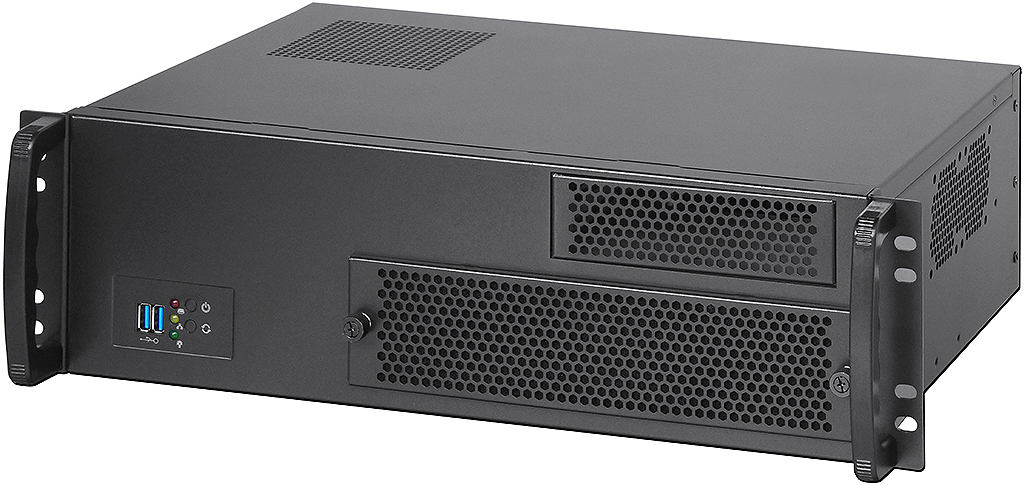

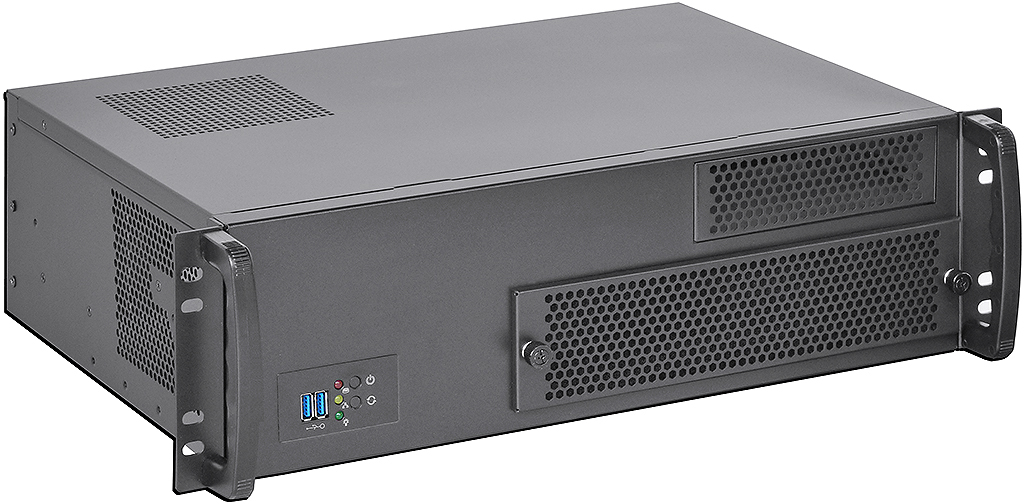

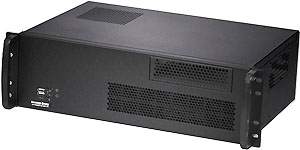

C330B 3U BLACK RACKMOUNT WALLMOUNT ATX CHASSIS
Product announcement & 1st production dated on September 05, 2008, webpage updated on May 31, 2025




The era of ATX and MicroATX constructed Multi-Core CPU platforms have been the mainstream nowadays, the fast and stable server system is also presented by this model of design, the major features of this brand new design are, the depth of this chassis has 300mm only, and it can also be installed by standard 19" rackmount, I/O front-access rackmount and wallmount platform all without any additional brackets, it can be also installed two units of C330B at the same 3U space of cabinet's front and rear side with the cost effective and space saving values, combines with two intake 60mm fans at front side as standard and five exhaust 60mm fans at front panel and rear panel and side panel as option, comes with totally 4 drive bay with the chassis configuration, fits all standard 12"x9.6" Intel ATX MB form factor and standard PS2 power supply, meets regular server system application, welcome worldwide distribution.

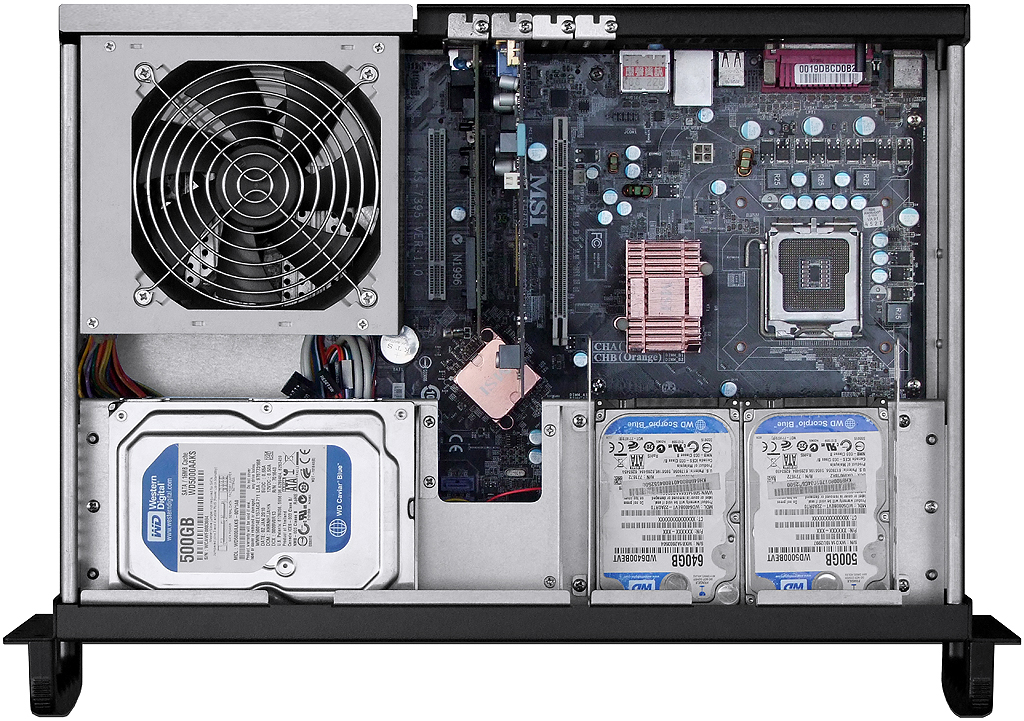

* Totally 4 drive bay: 3 x 3.5" HDD bay, 1 x 5.25" ODD (or two 2.5" SSD bay)

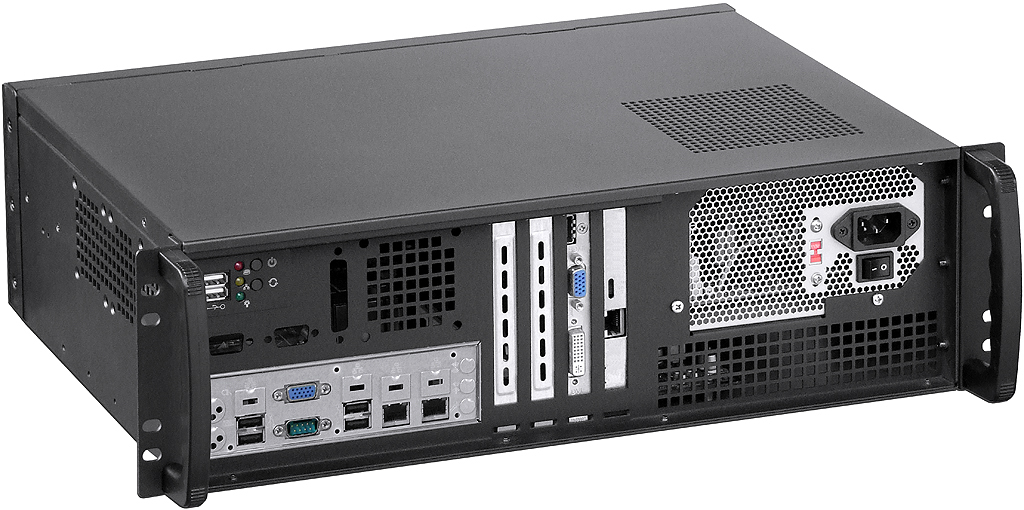

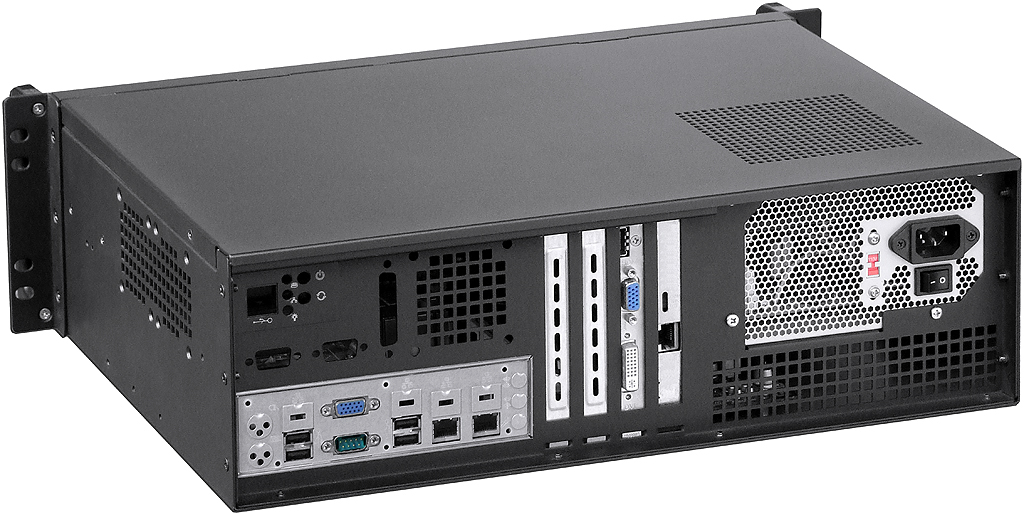

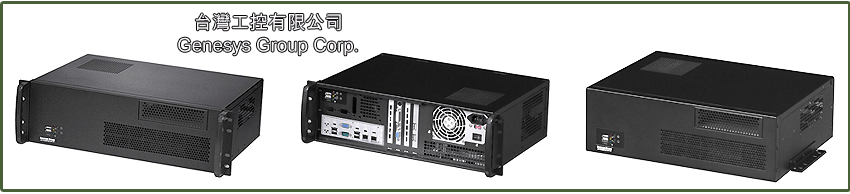

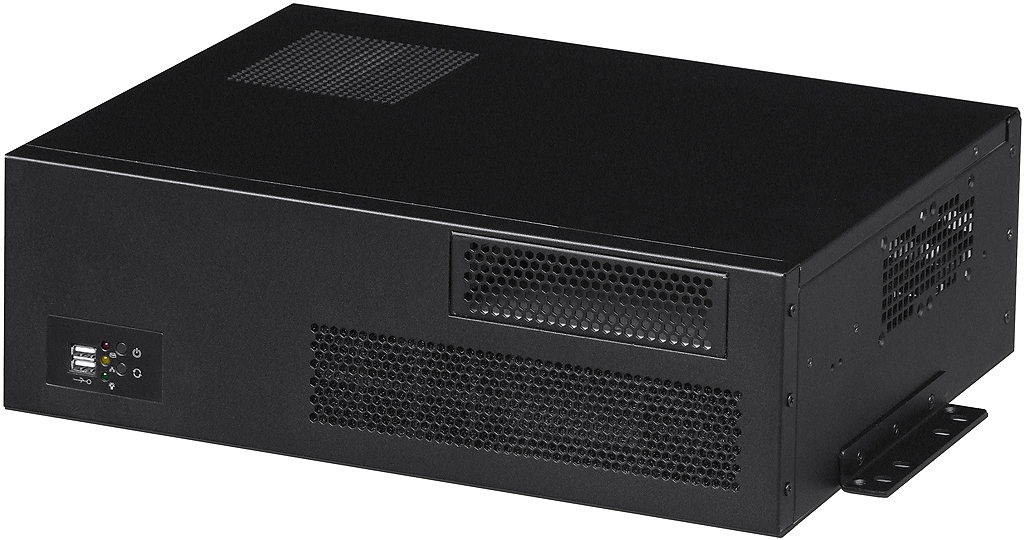

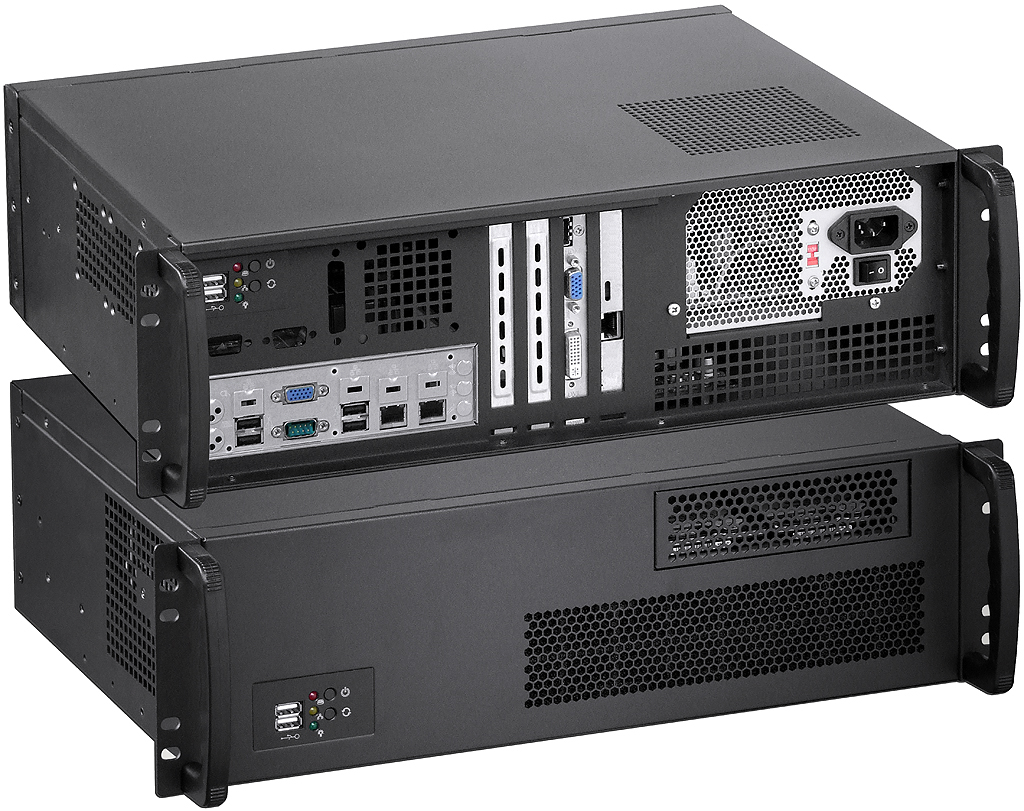

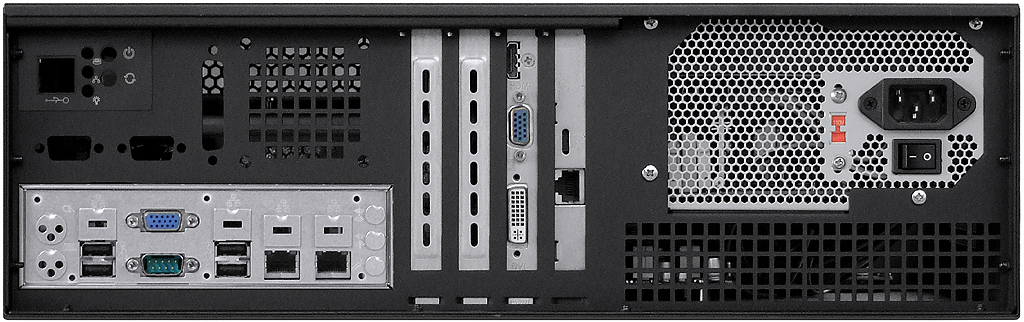

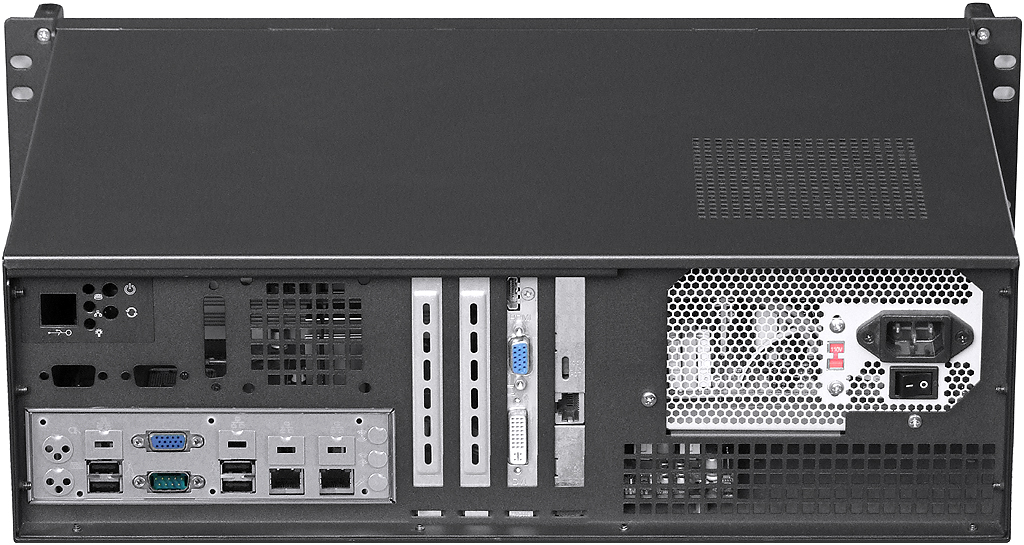

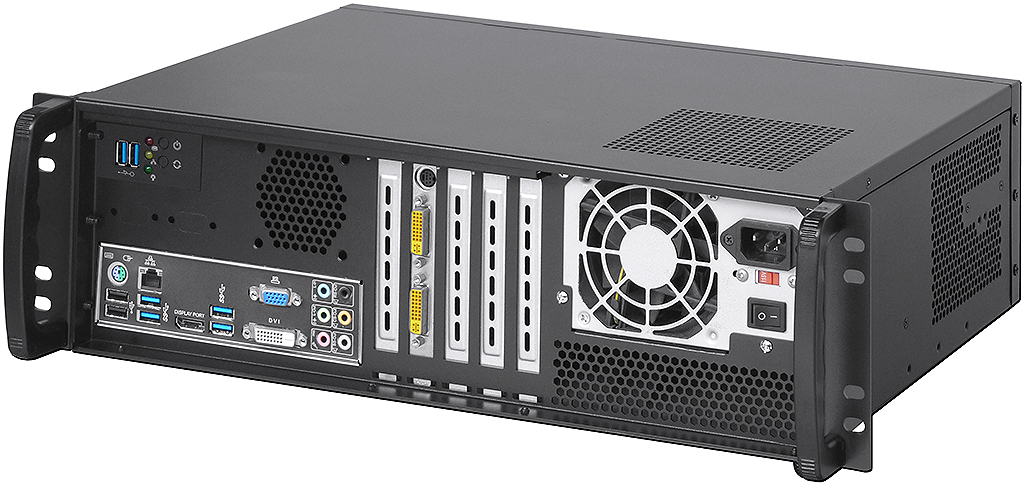

* I/O front or rear or wallmount all compatible, additional brackets not required
* Two USB 3.0 ports and LAN/HDD/Power LED (part# USB3-i700-350mm)

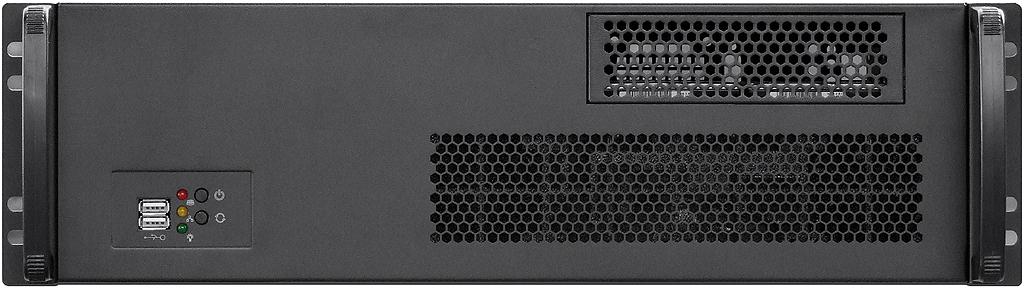

* Two 60mmx25mm 2-ball fans with air filter at front bezel (fan part# SUNTAi6025)
* The main sheet metal constructed by 1.2mm ~ 2.0mm SGCC mechanism
* Compatible motherboard: ATX(12"x9.6"), MicroATX(9.6"x9.6"), Mini-ITX(6.7"x6.7")
* Support PS2 8cm or 12cm~14cm fan version psu (max. psu depth at 140mm)

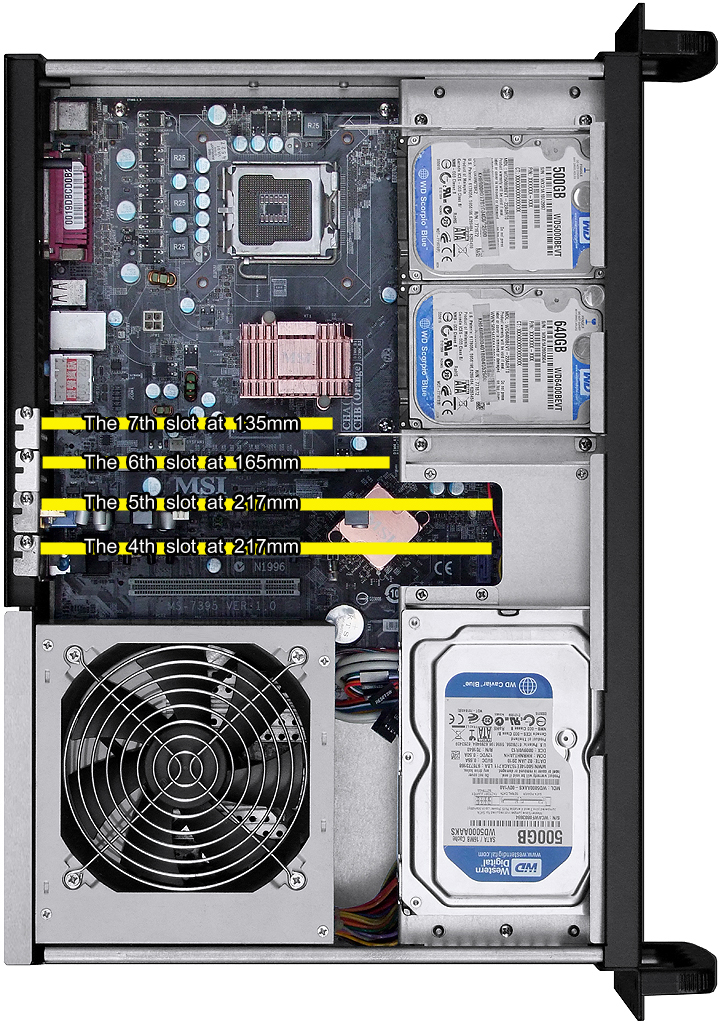

* Support 5-slot full height expansion cards at 220mm deep
* Standard paint: scratch-resistant Black textured or scratch-resistant Beige RAL 9018
* Genesys Group chassis with build-in electronics in global 3 years warranty
* Chassis dimension: 19" x 3U x 300mm (11.81" deep)

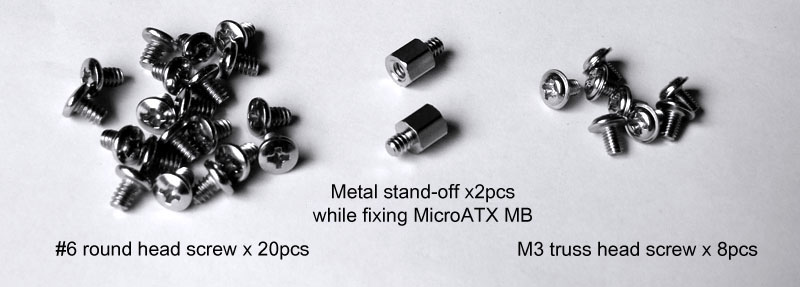

* Accessory: Various screws x32, MB stand-off x2, ear & handle x1 set, USB sticker x1
* Package: NW 5 KG, GW 7 KG, 1.93 CUFT (carton size at 56x43.5x22.5cm)

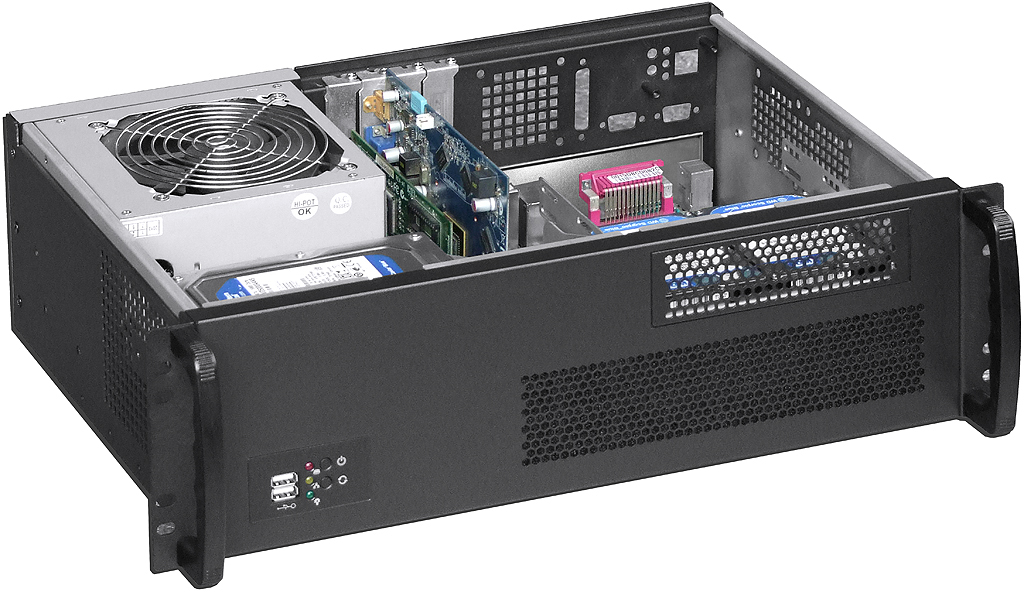

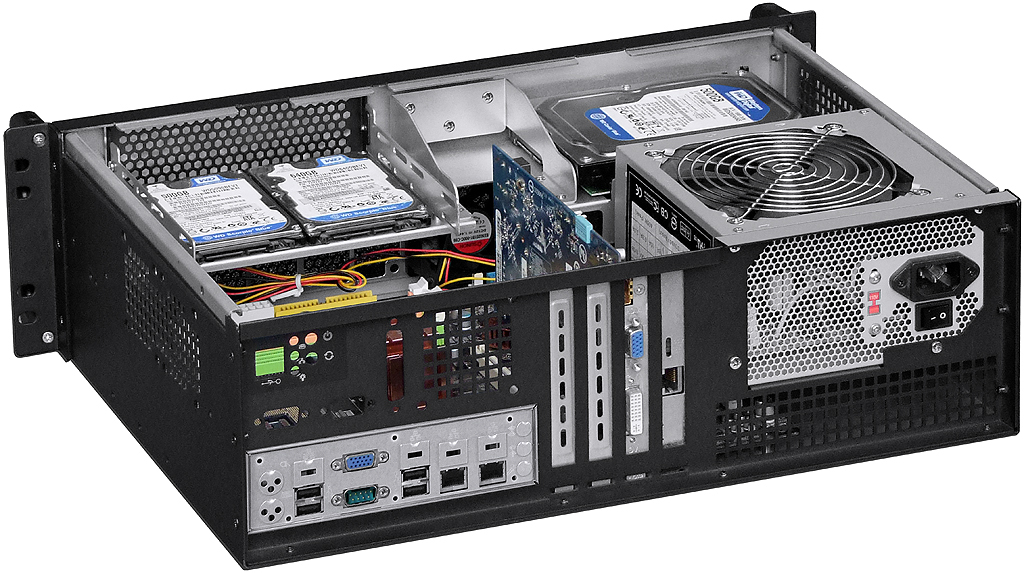

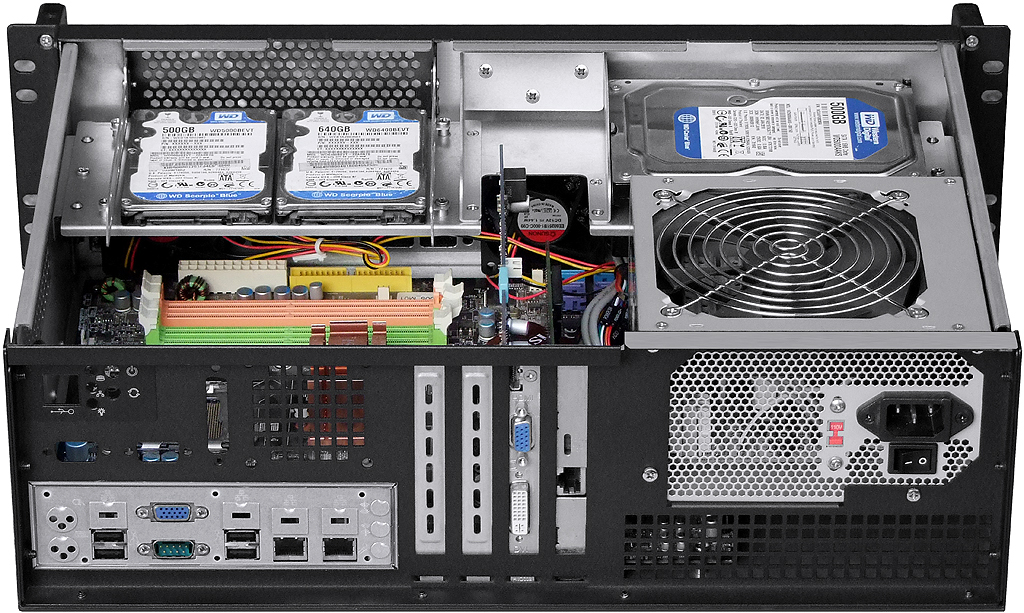

* Suggest to release the rear panel + PS2 PSU set first during system integration

* Note: Full height GPU cards with DC input on top side will not fit with 3U chassis

Model#

:

C330B

3U black rackmount wallmount ATX chassis

Option A

:

PSU

PS2 8cm or 12cm~14cm fan version power supply (max. psu depth at 140mm)

Option B

:

SUNTAi6025

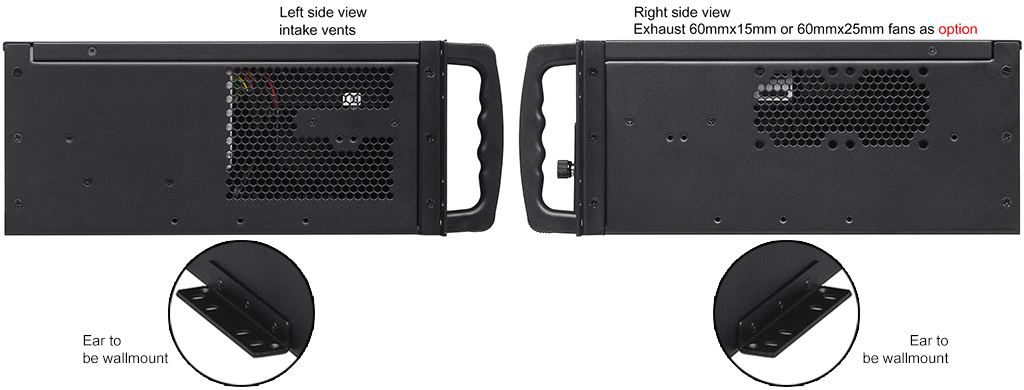

Five 60mm x 25mm fans (one for rear panel, two for side panel, two for front panel)

Option C

:

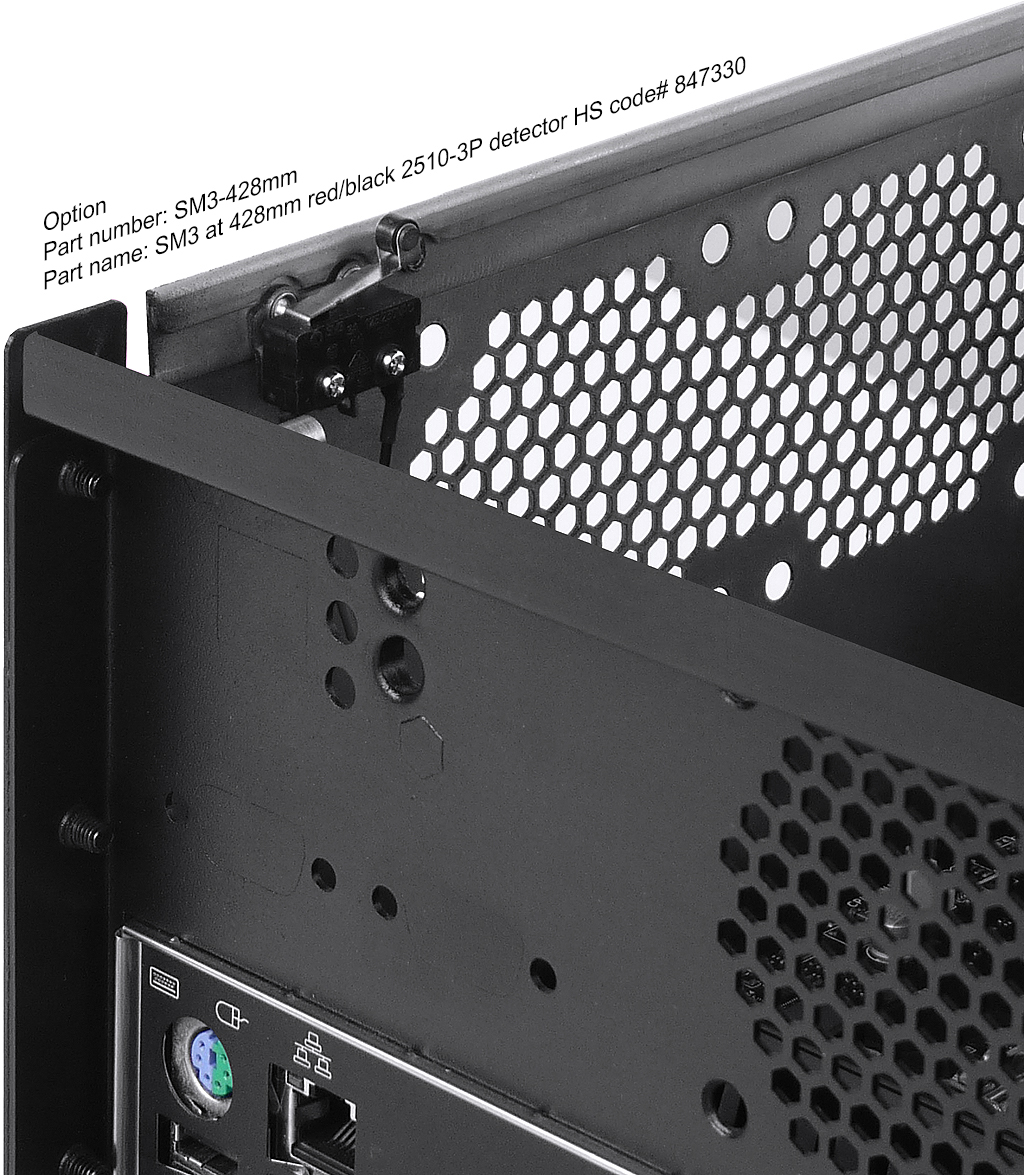

SM3-428mm

SM3 at 428mm red/black 2510-3P detector

Option D-1

:

NJ-600

600mm 2-layer 3-travel universal rail (cabinet internal depth 600~1200mm compliant)

Option D-2

:

NJ-2020-18

18-inch full extension slide rail (cabinet internal depth 456.7mm~810mm compliant)

Option D-3

:

1234U-RMK

1234U rear mounting kit (part# is 1 pair)

Option E-1

:

25-35-BK

1x5.25" to 1x3.5" HDD or 1x3.5" to two 2.5" SSD bracket

Option E-2

:

RW4M2

1x5.25" to 4 x M.2 SSD Removable Cage M.2 NVMe 64Gbps

Option E-3

:

RW8M2

1x5.25" to 8 x M.2 SSD Removable Cage M.2 NVMe 64Gbps

Option E-4

:

RW135-12G

1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 12G

Option E-5

:

TL135-12G

1x5.25" to 1x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option E-6

:

RW225-NVMe-U

1x5.25" to 2xUSB3 2x2.5" SSD Removable Cage U.2 NVMe 32G

Option E-7

:

RW225-NVMe

1x5.25" to 2x2.5" SSD Removable Cage U.2 NVMe 32G

Option E-8

:

RW225-12G

1x5.25" to 2x2.5" HotSwap Cage SATA/SAS 12G

Option E-9

:

RW625-12G

1x5.25" to 6x2.5" HotSwap Cage SATA/SAS 12G

Option E-10

:

RW825-1525

1x5.25" to 8x2.5" HotSwap Cage SATA/SAS 6G

Option E-11

:

RW425-NVMe

1x5.25" to 4x2.5" SSD Removable Cage U.2 NVMe 32G

Option E-12

:

RW425-12G-MS

1x5.25" to 4x2.5" HotSwap Cage SFF-8643 12G

Option E-13

:

RW425-12G

1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 12G

Option E-14

:

RW425

1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 6G

Option F-1

:

1MSAS-4SATA-500MM

SFF-8087 Mini-SAS (Host) to Four SATA (Device) cable

Option F-2

:

SFF-8643-500MM

SFF-8643 Mini-SAS HD (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option F-3

:

4SATA-SFF-8643-500MM

Four SATA (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option F-4

:

SFF-8643-4SATA-500MM

SFF-8643 Mini-SAS HD (Host) to Four SATA (Device) cable

Option G-1

:

2U2011A-8080

2U Intel LGA2011 LGA2066 active CPU cooler Square (2U 3U 4U chassis compatible)

Option G-2

:

2U2011A-5694

2U Intel LGA2011 active CPU cooler Narrow (2U 3U 4U chassis compatible)

Option G-3

:

2U115XA

2U Intel LGA115x Xeon 1230 active CPU cooler (2U 3U 4U chassis compatible)

Option G-4

:

2U4094A-SP3

2U AMD EPYC LGA4094 active CPU cooler SP3 (2U 3U 4U chassis compatible)

Option G-5

:

2U1718A-AM5

2U AMD AM4 AM5 active CPU cooler (2U 3U 4U chassis compatible)

Option G-6

:

2U3647A-S82

2U Intel LGA3647 active CPU cooler Square (2U 3U 4U chassis compatible)

Option G-7

:

2U3647A-R82-1

2U Intel LGA3647 active CPU cooler Narrow (2U 3U 4U chassis compatible)

Option G-8

:

2U4189A-M82

2U Intel LGA4189 active CPU cooler (2U 3U 4U chassis compatible)

Option G-9

:

2U1700A-R67

2U Intel LGA1700 LGA1851 active CPU cooler (2U 3U 4U chassis compatible)

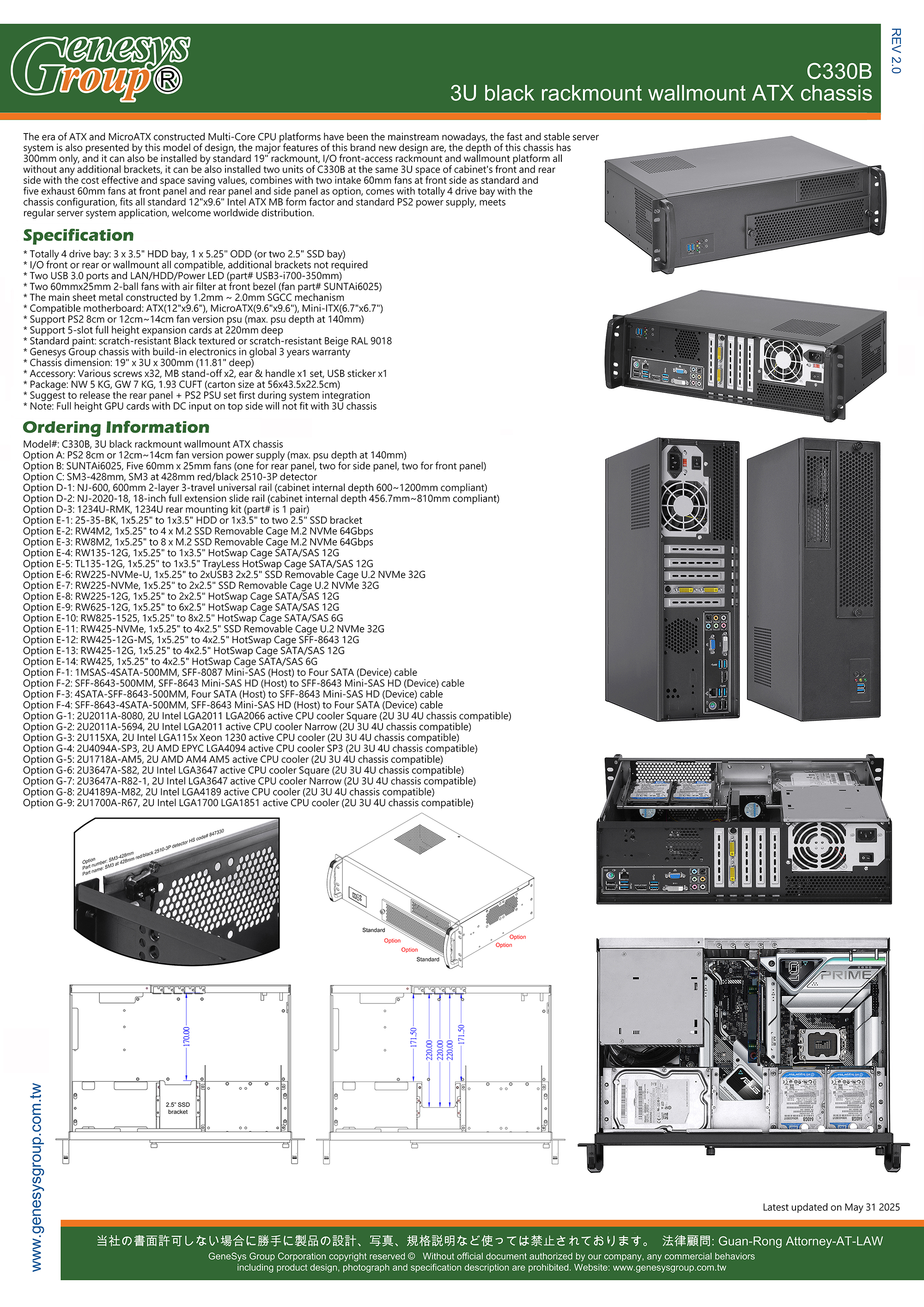

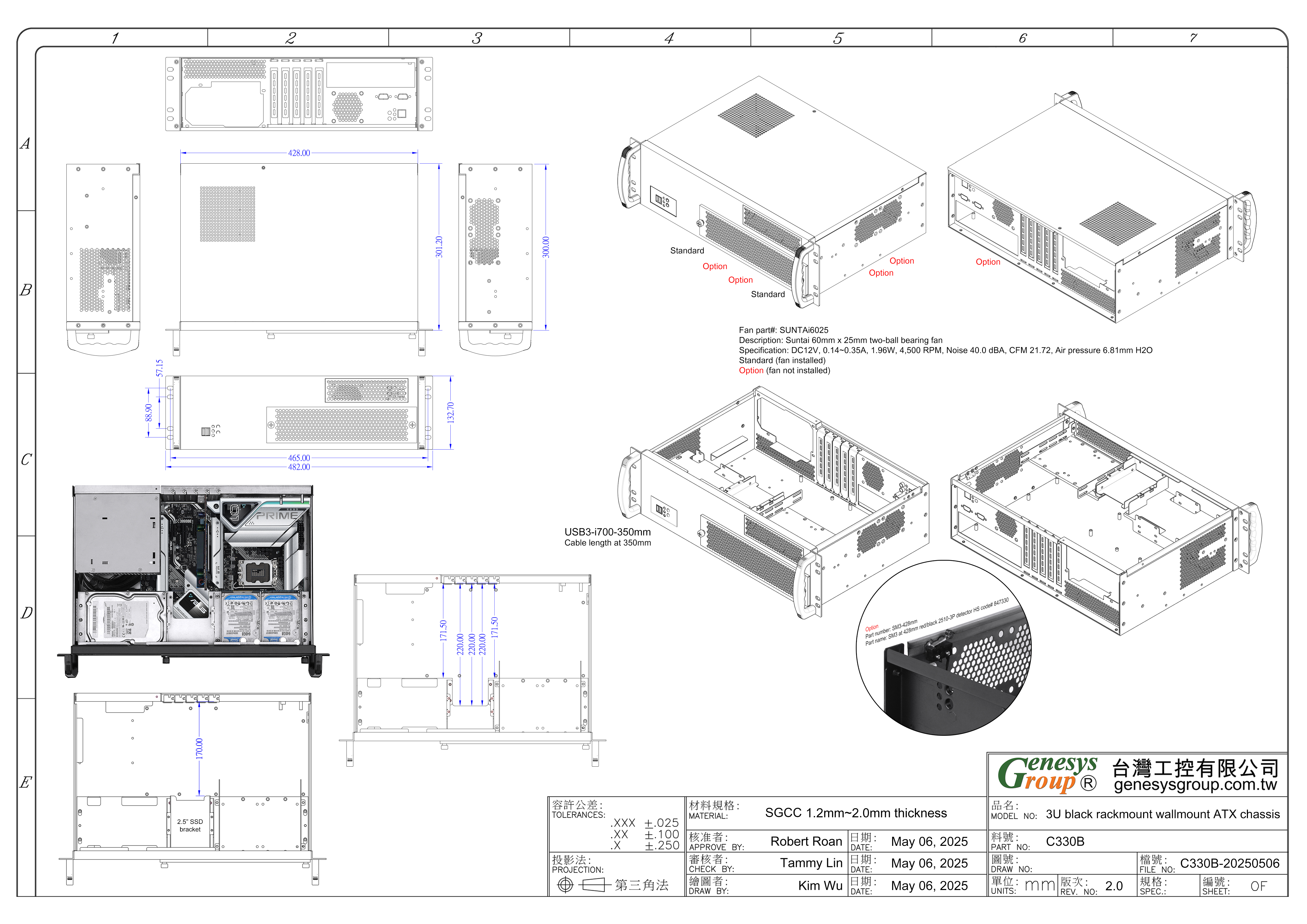

Catalog in PDF          Catalog in JPG          Dimension Drawing in PDF          Dimension Drawing in JPG
