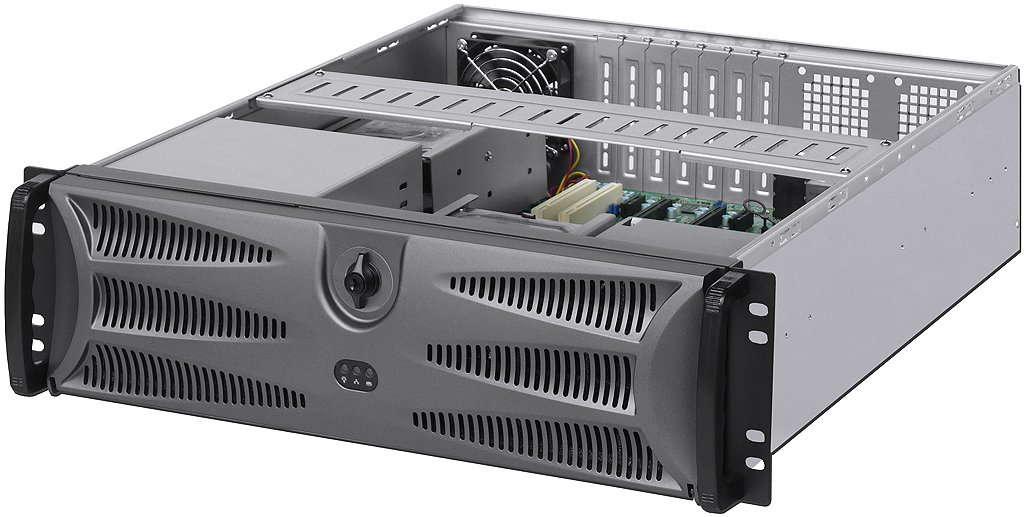

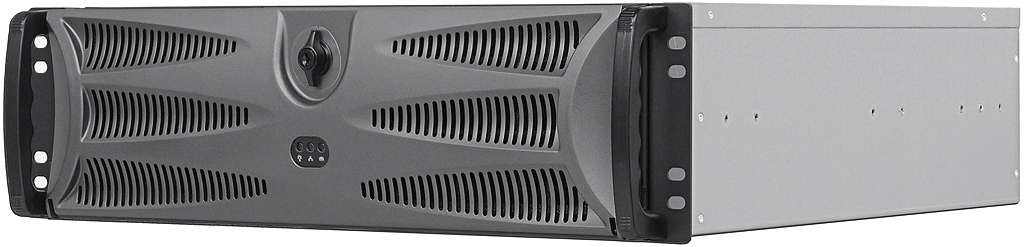

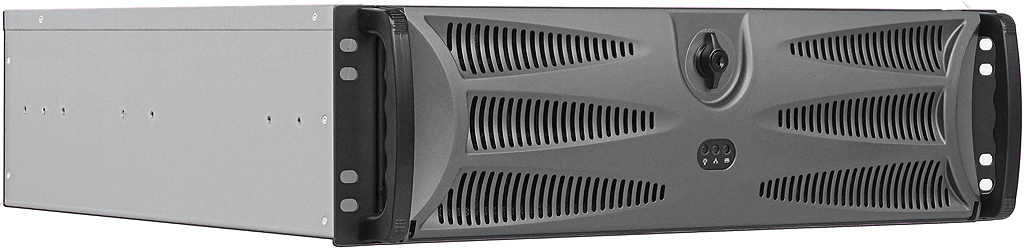

E350B 3U BLACK ATX ENTERPRISE SERVER CHASSIS
Product announcement or 1st production dated on February 03, 2016, webpage updated on December 04, 2024

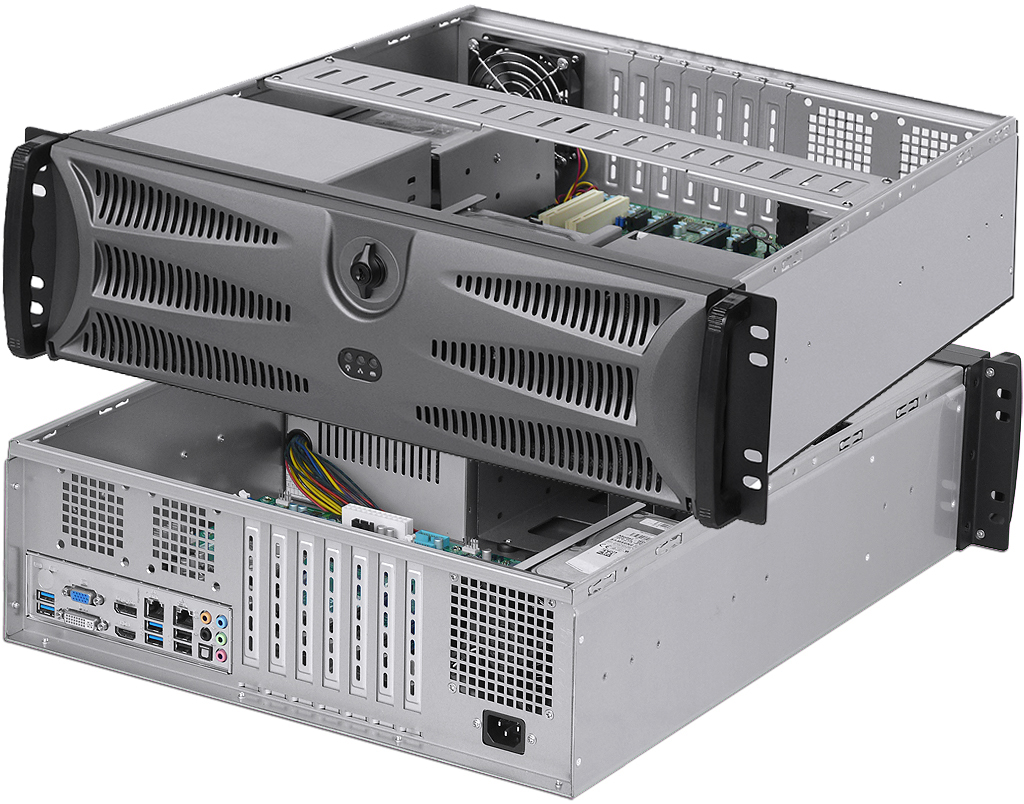

3U E350B is made of 1.2mm~2.0mm thickness high-grade sheet metal as main structure of chassis, durable and strong as well as the security features have been entirely considered, all parts including electronic components certified by international official approvals, and global 3 years warranty supported. The most major feature of this E350B chassis is the depth is merely 500mm, its cost effective but very high quality, standard equipped with three 80mmx25mm fans, and two optional 60mmx25mm fans installed at rear panel of chassis. The high end ABS front door with butterfly keylock and dust-prevent filter, the best solution for regular server or enterprise environment, welcome distribution world wide.











* 9 Drive capacity: 3 x 5.25" ODD and 6x 3.5" HDD bay

* 5.25" ODD max. depth 210mm~260mm (the larger MB size, the smaller ODD depth)

* The upper two 5.25" ODD max. depth at 260mm (even CEB 12"x10.5" MB compliant)

* 3.5" HDD bay supported with anti-vibration function that HDD life time extended

* Main structure of sheet metal by high-class SGCC 1.2mm~2.0mm thickness

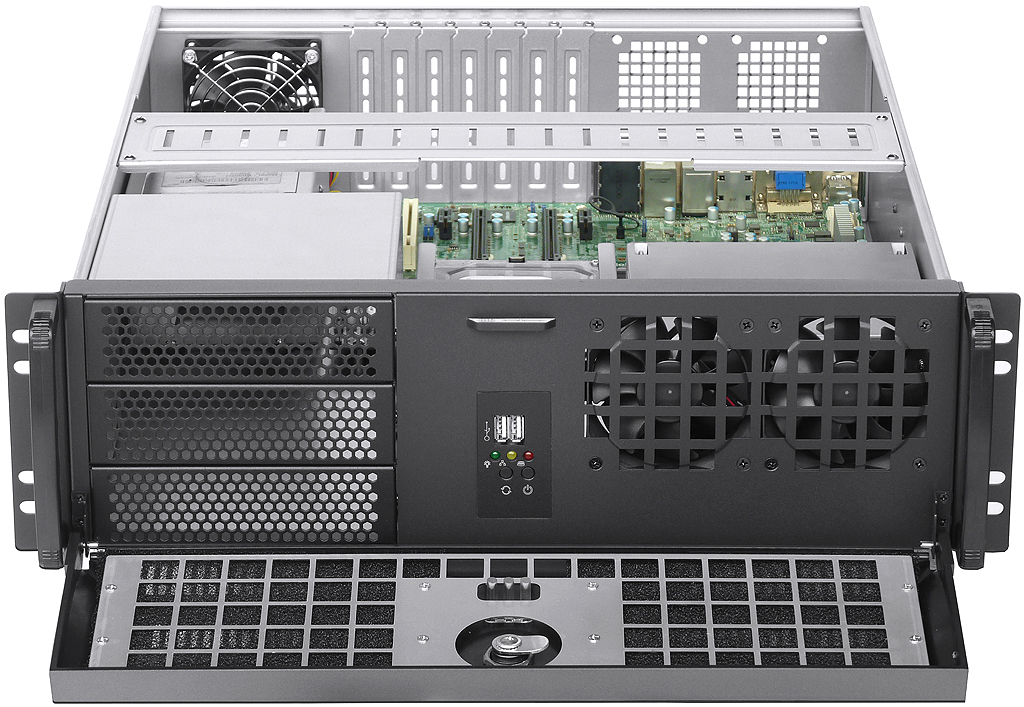

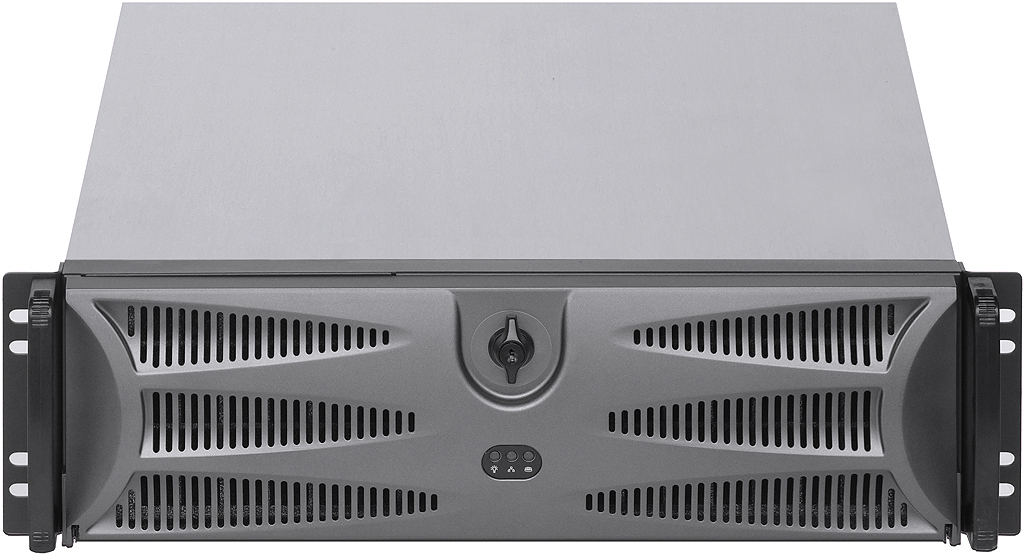

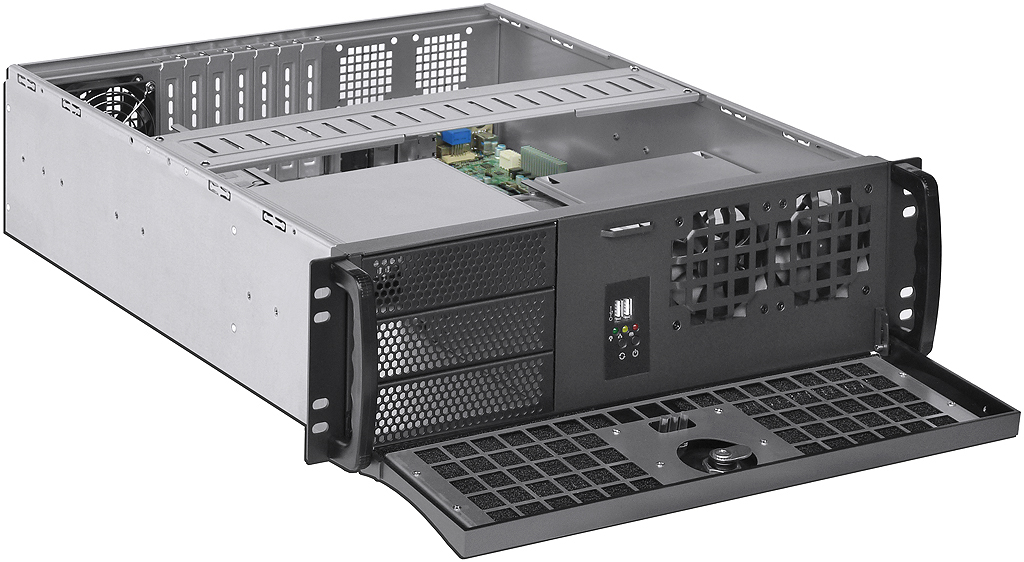

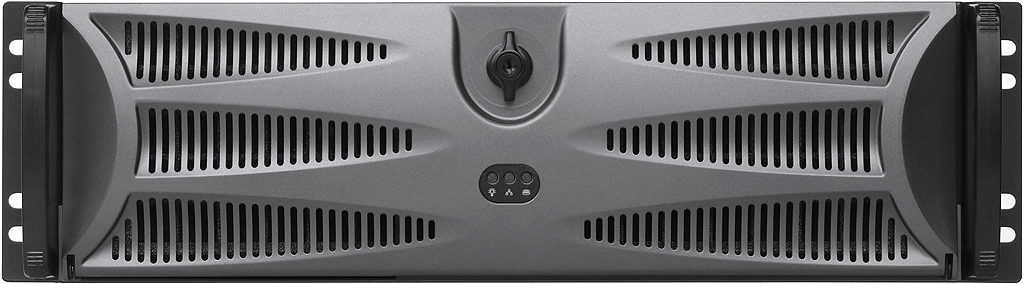

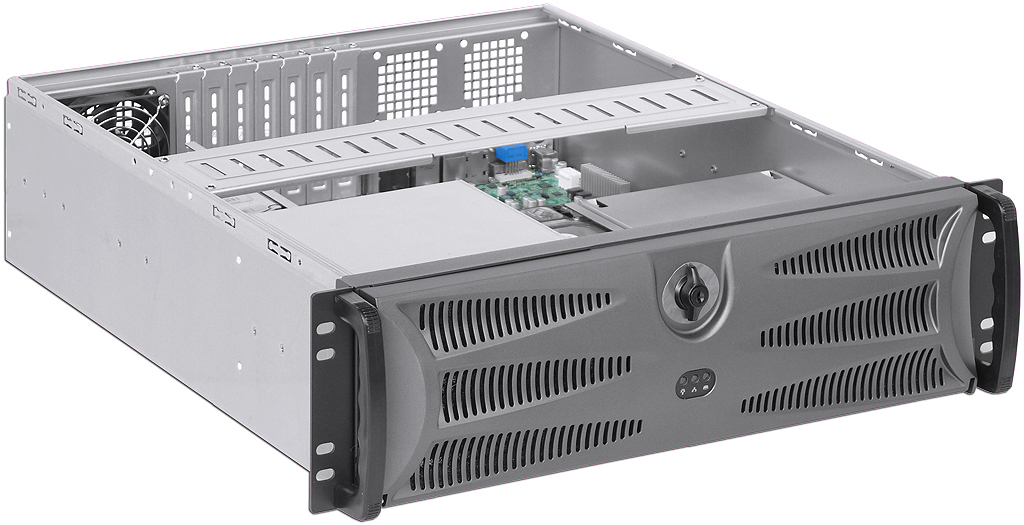

* Removable front door with security butterfly keylock and air filter function

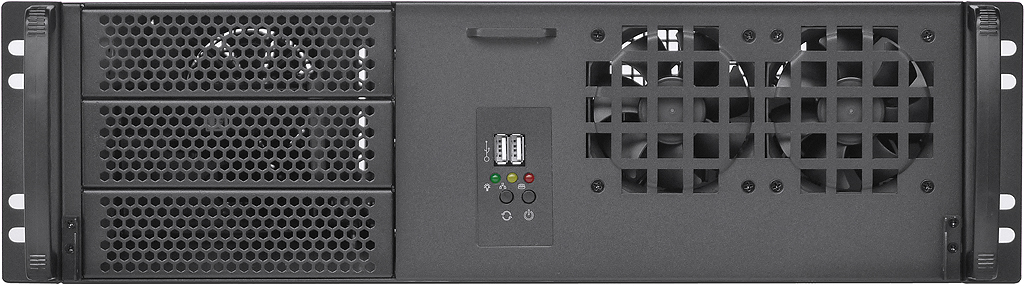

* Two USB 2.0 ports and LAN/HDD/Power LED at front bezel (two USB 3.0 as option)

* Three brand new 80mmx25mm intake fans at front and rear (fan part# D80SM-12)

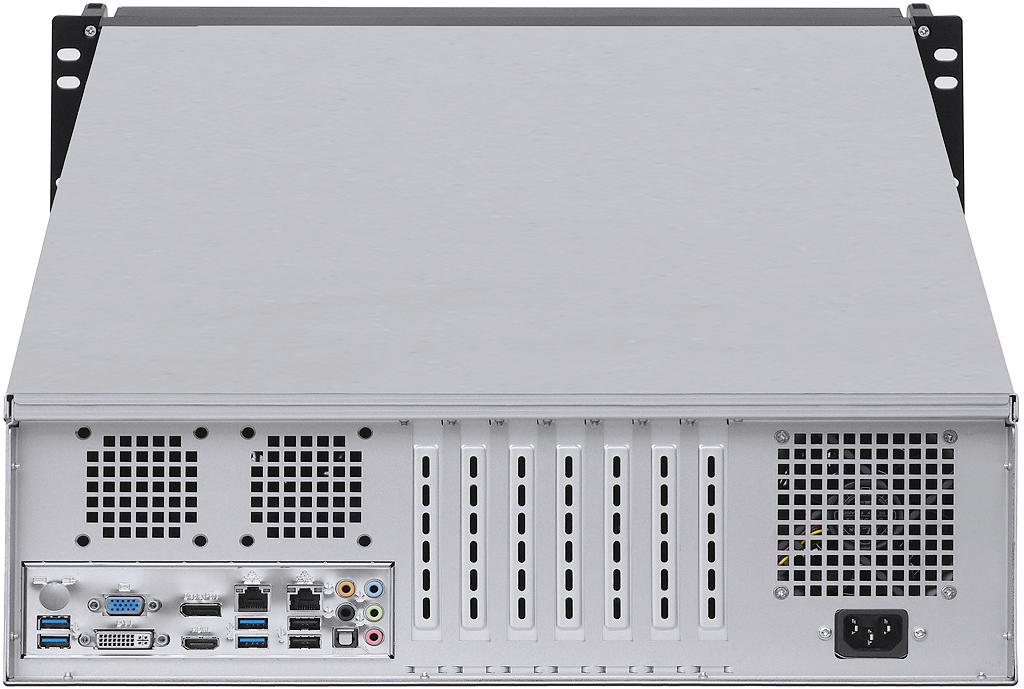

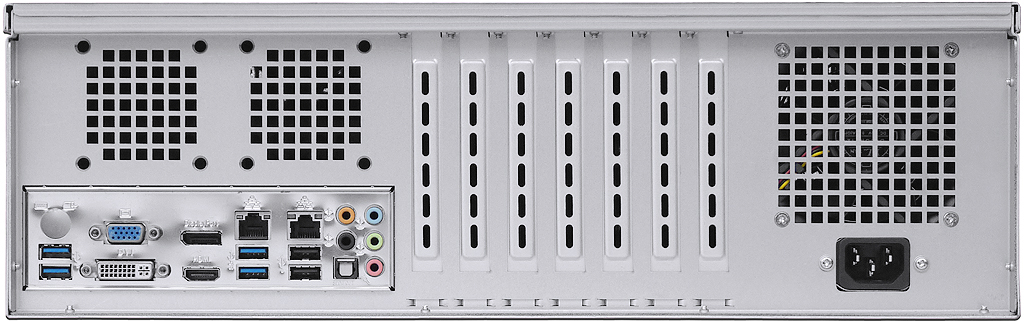

* Option for two 60mmx25mm exhaust fans at rear (fan part# D60SM-12)

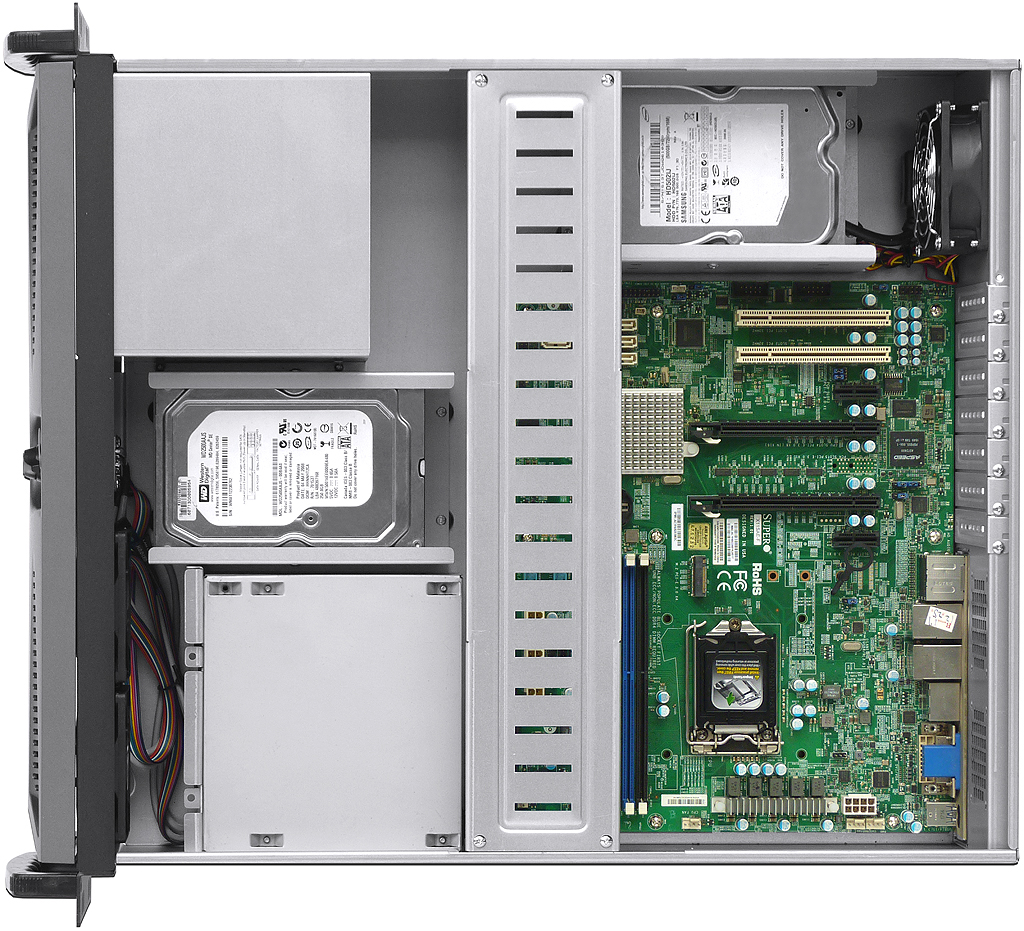

* MB: CEB (12"x10.5"), ATX(12"x9.6"), mATX(9.6"x9.6"), Mini-ITX(6.7"x6.7")
* Support standard PS2 power supply max. depth at 160mm if ATX 12"x9.6" MB installed

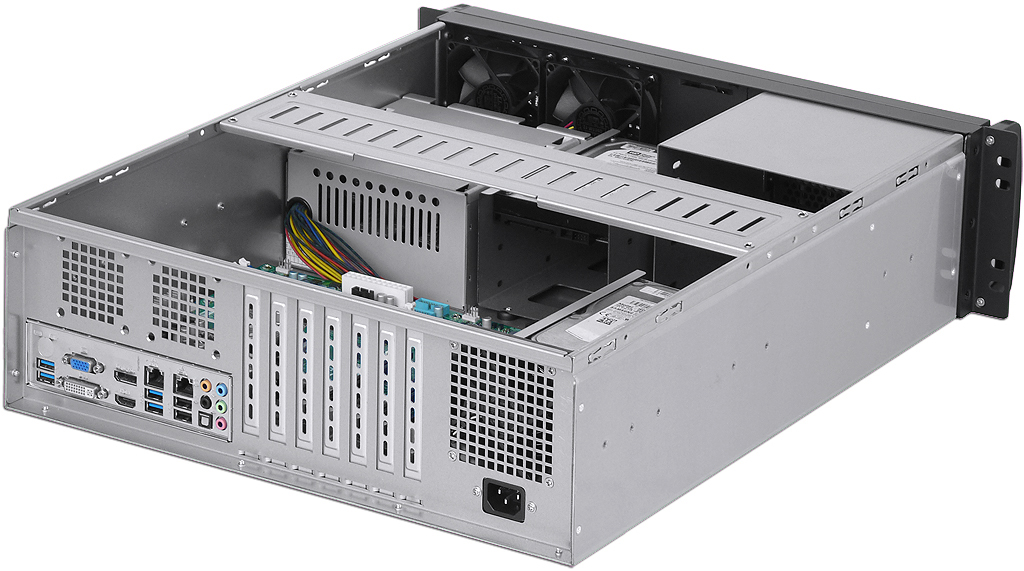

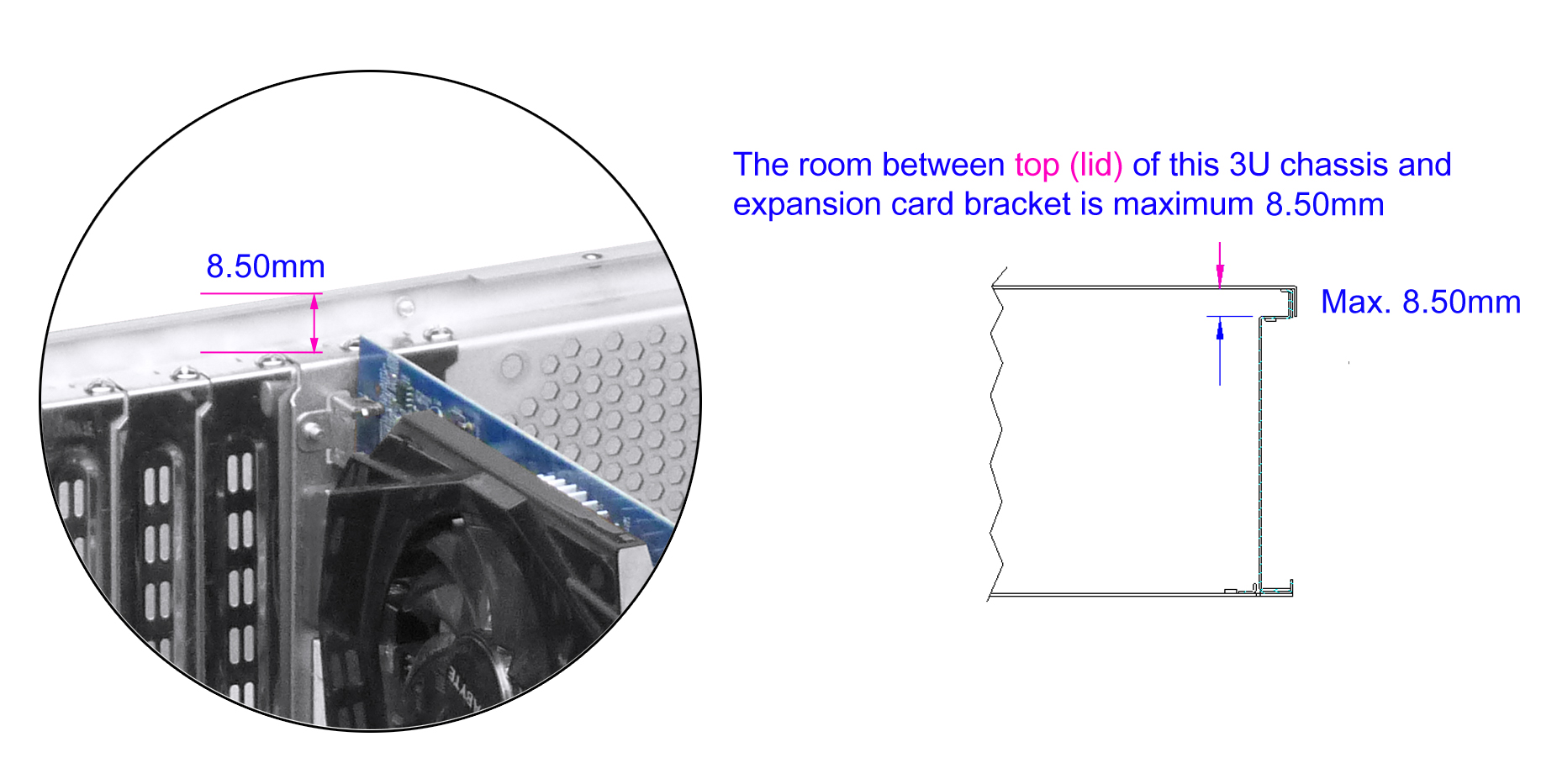

* Support 7 slot full height expansion cards (max. 270mm deep)
* Standard paint: scratch-resistant black textured at front side of chassis
* Genesys Group chassis with build-in electronics in global 3 years warranty
* Chassis dimension: 19" x 3U x 500mm (19.69" deep)

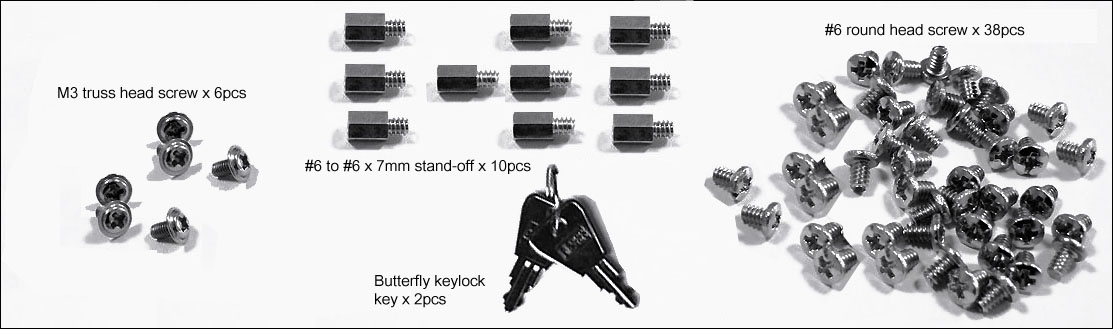

* Accessory: M3 truss x6pcs, #6 round x38pcs, stand-off x10pcs, key x2pcs
* Package: NW 8.32 KGM, GW 10.34 KGM, 2.71 CUFT (carton size at 63.5x55x22cm)

* Note: Most full height GPU cards with power input on top side will not fit with 3U

Model#

:

E350B

3U black ATX enterprise server chassis

Option A

:

PSU

PS2 8cm or 12cm~14cm fan version power supply (max. psu depth at 140mm~160mm)

Option B

:

D60SM-12

exhaust 60mm x 25mm fan installed above I/O shield of rear panel (part# is 1pcs)

Option C-1

:

NJ-600

600mm 2-layer 3-travel universal rail (cabinet internal depth 600~1200mm compliant)

Option C-2

:

1234U-RMK

1234U rear mounting kit

Option D-1

:

25-35-BK

1x5.25" to 1x3.5" HDD or 1x3.5" to two 2.5" SSD bracket

Option D-2

:

RW4M2

1x5.25" to 4 x M.2 SSD Removable Cage M.2 NVMe 64Gbps

Option D-3

:

RW8M2

1x5.25" to 8 x M.2 SSD Removable Cage M.2 NVMe 64Gbps

Option D-4

:

RW135-12G

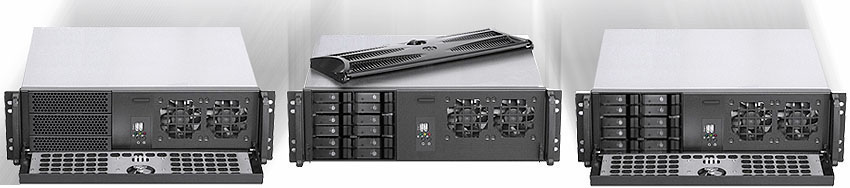

1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 12G

Option D-5

:

TL135-12G

1x5.25" to 1x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option D-6

:

RW225-NVMe-U

1x5.25" to 2xUSB3 2x2.5" SSD Removable Cage U.2 NVMe 32G

Option D-7

:

RW225-NVMe

1x5.25" to 2x2.5" SSD Removable Cage U.2 NVMe 32G

Option D-8

:

RW225-12G

1x5.25" to 2x2.5" HotSwap Cage SATA/SAS 12G

Option D-9

:

RW625-12G

1x5.25" to 6x2.5" HotSwap Cage SATA/SAS 12G

Option D-10

:

RW825-1525

1x5.25" to 8x2.5" HotSwap Cage SATA/SAS 6G

Option D-11

:

RW425-NVMe

1x5.25" to 4x2.5" SSD Removable Cage U.2 NVMe 32G

Option D-12

:

RW425-12G-MS

1x5.25" to 4x2.5" HotSwap Cage SFF-8643 12G

Option D-13

:

RW425-12G

1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 12G

Option D-14

:

RW425

1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 6G

Option E-1

:

2525TO3HDBK

2x5.25" to 3x3.5" bracket

Option E-2

:

RW335-12G

2x5.25" to 3x3.5" HotSwap Cage SATA/SAS 12G

Option E-3

:

TL335-12G

2x5.25" to 3x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option F-1

:

3525TO5HDBK

3x5.25" to 5x3.5" bracket

Option F-2

:

RW435-12G-MS

3x5.25" to 4x3.5" HotSwap Cage SFF-8643 12G

Option F-3

:

RW435-12G

3x5.25" to 4x3.5" HotSwap Cage SATA/SAS 12G

Option F-4

:

TL435-12G-MS

3x5.25" to 4x3.5" TrayLess HotSwap Cage SFF-8643 12G

Option F-5

:

TL435-12G

3x5.25" to 4x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option F-6

:

RW535-12G

3x5.25" to 5x3.5" HotSwap Cage SATA/SAS 12G

Option F-7

:

TL535-12G

3x5.25" to 5x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option G-1

:

1MSAS-4SATA-500MM

SFF-8087 Mini-SAS (Host) to Four SATA (Device) cable

Option G-2

:

SFF-8643-500MM

SFF-8643 Mini-SAS HD (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option G-3

:

4SATA-SFF-8643-500MM

Four SATA (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option G-4

:

SFF-8643-4SATA-500MM

SFF-8643 Mini-SAS HD (Host) to Four SATA (Device) cable

Option H-1

:

2U2011A-8080

2U Intel LGA2011 LGA2066 active CPU cooler Square (2U 3U 4U chassis compatible)

Option H-2

:

2U2011A-5694

2U Intel LGA2011 active CPU cooler Narrow (2U 3U 4U chassis compatible)

Option H-3

:

2U115XA

2U Intel LGA115x Xeon 1230 active CPU cooler (2U 3U 4U chassis compatible)

Option H-4

:

2U4094A-SP3

2U AMD EPYC LGA4094 active CPU cooler SP3 (2U 3U 4U chassis compatible)

Option H-5

:

2U1718A-AM5

2U AMD AM4 AM5 active CPU cooler (2U 3U 4U chassis compatible)

Option H-6

:

2U3647A-S82

2U Intel LGA3647 active CPU cooler Square (2U 3U 4U chassis compatible)

Option H-7

:

2U3647A-R82-1

2U Intel LGA3647 active CPU cooler Narrow (2U 3U 4U chassis compatible)

Option H-8

:

2U4189A-M82

2U Intel LGA4189 active CPU cooler (2U 3U 4U chassis compatible)

Option H-9

:

2U1700A-R67

2U Intel LGA1700 active CPU cooler (2U 3U 4U chassis compatible)

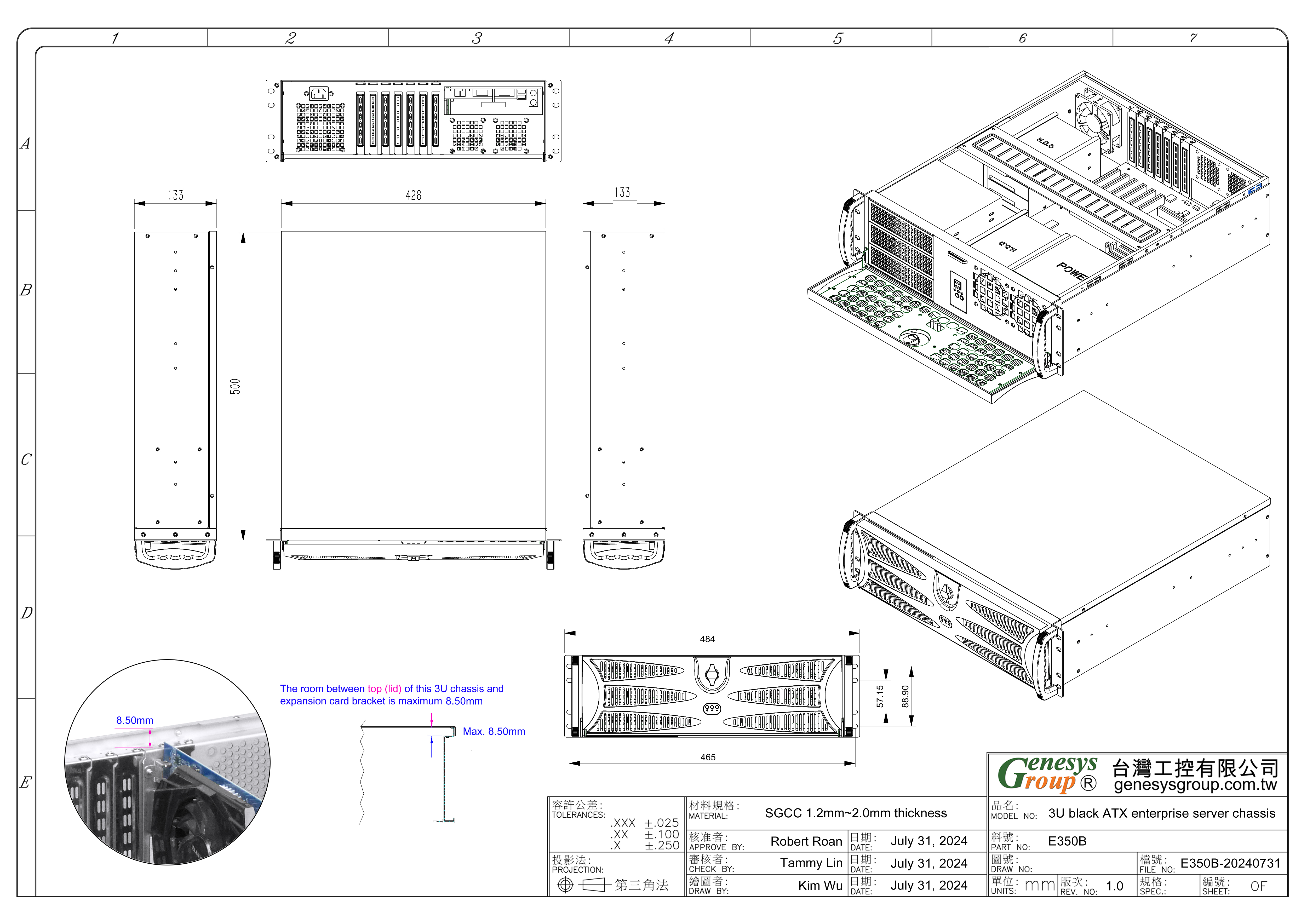

Catalogue        Dimension Drawing in PDF          Dimension Drawing in JPG
