1U size I/O
shield standard by GeneSys Group Corporation
* If you need the other I/O shield for different
motherboard, please check the I/O shield list below
* If you can not find the suitable I/O, please inform us
the MB model number (drawing or actual sample might be
required)

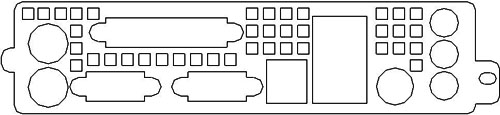

* Black colored I/O shield shall be -B after part
number, for example 1UIOD945GCLF2-B
Webpage
updated on November 11, 2024
Looking for PC standard size I/O shield?
Please
enter
here for more information
|
# |
PART # & PICTURE |
DESCRIPTION (MOTHERBOARD COMPATIBILITY) |
|
225 |

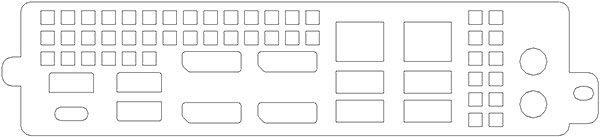

1UIOK3833-Q-mITX
 |
1U Kontron K3833-Q Mini-ITX I/O shield
* Kontron K3833-Q Intel 12th/13th/14th Gen
LGA1700 MB compatible
* Released on October 29, 2024 |
|
224 |

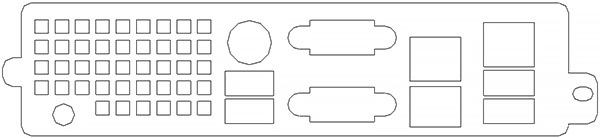

1UIOE3C224D4I-14S
 |
1U ASRock Extended Mini-ITX I/O shield
* ASRock E3C224D4I-14S Extended Mini-ITX LGA
1150 MB compatible
* Released on September 13, 2024
* Note: please
contact us or see this LGA115x
LGA1200 motherboard 1U installation
guide |
|

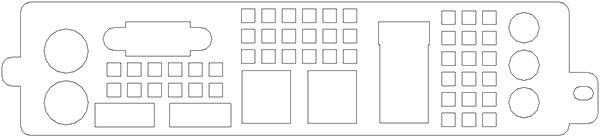

223 |
1UIOH510M-A
 |
1U Asus MicroATX I/O shield
* Asus PRIME H510M-A Intel LGA1200 MicroATX MB
compatible
* Black part# is 1UIOH510M-A-B. Released on
September 10, 2024
* Note: please
contact us or see this LGA115x
LGA1200 motherboard 1U installation
guide |
|
222 |

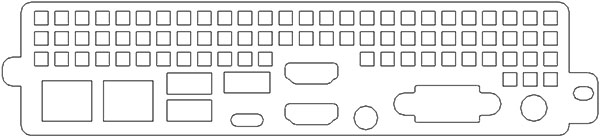

1UIOJMTX-ADN1
 |
1U Jetway Mini-ITX I/O shield
* Jetway JMTX-ADN1 Intel N97 (Alder Lake-N)
Mini-ITX MB compatible
* Released on August 21, 2024 |
|
221 |
1UIOIMB-1311-L
 |
1U ASRock Micro ATX I/O shield
* ASRock IMB-1310 and IMB-1311-L LGA 1151 MB
compatible
* Note: please
contact us or see this LGA115x
LGA1200 motherboard 1U installation
guide
* Released on June 05, 2024 |
|
220 |

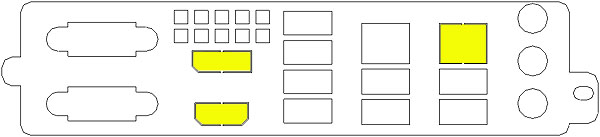

1UIOAIMB-508HF
 |
1U Advantech MicroATX I/O shield
* Advantech AIMB-508HF Intel i9/i7/i5/i3 LGA1700
MB compatible
* Yellow section is knock-off design
* Released on May 03, 2024 |
|
219 |

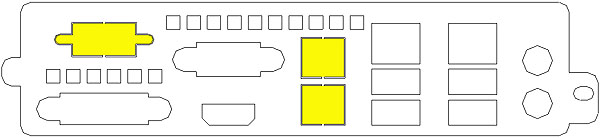

1UIOASMB-586G2
 |
1U Advantech MicroATX I/O shield
* Advantech ASMB-586G2 Intel LGA 1151 mATX MB
compatible, yellow section is knock-off design
* Two audio ports version, not three audio
ports. Released on April 03, 2024
* Note: please
contact us or see this LGA115x
LGA1200 motherboard 1U installation
guide |
|
218 |

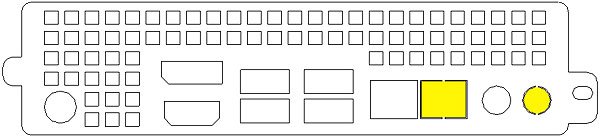

1UIOAIMB-218
 |
1U Advantech Mini-ITX I/O shield
* Advantech AIMB-218 Intel Pentium/Celeron Mini-ITX
MB compatible
* Yellow section is knock-off design
* Released on March 20, 2024 |
|

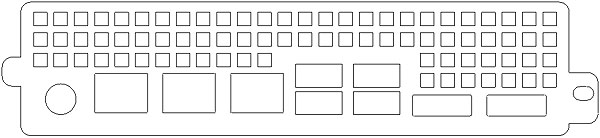

217 |
1UIOCMS101
 |
1U DFI Mini-ITX I/O shield
* DFI CMS101/CMS103 Intel LGA 1200 Mini-ITX MB
compatible
* Extra 5mm high stand-off x4pcs & 6mm high #6
screw x4pcs included, released on Nov. 17, 2023
* Note: please
contact us or see this LGA115x
LGA1200 motherboard 1U installation
guide |
|
216 |

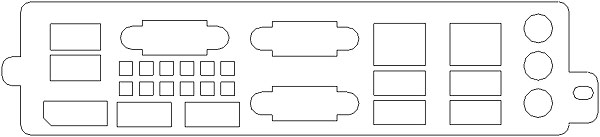

1UIOBIW68-AHP
 |
1U BioStar ATX I/O shield
* BioStar BIW68-AHP Intel LGA 1700 ATX MB
compatible
* BioStar BIW68-AHP supports Intel Core i7/i5/i3
processor with W680 chipset
* Released on October 19, 2023 |
|
215 |
1UIOMS-98L1
 |
1U MSI Mini-ITX I/O shield
* MS-98L1 Intel LGA 1151 Mini-ITX MB compatible,
yellow section is knock-off design
* Extra 5mm high stand-off x4pcs & 6mm high #6
screw x4pcs included, released on April 11, 2023
* Note: please
contact us or see this LGA115x
LGA1200 motherboard 1U installation
guide |
|
214 |
1UIOIMB-1001D-WF
 |
1U ASRock Thin Mini-ITX I/O shield
* ASRock IMB-1001D and IMB-157 Intel Baytrail
SoC J1900 Mini-ITX MB compatible
* Released on October 22, 2022 |
|
213 |
1UIOiTXL-3500A
 |
1U GIGAIPC Thin Mini-ITX I/O shield
* GIGAIPC iTXL-3350A Intel Celeron N3350
Processor Mini-ITX MB compatible
* Released on October 17, 2022 |
|
212 |
1UIOPRO-Z690-A
 |
1U MSI ATX I/O shield
* MSI PRO Z690-A Intel LGA 1700 ATX MB
compatible
* The heatsink above the I/O ports of MSI PRO
Z690-A MB must be uninstalled in advance
* Released on September 26, 2022 |
|
211 |

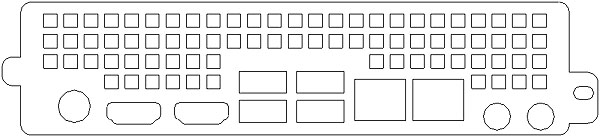

1UIOiTXL-4500A
 |
1U GIGAIPC Thin Mini-ITX I/O shield
* GIGAIPC iTXL-4500A and iTXL-5105A Intel Celeron N5105
Processor Mini-ITX MB compatible
* Released on September 22, 2022 |
|
210 |

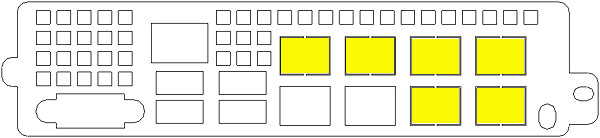

1UIOX11SCM-LN8F
 |
1U SuperMicro MicroATX I/O shield
* SuperMicro X11SCM-LN8F, X11SCM-F, X11SCL-LN4F,
Intel LGA1151 MB compatible
* Yellow section is knock-off design, released
on September 02, 2022
* Note: please
contact us or see this LGA115x
LGA1200 motherboard 1U installation
guide |
|
209 |

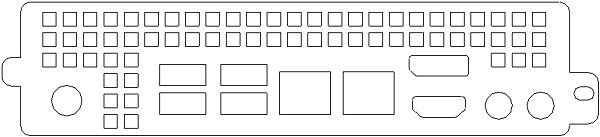

1UIOGA-IMB310TN
 |
1U Gigabyte Mini-ITX I/O shield
* Gigabyte GA-IMB310TN (rev. 1.0) Intel LGA 1151
Mini-ITX MB compatible
* Extra 5mm high stand-off x4pcs & 6mm high #6
screw x4pcs included, released on Aug. 24, 2022
* Note: please
contact us or see this LGA115x
LGA1200 motherboard 1U installation
guide |
|
208 |

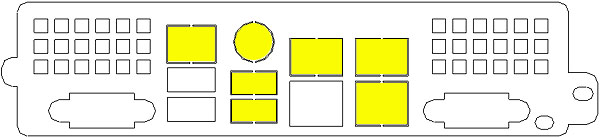

1UX11SCH-LN4F-IO
 |
1U SuperMicro I/O shield
(IO# 103rd, 171st are also compatible with this
IO#208)
* SuperMicro X11SCH-LN4F LGA1151, and
X11DPH-I LGA3647 MB compatible
(MCP-260-00042-0N)
* Yellow section is knock-off design, released on
August 10, 2022, data updated on June 15, 2023
* Note: please
contact us or see this LGA115x
LGA1200 motherboard 1U installation
guide |
|
207 |

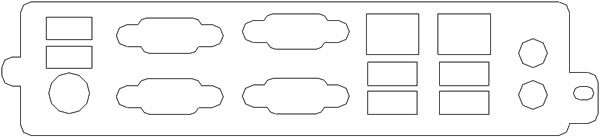

1UIOITX-M81
 |
1U Mini-ITX I/O shield
* China made ITX M81 LGA 115x Mini-ITX MB compatible
* Extra 5mm high stand-off x4pcs & 6mm high #6
screw x4pcs included, released on Aug. 09, 2022
* Note: please
contact us or see this LGA115x
LGA1200 motherboard 1U installation
guide |
|
206 |
1UIOS507
 |
1U Mini-ITX I/O shield
* China made ITX S507 LGA 115x Mini-ITX MB compatible
* Released on August 08, 2022
* Note: please
contact us or see this LGA115x
LGA1200 motherboard 1U installation
guide |
|
205 |
1UIOMIX-H310A1-A11-2L
 |
1U Aaeon Mini-ITX I/O shield
* Aaeon MIX-H310A1 LGA 1151 Mini-ITX MB compatible
* Released on Feb. 16, 2022
* Note: please
contact us or see this LGA115x
LGA1200 motherboard 1U installation
guide |
|
204 |

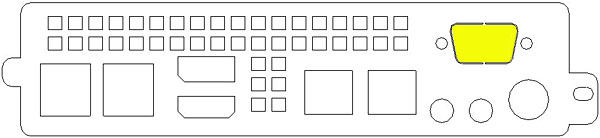

1UIOIMB-1223
 |
1U ASRock Mini-ITX I/O shield
* ASRock IMB-1223 LGA 1200 Mini-ITX MB
compatible, the Yellow section is knock-off
design
* Extra 5mm high stand-off x4pcs & 6mm high #6
screw x4pcs included, released on Feb. 16, 2022
* Note: please
contact us or see this LGA115x
LGA1200 motherboard 1U installation
guide |
|
203 |

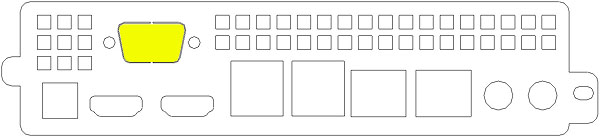

1UIOMIX-H310D1
 |
1U Aaeon Mini-ITX I/O shield
* Aaeon MIX-H310D1 LGA 1151 Mini-ITX MB
compatible, the Yellow section is knock-off
design
* Extra 5mm high stand-off x4pcs & 6mm high #6
screw x4pcs included, released on Feb. 14, 2022
* Note: please
contact us or see this LGA115x
LGA1200 motherboard 1U installation
guide |
|
202 |

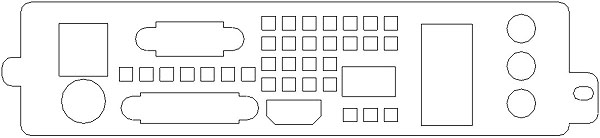

1UIOB460M
 |
1U Gigabyte MicroATX I/O shield
* Gigabyte B460M DS3H V2 (rev. 1.0) Intel
i5/i3/Pentium/Celeron MicroATX MB compatible
* Released on September 06, 2021 |
|
201 |

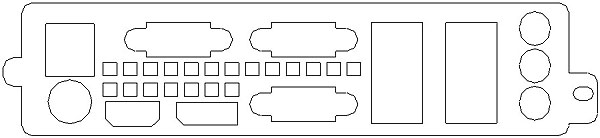

1UIOIMB-1313
 |
1U ASRock MicroATX I/O shield
* ASRock IMB-1313 Intel LGA1200 MicroATX MB
compatible
* Released on July 08, 2021
* Note: please
contact us or see this LGA115x
LGA1200 motherboard 1U installation
guide |
|

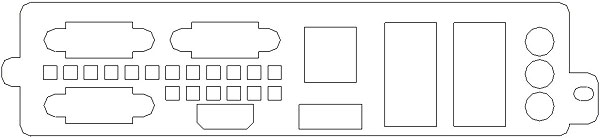

200 |
1UIONF796M-Q370
 |
1U Jetway Mini-ITX I/O shield
* Jetway JNF796-Q370 Intel 8th & 9th Gen Intel
Core i7 / i5 / i3 / LGA1151 Mini-ITX MB compatible
* Released on May 28, 2021
* Note: please
contact us or see this LGA115x
LGA1200 motherboard 1U installation
guide |
|

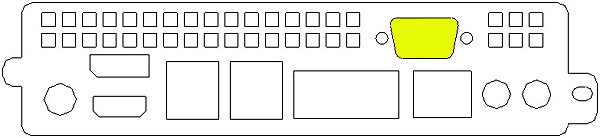

199 |
1UIOAIMB-286F
 |
1U Advantech Mini-ITX I/O shield
* Advantech AIMB-286F-00A1E LGA 1151 Mini-ITX MB
compatible, the Yellow section is knock-off
design
* Extra 5mm high stand-off x4pcs & 6mm high #6
screw x4pcs included, released on Jan. 12 & Feb.
17,
2021
* Note: please
contact us or see this LGA115x
LGA1200 motherboard 1U installation
guide |
|
198 |

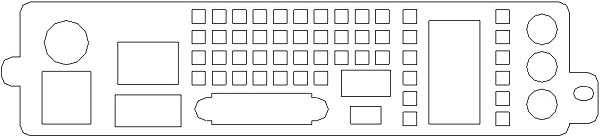

1UIOPRIME-H470M-PLUS
 |
1U Asus MicroATX I/O shield
* Asus PRIME H470M-PLUS & PRIME H570M-PLUS Intel LGA1200 MicroATX
MB compatible
* Released on September 29, 2020 and updated on
June 30, 2021
* Note: please
contact us or see this LGA115x
LGA1200 motherboard 1U installation
guide |
|
197 |

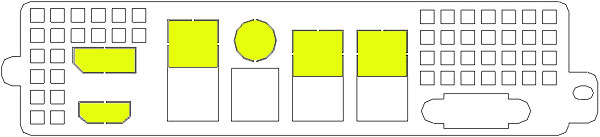

1UIOA2SAV-L
 |
1U SuperMicro Mini-ITX I/O shield
* SuperMicro A2SAV-L intel Atom motherboard
compatible
* Yellow section is knock-off design
* Released on September 25, 2020 |
|
196 |

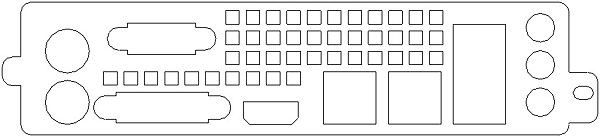

1UIOH410MS2H
 |
1U Gigabyte MicroATX I/O shield
* Gigabyte H410M S2H (rev. 1.0) Intel LGA1200
MicroATX MB compatible
* Released on September 25, 2020
* Note: please
contact us or see this LGA115x
LGA1200 motherboard 1U installation
guide |
|
195 |

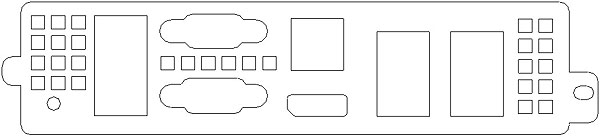

1UIOS5552-EX
 |
1U Tyan ATX I/O shield
* Tyan Tempest S5552WGM4NR-EX LGA 1151 ATX MB
compatible
* Extra 5mm high stand-off x4pcs & 6mm high #6
screw x4pcs included, released on September 16,
2020
* Note: please
contact us or see this LGA115x
LGA1200 motherboard 1U installation
guide |
|
194 |

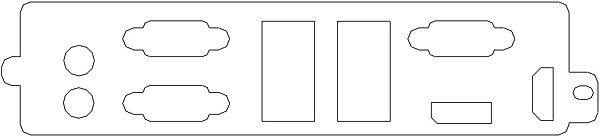

1UIOMANO500
 |
1U Axiomtek Mini-ITX I/O shield
* Axiomtek MANO500VHGGA Intel LGA1151 MB
compatible
* Released on August 13, 2020
* Note: please
contact us or see this LGA115x
LGA1200 motherboard 1U installation
guide |
|
193 |

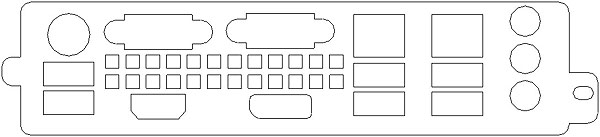

1UIOEMX-H110
 |
1U Avalue Mini-ITX I/O shield
* Avalue EMX-H110P Intel 6th Generation Core LGA
1151 Mini-ITX MB compatible
* Extra 5mm high stand-off x4pcs & 6mm high #6
screw x4pcs included, released on July 28, 2020
* Note: please
contact us or see this LGA115x
LGA1200 motherboard 1U installation
guide |
|
192 |

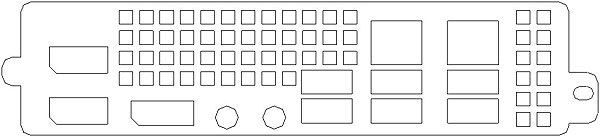

1UIOIMB-A1000
 |
1U ASRock Mini-ITX I/O shield
* ASRock IMB-A1000 AMD AM4 Ryzen 7th/5th/3th Gen
Mini-ITX MB compatible
* Design released on July 17, 2020 |
|
191 |

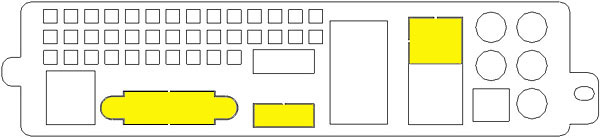

1UIOX11SAE-M
 |
1U SuperMicro MicroATX I/O shield
* SuperMicro X11SAE-M Intel LGA1151
motherboard compatible
* Yellow section is knock-off design, released on
March 20, 2020
* Note: please
contact us or see this LGA115x
motherboard 1U installation
guide |
|
190 |

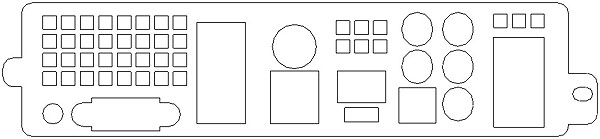

1UIOX299WS-IPMI
 |
1U ASRock Rack ATX I/O shield
* ASRock Rack X299 WS/IPMI Intel LGA2066 ATX MB
compatible
* Released on January 17, 2020 |
|
189 |
1UIOP10S-M-WS
 |
1U Asus MicroATX I/O shield
* Asus P10S-M-WS Intel LGA1151 MicroATX MB
compatible
* Released on January 17, 2020
* Note: please
contact us or see this LGA115x
motherboard 1U installation
guide |
|

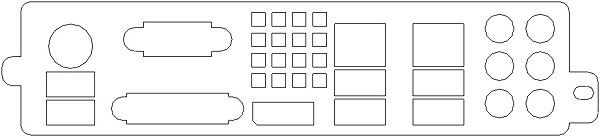

188 |
1UIOC246M-WU4
 |
1U Gigabyte MicroATX I/O shield
* Gigabyte C246M-WU4 Intel LGA1151 MicroATX MB
compatible
* Released on November 14, 2019
* Note: please
contact us or see this LGA115x
motherboard 1U installation
guide |
|
187 |

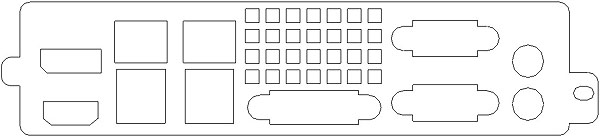

1UIOX11SSV-Q
 |
1U SuperMicro Mini-ITX I/O shield
* SuperMicro X11SSV-Q Mini ITX LGA 1151 MB
compatible
* Released on October 04, 2019 |
|
186 |
1UIONF596
 |
1U Jetway Mini-ITX I/O shield
* Jetway Intel Celeron Braswell N3160/3150 SoC
Processor Mini-ITX MB compatible
* Yellow section is knock-off design
* Released on September 04, 2019 |
|
185 |

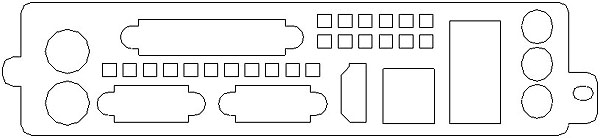

1UIO-J3355-ITX
 |
1U ASRock Mini-ITX I/O shield
* ASRock J3355B-ITX Intel Dual-Core J3355 (up to
2.5 GHz) Mini-ITX MB compatible
* Design released on July 23, 2019 |
|
184 |

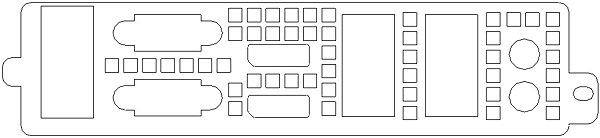

1UIOCS100
 |
1U DFI Mini-ITX I/O shield
* DFI CS100 8th Gen Intel Core Q370/C246/H310
LGA 1151 Mini-ITX MB compatible
* Extra 5mm high stand-off x4pcs & 6mm
high #6 screw x4pcs included, released on June 14,
2019
* Note: please
contact us or see this LGA115x
motherboard 1U installation
guide |
|
183 |
1UIO-S192-ITX
 |
1U Yanyu Mini-ITX I/O shield
* Yanyu ITX-S192 Mini-ITX MB compatible
* Extra four 5mm high stand-off & four 6mm high
#6 screws included
* Design released on June 12, 2019, and updated
on June 20, July 17, and Rev1.1 on November 26,
2019 |
|
182 |
1UIOZ390M-ITX-ac
 |
1U ASRock Mini-ITX I/O shield
* ASRock Z390M-ITX/ac Intel Socket 1151 Mini-ITX
MB compatible
* Design released on April 23, 2019
* Note: please
contact us or see this LGA115x
motherboard 1U installation
guide |
|
181 |
1UIOIMB-156
 |
1U ASRock Mini-ITX I/O shield
★
* ASRock IMB-150x & 154x & 156x Intel Apollo
Lake-I SoC Mini-ITX MB compatible
* Design released on April 02, 2019 |
|
180 |
1UIOMS-98E1
 |
1U MSI MS-98E1 Mini-ITX I/O shield
* MSI MS-98E1 Intel LGA1151 Mini-ITX MB
compatible
* Extra four 5mm high stand-off & four 6mm high
#6 screws included, released on January 29, 2019
* Note: please
contact us or see this LGA115x
motherboard 1U installation
guide |
|
179 |
1UIOIMB1211-D
 |
1U ASRock Mini-ITX I/O shield
* ASRock IMB-1210-D & IMB-1210-L & IMB-1211-D &
IMB-1211-L Intel LGA1151 Mini-ITX
MB compatible
* Yellow section is knock-off design, released on October 09, 2018
& updated on October 25, 2018
* Note: please
contact us or see this LGA115x
motherboard 1U installation
guide |
|
178 |
1UIOZ370M-ITX-AC
 |
1U ASRock Mini-ITX I/O shield
* ASRock Z370M-ITX/ac Intel Socket 1151 Mini-ITX
MB compatible
* Released on September 18, 2018
* Note: please
contact us or see this LGA115x
motherboard 1U installation
guide |
|
177 |
1UIOQ1900B-ITX
 |
1U ASRock Mini-ITX I/O shield
* ASRock Q1900B-ITX Intel Quad-Core J1900 +
Mini-ITX MB compatible
* Released on July 18, 2018 |
|
176 |
1UIO-H310M-HDVM.2
 |
1U ASRock MicroATX I/O shield
* ASRock H310M-HDV/M.2, Intel 8th Generation
Socket 1151 motherboard compatible
* Released on July 12, 2018
* Note: please
contact us for LGA1150 (1151) LGA1155 (1156)
motherboard 1U installation
guide |
|
175 |
1UIOC236WSI
 |
1U ASRock Mini-ITX I/O shield
* ASRock C236 WSI MB for Intel Xeon E3-1200
v5/v6 compatible
* Released on June 14, 2018 |
|
174 |
1UIONF792I-3160
 |
1U Jetway Mini-ITX I/O shield
★
* Jetway NF792I-3160 Intel Celeron N3160 SoC
Mini-ITX MB compatible
* Released on June 04, 2018 |
|
173 |
1UIOB360M-A
 |
1U Asus MicroATX I/O shield
★
* Asus PRIME
B360M-A Intel LGA1151 MicroATX server
motherboard compatible
* Extra eight 5mm high stand-off & eight 6mm high
#6 screws included, released on May 29, 2018
* Note: please
contact us for LGA1150 (1151) LGA1155 (1156)
motherboard 1U installation
guide |
|
172 |
1UIOH370M-ITX
 |
1U ASRock Mini-ITX I/O shield
* ASRock H370M-ITX/ac Intel 8th Generation
Socket 1151 MB compatible
* Released on May 04, 2018
* Note: please
contact us for LGA1150 (1151) LGA1155 (1156)
motherboard 1U installation
guide |
|
171 |
1UIOKIK-7S4-USC
|
1U SuperMicro MicroATX I/O shield
(1UX11SCH-LN4F-IO, 1UIOX10SLM-LN4F compatible)
* SuperMicro X9DRL-3F & X9DRL-iF & X9DRi-LN4F+ &
X11SCL-IF
motherboard compatible
* Yellow section is knock-off design
* Released on April 13, 2018, updated on April
25, 2019, updated on August 10, 2022 |
|
170 |
1UIOKD331-Q170
 |
1U DFI MicroATX
I/O shield
★
* DFI KD331-Q170 and KD331-C236/Q170 Intel LGA 1151 Micro ATX MB
compatible
* Released on February 23, 2018, updated on
October 16. 2018
* Note: please
contact us for LGA1150 (1151) LGA1155 (1156)
motherboard 1U installation
guide |
|
169 |
1UIOH270M-ITX-ac
 |
1U ASRock Mini-ITX
I/O shield
* ASRock H270M-ITX/ac Intel 7th and 6th
Generation Socket 1151 MB compatible
* Released on November 09, 2017
* Note: please
contact us for LGA1150 (1151) LGA1155 (1156)
motherboard 1U installation
guide |
|
168 |
1UP10S-I-IO
 |
1U Asus Mini-ITX
I/O shield
* Asus P10S-I Intel LGA1151 Mini-ITX server
motherboard compatible
* Yellow section is knock-off design, released
on August 25, 2017
* Note: please
contact us for LGA1150 (1151) LGA1155 (1156)
motherboard 1U installation
guide |
|
167 |
1UH110M-A-IO
 |
1U Asus MicroATX I/O shield
* Asus H110M-A Intel LGA 1151 MB compatible
* Released on August 21, 2017
* Note: please
contact us for LGA1150 (1151) LGA1155 (1156)
motherboard 1U installation
guide |
|
166 |
1UIONF594-Q170
 |
1U Jetway Mini-ITX
I/O shield
* Jetway NF594-Q170 Intel i3, i5, i7 Socket LGA
1151 Mini-ITX MB compatible
* Released on August 18, 2017 and updated on
November 08, 2017
* Note: please
contact us for LGA1150 (1151) LGA1155 (1156)
motherboard 1U installation
guide |
|
165 |
1UIOEMB-Q170C
 |
1U Aaeon Mini-ITX
I/O shield
* Aaeon EMB-Q170C Mini-ITX Intel 6th Generation
Core i Series LGA1151 MB
* Extra four 5mm high stand-off & four 6mm high
#6 screws included, released on June 23, 2017
* Note: please
contact us for LGA1150 (1151) LGA1155 (1156)
motherboard 1U installation
guide |
|
164 |
1UIOH170M-ITXDL
 |
1U ASRock Mini-ITX
I/O shield
* ASRock H170M-ITX/DL Intel 7th and 6th
Generation Socket 1151 MB compatible
* Yellow section is knock-off design, released
on May 31, 2017
* Note: please
contact us for LGA1150 (1151) LGA1155 (1156)
motherboard 1U installation
guide |
|
163 |
1UIOB150M-HDV
 |
1U
ASRock MicroATX I/O shield
* ASRock B150M-HDV MB, Intel 7th and 6th
Generation Core compatible
* Released on April 07, 2017
* Note: please
contact us for LGA1150 (1151) LGA1155 (1156)
motherboard 1U installation
guide |
|
162 |
1UIOH270M-PRO4
 |
1U
ASRock MicroATX I/O shield
* ASRock H270M Pro4 MB, Intel 7th and 6th
Generation i7/i5/i3/Pentium/Celeron compatible
* Released on April 07, 2017
* Note: please
contact us for LGA1150 (1151) LGA1155 (1156)
motherboard 1U installation
guide |
|
161 |
1UIOEPC612D8A
 |
1U ASRock ATX
I/O shield
* ASRock EPC612D8A
Intel LGA 2011 R3 Intel Xeon E5-1600/2600 v3/v4
series MB compatible
* Released on March 29, 2017 |
|
160 |
1UIOH110M-E
 |
1U Asus
MicroATX I/O shield
* Asus H110M-E
Intel LGA 1151 MB compatible
* Released on March 29, 2017
* Note: please
contact us for LGA1150 (1151) LGA1155 (1156)
motherboard 1U installation
guide |
|
159 |
1UIOB150I-PRO
 |
1U Asus Mini-ITX
I/O shield
* Asus B150I PRO
GAMING/WIFI/AURA Intel LGA1151 i7 Mini ITX MB
compatible
* Released on December 21, 2016
* Note: please
contact us for LGA1150 (1151) LGA1155 (1156)
motherboard 1U installation
guide |
|
158 |
1UIOENDAT-N3418
 |
1U
Unicorn Mini-ITX I/O shield
* Unicorn
ENDAT-N3418 Intel Atom Braswell CPU Mini ITX MB
compatible
* Released on December 16, 2016 |
|
157 |
1UIOH110T
 |
1U Asus Mini-ITX
I/O shield (stand-off added with washer to
become totally 3.3mm high)
* Asus H110T Intel
LGA1151 DDR4 SO-DIMM SATA3 Thin Mini ITX MB
compatible
* Yellow section is knock-off design, released
on December 09, 2016 and updated on
February 20, 2017
* Note: please
contact us for LGA1150 (1151) LGA1155 (1156)
motherboard 1U installation
guide |
|
156 |
1UIOJ4205-ITX
 |
1U ASRock Mini-ITX
I/O shield
* ASRock J4205-ITX and J5005-ITX and J5040-ITX
motherboard compatible
* Yellow section is knock-off design
* Released on November 07, 2016 and updated on
June 13, 2018, and updated on December 31, 2020 |
|
155 |
1UIOB150M-A-M.2
 |
1U Asus MicroATX
I/O shield
* Asus B150M-A/M.2 Intel LGA 1151 MB compatible
* Released on September 05, 2016
* Note: please
contact us for LGA1150 (1151) LGA1155 (1156)
motherboard 1U installation
guide |
|
154 |
1UIOE3C236D2I
 |
1U ASRock Mini-ITX
I/O shield
* ASRock E3C236D2I Intel Xeon E3-1200 v5 Series
MB compatible
* Released on September 05, 2016 |
|
153 |
1UIOIMB-150D
 |
1U ASRock Mini-ITX
I/O shield
★
* ASRock IMB-150D Intel Atom Baytrail-M/D
Processor (J1900 10W 2.0GHz) MB compatible
* Released on July 22, 2016 |
|
152 |
1UIOGA-N3150N-D2H-1
 |
1U Gigabyte Mini-ITX
I/O shield
★
* Gigabyte GA-N3150N-D2H &
GA-N3150N-D2H-1 Intel Celeron N3150 Quad-core
Mini-ITX MB compatible
* Yellow section is knock-off design
* Released on May 30, 2016 and updated on June
03, 2016 |
|
151 |
1UIO-IMB-194-D
 |
1U ASRock Mini-ITX
I/O shield
* ASRock IMB-194-D LGA1151 for Intel Core
i7/i5/i3/Celeron (Skylake-S) Mini-ITX MB
compatible
* Released on May 27, 2016
* Note: please
contact us for LGA1150 (1151) LGA1155 (1156)
motherboard 1U installation
guide |
|
150 |
1UIO-IMB-194-L
 |
1U ASRock Mini-ITX
I/O shield
* ASRock IMB-194-L LGA1151 for Intel Core
i7/i5/i3/Celeron (Skylake-S) Mini-ITX MB
compatible
* Released on May 27, 2016
* Note: please
contact us for LGA1150 (1151) LGA1155 (1156)
motherboard 1U installation
guide |
|
149 |
1UIONF9C-2600
 |
1U Jetway Mini-ITX
IO shield
* Jetway N2600 NF9C-2600 Intel Cedar
Trail-M Processor Mini-ITX MB compatible
* Yellow section is knock-off design
* Released on May 27, 2016 |
|
148 |
1UIO-FIQ67IX
 |
1U Corvalent &
Jetway Mini-ITX I/O shield
* Corvalent FI-Q67IX & Jetway NF9AR10 LGA
1155 Mini-ITX MB compatible
* Released on May 10, 2016 and updated on May
12, 2016
* Note: please
contact us for LGA1150 (1151) LGA1155 (1156)
motherboard 1U installation
guide |
|
147 |
1UIO-SD100-H110
 |
1U DFI Mini-ITX
I/O shield
* DFI SD100-H110 & SD100-Q170 6th Gen Intel Core H110 LGA 1151 Mini-ITX MB compatible
* Released on May 10, 2016, and October 20, 2023 for brother version
1UIO-SD100-H110-2audio
* Note: please
contact us for LGA1150 (1151) LGA1155 (1156)
motherboard 1U installation
guide |
|
146 |
1UIO-AIMB285
 |
1U Advantech
Mini-ITX I/O shield
* Advantech AIMB-285 Intel Core i7/i5/i3 LGA 1151
Mini-ITX MB compatible
* Released on May 03, 2016
* Note: please
contact us for LGA1150 (1151) LGA1155 (1156)
motherboard 1U installation
guide |
|
145 |
1UIOMBD-X10SDV-TLN4F-O
 |
1U SuperMicro
Mini-ITX I/O shield
* SuperMicro MBD-X10SDV-TLN4F-O Mini ITX
Server MB Xeon processor compatible
* Yellow section is knock-off design
* Released on April 27, 2016 |
|
144 |
1UION3150I-C
 |
1U Asus Mini-ITX
I/O shield
* Asus N3150I-C & J3355I-C Mini-ITX MB compatible
* Released on April 15, 2016, updated on March
30, 2018 |
|
143 |
1UIOMSI-H81M-33
 |
1U MSI MicroATX
I/O shield
* MSI H81M-P33 LGA1150 MicroATX MB
compatible
* Released on April 13, 2016
*
Note: please
contact us for LGA1150 LGA1155 (1156)
motherboard 1U installation
guide |
|
142 |
1UIOQ87TN
 |
1U Gigabyte
Mini-ITX I/O shield
* Gigabyte GA-Q87TN LGA1150 Mini-ITX MB
compatible, with an additional DB9 hole
* Released on February 26, 2016
*
Note: please
contact us for LGA1150 LGA1155 (1156)
motherboard 1U installation
guide |
|
141 |
1UIOB85M-PRO3
 |
1U ASRock
MicroATX I/O shield
* ASRock B85M Pro3 Intel LGA1150 Core
i7/i5/i3/Xeon/Pentium/Celeron MB compatible
* Released on February 19, 2016
*
Note: please
contact us for LGA1150 LGA1155 (1156)
motherboard 1U installation
guide |
|
140 |
1UIOGA-H170N-WIFI
 |
1U Gigabyte
Mini-ITX I/O shield
* Gigabyte GA-H170N-WIFI & GA-Z170N-WIFI Mini-ITX MB, released on January 08 & updated on
January
25, 2016.
Yellow section is knock-off design, extra four
5mm high stand-off & #6 at 6mm screws included
*
Note: please
contact us for LGA1150 LGA1155 (1156)
motherboard 1U installation
guide |
|
139 |
1UIONF9N-R10
 |
1U Jetway Mini-ITX
I/O shield
* Jetway JNF9N-2930 Celeron N2930 Quad Core Bay
Trail Mini-ITX MB compatible
* Yellow section is knock-off design to fit
daughter board ADE4INLAN or ADE4RTLAN
* Released on October 30, 2015 |
|
138 |
1UIOGA-H97N-DB9
 |
1U Gigabyte
Mini-ITX I/O shield with DB9 hole
* Gigabyte GA-H97N-WIFI LGA 1150 Mini-ITX MB
compatible
* Released on October 19, 2015 (without WiFi but
DB9 hole instead)
*
Note: please
contact us for LGA1150 LGA1155 (1156)
motherboard 1U installation
guide |
|
137 |
1UIOKEMX-8200
 |
1U Quanmax
Mini-ITX I/O shield
* Quanmax KEMX-8200 Intel LGA1150 4th/5th
Generation Celeron & H81/Q87 Mini-ITX MB
compatible
* Released on October 06, 2015
*
Note: please
contact us for LGA1150 LGA1155 (1156)
motherboard 1U installation
guide |
|
136 |
1UIOGA-J1900N-D3V
 |
1U Gigabyte
Mini-ITX I/O shield
* Gigabyte GA-J1900N-D3V Intel Celeron J1900
(2.0 GHz) quad-core Mini-ITX MB compatible
* Released on September 30, 2015 |
|
135 |
1UION3700-ITX
 |
1U ASRock Mini-ITX
I/O shield
* ASRock N3700-ITX & N3150-ITX Intel
Quad-Core Pentium N3700 Mini-ITX MB compatible
* Yellow section is knock-off design
* Released on September 22, 2015 |
|
134 |
1UIOX10SLM-F
 |
1U Supermicro
MicroATX I/O shield
* Supermicro X10SLM-F Single socket H3 (LGA
1150) MicroATX MB compatible
* Yellow section is knock-off design, released
on September 14, 2015
*
Note: please
contact us for LGA1150 LGA1155 (1156)
motherboard 1U installation
guide |
|
133 |
1UIOH97I-PLUS
 |
1U Asus Mini-ITX
I/O shield
* Asus H97I-PLUS Intel Socket 1150 MB compatible
* Yellow section is knock-off design, released
on September 04, 2015
*
Note: please
contact us for LGA1150 LGA1155 (1156)
motherboard 1U installation
guide |
|
132 |
1UIOB85M-ITX
 |
1U ASRock Mini-ITX
I/O shield
* ASRock B85M-ITX LGA 1150 Intel B85 HDMI SATA
6Gb/s USB 3.0 Mini-ITX MB compatible
* Released on July 21, 2015
*
Note: please
contact us for LGA1150 LGA1155 (1156)
motherboard 1U installation
guide |
|
131 |
1UIONF9G-QM77
 |
1U Jetway Mini-ITX
I/O shield
* Jetway NF9G-QM77 Intel i3, i5, i7 Mobile
Processors for Socket G (rPGA988) Mini-ITX MB
compatible
* Yellow section is knock-off design to
fit Jetway-4-x-Gigabit-LAN Daughterboard
* Released on July 15, 2015,
updated on July 23, 2015 |
|
130 |
1UIOAD2550RA
 |
1U ASRock Mini-ITX
I/O shield
* ASRock AD2550RA/U3S3 Intel Dual-Core Atom
D2550 MB compatible
* Released on June 30, 2015 |
|
129 |
1UIOB85M-PRO4
 |
1U ASRock
MicroATX I/O shield
* ASRock B75-PRO3 & B85M-PRO4 Intel LGA1150/1155
Core i7/i5/i3/Xeon/Pentium/Celeron MB compatible
* B75-PRO3 is LGA1155 with ATX size, B85M-PRO4
is LGA1150 with MicroATX, released on June 22,
2015
*
Note: please
contact us for LGA1150 LGA1155 (1156)
motherboard 1U installation
guide |
|
128 |
1UIOIMB-185
 |
1U ASRock Mini-ITX
I/O shield
* ASRock IMB-185 Intel LGA1150 Core
i7/i5/i3/Celeron (Haswell) MB compatible
* Axiomtek MANO881 Mini-ITX MB compatible,
released on June 09, 2015 & updated on December
07, 2015
*
Note: please
contact us for LGA1150 LGA1155 (1156)
motherboard 1U installation
guide |
|
127 |
1UIOIMB-181-D
 |
1U ASRock Mini-ITX
I/O shield
* ASRock IMB-181-D Intel LGA1150 Core
i7/i5/i3/Celeron (Haswell) MB compatible
* Released on June 09, 2015
*
Note: please
contact us for LGA1150 LGA1155 (1156)
motherboard 1U installation
guide |
|
126 |
1UIOIMB-110D
 |
1U ASRock Mini-ITX
I/O shield
* ASRock IMB-110 Series Intel Atom
D525/D425/N455 MB compatible
* Released on June 09, 2015 |
|
125 |
1UIO-H97M-E
 |
1U Asus MicroATX I/O shield
* Asus H97M-E MicroATX LGA1150 MB
compatible
*
Released on May 29, 2015 *
Note: please
contact us for LGA1150 LGA1155 (1156)
motherboard 1U installation
guide |
|
124 |
1UIONF9HG-2930
 |
1U Jetway
Mini-ITX I/O shield
* Jetway NF9HG series Intel Celeron N2930
SoC processor Mini-ITX MB compatible
* Released
on May 08, 2015
*
1UIONF9HG-2930-2P, the version with
two DB9 holes released on February 26, 2016 |
|
123 |
1UIOH81N-D2H
 |
1U Gigabyte Mini-ITX
I/O shield
* Gigabyte H81N-D2H Mini-ITX
LGA1150
MB compatible
* Released on May
05, 2015
*
Note: please
contact us for LGA1150 LGA1155 (1156)
motherboard 1U installation
guide |
|
122 |
1UIOC2550D4I
 |
1U ASRock Mini-ITX
I/O shield
* AsRock C2550D4I and C2750D4I Mini-ITX
MB compatible
* Released on
March 10, 2015, updated on
April 01 and April 07, 2015 |
|
121 |
1UIOGA-H97N-WIFI
 |
1U Gigabyte
Mini-ITX I/O shield
* Gigabyte GA-H97N-WIFI LGA 1150 Mini-ITX MB
compatible
* Released on November 19, 2014
*
Note: please
contact us for LGA1150 LGA1155 (1156)
motherboard 1U installation
guide |
|
120 |
1UIOX10SLV-Q
 |
1U SuperMicro
Mini-ITX I/O shield
* Supermicro X10SLV-Q LGA 1150 Mini-ITX MB
compatible
* Released on November 11, 2014
*
Note: please
contact us for LGA1150 LGA1155 (1156)
motherboard 1U installation
guide |
|
119 |
1UIOX10SLL-F
 |
1U SuperMicro
MicroATX I/O shield
* Supermicro X10SLL-F LGA 1150 Micro ATX MB
compatible
* Released on October 23, 2014
*
Note: please
contact us for LGA1150 LGA1155 (1156)
motherboard 1U installation
guide |
|
118 |
1UIOHD330-H81D
 |
1U DFI MicroATX
I/O shield
* DFI HD330-H81 LGA 1150 Micro ATX MB compatible
* Released on October 20, 2014
*
Note: please
contact us for LGA1150 LGA1155 (1156)
motherboard 1U installation
guide |
|
117 |
1UIOIMB-151
 |
1U ASRock Mini-ITX
I/O shield
* AsRock IMB-151 Mini-ITX
MB compatible
* Yellow section is knock-off design,
extra four 5mm high stand-off & four 6mm high #6
screws included
* Released on October 07 and updated on
October 09 and updated on November 05, 2014 |
|
116 |
1UIOGA-H81M-HD3
 |
1U Gigabyte
MicroATX I/O shield
* Gigabyte GA-H81M-HD3 LGA 1150 Micro ATX
MB compatible
* Released on September 12, 2014
*
Note: please
contact us for LGA1150 LGA1155 (1156)
motherboard 1U installation
guide |
|
115 |
1UIOE3C224D2I
 |
1U AsRock Mini-ITX
I/O shield
* AsRock E3C224D2I and E3C226D2I LGA 1150 Mini-ITX
MB compatible
* Released on August 22, 2014
*
Note: please
contact us for LGA1150 LGA1155 (1156)
motherboard 1U installation
guide |
|
114 |
1UIOGA-H87N-WIFI
 |
1U Gigabyte
Mini-ITX I/O shield
* Gigabyte GA-H87N-WIFI LGA 1150 Mini-ITX MB
compatible
* Released on June 20, 2014
*
Note: please
contact us for LGA1150 LGA1155 (1156)
motherboard 1U installation
guide |
|
113 |
1UIOAD2550R
 |
1U AsRock Mini-ITX I/O shield
* AsRock AD2550R
Mini-ITX Intel Atom D2550 MB compatible
* Released on July 02, 2014 |
|
112 |
1UIOH97-PCMATE
 |
1U MicroStar ATX I/O shield
★
* MicroStar
H97-PCMATE ATX LGA 1150 MB compatible
* Released on June 25, 2014
*
Note: please
contact us for LGA1150 LGA1155 (1156)
motherboard 1U installation
guide |
|
111 |
1UIOGA-G41M-Combo
 |
1U Gigabyte
MicroATX I/O shield
★
* Gigabyte GA-G41M-Combo MicroATX LGA 775 MB compatible
* Released on June 04, 2014 |
|
110 |
1UIOX10SLQ
 |
1U Supermicro
MicroATX I/O shield
* Supermicro X10SLQ MicroATX LGA 1150 &
SuperMicro MBD-X12SCQ-O LGA1200 MB compatible
* Yellow section is knock-off design, released
on May 15, 2014 and updated on February 10, 2022
*
Note: please
contact us for LGA1150 LGA1155 (1156)
motherboard 1U installation
guide |
|
109 |
1UIOGA-C1037UN-EU
 |
1U Gigabyte
Mini-ITX I/O shield
* Gigabyte GA-C1037UN-EU Mini-ITX MB compatible
* Released on April 17, 2014 |
|
108 |
1UIOWTM-I2
 |
1U WTM-I2
Mini-ITX I/O shield
* WTM Technology WTM-i2 intel Atom D2550 Mini-ITX MB compatible
* Released on February 27, 2014 |
|
107 |
1UIOB75M-HD3
 |
1U Gigabyte
MicroATX I/O shield
★
* Gigabyte GA-B75M-HD3 LGA 1155 MicroATX MB compatible
* Yellow section is knock-off design, released
on January 03, 2014
*
Note: please
contact us for LGA1155 (1156)
motherboard 1U installation
guide |
|
106 |
1UIOZ87I
 |
1U MSI
Mini-ITX I/O shield
* MSI Z87i LGA1150 Mini-ITX MB compatible
* Released
on December 25, 2013
*
Note: please
contact us for LGA1150 LGA1155 (1156)
motherboard 1U installation
guide |
|
105 |
1UIOJNMF95-Q87
 |
1U Jetway
MicroATX I/O shield
* Jetway NMF95 Q87 Intel Core i7 / i5 /
i3 / Pentium Processor MicroATX MB compatible
* Yellow section is knock-off design, released
on November 29, 2013
*
Note: please
contact us for LGA1150 LGA1155 (1156)
motherboard 1U installation
guide |
|
104 |
1UIOKINO-9152G4
 |
1U iEi Mini-ITX
I/O shield
* iEi KINO-9152G4 Intel Pentium M &
Celeron M CPU compatible Mini-ITX MB
* Yellow section is knock-off design
* Released on November 08, 2013 |
|
103 |
1UIOX10SLM-LN4F
|
1U Supermicro
MicroATX I/O shield (1UX11SCH-LN4F-IO,
1UIOKIK-7S4-USC compatible)
* Supermicro X10SLM+-LN4F Single socket
H3 (LGA 1150) MicroATX MB compatible
* Released on November 04, 2013, updated on
August 10, 2022
*
Note: please
contact us for LGA1155 (1156)
motherboard 1U installation
guide |
|
102 |
1UIOGA-B75N
 |
1U Gigabyte
Mini-ITX I/O shield
* Gigabyte GA-B75N LGA1155 Mini-ITX MB
compatible
* Released on October 14, 2013
*
Note: please
contact us for LGA1155 (1156)
motherboard 1U installation
guide |
|
101 |
1UIODH61AG
 |
1U Intel Mini-ITX
I/O shield
★
* Intel® Desktop Board DH61AG i7 processor
series LGA1155 Mini-ITX MB compatible
*
Yellow section is knock-off design, released on
October 11, 2013
*
Note: please
contact us for LGA1155 (1156)
motherboard 1U installation
guide |
|
100 |
1UIOECSH61H2-I
 |
1U ECS Mini-ITX
I/O shield
* Elitegroup ECS H61H2-I and v1.1 Intel
LGA 1155 Mini-ITX MB compatible
* Yellow section is knock-off design, released
on October 04, 2013
*
Note: please
contact us for LGA1155 (1156)
motherboard 1U installation
guide |
|
99 |
1UIONC9KDL-2550
 |
1U Jetway Mini-ITX
I/O shield
* Jetway NC9K Versa Atom Dual Core D2700 D2550
Mini-ITX MB compatible
*
Released on October 03, 2013 |
|
98 |
1UIOM5A78L-M
 |
1U Asus MicroATX I/O shield
* Asus M5A78L-M series MicroATX AMD AM3 MB
compatible
*
Released on August 12, 2013 |
|
97 |
1UIOIMBM-Q67
 |
1U Aaeon MicroATX I/O shield
* AAEON IMBM-Q67
MicroATX LGA1155 MB compatible
*
Released on August 28, 2013, updated on November
15, 2013
*
Note: please
contact us for LGA1155 (1156)
motherboard 1U installation
guide |
|
96 |
1UIOCDC-I
 |
1U ECS Mini-ITX I/O shield
* ECS CDC-I Mini-ITX MB compatible
*
Intel D2700/D2500 Dual-core CPU with DDR3
1066/800MHz supported
* Released on August 06, 2013 and updated on
August 28, 2013 |
|
95 |
1UIOMSIH61-P31W8
 |
1U MSI MicroATX I/O shield
* MSI H61M-P31/W8
LGA 1155 MicroATX MB compatible
*
Yellow section is knock-off design, released on
July 31, 2013
*
Note: please
contact us for LGA1155 (1156)
motherboard 1U installation
guide |
|
94 |
1UIOGA-H77N-WIFI
 |
1U Gigabyte Mini-ITX I/O shield
* Gigabyte GA-H77N-WIFI LGA 1155 Mini-ITX MB
compatible
* Released on July 30, 2013 and updated on
August 21, 2013
*
Note: please
contact us for LGA1155 (1156)
motherboard 1U installation
guide |
|
93 |
1UIOGA-H61M-DS2-DVI
 |
1U Gigabyte MicroATX I/O shield
* Gigabyte GA-H61M-DS2 DVI version of LGA 1155
MicroATX MB compatible
* Released on May 20, 2013
*
Note: please
contact us for LGA1155 (1156)
motherboard 1U installation
guide |
|
92 |
1UIOQ77MVPRO
 |
1U ASRock MicroATX I/O shield
* Compatible with Asrock Q77M vPro LGA1155
MicroATX MB
* Released on May 09, 2013
*
Note: please
contact us for LGA1155 (1156)
motherboard 1U installation
guide |
|
91 |
1UIOC60M1-I
 |
1U Asus
Mini-ITX I/O shield
* Asus C60M1-i AMD based Mini-ITX MB
compatible
*
MB build-in AMD APU C-60 1.0GHz Dual-Core
onboard Processors
* Released on
March 06, 2013 |
|
90 |
1UIODQ77KB
 |
1U Intel
Mini-ITX I/O shield
* Intel desktop DQ77KB thin Mini-ITX MB
compatible
* Released on February 20, 2013 |
|
89 |
1UIOC847MS
 |
1U MSI MicroATX
I/O shield
* MSI C847MS-E33 Intel Celeron 847/ 1.1 GHz/
Dual-Core MicroATX MB compatible
* Released on January 24, 2013
*
Note: The audio ports shall be too high to fit
all 1U chassis in the market |
|
88 |
1UIOE45M1
 |
1U Asus
MicroATX I/O shield
★
* Asus E45M1-M PRO AMD APU E-450 Dual-Core
MicroATX MB compatible
* Released on January 24, 2013 and
updated on February 19, 2013 |
|
87 |
1UIOKINO-9152-1GZ-R10
 |
1U iEi Mini-ITX
I/O shield
* iEi KINO-9152-1GZ-R10 Intel Pentium M &
Celeron M CPU compatible Mini-ITX MB
* Released on January 02, 2013 |
|
86 |
1UIOS5515
 |
1U Tyan LGA1155
MicroATX I/O shield
* Tyan S5515AG2NR LGA1155 MicroATX MB compatible
* Released on December 18, 2012
*
Note: please
contact us for LGA1155 (1156)
motherboard 1U installation
guide |
|
85 |
1UIOS5510GM3NR
 |
1U Tyan LGA1155
MicroATX I/O shield
* Tyan S5510GM3NR LGA1155 MicroATX MB compatible
* Released on October 22, 2012
*
Note: please
contact us for LGA1155 (1156)
motherboard 1U installation
guide |
|
84 |
1UIOB75MA-P45
 |
1U Asus LGA1155
MicroATX I/O shield
* Asus B75MA-P45 LGA1155 MicroATX MB compatible
* Released on October 09, 2012
*
Note: please
contact us for LGA1155 (1156)
motherboard 1U installation
guide |
|
83 |
1UIOP8B75-M
 |
1U Asus LGA1155
MicroATX I/O shield
* Asus P8B75-M
LGA1155 MicroATX MB compatible
*
Released on
October 04, 2012
*
Note: please
contact us for LGA1155 (1156)
motherboard 1U installation
guide |
|
82 |
1UIODQ77MK
 |
1U Intel
LGA1155 MicroATX I/O shield
★
* Intel Desktop Board DQ77MK MicroATX MB
compatible
*
Released on September 25, 2012
*
Note: please
contact us for LGA1155 (1156)
motherboard 1U installation
guide |
|
81 |
1UIOP8H61-MLX3
 |
1U Asus LGA1155
MicroATX I/O shield
* Asus P8H61-M LX3 PLUS LGA1155 MicroATX MB compatible
*
Released on September 25, 2012
*
Note: please
contact us for LGA1155 (1156)
motherboard 1U installation
guide |
|
80 |
1UIOINTEL-D2500CC
 |
1U Intel
Mini-ITX I/O shield
★
* Intel Atom D2500CC with NM10 Express Chipset
Mini-ITX MB compatible
*
Released on May 28, 2012 |
|
79 |
1UIOD2500HN
 |
1U Intel
Mini-ITX I/O shield
★
* Intel Atom D2500HN with NM10 Express Chipset
Mini-ITX MB compatible
*
Yellow section is knock-off design
*
Released on May 28, 2012 |
|
78 |
1UIOCB0J06-QM57
 |
1U Winsonic
i7i5 Mini-ITX I/O shield
* Winsonic CB0J06-QM57 i7 i5 32nm Mini-ITX MB
compatible
*
Released on May 14, 2012
*
Winsonic CB0J06-QM57
motherboard reference |
|
77 |
1UIOP8H61-M
 |
1U Asus LGA1155
MicroATX I/O shield
* Asus P8H61-M REV 3.0 brand new H61 B3 Revision
LGA 1155 MicroATX MB compatible
*
Asus P8Z77-M MicroATX MB compatible. Released on April 13, 2012
*
Note: please
contact us for LGA1155 (1156)
motherboard 1U installation
guide |
|
76 |
1UIOMSI880GM-E41
 |
1U MSI MicroATX I/O shield
* MSi 880GM-E41 AMD AM3 socket MicroATX MB
compatible
* Released on April 02, 2012 |
|
75 |
1UIOD2700MUD
 |
1U Intel Mini-ITX I/O shield
★
* Intel D2700MUD and D2550MUD2 Mini-ITX MB
compatible
* Yellow section is knock-off design
* Released and updated on April 26, 2013 |
|
74 |
1UIOGMB910
 |
1U Advantech Mini-ITX I/O shield
* Advantech GMB910 Onboard Intel Celeron M 600
MHz/512 K Mini-ITX MB compatible
* Yellow section is knock-off design
* Released on March 07, 2012 |
|
73 |
1UIOGA-H61M-DS2
 |
1U Gigabyte MicroATX I/O shield
* Gigabyte GA-H61M-DS2 LGA 1155 MicroATX MB
compatible
* Released on February 17, 2012
*
Note: please
contact us for LGA1155 (1156)
motherboard 1U installation
guide |
|
72 |
1UIONC9C-550-LF
 |
1U Jetway Mini-ITX
I/O shield
★
* Jetway NC9C-550-LF MB + AD3INLAN-G daughter
board, and NF99FL-525LF MB compatible
* Yellow section
is knock-off design
*
Released on January 12, 2012 |
|
71 |
1UIOP8H61M-PLUS-V2
 |
1U Asus LGA1155
MicroATX I/O shield
★
* Asus P8H61-M PLUS LGA 1155 MicroATX MB
compatible
*
Released on January 09, 2012
*
Note: please
contact us for LGA1155 (1156)
motherboard 1U installation
guide |
|
70 |
1UIODH67CFB3
 |
1U Intel
LGA1155 MINI-ITX I/O shield
★
* Intel BOXDH67CFB3 LGA 1155 Mini-ITX MB
compatible
*
Released on December 21, 2011
*
Note: please
contact us for LGA1155 (1156)
motherboard 1U installation
guide |
|
69 |
1UIODH61WW
 |
1U Intel
MicroATX I/O shield
* Intel DH61WW LGA1155 MicroATX MB compatible
*
Released on December 08, 2011
*
Note: please
contact us for LGA1155 (1156)
motherboard 1U installation
guide |
|
68 |
1UIOGIADA-MI-D525
 |
1U Giada
DualCore Atom Mini-ITX I/O shield
* Giada branded MI-D525 DualCore Atom Mini-ITX
MB compatible
* Special made 5mm high MB stand-off at the 1U
bottom of chassis necessary
* Yellow section
is knock-off design,
released on November 21, 2011 |
|
67 |
1UIOH61M-E33
 |
1U MSI MicroATX I/O shield
* Compatible with MSI H61M-E33 LGA1155 MicroATX
MB
* Released on November 18, 2011
*
Note: please
contact us for LGA1155 (1156)
motherboard 1U installation
guide |
|
66 |
1UIOASROCKZ68
 |
1U ASRock ATX I/O shield
* Compatible with AsrockZ68 LGA1155 ATX MB
* Released on November 16, 2011
*
Note: please
contact us for LGA1155 (1156)
motherboard 1U installation
guide |
|
65 |
1UIOGAZ68XUD3H
 |
1U Gigabyte ATX I/O shield
* Compatible with Gigabyte GA-Z68X-UD3H-B3 Z68
Express Chipset LGA1155 ATX
MB
* Released on October 27, 2011
*
Note: please
contact us for LGA1155 (1156)
motherboard 1U installation
guide |
|
64 |
1UIOP8H67-IDX
 |
1U Asus Mini-ITX I/O shield
* Compatible with Asus P8H67-I DX series LGA1155
Mini-ITX RAID server MB
* Released on September 20, 2011
*
Note: please
contact us for LGA1155 (1156)
motherboard 1U installation
guide |
|
63 |
1UIOVB8001
 |
1U VIA Mini-ITX I/O shield
* Compatible with VIA VB8001
Mini-ITX MB
* Released on September 14, 2011
*
Note: the back side of this MB may have a 5.6mm
high CF socket must take out during 1U solution |
|
62 |
1UIOGA-G41MT-S2
 |
1U Gigabyte LGA775 I/O shield
* Compatible with Gigabyte G41MT-S2
MircroATX LGA775 MB
* Released on September 22, 2011 |
|
61 |
1UIOS1200KP
 |
1U Intel Xeon
Mini-ITX I/O shield
★
* Compatible
with Intel Kenosha Pass C206 S1155 S1200KP Xeon
E3 1200 Mini-ITX RAID server MB
* Released on August 31, 2011,
recommended model is 1U four hotswap
S104iTXB
*
Note: please
contact us for LGA1155 (1156)
motherboard 1U installation
guide |
|
60 |
1UIONITX-P-E
 |
1U Zotac Mini-ITX
I/O shield
* Compatible with Zotac NITX-P-E AMD
Celeron Mini-ITX MB
* Yellow section
is knock-off design
* Released on August 23, 2011 |
|
59 |
1UIOM880GITX-A-E
 |
1U Zotac Mini-ITX
I/O shield
* Compatible with Zotac M880GITX-A-E AMD
Turion II APU Mini-ITX MB
* Yellow section
is knock-off design
* Released on August 23, 2011 and updated on
September 14, 2011 |
|
58 |
1UIOMYX5LA
 |
1U XZX Mini-ITX
Atom I/O shield
* Compatible with XZX ITX-MYX5LA Atom
N270 Mini-ITX MB
* Released on July 28, 2011 |
|
57 |
1UIOFOXH67A
 |
1U FoxConn ATX
LGA1155 I/O shield
* Compatible with Foxconn H67A LGA1155
Mini-ITX MB
* Released on June 22, 2011
*
Note: please
contact us for LGA1155 (1156)
motherboard 1U installation
guide |
|
56 |
1UIODH61DL
 |
1U Intel Mini-ITX
I/O shield
★
* Compatible with Intel DH61DL LGA1155
Mini-ITX MB
* Released on June 20, 2011
*
Note: please
contact us for LGA1155 (1156)
motherboard 1U installation
guide |
|
55 |
1UIOERX-G41
 |
1U Avalue MicroATX I/O shield
* Compatible with Avalue ERX-G41-A1R LGA775 with
LAN & VGA & RAID on board MB
* Released on May 04, 2011 |
|
54 |
1UIOJ7F2
 |
1U Jetway Mini-ITX I/O shield
* Compatible with Jetway VIA C7 and Eden (V4)
Mini-ITX MB
* Yellow section
is knock-off design
* Released on April 20, 2011 |
|
53 |
1UIOX8SIE-LN4
 |
1U Supermicro ATX I/O shield
* Compatible with Supermicro X8SIE-LN4 LGA1156
ATX MB
* Released on April 15, 2011
* Note: please
contact us for LGA1155 (1156)
motherboard 1U installation
guide |
|
52 |
1UIOH55M
 |
1U ASRock MicroATX I/O shield
* Compatible with ASRock H55M LGA1156 MicroATX
MB
* Released on April 15, 2011
* Note: please
contact us for LGA1155 (1156)
motherboard 1U installation
guide |
|
51 |
1UIODQ67OW
 |
1U Intel MicroATX I/O shield
★
* Compatible with Intel DQ67OW LGA1155 MicroATX
MB
* Released on March 23, 2011
* Note: please
contact us for LGA1155 (1156)
motherboard 1U installation
guide |
|
50 |
1UIOP5G41T-MLX
 |
1U Asus MicroATX I/O shield
* Compatible with ASUS P5G41T-M LX Intel LGA775
MicroATX MB
* Released on March 22, 2011 |
|
49 |
1UIOEMX-945GSE
 |
1U Intel Mini-ITX I/O shield
* Compatible with Intel EMX-945GSE-A1-DVIR Atom
N270 Mini ITX MB
* Released on March 07, 2011 |
|
48 |
1UIOS3420GPLC
 |
1U Intel Xeon
I/O shield
* Compatible with Intel S3420GPLC Xeon
processor 3400 series ATX server MB
*
Compatible with Intel S1200BTS, S1200BTL,
S3420GPV, S3420GPLX, S5500BCR, S5520HCR MB
* Released on March 04, 2011, more compatible
motherboards updated on July 09, 2012 |
|
47 |
1UIOP7H55-MLE
 |
1U Asus
MicroATX LGA1156 I/O shield
* Compatible with Asus
P7H55-MLE Intel
LGA1156 MicroATX MB
* Released on February 22, 2011
* Note: please
contact us for LGA1155 (1156)
motherboard 1U installation
guide |
|
46 |
1UIOM4A88TD-M
 |
1U Asus
MicroATX AM3 I/O shield
* Compatible with Asus
M4A88TD-M AMD AM3
MicroATX MB
* Released on February 15, 2011 |
|
45 |
1UIOP7H-MUSB3
 |
1U Asus
MicroATX I/O shield
* Compatible with Asus P7H55-M/USB3
LGA1156 MicroATX MB
* Released on January 24, 2011
* Note: please
contact us for LGA1155 (1156)
motherboard 1U installation
guide |
|
44 |
1UIOH55M-USB3
 |
1U Gigabyte
MicroATX I/O shield
* Compatible with Gigabyte GA-H55M-USB3
LGA1156 MicroATX MB
* Released on November 25, 2010
* Note: please
contact us for LGA1155 (1156)
motherboard 1U installation
guide |
|
43 |
1UIODG41TX
 |
1U Intel
MicroATX I/O shield
* Compatible with Intel DeskTop DG41TX
LGA775 MicroATX MB
* Released on November 18, 2010 |
|
42 |
1UIOD525
 |
1U Intel
Mini-ITX I/O shield
★
* Compatible with Intel Mount Washington
D525MW and Intel Kinston Atom D425KT Mini-ITX MB
* Compatible with Intel Mount Washington D525MWV
and Intel Kinston Atom D425KTW Mini-ITX MB
* Yellow section
is knock-off design, released on Nov09 &
updated on Dec21, 2010, updated on May 13, 2011 |
|
41 |
1UIO-AIMB-742VE-00A3E
 |
1U Advantech
AIMB-742VE ATX I/O shield
* Compatible with Advantech
AIMB-742VE-00A3E Socket 478 P4 ATX MB
* Yellow section
is knock-off design
* Released on October 29, 2010 |
|
40 |
1UIOAIMB-280
 |
1U Advantech
AIMB-280 Mini-ITX I/O shield
* Compatible with Advantech AIMB-280
Mini-ITX MB
* Released on October 27, 2010 |
|
39 |
1UIOWADE-8556
 |
1U Portwell
Wade-8556 Mini-ITX I/O shield
* Compatible with Portwell WADE-8556
Mini-ITX MB
* Released on October 25, 2010 |
|
38 |
1UIONC91-330-LF
 |
1U Jetway NC91
Mini-ITX I/O shield
* Compatible with Jetway NC91 series
Mini-ITX MB
* Released on October 22, 2010 |
|
37 |
1UIOP5LPL-AM
 |
1U Asus mATX
P5LPL-AM I/O shield
* Compatible with Asus
LGA775 P5LPL-AM
Micro ATX
MB
* Released on September 21, 2010 |
|
36 |
1UIOWTM-A6-G
 |
1U WTM Mini-ITX
I/O shield
★
* Compatible with
WTM-A6-G
Mini-ITX MB
* Released on September 14, 2010 |
|
35 |
1UIOGF6100-E-E
 |
1U Zotac
GF6100-E-E I/O shield
* Compatible with Zotac GF6100-E-E AMD
AM2 Mini-ITX MB
* Yellow section
is knock-off design
* Released on August 23, 2010 |
|
34 |
1UIOECS-H55H-I
 |
1U ECS Mini-ITX
I/O shield
* Compatible with ECS H55H-I Intel
LGA1156 Mini-ITX MB
* Released on August 18, 2010
* Note: please
contact us for LGA1155 (1156)
motherboard 1U installation
guide |
|
33 |
1UIOGA-H55N-USB3
 |
1U Gigabyte
Mini-ITX I/O shield
* Compatible with Gigabyte GA-H55N-USB3
Intel LGA1156 Mini-ITX MB
* Released on August 11, 2010
* Note: please
contact us for LGA1155 (1156)
motherboard 1U installation
guide |
|
32 |
1UIONF610I-K-E
 |
1U Zotac
NF610I-K-E I/O shield
* Compatible with Zotac Intel Atom LGA775
Mini-ITX MB
* Yellow section
is knock-off design
* Released on June 30, 2010 |
|
31 |
1UIOGA-GC230D
 |
1U Gigabyte
Atom Mini-ITX I/O shield
* Compatible with Gigabyte GA-GC230D
Intel Atom 230 processor Mini-ITX MB
* Released
on June 21, 2010 |
|
30 |
1UIOX7SPA-H
 |
1U Supermicro
Atom Mini-ITX I/O shield
* Compatible Supermicro MB: X7SPA-H,
X7SPA-H-D525, X7SPA-HF-D525, X7SPE-HF-D525
* Yellow section
is knock-off design
* Released on June 17, 2010 and
X7SPA-H-D525 compatible announcement on July 19,
2011 |
|
29 |
1UD945GSEJT
 |
1U Intel N270
Mini-ITX I/O shield
* Compatible with Intel D945GSEJT N270
Mini-ITX MB
* Yellow section
is knock-off design
* Released on May 17, 2010 |
|
28 |
1UIODG41MJ
 |
1U Intel LGA775
Mini-ITX I/O shield
* Compatible with Intel DG41MJ LGA 775
Mini-ITX MB
* Released on May 17, 2010
* updated on July 06, 2010 |
|
27 |
1UIOS3115
 |
1U Tyan S3115
Mini-ITX I/O shield
* Compatible with Tyan S3115 Mini-ITX MB
* Released on May 05, 2010 |
|
26 |
1UIOLV-67B
 |
1U Commell
Mini-ITX I/O shield
★
* Compatible with Commell LV-66A and LV-66B
Mini-ITX MB
* Yellow section is knock-off design (compatible
with LV-66A if no knocking-off)
* Released on May 03, 2010 |
|
25 |
1UIOS5211G2NR
 |
1U Tyan S5211
LGA775 I/O shield
* Compatible with Tyan S5211 ATX LGA775 MB
* Released on April 16, 2010 |
|
24 |
1UIOS5502
 |
1U Tyan S5502
LGA1156 I/O shield
* Compatible with Tyan S5502 Xeon LGA1156 MB
* Yellow section is knock-off design, released
on April 14, 2010
* Note: please
contact us for LGA1155 (1156)
motherboard 1U installation
guide |
|
23 |
1UAT3IONT-I
 |
1U Asus Atom
Mini-ITX I/O shield
★
* Compatible with Asus AT3IONT-I Deluxe dual
core Atom Mini-ITX MB
* Released on April 03, 2010
* Updated on May 19, 2010 |
|
22 |
1UIODH57JG
 |
1U Intel Atom
Mini-ITX I/O shield
★
* Compatible with Intel DH57JG LGA1156 Atom
Mini-ITX MB
* Released on April 02, 2010, and updated on May
19, 2010
* Note: please
contact us for LGA1155 (1156)
motherboard 1U installation
guide |
|
21 |
1UIONC94FL-510-LF
 |
1U Jetway Intel
Atom Mini-ITX I/O shield
★
* Compatible with Jetway NC94FL-410-LF and
NC94FL-510-LF Mini-ITX MB
* Yellow section is knock-off design
* Released on March 30, 2010, fanless version
updated on May 04, 2010 |
|
20 |
1UIOP7H55-MPRO
 |
1U Asus mATX
LGA1156 I/O shield
★
* Compatible with Asus P7H55-MPRO LGA1156
MicroATX MB
* Released on March 30, 2010
* Note: please
contact us for LGA1155 (1156)
motherboard 1U installation
guide |
|
19 |
1UIODH55TC
 |
1U Intel mATX
LGA1156 I/O shield
★
* Compatible with Intel DH55TC LGA1156 MicroATX
MB
* Released on March 29, 2010
* Note: please
contact us for LGA1155 (1156)
motherboard 1U installation
guide |
|
18 |
1UIOD510MO
 |
1U Intel Atom
Mini-ITX I/O shield
* Compatible with Intel D510MO and D410PT Atom
Mini-ITX MB
* Yellow section is knock-off design
* Released on March 10, 2010, updated on March
15, 2010, and updated on May 16, 2011 |
|
17 |
1UIOS7002
 |
1U Tyan Dual
LGA1366 eATX I/O shield
★
* Compatible with Tyan S7002 eATX MB and Tyan
S5220 LGA775 ATX MB
* Yellow section is knock-off design
* Released on March 09, 2010 |
|
16 |
1UIOS5247
 |
1U Tyan Flex
ATX LGA775 I/O shield
* Compatible with Tyan S5247 FlexATX MB
* Yellow section is knock-off design
* Released on March 09, 2010 |
|
15 |
1UIOGA-7TESH2-RH
 |
1U Gigabyte
eATX Dual LGA1366 I/O shield
★
* Compatible with Gigabyte GA-7TESH2-RH eATX MB
* Released on January 31, 2010 |
|
14 |
1UIOGA945GME-DS2
 |
1U Gigabyte
MicroATX LGA775 I/O shield
★
* Compatible with Gigabyte GA-945GME-DS2 and
Asus P5G31D-M Pro MicroATX MB
* Yellow section is knock-off design
* Released on January 20, 2010, updated on March
31, 2010 |
|
13 |
1UIOC2SBC-Q
 |
1U Supermicro
ATX LGA775 I/O shield
* Compatible with Supermicro C2SBC-Q ATX MB
* Released on January 07, 2010
* Updated on January 20, 2010 |
|
12 |
1UIOEPIA-EN
 |
1U VIA Mini-ITX
I/O shield
★★
* Compatible with VIA EPIA EN12000E and EN15000
Mini-ITX MB
* Released or updated on
December 17,
2009 |
|
11 |
1UIOEPIA-MII
 |
1U VIA Mini-ITX
I/O shield
* Compatible with VIA EPIA MII12000 Mini-ITX MB
* Released or updated on May 12, 2009 |
|
10 |
1UIOEPIA-M
 |
1U VIA Mini-ITX
I/O shield
* Compatible with VIA EPIA M10000 and M10000G
Mini-ITX MB
* Released or updated on May 12, 2009 |
|
9 |
1UIODG41TY
 |
1U Intel DG41TY
I/O shield
* Compatible with Intel DG41TY MB
* Intel standard-size I/O shield part number
1A02PW500-600-6G
* Released or updated on November 09,
2009 |
|
8 |
1UIOMS7314
 |
1U MSI MS-7314
Mini-ITX Atom I/O shield
* Compatible with MSI MS-7314 Atom Mini-ITX MB
* Released or updated on October 15, 2009 |
|
7 |
1UIODG45FC
 |
1U Intel DG45FC
Mini-ITX LGA775 I/O shield
★
* Compatible with Intel BOXDG45FC LGA 775 G45
Mini ITX Intel MB
* Released or updated on October 05, 2009 |
|
6 |
1UIODG31PR
 |
1U Intel DG31PR
I/O shield
* Compatible with Intel DG31PR LGA775 MicroATX
MB
* Released or updated on September 04,
2009 |
|
5 |
1UIOK9N6PGM2-V
 |
1U MSI MicroATX
I/O shield
* Compatible with MSI K9N6PGM2-V MicroATX AM2 MB
* Released or updated on August 05, 2009 |
|
4 |
1UIOI94GC-I7
 |
1U Biostar
I94GC-I7 Mini-ITX LGA775 I/O shield
* Compatible with Biostar I94GC-I7 Mini-ITX
LGA775 MB
* Released or updated on February 25,
2009 |
|
3 |
1UIODQ35JO
 |
1U Intel
Johannesburg Q35 DQ35JOE I/O shield
* Compatible with Intel Johannesburg Q35 mATX
vPro(tm) DQ35JOE MB
* Released or updated on January 21, 2009 |
|
2 |
1UIOX7SBI-LN4
 |
1U Supermicro
X7SBI-LN4 I/O shield
* Compatible with Supermicro X7SBI, X7SBI-LN4,
P4SCA, P4SCE, P4SBE, P4SBR, P4SCI, X6DHE-G2,
X5DAL-G, X5DAL-TG2, X6DVA-EG, PDSME+, X7DVL-I
S5000V, PDSMA+, X7SBL-LN2, X7DBU, X7DBE,
PDSMi+, X8SIL Series, Tyan S5162 MB *
Released or updated on November 16, 2010 |
|
1 |
1UIOD945GCLF2
 |
1U Intel Atom
D945GCLF2 I/O shield
★
* Intel D945GCLF2 Atom Mini-ITX MB supported
* Released February 04, 2009
* Updated on
November 11, 2009 |
|
