MICRO-100B BLACK MICROATX DESKTOP-MINITOWER-WALLMOUNT CHASSIS

Design announcement dated on August 17, 2016, webpage updated on September 17, 2020



NAS, Cloud, Workstation, Desktop, MiniTower, Wallmount, hotswap solution, Micro ATX motherboard form factor

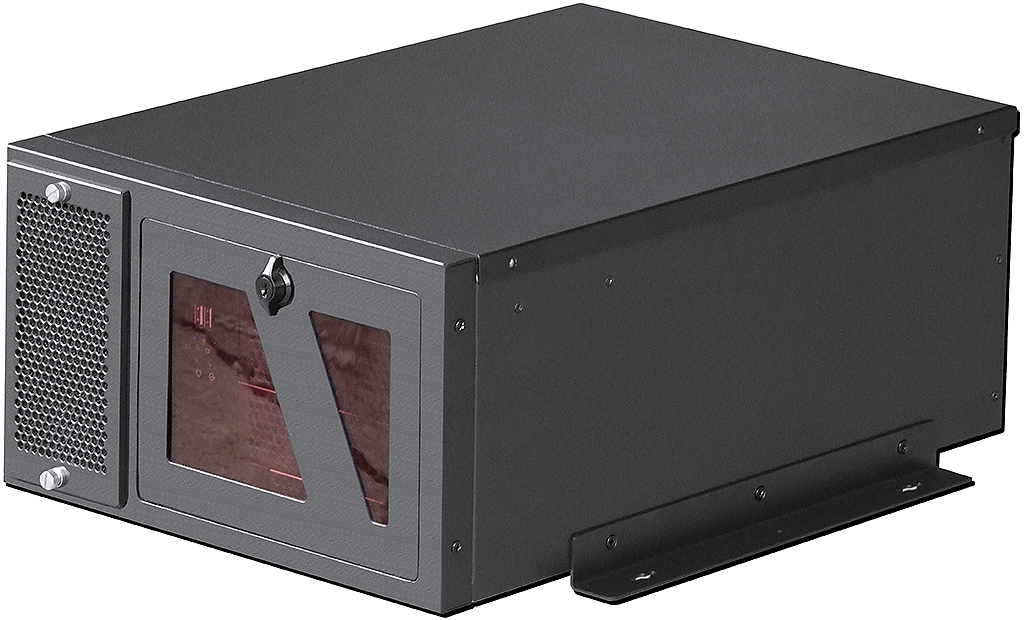

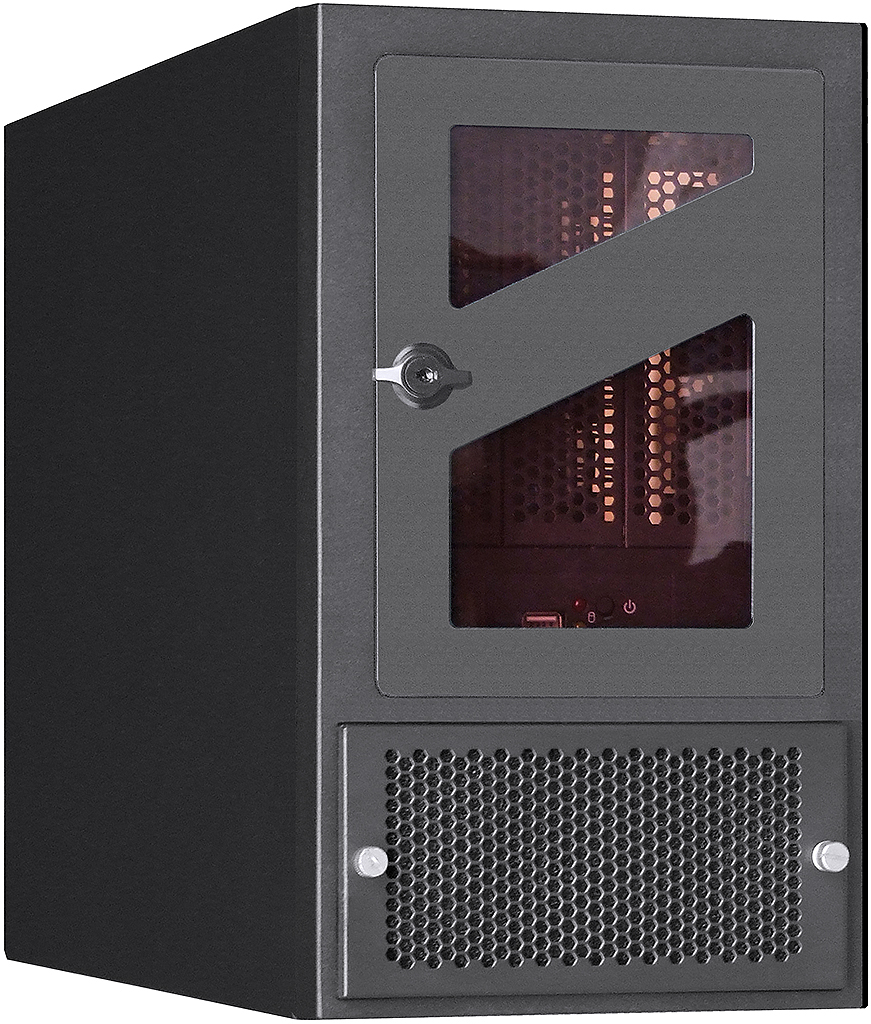

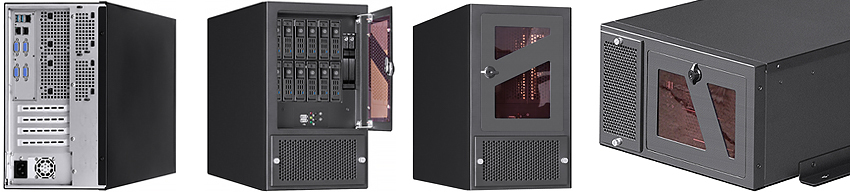

The most particular feature of this product is designed as multifunctional applications, the Desktop mode is suitable for enterprise server application, the MiniTower mode also applies to workstation computing applications, the Wallmount mode for industrial controls and NVR surveillance systems (wallmount bracket is option), the Hotswap HDD mode is applicable to wireless WiFi transmissions as well as Cloud NAS Storage. This chassis can support maximum 12 x 2.5" or 5 x 3.5" hotswap HDD device, and 2 x 2.5" hotswap HDD as well as 1 x 3.5" internal HDD drive. Rugged 1.2mm thickness SGCC sheet metal constructed. In addition, the front bezel is also equipped with quick release dust filter device which effectively keeps away from dust. The expansion-card functions are also excellent that can support dual-layer graphic card as well, welcome for distribution.



















* Storage space: 3 x 5.25" ODD, 4 x 3.5" HDD, 1 x 3.5" FDD (MicroATX MB mode)

* Storage space: 3 x 5.25" ODD, 4 x 3.5" HDD, 1 x 3.5" FDD or HDD (MINI-ITX MB mode)

* The main sheet metal constructed by 1.2mm ~ 2.0mm SGCC mechanism
* Equipped with aluminum alloy butterfly keylock & advanced door with acrylic window

* Equipped with two USB 2.0 ports as well as internal display LAN/HDD/Power LED lights

* Front dust filter with captive hand screws without opening the front door

* Two 60mmx25mm quiet fans behind the front dust filter (option, fan part# D60SM-12)

* Two 80mmx25mm quiet fans at rear panel (option, fan part# D80SM-12)

* Build-in two ABS screwless 80mmx25mm fan brackets at rear panel (fans are option)

* Equipped with vibration reduction for all HDD and ODD, extend storage appliance life

* Compatible MB: MicroATX(9.6"x9.6"), Mini-ITX(6.7"x6.7")
* 4-slot full height expansion cards up to max. 210mm deep (if HDD installed)

* 4-slot full height expansion cards up to max. 260mm deep (if no HDD installed)

* Support standard 1U FlexATX 300W~600W PSU with PFC (max. psu depth: 150mm)

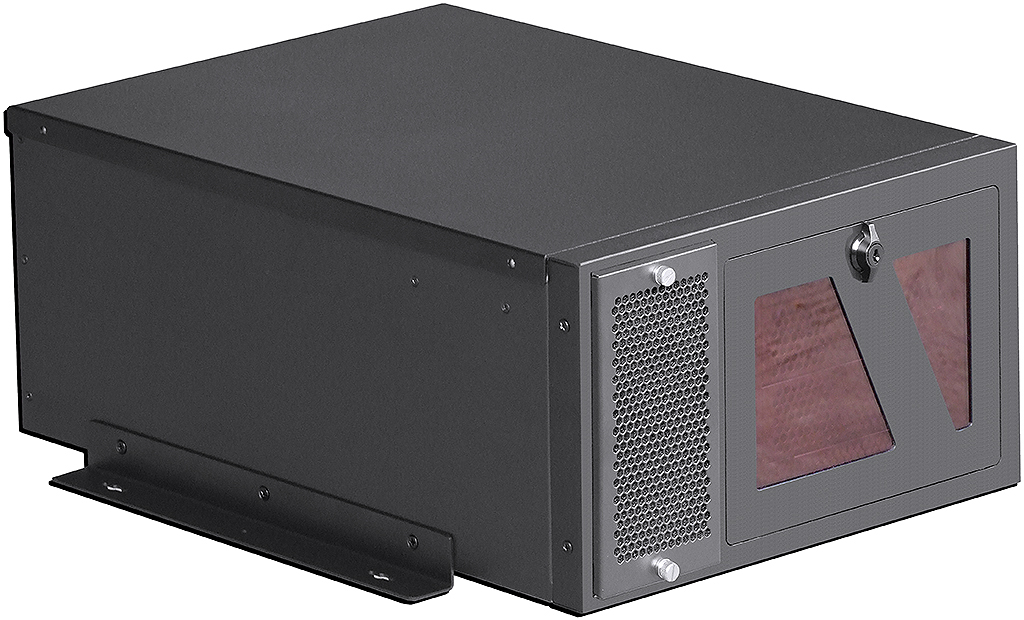

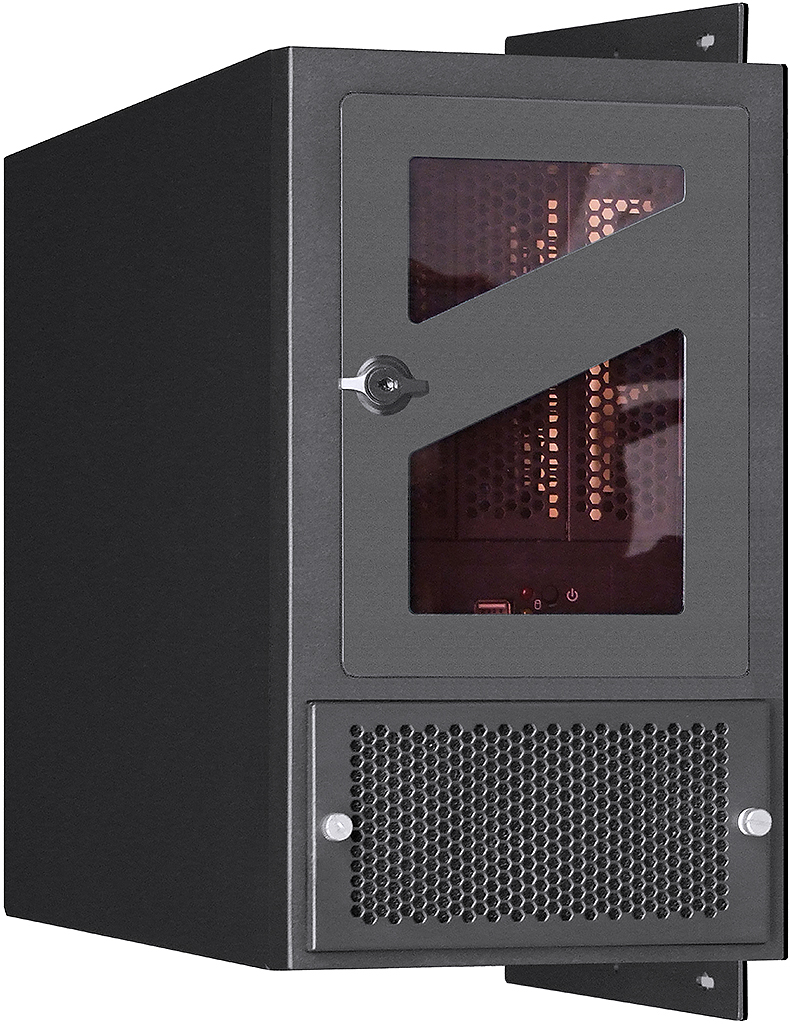

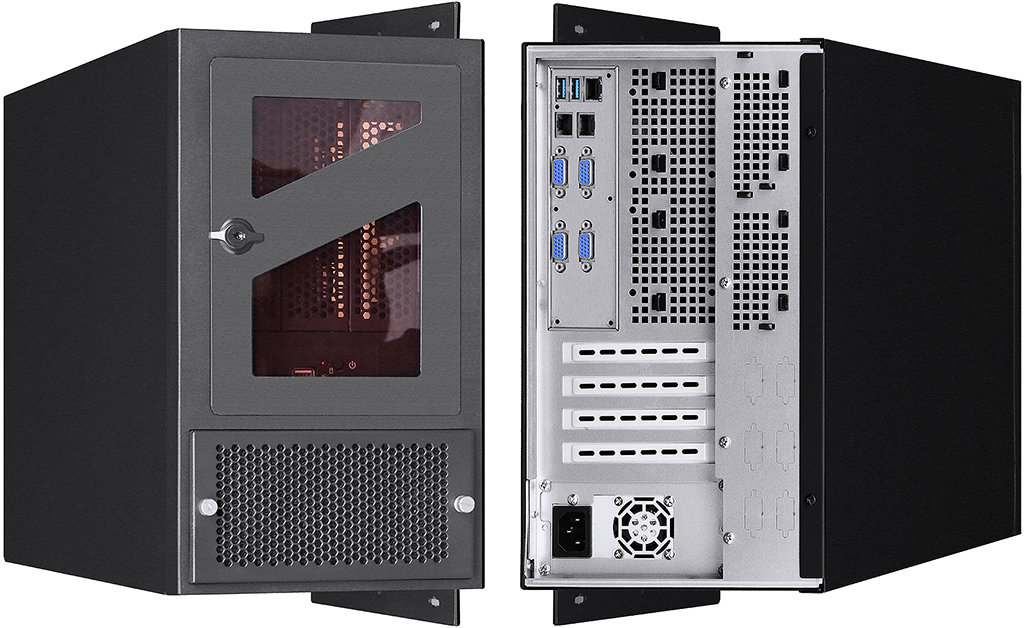

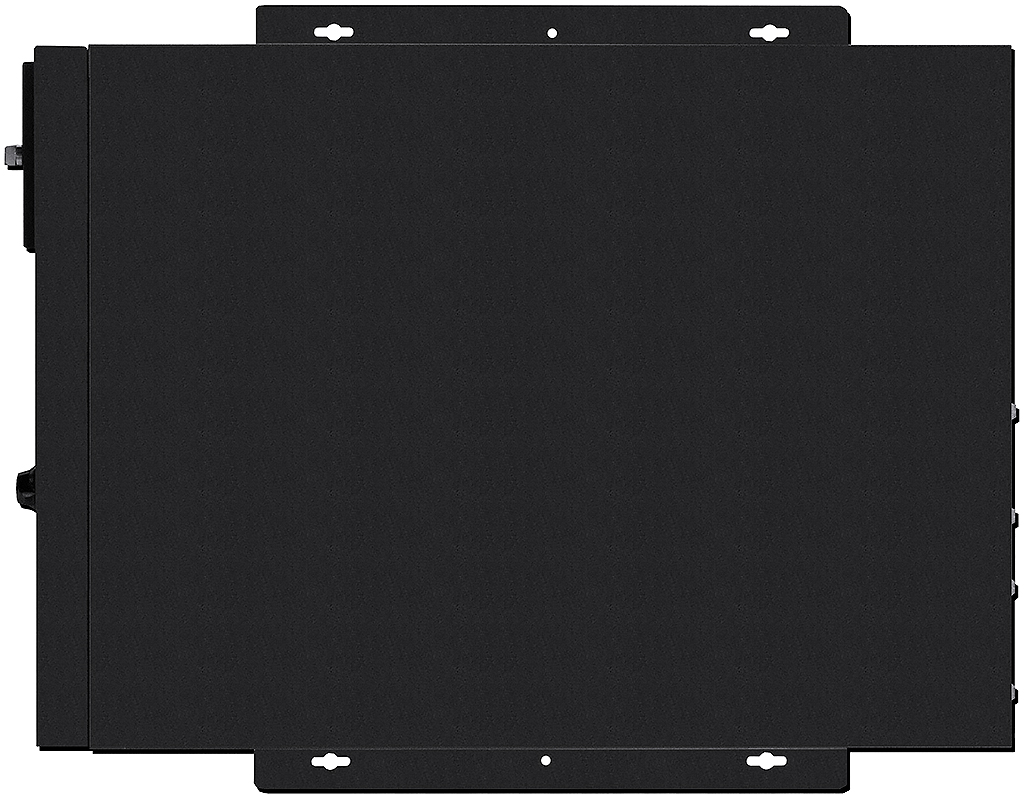

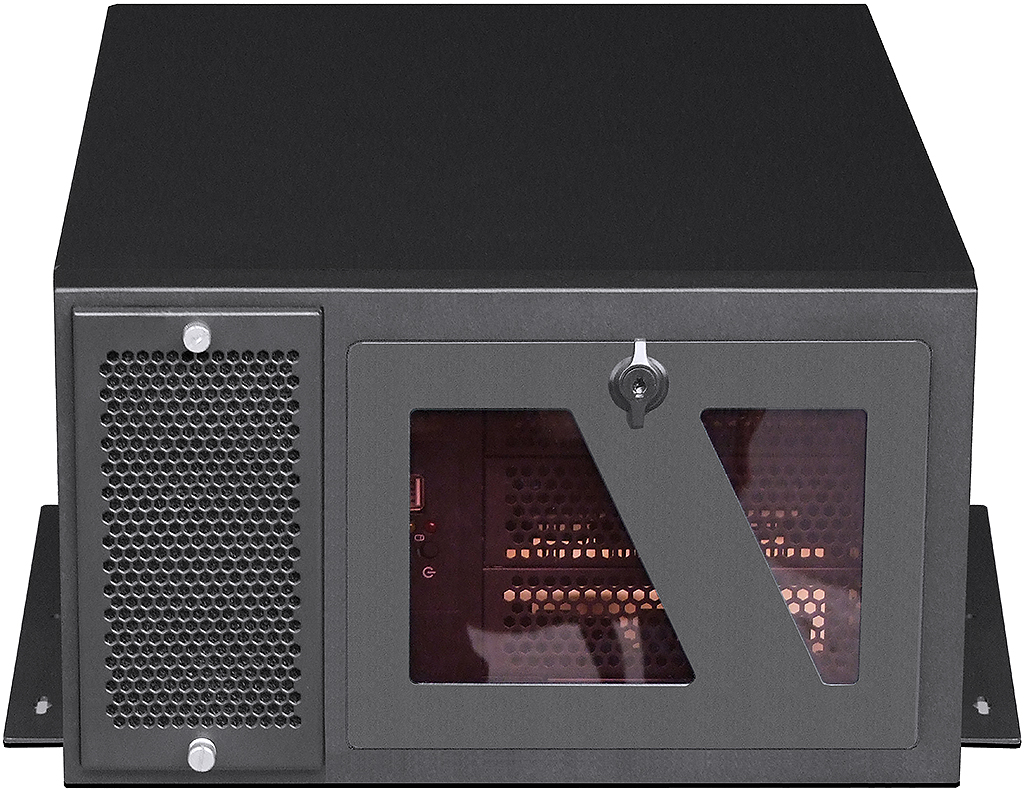

* Support wallmount installation (option, part# MICRO-100B-WALL-BK, one pair)
* Standard paint: scratch-resistant Black textured or scratch-resistant Beige RAL 9018
* Genesys Group branded server chassis model (with build-in fans) global 3 years warranty

* Chassis dimension: 330mm x 190mm x 460mm (W x H x D)

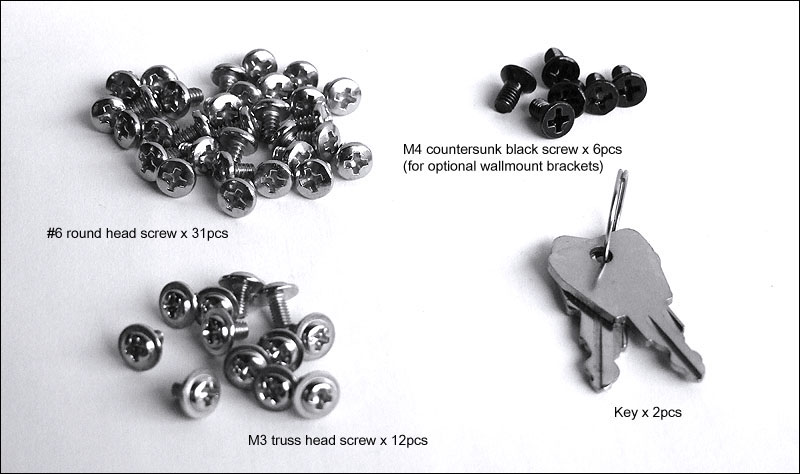

* Accessory pack: M3 truss x12, #6 round x31, M4 countersunk black x6pcs, key x2

* Package: NW 8.2KG, GW 10.2KG, 2.58 CUFT (58x45x28cm, one box packed)

Model#

:

MICRO-100B

Black MicroATX desktop-minitower-wallmount chassis

Option A

:

MICRO-100B-WALL-BK

Black wallmount kit (one pair, thickness 2.0mm, Net weight 0.51KG)

Option B

:

D60SM-12

YateLoon 60mmx25mm intake fan (part# is 1pcs, 2pcs at rear panel & screws required)

Option C

:

D80SM-12

YateLoon 80mmx25mm exhaust fan (part# is 1pcs, 2pcs at rear panel & screws not required)

Option D-1

:

ENP-7130B

1U FlexATX 300W power supply with PFC (psu size at W.81.5 x H.40.5 x L.150/mm)

Option D-2

:

ENP7140B

1U FlexATX 400W power supply with PFC (psu size at W.81.5 x H.40.5 x L.150/mm)

Option D-3

:

ENP-7650B

1U FlexATX 500W power supply with PFC (psu size at W.81.5 x H.40.5 x L.150/mm)

Option D-4

:

ENP-7660B

1U FlexATX 600W power supply with PFC (psu size at W.81.5 x H.40.5 x L.150/mm)

Option E

:

25-35-BK

5.25" 3.5" 2.5" multiple HDD bracket

Option F-1

:

RW125-12G

1x3.5" FDD to 1x2.5" HotSwap Cage SATA/SAS 12G

Option F-2

:

TL125-12G

1x3.5" FDD to 1x2.5" TrayLess HotSwap Cage SATA/SAS 12G

Option F-3

:

TL225-12G

1x3.5" FDD to 2x2.5" TrayLess HotSwap Cage SATA/SAS 12G

Option F-4

:

TL225

1x3.5" FDD to 2x2.5" TrayLess HotSwap Cage SATA/SAS 6G

Option G-1

:

RW135-12G

1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 12G

Option G-2

:

RW135

1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 6G

Option G-3

:

TL135-12G

1x5.25" to 1x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option G-4

:

TL135

1x5.25" to 1x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option G-5

:

RW225-12G

1x5.25" to 2x2.5" HotSwap Cage SATA/SAS 12G

Option G-6

:

RW625-12G

1x5.25" to 6x2.5" HotSwap Cage SATA/SAS 12G

Option G-7

:

RW825-1525

1x5.25" to 8x2.5" HotSwap Cage SATA/SAS 6G

Option G-8

:

RW425-NVMe

1x5.25" to 4x2.5" SSD Removable Cage U.2 NVMe 32G

Option G-9

:

RW425-12G-MS

1x5.25" to 4x2.5" HotSwap Cage SFF-8643 12G

Option G-10

:

RW425-12G

1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 12G

Option G-11

:

RW425

1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 6G

Option G-12

:

RW825

2x5.25" to 8x2.5" HotSwap Cage SATA/SAS 6G

Option G-13

:

RW335-12G

2x5.25" to 3x3.5" HotSwap Cage SATA/SAS 12G

Option G-14

:

RW335

2x5.25" to 3x3.5" HotSwap Cage SATA/SAS 6G

Option G-15

:

TL335-12G

2x5.25" to 3x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option G-16

:

TL335

2x5.25" to 3x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option G-17

:

RW1225

3x5.25" to 12x2.5" HotSwap Cage SATA/SAS 6G

Option G-18

:

RW435-12G-MS

3x5.25" to 4x3.5" HotSwap Cage SFF-8643 12G

Option G-19

:

RW435-12G

3x5.25" to 4x3.5" HotSwap Cage SATA/SAS 12G

Option G-20

:

RW435

3x5.25" to 4x3.5" HotSwap Cage SATA/SAS 6G

Option G-21

:

TL435-12G-MS

3x5.25" to 4x3.5" TrayLess HotSwap Cage SFF-8643 12G

Option G-22

:

TL435-12G

3x5.25" to 4x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option G-23

:

TL435

3x5.25" to 4x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option G-24

:

RW535-12G

3x5.25" to 5x3.5" HotSwap Cage SATA/SAS 12G

Option G-25

:

RW535

3x5.25" to 5x3.5" HotSwap Cage SATA/SAS 6G

Option G-26

:

TL535-12G

3x5.25" to 5x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option G-27

:

TL535

3x5.25" to 5x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option H-1

:

1MSAS-4SATA-500MM

SFF-8087 Mini-SAS (Host) to Four SATA (Device) cable

Option H-2

:

SFF-8643-500MM

SFF-8643 Mini-SAS HD (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option H-3

:

4SATA-SFF-8643-500MM

Four SATA (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option H-4

:

SFF-8643-4SATA-500MM

SFF-8643 Mini-SAS HD (Host) to Four SATA (Device) cable

Option I-1

:

2U2011A-8080

2U Intel LGA2011 LGA2066 active CPU cooler Square (2U 3U 4U chassis compatible)

Option I-2

:

2U2011A-5694

2U Intel LGA2011 active CPU cooler Narrow (2U 3U 4U chassis compatible)

Option I-3

:

2U115XA

2U Intel LGA115x Xeon 1230 active CPU cooler (2U 3U 4U chassis compatible)

Option I-4

:

2U4094A-SP3

2U AMD EPYC LGA4094 active CPU cooler SP3 (2U 3U 4U chassis compatible)

Option I-5

:

2U1331A-AM4

2U AMD LGA1331 active CPU cooler AM4 (2U 3U 4U chassis compatible)

Option I-6

:

2U3647A-S82

2U Intel LGA3647 active CPU cooler Square (2U 3U 4U chassis compatible)

Option I-7

:

2U3647A-R82-1

2U Intel LGA3647 active CPU cooler Narrow (2U 3U 4U chassis compatible)
