MICRO-101B BLACK MICROATX DESKTOP-MINITOWER-WALLMOUNT CHASSIS

Design announcement dated on June 29, 2017, webpage updated on October 30, 2024

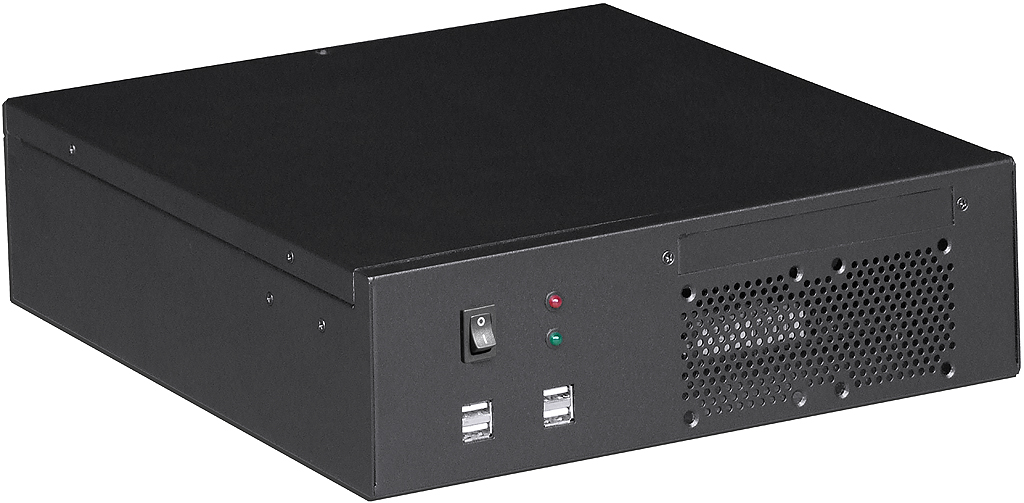

Desktop, MiniTower, Wallmount, Micro ATX motherboard form factor solutions

The most particular feature of this product is designed as multifunctional applications, the Desktop mode is suitable for enterprise server application, the MiniTower mode also applies to workstation computing applications, the Wallmount mode for industrial controls and NVR surveillance systems (wallmount bracket is option), this chassis can support maximum one slimline DVDRW and two 2.5" SSD/HDD device. Rugged 1.0mm thickness SGCC sheet metal constructed. Four low profile expansion-cards allowed, welcome for distribution.

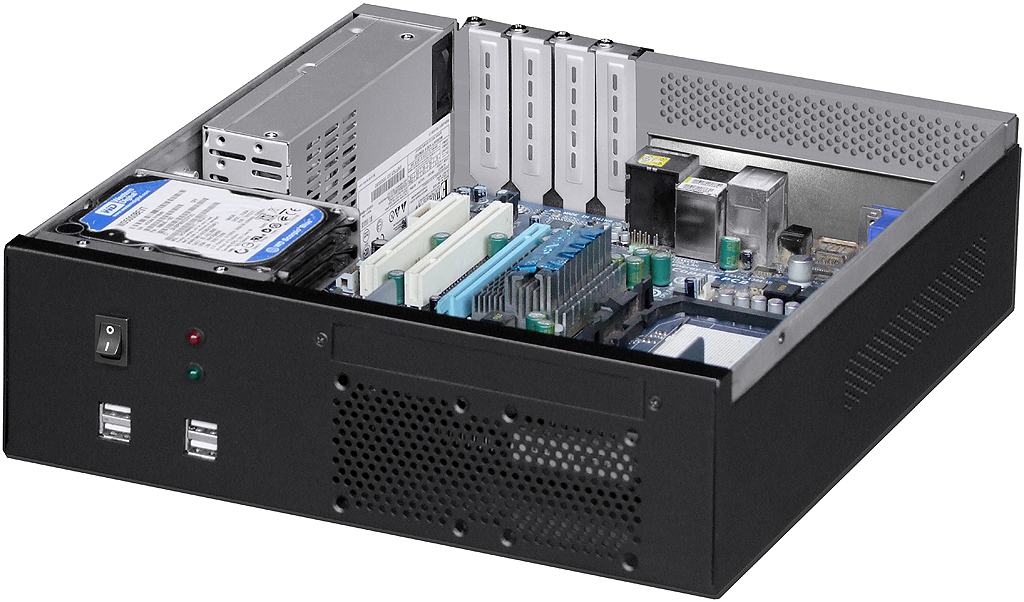

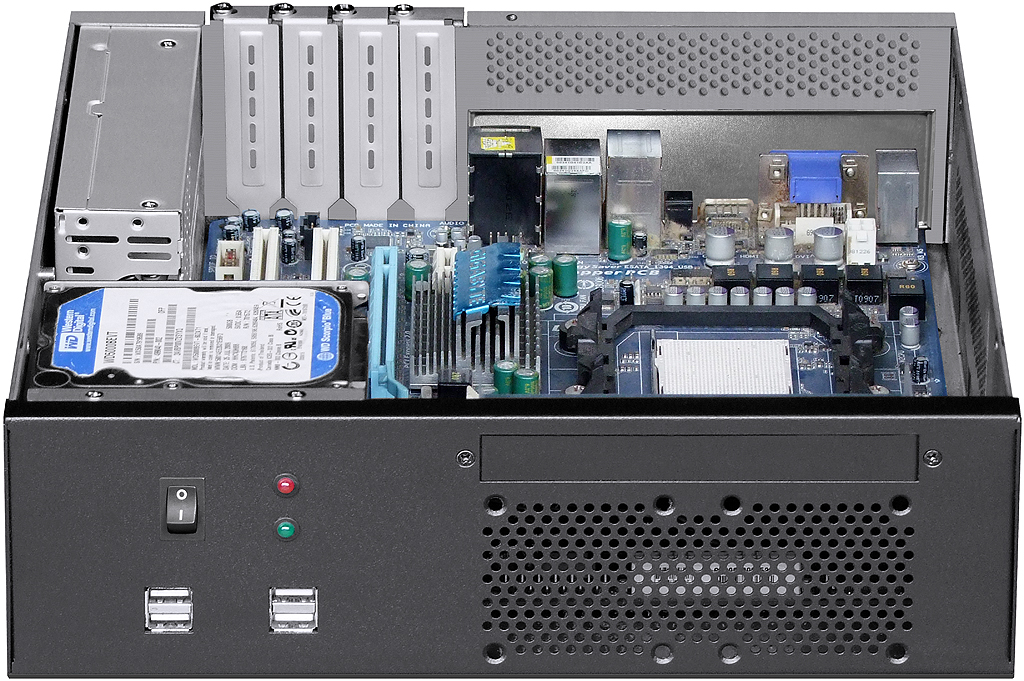

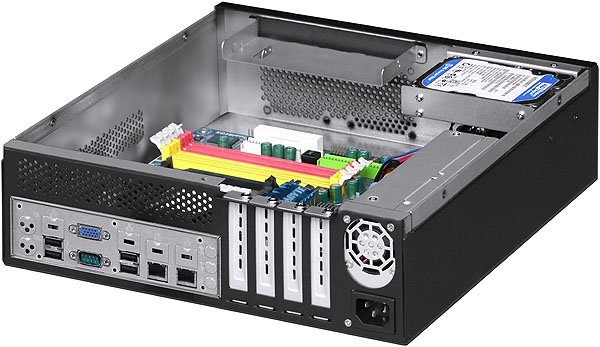

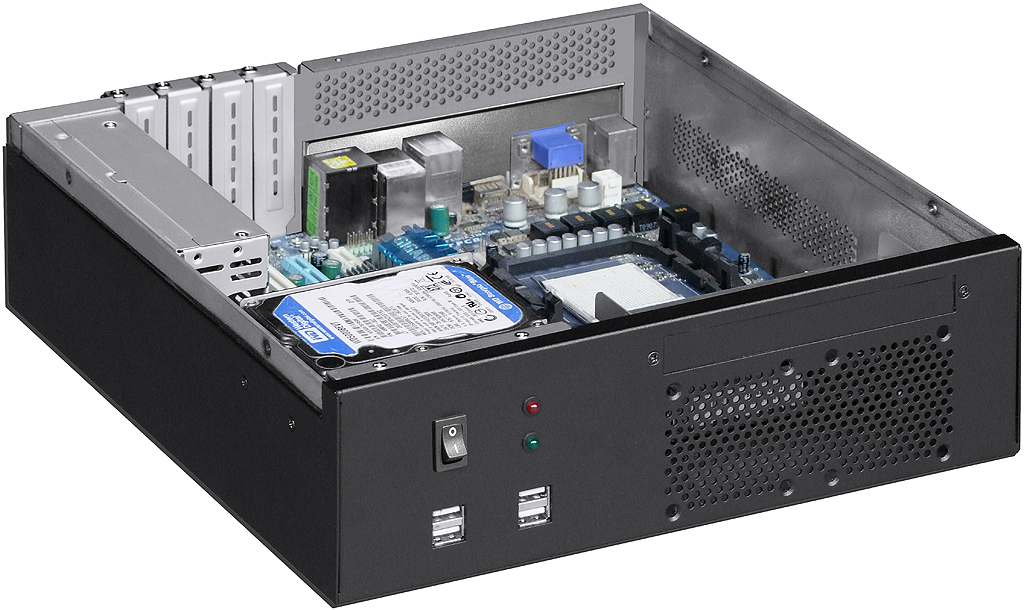

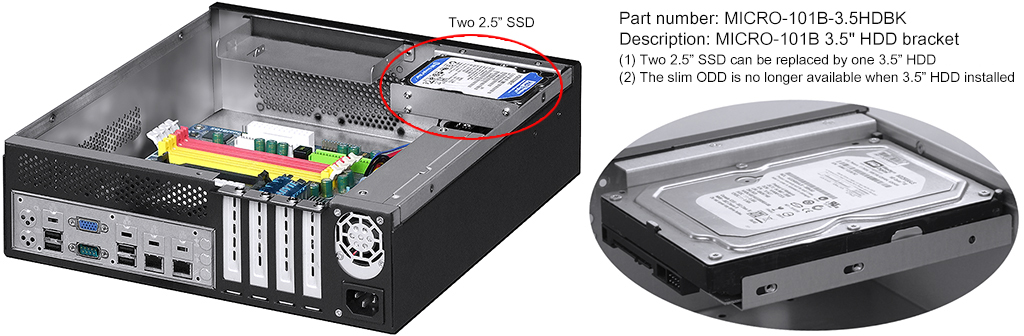

* Storage space: 1 x slim ODD, 2 x 2.5" SSD/HDD

* The main sheet metal constructed by 1.0mm thickness SGCC mechanism

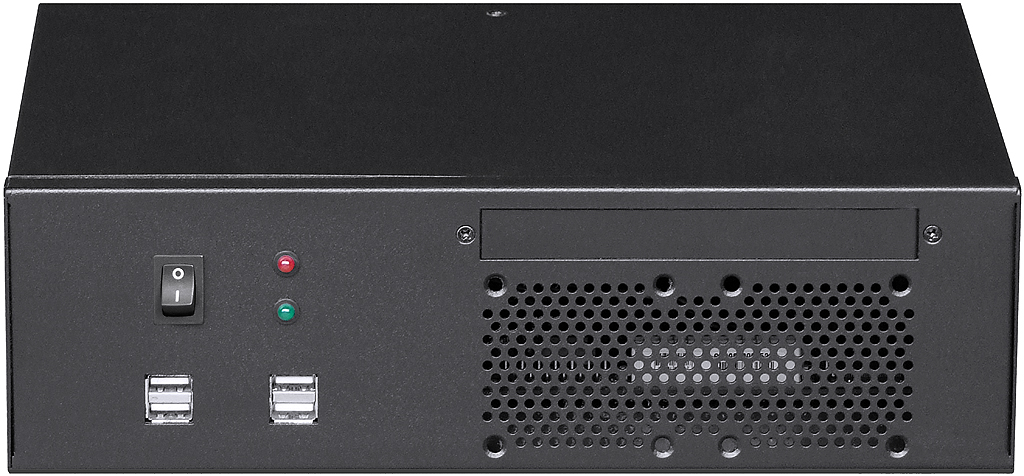

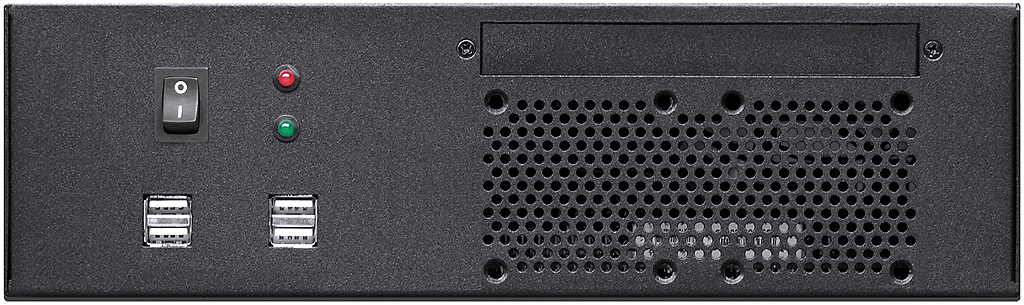

* Front bezel equipped with four USB 2.0, Red HDD/Green Power LED, Power switch

* Support two 60mmx25mm silent fans at front bezel as option (fan part# D60SM-12)

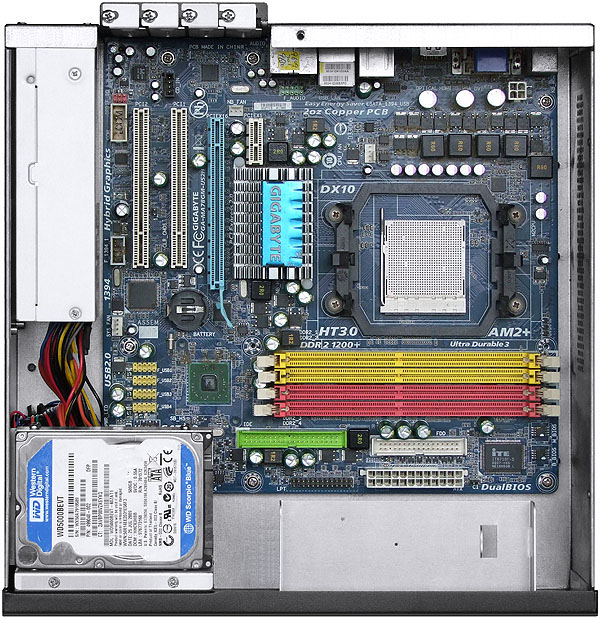

* Compatible MB: MicroATX(9.6"x9.6"), Mini-ITX(6.7"x6.7")

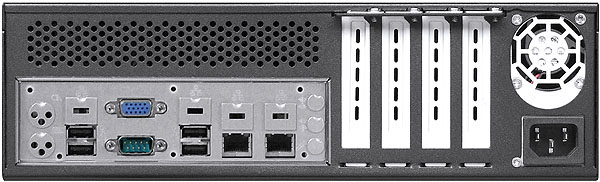

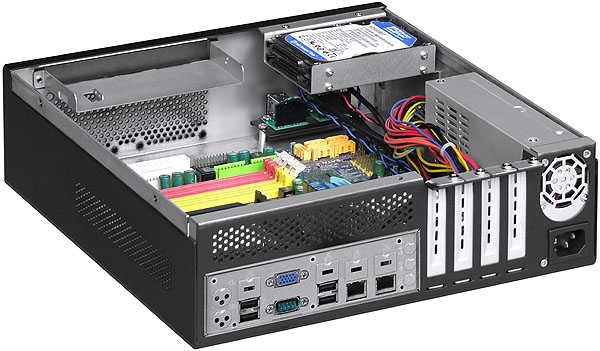

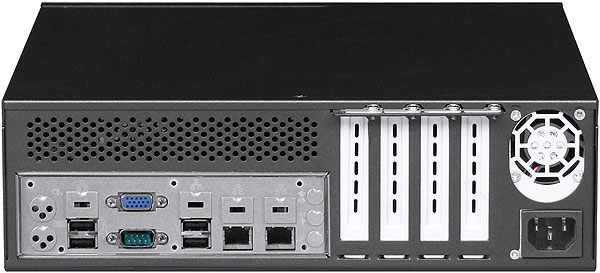

* Support 4-slot low profile expansion cards up to maximum 200mm deep

* Support standard 1U FlexATX 250W or 300W power supply (max. psu depth: 150mm)

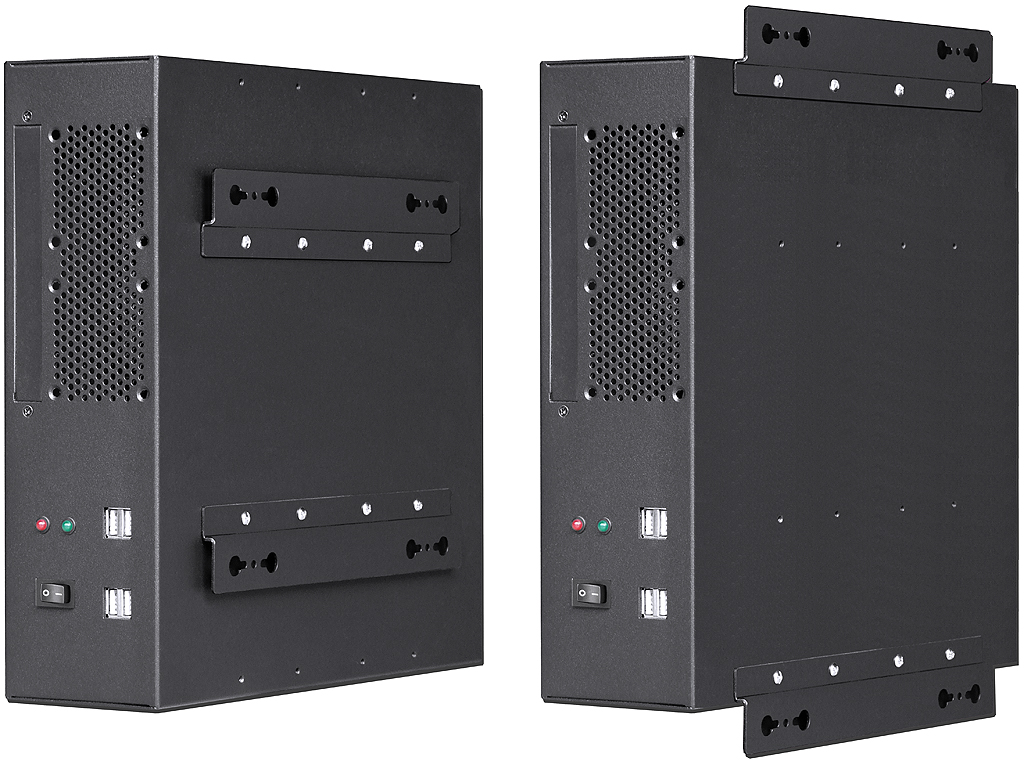

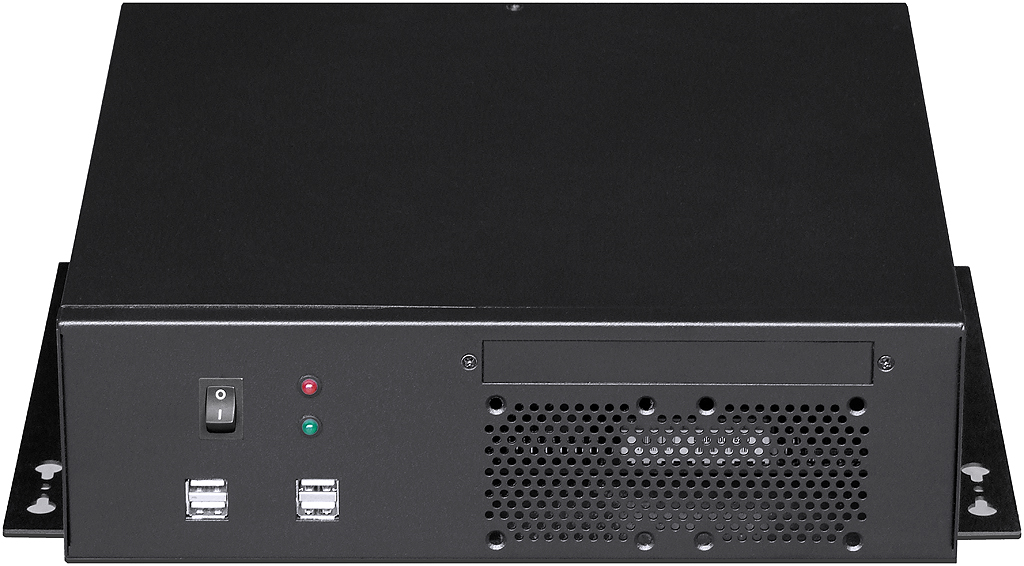

* Support wallmount installation as option (part# MICRO-101B-WALL-BK, one pair)
* Standard paint: scratch-resistant Black textured or scratch-resistant Beige RAL 9018
* Genesys Group chassis with build-in electronics in global 3 years warranty
* Chassis dimension: 300mm x 88mm x 312mm (W x H x D)

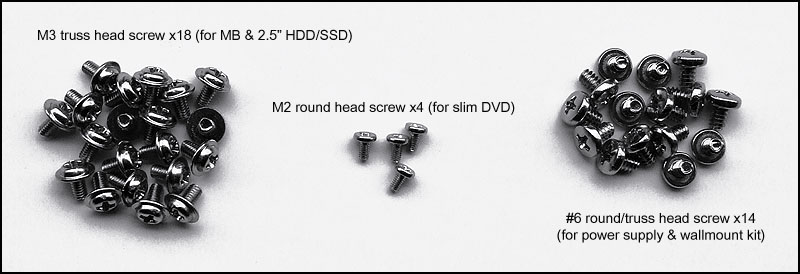

* Accessory: M3 truss screw x18pcs, #6 round screw x14pcs, M2 screw x4pcs

* Package: NW 2.5KG, GW 3.7KG, 1.09 CUFT (42x42x17.5cm, one box packed) #

Model#

:

MICRO-101B

Black MicroATX desktop-minitower-wallmount chassis

Option A

:

MICRO-101B-WALL-BK

MICRO-101B black wallmount kit (one pair, thickness 1.6mm, Net weight 0.25KG)

Option B

:

D60SM-12

YateLoon 60mmx25mm intake fan (part# is 1pcs, can install 2pcs at front bezel)

Option C-1

:

ENP-7025B

1U FlexATX 250W power supply with PFC (psu size at W.81.5 x H.40.5 x L.150/mm)

Option C-2

:

ENP-7130B

1U FlexATX 300W power supply with PFC (psu size at W.81.5 x H.40.5 x L.150/mm)

Option D-1

:

2U2011A-8080

2U Intel LGA2011 LGA2066 active CPU cooler Square (2U 3U 4U chassis compatible)

Option D-2

:

2U2011A-5694

2U Intel LGA2011 active CPU cooler Narrow (2U 3U 4U chassis compatible)

Option D-3

:

2U115XA

2U Intel LGA115x Xeon 1230 active CPU cooler (2U 3U 4U chassis compatible)

Option D-4

:

2U4094A-SP3

2U AMD EPYC LGA4094 active CPU cooler SP3 (2U 3U 4U chassis compatible)

Option D-5

:

2U1718A-AM5

2U AMD AM4 AM5 active CPU cooler (2U 3U 4U chassis compatible)

Option D-6

:

2U3647A-S82

2U Intel LGA3647 active CPU cooler Square (2U 3U 4U chassis compatible)

Option D-7

:

2U3647A-R82-1

2U Intel LGA3647 active CPU cooler Narrow (2U 3U 4U chassis compatible)

Option D-8

:

2U4189A-M82

2U Intel LGA4189 active CPU cooler (2U 3U 4U chassis compatible)

Option D-9

:

2U1700A-V15

2U Intel LGA1700 active CPU cooler (2U 3U 4U chassis compatible)
