MICRO-102B BLACK MICROATX DESKTOP-MINITOWER-WALLMOUNT CHASSIS

Design announcement dated on September 18, 2017, webpage updated on February 23, 2024



Workstation, Desktop, MiniTower, Wallmount solution

Micro ATX or Mini-ITX motherboard form factor recommended
The biggest feature of this design is a multi-functional architecture which is suitable for small and medium-sized workstation use. The MiniTower as vertical installation mode is also applicable, also the wallmount mode is suitable for industrial control and even NVR monitoring system (wallmount kit is option). Drive space allows maximum one 2.5" and one 3.5" hard drive inside. Rugged 1.0mm SGCC sheet metal as durable strength of the mechanism. In addition, the product is also standard equipped with quick removable dust filter device that effectively prevent dust into the system inside. Expansion card function is also very powerful to support double-layer thickness of GPU card installation, welcome world-wide distribution.

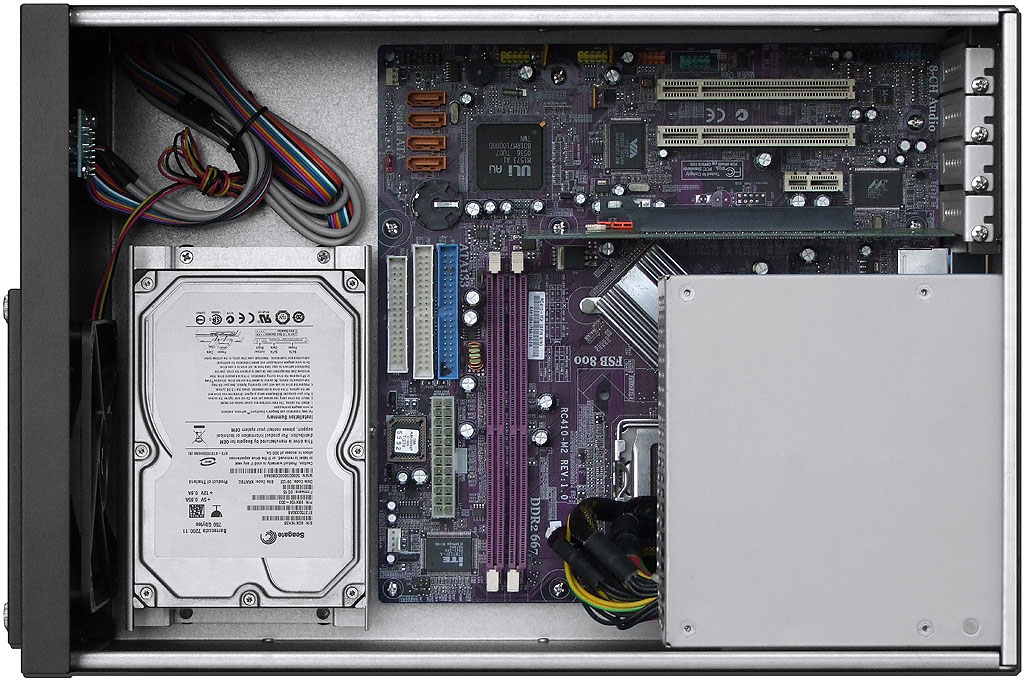

* Storage space: 1 x 3.5" HDD, 1 x 2.5" SSD/HDD

* SGCC sheet metal works at 1.0mm thickness mechanical construction

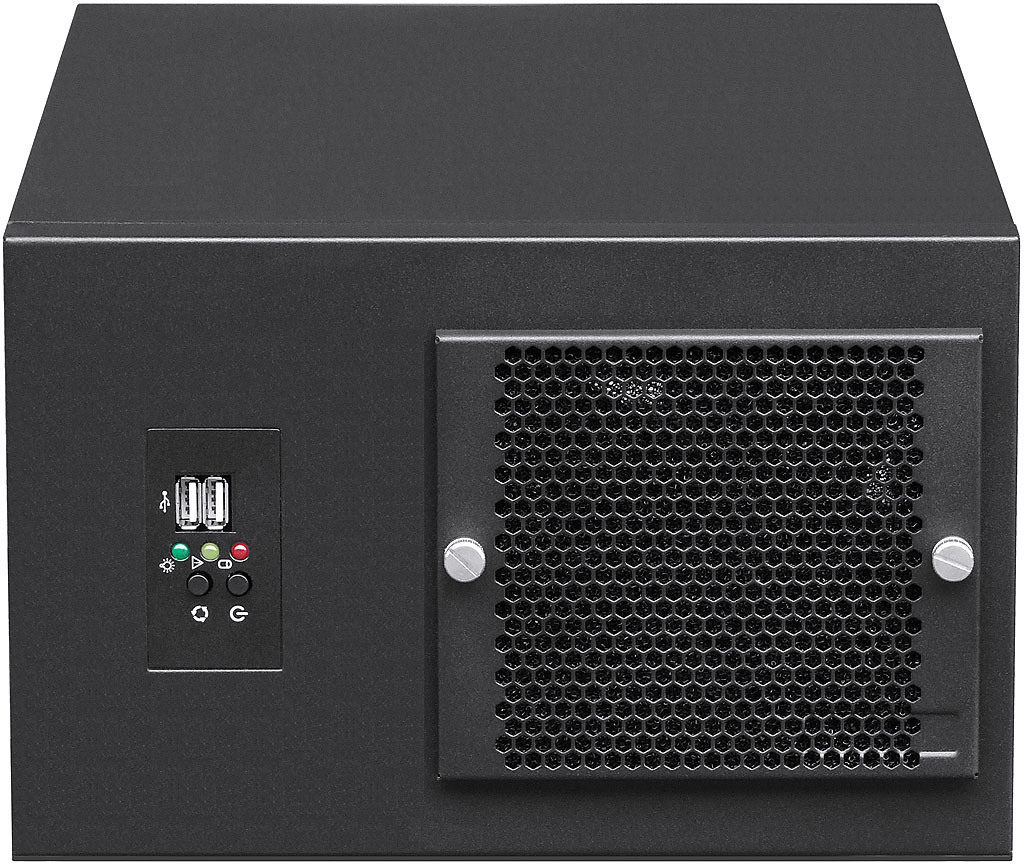

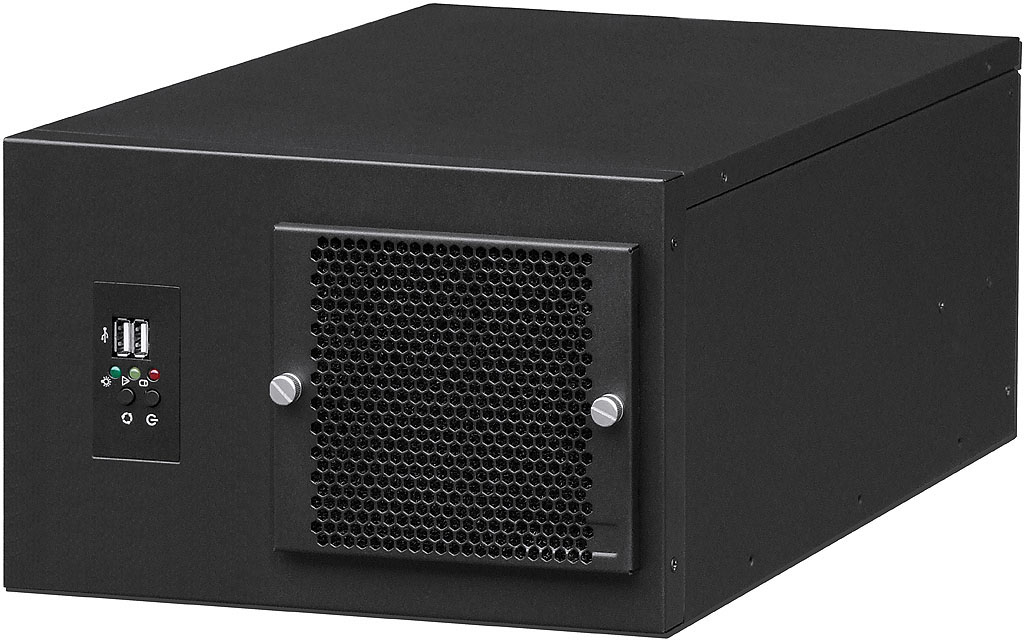

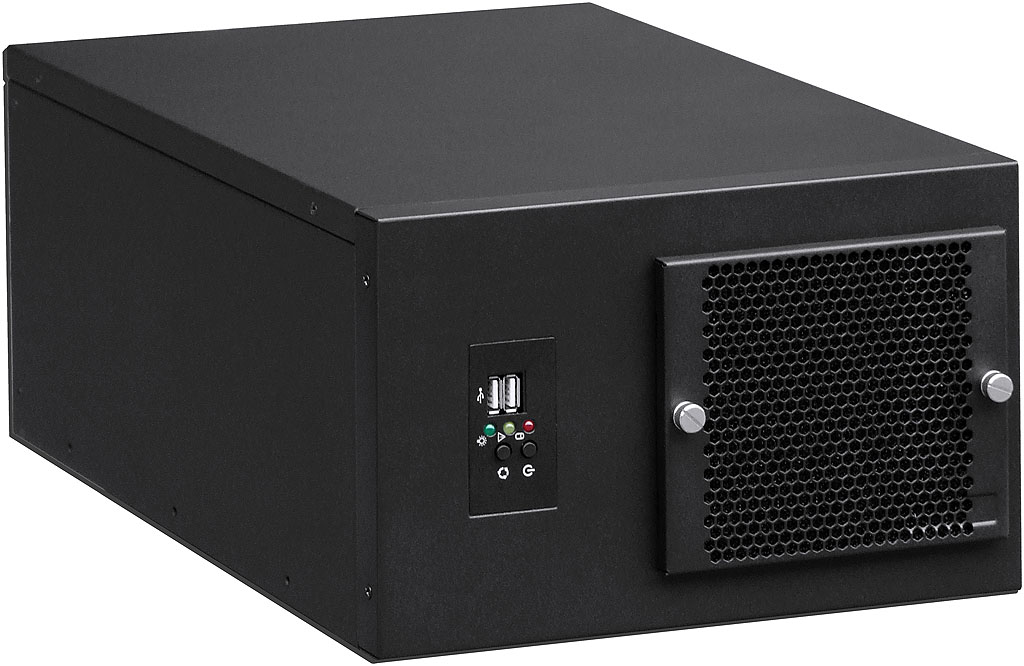

* Tool-less removable front dust filter with captive hand screws

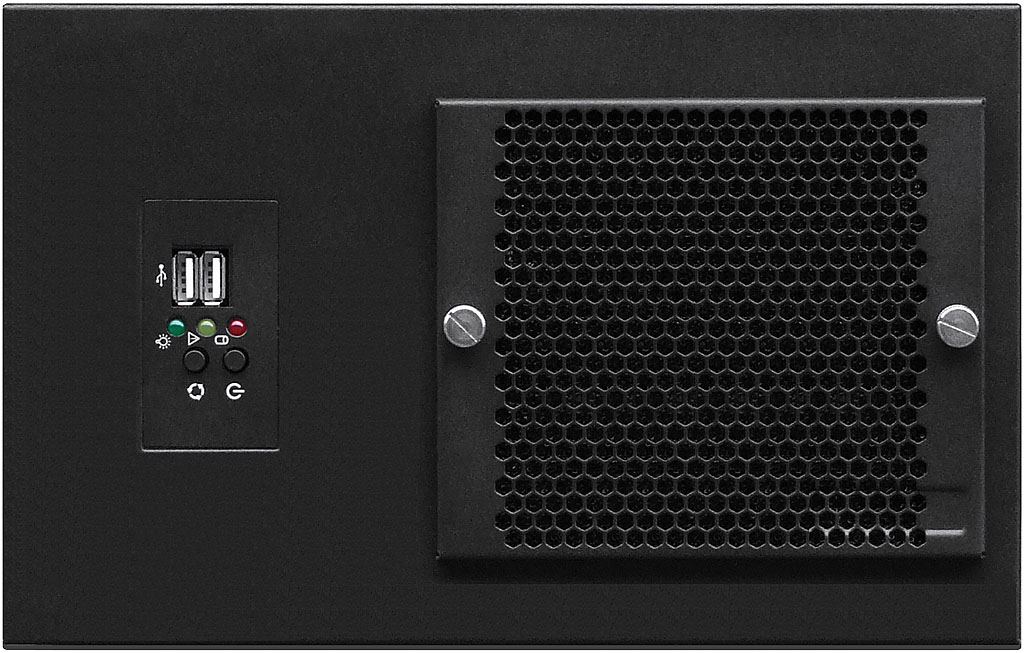

* Two USB 2.0 ports and LAN/HDD/Power LED at front bezel (two USB 3.0 as option)

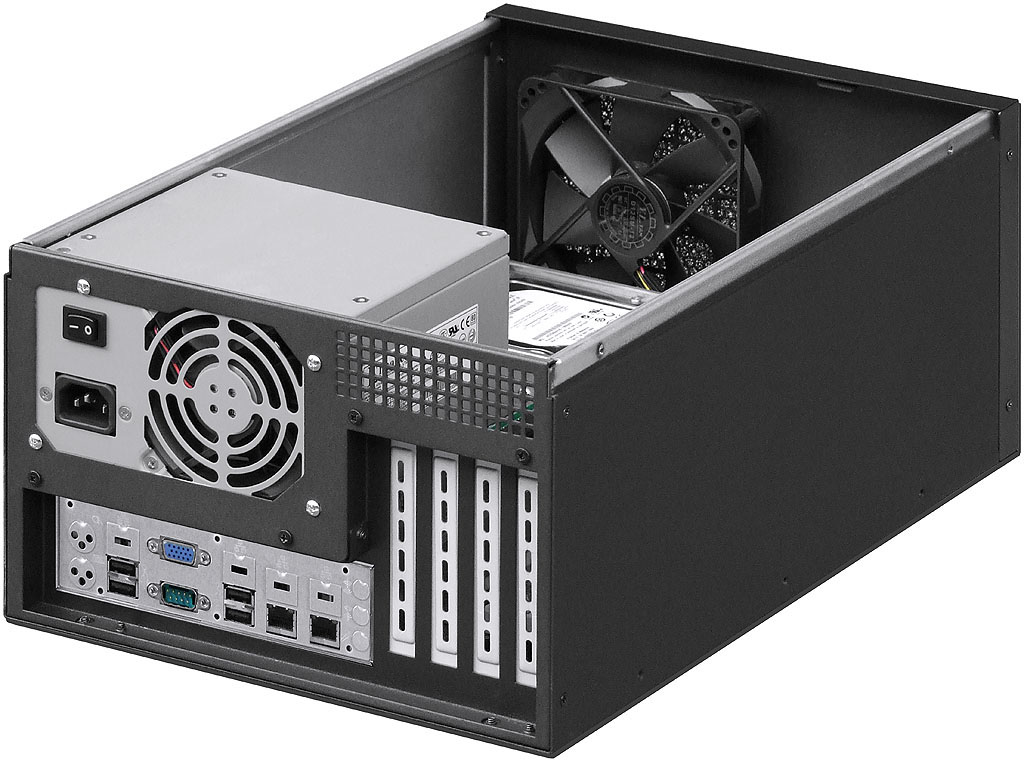

* One brand new 120mmx25mm intake fan behind dust filter (fan part# D12SM-12)

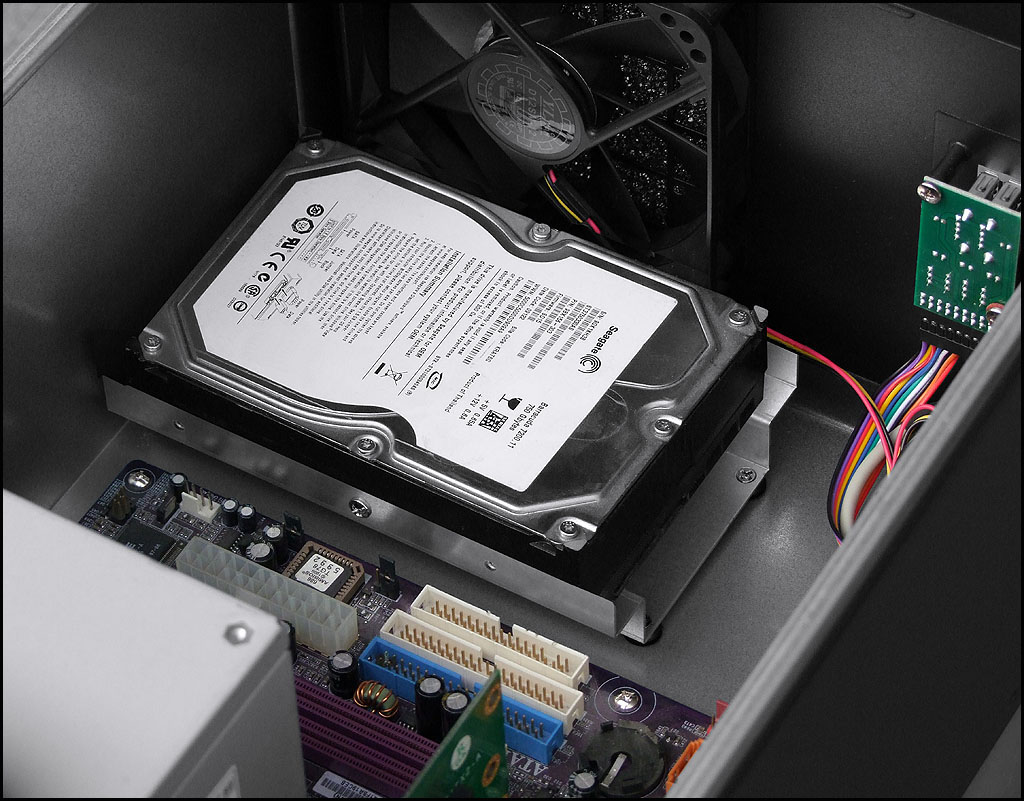

* HDD bracket equipped with vibration reduction that extends storage appliance life

* Compatible motherboard: MicroATX(9.6"x9.6"), Mini-ITX(6.7"x6.7")

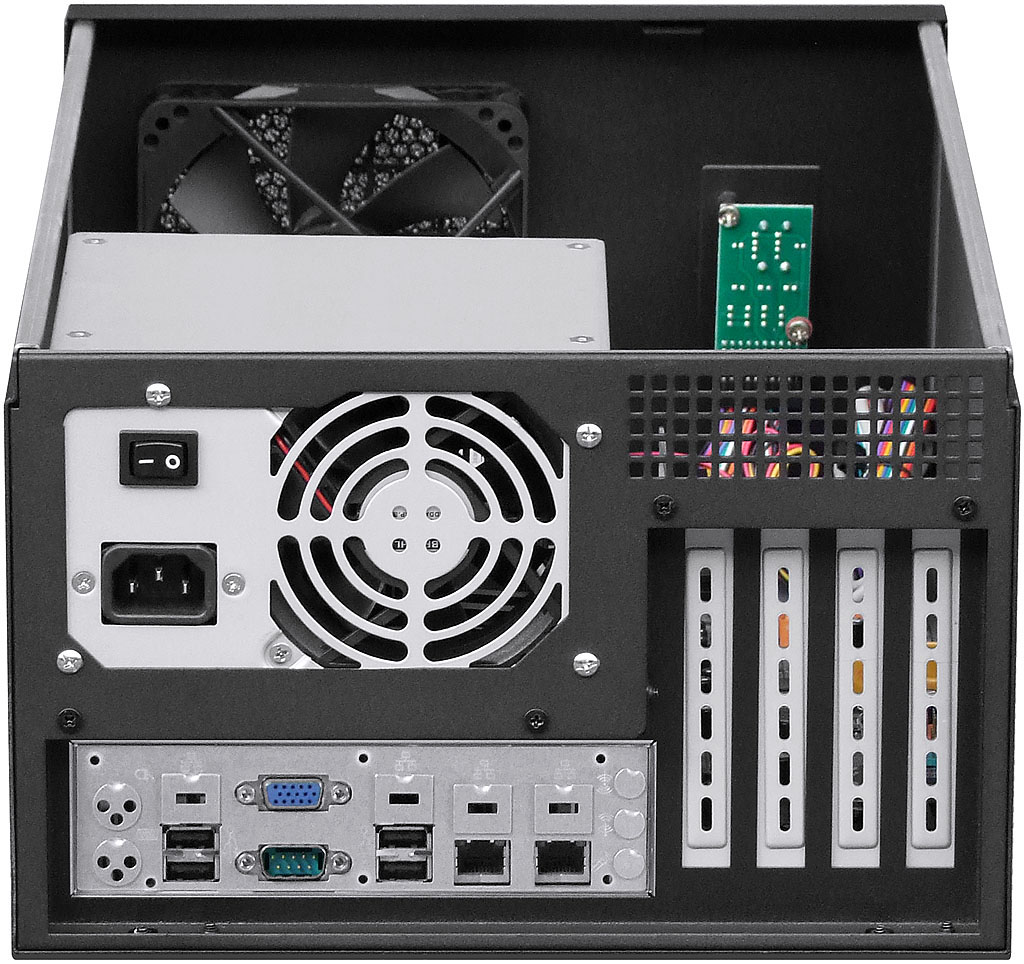

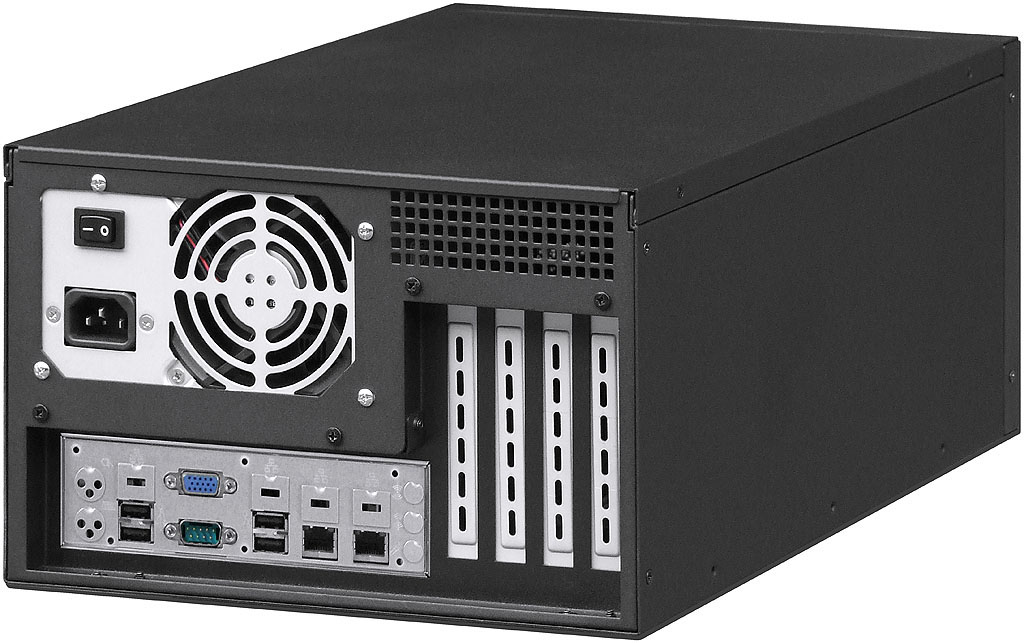

* 4-slot full height expansion cards up to maximum 350mm deep

* Support PS2 500W~1600W power supply with PFC (optional brackets not required)

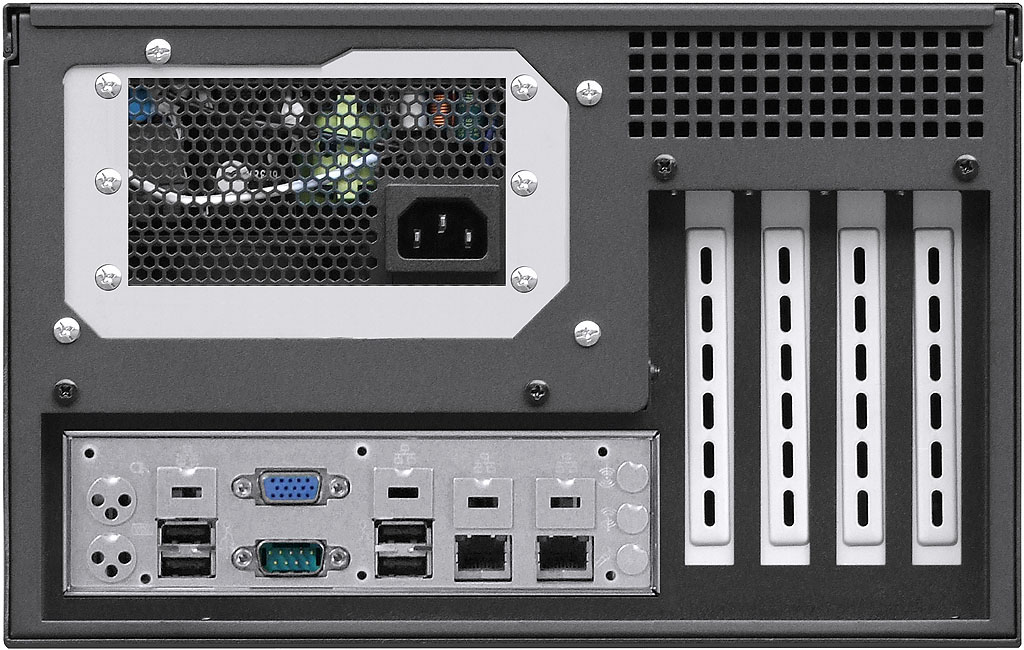

* Support SFX 850W~1300W power supply with PFC (optional part# C-1 required)

* Support 1U Flex 300W~600W power supply with PFC (optional part# D-1 required)

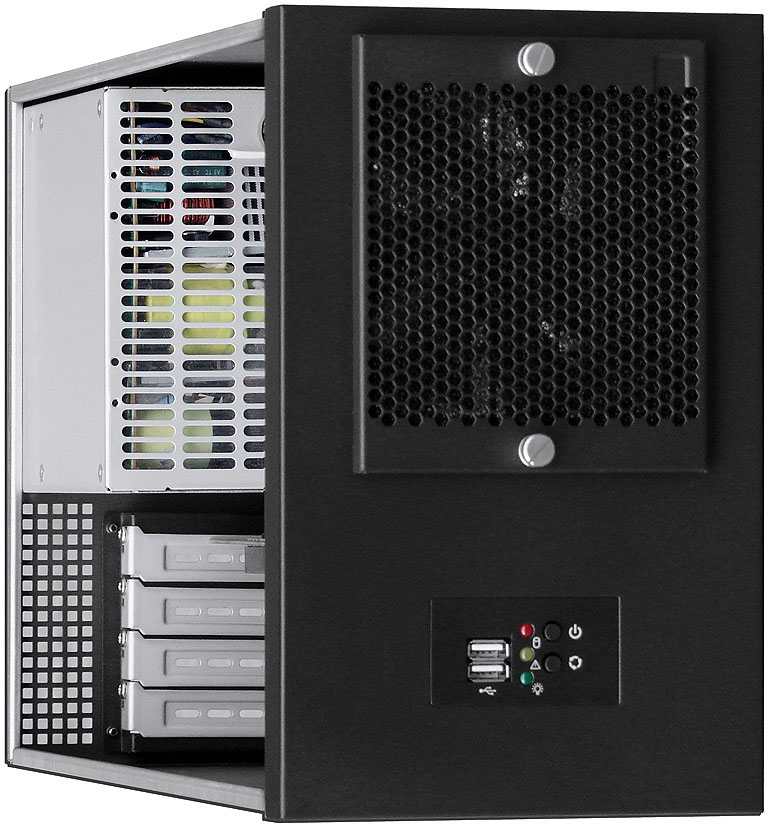

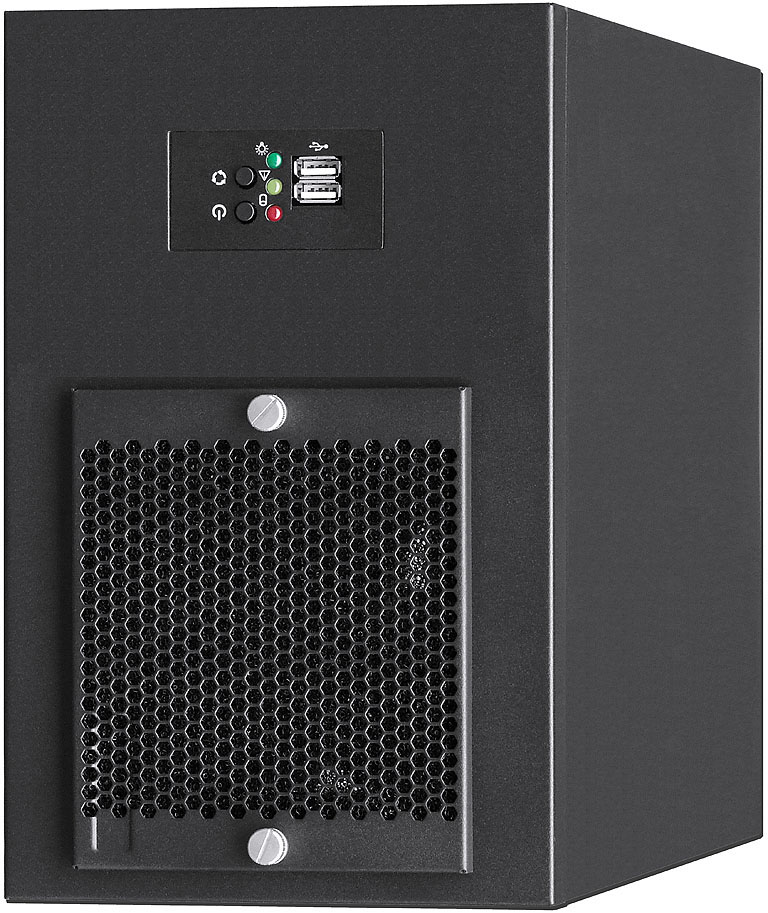

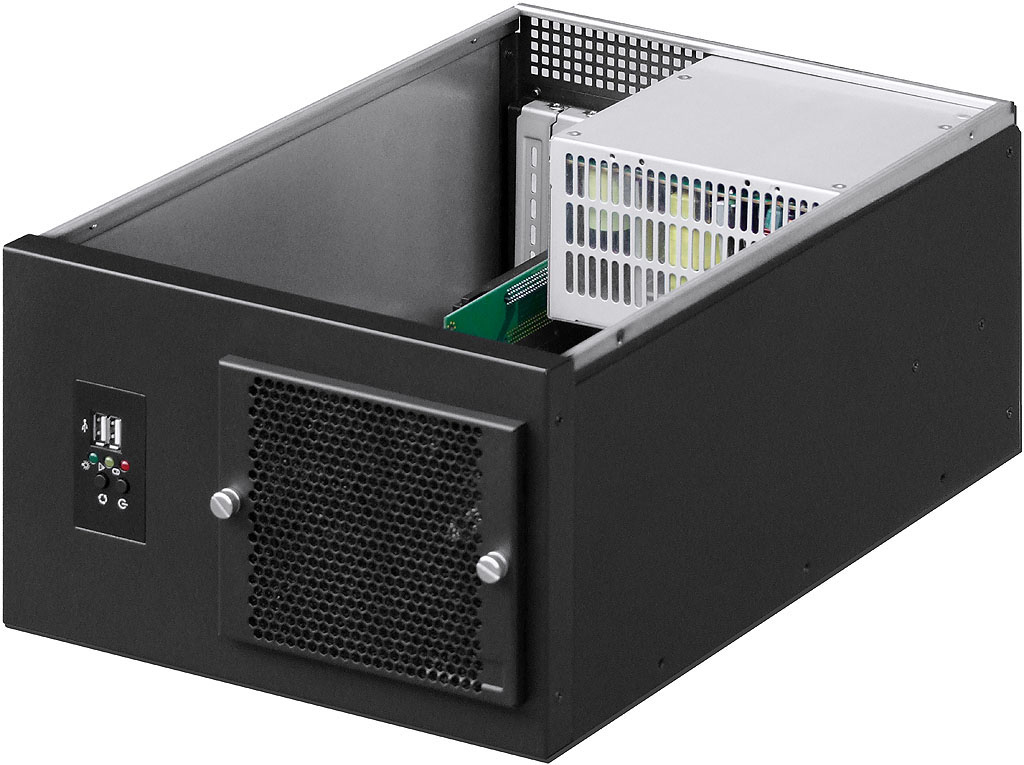

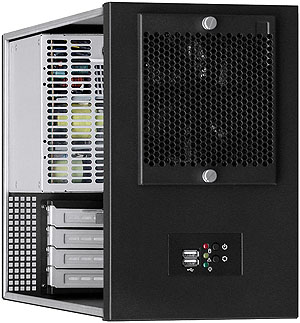

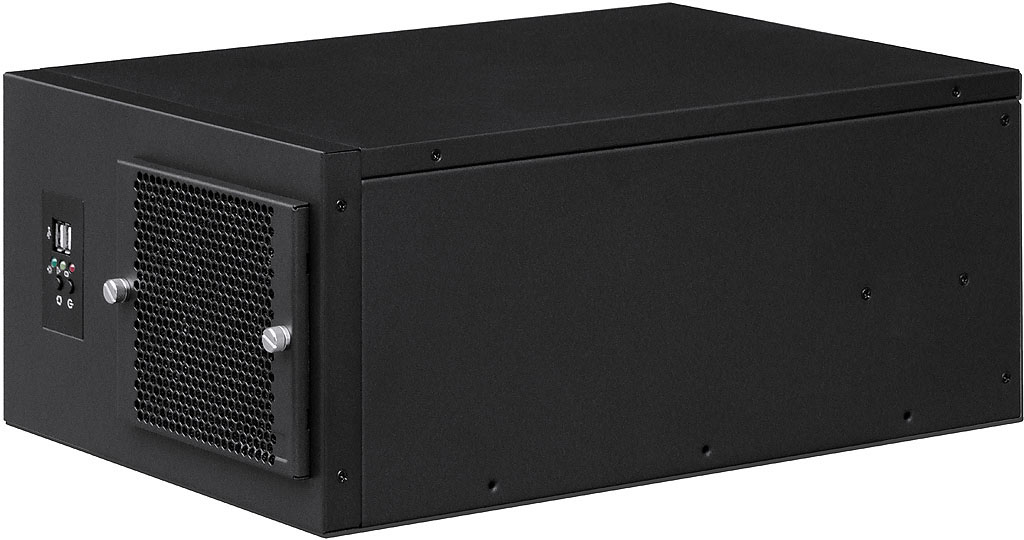

* Support Desktop, MiniTower, and Wallmount mode (if Wallmount, part# A required)

* Support Wallmount installation (optional part# A required)
* Standard paint: scratch-resistant Black textured
* Genesys Group chassis with build-in electronics in global 3 years warranty

* Chassis dimension: D.400 x W.270 x H.170 /mm

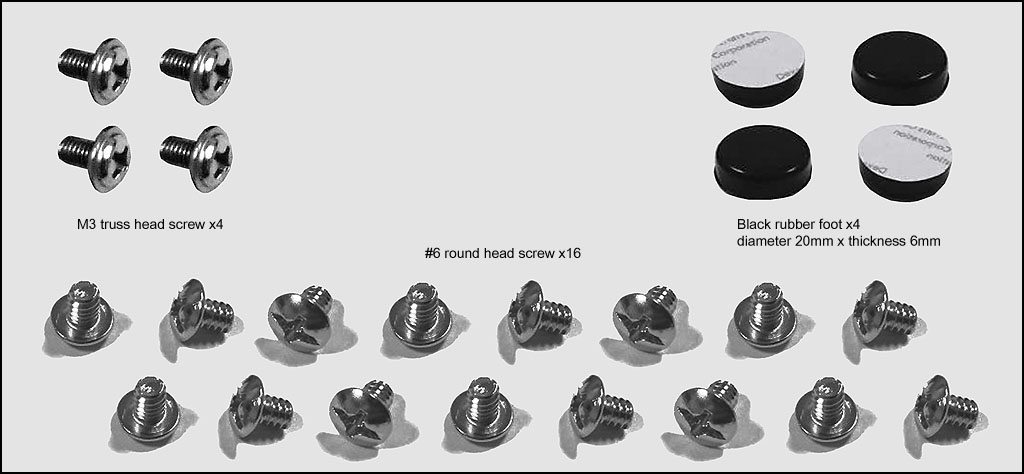

* Accessory: M3 truss x4pcs, #6 round x16pcs, black rubber foot x4pcs

* Package: NW 4.31KG, GW 5.65KG, 1.79 CUFT (52x39x25cm, one box packed)





Model#

:

MICRO-102B

Black MicroATX desktop-minitower-wallmount chassis

Option A

:

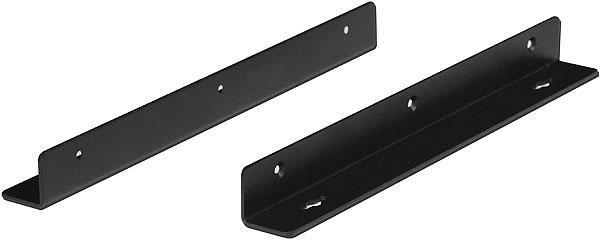

MICRO-100B-WALL-BK

Black wallmount kit (one pair, thickness 2.0mm, NW 0.51KG), MICRO-100B & 102B compatible

Option B

:

PS2 PSU

8cm & 12cm & 14cm fan version PS2 power supply (depth at 140mm~200mm)

Option C

:

SFX PSU

SFX power supply (D.100 x W.125 x H.63.5 /mm)

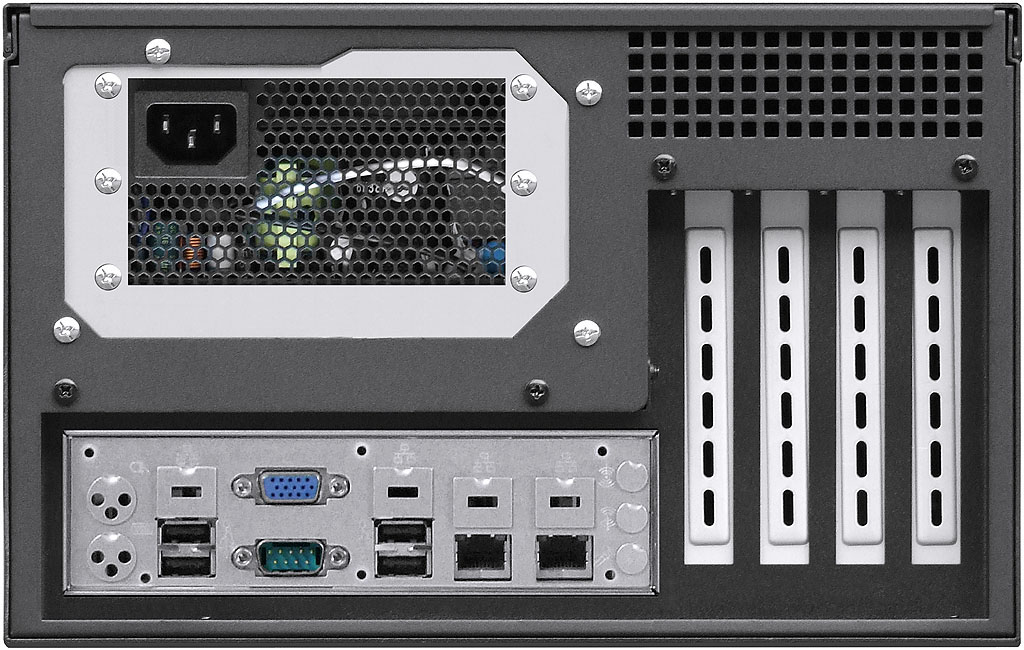

Option C-1

:

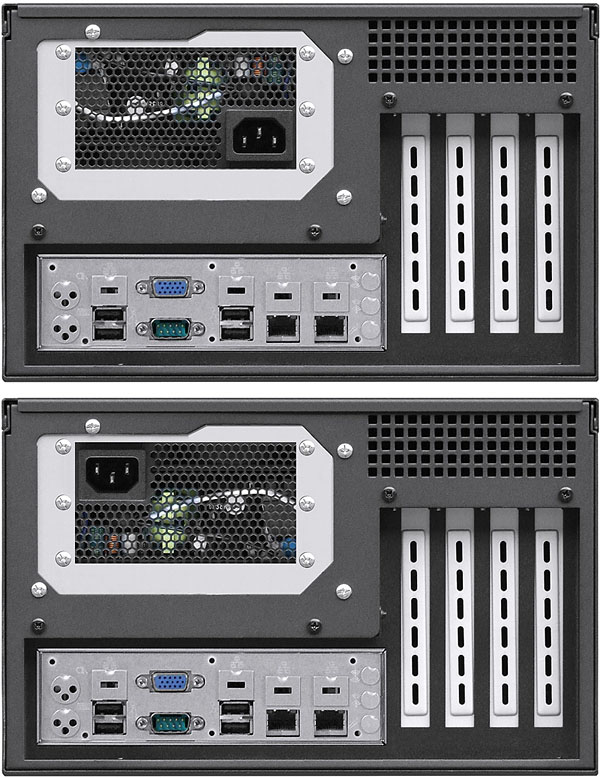

PS2-SFX-BK1

PS2 to SFX PSU rear bracket

Option D

:

1U Flex ATX PSU

1U FlexATX 300w~600W power supply (D.150 x W.81.5 x H.40.5 /mm)

Option D-1

:

PS2-FLEX-BK

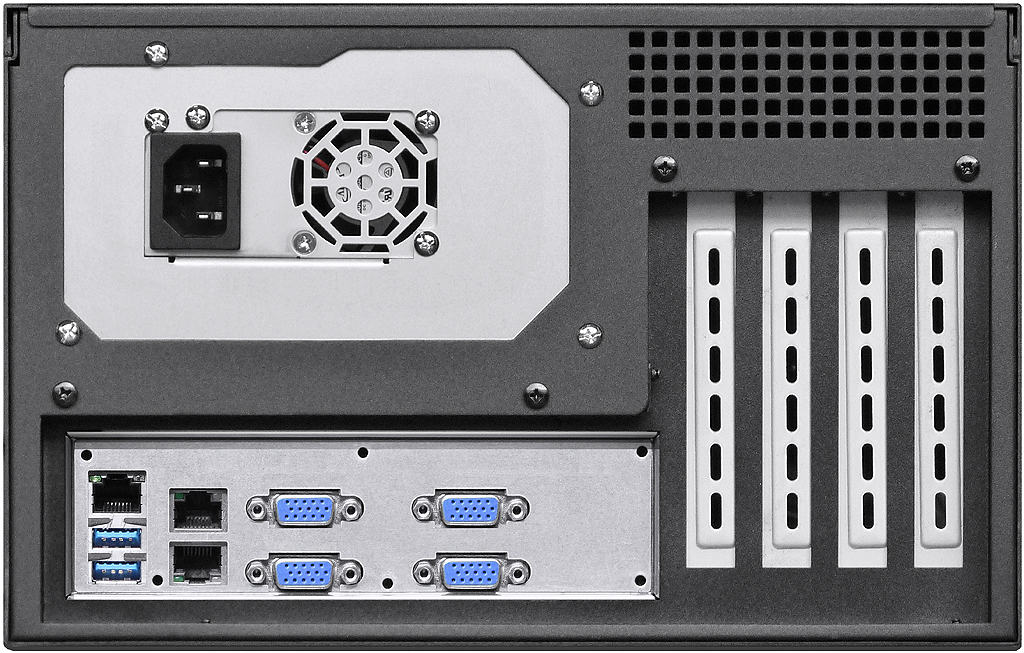

PS2 to FLEX PSU rear bracket (1U Flex ATX power supply including FSP250-52FGB compatible)

Option E

:

1U ATX PSU

1U ATX 300w~600W power supply (1U ATX power supply width at 100mm compatible)

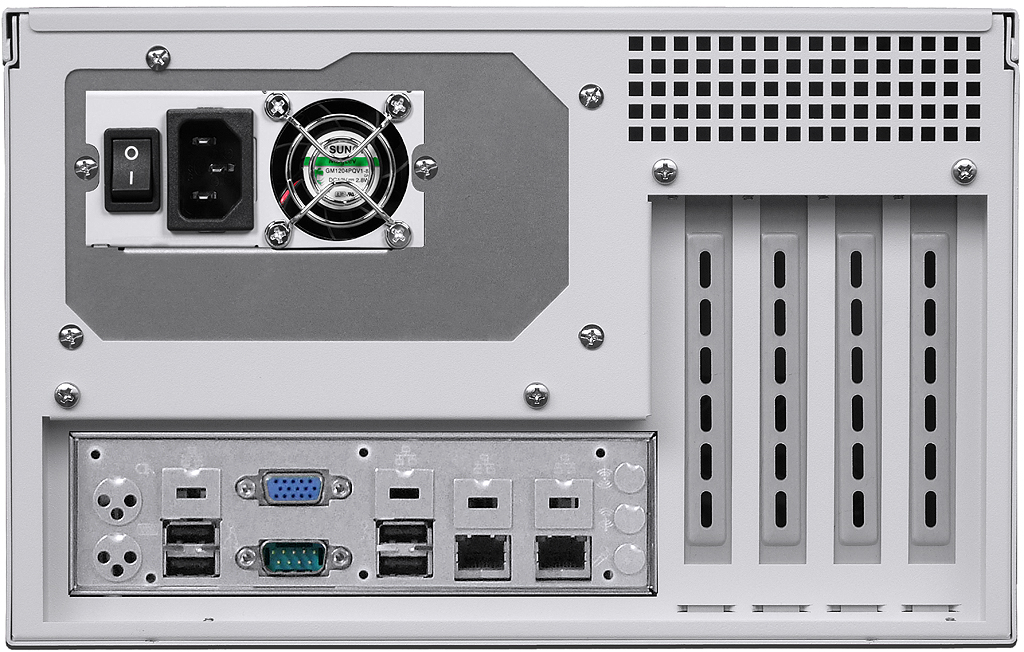

Option E-1

:

PS2-ATX-BK

PS2 to 1U ATX PSU rear bracket (1U ATX power supply width at 100mm compatible)

Option F-1

:

2U2011A-8080

2U Intel LGA2011 LGA2066 active CPU cooler Square (SFX PSU mode, CPU cooler max 70mm high)

Option F-2

:

2U2011A-5694

2U Intel LGA2011 active CPU cooler Narrow (SFX PSU mode, CPU cooler max height at 70mm)

Option F-3

:

2U115XA

2U Intel LGA115x Xeon 1230 active CPU cooler (SFX PSU mode, CPU cooler max height at 70mm)

Option F-4

:

2U4094A-SP3

2U AMD EPYC LGA4094 active CPU cooler SP3 (SFX PSU mode, CPU cooler max height at 70mm)

Option F-5

:

2U1331A-AM4

2U AMD LGA1331 active CPU cooler AM4 (SFX PSU mode, CPU cooler max height at 70mm)

Option F-6

:

2U3647A-S82

2U Intel LGA3647 active CPU cooler Square (SFX PSU mode, CPU cooler max height at 70mm)

Option F-7

:

2U3647A-R82-1

2U Intel LGA3647 active CPU cooler Narrow (SFX PSU mode, CPU cooler max height at 70mm)

Option F-8

:

2U4189A-M82

2U Intel LGA4189 active CPU cooler (SFX PSU mode, CPU cooler max height at 70mm)

Option F-9

:

2U1700A-V15

2U Intel LGA1700 active CPU cooler (SFX PSU mode, CPU cooler max height at 70mm)

Option F-10

:

JB18A

1U Intel LGA115x Xeon 1230 active CPU cooler (PS2 PSU mode, max height at 60mm)

Option F-11

:

JB15C-8080

1U Intel LGA2011 LGA2066 active CPU cooler (PS2 PSU mode, CPU cooler max height at 60mm)

Option F-12

:

1U3647A-R73

1U Intel LGA3647 active CPU cooler Narrow (PS2 PSU mode, CPU cooler max height at 60mm)

Option F-13

:

1U1700A-V12

1U Intel LGA1700 active CPU cooler (PS2 PSU mode, CPU cooler max height at 60mm)

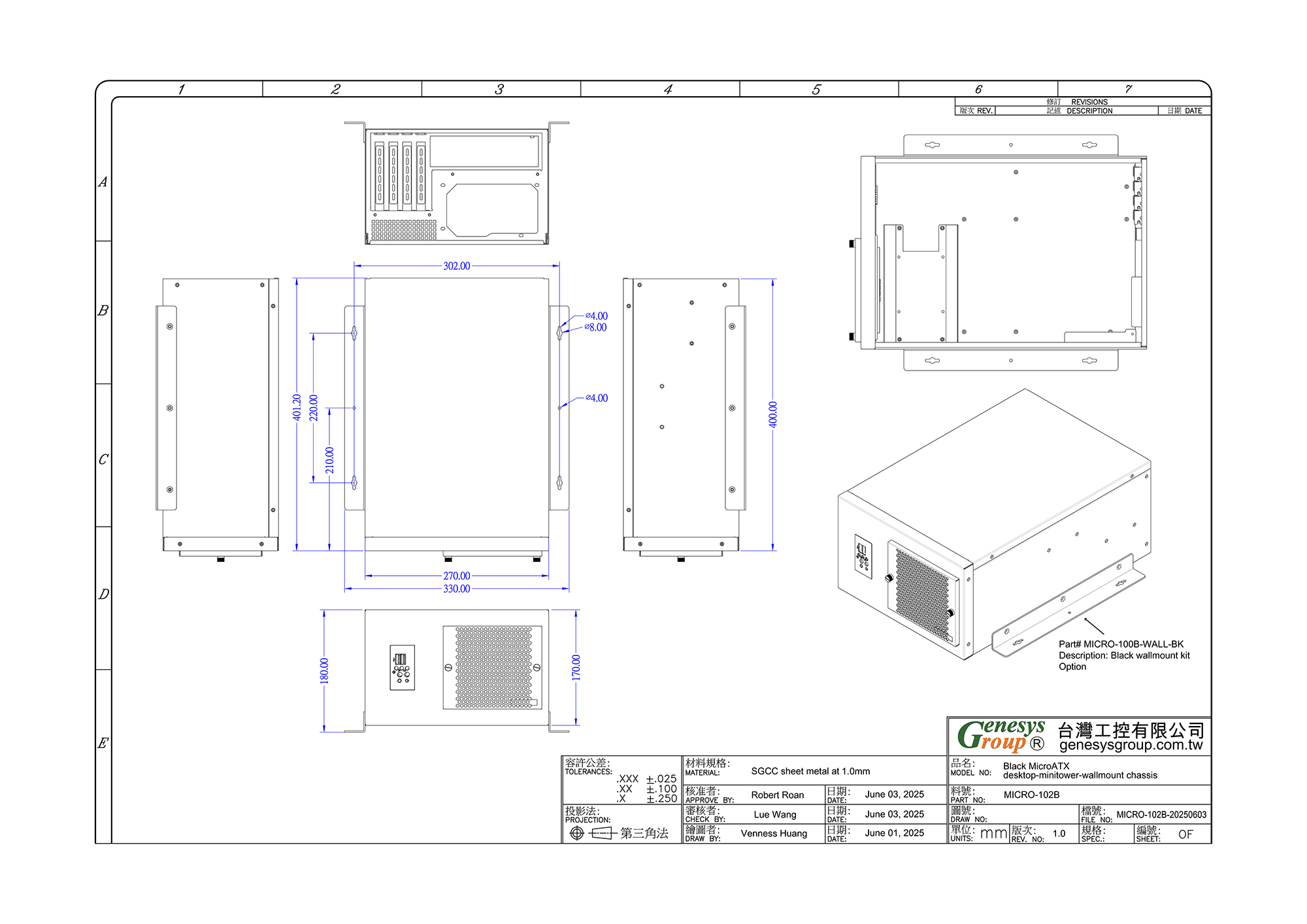

Catalogue          Dimension Drawing
