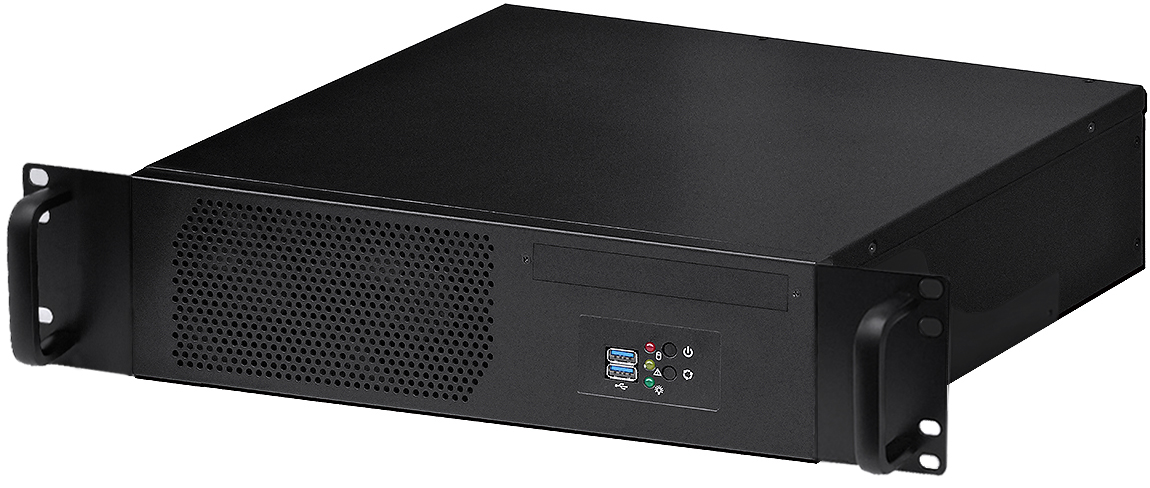

MICRO-103B BLACK MICROATX DESKTOP-MINITOWER-WALLMOUNT CHASSIS

Design announcement dated on February 14, 2018, webpage updated on December 04, 2024



Desktop, MiniTower, Wallmount solution

Micro ATX or Mini-ITX motherboard form factor recommended

The most particular feature of this product is designed as multifunctional applications, the Desktop mode is suitable for enterprise server application, the MiniTower mode also applies to workstation computing applications, the Wallmount mode for industrial controls and NVR surveillance systems (wallmount bracket is option), this chassis can support maximum one slimline DVDRW and four 2.5" SSD/HDD device. Rugged 1.0mm thickness SGCC sheet metal constructed. Four low profile expansion-cards allowed, welcome for distribution.

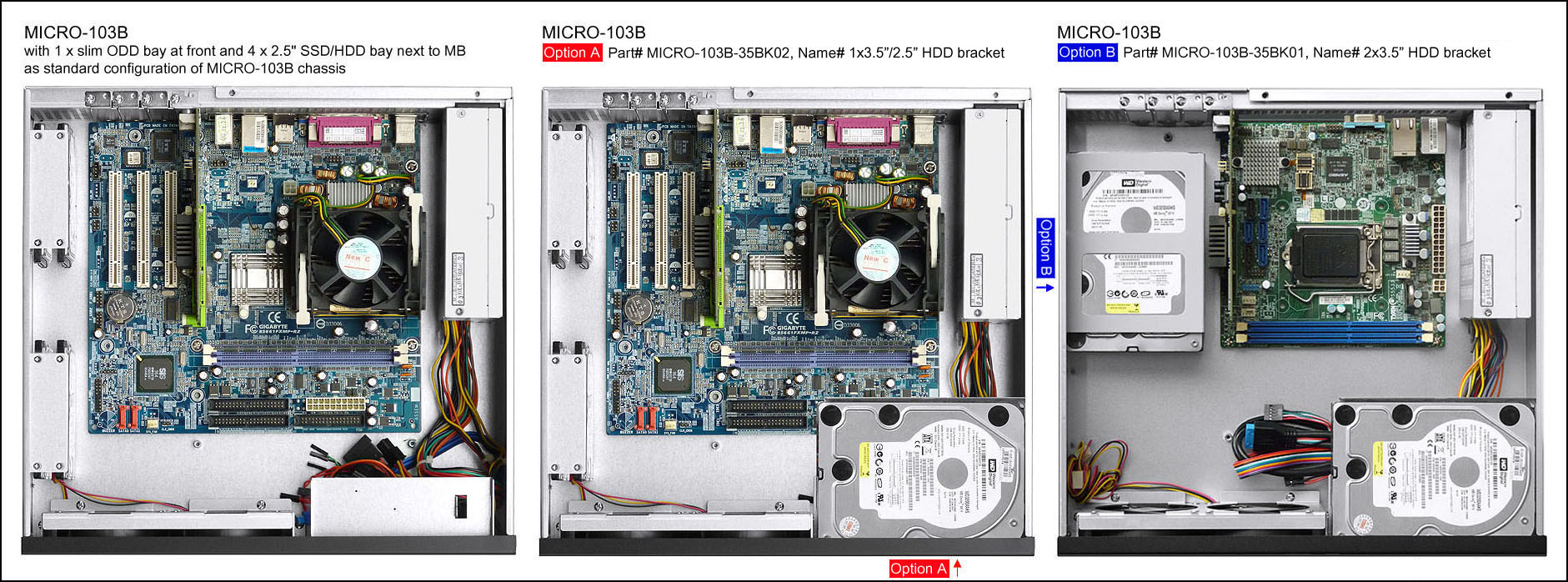

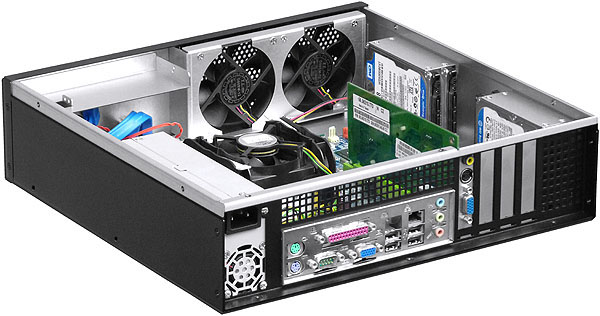

* Storage space: 1 x slim ODD, 4 x 2.5" SSD/HDD

* The main sheet metal constructed by 1.0mm thickness SGCC mechanism

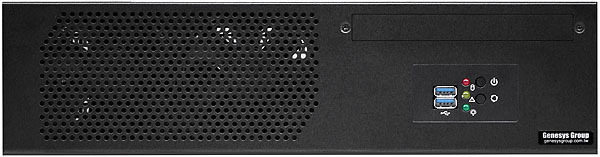

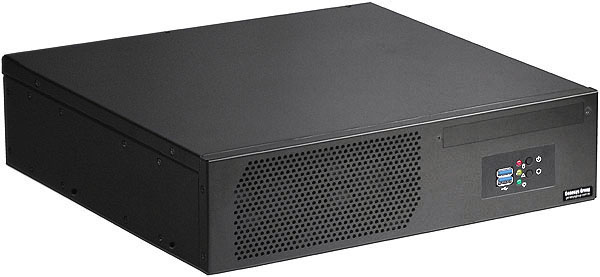

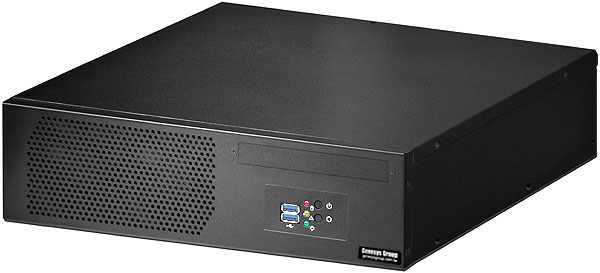

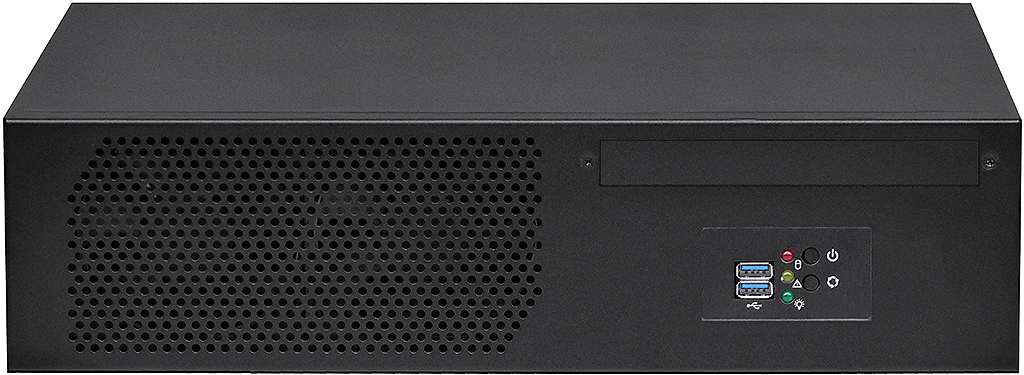

* Two USB 3.0 at front bezel, Red HDD/Orange LAN/Green PSU LED, PSU/Reset switch

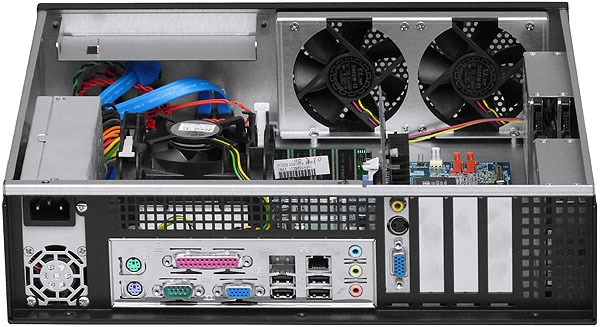

* Equipped with two 80mmx25mm intake silent fans at front (fan part# D80SM-12)

* Compatible Motherboard: MicroATX(9.6"x9.6"), Mini-ITX(6.7"x6.7")

* Support 4-slot low profile expansion cards up to maximum 280mm deep

* Support standard 1U FlexATX 250W or 300W power supply (max. psu depth: 150mm)

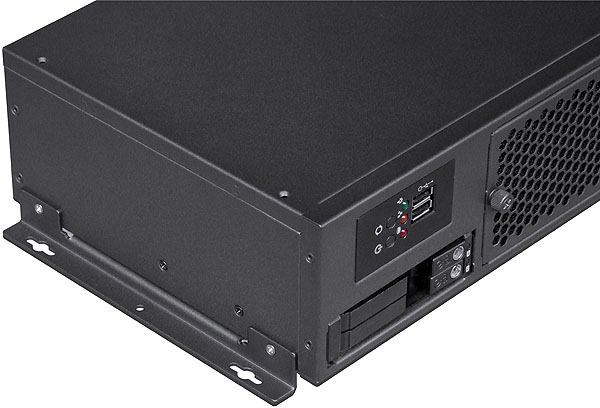

* Support wallmount installation as option (part# Mini-202B-WALL-BK-B, one pair)
* Standard paint: scratch-resistant Black textured
* Genesys Group branded server chassis global 3 years warranty guaranteed

* Chassis dimension: D.355 x W.350 x H.88.2 /mm

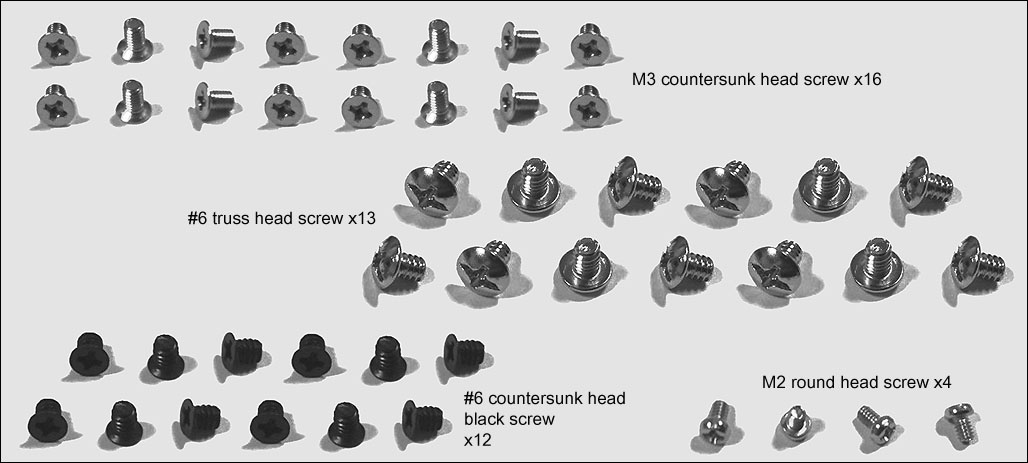

* Accessory pack: M3 countersunk x16, #6 truss x13, M2 x4pcs, #6 countersunk x12

* Package: NW 3.0KG, GW 4.2KG, 1.19 CUFT (44x42.5x18cm, one carton packed)

Model#

:

MICRO-103B

Black MicroATX desktop-minitower-wallmount chassis

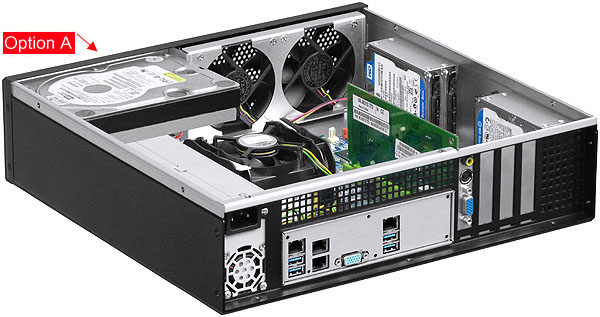

Option A

:

MICRO-103B-35BK02

1x3.5"/2.5" HDD bracket (Front 1 x slim ODD is no longer available, one 3.5" or 2.5" HDD installable)

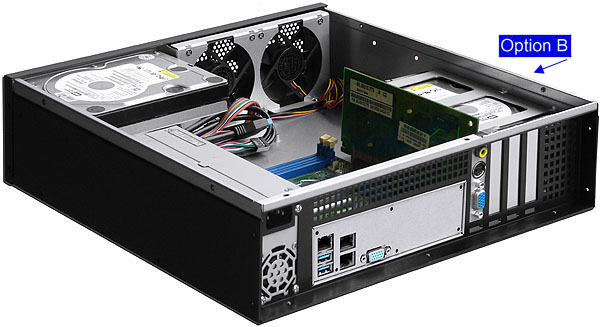

Option B

:

MICRO-103B-35BK01

2x3.5" HDD bracket (MicroATX MB is no longer available, Mini-ITX MB installable)

Option C

:

Mini-202B-WALL-BK-B

Black wallmount kit with 2mm thickness (one pair, MINI-202B/203B & MICRO-103B compliant)

Option D-1

:

ENP-7025B

1U FlexATX 250W power supply with PFC (psu size at W.81.5 x H.40.5 x L.150/mm)

Option D-2

:

ENP-7130B

1U FlexATX 300W power supply with PFC (psu size at W.81.5 x H.40.5 x L.150/mm)

Option D-3

:

ENP7140B

1U FlexATX 400W power supply with PFC (psu size at W.81.5 x H.40.5 x L.150/mm)

Option D-4

:

 ENP-7650B

1U FlexATX 500W power supply with PFC (psu size at W.81.5 x H.40.5 x L.150/mm)

Option D-5

:

 ENP-7660B

1U FlexATX 600W power supply with PFC (psu size at W.81.5 x H.40.5 x L.150/mm)

Option E-1

:

2U2011A-8080

2U Intel LGA2011 LGA2066 active CPU cooler Square (2U 3U 4U chassis compatible)

Option E-2

:

2U2011A-5694

2U Intel LGA2011 active CPU cooler Narrow (2U 3U 4U chassis compatible)

Option E-3

:

2U115XA

2U Intel LGA115x Xeon 1230 active CPU cooler (2U 3U 4U chassis compatible)

Option E-4

:

2U4094A-SP3

2U AMD EPYC LGA4094 active CPU cooler SP3 (2U 3U 4U chassis compatible)

Option E-5

:

2U1718A-AM5

2U AMD AM4 AM5 active CPU cooler (2U 3U 4U chassis compatible)

Option E-6

:

2U3647A-S82

2U Intel LGA3647 active CPU cooler Square (2U 3U 4U chassis compatible)

Option E-7

:

2U3647A-R82-1

2U Intel LGA3647 active CPU cooler Narrow (2U 3U 4U chassis compatible)

Option E-8

:

2U4189A-M82

2U Intel LGA4189 active CPU cooler (2U 3U 4U chassis compatible)

Option E-9

:

2U1700A-R67

2U Intel LGA1700 active CPU cooler (2U 3U 4U chassis compatible)

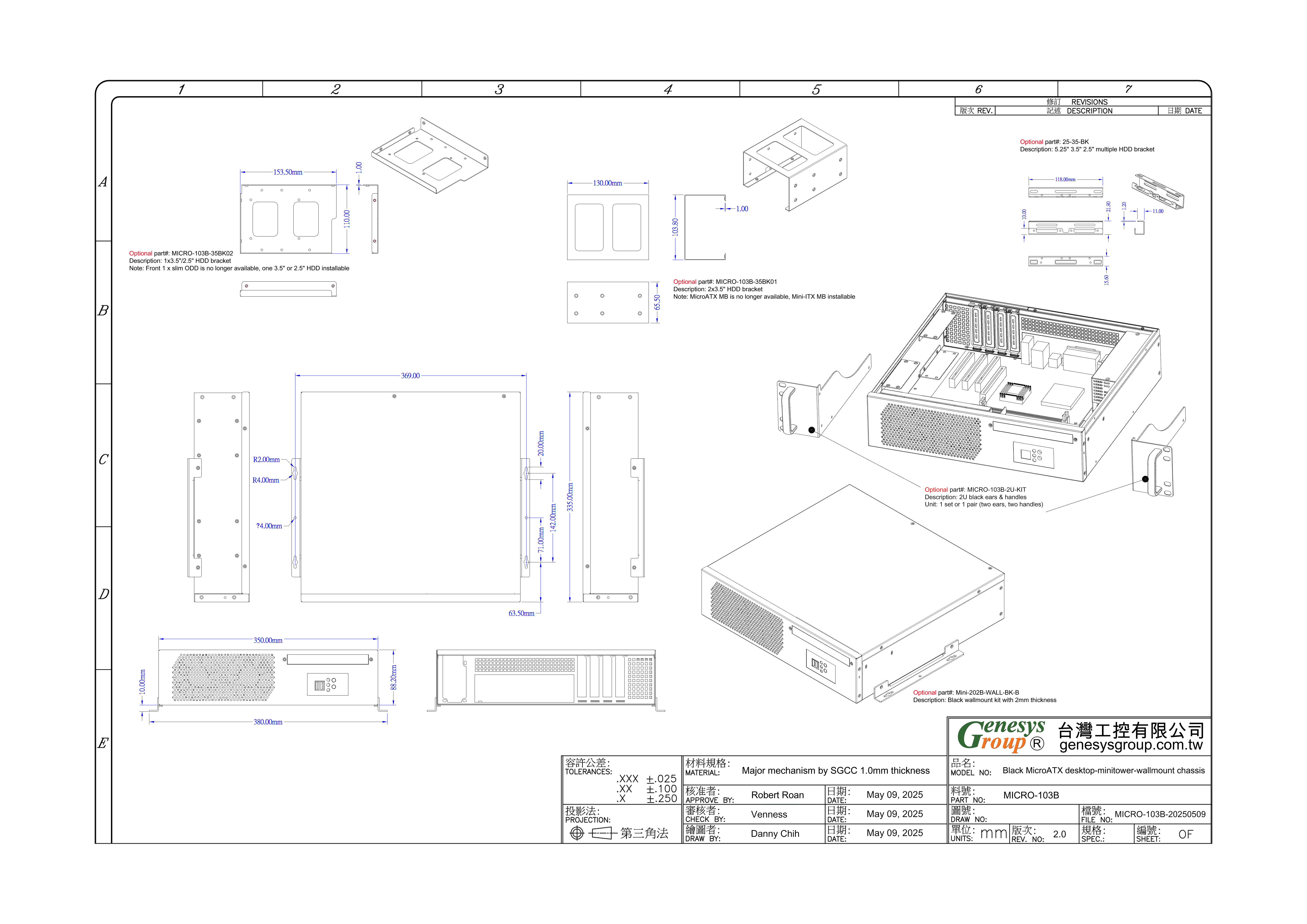

Catalogue          Dimension Drawing
