MINI-201B BLACK AIO MINI-ITX DESKTOP/CAR PC CHASSIS
webpage updated on March 11,
2020
Compact size and stable system are the features of this new designed model, the
quiet system is suitable for regular office environment application, also mini-Server,
cash register, POS/POI system, KIOSK
and ATM, Web
payphone terminal, industrial
control application such as wallmount platform are compatible.
|
 |
* Drive bay: 1 x 2.5" HDD bay
(sheet metal thickness: 0.8mm)
* Build-in
internal 87W DC to DC power supply PCB
* External 60W AC 100V~240V to DC
12V adaptor
(input 50/60Hz 2A, output 12V 5.0A)
* With power connectors included with 2.5" HDD, ATX MB 24p+4p, b4p, s3p
* With
black
plastic foot (pair)

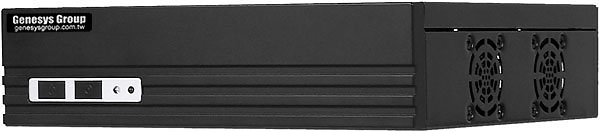

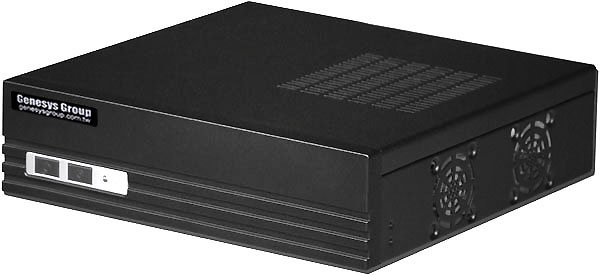

* Two 40mm x 10mm low speed/noise fans
installed at side panel (option)

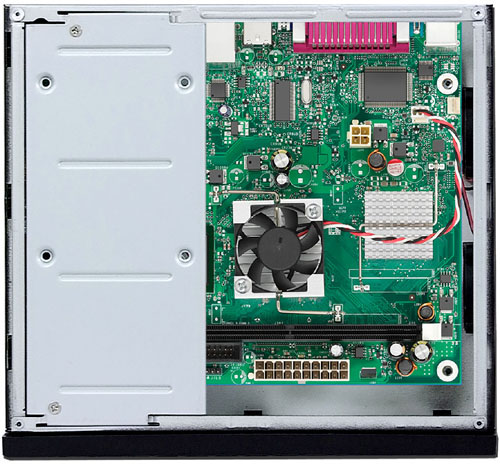

* Support Mini-ITX MB mounting at 6.7" x
6.7" (170mm x 170mm)
* Standard paint: scratch-resistant black textured
* Chassis dimension: 218mm x
56mm x 200mm (WxHxD)
* Package per unit: NW 1.8KG, GW
2.2KG, 0.40 CUFT (27.5x27x15cm, one box packed)
*
Mass package: Mass carton for 5 units, each one has 2.83 CUFT,
carton size 89x29x31cm |
|
Model# |
: |
MINI-201B |
Black AIO Mini-ITX desktop/car pc chassis |
|
Option A-1 |
: |
JB18A |
1U Intel LGA115x Xeon 1230
active CPU cooler |
|
Option A-2 |
: |
JB15C-8080 |
1U
Intel LGA2011 LGA2066 active CPU cooler |
|
Option A-3 |
: |
1U3647A-R73 |
1U
Intel LGA3647 active CPU cooler Narrow |
|
Option
B |
: |
MINI-201B-4010x2 |
MINI-201B 40x10mm silent fan set (2 fans as one set) |
| |
|
|
|
| |
|
|
Dimension Drawing |
|
