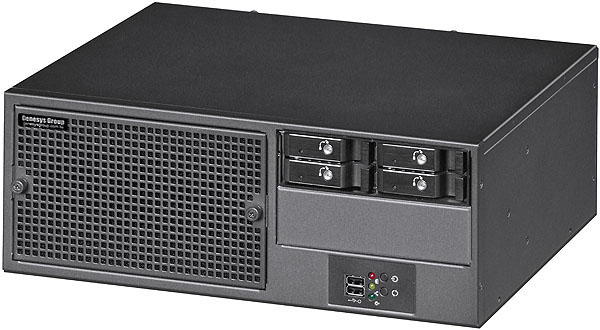

MINI-203B BLACK MINI-ITX NAS DESKTOP/WALLMOUNT CHASSIS

Design announcement dated on April 15, 2014, webpage updated on September 17, 2020

MINI-ITX 5G LTE-U NAS Desktop or Wallmount solution

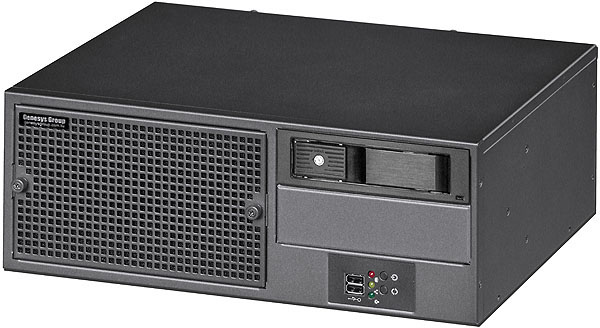

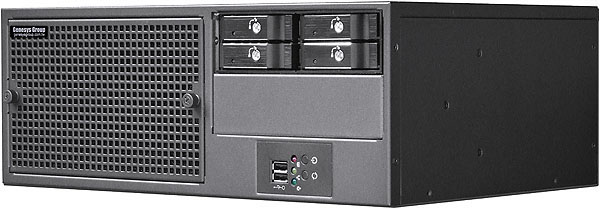

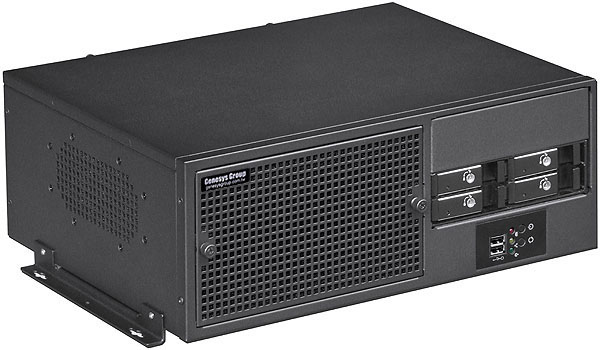

The features of this new Mini-ITX chassis are compliant with 5G LTE-U or high speed WiFi networks and cloud transmission as well as NAS storage application for enterprises and Soho purpose. It can support maximum 8 x 2.5" hotswap drives or 3 x 3.5" hotswap drives, and additionally two more 2.5" internal HDD installable inside. This chassis mechanism uses very durable and high end SECC 1.0mm thickness, and the optional wall mount bracket can be installed in harsh industrial environment very well. This chassis also designed with quick assembly and screwless air dust-proof shield to keep away from the dust into the system. Cooling system also equipped with two silent 80mmx25mm fans as well as anti-vibration function. Also it supports dual slot expansion card such as high end graphic card with this chassis. Welcome distribution world wide.

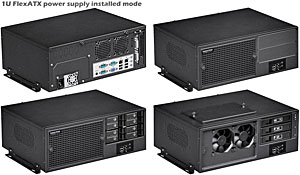

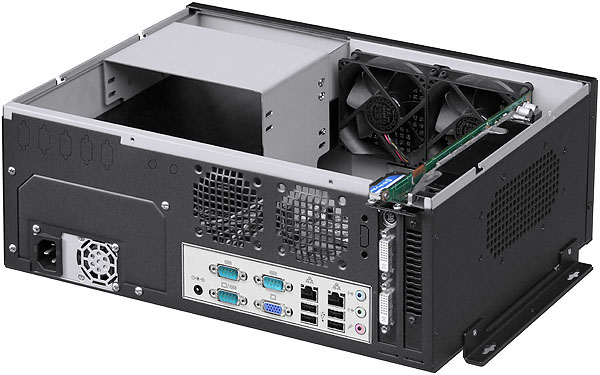

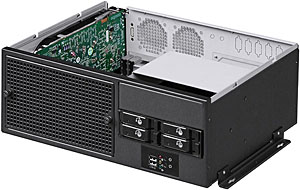

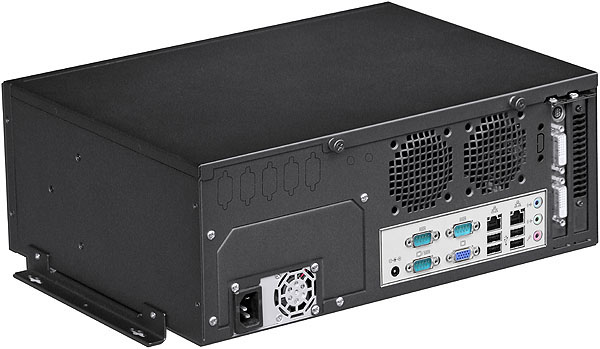

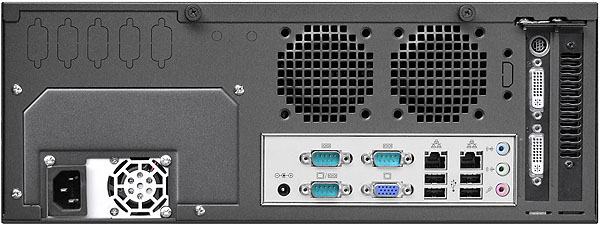

* Drive bay (1U FlexATX power installed mode): 2 x 5.25" ODD, 2 x 2.5" HDD bay

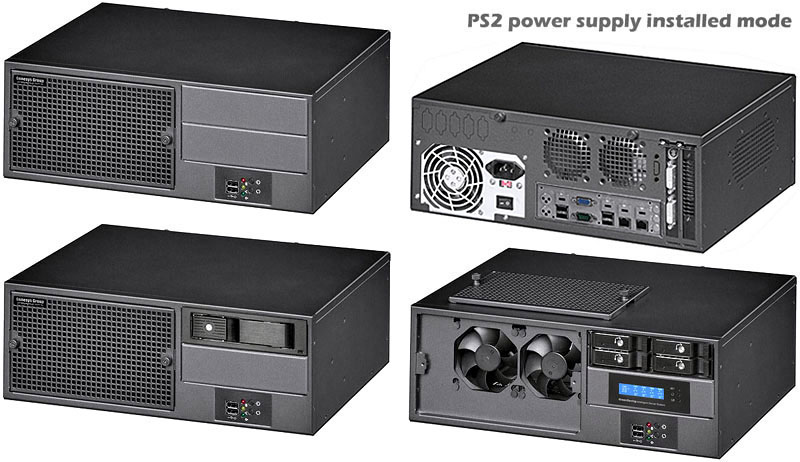

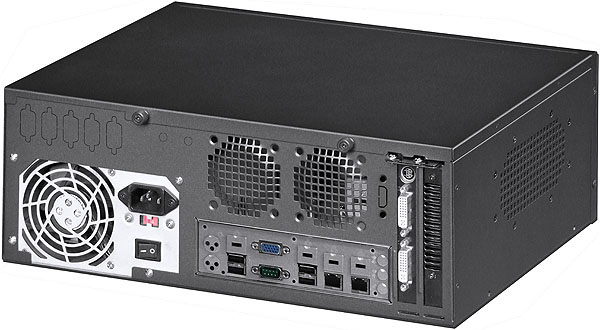

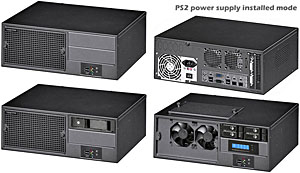

* Drive bay (PS2 power installed mode): 1 x 5.25" ODD, 2 x 2.5" HDD bay

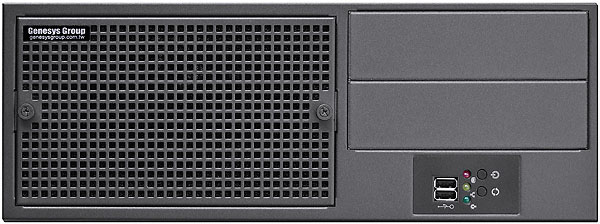

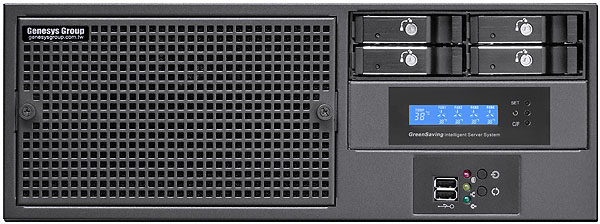

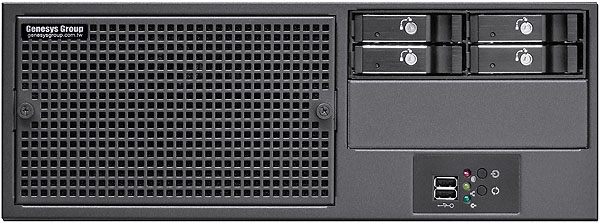

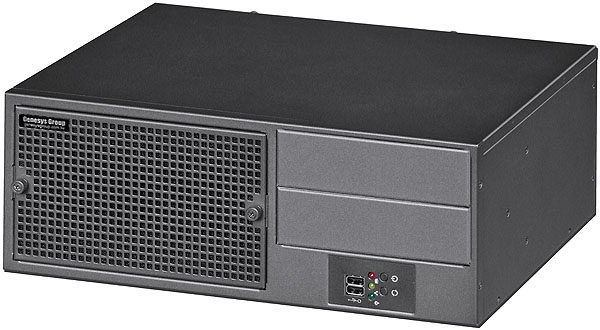

* Two USB 2.0 ports and LAN/HDD/Power LED at front bezel (two USB 3.0 as option)
* Screwless top cover design for quick system installation

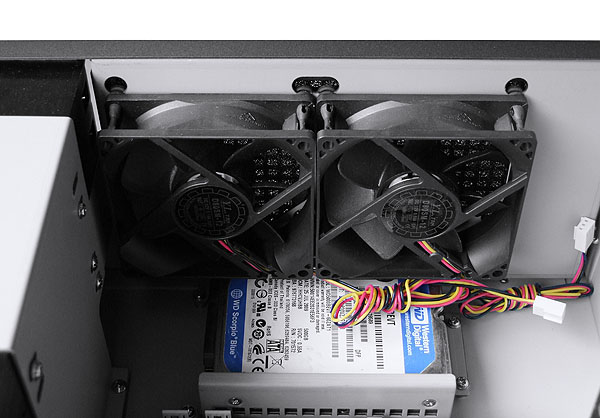

* Screwless quick assembly fan with anti-vibration function

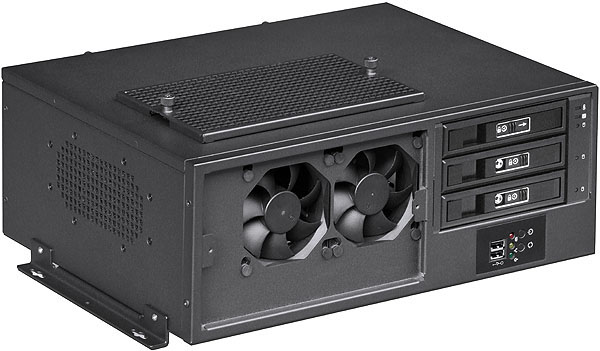

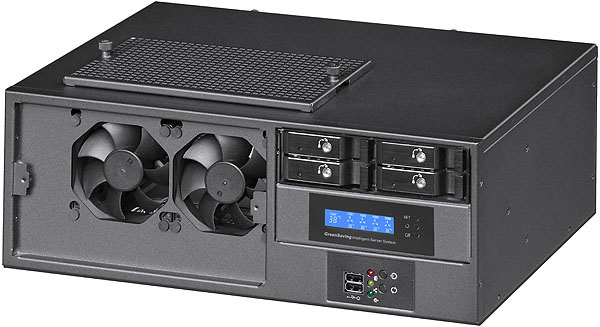

* Screwless dust-proof air filter shield for quick maintenance

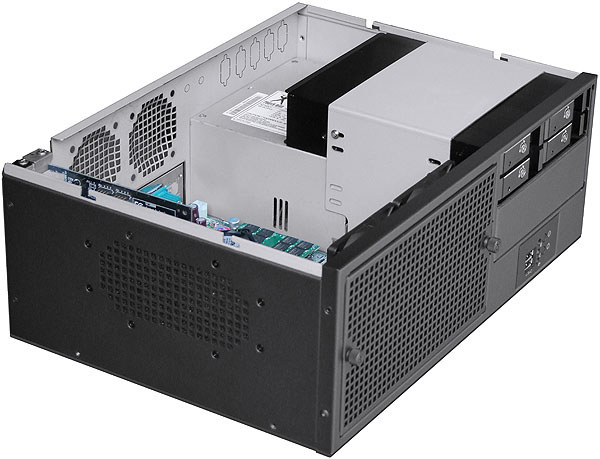

* Side panel with dust-proof air filter design for dual slot high-end graphic card
* SECC 1.0mm high grade sheet metal as durable mechanism
* Equipped with two 80mmx25mm silent fans (fan part# D80SM-12)

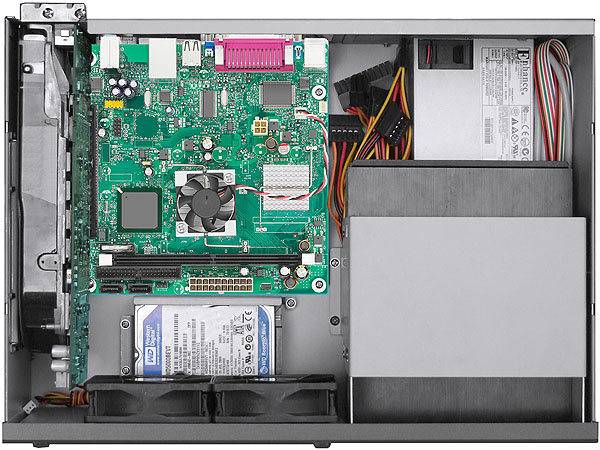

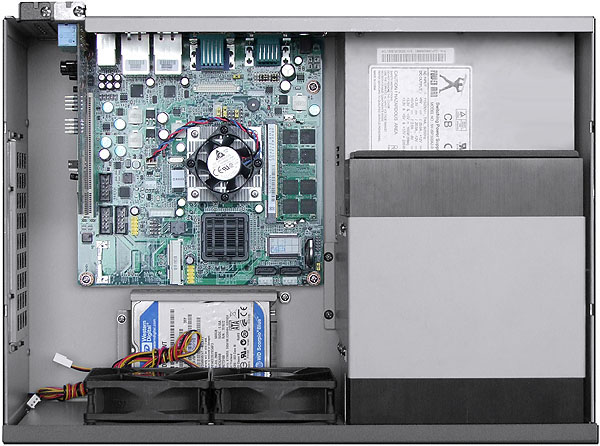

* Support Mini-ITX MB mounting at 6.7" x 6.7" (170mm x 170mm)

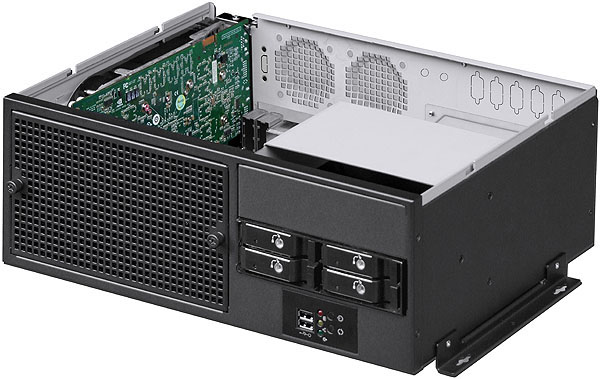

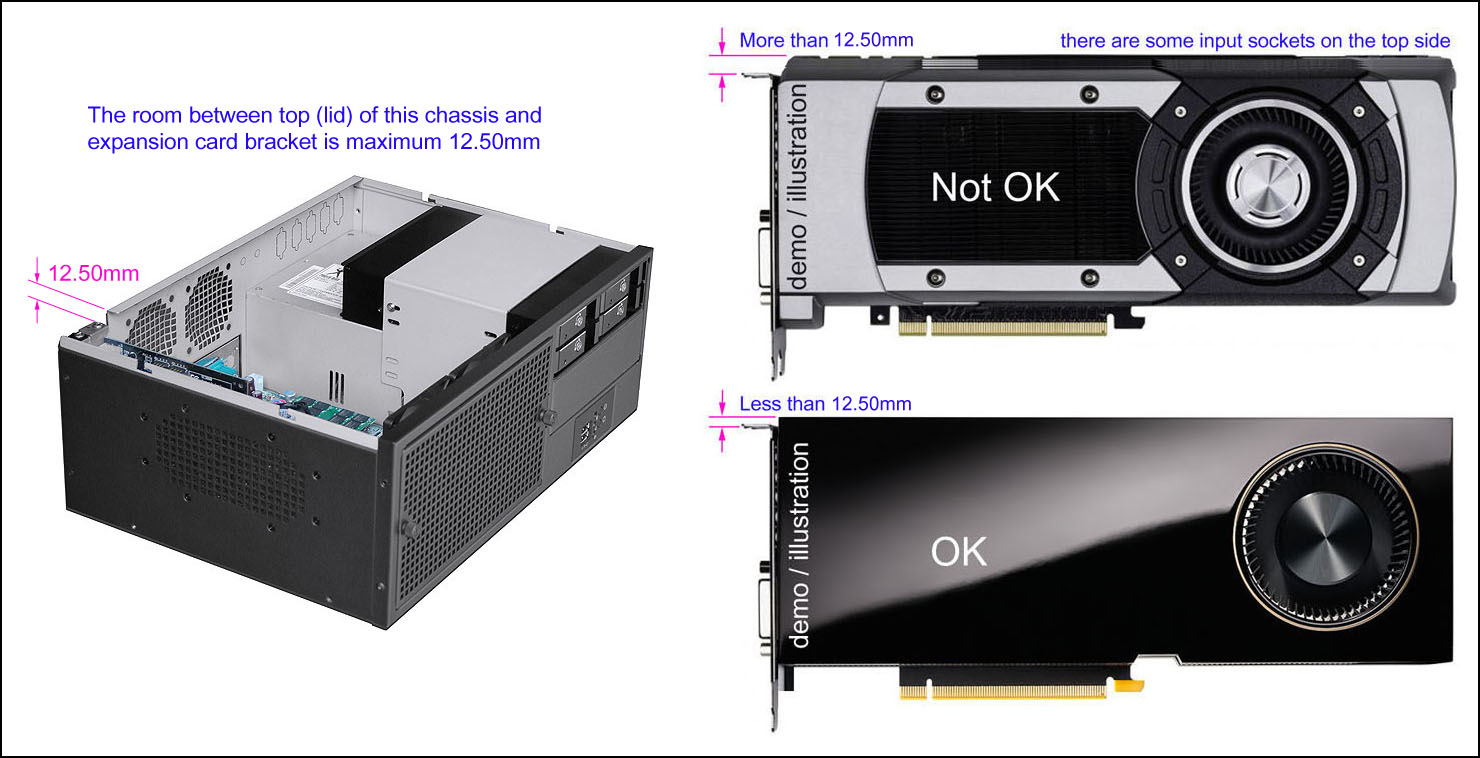

* Dual slot high-end graphic card compatible (max. card depth at 250mm)
* Standard paint: scratch-resistant Black textured
* Genesys Group branded server chassis model (with build-in fan) global 3 years warranty
* Chassis dimension: 370mm x 135mm x 264.50mm (W x H x D)

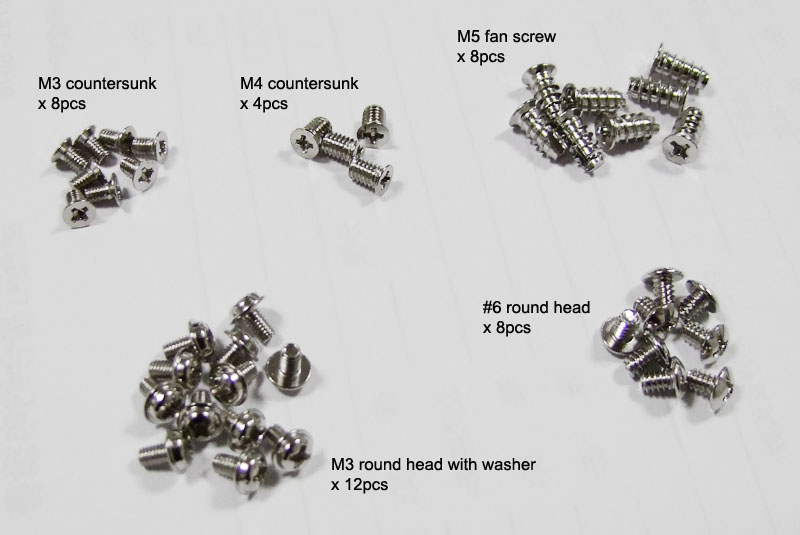

* Accessory Pack: M3 countersunk x 8pcs, M4 countersunk x 4pcs, M5 fan screw x 8pcs,

   M3 round head x 12pcs, #6 round head x 8pcs
* Package: NW 3.65KG, GW 4.65KG, 1.35 CUFT (45x37x23cm, one box packed)

Model#

:

MINI-203B

Black Mini-ITX NAS Desktop/Wallmount chassis

Option A

:

Mini-202B-WALL-BK-B

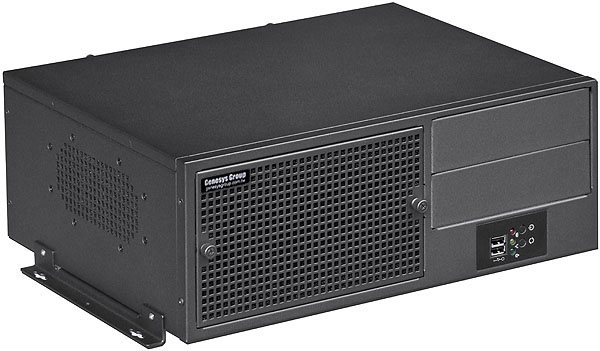

Black wall mount bracket (MINI-202B & MINI-203B & MINI-204B & MINI-207B compatible)

Option B

:

D60SM-12

60mmx25mm cooling fan (one piece as a unit, can install 2pcs at rear panel)

Option C

:

PS2 PSU

8cm & 12cm & 14cm fan version PS2 power supply (depth at 140mm)

Option D-1

:

Mini-203B-PowerBK

Black PS2 to 1U Flex power supply bracket (please order if you install 1U FlexATX power supply)

Option D-2

:

ENP-7025B

1U FlexATX 250W power supply with PFC (psu size at W.81.5 x H.40.5 x L.150/mm)

Option D-3

:

ENP-7130B

1U FlexATX 300W power supply with PFC (psu size at W.81.5 x H.40.5 x L.150/mm)

Option D-4

:

ENP7140B

1U FlexATX 400W power supply with PFC (psu size at W.81.5 x H.40.5 x L.150/mm)

Option D-5

:

ENP-7650B

1U FlexATX 500W power supply with PFC (psu size at W.81.5 x H.40.5 x L.150/mm)

Option D-6

:

ENP-7660B

1U FlexATX 600W power supply with PFC (psu size at W.81.5 x H.40.5 x L.150/mm)

Option E

:

25-35-BK

5.25" 3.5" 2.5" multiple HDD bracket

Option F-1

:

2525TO3HDBK

2x5.25" ODD space to 3x3.5" bracket (don't order if it's PS2 psu installed mode)

Option F-2

:

RW135-12G

1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 12G

Option F-3

:

RW135

1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 6G

Option F-4

:

TL135-12G

1x5.25" to 1x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option F-5

:

TL135

1x5.25" to 1x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option F-6

:

RW225-12G

1x5.25" to 2x2.5" HotSwap Cage SATA/SAS 12G

Option F-7

:

RW625-12G

1x5.25" to 6x2.5" HotSwap Cage SATA/SAS 12G

Option F-8

:

RW825-1525

1x5.25" to 8x2.5" HotSwap Cage SATA/SAS 6G

Option F-9

:

RW425-NVMe

1x5.25" to 4x2.5" SSD Removable Cage U.2 NVMe 32G

Option F-10

:

RW425-12G-MS

1x5.25" to 4x2.5" HotSwap Cage SFF-8643 12G

Option F-11

:

RW425-12G

1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 12G

Option F-12

:

RW425

1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 6G

Option F-13

:

RW825

2x5.25" to 8x2.5" HotSwap Cage SATA/SAS 6G (don't order if it's PS2 psu installed mode)

Option F-14

:

RW335-12G

2x5.25" to 3x3.5" HotSwap Cage SATA/SAS 12G (don't order if it's PS2 psu installed mode)

Option F-15

:

RW335

2x5.25" to 3x3.5" HotSwap Cage SATA/SAS 6G (don't order if it's PS2 psu installed mode)

Option F-16

:

TL335-12G

2x5.25" to 3x3.5" TrayLess HotSwap Cage SATA/SAS 12G (don't order if it's PS2 psu installed mode)

Option F-17

:

TL335

2x5.25" to 3x3.5" TrayLess HotSwap Cage SATA/SAS 6G (don't order if it's PS2 psu installed mode)

Option G-1

:

1MSAS-4SATA-500MM

SFF-8087 Mini-SAS (Host) to Four SATA (Device) cable

Option G-2

:

SFF-8643-500MM

SFF-8643 Mini-SAS HD (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option G-3

:

4SATA-SFF-8643-500MM

Four SATA (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option G-4

:

SFF-8643-4SATA-500MM

SFF-8643 Mini-SAS HD (Host) to Four SATA (Device) cable

Option H-1

:

2U2011A-8080

2U Intel LGA2011 LGA2066 active CPU cooler Square (2U 3U 4U chassis compatible)

Option H-2

:

2U2011A-5694

2U Intel LGA2011 active CPU cooler Narrow (2U 3U 4U chassis compatible)

Option H-3

:

2U1150A

2U Intel LGA115x Xeon 1230 active CPU cooler (2U 3U 4U chassis compatible)

Option H-4

:

2U4094A-SP3

2U AMD EPYC LGA4094 active CPU cooler SP3 (2U 3U 4U chassis compatible)

Option H-5

:

2U1331A-AM4

2U AMD LGA1331 active CPU cooler AM4 (2U 3U 4U chassis compatible)

Option H-6

:

2U3647A-S82

2U Intel LGA3647 active CPU cooler Square (2U 3U 4U chassis compatible)

Option H-7

:

2U3647A-R82-1

2U Intel LGA3647 active CPU cooler Narrow (2U 3U 4U chassis compatible)
