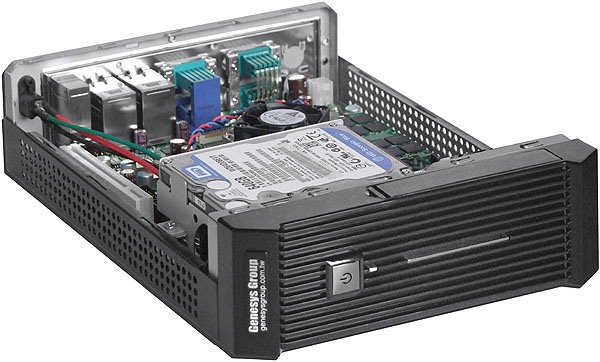

MINI-205B BLACK MINI-ITX DESKTOP/VESA CHASSIS

Announced date: December 05, 2013, webpage updated on February 10, 2020

MINI-ITX DESKTOP/VESA Solution

Focusing on customer requirements and the latest operating environment are our development philosophy. This platform of Mini-ITX chassis design can effectively meet the educational system, the financial system of thin client terminals, as well as the stability of the Government automatic Office system use. MINI-205B is very cost effective structure, which features a low power consumption, low heat and low cost. Native of small size with high stability of the system is one of the design features of this platform, its ultra-quiet characteristics would be more appropriate for the general user or office use, and trading platforms such as point-of-sale POS/POI systems, KIOSK, ATM, Web payphone terminals, industrial hosts, and so on. Besides this MINI-205B can be tower or desktop or optional wall mount / VESA mount , which can be flexibly integrated infrared bar code scanners, ID card identification device, credit card machine, and other external devices. Space compact design known as thin clients is the best platform than the old and traditional PC solutions.

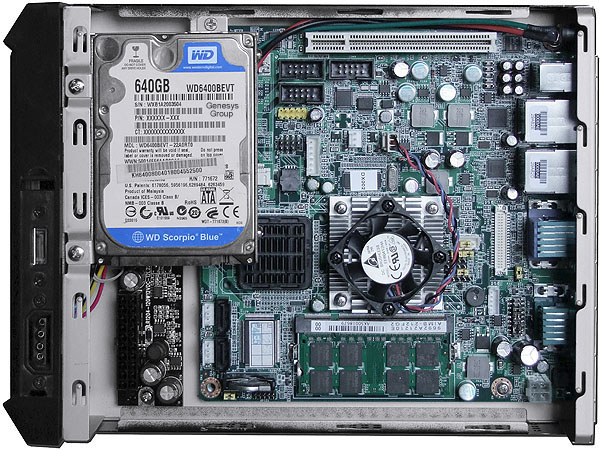

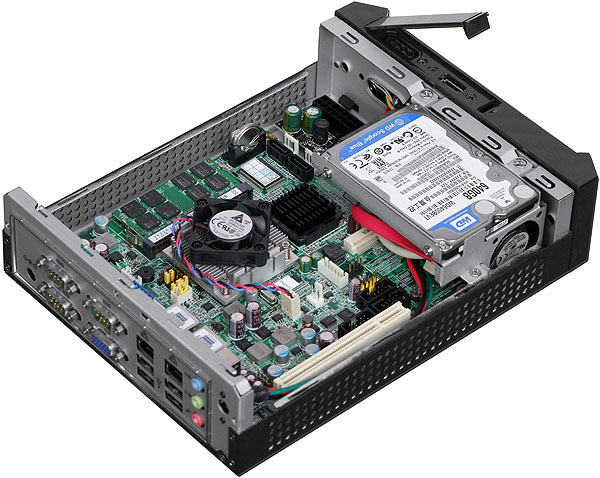

* Drive bay: 1 x 2.5" HDD bay

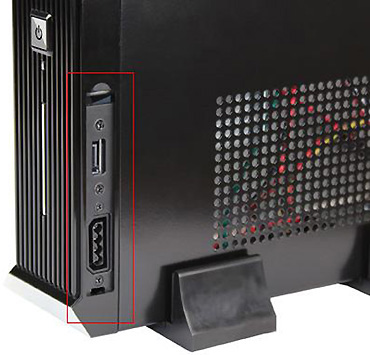

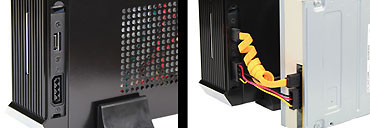

* Upper side equipped with 1 x Molex power connector & 1 x SATA 7pin data transfer port

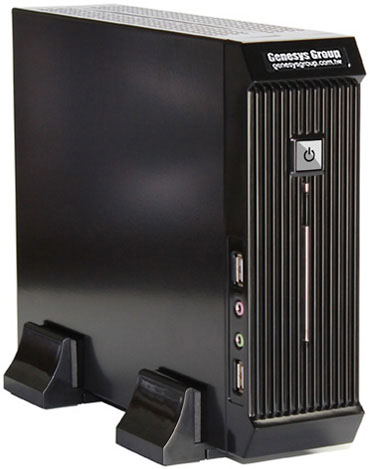

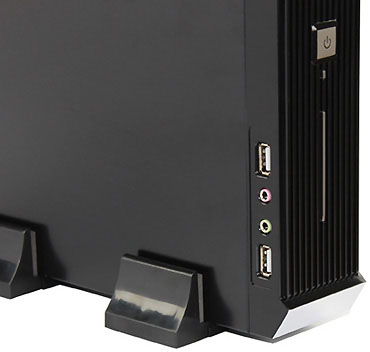

* Bottom side equipped with 2 x USB port & 1 x Audio port

* With internal 120W DC to DC power PCB module
* With external 60W AC 100V~240V to DC 12V adapter (input 50/60Hz 2A, output 12V 5A)

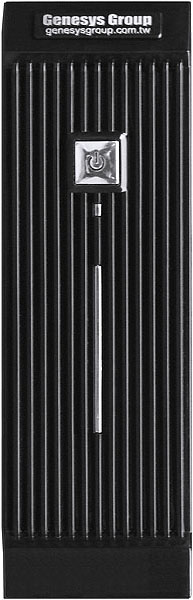

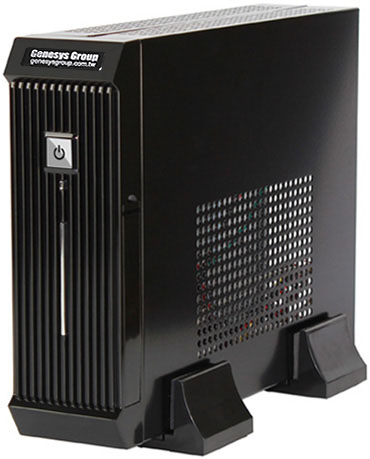

* With black ABS foot pads as vertical platform

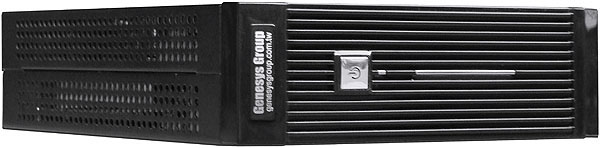

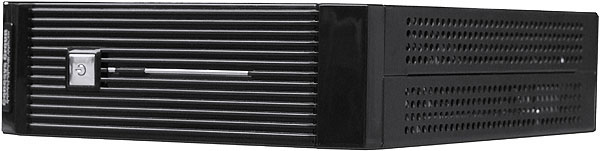

* With transparent circular paws as horizontal platform

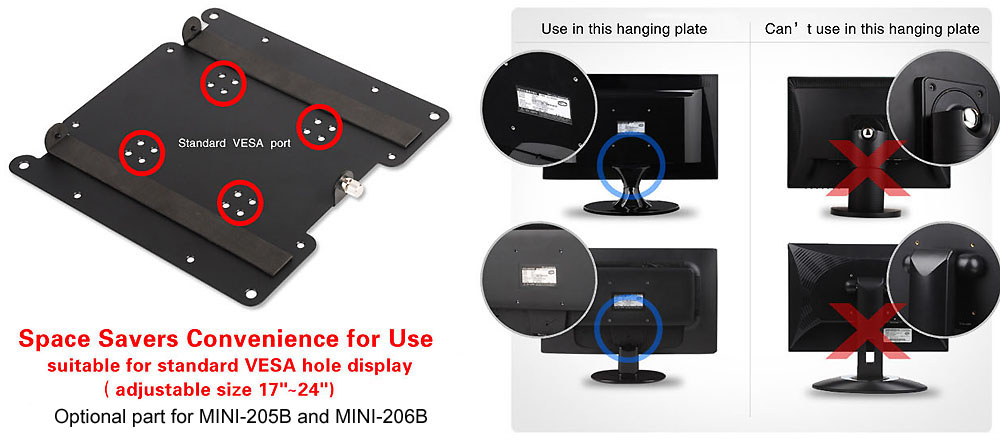

* One VESA mount bracket can be fixed behind LCD monitor (option)
* One exhaust 40mm x 10mm low speed quiet fan (option)

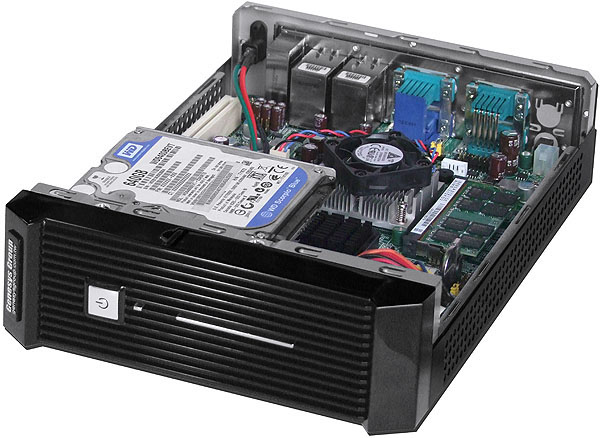

* Support Mini-ITX MB mounting at 6.7" x 6.7" (170mm x 170mm)

* Support 1U CPU cooler (max. height at 48mm, and 37mm if CPU located beneath HDD)

* Durable mechanism by high grade SECC 0.8mm sheet metal

* Standard paint: scratch-resistant Black textured at surface of chassis
* Genesys Group branded server chassis in global 3 years warranty
* Chassis dimension: 190mm x 60mm x 255mm (W x H x D)

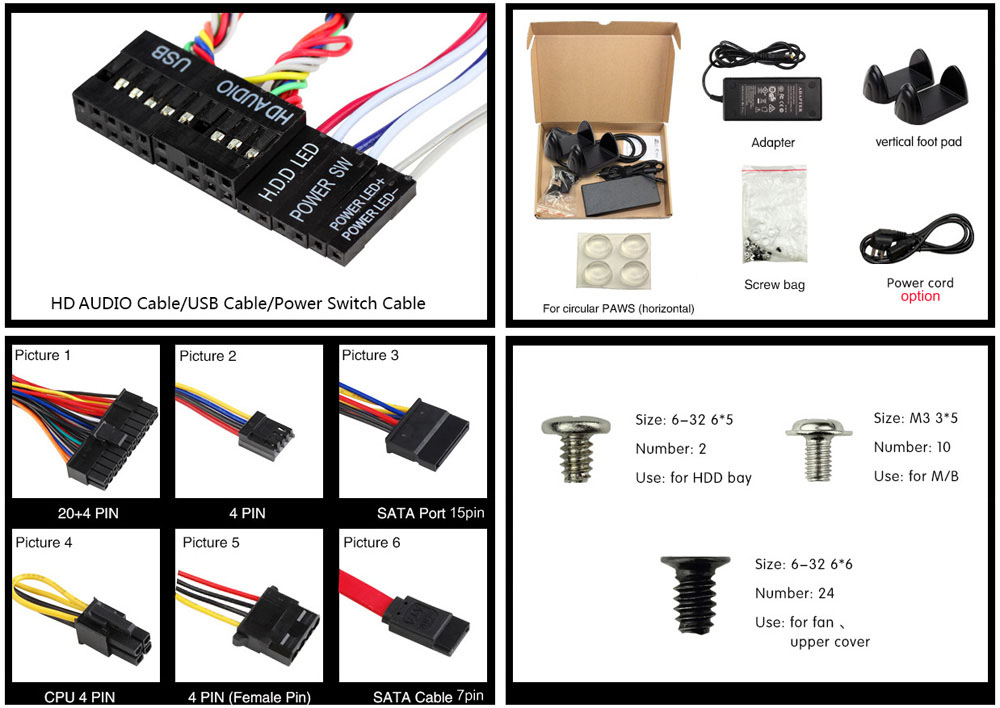

* Accessory Pack: EPS 24pin, ATX 4pin power and 2.5" SATA 15pin power connectors...etc.

* Package per unit: NW 1.5KG, GW 2.4KG, 0.35 CUFT (28 x 27 x 13cm, one box packed)

* Mass package: Mass carton for 8 units, each one has 3.24 CUFT, size 58.5 x 28.5 x 55cm

Model#	:	MINI-205B	Black Mini-ITX desktop/VESA chassis
Option A-1	:	JB18A	1U Intel LGA115x Xeon 1230 active CPU cooler
Option A-2	:	JB15C-8080	1U Intel LGA2011 LGA2066 active CPU cooler
Option A-3	:	1U3647A-R73	1U Intel LGA3647 active CPU cooler Narrow
Option B	:	MINI-205B-206B-VESA	MINI-205B-206B black VESA mount kit
Option C	:	MINI-205B-4010	MINI-205B 40mm x 10mm fan

			Catalogue Dimension Drawing
