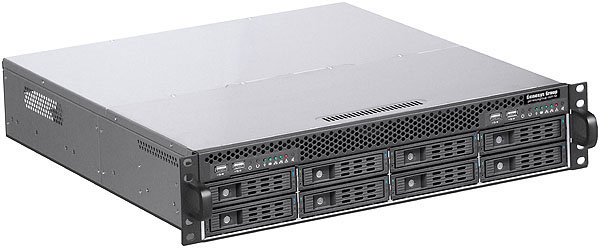

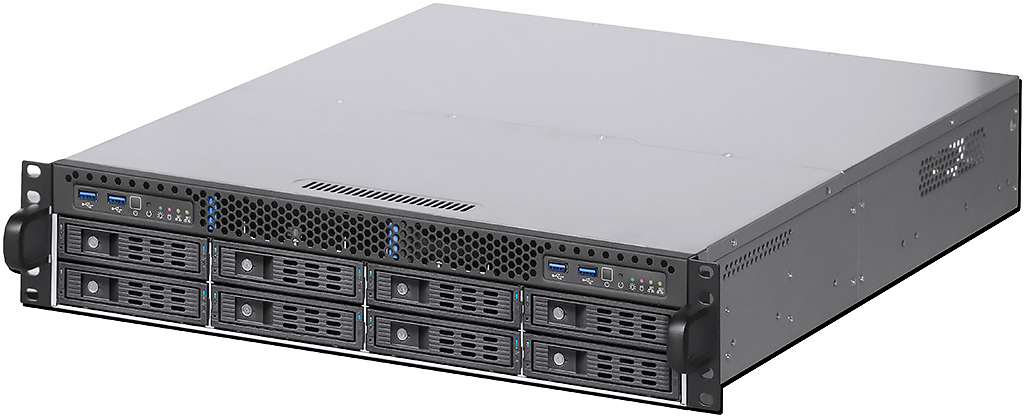

S208B-TWIN-ITX 2U HOTSWAP SYMMETRICAL SERVER CHASSIS

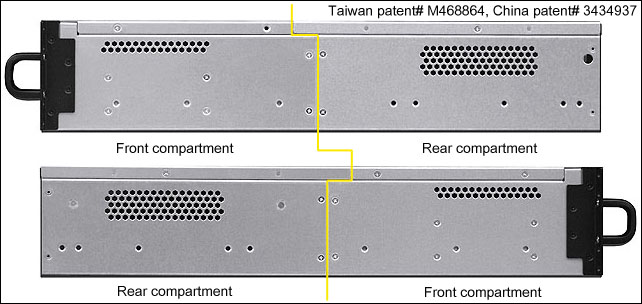

1U 2U 3U 4U front/rear symmetrical compartment patent & copyright officially announced on August 20, 2013 in Taiwan, China, Thailand, Korea, Japan, USA, England, EU, Russia, India. Official Taiwan patent# M468864 & China patent# 3434937.

Product announcement & 1st production dated on December 30, 2015, webpage updated on November 28, 2023

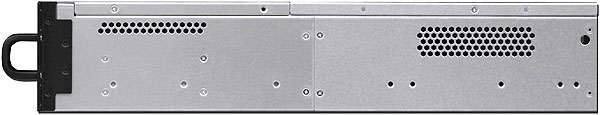

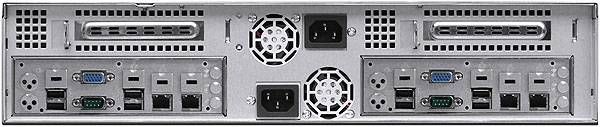

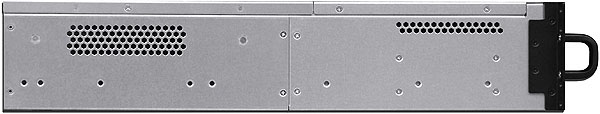

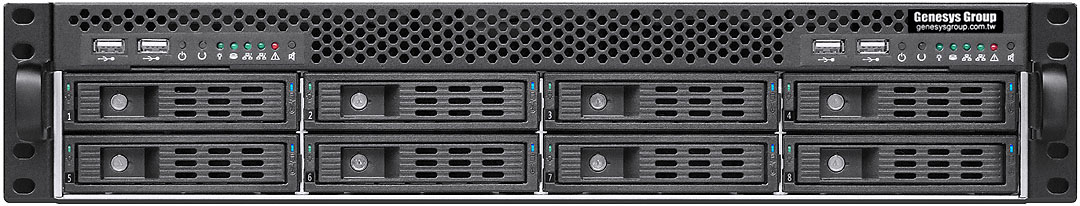

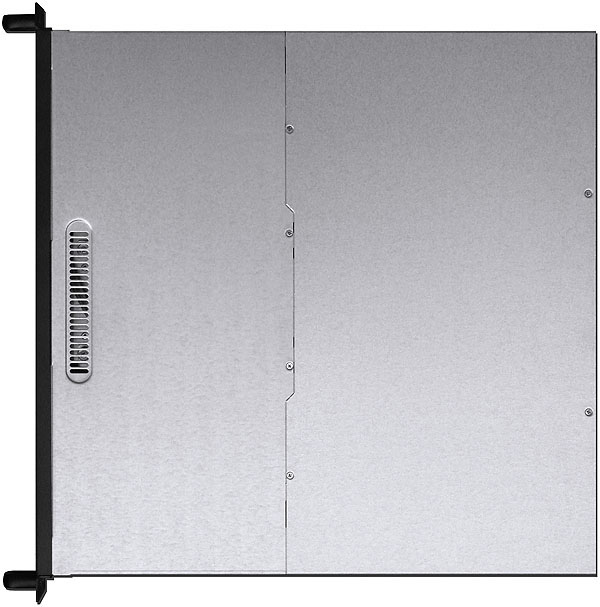

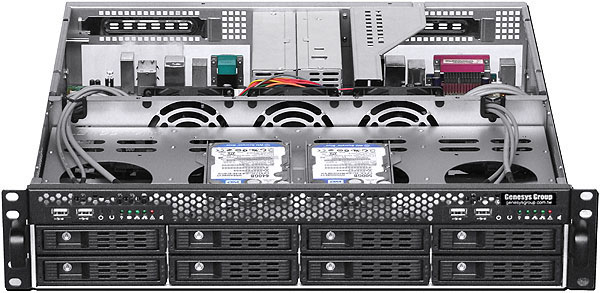

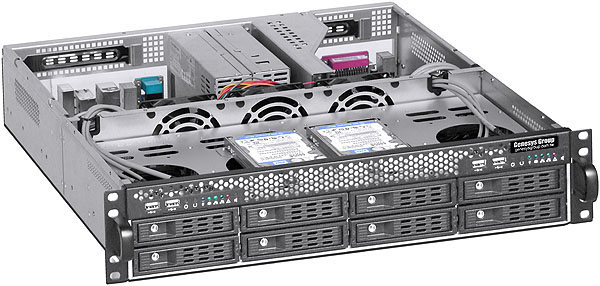

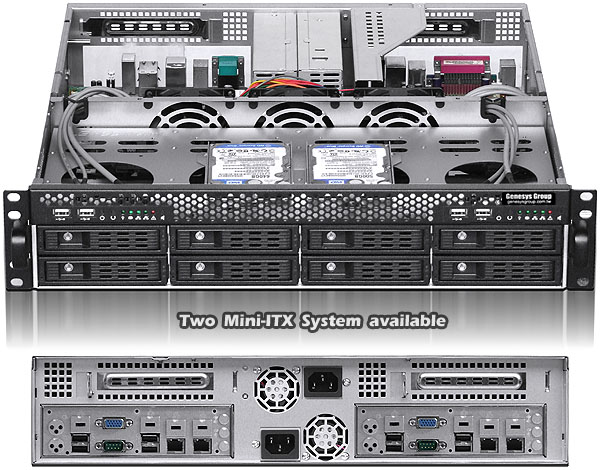

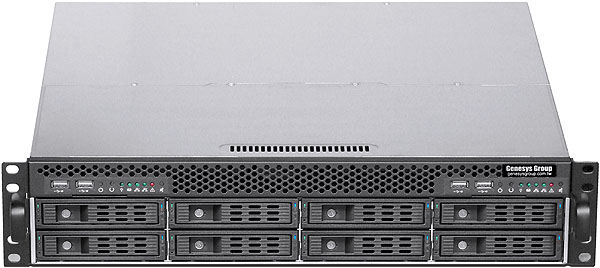

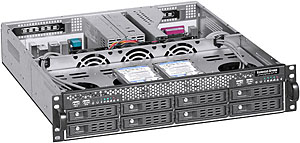

The Mini-ITX with multi-core processor platforms have already the trend nowadays, the most prominent feature of S208B-TWIN-ITX is the short depth at 448mm (17.64"), and also compatible with Dual Mini-ITX motherboards and power supply system, also the 8 sets of 3.5" hotswap drives as well as 2 sets of 2.5" internal hard drive space, excellent matching and application of RAID controller card installed to comply with this storage server in the cloud environment. A large number and variety of choice of hard disk access space, front and rear symmetrical bodies patented design can also enhance the system integration flexibility and overall strength, also the whole bodies do not skew or distort to achieve robust and ensure the security and stability of the system. Cooling as standard three 80mmx25mm 2-ball bearing fans the effective cooling system, combines the advantages of multi-functional and competitive price, welcome worldwide distribution.

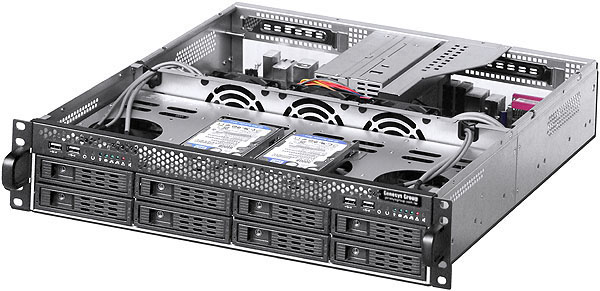

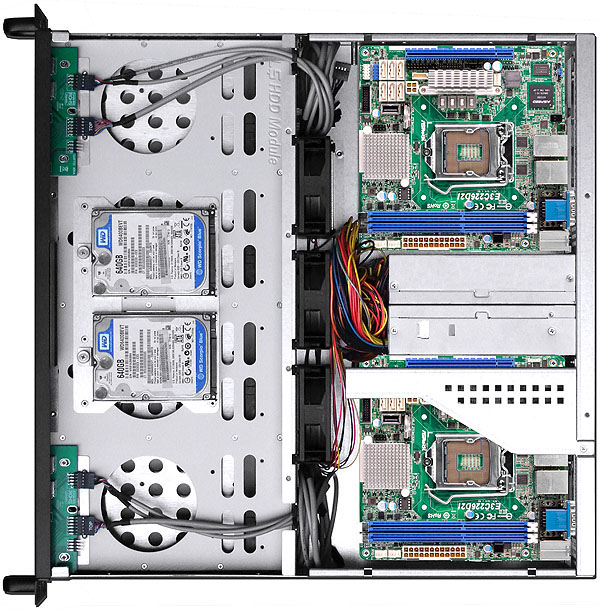

         stainless tray  stainless 3.5" HDD tray  Two 2.5" internal HDD/SSD easy swap design



* Two internal 2.5" HDD bay:

   7mm~15mm height of 2.5" EasySwap HDD/SSD compatible

* 8 hotswap 3.5" HDD bay (2.5" SSD also installable in 3.5" HDD space):

   SATA1/2/3 & SAS1/2 HDD 6Gbps, max. height at 26.1mm (RAID card required)

   or SATA3.2/3.3 & SAS3 HDD 12Gbps, max. height at 26.1mm (RAID card required)

* Mobile rack Left LED: Green power LED

* Mobile rack Right LED: Blue access LED (solid Red light if HDD temp over 60-degree C)

* Stainless & Hair surface proceeded mobile rack structure with security keylock

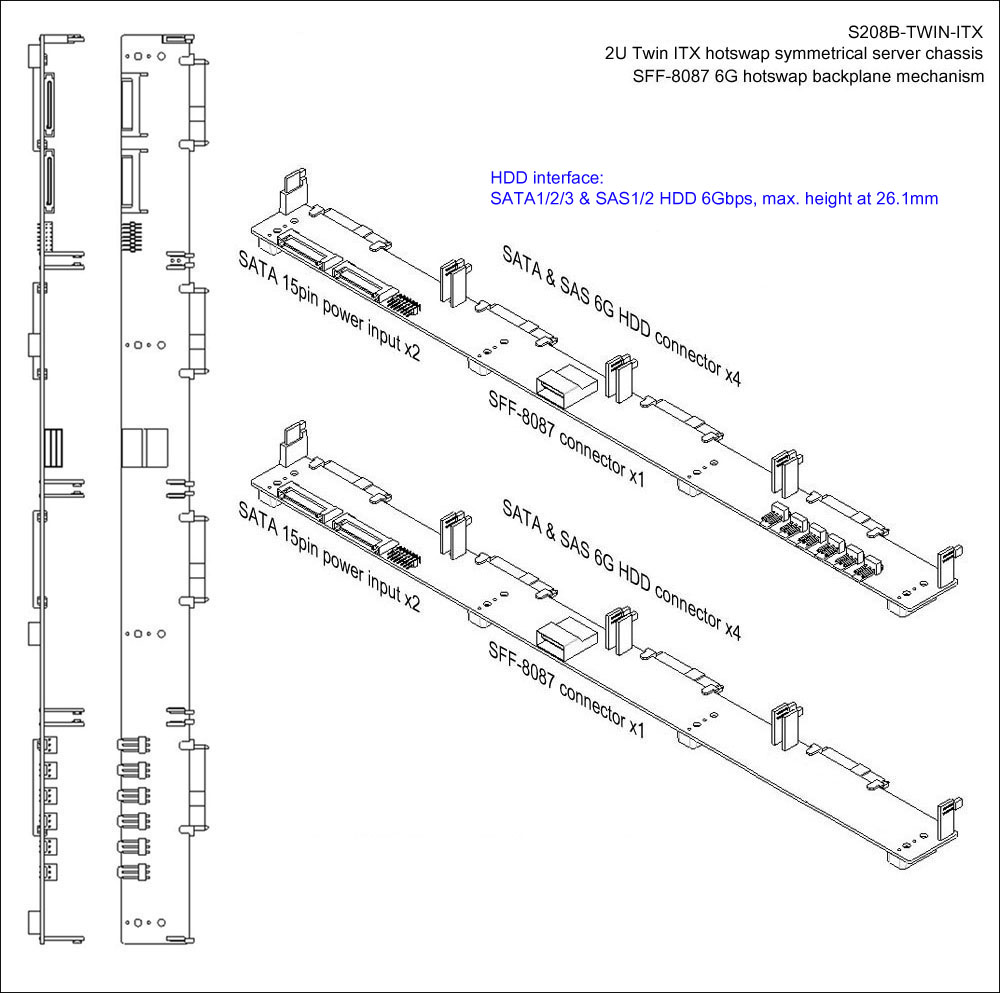

* 2 Hotswap 6G SFF-8087 backplanes: 1 to 4port MiniSAS connector (6G version)

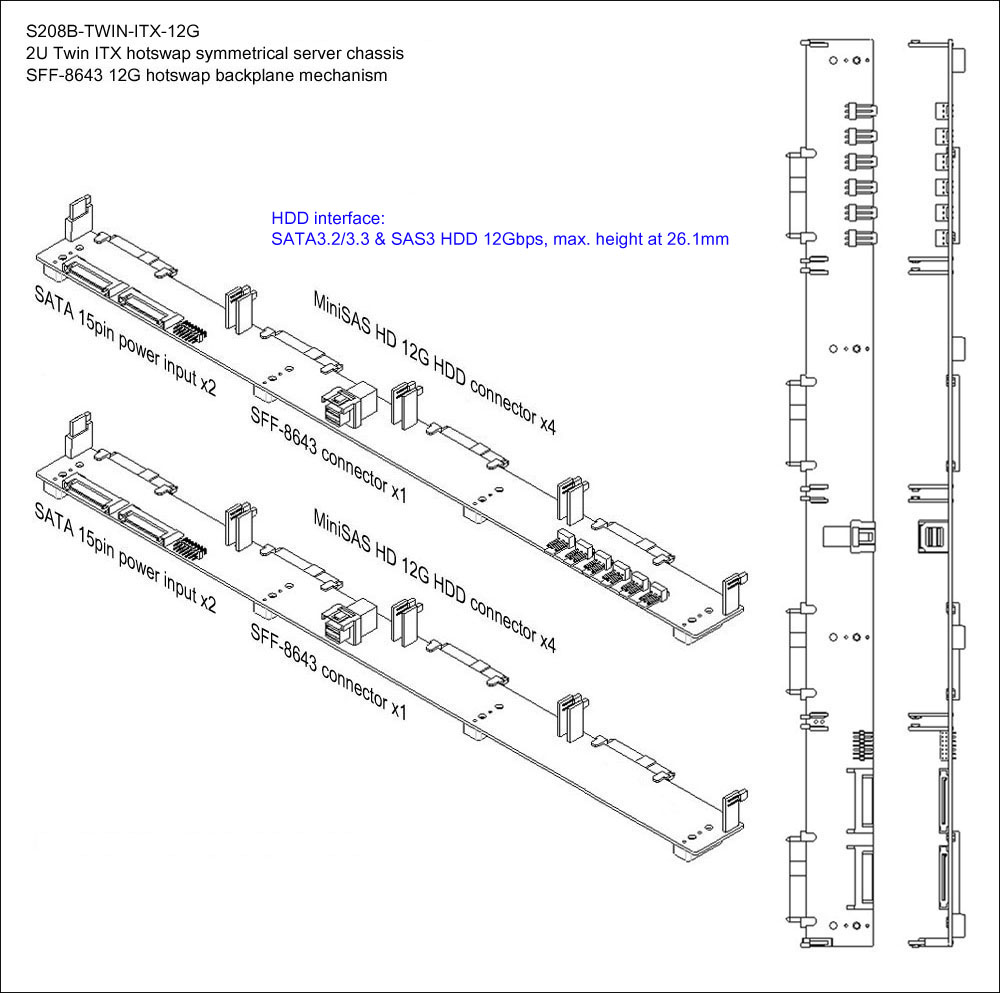

* 2 Hotswap 12G SFF-8643 backplanes: 1 to 4port MiniSAS HD connector (12G version)
* Front bezel equipped with four USB 2.0 ports (two USB 2.0 ports for each system)

* Three EasySwap 2-ball bearing 80mmx25mm fans against HDD (fan part# SunTai8025)

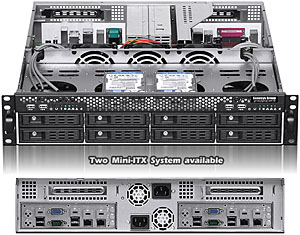

* Support 2 standard 6.7"x6.7" Mini-ITX motherboards (170mm x 170mm)
* Support 2 standard 1U FlexATX 250W~600W power supplies (max. psu depth: 150mm)

* Support 2 slot full height expansion cards (max. 175mm or 6.89" deep)
* Major sheet metal by SGCC 1.2mm~2.0mm thickness with no burr & sharp corner

* Patented front/rear symmetrical body design makes system flexibility & durable
* Standard paint: scratch-resistant Black textured at front
* Genesys Group chassis with build-in electronics in global 3 years warranty
* Chassis dimension: 19" x 2U x 448mm (17.64" deep)

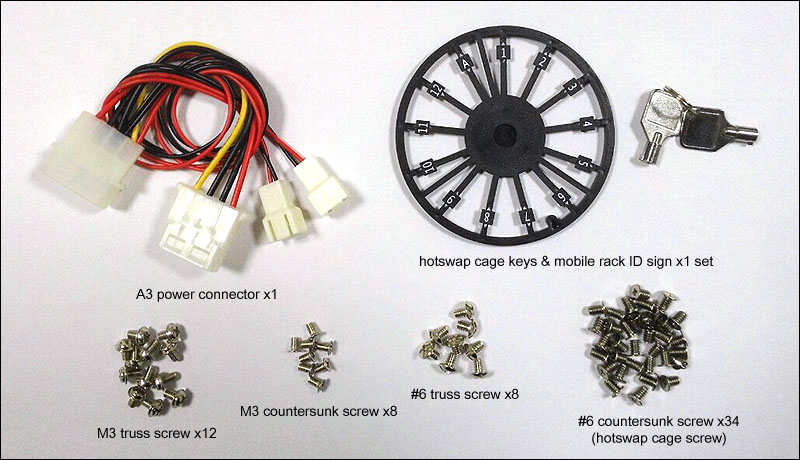

* Accessory: #6 truss screw x8, M3 truss screw x12, M3 countersunk screw x8,

   A3 power connector x1, hotswap cage screw/keys/mobile rack ID sign x1 set

* Package: NW 8.5 KGM, GW 9.5 KGM, 2.58 CUFT (carton size at 59x59x21cm)

Model#

:

S208B-TWIN-ITX

2U Twin ITX 6G hotswap symmetrical server chassis

Model#

:

S208B-TWIN-ITX-12G

2U Twin ITX 12G hotswap symmetrical server chassis

Option A-1

:

ENP-7025B

1U FlexATX 250W power supply with PFC (psu size at W.81.5 x H.40.5 x L.150/mm)

Option A-2

:

ENP-7130B

1U FlexATX 300W power supply with PFC (psu size at W.81.5 x H.40.5 x L.150/mm)

Option A-3

:

ENP-7140B

1U FlexATX 400W power supply with PFC (psu size at W.81.5 x H.40.5 x L.150/mm)

Option A-4

:

 ENP-7650B

1U FlexATX 500W power supply with PFC (psu size at W.81.5 x H.40.5 x L.150/mm)

Option A-5

:

 ENP-7660B

1U FlexATX 600W power supply with PFC (psu size at W.81.5 x H.40.5 x L.150/mm)

Option B-1

:

NJ-S632

632mm 3-travel slimline slide rail (part# is 1 pair, compatible rack external depth 700~1000mm)

Option B-2

:

SRMK-550

550mm Slimline rear mounting kit (part# is 1 pair)

Option C-1

:

4SATA-1MSAS-500MM

Four SATA (Host) to SFF-8087 Mini-SAS (Device) cable

Option C-2

:

1MSAS-1MSAS-500MM

SFF-8087 Mini-SAS (Host) to SFF-8087 Mini-SAS (Device) cable

Option C-3

:

SFF-8643-500MM

SFF-8643 Mini-SAS HD (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option C-4

:

4SATA-SFF-8643-500MM

Four SATA (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option D-1

:

1U1PCIE1XRC

1U 1PCI-Express 1X right angle riser card (part# is 1pcs, 2pcs installable)

Option D-2

:

1U1PCIE4XRC

1U 1PCI-Express 4X right angle riser card (part# is 1pcs, 2pcs installable)

Option D-3

:

1U1PCIE8XRC

1U 1PCI-Express 8X right angle riser card (part# is 1pcs, 2pcs installable)

Option D-4

:

1U1PCIE16XRC

1U 1PCI-Express 16X right angle riser card (part# is 1pcs, 2pcs installable)

Option E-1

:

JB18A

1U Intel LGA115x Xeon 1230 active CPU cooler (required if you install an expansion card)

Option E-2

:

JB15C-8080

1U Intel LGA2011 LGA2066 active CPU cooler (required if you install an expansion card)

Option E-3

:

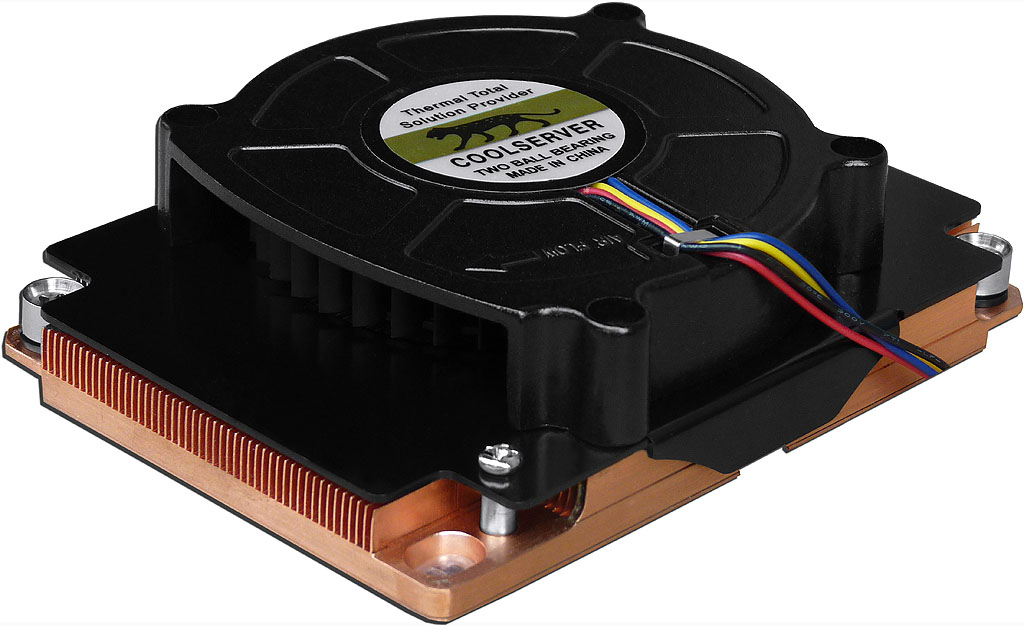

1U3647A-R73

1U Intel LGA3647 active CPU cooler Narrow (required if you install an expansion card)

Option E-4

:

1U1700A-V12

1U Intel LGA1700 active CPU cooler (required if you install an expansion card)

Option F-1

:

2U2011A-8080

2U Intel LGA2011 LGA2066 active CPU cooler Square (2U 3U 4U chassis compatible)

Option F-2

:

2U2011A-5694

2U Intel LGA2011 active CPU cooler Narrow (2U 3U 4U chassis compatible)

Option F-3

:

2U115XA

2U Intel LGA115x Xeon 1230 active CPU cooler (2U 3U 4U chassis compatible)

Option F-4

:

2U4094A-SP3

2U AMD EPYC LGA4094 active CPU cooler SP3 (2U 3U 4U chassis compatible)

Option F-5

:

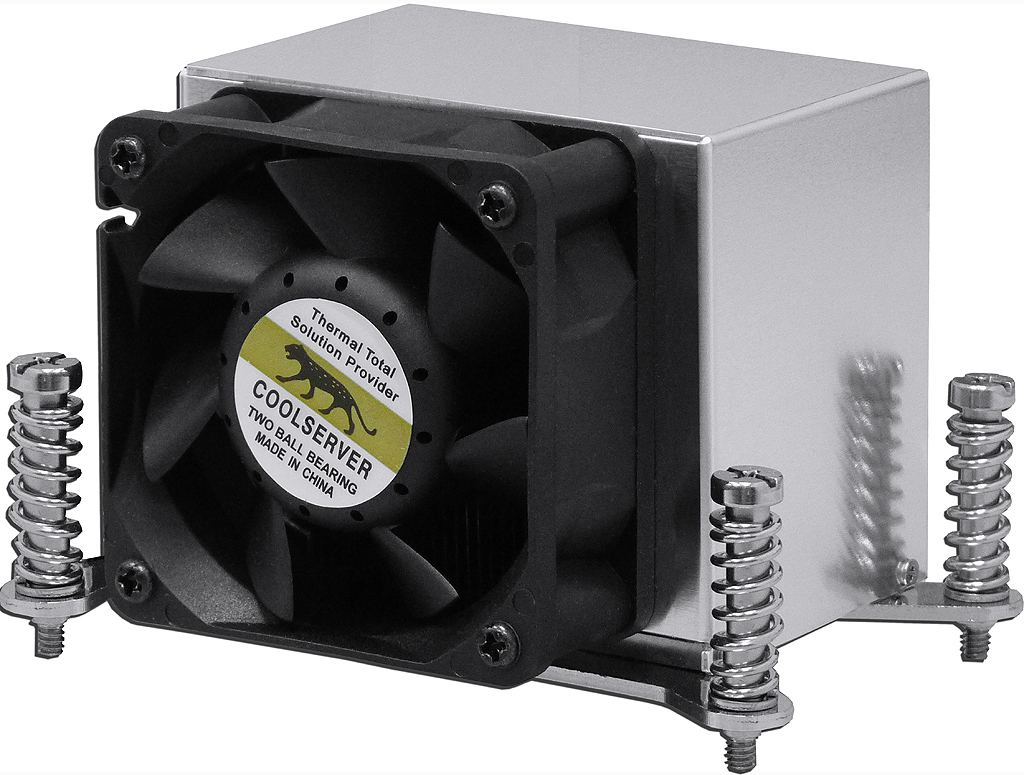

2U1331A-AM4

2U AMD LGA1331 active CPU cooler AM4 (2U 3U 4U chassis compatible)

Option F-6

:

2U3647A-S82

2U Intel LGA3647 active CPU cooler Square (2U 3U 4U chassis compatible)

Option F-7

:

2U3647A-R82-1

2U Intel LGA3647 active CPU cooler Narrow (2U 3U 4U chassis compatible)

Option F-8

:

2U4189A-M82

2U Intel LGA4189 active CPU cooler (2U 3U 4U chassis compatible)

Option F-9

:

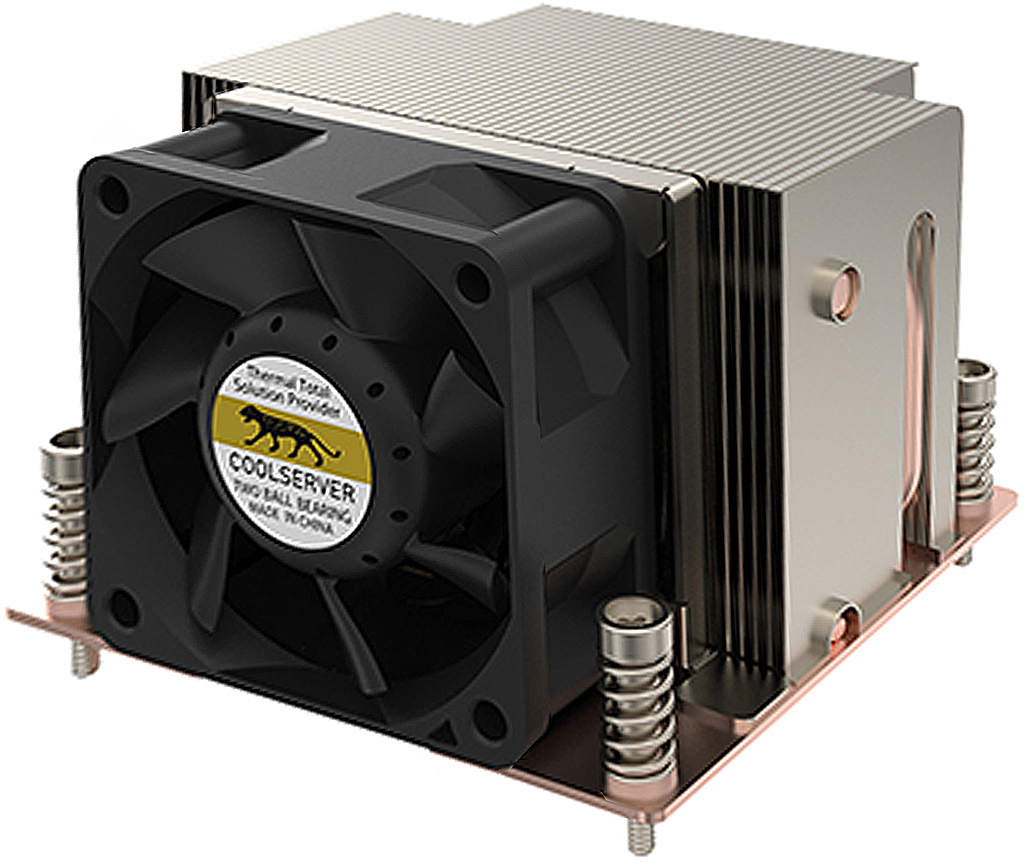

2U1700A-V15

2U Intel LGA1700 active CPU cooler (2U 3U 4U chassis compatible)

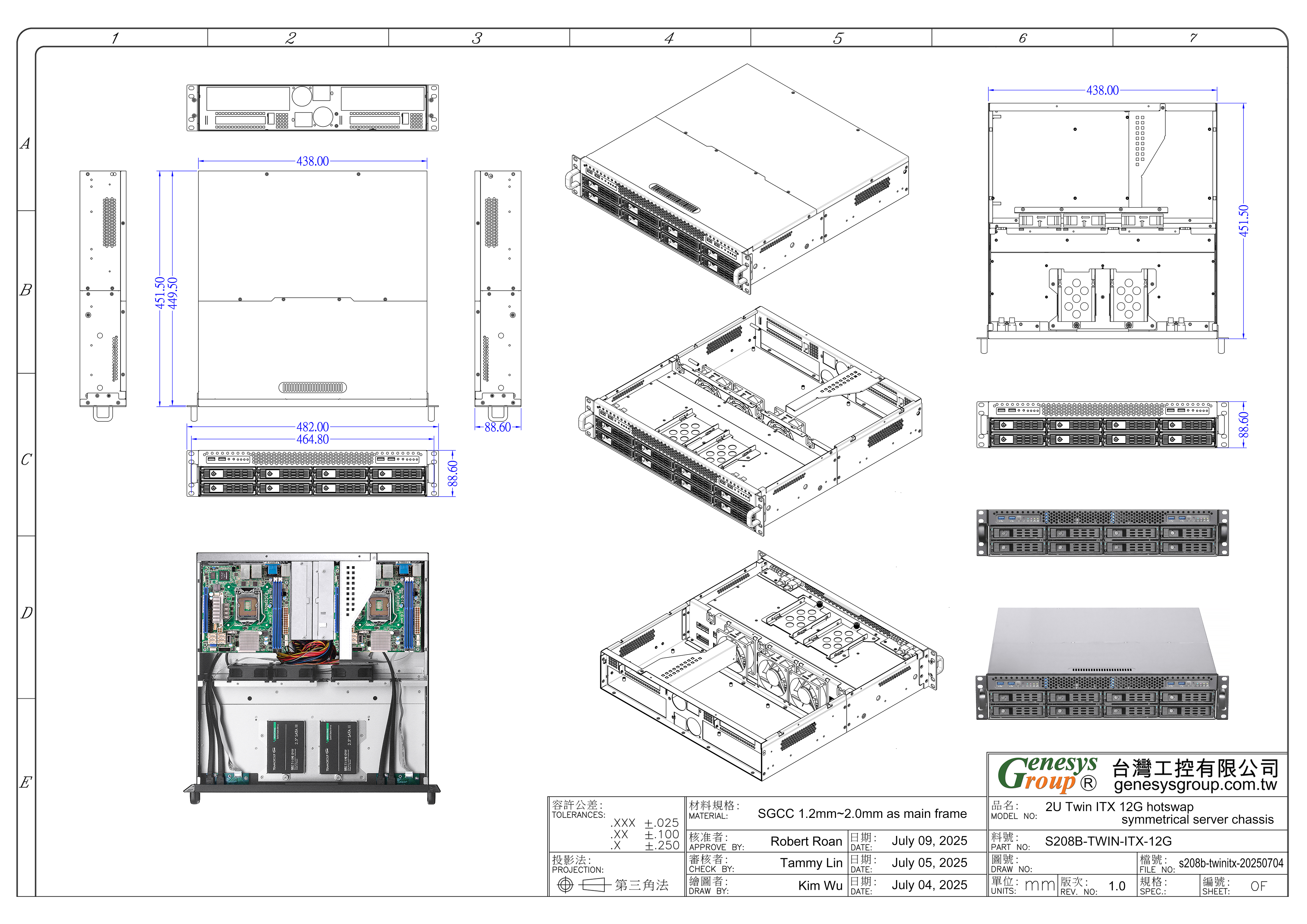

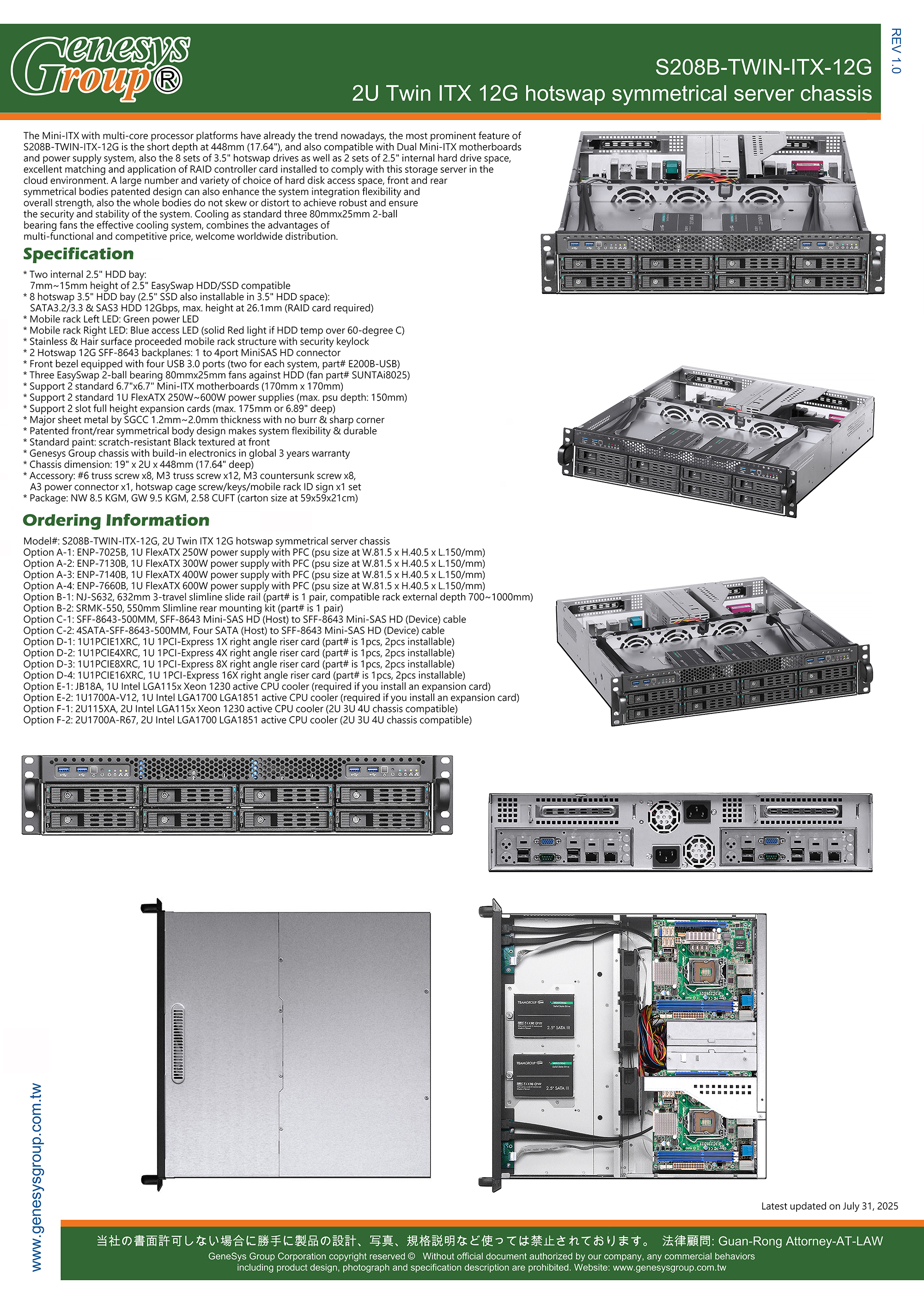

Catalogue       Dimension Drawing
