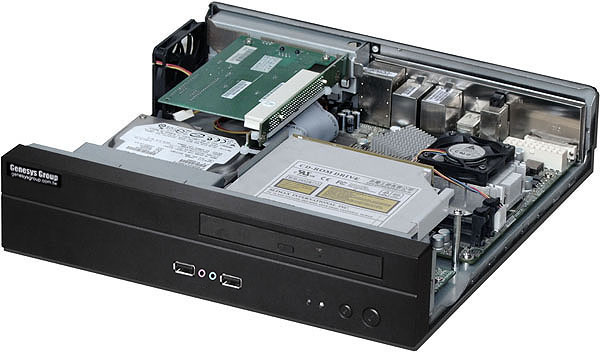

MINI-200 MINI-ITX DESKTOP/CAR PC CHASSIS
webpage updated on June 25, 2018

Intel Atom (BAY Trail) E3815~E3845 and Intel LGA1150, VIA C series platform recommended
It's compliant with the low power consumption, low heat as well as low cost. The MINI-200 chassis meets the cost effective server in ITX platform, its compact size and stable system are the features of this new designed model, the quiet system is suitable for regular office environment application, also mini-Server, cash register, POS/POI system, KIOSK and ATM, Web payphone terminal, industrial control application such as wallmount platform are compatible. Combining with VIA or Intel Atom max. 10-core processor, it provides your system stable and fast.



* Drive bay: 1 x 3.5" HDD and 1 x slim DVDRW bay (sheet metal thickness: 0.8mm)

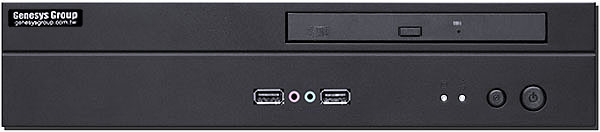

* two USB 2.0 ports, one speaker and one audio port at front bezel

* with internal 140W DC to DC power supply PCB

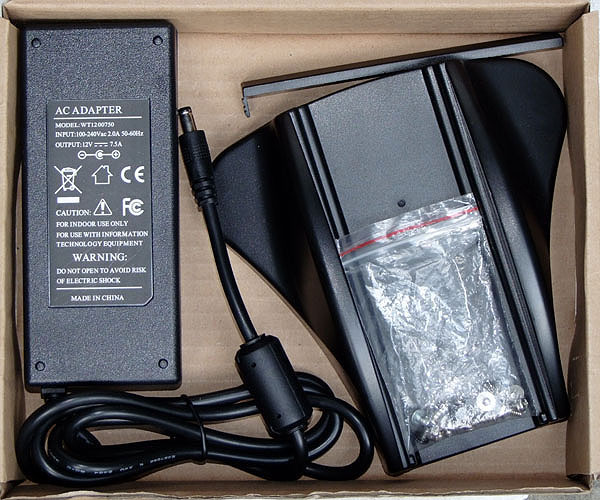

* with external 90W AC 100V~240V to DC12V adapter (input 50/60Hz@2A, output 12V@7.5A)

* with power wires for MB: ATX 20+4pin and ATX12V 4pin connector
* with power wires for peripheral: SATA x 1, Molex 4P x 1, Small 4P x 1
* with

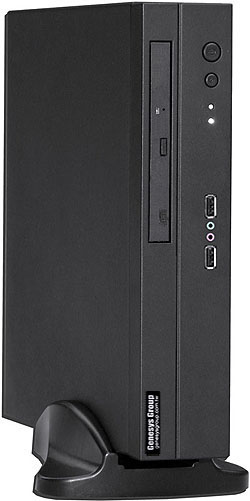

black plastic foot
*
support one exhaust 60mm x 10mm low speed quiet fan with small 3pin wire (option)
*

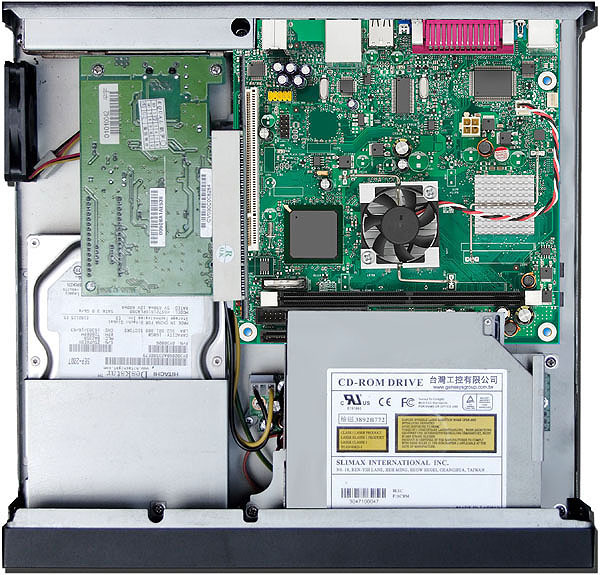

support Mini-ITX MB mounting at 6.7" x 6.7" (170mm x 170mm)

* support one full height plugin card at max. 235mm long (should transform via riser card)
*
black minor textured painting as standard (beige paint accepted by pre-order in advance)
* chassis dimension:
295mm x 63.2mm x 284.6mm (WxHxD)
* package
: NW 3.0KG, GW 3.5KG, 0.71 CUFT (35.5x36x15.8cm, one box packed)

Model#

:

MINI-200B

Black Mini-ITX desktop/car pc chassis

Model#

:

MINI-200

Beige Mini-ITX desktop/car pc chassis  (beige paint accepted by pre-order in advance)

Option A

:

1U active CPU cooler

JB15C-8080 or JB15C-5694 LGA2011 or JB18A LGA1150/1155/1156/Xeon1230 active CPU cooler

Option B

:

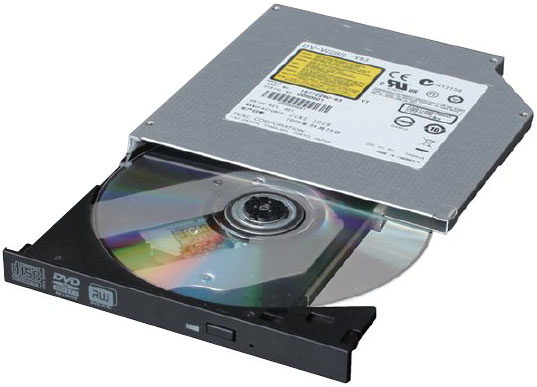

Slim DVDRW

black slim DVDRW

Option C-1

:

1U riser card

1U PCI 32bit riser card with ribbon (for example 1U1PCI32LC)

Option C-2

:

1U riser card

1U PCIe 16X riser card with ribbon (for example 1U1PCIE16XLC)
