S104B 1U HOTSWAP SYMMETRICAL SERVER CHASSIS
1U 2U 3U 4U front/rear symmetrical compartment patent & copyright officially announced on August 20, 2013 in Taiwan, China, Thailand, Korea, Japan, USA, England, EU, Russia, India. Official Taiwan patent# M468864 & China patent# 3434937. Product announcement & 1st production

dated on December 03, 2014, webpage updated on August 28, 2018

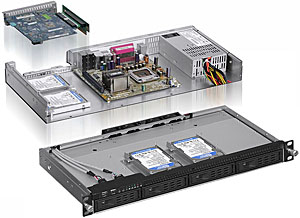

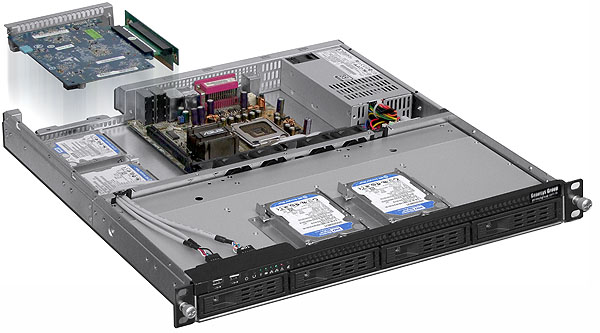

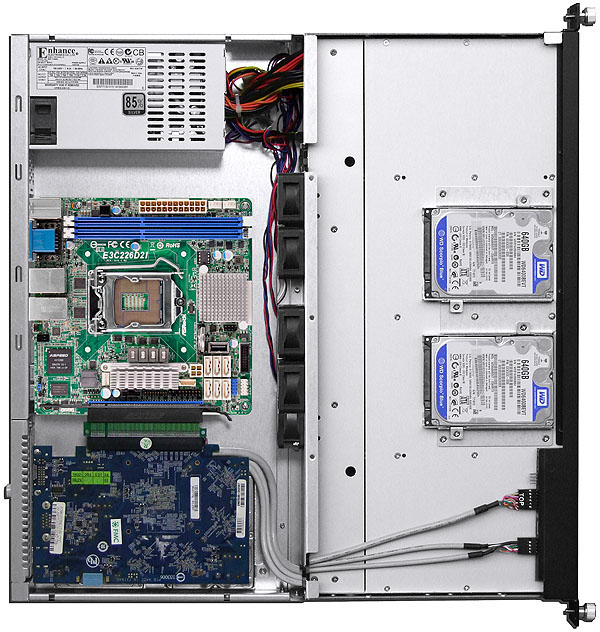

The Mini-ITX structure with dual-core and 4-core and the newest Intel X99 8-core processor has already the trend nowadays, the most prominent feature of S104B-ITX is the short depth at 437.20mm, and also compatible with 4 sets of 3.5" hotswap drives as well as 4 sets of 2.5" internal hard drive space, excellent matching and application of RAID controller card installed to comply with this storage server in the cloud environment. A large number and variety of choice of hard disk access space, front and rear symmetrical bodies patented design can also enhance the system integration flexibility and overall strength, also the whole bodies do not skew or distort to achieve robust and ensure the security and stability of the system. Cooling as standard four 40mm x 20mm 2-ball bearing fans (40mm x 28mm fans as option) as effective cooling system, combines the advantages of multi-functional and competitive price, welcome worldwide distribution.



            stainless tray  stainless 3.5" HDD tray







S104B-ITX



S104B-mATX (stay tune)

* Four internal 2.5" SSD/HDD bay:

   Two 7mm~9.5mm height of 2.5" HDD/SSD compatible at front compartment

   Two 7mm~15mm height of 2.5" HDD/SSD compatible at rear compartment

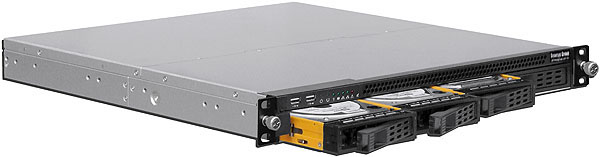

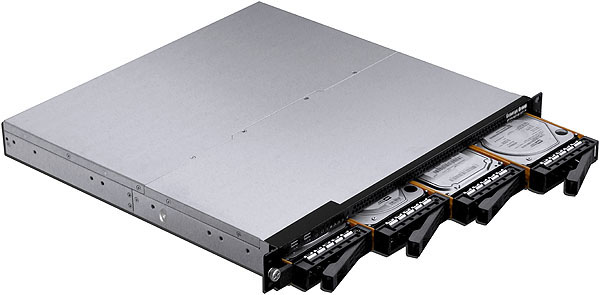

* Four hotswap 3.5" HDD bay (four hotswap 2.5" HDD/SSD also compatible):

   SATA2/SATA3(6G) & SAS-1/SAS-2(6G) HDD, max. 25.4mm height of HDD compatible

   or MiniSAS HD (12G) HDD, max. 26.1mm height of HDD compatible (RAID card required)

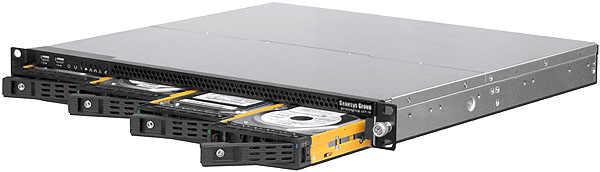

* Mobile rack Left LED: Green power LED

* Mobile rack Right LED: Blue access LED (solid Red light if HDD temp over 60-degree C)
* Stainless & Hair surface proceeded mobile rack structure with security keylock

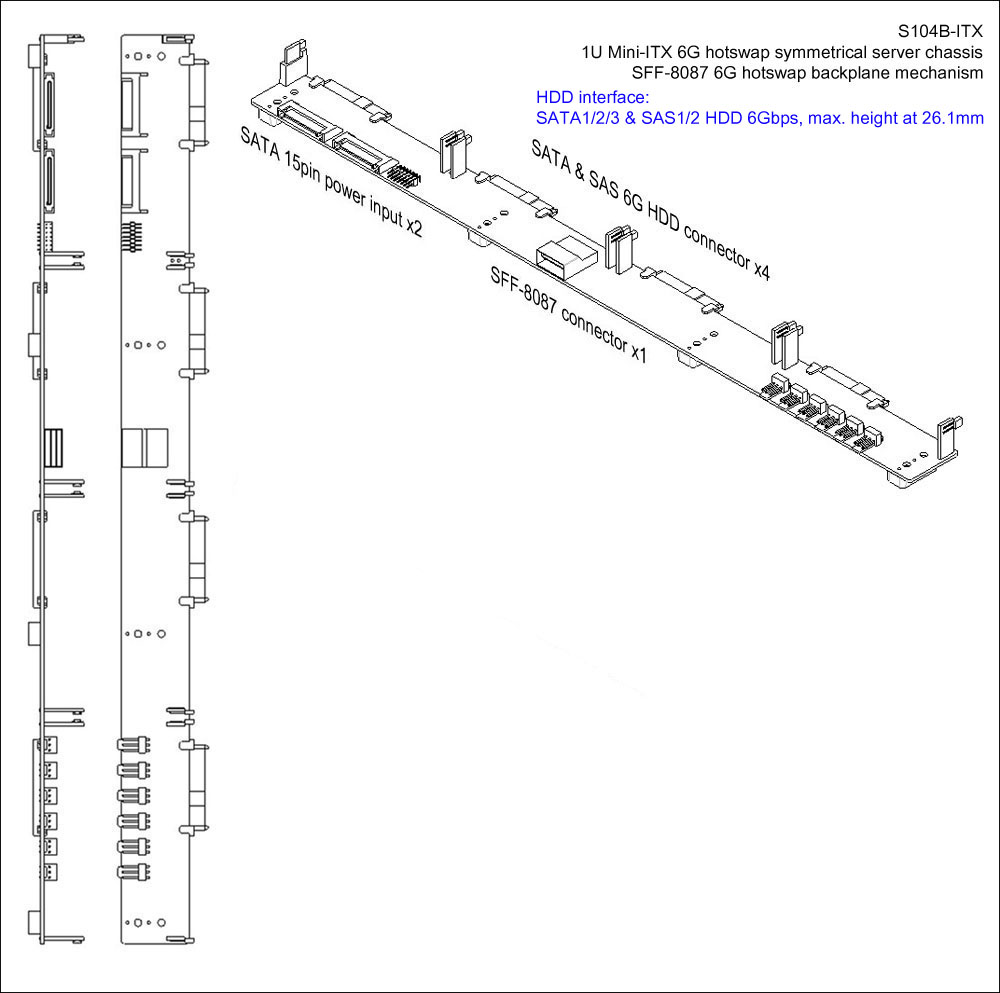

* Hotswap 6G SFF-8087 backplane: 1 to 4port MiniSAS connector (S104B-ITX)

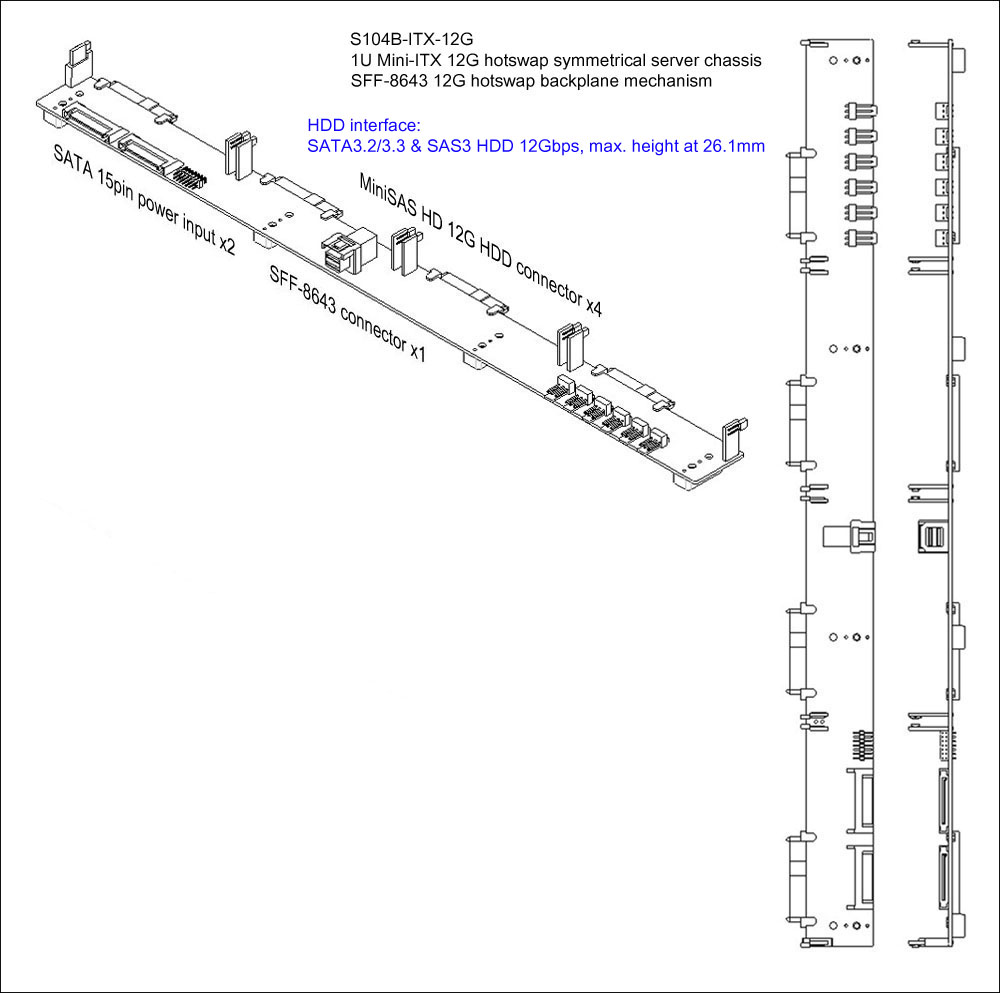

* Hotswap 12G SFF-8643 backplane: 1 to 4port MiniSAS HD connector (S104B-ITX-12G)
* Front bezel equipped with two USB 2.0 ports
* Four brand new Sunon MB40201VX-000C-G99 40mm x 20mm intake fans against HDD

* Room noise without fans activated is 49dBA, tested by 10cm distance to the running fans is

   70dBA (including room noise)
* All in one fan wire PCB to keep fast system maintenance
* Support standard 6.7"x6.7" Mini-ITX MB (170mm x 170mm)
* Various Genesys Group 1U I/O shield available (option, increasing more items daily)
* Support standard 1U FlexATX 250W~300W psu (max. psu depth: 150mm)
* Support 1 slot full height expansion card with quick assembly bracket (max. 205mm deep)
* Major sheet metal by SGCC 1.0mm~2.0mm thickness with no burr & sharp corner design
* Patented front/rear symmetrical body design makes system flexibility & durable strength
* Standard paint: black at front
* Genesys Group branded server chassis model (with build-in fans) global 3 years warranty

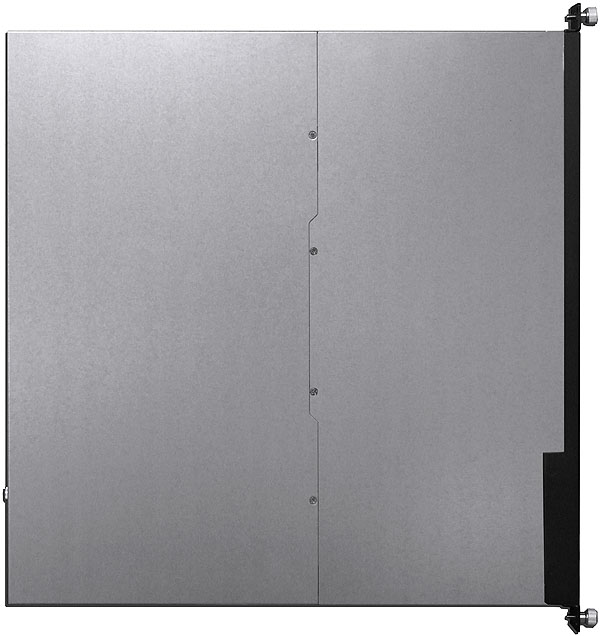

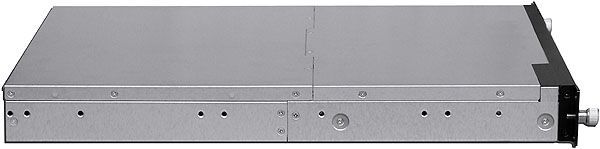

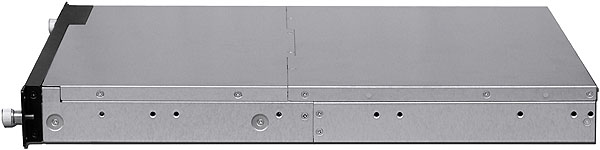

* Chassis dimension: 19" x 1U x 437.20mm (17.21" deep)

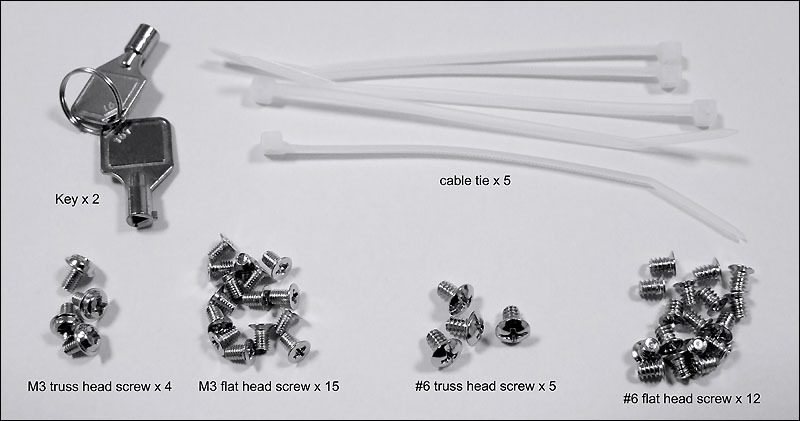

* Accessory pack: Key x 2, cable tie x 5, M3 truss head screw x 4, M3 flat head screw x 15,

   #6 truss head screw x 5, #6 flat head screw x 12

* Package: NW 6.15 KGM, GW 8.0 KGM, 1.44 CUFT (55x55x13.5cm, one box packed)

Model#

:

S104B-ITX

1U Mini-ITX 6G hotswap symmetrical server chassis (6G version)

Model#

:

S104B-ITX-12G

1U Mini-ITX 12G hotswap symmetrical server chassis (12G version)

Option A-1

:

EFAP-S250

1U FlexATX 250W power supply with PFC (psu size 81.5 x 40.5 x 150/mm)

Option A-2

:

ENP-7025B

1U FlexATX 250W power supply with PFC (psu size 81.5 x 40.5 x 150/mm)

Option A-3

:

ENP-7130B

1U FlexATX 300W power supply with PFC (psu size 81.5 x 40.5 x 150/mm)

Option B-1

:

1U riser card

Various 1U riser card (for example 1U1PCI32L+1U1PCI32L-EXT)

Option B-2

:

1U riser card

Various 1U riser card (for example 1U1PCIE16XL+1U1PCIE16XL-EXT)

Option C

:

1U active CPU Cooler

JB15C-8080 or JB15C-5694 LGA2011 or JB18A LGA1150/1155/1156/Xeon1230 active CPU cooler

Option D

:

1UIO*******

1U I/O shield

Option E-1

:

NJ-S628

628mm 3-travel slimline slide rail (part# is 1 pair, compatible cabinet external depth 700~1000mm)

Option E-2

:

SRMK-550

550mm Slimline rear mounting kit (part# is 1 pair)

Option F-1

:

4SATA-1MSAS-500MM

Four SATA (Host) to SFF-8087 Mini-SAS (Device) cable

Option F-2

:

1MSAS-1MSAS-500MM

SFF-8087 Mini-SAS (Host) to Mini-SAS (Device) cable

Option F-3

:

SFF-8643-500MM

SFF-8643 Mini-SAS HD (Host) to SFF-8643 Mini-SAS HD (Device) cable 12G

Option F-4

:

4SATA-SFF-8643-500MM

Four SATA (Host) to SFF-8643 Mini-SAS HD (Device) cable 12G

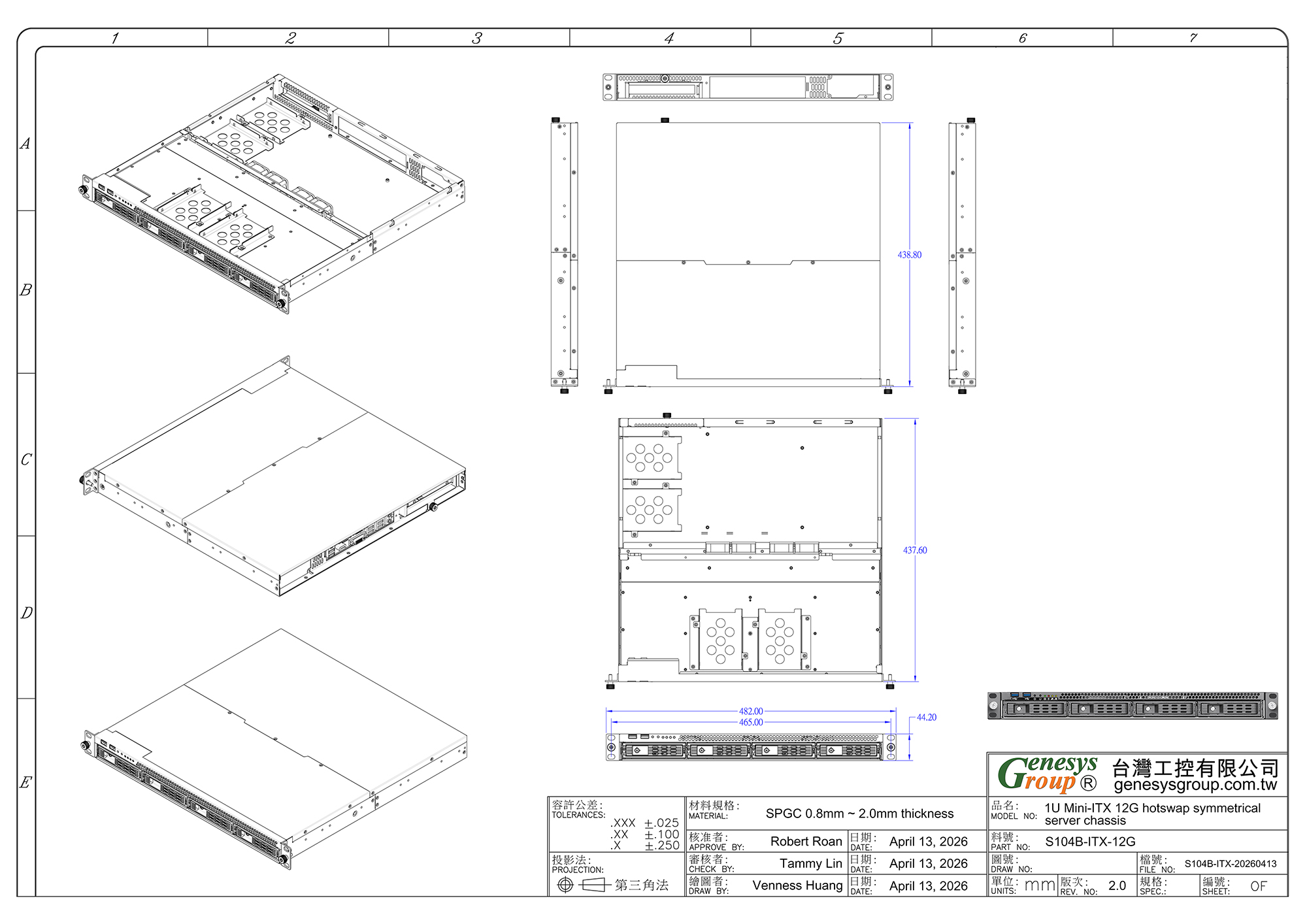

Catalogue       Dimension Drawing         1U accessory       Chassis Quick Assembly Manual
