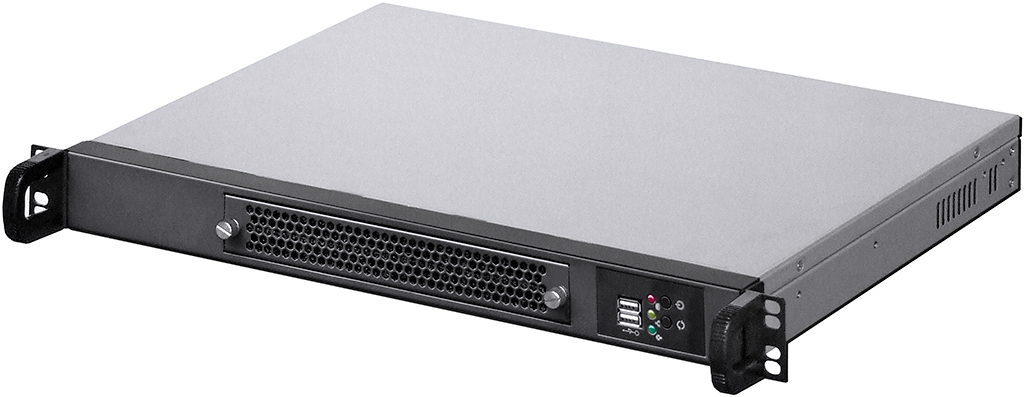

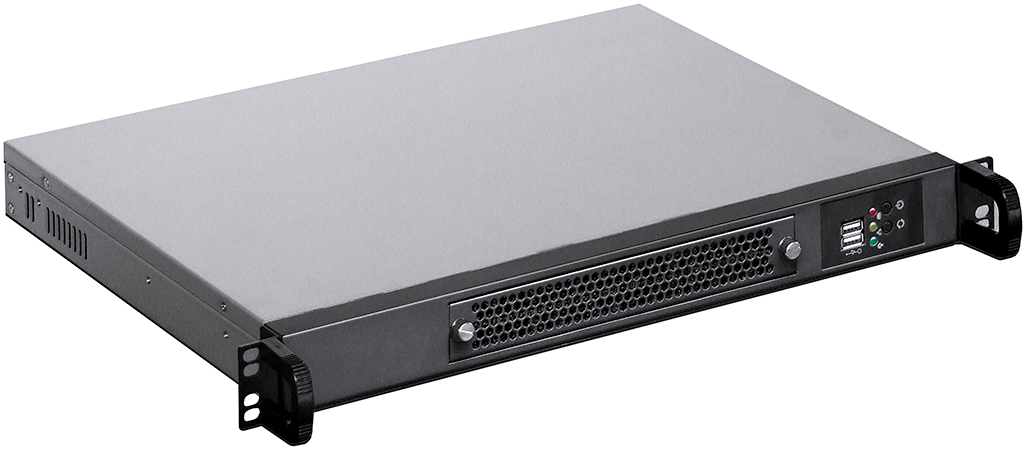

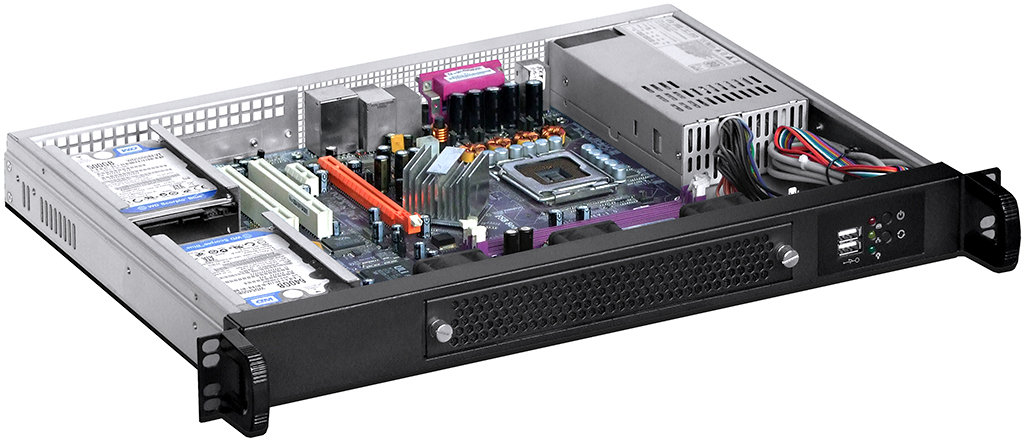

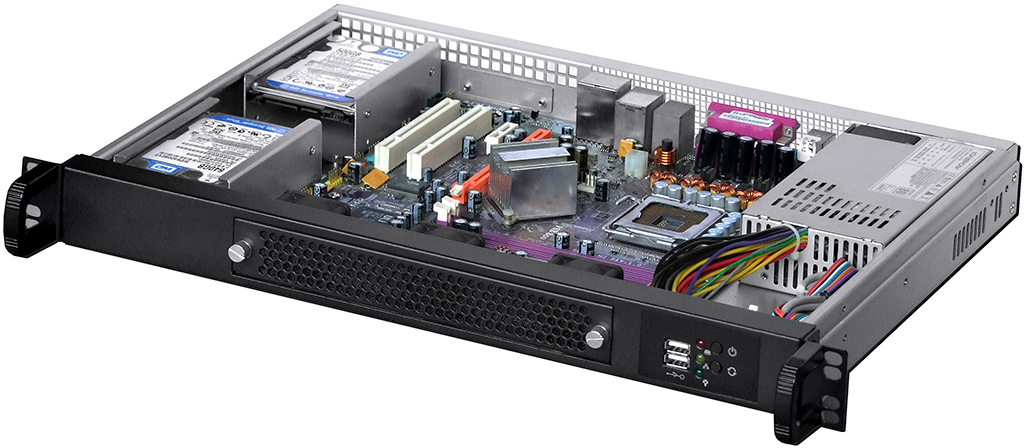

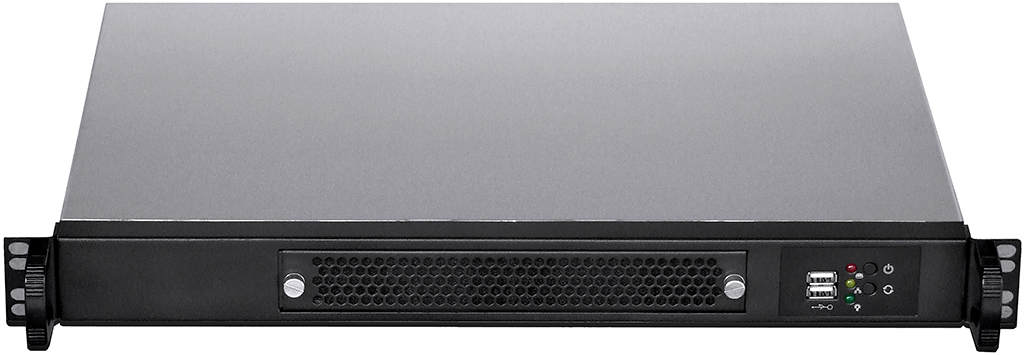

C130B 1U BLACK MICROATX SERVER CHASSIS
1st production and shipment launched on April 13, 2016, webpage updated on August 29, 2024

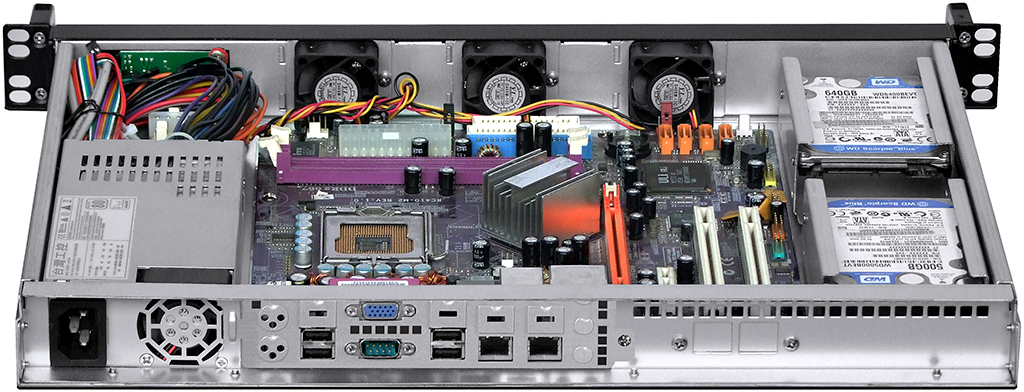

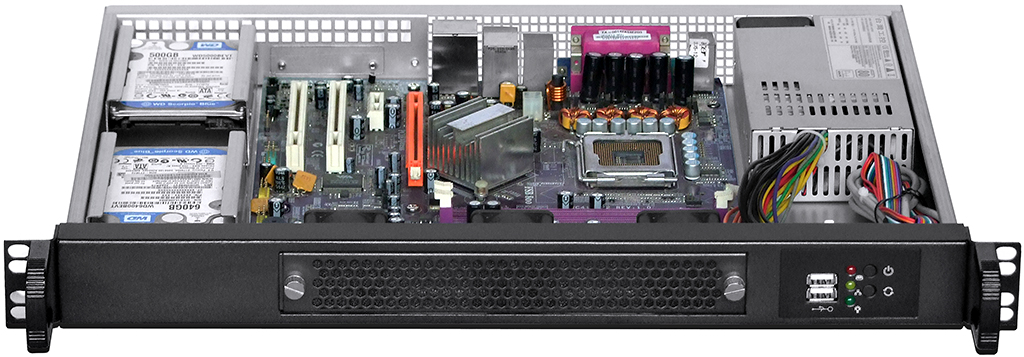

The era of Multi-core has been the main stream nowadays, one of the defining characteristics of C130B is the short depth at 300mm, it's also compatible with four 2.5" SSD or HDD which 7mm~15mm height compliant as well, it's also compatible for the latest 32Gb speed U.2 NVMe SSD. Maximum motherboard installable form factor is MicroATX 9.6" x 9.6" as well as Mini-ITX 6.7" x 6.7". The cooling system equipped with three 40mmx20mm silent fans and front bezel is equipped with quick release dust filter, effective dust-proof control and quick maintenance system environment. Combined a competitive advantage, welcome customers distribution all over the world.











* Drive capacity: four 2.5" HDD/SSD, 7mm~15mm height compatible

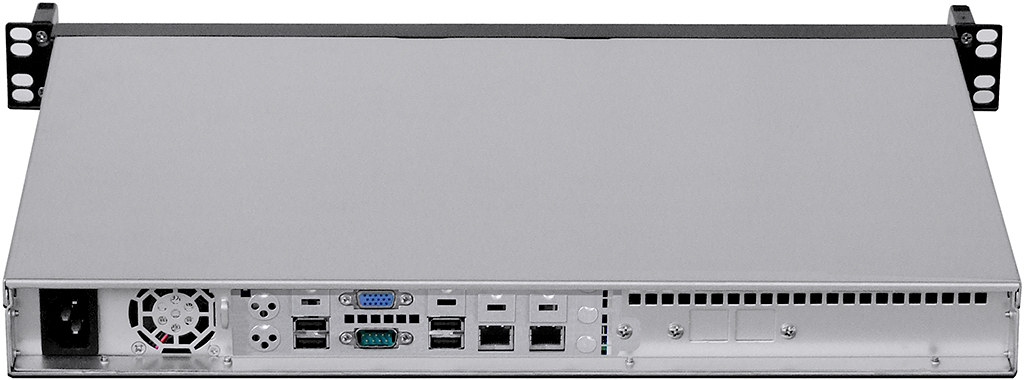

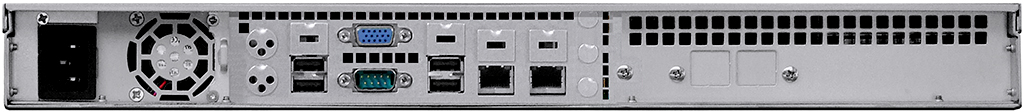

* Two USB 2.0 ports at front bezel. One Dual GigaLAN module at rear panel as option

* Two USB 3.0 as option
* Equipped with 3 brand new low noise 40mmx20mm intake fans (fan part# D40SM-12C)

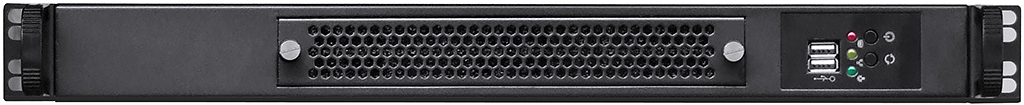

* Equipped with quick release dust filter cover, effective dust control & quick maintenance
* Equipped with 3pin fan wire PCB which simplified fan connectors routing management

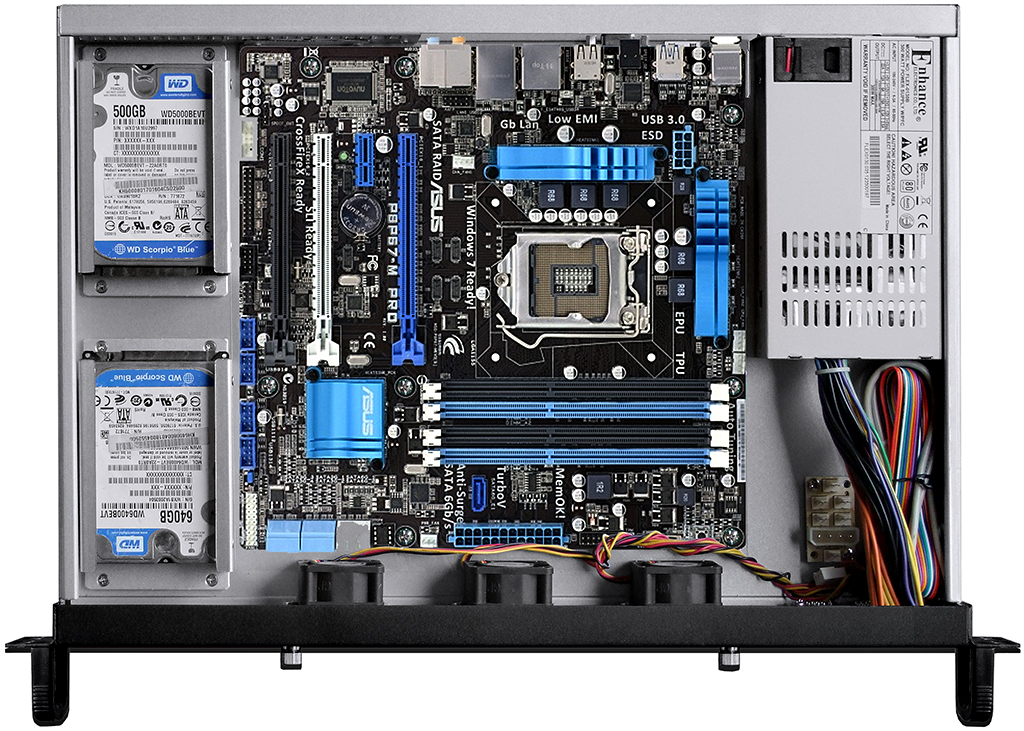

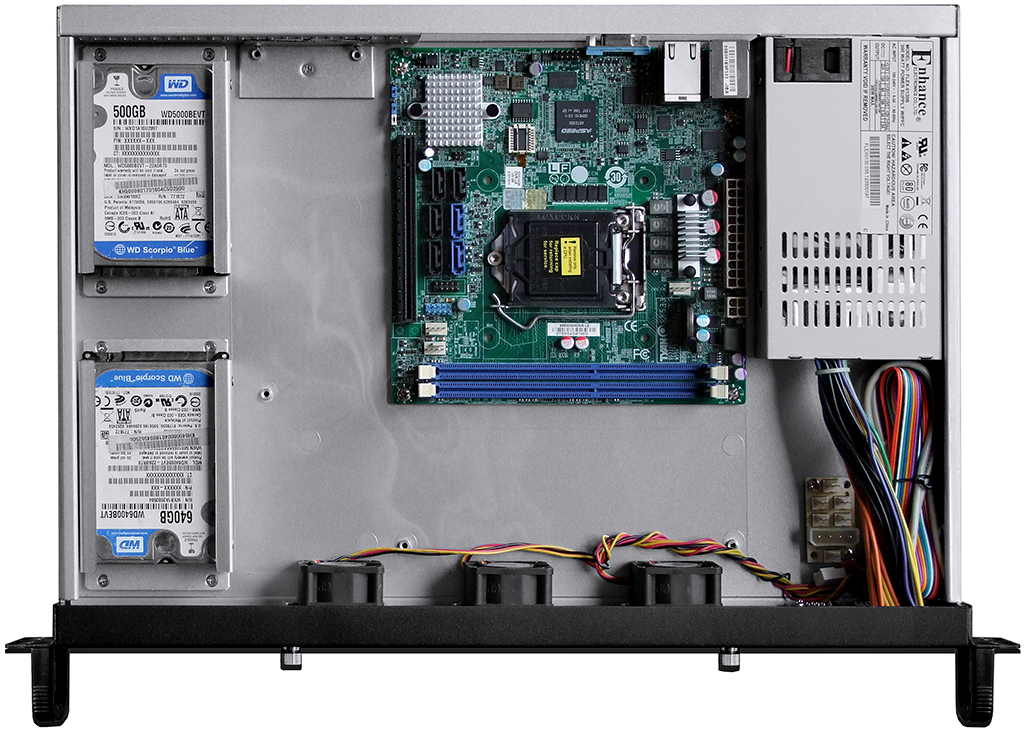

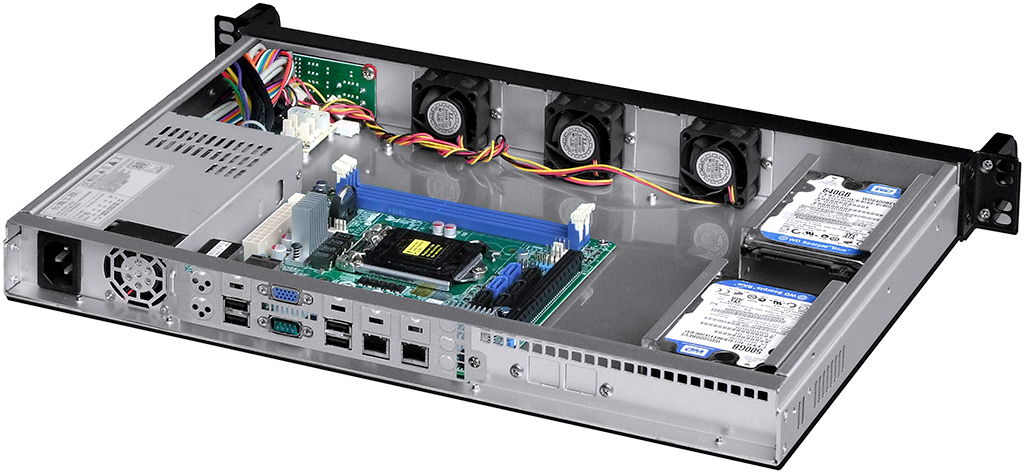

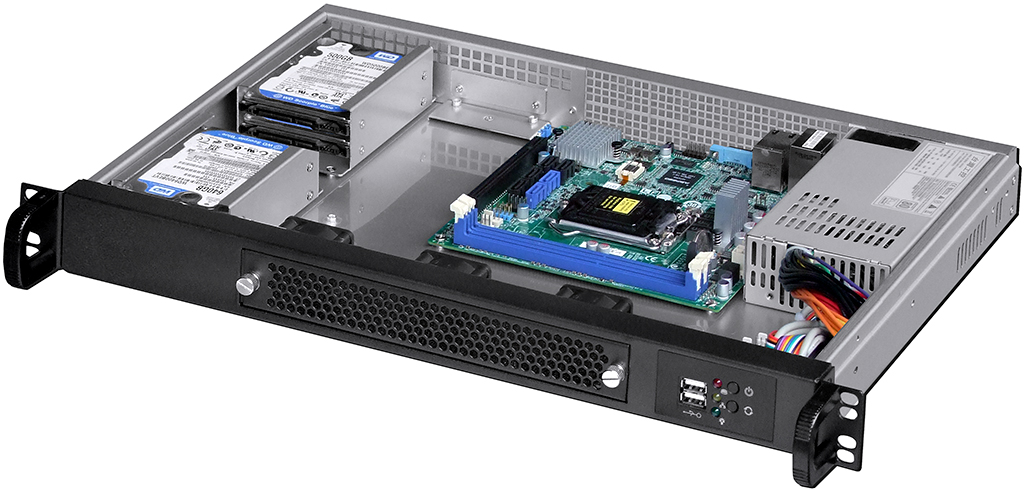

* Compatible motherboard: MicroATX(9.6"x9.6"), Mini-ITX(6.7"x6.7")
* Various Genesys Group 1U I/O shield available (option, developing more items daily)
* Support standard 1U FlexATX 250W~300W power supply (max. psu depth: 150mm)
* SGCC sheet metal by 1.0mm~2.0mm thickness with protective sheet on surface
* Standard paint: scratch-resistant black textured at front
* Genesys Group chassis with build-in electronics in global 3 years warranty
* Chassis dimension: 19" x 1U x 300mm (11.81" deep)

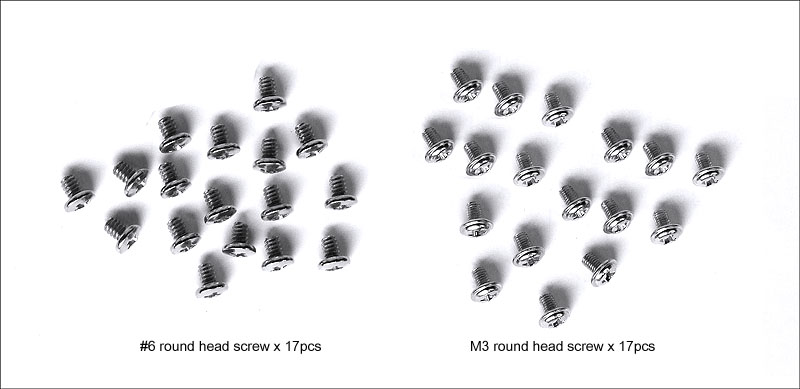

* Accessory: M3 round head screw x17, #6 round head screw x17
* Package: NW 4.0 KGM, GW 5.0 KGM, 1.09 CUFT (carton size at 55x43x13cm)

Model#

:

C130B

1U black MicroATX server chassis

Option A-1

:

ENP-7025B

1U FlexATX 250W power supply with PFC (psu size 81.5 x 40.5 x 150/mm)

Option A-2

:

ENP-7130B

1U FlexATX 300W power supply with PFC (psu size 81.5 x 40.5 x 150/mm)

Option B-1

:

NJ-600

600mm 2-layer 3-travel universal rail (cabinet internal depth 600~1200mm compliant)

Option B-2

:

1234U-RMK

1234U rear mounting kit (part# is 1 pair)

Option C

:

EMPL-G201-C1

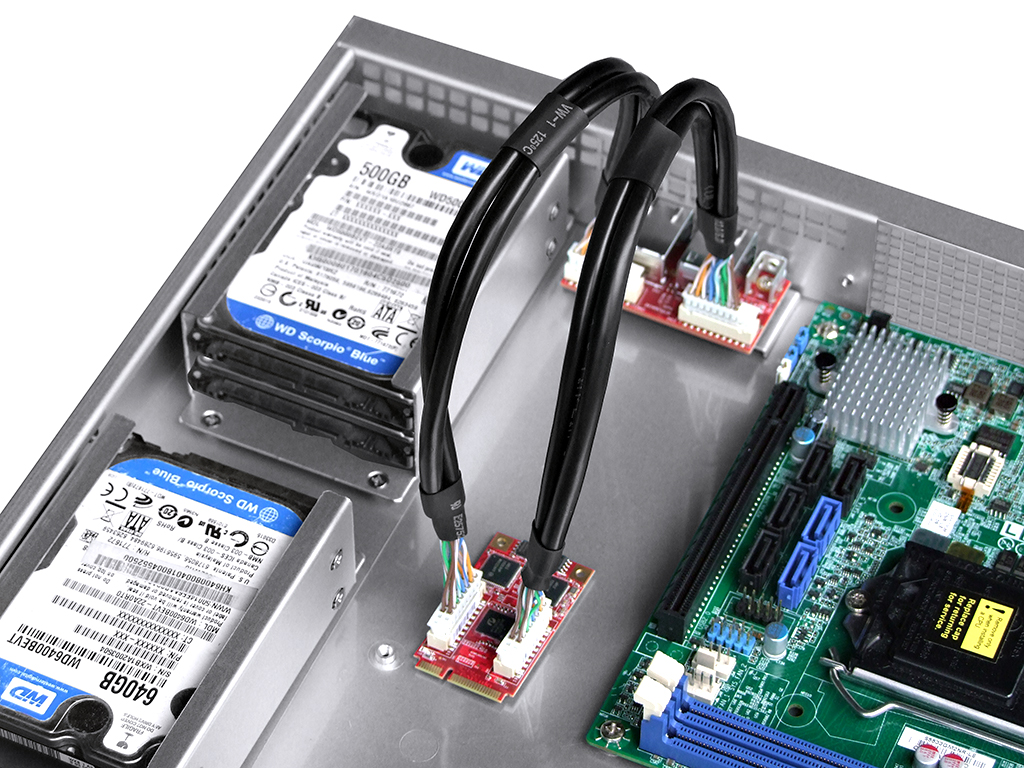

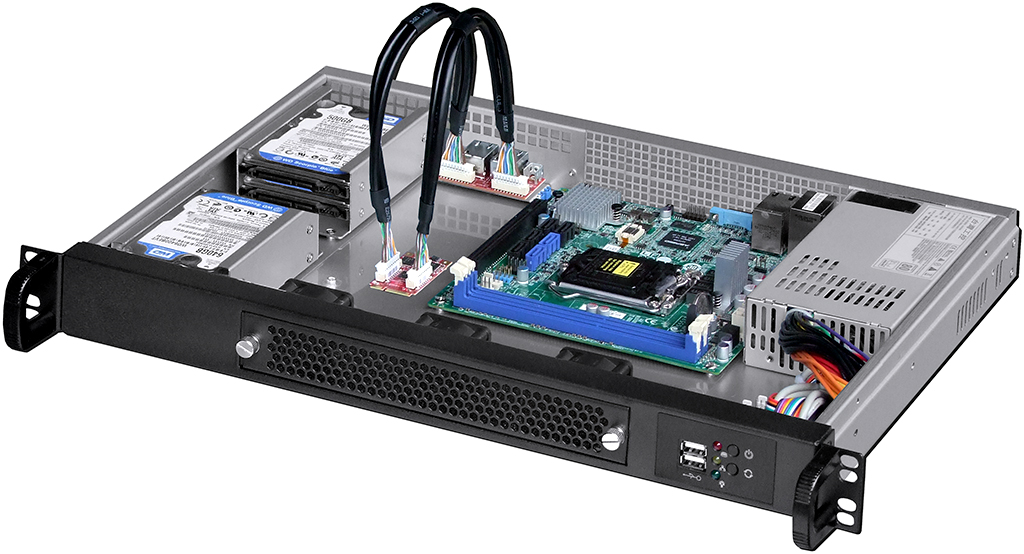

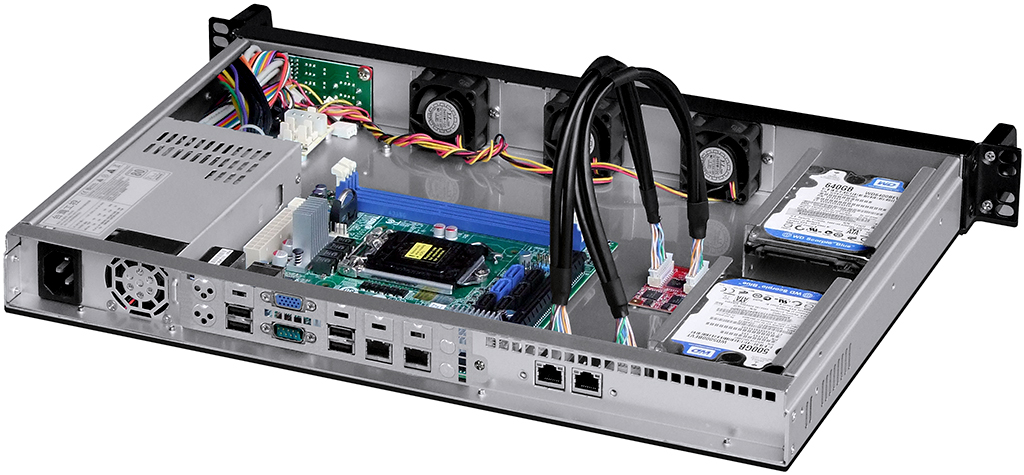

Dual GLAN PCB module to meet FireWall solution (Mini-ITX MB must have mPCIE horizontal socket)

Option D

:

1UIO*******-G

1U SGCC non-paint I/O shield

Option E-1

:

1MSAS-4SATA-500MM

SFF-8087 Mini-SAS (Host) to Four SATA (Device) cable

Option E-2

:

SFF-8643-4SATA-500MM

SFF-8643 Mini-SAS HD (Host) to Four SATA (Device) cable

Option F-1

:

JB18A

1U Intel LGA115x Xeon 1230 active CPU cooler

Option F-2

:

JB15C-8080

1U Intel LGA2011 LGA2066 active CPU cooler

Option F-3

:

1U3647A-R73

1U Intel LGA3647 active CPU cooler Narrow

Option F-4

:

1U1700A-V12

1U Intel LGA1700 active CPU cooler
