C430B 4U BLACK ATX I/O FRONT-REAR ACCESS CHASSIS

Product announcement or 1st production dated on May 20, 2019, webpage updated on April 12, 2021

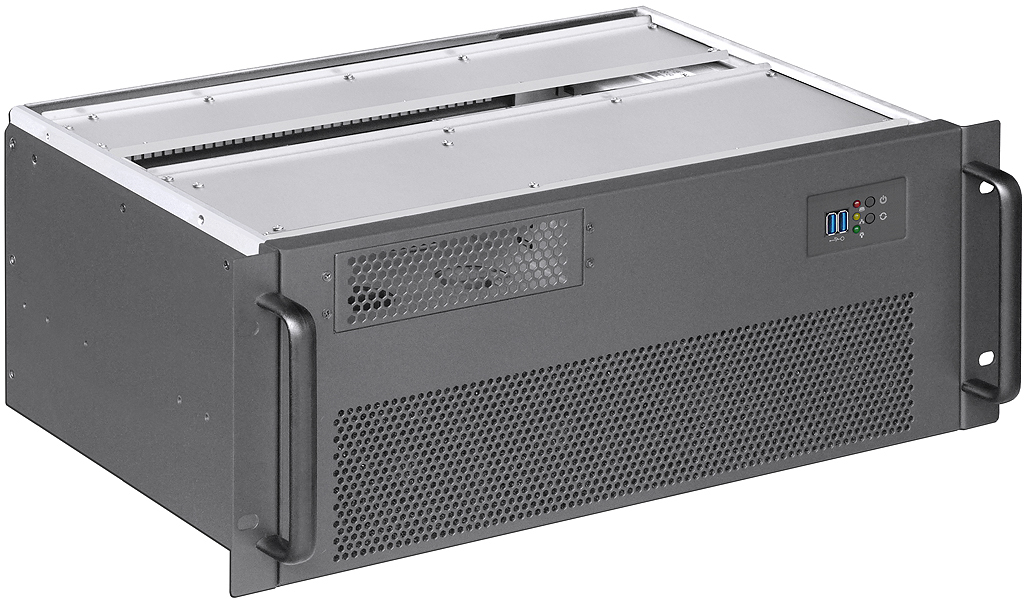

One of the features of the 4U C430B is the depth at 300mm only. The I/O front or I/O rear access functions can be installed without any additional brackets. With the stable and low noise fans equipped, it meets the requirements of good ventilation and dustproof, and is suitable for the heat dissipation environment of the server, also global quality assurance and warranty for three years. This storage space can be installed with a set of 5.25" ODD and 2 sets of 3.5" HDD and 2 sets of 2.5" SSD bay. The 5.25" space can also be equipped with a variety of hotswap mobile rack. The sheet metal mechanism adopts SGCC ultra-high-strength at 1.2mm~2.0mm thickness. The cut surface of all sheet metal parts is designed with smooth hemming. This model can be installed in addition to the standard 12" x9.6" ATX motherboard, MicroATX or Mini-ITX motherboard can also be installed for various system environments. In addition, the price is absolutely competitive, welcome distribution from all over the world.

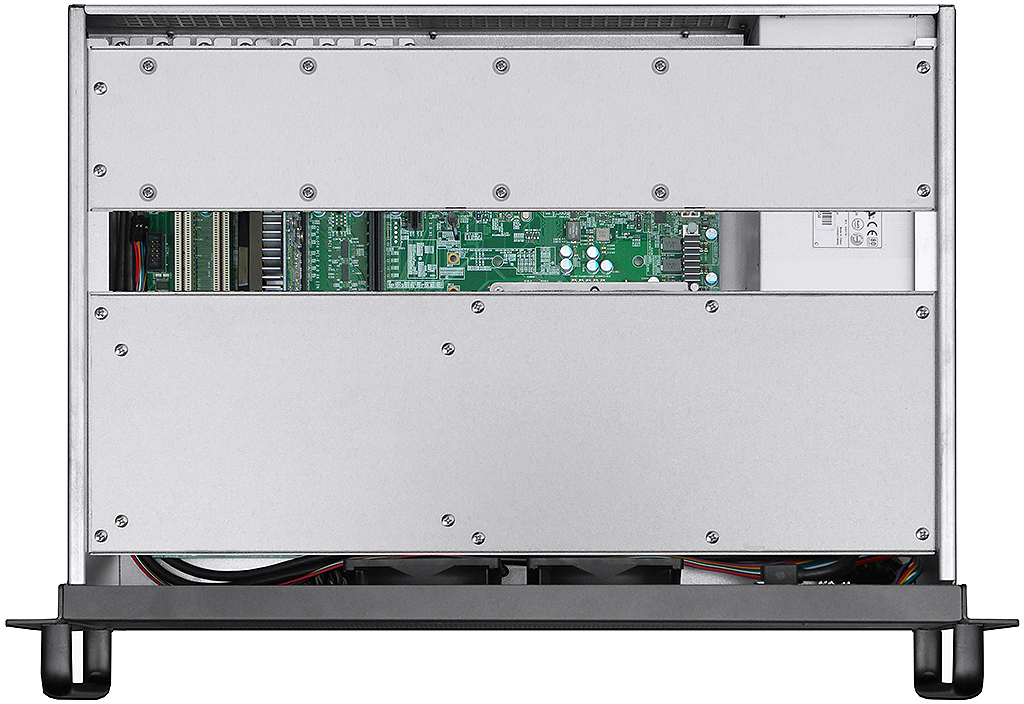

* Drive Space: one 5.25" ODD bay, two 3.5" HDD bay, and two 2.5" SSD/HDD bay

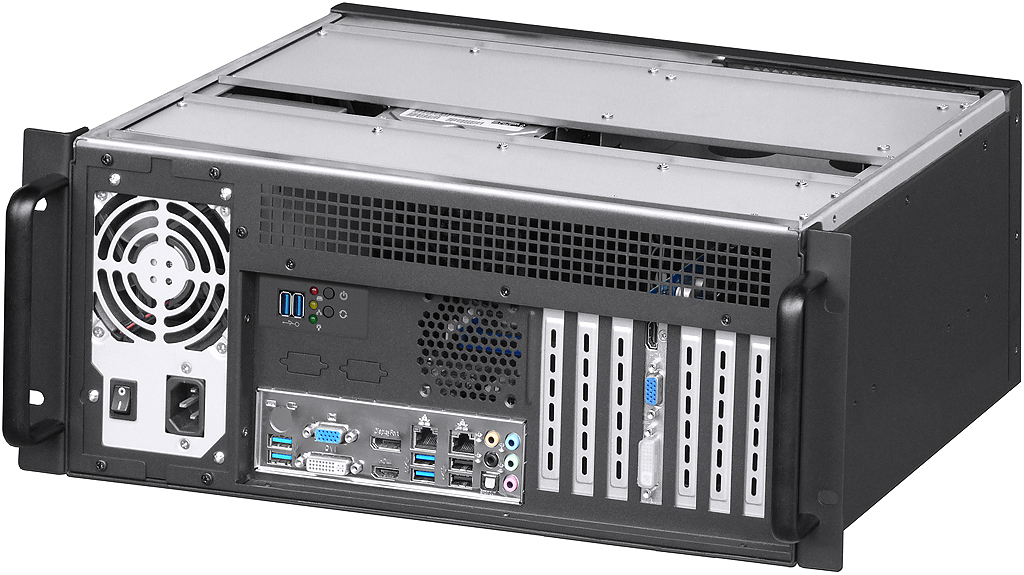

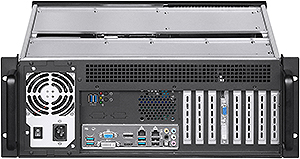

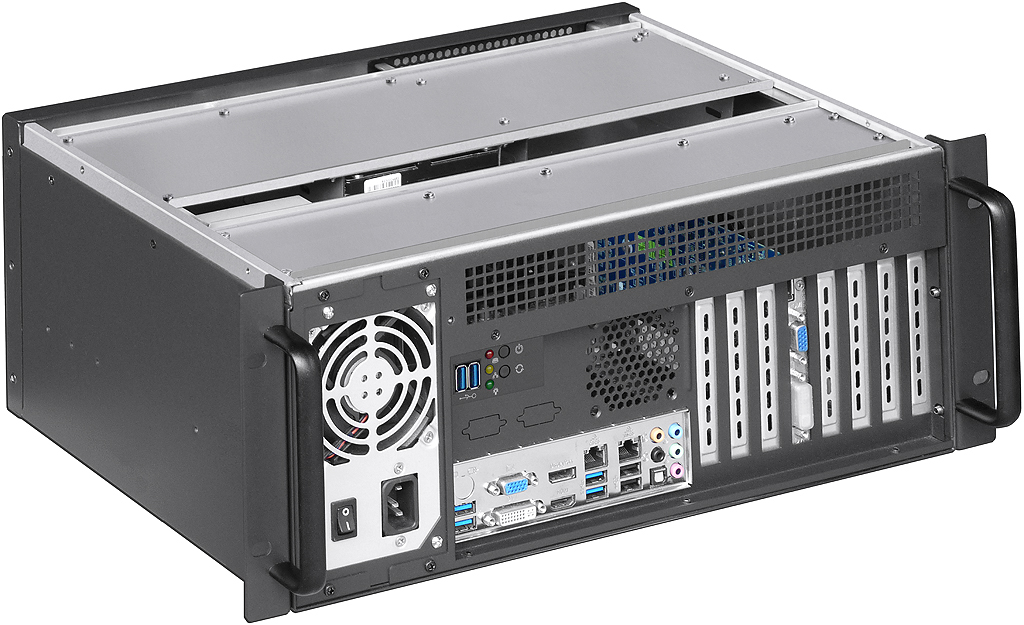

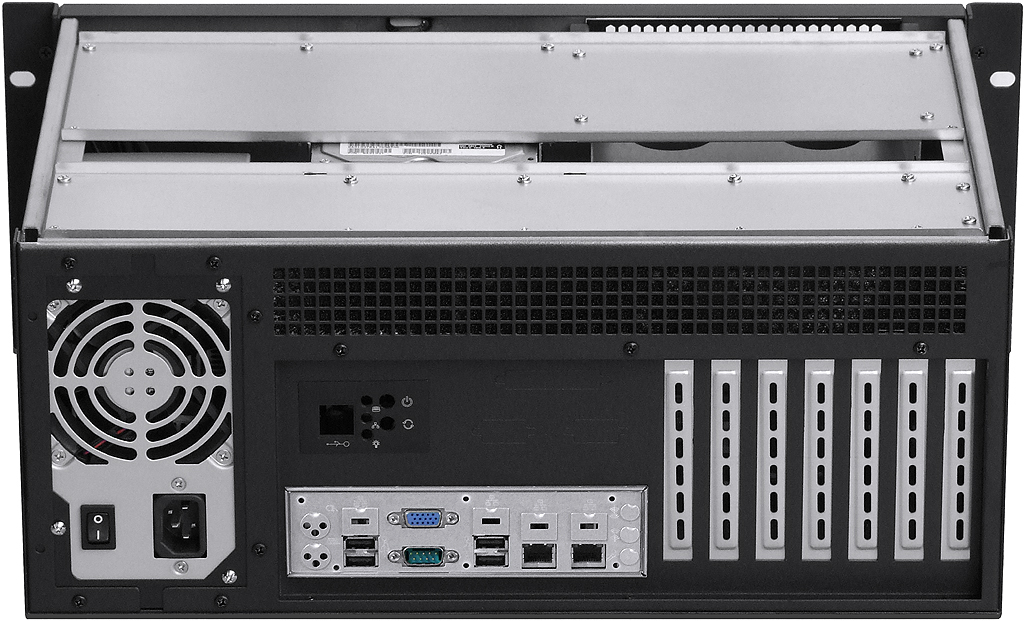

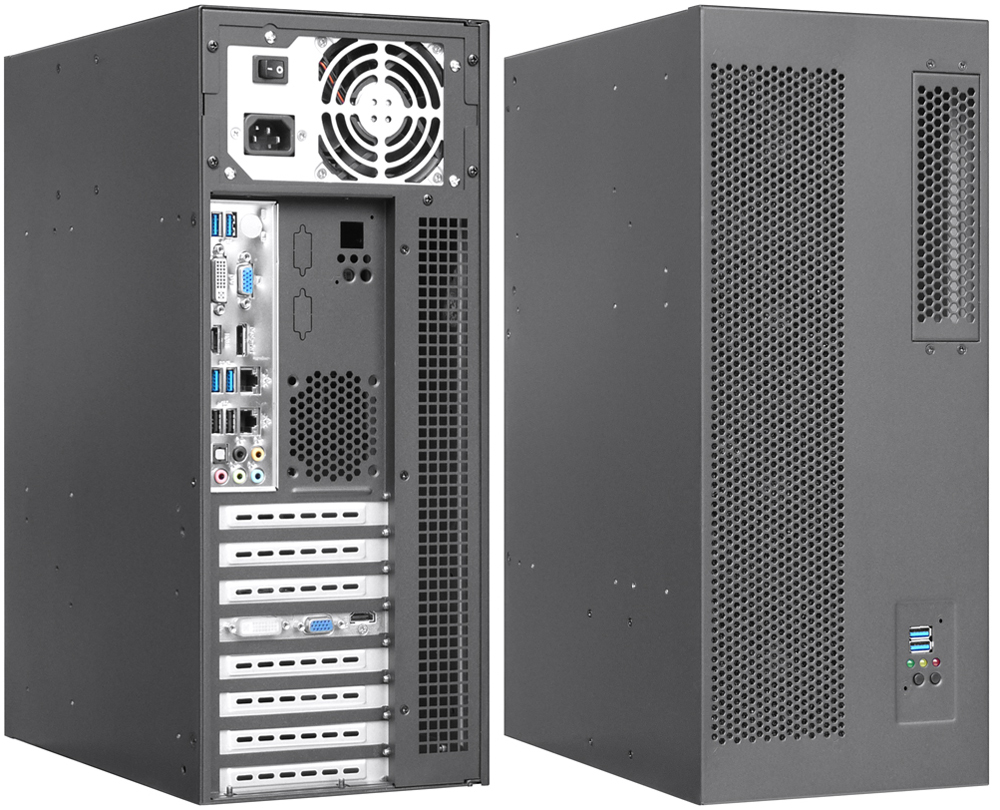

* I/O front or rear access are both compatible, additional brackets are not required

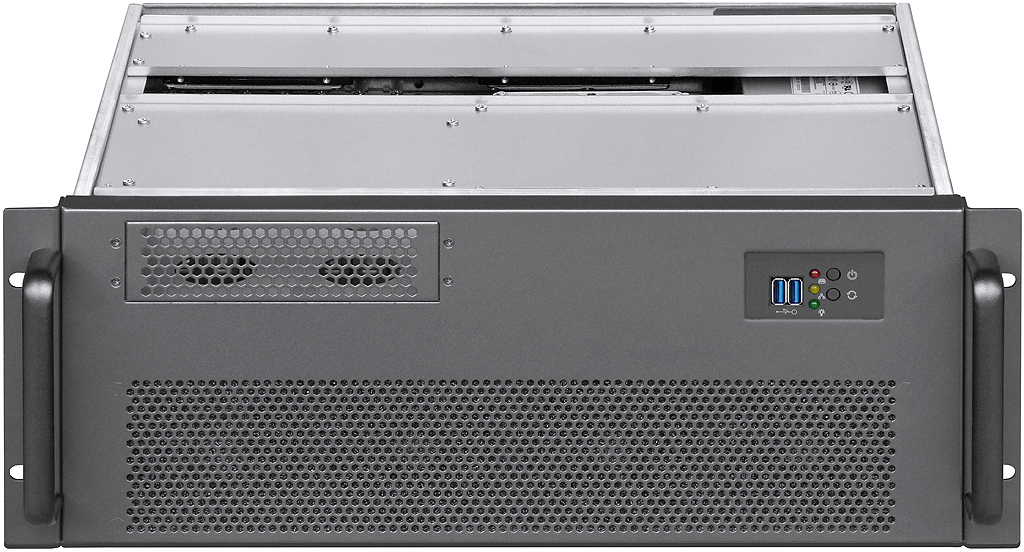

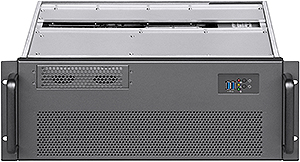

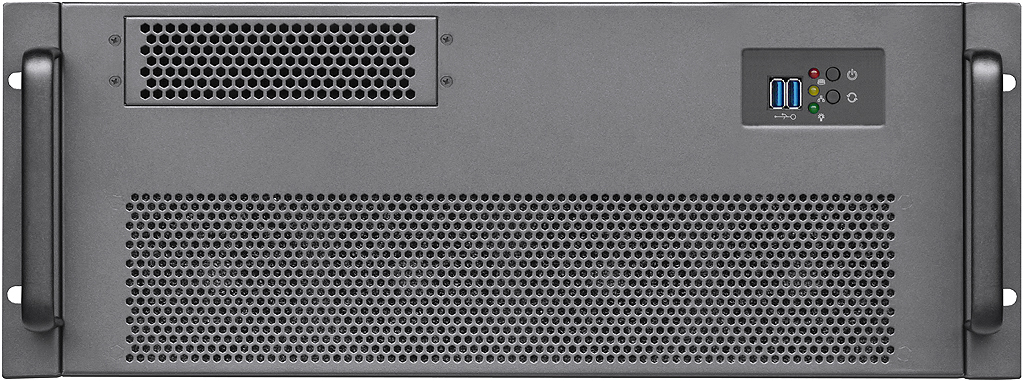

* Two USB 2.0 ports and LAN/HDD/Power LED at front bezel (two USB 3.0 as option)

* High strength aluminum alloy die casting handles ensure stability during rackmounting

* The main sheet metal constructed by 1.2mm ~ 2.0mm SGCC mechanism

* Dust-proof filters attached to front and rear side of chassis to reduce dust into system

* Standard with two brand new 80mmx25mm intake fans at front (fan part# D80SM-12)

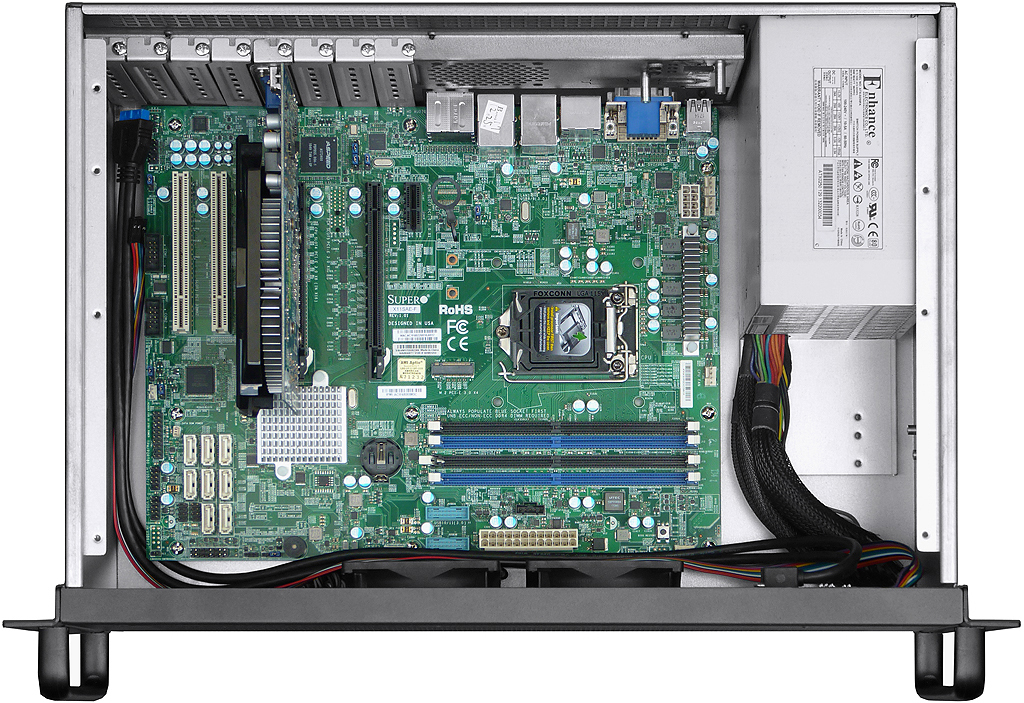

* Compatible motherboard: ATX(12"x9.6"), MicroATX(9.6"x9.6"), Mini-ITX(6.7"x6.7")

* 8cm or 12cm~14cm fan version standard PS2 PSU compatible (depth at 140~250mm)

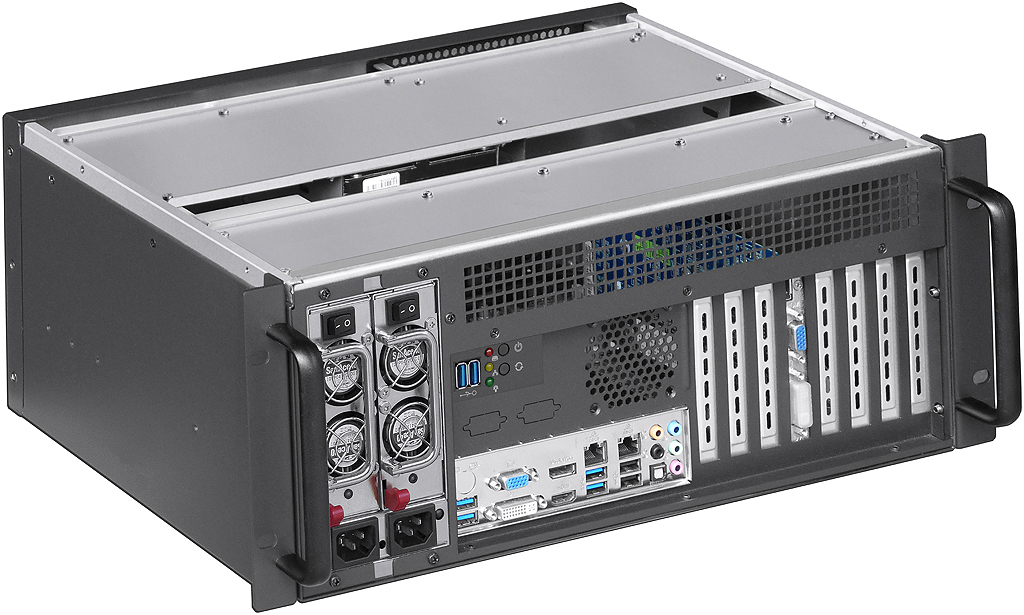

* Support SureStar R4S series 400W~500W PS2 Mini Redundant PS (depth 174mm)
* Support Zippy MRT & MRW series 300W~600W PS2 Mini Redundant PS (depth 185mm)
* Support SureStar R4B series 600W~800W PS2 Mini Redundant PS (depth 199mm)
* Support Zippy MRG series 500W~800W PS2 Mini Redundant PS (depth 200mm)

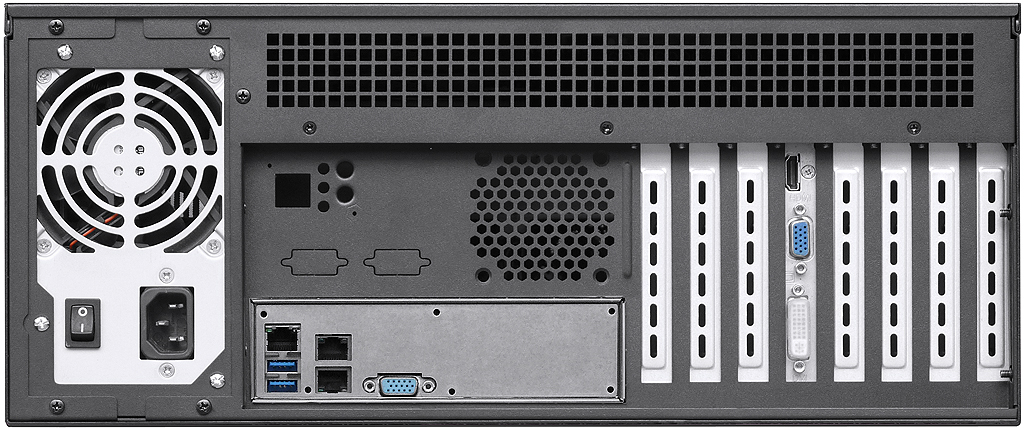

* Support 7 slot full height expansion cards (maximum available depth at 240mm)

* Standard paint: scratch-resistant black textured at surface of chassis

* Genesys Group chassis with build-in electronics in global 3 years warranty

* Chassis dimension: 19" x 4U x 300mm (11.81" deep)

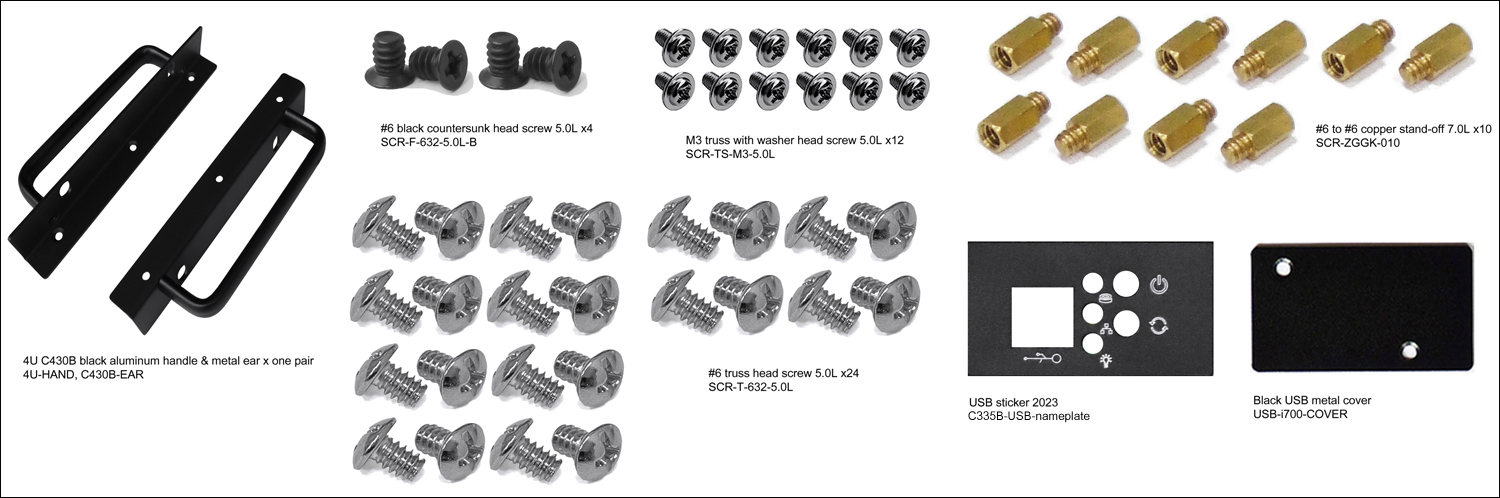

* Accessory: MB stand-off x4, #6 round head screw x24, M3 truss head screw x12
* Package: NW 7 KGM, GW 8.5 KGM, 2.12 CUFT (carton size at 55.5x41.5x26cm)

* Note1: Maximum 270mm deep cards installable if no fans installed at front side of chassis

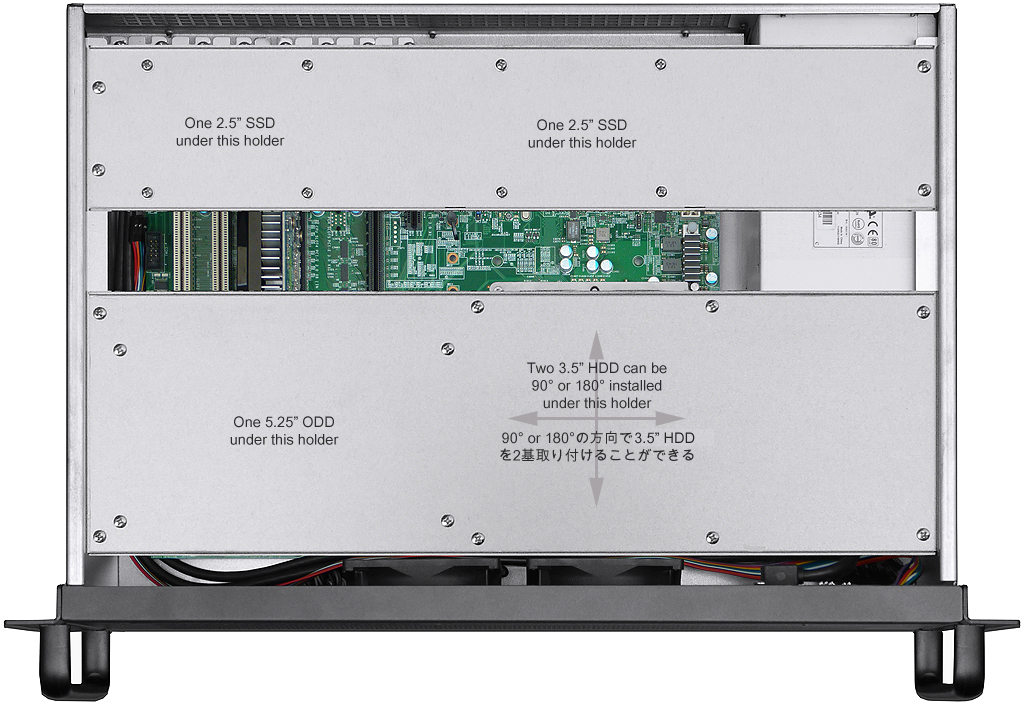

* Note2: two 3.5" HDD bay can be 90-degree installed when higher CPU cooler beneath it

Model#

:

C430B

4U black ATX I/O front-rear access chassis

Option A-1

:

PS2 PSU

8cm & 12cm & 14cm fan version PS2 power supply (depth at 140mm~250mm)

Option A-2

:

PS2 RPS

SureStar R4S series 400W/500W PS2 Mini Redundant PS (depth at 174mm)

Option A-3

:

PS2 RPS

Zippy MRT & MRW series 300W~600W PS2 Mini Redundant power supply (depth at 185mm)

Option A-4

:

PS2 RPS

SureStar R4B series 600W/700W/800W PS2 Mini Redundant PS (depth at 199mm)

Option A-5

:

PS2 RPS

Zippy MRG series 500W~800W PS2 Mini Redundant power supply (depth at 200mm)

Option B-1

:

NJ-600

600mm 2-layer 3-travel universal rail (cabinet internal depth 600~1200mm compliant)

Option B-2

:

NJ-2020-18

18-inch full extension slide rail (cabinet internal depth 456.7mm~810mm compliant)

Option B-3

:

1234U-RMK

1234U rear mounting kit

Option C

:

D80SM-12

YateLoon 80mmx25mm intake fan at small 3pinx500mm (part# is 1pcs, can install 2 more at front)

Option D

:

25-35-BK

1x5.25" ODD space to 1x3.5" bracket (5.25" 3.5" 2.5" multiple HDD bracket)

Option E-1

:

RW135-12G

1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 12G

Option E-2

:

RW135

1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 6G

Option E-3

:

TL135-12G

1x5.25" to 1x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option E-4

:

TL135

1x5.25" to 1x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option E-5

:

RW225-12G

1x5.25" to 2x2.5" HotSwap Cage SATA/SAS 12G

Option E-6

:

RW625-12G

1x5.25" to 6x2.5" HotSwap Cage SATA/SAS 12G

Option E-7

:

RW825-1525

1x5.25" to 8x2.5" HotSwap Cage SATA/SAS 6G

Option E-8

:

RW425-NVMe

1x5.25" to 4x2.5" SSD Removable Cage U.2 NVMe 32G

Option E-9

:

RW425-12G-MS

1x5.25" to 4x2.5" HotSwap Cage SFF-8643 12G

Option E-10

:

RW425-12G

1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 12G

Option E-11

:

RW425

1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 6G

Option F-1

:

1MSAS-4SATA-500MM

SFF-8087 Mini-SAS (Host) to Four SATA (Device) cable

Option F-2

:

SFF-8643-500MM

SFF-8643 Mini-SAS HD (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option F-3

:

4SATA-SFF-8643-500MM

Four SATA (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option F-4

:

SFF-8643-4SATA-500MM

SFF-8643 Mini-SAS HD (Host) to Four SATA (Device) cable

Option G-1

:

2U2011A-8080

2U Intel LGA2011 LGA2066 active CPU cooler Square (CPU cooler max. height at 90mm in this 4U)

Option G-2

:

2U2011A-5694

2U Intel LGA2011 active CPU cooler Narrow (CPU cooler max. height at 90mm in this 4U chassis)

Option G-3

:

2U115XA

2U Intel LGA115x Xeon 1230 active CPU cooler (CPU cooler max. height at 90mm in this 4U chassis)

Option G-4

:

2U4094A-SP3

2U AMD EPYC LGA4094 active CPU cooler SP3 (CPU cooler max. height at 90mm in this 4U chassis)

Option G-5

:

2U1331A-AM4

2U AMD LGA1331 active CPU cooler AM4 (CPU cooler max. height at 90mm in this 4U chassis)

Option G-6

:

2U3647A-S82

2U Intel LGA3647 active CPU cooler Square (CPU cooler max. height at 90mm in this 4U chassis)

Option G-7

:

2U3647A-R82-1

2U Intel LGA3647 active CPU cooler Narrow (CPU cooler max. height at 90mm in this 4U chassis)

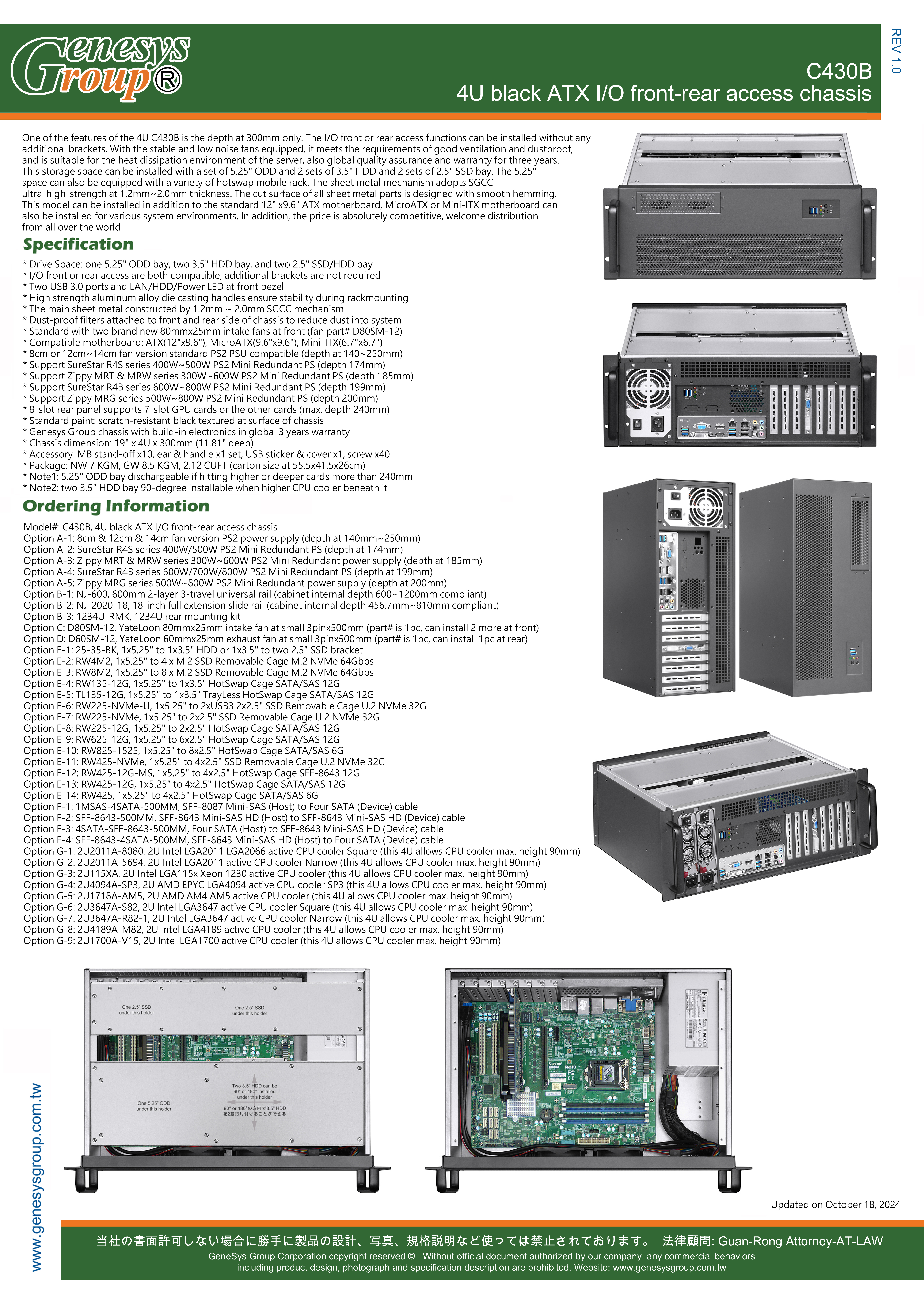

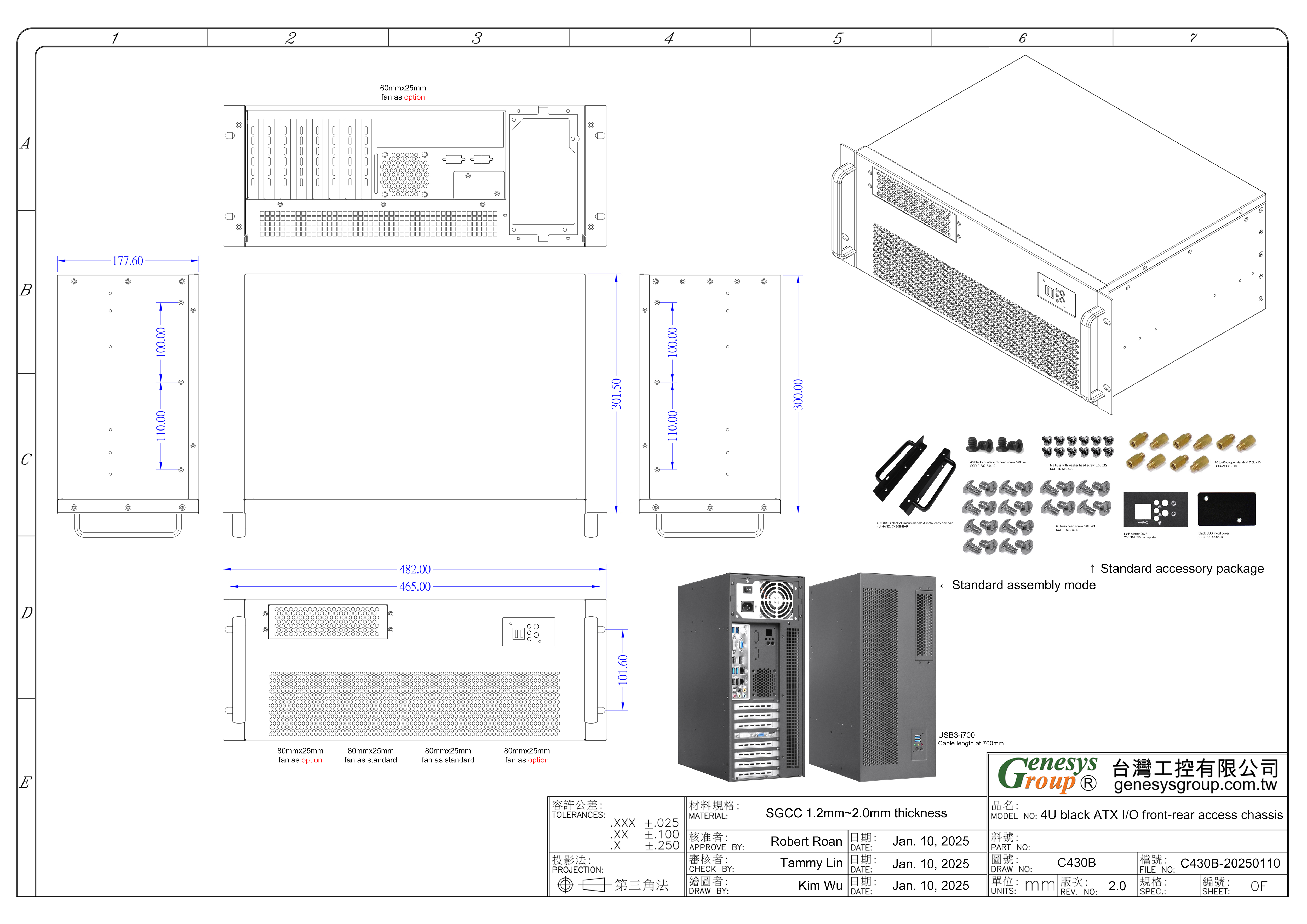

Catalogue       Dimension Drawing
