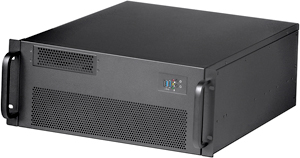

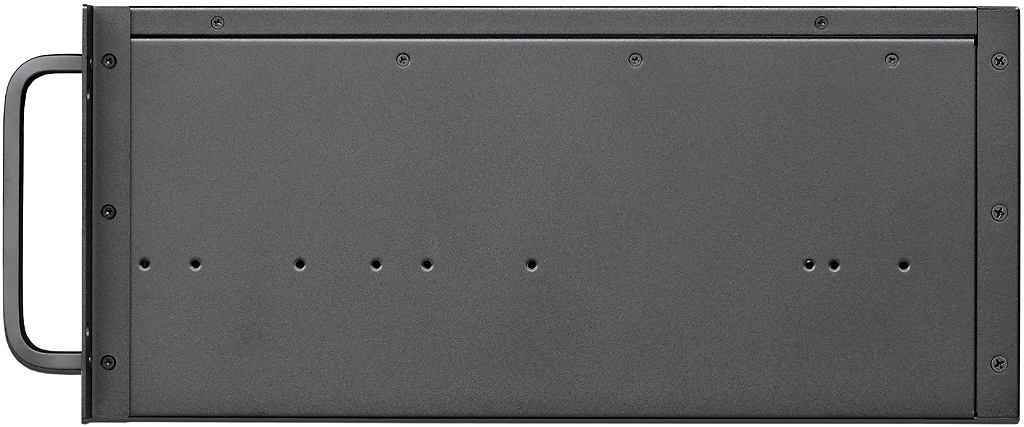

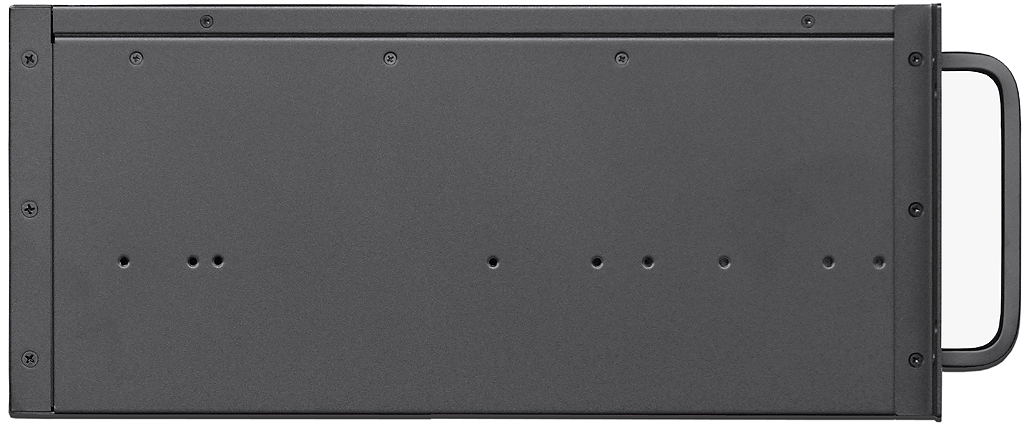

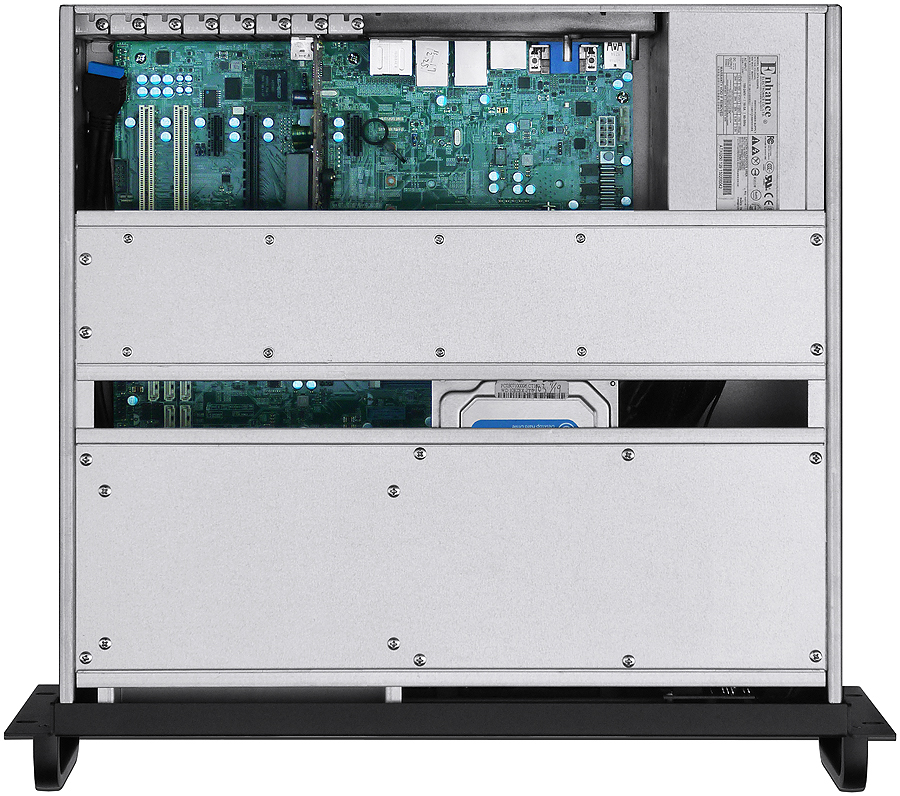

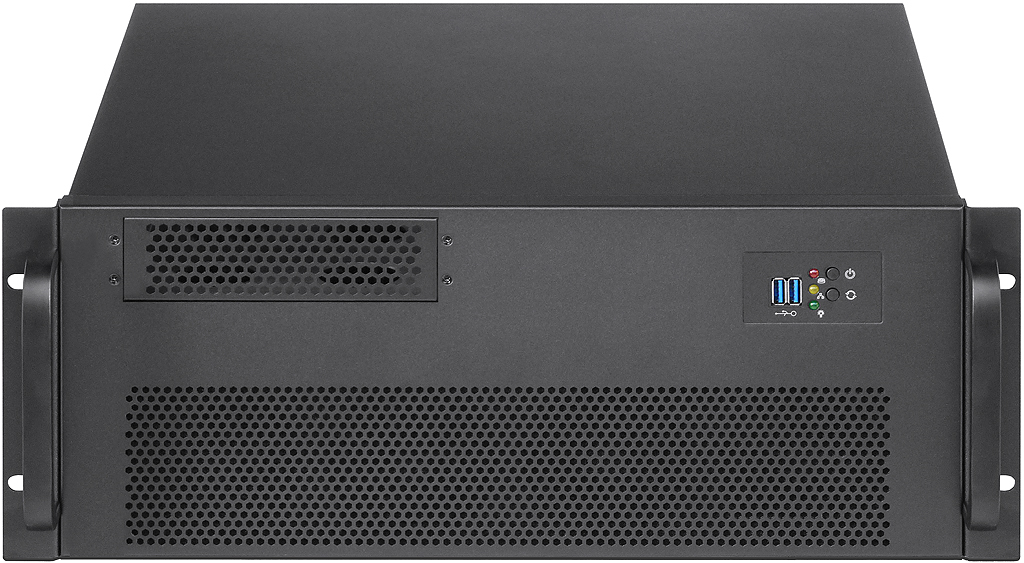

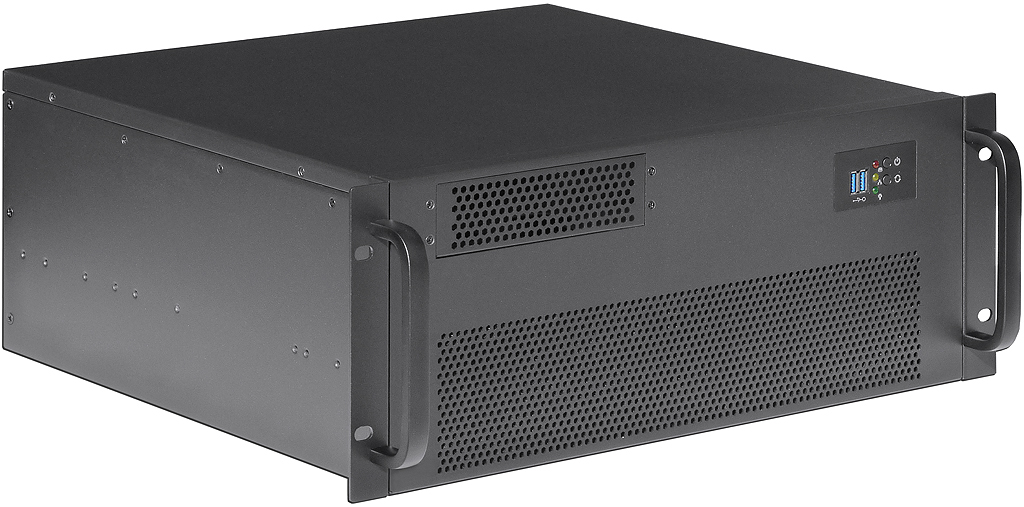

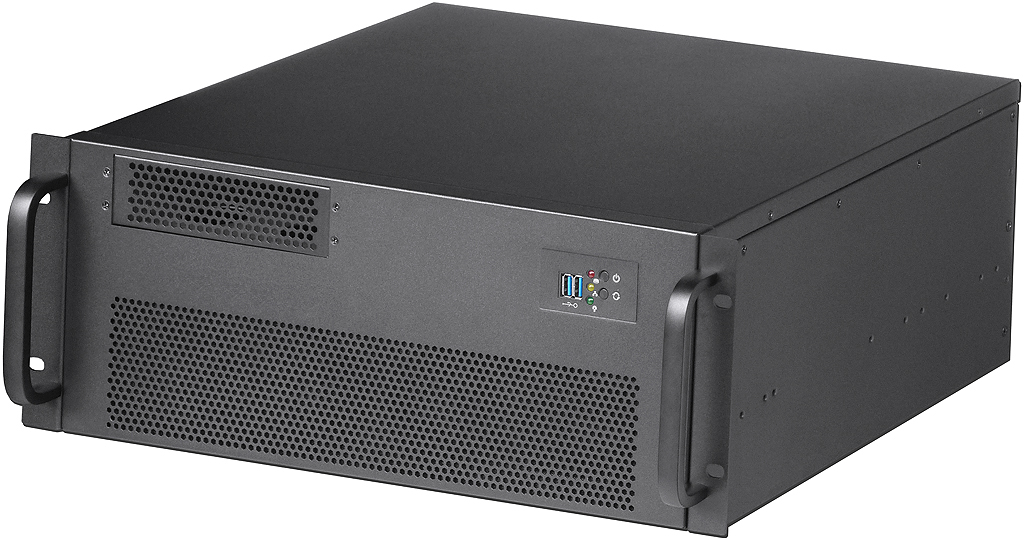

C440B 4U BLACK eATX GPU SERVER CHASSIS

Product announcement or 1st production dated on November 21, 2022, webpage updated on December 04, 2024

One of the features of the 4U C440B is that the depth is only 400mm, and the I/O front or I/O rear functions can be installed/converted. The 4 cooling fans with excellent heat dissipation, with a depth of less than 350mm high-end GPU cards can be installed, and it conforms to good ventilation and heat dissipation requirements. The storage space can be installed with 1 set of 5.25” ODD as well as 2 sets of 3.5” HDD and 2 sets of 2.5” SSD. The 5.25” space can also be installed with a variety of hot-swap hard drives. The major sheet metal mechanism is made of 1.2mm~2.0mm thickness SGCC material, and the cut surfaces of all sheet metal parts are designed with smooth folded edges to ensure that no hands damaged during system assembly. The global quality assurance as three-year warranty, welcome customers from all over the world to distribute.

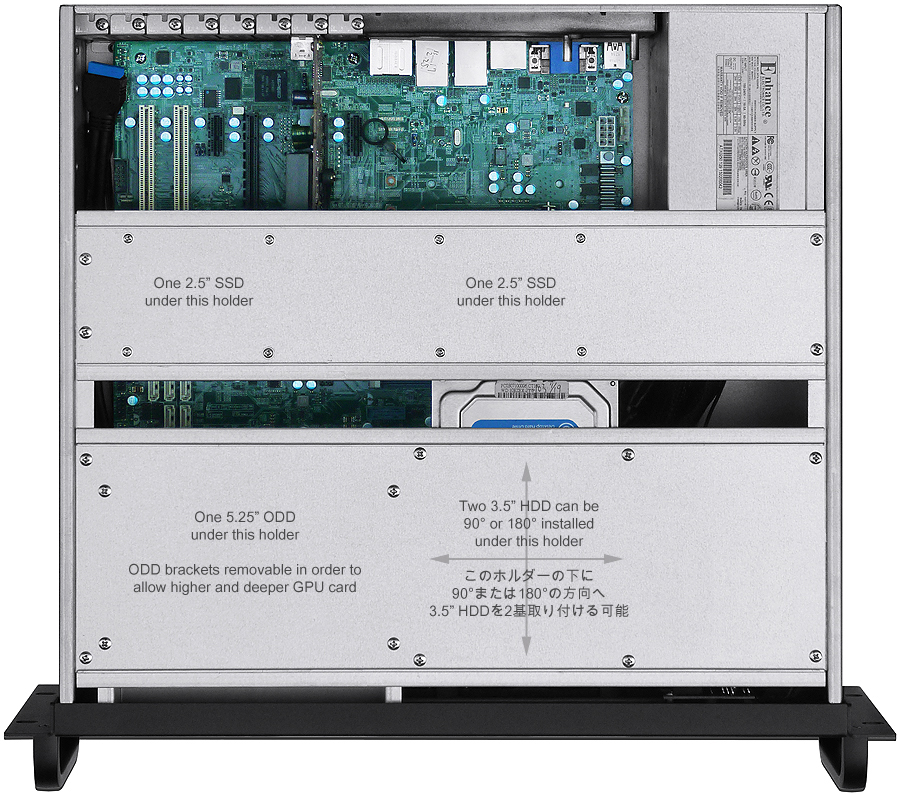

* Drive Space: 5.25" ODD x1, 3.5" HDD x2, and 2.5" SSD x2

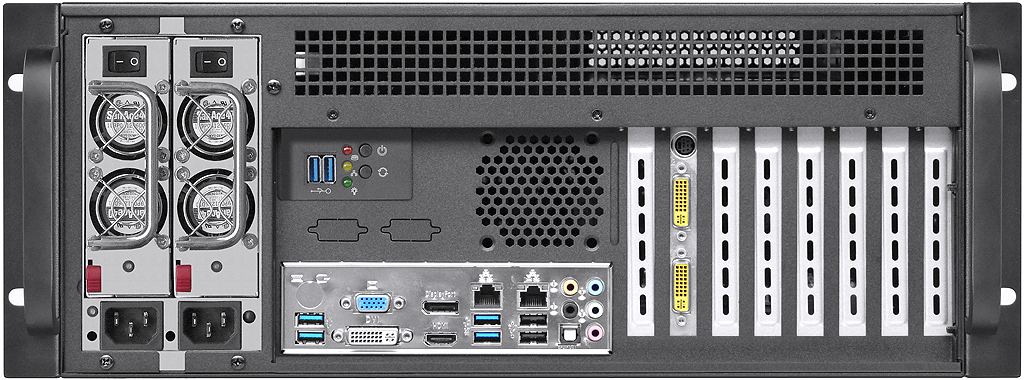

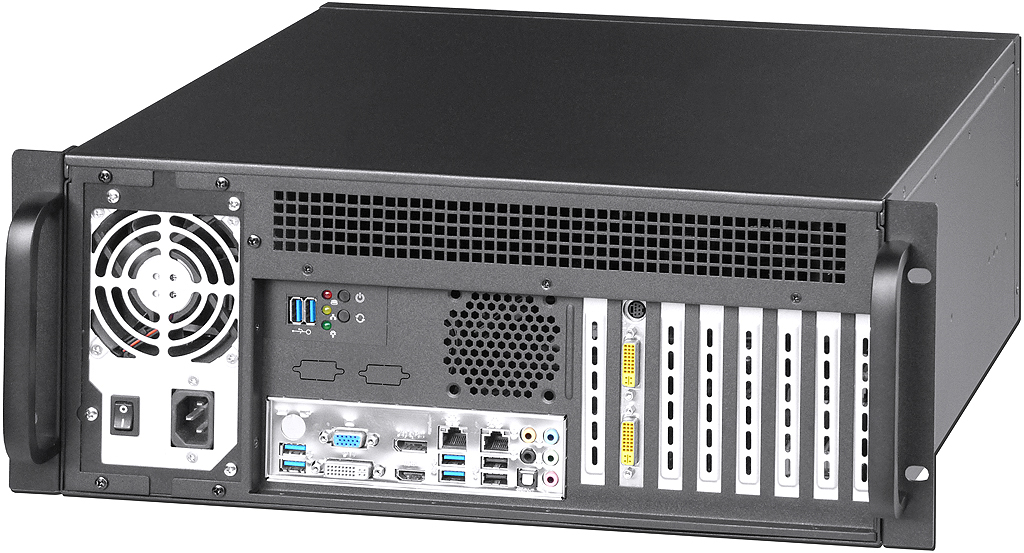

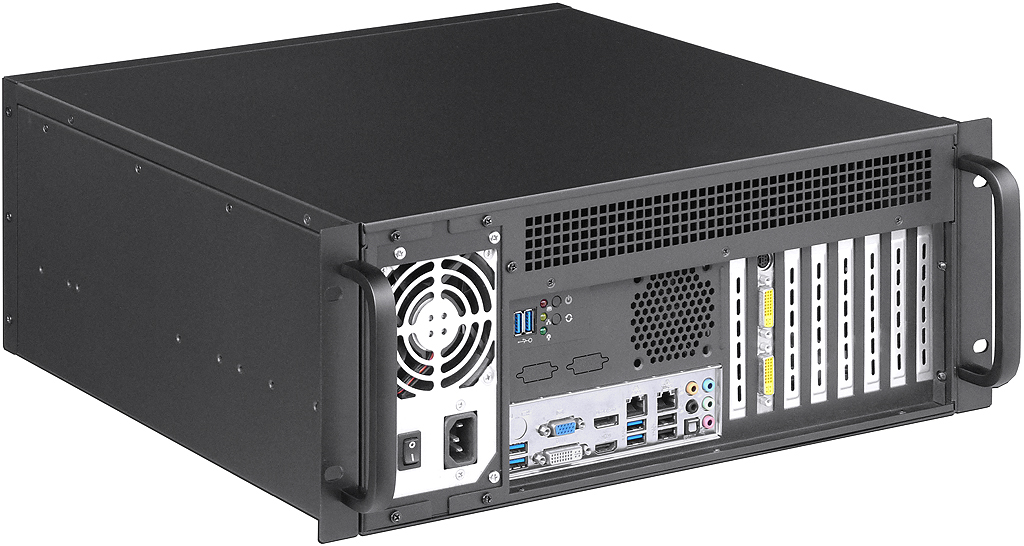

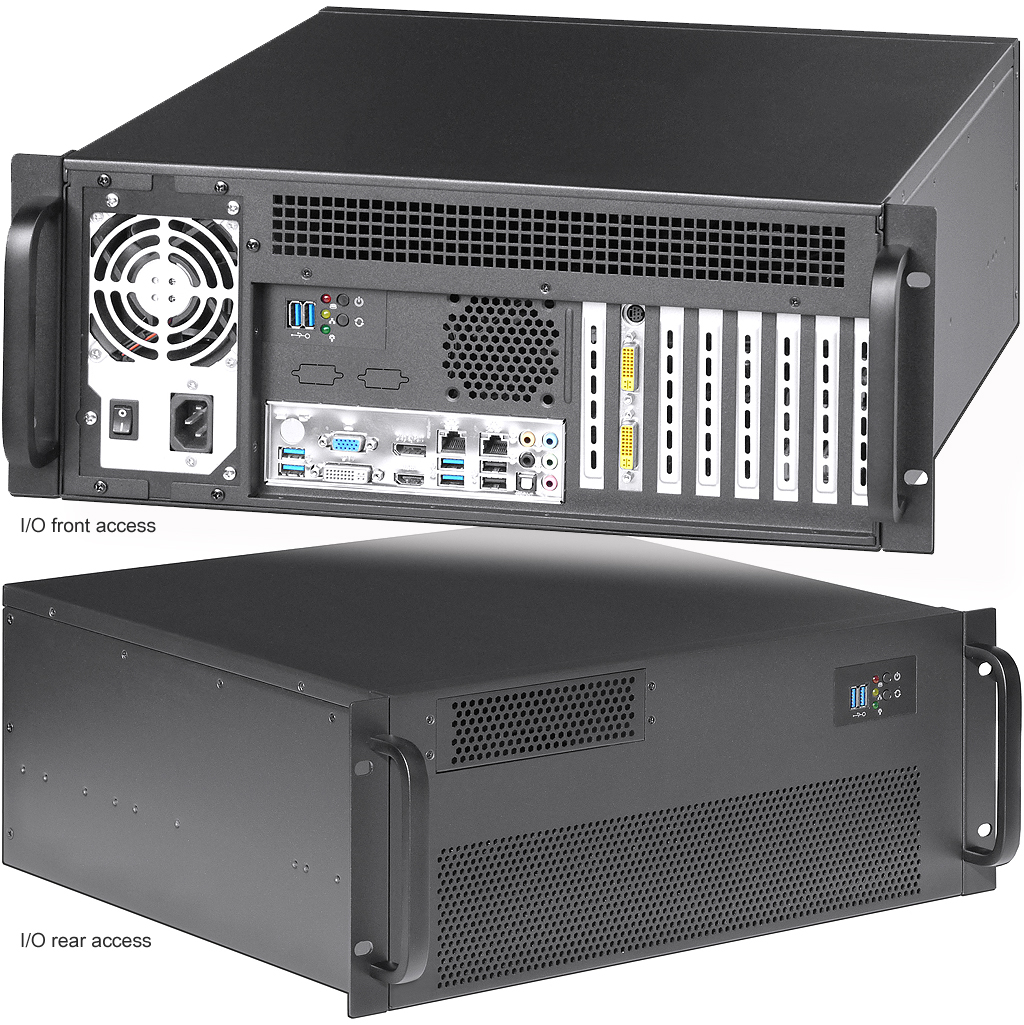

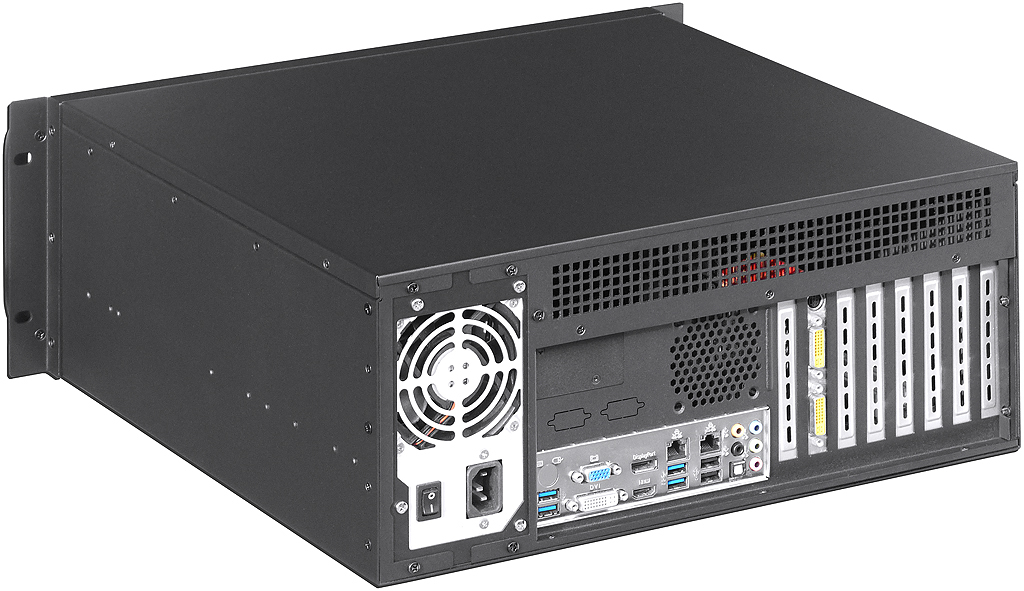

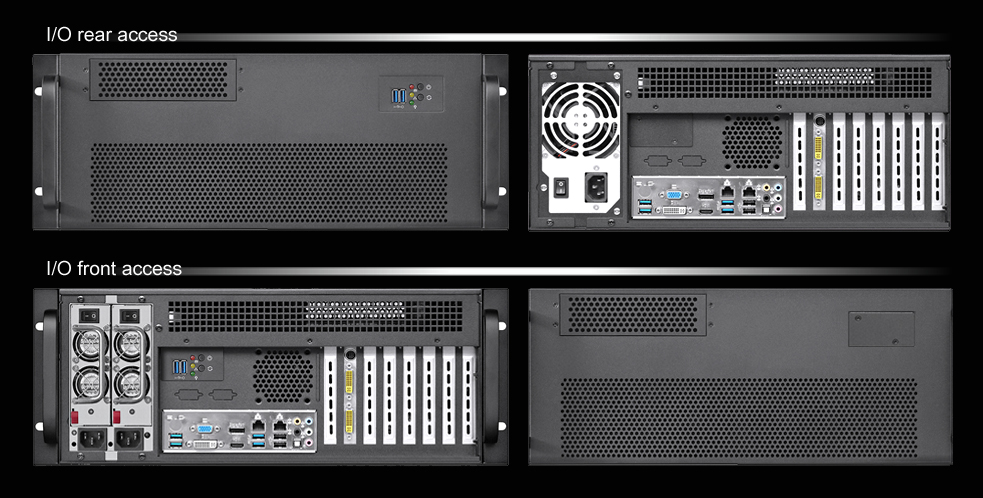

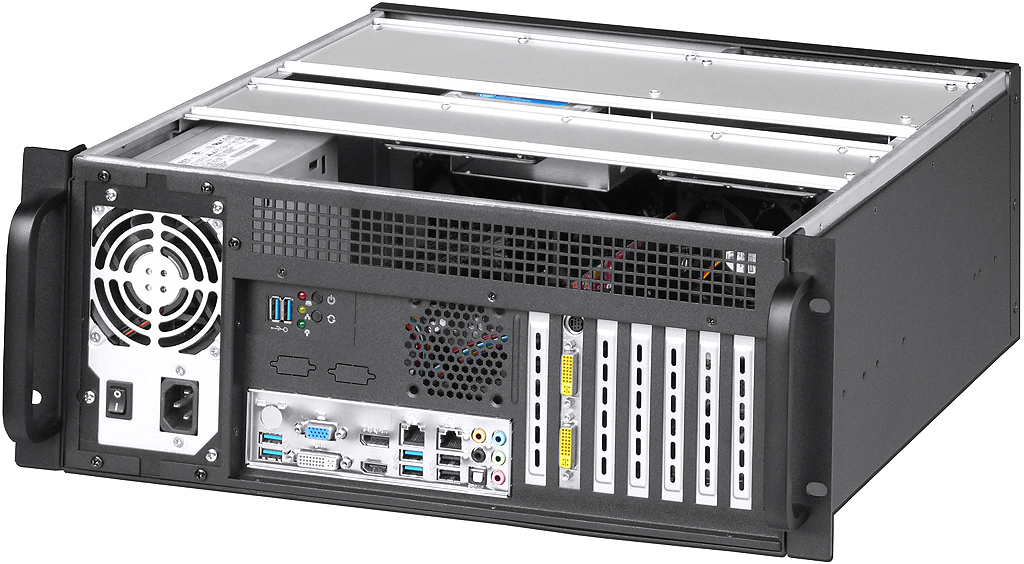

* I/O front and rear functions available, achieved without any additional fixing brackets

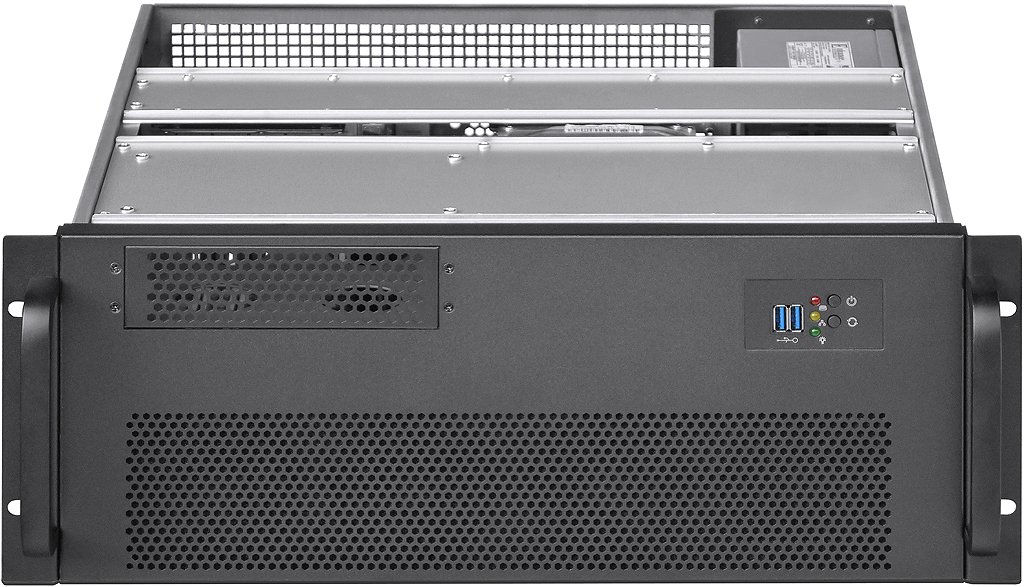

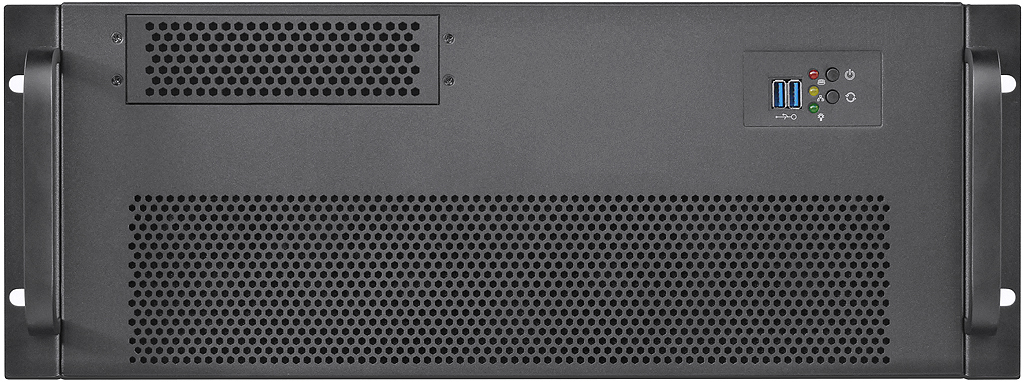

* Two USB 3.0 ports, LAN/HDD/Power LED, and On/Off & Reset buttons at front bezel

* High strength aluminum alloy die casting handles ensure stability during rackmounting

* The major sheet metal constructed by 1.2mm~2.0mm SGCC mechanism

* Dust-proof filter at back side of front bezel to reduce dust into system inside

* Two 80mmx25mm intake fans at left side of front bezel (fan part# SUNTAi8025)

* Two 80mmx25mm intake fans at right side of front bezel (fan part# D80SM-12)

* MB: eATX EEB3.61(12"×13"), ATX(12"x9.6"), MicroATX(9.6"x9.6"), Mini-ITX(6.7"x6.7")

* 8cm or 12cm~14cm fan version standard PS2 PSU compatible (depth at 140~250mm)
* Support SureStar R4S series 400W~500W PS2 Mini Redundant PS (depth 174mm)
* Support Zippy MRT & MRW series PS2 Mini Redundant PS (depth 185mm)

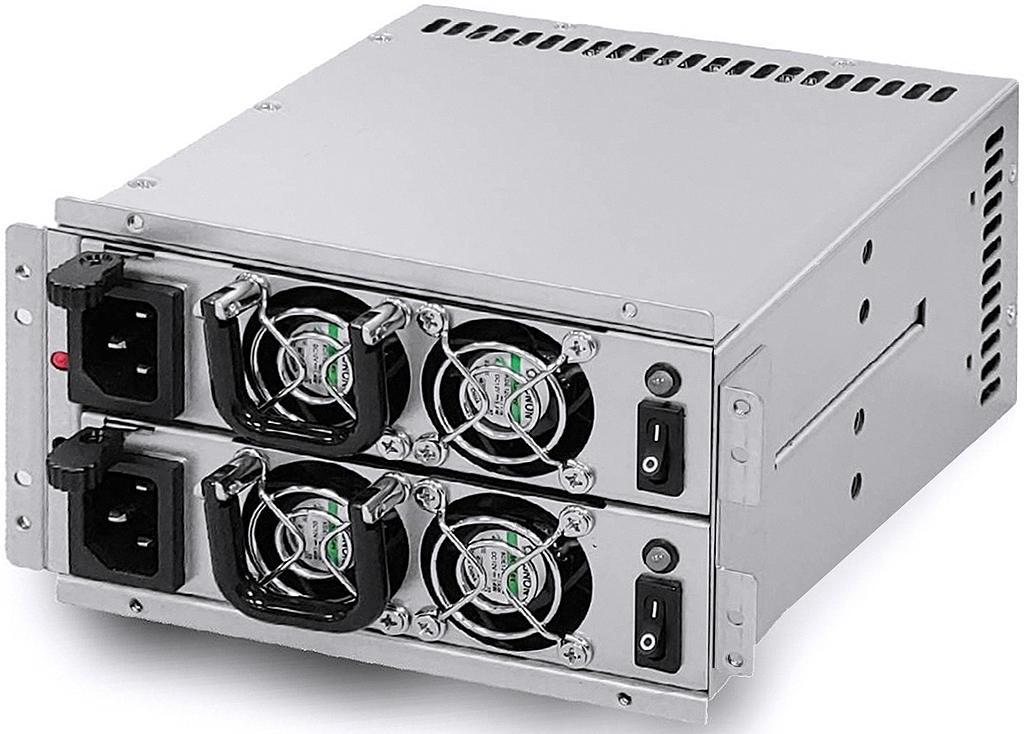

* Support SureStar R4B series 600W~800W PS2 Mini Redundant PS (depth 199mm)
* Support Zippy MRG series PS2 Mini Redundant PS (depth 200mm)

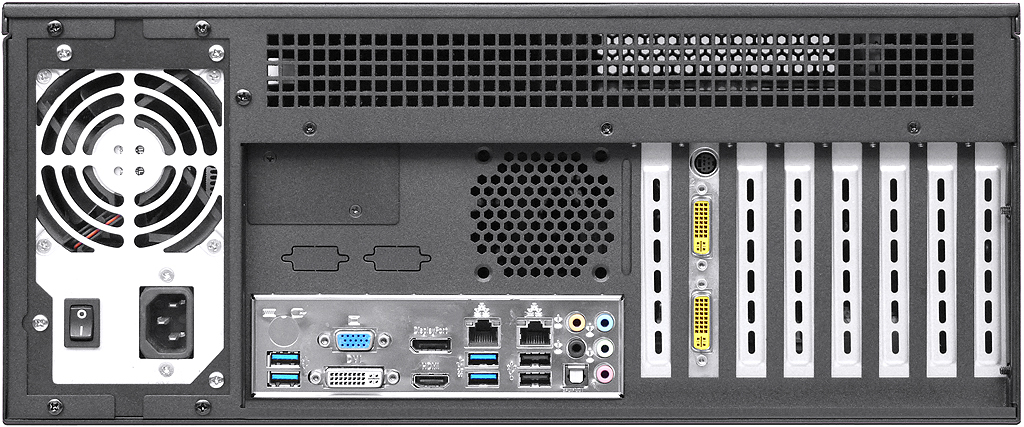

* 8-slot rear panel supports 7-slot NVIDIA GPU cards or the other expansion cards

* Maximum 350mm deep 7 cards installable if 80mmx25mm fans installed at front

* Maximum 335mm deep 7 cards installable if 80mmx38mm fans installed at front

* Standard paint: scratch-resistant black textured at surface of chassis

* Genesys Group chassis with build-in electronics in global 3 years warranty
* Chassis dimension: 19" x 4U x 400mm (15.75" deep)

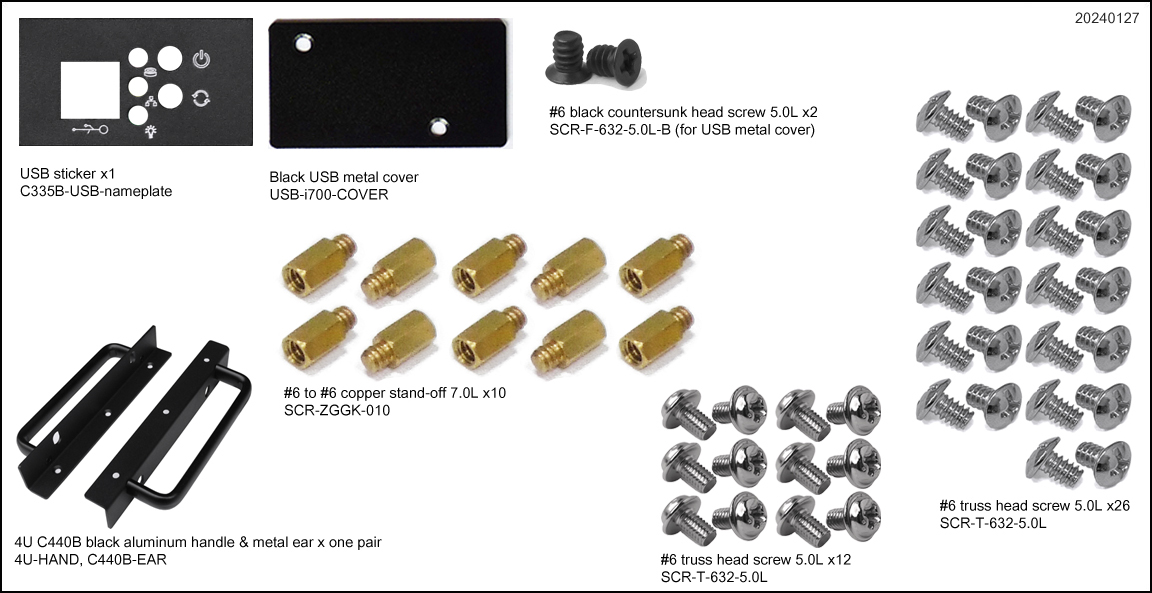

* Accessory: MB stand-off x10, ear & handle x1 set, USB sticker & cover x1, screw x40
* Package: NW 8.54 KGM, GW 9.74 KGM, 2.93 CUFT (carton size at 57x54x27cm)

* Note1: 5.25" ODD bay dischargeable if hitting higher or deeper expansion cards

* Note2: two 3.5" HDD bay 90-degree installable when higher CPU cooler beneath it

Model#

:

C440B

4U black eATX GPU server chassis

Option A

:

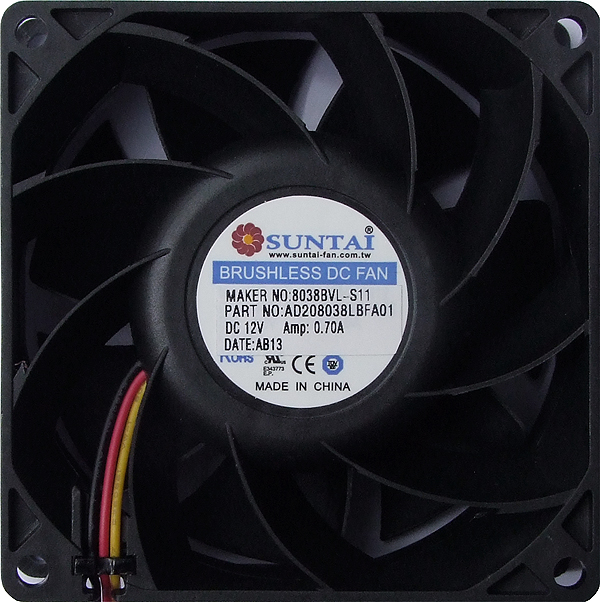

SUNTAi8038

Suntai 80mm x 38mm two-ball bearing fan CFM 50.00 each (installable at front bezel)

Option B-1

:

PS2 PSU

8cm & 12cm & 14cm fan version PS2 power supply (depth at 140mm~250mm)

Option B-2

:

PS2 RPS

SureStar R4S series 400W/500W PS2 Mini Redundant PS (depth at 174mm)

Option B-3

:

PS2 RPS

Zippy MRT & MRW series 300W~600W PS2 Mini Redundant power supply (depth at 185mm)

Option B-4

:

PS2 RPS

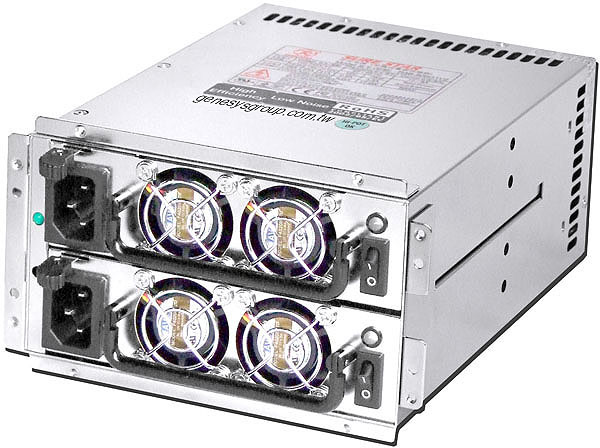

SureStar R4B series 600W/700W/800W PS2 Mini Redundant PS (depth at 199mm)

Option B-5

:

PS2 RPS

Zippy MRG series 500W~800W PS2 Mini Redundant power supply (depth at 200mm)

Option C-1

:

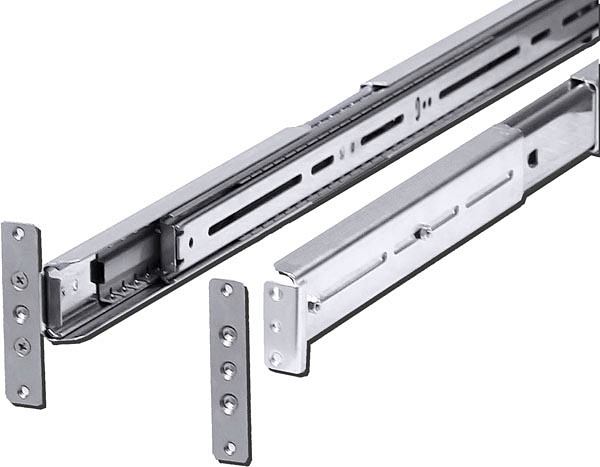

NJ-600

600mm 2-layer 3-travel universal rail (cabinet internal depth 600~1200mm compliant)

Option C-2

:

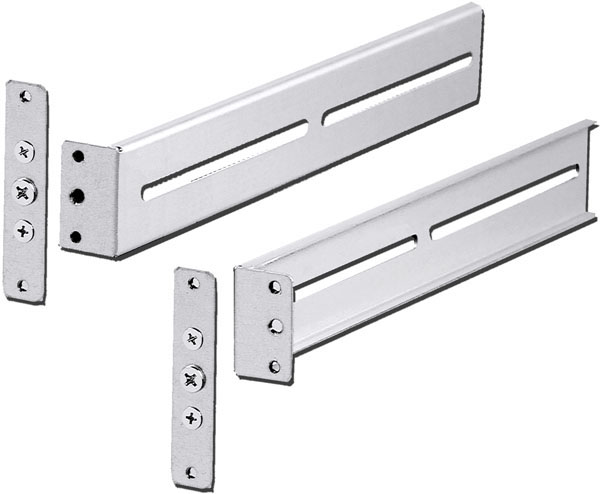

1234U-RMK

1234U rear mounting kit

Option D-1

:

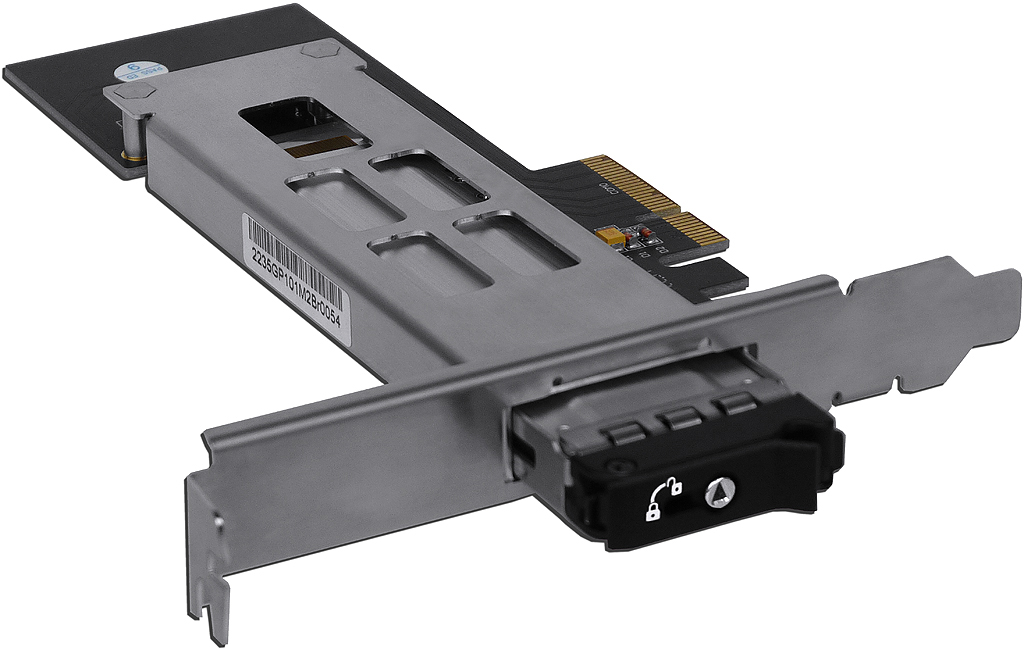

RW1M2-PCIeX4

1 Full/Low profile X4 slot to 1 x M.2 SSD Removable Cage M.2 NVMe 64G

Option D-2

:

RW2M2-PCIeX8

1 Full X8 slot to 2 x M.2 SSD Removable Cage M.2 NVMe 64G

Option D-3

:

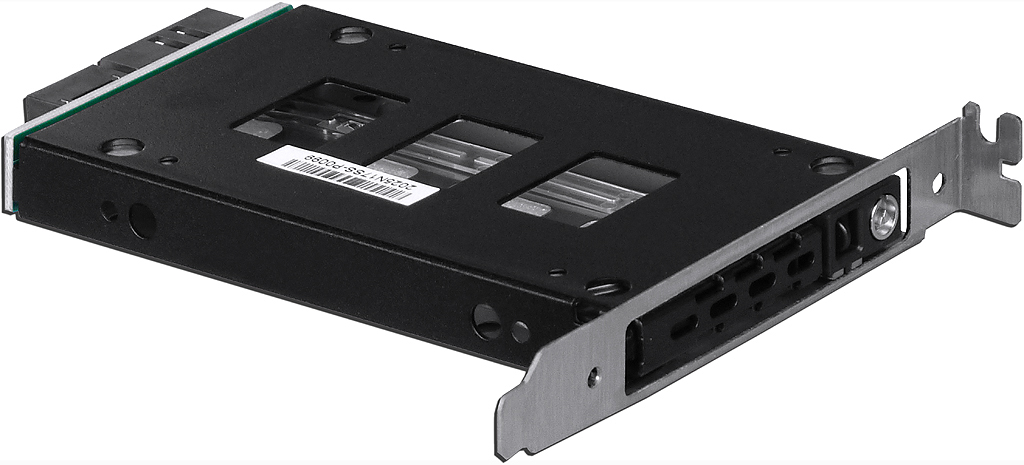

RW125-12G-FH

1 Full Height expansion slot space to 1x2.5" HotSwap Cage SATA/SAS 12G

Option E-1

:

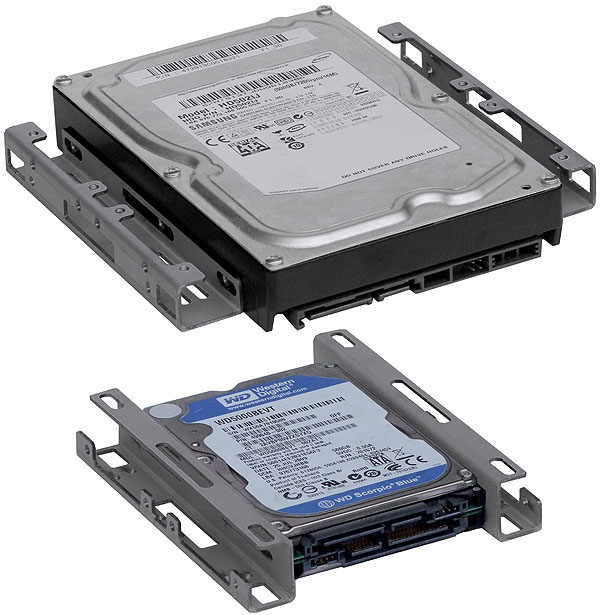

25-35-BK

1x5.25" to 1x3.5" HDD or 1x3.5" to two 2.5" SSD bracket

Option E-2

:

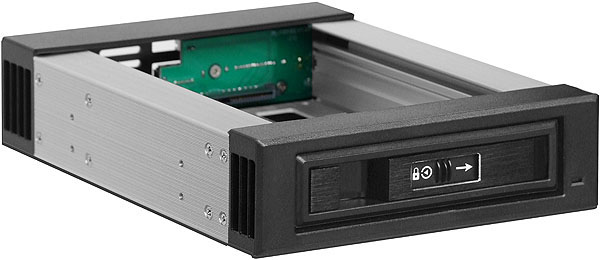

RW135-12G

1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 12G

Option E-3

:

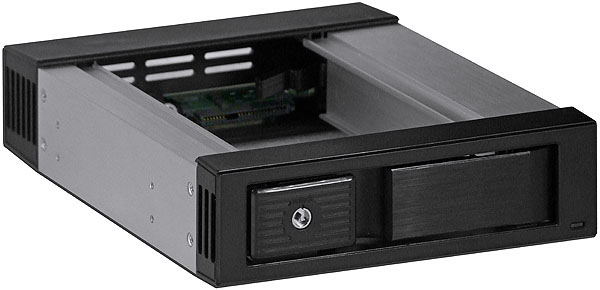

TL135-12G

1x5.25" to 1x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option E-4

:

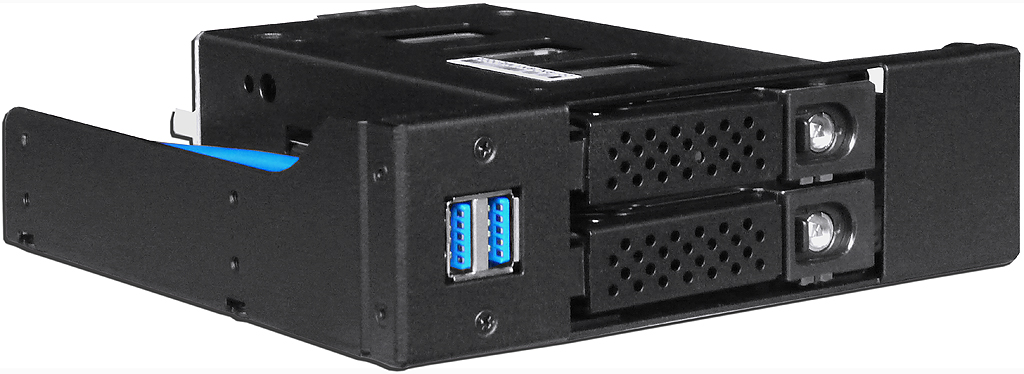

RW225-NVMe-U

1x5.25" to 2xUSB3 2x2.5" SSD Removable Cage U.2 NVMe 32G

Option E-5

:

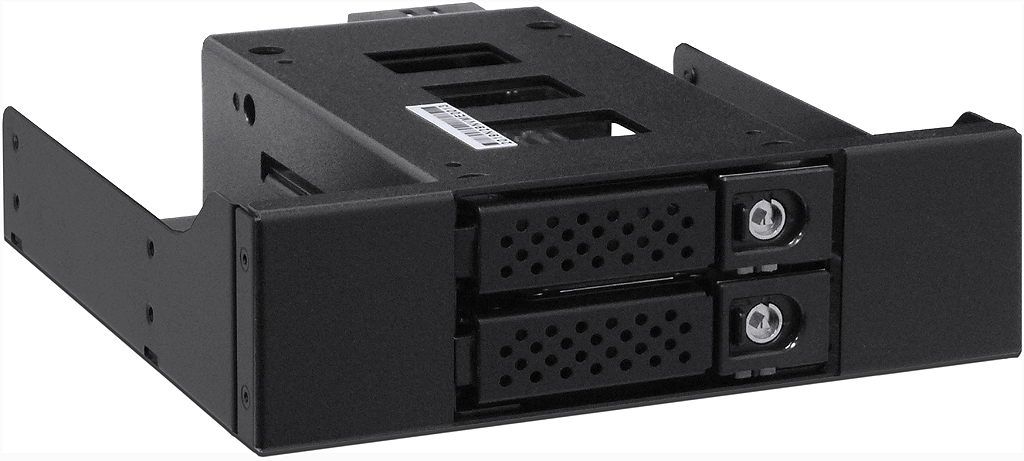

RW225-NVMe

1x5.25" to 2x2.5" SSD Removable Cage U.2 NVMe 32G

Option E-6

:

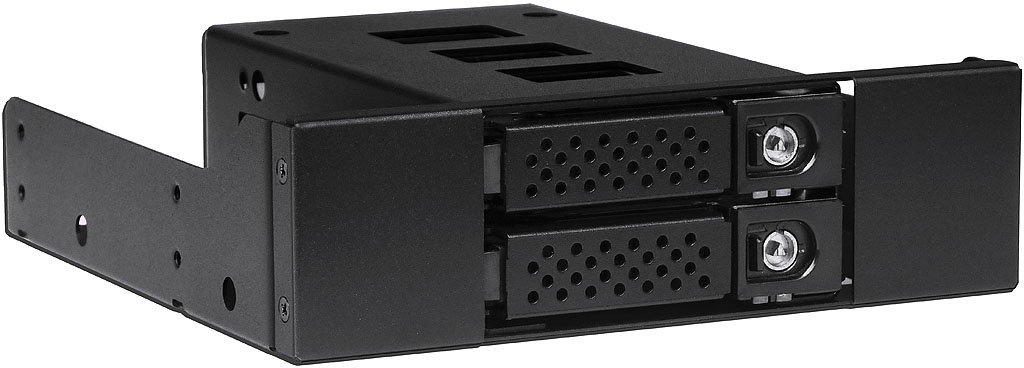

RW225-12G

1x5.25" to 2x2.5" HotSwap Cage SATA/SAS 12G

Option E-7

:

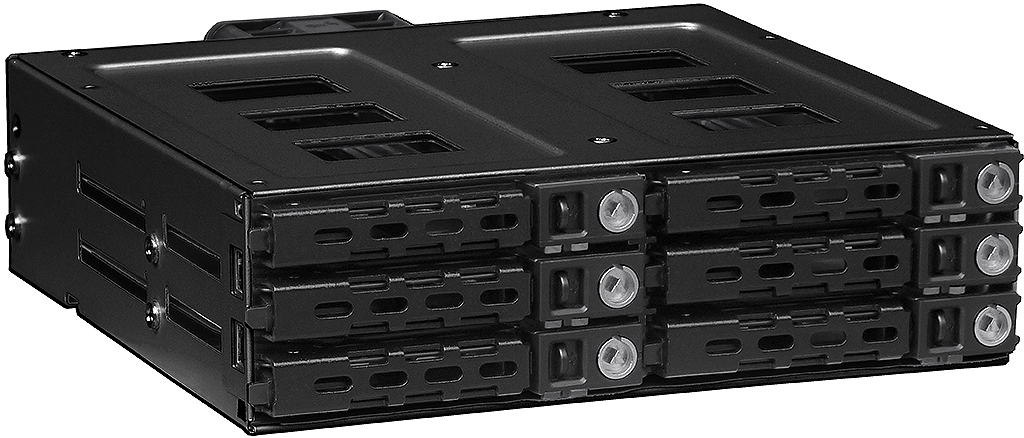

RW625-12G

1x5.25" to 6x2.5" HotSwap Cage SATA/SAS 12G

Option E-8

:

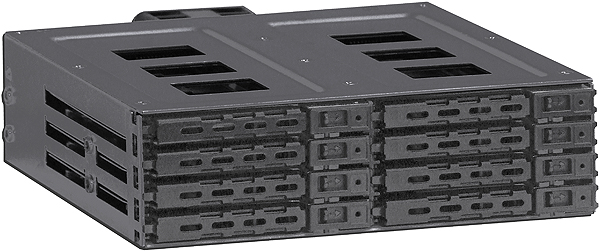

RW825-1525

1x5.25" to 8x2.5" HotSwap Cage SATA/SAS 6G

Option E-9

:

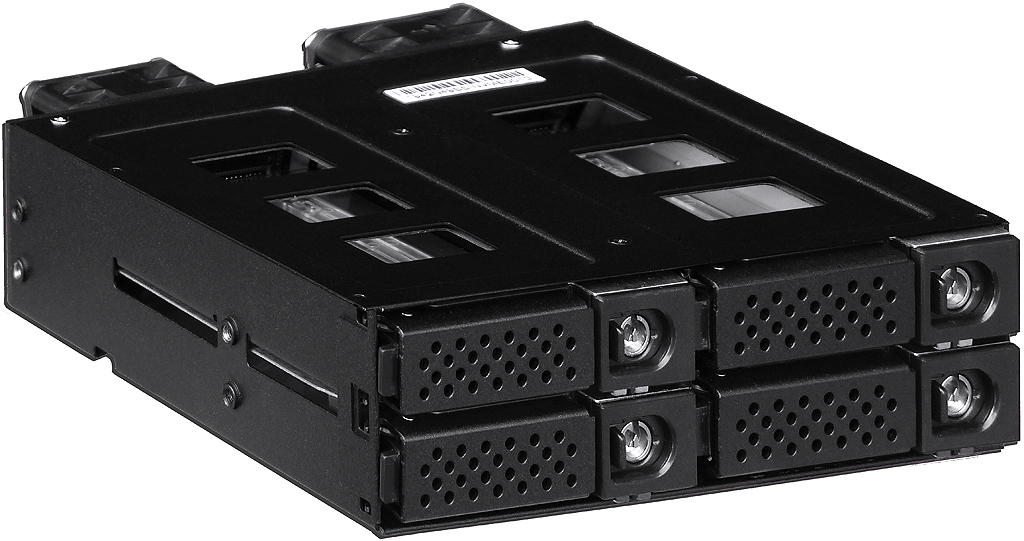

RW425-NVMe

1x5.25" to 4x2.5" SSD Removable Cage U.2 NVMe 32G

Option E-10

:

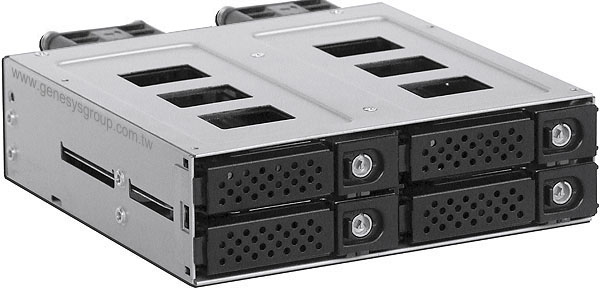

RW425-12G-MS

1x5.25" to 4x2.5" HotSwap Cage SFF-8643 12G

Option E-11

:

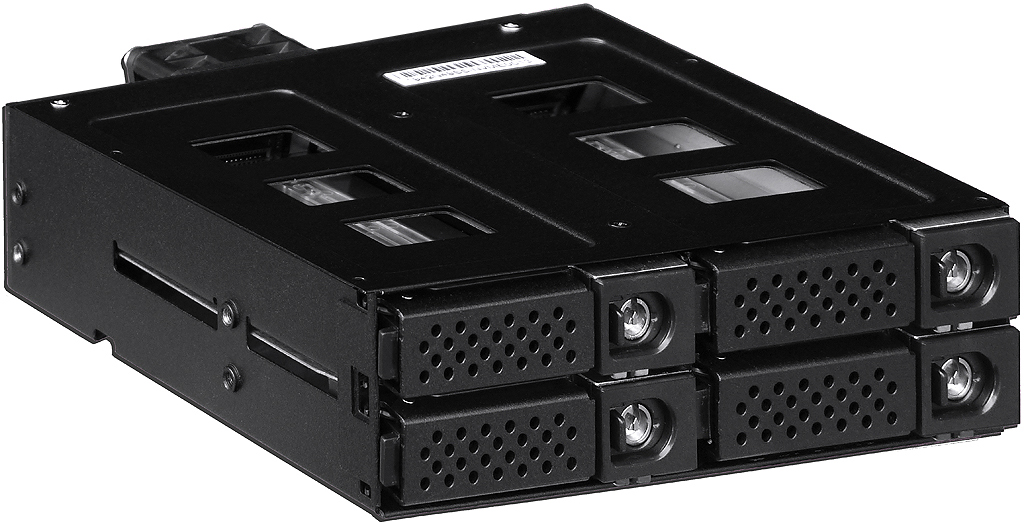

RW425-12G

1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 12G

Option E-12

:

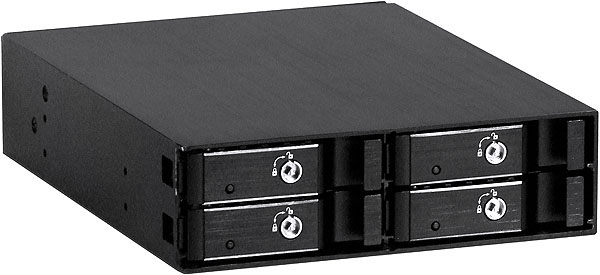

RW425

1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 6G

Option F-1

:

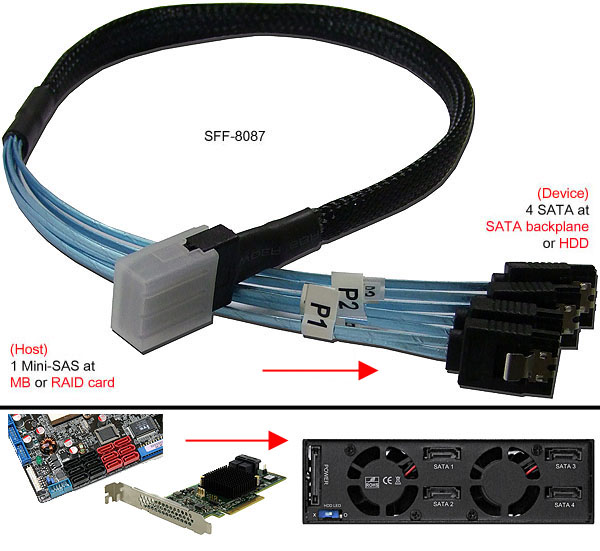

1MSAS-4SATA-500MM

SFF-8087 Mini-SAS (Host) to Four SATA (Device) cable

Option F-2

:

SFF-8643-500MM

SFF-8643 Mini-SAS HD (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option F-3

:

4SATA-SFF-8643-500MM

Four SATA (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option F-4

:

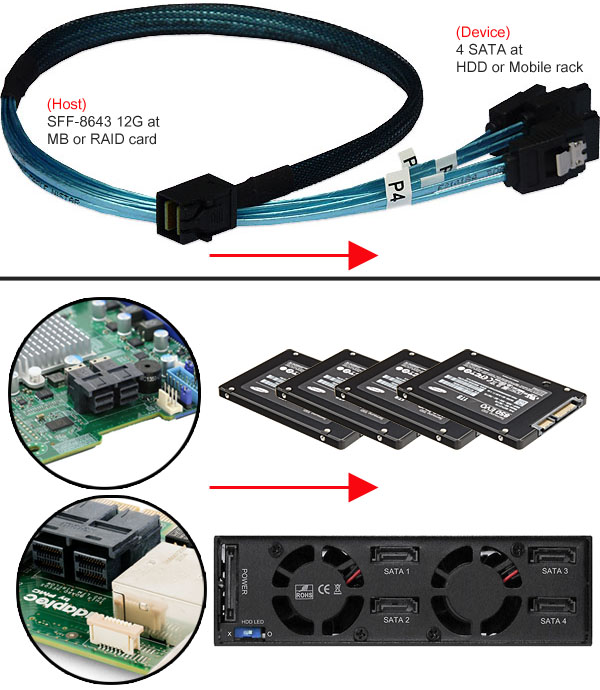

SFF-8643-4SATA-500MM

SFF-8643 Mini-SAS HD (Host) to Four SATA (Device) cable

Option G-1

:

2U2011A-8080

2U Intel LGA2011 LGA2066 active CPU cooler Square (2U 3U 4U chassis compatible)

Option G-2

:

2U2011A-5694

2U Intel LGA2011 active CPU cooler Narrow (2U 3U 4U chassis compatible)

Option G-3

:

2U115XA

2U Intel LGA115x Xeon 1230 active CPU cooler (2U 3U 4U chassis compatible)

Option G-4

:

2U4094A-SP3

2U AMD EPYC LGA4094 active CPU cooler SP3 (2U 3U 4U chassis compatible)

Option G-5

:

2U1718A-AM5

2U AMD AM4 AM5 active CPU cooler (2U 3U 4U chassis compatible)

Option G-6

:

2U3647A-S82

2U Intel LGA3647 active CPU cooler Square (2U 3U 4U chassis compatible)

Option G-7

:

2U3647A-R82-1

2U Intel LGA3647 active CPU cooler Narrow (2U 3U 4U chassis compatible)

Option G-8

:

2U4189A-M82

2U Intel LGA4189 active CPU cooler (2U 3U 4U chassis compatible)

Option G-9

:

2U1700A-R67

2U Intel LGA1700 active CPU cooler (2U 3U 4U chassis compatible)

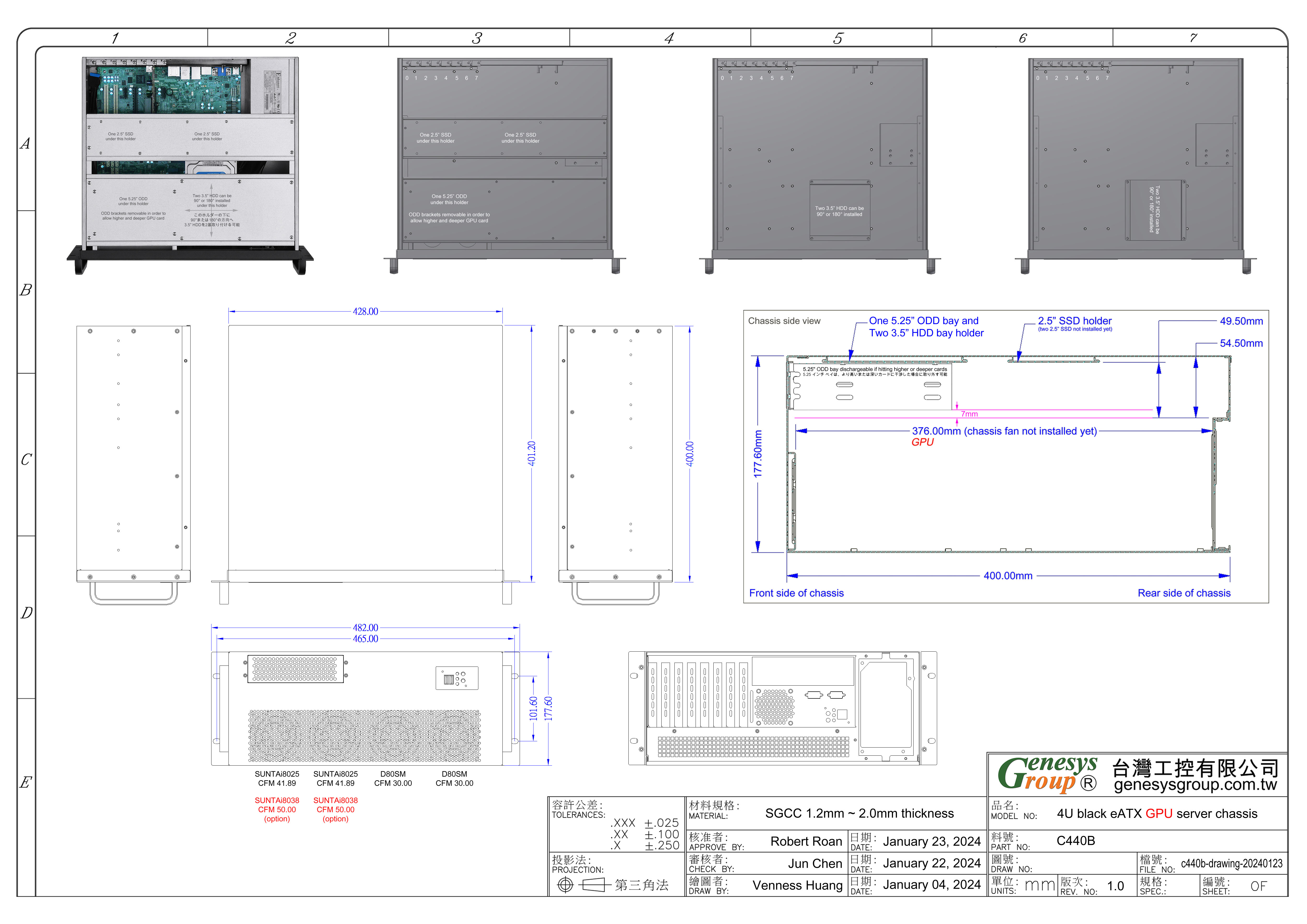

Catalogue       Dimension Drawing in PDF       Dimension Drawing in JPG
