E266B 2U
BLACK ATX
ULTRA COOL SERVER CHASSIS
2U universal
rear panel patent & copyright officially announced in Taiwan, China, Thailand, Korea,
Japan, USA,
England, EU, Russia, India. Official Taiwan patent number
M366272
Product announcement & 1st production dated on
January 06, 2009, webpage updated on
November 18, 2025

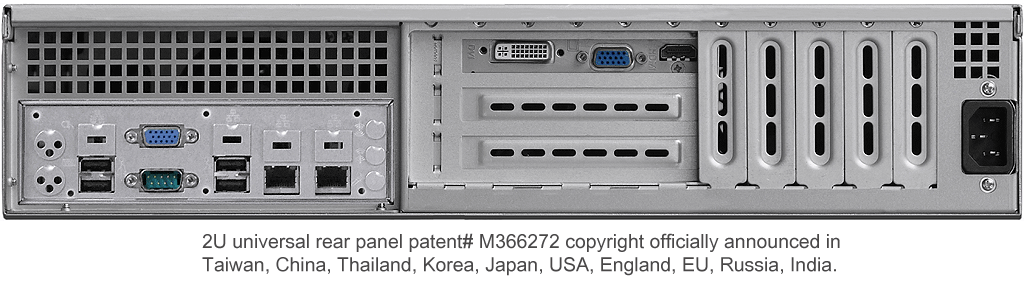

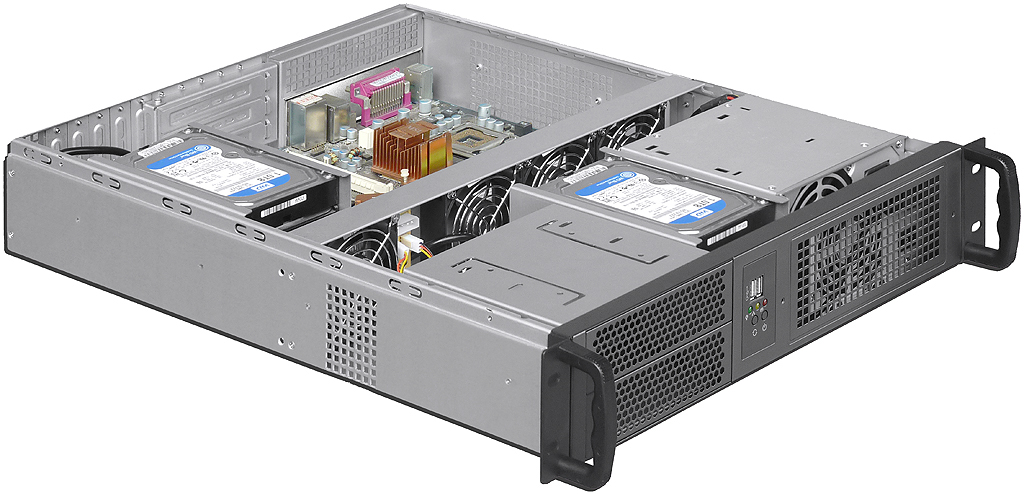

The brand new 2U multifunctional server chassis has been officially
launched today, its rear panel can be compatible to 3 slot riser card or 7 slot
low profile card (patent no. M366272) at the same time, user can select which
version to use without changing rear panel at all, the chassis depth has 550mm
only that also supports maximum 12"x9.6" or 12"x10" standard ATX
motherboard, standard equipped with four high qualified and stable 2-ball bearing 80mmx25mm fans
with chassis, the quality perfect and cost effective brand new model, welcome
worldwide distribution.
|
 |

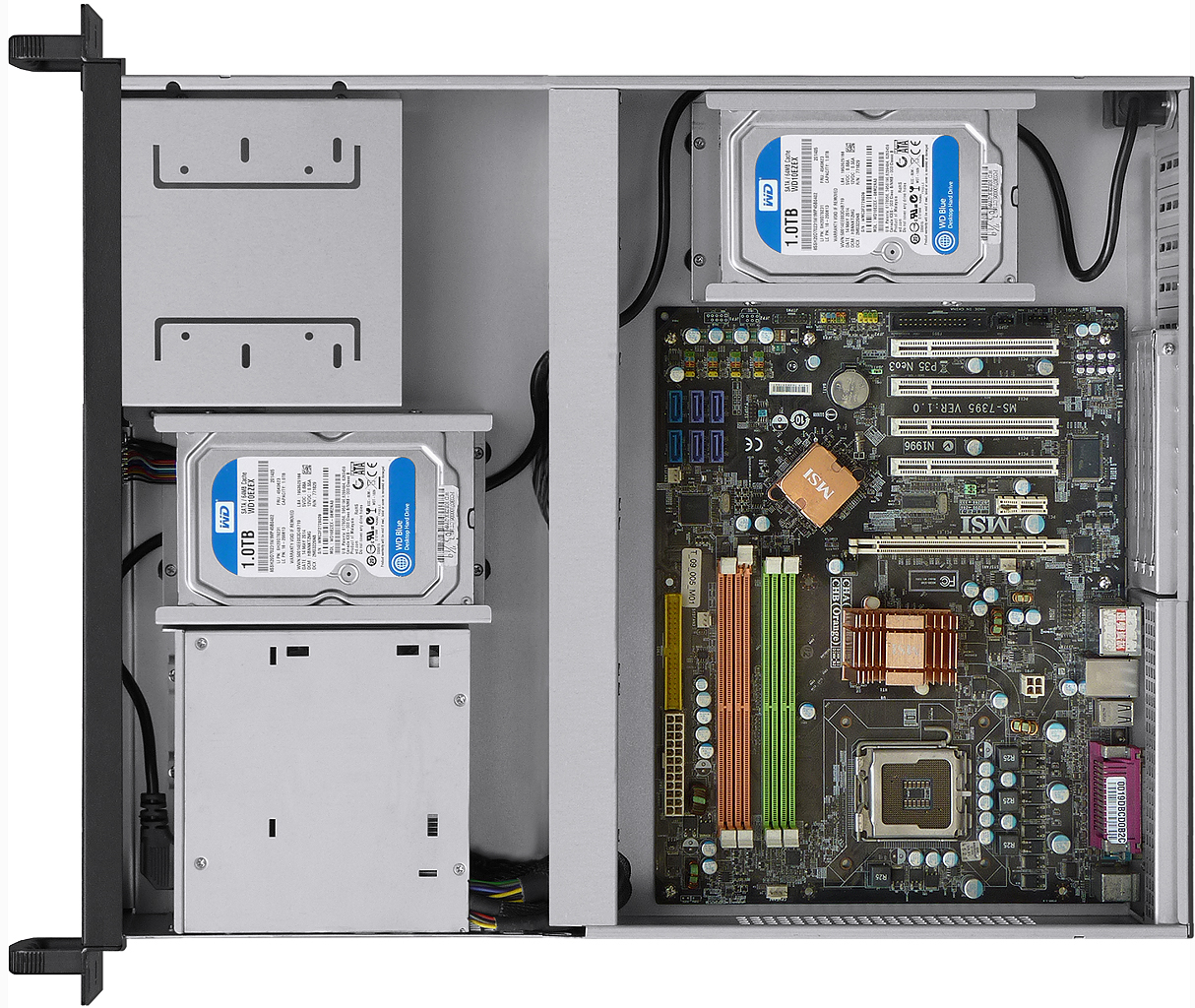

* Totally 8 drive bay: 2 x 5.25"
ODD and
6 x 3.5" HDD bay * The main sheet metal constructed by 1.2mm~2.0mm SGCC mechanism
* HDD Drive bay equipped with anti-vibration function

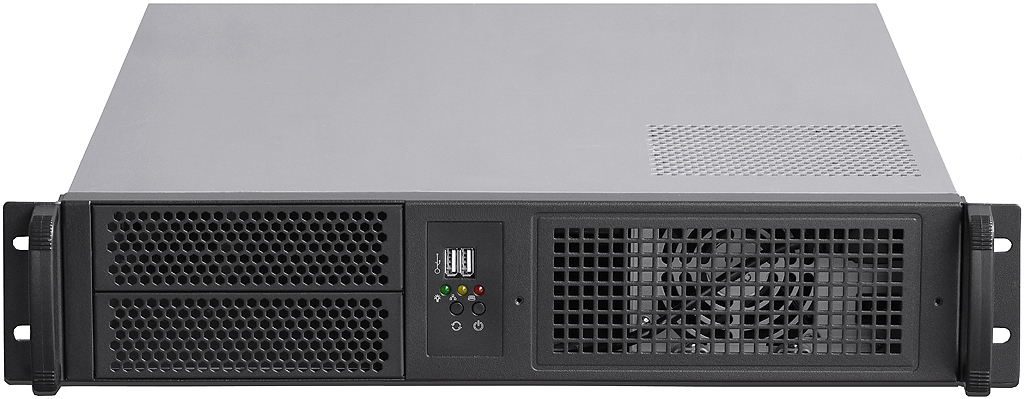

* Two USB 2.0
ports and LAN/HDD/Power LED at front bezel (two
USB 3.0 as option)
* Four
brand new 80mmx25mm intake 2-ball bearing fans (fan part#
SUNTAi8025)

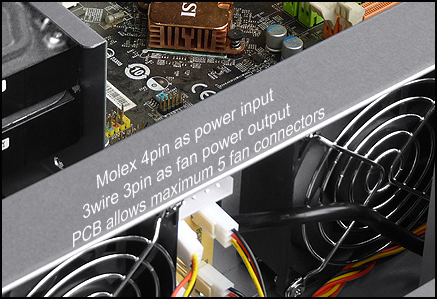

* With
fan connector PCB in the middle fan wall
* MB:
ATX (12"×10"), ATX(12"x9.6"), MicroATX(9.6"x9.6"), Mini-ITX(6.7"x6.7")
*

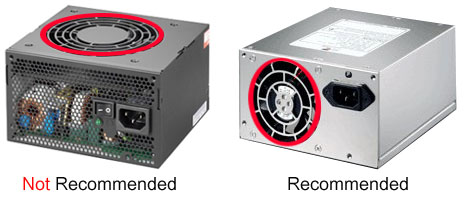

Support PS2 power supply with 80mm
fan version (max. psu depth: 160mm)

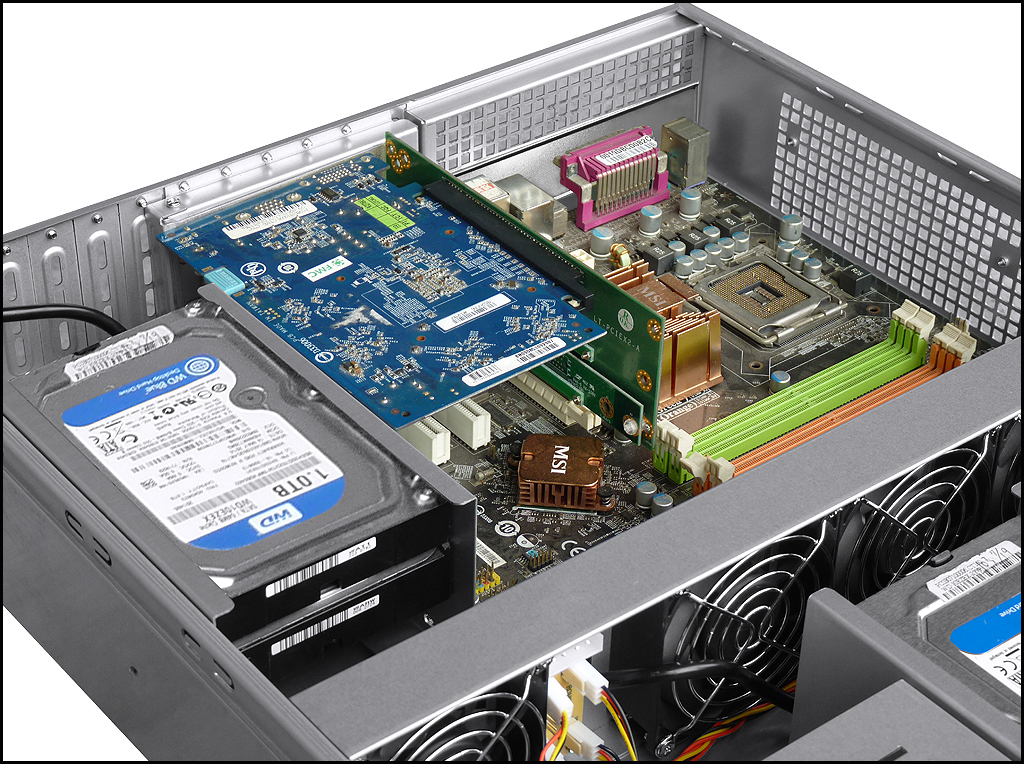

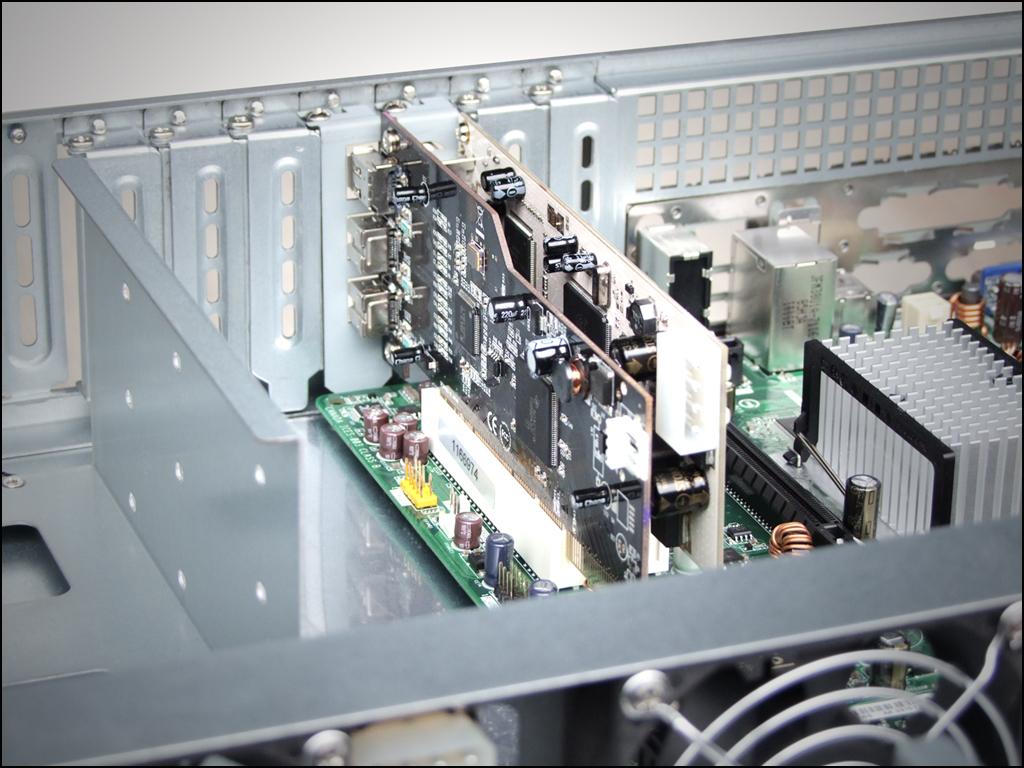

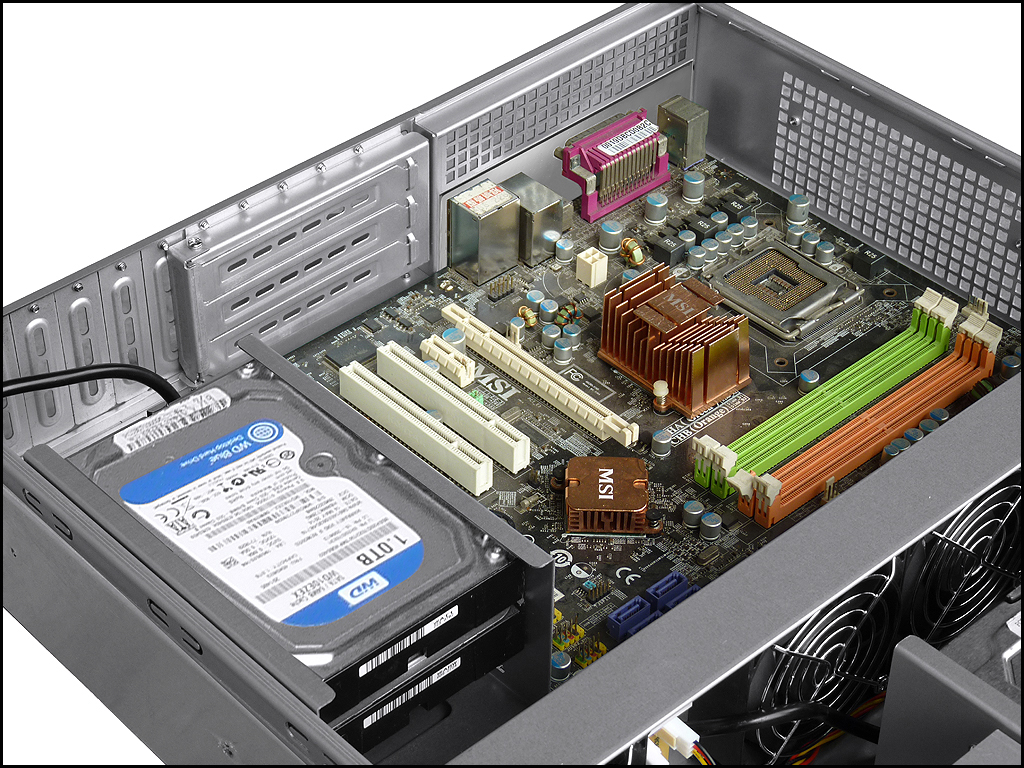

* Support
patented 3 slot full high risers or 7 slot
Low Profile cards (max. 250mm long)
* Standard paint: scratch-resistant
black textured at front
*
Genesys Group
chassis with build-in electronics in global 3 years warranty
* Chassis dimension: 19" x 2U x 550mm (21.65" deep)
*

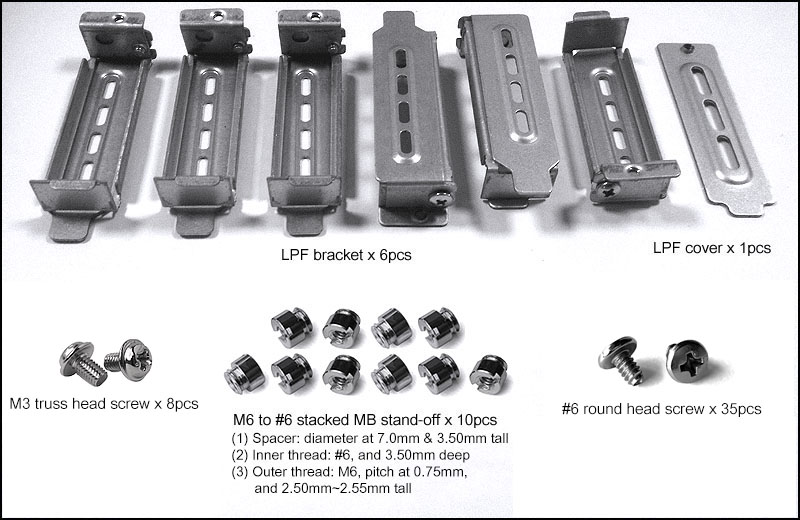

Accessory: Screw x43, #6 MB
stand-off x10, LPF bracket x6, LPF cover x1
* Package: NW 8 KGM, GW 10 KGM, 2.46 CUFT (carton size at
68.5x56.5x18cm) |
|
Model# |
: |
E266B |
2U black ATX ultra cool server chassis |
|
Option A |
: |
2U riser card |
2U riser card
(please inform MB & interface card model# in order to recommend
proper riser) |
|
Option
B |
: |
PS2 PSU |
8cm & 12cm & 14cm fan version
PS2 power supply (max. depth at 160mm) |
|
Option C-1 |
: |
NJ-600 |
600mm 2-layer 3-travel universal rail (cabinet
internal depth 600~1200mm compliant) |
|
Option
C-2 |
: |
NJ-2020-18 |
18-inch full extension slide
rail (cabinet internal depth 456.7mm~810mm compliant) |
|
Option C-3 |
: |
1234U-RMK |
1234U rear mounting kit |
|
Option D |
: |
25-35-BK |
5.25" 3.5" 2.5" multiple HDD bracket |
|
Option E-1 |
: |
2525TO3HDBK |
2x5.25" ODD space to
3x3.5" bracket |
|
Option E-2 |
: |
5.25" mobile rack |
5.25" space HotSwap
SSD / HDD mobile rack |
|
Option F |
: |
2U CPU COOLER |
2U CPU
coolers (2U 3U 4U chassis compatible) |
|
|
|
|
|
| |
|
|
Catalogue
Dimension Drawing |
