HOT SWAP MOBILE RACK MODULE
Announced date: May 22, 2013, webpage updated on
May 14, 2022
 |
|
|
RW125-12G-FH

SATA/SAS 12G
 |
1 Full Height expansion slot space to
1x2.5" HotSwap Cage SATA/SAS 12G
* 1 Full Height slot space to one 2.5" SSD/HDD hotswap mobile rack (if
RAID supported, extra RAID card required)
* 2.5" SATA1/2/3/3.2/3.3 & SAS1/2/3 SAS 12G or SAS/SATA 6G SSD with max.
9.8mm
height compatible
* Entire tray mechanism by high grade stainless with
scratch-resistant black textured at front
* Hotswap tray design with smooth travel
while sliding in and out
* Patented anti-vibration spring design, HDD can be mounted from
bottom of hotswap HDD tray
*
LED display:
Left as Green power light, Right as Orange HDD access light
* Security
with cross-check function via triangle keylock & switch
* Rear interface: 1x SATA 7pin data transfer port, 1x SATA 15pin psu
input port
* Accessory: M3 flat screw x10,
key x2
* Global 3 years warranty or HDD hot swap cycle up to 50,000 times
guaranteed
* Product dimension: 148.7(L) x 120.5(W) x 21.5(H)mm
* Package: N.W. 0.18 KGM, G.W. 0.21 KGM, CUFT 0.048 (195mm x 151mm x
46mm, single box packed)
*
left
right
front
rear
top
accessory |
|
|
 |
|
|
RW125-NVMe


U.2
NVMe 32G |
1x3.5" FDD to
1x2.5" SSD
Removable Cage
U.2
NVMe 32G
* One 3.5" FDD space to 1x2.5" NVMe U.2 mobile rack (some NVMe cards
support hotswap but some U.2 SSD don't)
* 2.5" U.2 NVMe (32Gbps) SSD x1, with maximum height at 15mm
compatible
* Max. 32Gbps speed of each port, 32Gbps transfer speed can be 4GB/s
if server's cooling system is excellent
* Patented
anti-vibration stainless tray
with spring design, SSD can be mounted from the bottom of U.2 SSD
tray
* 1 pair of LED design: Left as Green power light, Right as Orange
HDD access light
* Rear interface: One MiniSAS HD (SFF-8643) data transfer port, 1x
SATA 15pin psu input port
* Accessory Pack: #6 flat screw x4, M3 flat screw x14, key x2
* Global 3 years warranty or HDD hot swap cycle up to 50,000 times
guaranteed
* Product dimension: 145(L) x 101.5(W) x 25.4(H)mm
* Package: N.W. 0.34 KGM, G.W. 0.41 KGM, CUFT 0.048 (195mm x 155mm x
45mm, single box packed)
*
left
left
right
front
rear
tray
accessory |
|
|

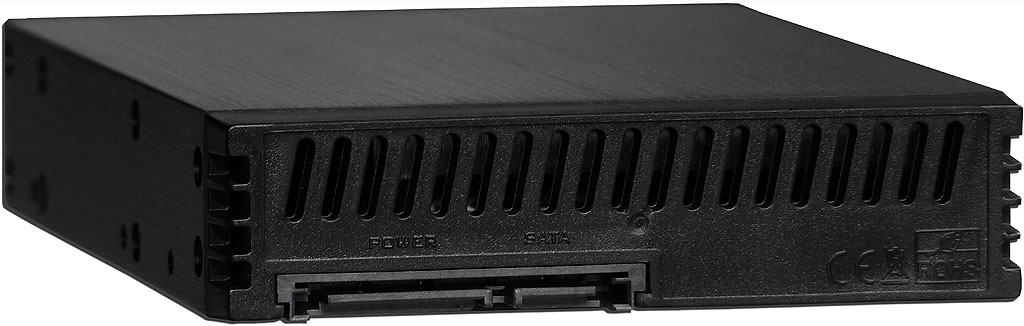

RW125-12G

SATA/SAS 12G
 |
1x3.5" FDD to
1x2.5" HotSwap Cage SATA/SAS 12G
* One 3.5" FDD space to one 2.5" SSD/HDD hotswap mobile rack (if
RAID supported, extra RAID card required)
* 2.5" SATA1/2/3/3.2/3.3 & SAS1/2/3 SAS 12G or SAS/SATA 6G SSD/HDD with max. 15mm
height compatible
* Major mechanism by heat conductive aluminum extrusion
with glossy brushed finish on the surface
* Designed by hotswap tray mechanism, security
with cross-check function via key & switch
* Display: Left Green LED as power, right
Orange LED as HDD
access, and right button as Power On/Off
* Rear interface: 1x SATA 7pin data transfer port, 1x SATA 15pin
psu input port
* Accessory Pack: M3 flat screw x4, #6 flat head screw x4,
key x2
* Global 3 years warranty or HDD hot swap cycle up to 50,000 times
guaranteed
* Product dimension: 145.7(L) x 101.5(W) x 25.4(H)mm
* Package: N.W. 0.22 KGM, G.W. 0.25 KGM, CUFT 0.048 (195mm x 151mm x
46mm, single box packed)
*
left
right
front
rear
rear1
rear2
accessory |
|
|

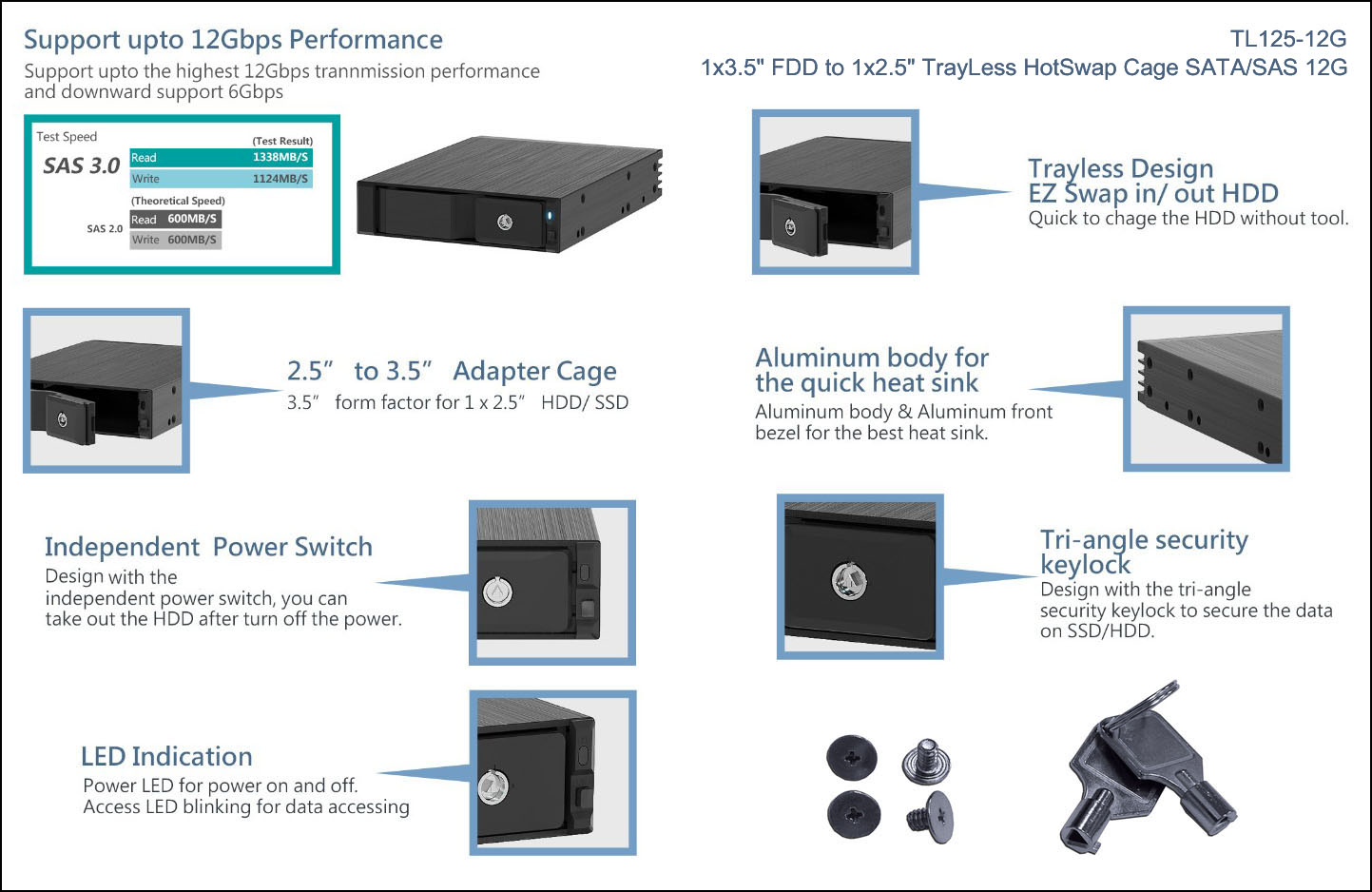

TL125-12G

SATA/SAS 12G
 |
1x3.5" FDD to
1x2.5" TrayLess HotSwap Cage SATA/SAS 12G
* One 3.5" FDD space to one 2.5" SSD/HDD hotswap mobile rack (if
RAID supported, extra RAID card required)
* 2.5" SATA1/2/3/3.2/3.3 & SAS1/2/3 SAS 12G or SAS/SATA 6G SSD/HDD with max. 15mm
height compatible
* Major mechanism by heat conductive aluminum extrusion
with glossy brushed finish on the surface
* Designed by
TrayLess
hotswap mechanism, front panel
open/close security function via key
* Display: single LED with 2 colors, blue as power,
flash purple as HDD
access, button as Power On/Off
*
Rear interface: 1x SATA 7pin data transfer port, 1x SATA 15pin
psu input port
* Accessory Pack: #6 flat head screw x4,
key x2
* Global 3 years warranty or HDD hot swap cycle up to 50,000 times
guaranteed
* Product dimension: 145.7(L) x 101.5(W) x 25.4(H)mm
* Package: N.W. 0.22 KGM, G.W. 0.25 KGM, CUFT 0.048 (195mm x 151mm x
46mm, single box packed)
*
left
right
front
rear
rear1
rear2
accessory |
|
|
TL225

SATA/SAS 12G |
1x3.5" FDD to 2x2.5" TrayLess
HotSwap Cage SATA/SAS 12G
* One 3.5" FDD space to two 2.5"
SSD/HDD trayless hotswap mobile rack (if RAID supported, extra RAID
card required)
* 2.5" SATA1/2/3/3.2/3.3 & SAS1/2/3 SAS 12G or SAS/SATA 6G SSD/HDD with max.
9.5mm
height compatible
* Major mechanism by heat conductive aluminum extrusion
with glossy brushed finish on the surface
*
TrayLess
HDD cage design with
front aluminum security keylock handles,
horizontal or vertical install compatible
* 2 HDD LED, each LED with 2 colors, green for power on when HDD
inserted, orange while HDD is accessing

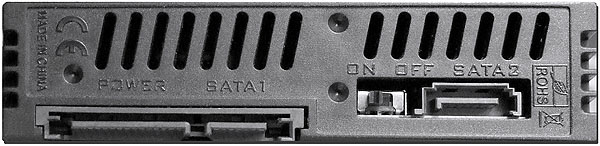

* Rear interface: 2x SATA 7pin data transfer port, 1x SATA 15pin
psu input port,
HDD access signal on/off switch
*
Accessory Pack: key x 2pcs,
#6 flat head nickel screw x 4pcs
* Global 3 years warranty or HDD hot swap cycle up to 50,000 times
guaranteed
* Product dimension: 145.7(L) x 101.5(W) x 25.4(H)mm
* Package: N.W. 0.3 KGM, G.W. 0.4 KGM, CUFT 0.05 (195mm x 151mm x
46mm, single box packed)
*
left
right
right1
front
rear
rear1
accessory
datasheet and manual
explosion drawing & BOM |
|
|
 |
|
|
RW135-12G

SATA/SAS 12G
 |
1x5.25" to
1x3.5"
HotSwap Cage SATA/SAS 12G
* One 5.25" ODD space to one 3.5" HDD hotswap mobile rack (if
RAID supported, extra RAID card required)
* 3.5" SATA1/2/3/3.2/3.3 & SAS1/2/3 SAS 12G or SAS/SATA 6G SSD/HDD with max.
25.4mm
height compatible
* Major mechanism by heat conductive aluminum extrusion
with glossy brushed finish on the surface
* The newest creative RailWay hotswap tray design, security with
cross-check design (key
plus switch)
*
Anti-vibration spring design
by aluminum tray to be smoothly slide in/out and heat dispassion
efficient
* Rear interface: 1x SATA 7pin data transfer
port, 1x SATA 15pin psu input port,
HDD access signal on/off switch
* 1 HDD LED: each LED with 2 colors, green as power,
flash orange while HDD is
accessing
*
Accessory Pack:
key x 2pcs, M3 countersunk screw x 3pcs, #6 countersunk screw x
4pcs, M3 truss screw x 8pcs
* Global 3 years warranty or HDD hot swap cycle up to 50,000 times
guaranteed
* Product dimension: 186.5(L) x 147.4(W) x 42.2(H)mm
* Package: N.W. 0.40 KGM, G.W. 0.48 KGM, CUFT 0.05 (195mm x 151mm x
46mm, single box packed)
*
left
right
front front1
rear
rear1
accessory |
|
|
RW135

SATA/SAS 6G |
1x5.25" to
1x3.5"
HotSwap Cage SATA/SAS 6G
* One 5.25" ODD space to one 3.5" HDD hotswap mobile rack (if
RAID supported, extra RAID card required)
* 3.5" SATA1/2/3 & SAS1/2 (6Gbps) HDD with maximum height at 25.4mm
compatible
* Major mechanism by heat conductive aluminum extrusion
with glossy brushed finish on the surface
* The newest creative RailWay hotswap tray design, security with
cross-check design (key
plus switch)
*
Anti-vibration spring design
by aluminum tray to be smoothly slide in/out and heat dispassion
efficient
* Rear interface: 1x SATA 7pin data transfer
port, 1x SATA 15pin psu input port,
HDD access signal on/off switch
* 1 HDD LED: each LED with 2 colors, green as power,
flash orange while HDD is
accessing
*
Accessory Pack:
key x 2pcs, M3 countersunk screw x 3pcs, #6 countersunk screw x
4pcs, M3 truss screw x 8pcs
* Global 3 years warranty or HDD hot swap cycle up to 50,000 times
guaranteed
* Product dimension: 186.5(L) x 147.4(W) x 42.2(H)mm
* Package: N.W. 0.40 KGM, G.W. 0.48 KGM, CUFT 0.05 (195mm x 151mm x
46mm, single box packed)
*
left
right
front front1
rear
rear1
accessory |
|
|
TL135-12G

SATA/SAS 12G
 |
1x5.25" to
1x3.5" TrayLess
HotSwap Cage SATA/SAS 12G
* One 5.25" ODD space to one 3.5" HDD trayless
hotswap mobile rack (if RAID supported, extra RAID card required)
* 3.5" SATA1/2/3/3.2/3.3 & SAS1/2/3 SAS 12G or SAS/SATA 6G SSD/HDD
with max. 25.4mm height compatible
* Major mechanism by heat conductive aluminum
extrusion with glossy brushed finish on the surface
*
TrayLess
HDD cage design with front
security
keylock handle
* 1 HDD LED: each LED with 2 colors, blue as power, flash purple
while HDD is accessing
* Rear interface: 1x SATA 7pin data transfer port, 1x SATA 15pin psu
input port
*
Accessory Pack:
key x 2pcs, M3 round head nickel screw x 8pcs
* Global 3 years warranty or HDD hot swap cycle up to 50,000 times
guaranteed
* Product dimension: 179.5(L) x 145.6(W) x 42(H)mm
* Package: N.W. 0.28 KGM, G.W. 0.34 KGM, CUFT 0.05 (195mm x 151mm x
46mm, single box packed)
*
left
right
right1
front
rear
accessory |
|
|

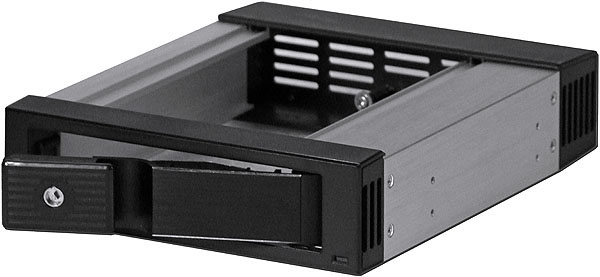

TL135

SATA/SAS 6G |
1x5.25" to
1x3.5" TrayLess
HotSwap Cage SATA/SAS 6G
* One 5.25" ODD space to one 3.5" HDD trayless hotswap
mobile rack (if RAID supported, extra RAID card required)
* 3.5" SATA1/2/3 & SAS1/2 (6Gbps) HDD with maximum height at 25.4mm
compatible
* Major mechanism by heat conductive aluminum extrusion
with glossy brushed finish on the surface
*
TrayLess
HDD cage design with front
security
keylock handle
* 1 HDD LED: each LED with 2 colors, blue as power, flash purple
while HDD is accessing
* Rear interface: 1x SATA 7pin data transfer port, 1x SATA 15pin
psu input port
*
Accessory Pack:
key x 2pcs, M3 round head nickel screw x 8pcs
* Global 3 years warranty or HDD hot swap cycle up to 50,000 times
guaranteed
* Product dimension: 179.5(L) x 145.6(W) x 42(H)mm
* Package: N.W. 0.28 KGM, G.W. 0.34 KGM, CUFT 0.05 (195mm x 151mm x
46mm, single box packed)
*
left
right
right1
front
rear
accessory |
|
|

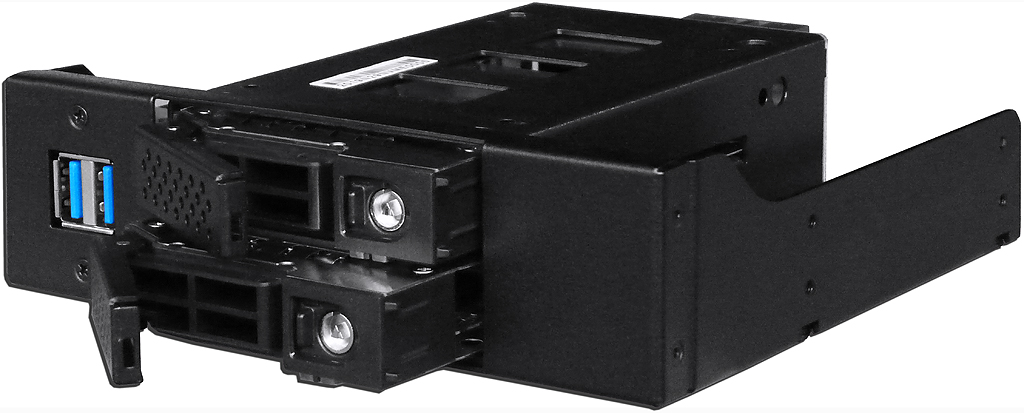

RW225-NVMe-U


U.2
NVMe 32G |
1x5.25" to
2xUSB3
2x2.5" SSD
Removable Cage
U.2
NVMe 32G
* One 5.25" space to two 2.5" NVMe U.2
mobile rack (some NVMe cards support hotswap but some U.2 SSD don't)
* 2.5" U.2 NVMe (32Gbps) SSD x2, with maximum height at 15mm
compatible
* Max. 32Gbps speed of each port, 32Gbps transfer speed can be 4GB/s
if server's cooling system is excellent
* Patented
anti-vibration stainless tray
with spring design, SSD can be mounted from the bottom of U.2 SSD
tray
* 2 pairs of LED design: Left as Green power light, Right as Orange
HDD access light
* Rear interface: Two MiniSAS HD (SFF-8643) data transfer ports, 1x
SATA 15pin psu input port
* Accessory Pack: M3 countersunk x16, M3 round x8, key x2
* Global 3 years warranty or HDD hot swap cycle up to 50,000 times
guaranteed
* Product dimension: 140(L) x 146(W) x 41.8(H)mm
* Package: N.W. 0.50 KGM, G.W. 0.54 KGM, CUFT 0.048 (195mm x 155mm x
45mm, single box packed)
*
left
right
front
rear
rear1
tray
accessory |
|
|
RW225-NVMe


U.2
NVMe 32G |
1x5.25" to
2x2.5" SSD
Removable Cage
U.2
NVMe 32G
* One 5.25" space to two 2.5" NVMe U.2
mobile rack (some NVMe cards support hotswap but some U.2 SSD don't)
* 2.5" U.2 NVMe (32Gbps) SSD x2, with maximum height at 15mm
compatible
* Max. 32Gbps speed of each port, 32Gbps transfer speed can be 4GB/s
if server's cooling system is excellent
* Patented
anti-vibration stainless tray
with spring design, SSD can be mounted from the bottom of U.2 SSD
tray
* 2 pairs of LED design: Left as Green power light, Right as Orange
HDD access light
* Rear interface: Two MiniSAS HD (SFF-8643) data transfer ports, 1x
SATA 15pin psu input port
* Accessory Pack: M3 countersunk x16, M3 round x8, key x2
* Global 3 years warranty or HDD hot swap cycle up to 50,000 times
guaranteed
* Product dimension: 140(L) x 146(W) x 41.8(H)mm
* Package: N.W. 0.50 KGM, G.W. 0.54 KGM, CUFT 0.048 (195mm x 155mm x
45mm, single box packed)
*
left
right
front
rear
tray
accessory |
|
|
RW225-12G

SATA/SAS 12G |
1x5.25" to
2x2.5"
HotSwap Cage SATA/SAS 12G
* One 5.25" space to
two 2.5" hotswap mobile rack (if
RAID supported, extra RAID card required)
* 2.5" SATA1/2/3/3.2/3.3 & SAS1/2/3 SAS 12G or SAS/SATA 6G SSD/HDD with max.
15mm
height compatible
* Entire mechanism by high grade SECC sheet metal with
scratch-resistant black textured paint
* The newest creative RailWay hotswap tray design with stainless
metal & smooth travel while sliding in and out
* Patented
anti-vibration spring design, HDD can be mounted from
bottom of hotswap HDD tray
* 2 pairs of LED design: Left as Green power light, Right as Orange
HDD access light
* Rear interface: 2x SATA 7pin data transfer port, 1x SATA 15pin psu
input port
*
Accessory Pack: M3 countersunk x8, M3 round x8, key x2
* Global 3 years warranty or HDD hot swap cycle up to 50,000 times
guaranteed
* Product dimension: 140(L) x 146(W) x 41.8(H)mm
* Package: N.W. 0.50 KGM, G.W. 0.54 KGM, CUFT 0.048 (195mm x 155mm x
45mm, single box packed)
*
left
right
front
rear
tray
accessory |
|
|
RW625-12G
 SATA/SAS 12G
 |
1x5.25" to
6x2.5"
HotSwap Cage SATA/SAS 12G
* One 5.25" space to six 2.5" hotswap mobile rack (if RAID
supported, extra RAID card required)
* 2.5" SATA1/2/3/3.2/3.3 & SAS1/2/3 SAS 12G or SAS/SATA 6G SSD/HDD with max.
9.5mm
height compatible
* Entire tray mechanism by high grade stainless with
scratch-resistant black textured at front
* The newest creative RailWay hotswap tray design with smooth travel
while sliding in and out
* Patented anti-vibration spring design, HDD can be mounted from
bottom of hotswap HDD tray
*
6 pairs of LED design:
Left as Green power light, Right as Orange HDD access light
* One 40mmx20mm fan at
rear as standard
* Fan detect:
if fan fail, the left
Green power LED indicates slow flash red light
(option)
* Temperature overheat:
if over 60 degree-C, the
left Green power LED indicates fast
flash red light
(option)
*
Rear interface:
6x SATA 7pin data transfer port, 1x SATA 15pin psu input port
*
Accessory Pack:
M3 countersunk x28, M3 round x8, key x2
* Global 3 years warranty or HDD hot swap cycle up to 50,000 times guaranteed
* Product dimension: 159(L) x 145.8(W) x 41.6(H)mm
* Package: N.W. 0.68 KGM, G.W.
1.18 KGM, CUFT 0.06 (195mm x 191mm x
46mm, single box packed)
*
left
right
front
front1
rear
rear1
accessory |
|
|
RW825-1525

SATA/SAS 6G |
1x5.25" to
8x2.5"
HotSwap Cage SATA/SAS 6G
* One 5.25" space to eight 2.5" hotswap mobile rack (if RAID
supported, extra RAID card required)
* 2.5" SATA1/2/3 & SAS1/2 (6Gbps) HDD/SSD with maximum height at
7mm compatible
* Entire tray mechanism by high grade stainless with
scratch-resistant black textured at front
* The newest creative RailWay hotswap tray design with smooth travel
while sliding in and out
* Patented anti-vibration spring design, HDD can be mounted from
bottom of hotswap HDD tray
*
8 pairs of LED design:
Left as Green power light, Right as Orange HDD access light
* One 40mmx20mm fan
at rear side of HDD cage as
standard
*
Rear interface:
8x SATA 7pin data transfer port, 2x SATA 15pin psu input port
*
Accessory Pack:
M3 countersunk x36, M3 round x8
* Global 3 years warranty or HDD hot swap cycle up to 50,000 times guaranteed
* Product dimension: 159(L) x 146(W) x 42(H)mm
* Package: N.W. 0.80 KGM, G.W. 1.00 KGM, CUFT 0.04 (160mm x 147mm x
43mm, single box packed)
*
left
right
front
front1
rear
rear1
accessory |
|
|
RW425-NVMe


U.2
NVMe 32G |
1x5.25" to
4x2.5" SSD
Removable Cage
U.2
NVMe 32G
* One 5.25" space to four 2.5" NVMe U.2 mobile rack (some RAID
cards/NVMe support hotswap but some don't)
* 2.5" U.2 NVMe (32Gbps) SSD x4, with maximum height at 15mm
compatible
* Max. 32Gbps speed of each port, 32Gbps transfer speed can be 4GB/s
if server's cooling system is excellent
* Entire tray mechanism by high grade stainless with
scratch-resistant black textured at front
* Patented
anti-vibration spring design, HDD can be mounted from
bottom of removable HDD tray
*
4 pairs of LED design: Left as Green power light, Right as Orange
HDD access light
* Two 40mmx20mm fans at rear as standard
*
Rear interface: Four SFF-8643 data transfer ports, 2x SATA 15pin
psu input ports
*
Accessory Pack: M3 countersunk x16, M3 round x8, key x2
* Global 3 years warranty or HDD removable cycle up to 50,000 times
guaranteed
* Product dimension: 159(L) x 145.8(W) x 41.6(H)mm
* Package: N.W. 0.68 KGM, G.W. 1.18 KGM, CUFT 0.05 (195mm x 151mm x
46mm, single box packed)
*
left
left
right
right
right
right
front
rear
tray
accessory
drawing
datasheet |
|
|
RW425-12G-MS


SFF-8643 12G |
1x5.25" to
4x2.5"
HotSwap Cage SFF-8643 12G
* One 5.25" space to four 2.5" hotswap mobile rack (if RAID
supported, extra RAID card required)
* 2.5" SATA1/2/3/3.2/3.3 & SAS1/2/3 (12Gbps) HDD/SSD with maximum height at
15mm
compatible
* Entire tray mechanism by high grade stainless with
scratch-resistant black textured at front
* Patented
anti-vibration spring design, HDD can be mounted from
bottom of hotswap HDD tray
*
4 pairs of LED design:
Left as Green power light, Right as Orange HDD access light
* Fan detect:
if fan fail, the left
Green power LED indicates slow flash red light
* Temperature overheat:
if over 60 degree-C, the
left Green power LED indicates fast
flash red light
* Two 40mmx20mm fans at
rear as standard
*
Rear interface: One SFF-8643 data transfer port,
1x SATA
15pin psu input port
*
Accessory Pack:
M3 countersunk x16, M3 round x8, key x2
* Global 3 years warranty or HDD hot swap cycle up to 50,000 times guaranteed
*
Product dimension: 159(L) x 145.8(W) x 41.6(H)mm
*
Package: N.W. 0.68 KGM, G.W. 1.18 KGM, CUFT 0.05 (195mm x 151mm x
46mm, single box packed)
*
left
right
front
rear
tray
accessory
datasheet |
|
|
RW425-12G

 SATA/SAS 12G |
1x5.25" to
4x2.5"
HotSwap Cage
SATA/SAS 12G
* One 5.25" space to four 2.5" hotswap mobile rack (if RAID
supported, extra RAID card required)
* 2.5" SATA1/2/3/3.2/3.3 & SAS1/2/3 SAS 12G or SAS/SATA 6G SSD/HDD with max.
15mm
height compatible
* Entire tray mechanism by high grade stainless with
scratch-resistant black textured at front
* Patented
anti-vibration spring design, HDD can be mounted from
bottom of hotswap HDD tray
*
4 pairs of LED design:
Left as Green power light, Right as Orange HDD access light
* Fan detect:
if fan fail, the left
Green power LED indicates slow flash red light
(option)
* Temperature overheat:
if over 60 degree-C, the
left Green power LED indicates fast
flash red light
(option)
* One 40mmx20mm fan at rear
as standard
*
Rear interface: 4x SATA
7pin data transfer port, 1x SATA 15pin psu input port
*
Accessory Pack:
M3 countersunk x16, M3 round x8, key x2
* Global 3 years warranty or HDD hot swap cycle up to 50,000 times guaranteed
*
Product dimension: 159(L) x 145.8(W) x 41.6(H)mm
*
Package: N.W. 0.68 KGM, G.W. 1.18 KGM, CUFT 0.05 (195mm x 151mm x
46mm, single box packed)
*
left
right
front
rear
tray
optional fan & temp sensor
accessory
datasheet |
|
|
RW425

SATA/SAS 6G |
1x5.25" to
4x2.5"
HotSwap Cage
SATA/SAS 6G
* One 5.25" space to four 2.5" hotswap mobile rack (if RAID
supported, extra RAID card required)
* 2.5" SATA1/2/3 & SAS1/2 (6Gbps) HDD/SSD with maximum height at
15mm compatible
* Major mechanism by heat conductive aluminum extrusion
with glossy brushed finish on the surface
* The newest creative
RailWay
hotswap tray design with smooth
travel while sliding in and out
*
Patented anti-vibration spring design, HDD can be mounted from
bottom of hotswap HDD tray
* 4 HDD LED, each LED with 3 colors, blue for power, purple for
access, red for malfunction (fast red flash as overheat
alert and slow red flash as fan
malfunction)
* Two 40mm x 20mm exhaust cooling fans at rear side of HDD cage as
standard
* Rear interface: 4x SATA
7pin data transfer port, 1x SATA 15pin psu input port,
HDD access signal on/off
switch
*
Accessory Pack:
key x 2pcs,
M3 flat head nickel screw x 20pcs, M3 round head nickel
screw x 8pcs
* Global 3 years warranty or HDD hot swap cycle up to 50,000 times guaranteed
* Product dimension: 180(L) x 146(W) x 42(H)mm
* Package: N.W. 0.71 KGM, G.W. 0.76 KGM, CUFT 0.050 (196mm x 153mm x
47mm, single box packed)
*
left
right
front
rear
rear1
tray
accessory
dimensional drawing
specification |
|
|
 |
|
|
RW335-12G

SATA/SAS 12G
 |
2x5.25" to
3x3.5" HotSwap Cage
SATA/SAS 12G
* Two 5.25" space to three 3.5" hotswap mobile
rack (if RAID supported, extra RAID card required)
* 3.5" SATA1/2/3/3.2/3.3 & SAS1/2/3 SAS 12G or SAS/SATA 6G SSD/HDD with max.
25.4mm
height compatible
* Major mechanism by heat conductive aluminum extrusion
with glossy brushed finish on the surface
* The newest creative RailWay hotswap tray design,
security with cross-check design (key
plus switch)
*
Anti-vibration spring design
by aluminum tray to be smoothly slide in/out and heat dispassion
efficient
* 3 HDD LED: each LED with 2 colors, green for power, orange for
HDD access
* One 70mm x 15mm exhaust cooling fan at rear side of HDD cage as
standard
* Front interface (LED):
fan malfunction alert,
and
temperature overheat alert
* Rear interface (1):
3x SATA
7pin data transfer port, 2x SATA
15pin psu input port,
HDD access signal on/off switch
* Rear interface (2):
overheat Alarm setup jumper
(55-degree C/60-degree/65-degree C adjustable)
* Rear interface (3):
3x 2.54pin HDD signal
connector
* Rear interface (4):
high speed fan or low speed fan
adjustable switch
*
Accessory Pack:
key x2, M3 flat head screw x9, M3 round
head screw x8, #6 flat head screw x12
* Global 3 years warranty or HDD hot swap cycle up to 50,000 times
guaranteed
* Product dimension: 205(L) x 146(W) x 86(H)mm
* Package: N.W. 1.09 KGM, G.W. 1.31 KGM, CUFT 0.200 (254mm x 122mm x
178mm, single box packed)
*
left
right
front
front1
front2
rear
rear1
rear2
rear3
rear4
tray
accessory |
|
|
RW335

SATA/SAS 6G |
2x5.25" to
3x3.5" HotSwap Cage
SATA/SAS 6G
* Two 5.25" space to three 3.5" hotswap mobile rack (if RAID
supported, extra RAID card required)
* 3.5" SATA1/2/3 & SAS1/2 (6Gbps) HDD with maximum height at
25.4mm compatible
* Major mechanism by heat conductive aluminum extrusion
with glossy brushed finish on the surface
* The newest creative RailWay hotswap tray design,
security with cross-check design (key
plus switch)
*
Anti-vibration spring design
by aluminum tray to be smoothly slide in/out and heat dispassion
efficient
* 3 HDD LED: each LED with 2 colors, green for power, orange for
HDD access
* One 70mm x 15mm exhaust cooling fan at rear side of HDD cage as
standard
* Front interface (LED):
fan malfunction alert,
and
temperature overheat alert
* Rear interface (1):
3x SATA
7pin data transfer port, 2x SATA
15pin psu input port,
HDD access signal on/off switch
* Rear interface (2):
overheat Alarm setup jumper
(55-degree C/60-degree/65-degree C adjustable)
* Rear interface (3):
3x 2.54pin HDD signal
connector
* Rear interface (4):
high speed fan or low speed fan
adjustable switch
*
Accessory Pack:
key x2, M3 flat head screw x9, M3 round head screw x8, #6 flat head
screw x12
* Global 3 years warranty or HDD hot swap cycle up to 50,000 times
guaranteed
* Product dimension: 205(L) x 146(W) x 86(H)mm
* Package: N.W. 1.09 KGM, G.W. 1.31 KGM, CUFT 0.200 (255mm x 124mm x
180mm, single box packed)
*
left
right
front
front1
front2
rear
rear1
rear2
rear3
rear4
tray
accessory |
|
|
TL335-12G

SATA/SAS 12G
 |
2x5.25" to
3x3.5"
TrayLess HotSwap Cage
SATA/SAS 12G
* Two 5.25" space to three 3.5" TrayLess
hotswap mobile rack (if RAID supported, extra RAID card required)
* 3.5" SATA1/2/3/3.2/3.3 & SAS1/2/3 SAS 12G or SAS/SATA 6G SSD/HDD with max.
25.4mm
height compatible
* Major mechanism by heat conductive aluminum extrusion
with glossy brushed finish on the surface
*
TrayLess
HDD cage design with front
security
keylock handles
* 1 blue Power LED & 3 purple HDD LED (HDD inserted as blue,
no light if no HDD inside, flash purple while accessing)
* One 70mm x 15mm exhaust cooling fan at rear side of HDD cage as
standard
* Rear interface (1): 3x SATA
7pin data transfer port, 2x SATA
15pin psu input port,
HDD access signal on/off switch
* Rear interface (2): high speed fan or low
speed fan
adjustable switch
*
Accessory Pack:
key x 2pcs, M3 round head nickel screw x 8pcs
* Global 3 years warranty or HDD hot swap cycle up to 50,000 times
guaranteed
* Product dimension: 190(L) x 146(W) x 86(H)mm
* Package: N.W. 0.76 KGM, G.W. 0.92 KGM, CUFT 0.200 (254mm x 122mm x
178mm, single box packed)
*
left
right
right1
front
rear
rear1
rear2
accessory |
|
|
TL335

SATA/SAS 6G |
2x5.25" to
3x3.5"
TrayLess HotSwap Cage SATA/SAS 6G
* Two 5.25" space to three 3.5" TrayLess
hotswap mobile rack (if RAID supported, extra RAID card required)
* 3.5" SATA1/2/3 & SAS1/2 (6Gbps) HDD with maximum height at
25.4mm compatible
* Major mechanism by heat conductive aluminum extrusion
with glossy brushed finish on the surface
*
TrayLess
HDD cage design with front
security
keylock handles
* 1 blue Power LED & 3 purple HDD LED (HDD inserted as blue,
no light if no HDD inside, flash purple while accessing)
* One 70mm x 15mm exhaust cooling fan at rear side of HDD cage as
standard
* Rear interface (1): 3x SATA
7pin data transfer port, 2x SATA
15pin psu input port,
HDD access signal on/off switch
* Rear interface (2): high speed fan or low
speed fan
adjustable switch
*
Accessory Pack:
key x 2pcs, M3 round head nickel screw x 8pcs
* Global 3 years warranty or HDD hot swap cycle up to 50,000 times
guaranteed
* Product dimension: 190(L) x 146(W) x 86(H)mm
* Package: N.W. 0.76 KGM, G.W. 0.92 KGM, CUFT 0.199 (253mm x 124mm x
180mm, single box packed)
*
left
right
right1
front
rear
rear1
rear2
accessory |
|
|
 |
|
|
RW435-12G-MS

SFF-8643 12G
 |
3x5.25" to
4x3.5" HotSwap Cage SFF-8643 12G
* Three 5.25" space to four 3.5" hotswap
mobile rack (if RAID supported, extra RAID card required)
* 3.5" SATA1/2/3/3.2/3.3 & SAS1/2/3 (12Gbps) HDD with maximum height at
25.4mm
compatible
* Major mechanism by heat conductive aluminum extrusion
with glossy brushed finish on the surface
* The newest creative RailWay hotswap tray design,
security with cross-check design (key
plus switch)
*
Anti-vibration spring design
by aluminum tray to be smoothly slide in/out and heat dispassion
efficient
* 4 HDD LED: each LED with 2 colors, green for power, orange for
HDD access
* One 80mm x 15mm exhaust cooling fan at rear side of HDD cage as
standard
* Front interface (LED):
fan malfunction alert,
and
temperature overheat alert
* Rear interface (1): One SFF-8643 data transfer port, 2x SATA
15pin psu input port,
HDD access signal on/off switch
* Rear interface (2):
overheat Alarm setup jumper
(55-degree C/60-degree/65-degree C adjustable)
* Rear interface (3): 4x 2.54pin HDD signal
connector
* Rear interface (4): high speed fan or low
speed fan
adjustable switch
*
Accessory Pack:
key x2, M3 flat head screw x12, M3 round head
screw x8, #6 flat head screw x16
* Global 3 years warranty or HDD hot swap cycle up to 50,000 times
guaranteed
* Product dimension: 210(L) x 146(W) x 126(H)mm
* Package: N.W. 1.79 KGM, G.W. 2.05 KGM, CUFT 0.260 (254mm x 162mm x
178mm, single box packed)
*
left
right
front
front1
front2
rear
rear1
rear2
rear3
rear4
tray
accessory |
|
|
RW435-12G

SATA/SAS 12G
 |
3x5.25" to
4x3.5" HotSwap Cage SATA/SAS 12G
* Three 5.25" space to four 3.5" hotswap
mobile rack (if RAID supported, extra RAID card required)
* 3.5" SATA1/2/3/3.2/3.3 & SAS1/2/3 SAS 12G or SAS/SATA 6G SSD/HDD with max.
25.4mm
height compatible
* Major mechanism by heat conductive aluminum extrusion
with glossy brushed finish on the surface
* The newest creative RailWay
hotswap tray design,
security with cross-check design (key
plus switch)
*
Anti-vibration spring design
by aluminum tray to be smoothly slide in/out and heat dispassion
efficient
* 4 HDD LED: each LED with 2 colors, green for power, orange for
HDD access
* One 80mm x 15mm exhaust cooling fan at rear side of HDD cage as
standard
* Front interface (LED):
fan malfunction alert,
and
temperature overheat alert
* Rear interface (1): 4x SATA
7pin data transfer port, 2x SATA
15pin psu input port,
HDD access signal on/off switch
* Rear interface (2):
overheat Alarm setup jumper
(55-degree C/60-degree/65-degree C adjustable)
* Rear interface (3): 4x 2.54pin HDD signal
connector
* Rear interface (4): high speed fan or low
speed fan
adjustable switch
*
Accessory Pack:
key x2, M3 flat head screw x12, M3 round head
screw x8, #6 flat head screw x16
* Global 3 years warranty or HDD hot swap cycle up to 50,000 times
guaranteed
* Product dimension: 210(L) x 146(W) x 126(H)mm
* Package: N.W. 1.79 KGM, G.W. 2.05 KGM, CUFT 0.260 (254mm x 162mm x
178mm, single box packed)
*
left
right
front
front1
front2
rear
rear1
rear2
rear3
rear4
tray
accessory |
|
|
RW435

SATA/SAS 6G |
3x5.25" to
4x3.5" HotSwap Cage
SATA/SAS 6G
* Three 5.25" space to 4 x 3.5" hotswap mobile rack (if RAID
supported, extra RAID card required)
* 3.5" SATA1/2/3 & SAS1/2 (6Gbps) HDD with maximum height at
25.4mm compatible
* Major mechanism by heat conductive aluminum extrusion
with glossy brushed finish on the surface
* The newest creative RailWay
hotswap tray design,
security with cross-check design (key
plus switch)
*
Anti-vibration spring design
by aluminum tray to be smoothly slide in/out and heat dispassion
efficient
* 4 HDD LED: each LED with 2 colors, green for power, orange for
HDD access
* One 80mm x 15mm exhaust cooling fan at rear side of HDD cage as
standard
* Front interface (LED):
fan malfunction alert,
and
temperature overheat alert
* Rear interface (1): 4x SATA
7pin data transfer port, 2x SATA
15pin psu input port,
HDD access signal on/off switch
* Rear interface (2):
overheat Alarm setup jumper
(55-degree C/60-degree/65-degree C adjustable)
* Rear interface (3): 4x 2.54pin HDD signal
connector
* Rear interface (4): high speed fan or low
speed fan
adjustable switch
*
Accessory Pack:
key x2, M3 flat head screw x12, M3 round head
screw x8, #6 flat head screw x16
* Global 3 years warranty or HDD hot swap cycle up to 50,000 times
guaranteed
* Product dimension: 210(L) x 146(W) x 126(H)mm
* Package: N.W. 1.79 KGM, G.W. 2.05 KGM, CUFT 0.260 (255mm x 165mm x
175mm, single box packed)
*
left
right
front
front1
front2
rear
rear1
rear2
rear3
rear4
tray
accessory |
|
|
TL435-12G-MS

SFF-8643 12G
 |
3x5.25" to
4x3.5"
TrayLess HotSwap Cage
SFF-8643 12G
* Three 5.25" space to four 3.5"
TrayLess hotswap
mobile rack (if RAID supported, extra RAID card required)
* 3.5" SATA1/2/3/3.2/3.3 & SAS1/2/3 (12Gbps) HDD with maximum height at
25.4mm
compatible
* Major mechanism by heat conductive aluminum extrusion
with glossy brushed finish on the surface
*
TrayLess
HDD cage design with front
security
keylock handles
* 1 blue Power LED & 4 purple HDD LED (HDD inserted as blue,
no light if no HDD inside, flash purple while accessing)
* One 80mm x 15mm exhaust cooling fan at rear side of HDD cage as
standard
* Rear interface (1): One SFF-8643 data transfer port, 2x SATA
15pin psu input port,
HDD access signal on/off switch
* Rear interface (2): high speed fan or low
speed fan
adjustable switch
*
Accessory Pack:
key x 2pcs, M3 round head nickel screw x 8pcs
* Global 3 years warranty or HDD hot swap cycle up to 50,000 times
guaranteed
* Product dimension: 199(L) x 146(W) x 126(H)mm
* Package: N.W. 1.20 KGM, G.W. 1.39 KGM, CUFT 0.260 (254mm x 162mm x
178mm, single box packed)
*
left
right
right1
front
rear
rear1
rear2
accessory |
|
|
TL435-12G
 SATA/SAS 12G
 |
3x5.25" to
4x3.5"
TrayLess HotSwap Cage
SATA/SAS 12G
* Three 5.25" space to four 3.5"
TrayLess hotswap
mobile rack (if RAID supported, extra RAID card required)
* 3.5" SATA1/2/3/3.2/3.3 & SAS1/2/3 SAS 12G or SAS/SATA 6G SSD/HDD with max.
25.4mm
height compatible
* Major mechanism by heat conductive aluminum extrusion
with glossy brushed finish on the surface
*
TrayLess
HDD cage design with front
security
keylock handles
* 1 blue Power LED & 4 purple HDD LED (HDD inserted as blue,
no light if no HDD inside, flash purple while accessing)
* One 80mm x 15mm exhaust cooling fan at rear side of HDD cage as
standard
* Rear interface (1): 4x SATA
7pin data transfer port, 2x SATA
15pin psu input port,
HDD access signal on/off switch
* Rear interface (2): high speed fan or low
speed fan
adjustable switch
*
Accessory Pack:
key x 2pcs, M3 round head nickel screw x 8pcs
* Global 3 years warranty or HDD hot swap cycle up to 50,000 times
guaranteed
* Product dimension: 199(L) x 146(W) x 126(H)mm
* Package: N.W. 1.20 KGM, G.W. 1.39 KGM, CUFT 0.260 (254mm x 162mm x
178mm, single box packed)
*
left
right
right1
front
rear
rear1
rear2
accessory |
|
|
TL435

SATA/SAS 6G |
3x5.25" to
4x3.5"
TrayLess HotSwap Cage
SATA/SAS 6G
* Three 5.25" space to four 3.5" TrayLess hotswap mobile rack (if
RAID supported, extra RAID card required)
* 3.5" SATA1/2/3 & SAS1/2 (6Gbps) HDD with maximum height at
25.4mm compatible
* Major mechanism by heat conductive aluminum extrusion
with glossy brushed finish on the surface
*
TrayLess
HDD cage design with front
security
keylock handles
* 1 blue Power LED & 4 purple HDD LED (HDD inserted as blue,
no light if no HDD inside, flash purple while accessing)
* One 80mm x 15mm exhaust cooling fan at rear side of HDD cage as
standard
* Rear interface (1): 4x SATA
7pin data transfer port, 2x SATA
15pin psu input port,
HDD access signal on/off switch
* Rear interface (2): high speed fan or low
speed fan
adjustable switch
*
Accessory Pack:
key x 2pcs, M3 round head nickel screw x 8pcs
* Global 3 years warranty or HDD hot swap cycle up to 50,000 times
guaranteed
* Product dimension: 199(L) x 146(W) x 126(H)mm
* Package: N.W. 1.20 KGM, G.W. 1.39 KGM, CUFT 0.261 (253mm x 177mm x
165mm, single box packed)
*
left
right
right1
front
rear
rear1
rear2
accessory |
|
|
RW535-12G
 SATA/SAS 12G
 |
3x5.25" to
5x3.5"
HotSwap Cage
SATA/SAS 12G
* Three 5.25" space to five 3.5" hotswap
mobile rack (if RAID supported, extra RAID card required)
* 3.5" SATA1/2/3/3.2/3.3 & SAS1/2/3 SAS 12G or SAS/SATA 6G SSD/HDD with max.
25.4mm
height compatible
* Major mechanism by heat conductive aluminum extrusion
with glossy brushed finish on the surface
* The newest creative RailWay
hotswap tray design,
security with cross-check design (key
plus switch)
*
Anti-vibration spring design
by aluminum tray to be smoothly slide in/out and heat dispassion
efficient
* 5 HDD LED: each LED with 2 colors, green for power, orange for
HDD access
* One 80mm x 15mm exhaust cooling fan at rear side of HDD cage as
standard
* Front interface (LED):
fan malfunction alert,
and
temperature overheat alert
* Rear interface (1): 5x SATA
7pin data transfer port, 2x SATA
15pin psu input port,
HDD access signal on/off switch
* Rear interface (2):
overheat Alarm setup jumper
(55-degree C/60-degree/65-degree C adjustable)
* Rear interface (3): 5x 2.54pin HDD signal
connector
* Rear interface (4): high speed fan or low
speed fan
adjustable switch
*
Accessory Pack:
key x2, M3 flat head screw x15, M3 round head
screw x8, #6 flat head screw x20
* Global 3 years warranty or HDD hot swap cycle up to 50,000 times
guaranteed
* Product dimension: 210(L) x 146(W) x 126(H)mm
* Package: N.W. 1.80 KGM, G.W. 2.07 KGM, CUFT 0.260 (254mm x 162mm x
178mm, single box packed)
*
left
right
front
front1
front2
rear
rear1
rear2
rear3
rear4
tray
accessory |
|
|
RW535

SATA/SAS 6G |
3x5.25" to
5x3.5"
HotSwap Cage
SATA/SAS 6G
* Three 5.25" space to five 3.5" hotswap mobile rack (if RAID
supported, extra RAID card required)
* 3.5" SATA1/2/3 & SAS1/2 (6Gbps) HDD with maximum height at
25.4mm compatible
* Major mechanism by heat conductive aluminum extrusion
with glossy brushed finish on the surface
* The newest creative RailWay
hotswap tray design,
security with cross-check design (key
plus switch)
*
Anti-vibration spring design
by aluminum tray to be smoothly slide in/out and heat dispassion
efficient
* 5 HDD LED: each LED with 2 colors, green for power, orange for
HDD access
* One 80mm x 15mm exhaust cooling fan at rear side of HDD cage as
standard
* Front interface (LED):
fan malfunction alert,
and
temperature overheat alert
* Rear interface (1): 5x SATA
7pin data transfer port, 2x SATA
15pin psu input port,
HDD access signal on/off switch
* Rear interface (2):
overheat Alarm setup jumper
(55-degree C/60-degree/65-degree C adjustable)
* Rear interface (3): 5x 2.54pin HDD signal
connector
* Rear interface (4): high speed fan or low
speed fan
adjustable switch
*
Accessory Pack:
key x2, M3 flat head screw x15, M3 round head
screw x8, #6 flat head screw x20
* Global 3 years warranty or HDD hot swap cycle up to 50,000 times
guaranteed
* Product dimension: 210(L) x 146(W) x 126(H)mm
* Package: N.W. 1.80 KGM, G.W. 2.07 KGM, CUFT 0.270 (255mm x 180mm x
166mm, single box packed)
*
left
right
front
front1
front2
rear
rear1
rear2
rear3
rear4
tray
accessory
Manual |
|
|
TL535-12G

SATA/SAS 12G
 |
3x5.25" to
5x3.5"
TrayLess HotSwap Cage
SATA/SAS 12G
* Three 5.25" space to five 3.5" TrayLess hotswap
mobile rack (if RAID supported, extra RAID card required)
* 3.5" SATA1/2/3/3.2/3.3 & SAS1/2/3 SAS 12G or SAS/SATA 6G SSD/HDD with max.
25.4mm
height compatible
* Major mechanism by heat conductive aluminum extrusion
with glossy brushed finish on the surface
*
TrayLess
HDD cage design with front
security
keylock handles
* 1 blue Power LED & 5 purple HDD LED (HDD inserted as blue,
no light if no HDD inside, flash purple while accessing)
* One 80mm x 15mm exhaust cooling fan at rear side of HDD cage as
standard
* Rear interface (1): 5x SATA
7pin data transfer port, 2x SATA
15pin psu input port,
HDD access signal on/off switch
* Rear interface (2): high speed fan or low
speed fan
adjustable switch
*
Accessory Pack:
key x 2pcs, M3 round head nickel screw x 8pcs
* Global 3 years warranty or HDD hot swap cycle up to 50,000 times
guaranteed
* Product dimension: 200(L) x 146(W) x 126(H)mm
* Package: N.W. 1.11 KGM, G.W. 1.30 KGM, CUFT 0.260 (254mm x 162mm x
178mm, single box packed)
*
left
right
right1
front
rear
rear1
rear2
accessory |
|
|
TL535

SATA/SAS 6G |
3x5.25" to
5x3.5"
TrayLess HotSwap Cage
SATA/SAS 6G
* Three 5.25" space to five 3.5" TrayLess hotswap mobile rack (if
RAID supported, extra RAID card required)
* 3.5" SATA1/2/3 & SAS1/2 (6Gbps) HDD with maximum height at
25.4mm compatible
* Major mechanism by heat conductive aluminum extrusion
with glossy brushed finish on the surface
*
TrayLess
HDD cage design with front
security
keylock handles
* 1 blue Power LED & 5 purple HDD LED (HDD inserted as blue,
no light if no HDD inside, flash purple while accessing)
* One 80mm x 15mm exhaust cooling fan at rear side of HDD cage as
standard
* Rear interface (1): 5x SATA
7pin data transfer port, 2x SATA
15pin psu input port,
HDD access signal on/off switch
* Rear interface (2): high speed fan or low
speed fan
adjustable switch
*
Accessory Pack:
key x 2pcs, M3 round head nickel screw x 8pcs
* Global 3 years warranty or HDD hot swap cycle up to 50,000 times
guaranteed
* Product dimension: 200(L) x 146(W) x 126(H)mm
* Package: N.W. 1.11 KGM, G.W. 1.30 KGM, CUFT 0.272 (255mm x 168mm x
180mm, single box packed)
*
left
right
right1
front
rear
rear1
rear2
accessory |
|
