E430B 4U BLACK ENTERPRISE SERVER CHASSIS

Design and 1st production and shipment launched on April 21, 2015, webpage updated on December 04, 2024

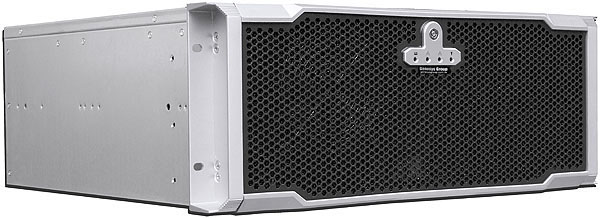

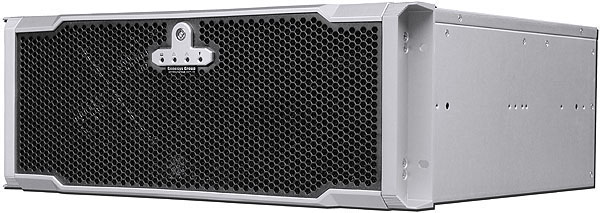

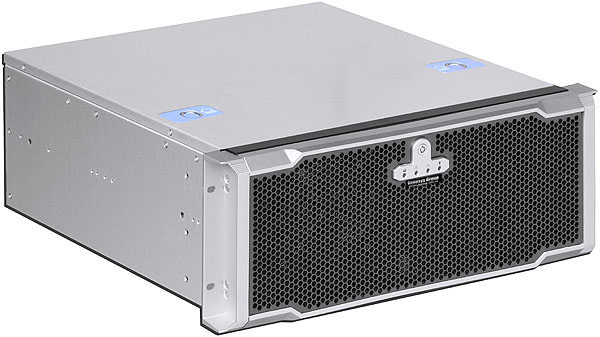

The most obvious feature of this E430B chassis is its depth 430mm only. In addition, its unique stylish mechanism and excellent ventilation as well as the dust-proof design are also the major characteristics. Its screwless top lid design can also reduce the system integration and maintenance time. The main structure made by 1.2mm SGCC ultra high strength sheet metal plate with no sharp corners and burrs. The front security door design also ensure data security and avoid improper burning discs or USB drive to copy data security vulnerabilities caused. This model can be installed in addition to the regular standard ATX 12"x9.6" motherboard, also compatible with the eATX of 12"x13" server motherboard, for a variety of system environments, the good price competition and the advantage of this chassis design, welcome worldwide distribution.








* Totally 10 drive bays: 3 x 5.25" ODD and 7 x 3.5" HDD bay (if MB is 12"x9.6" ATX)

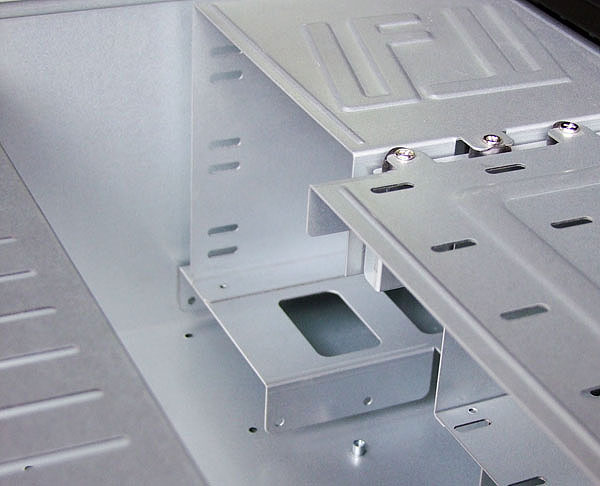

* Drive bay equipped with anti-vibration function, extend storage appliance life

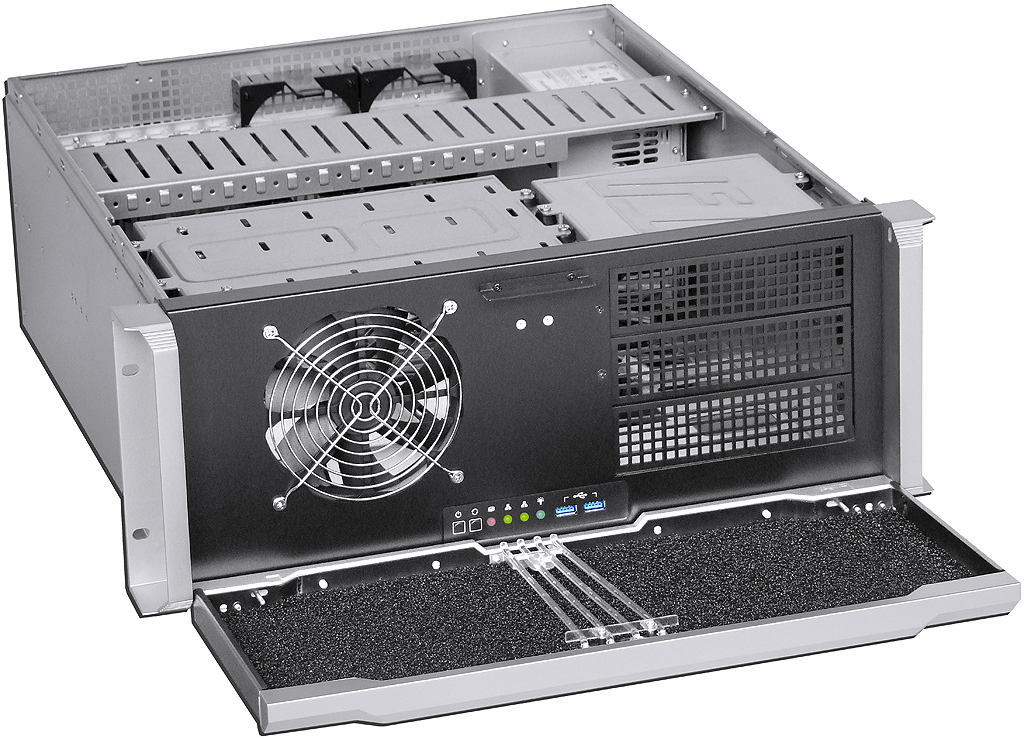

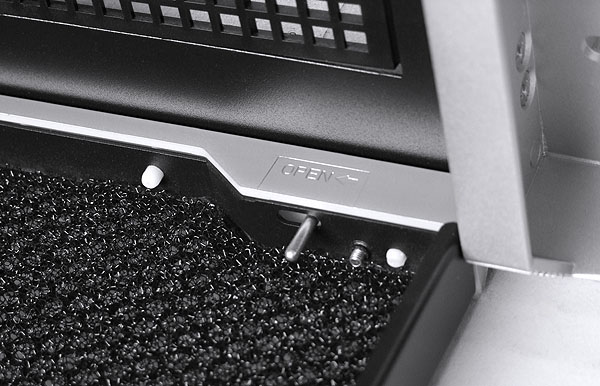

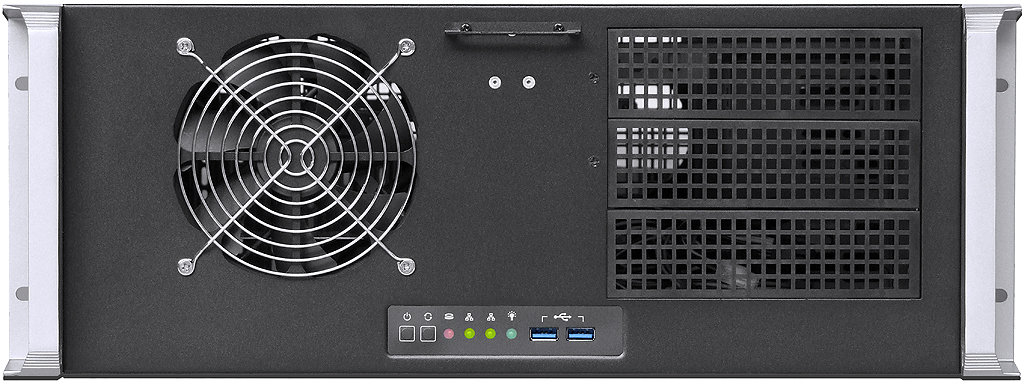

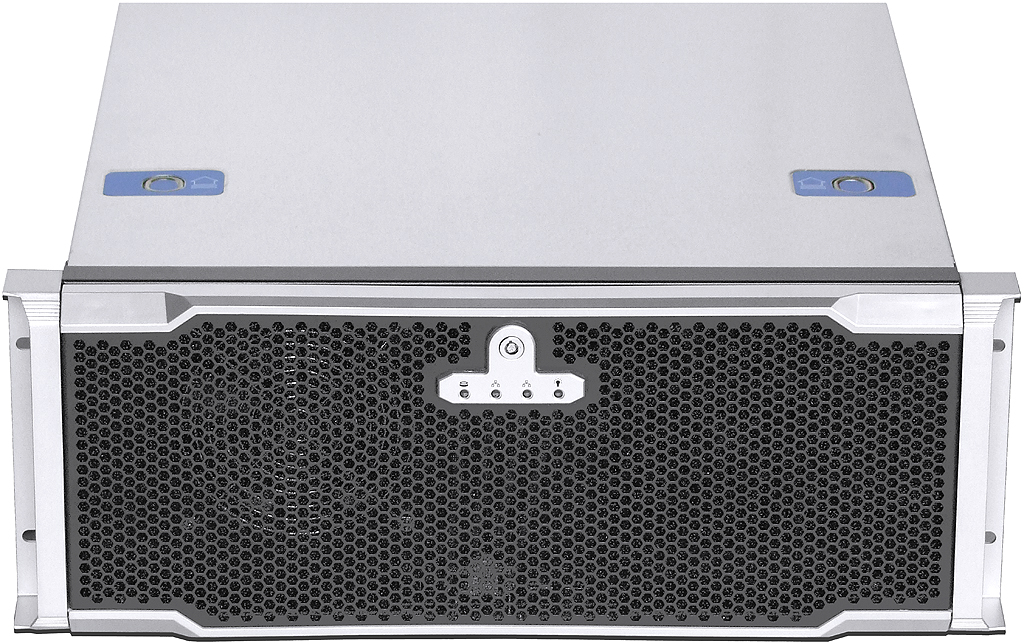

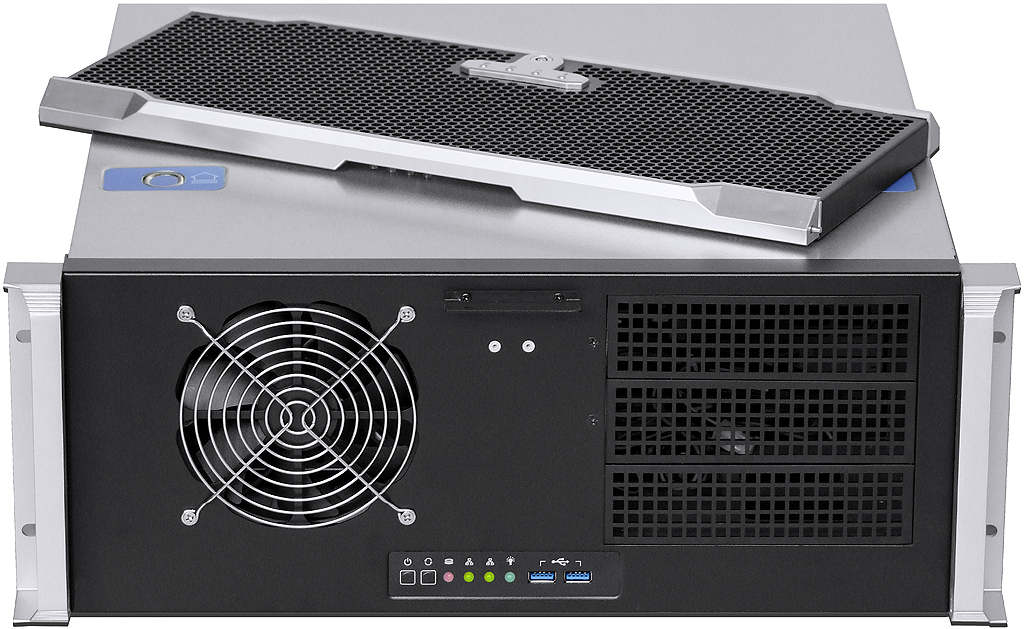

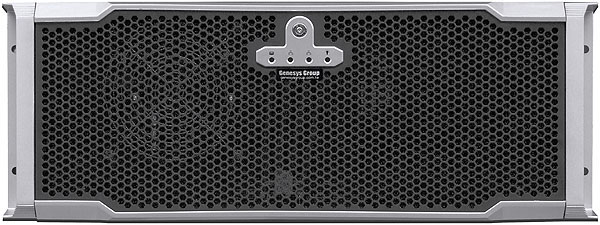

* Removable front keylock security door with dustproof filter
* With hand tool free screwless top cover (fixed by screws also compatible)
* Two USB 3.0 ports behind the front keylock security door (USB 2.0 also compatible)
* One 120mmx25mm intake fan with dustproof filter at front (fan part# D12SM-12)

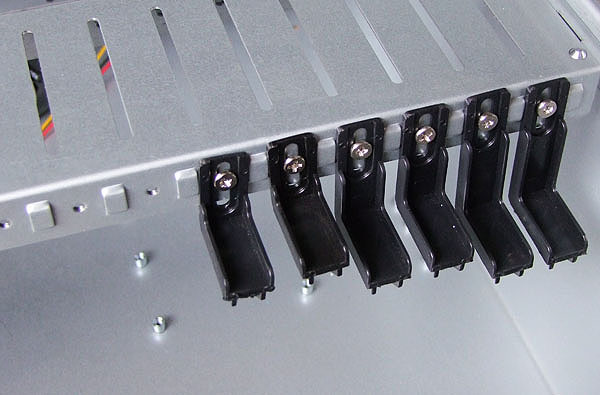

* Build-in plug-in card holder with 6 short-medium-long card clamp (up and down)

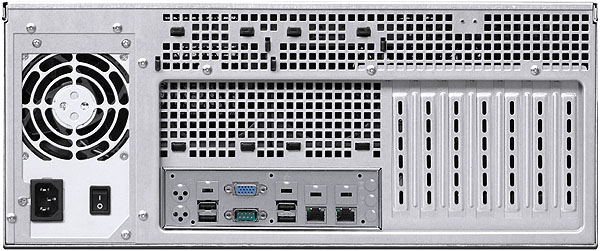

* Build-in two ABS screwless 80mmx25mm fan brackets at rear panel (fans are option)

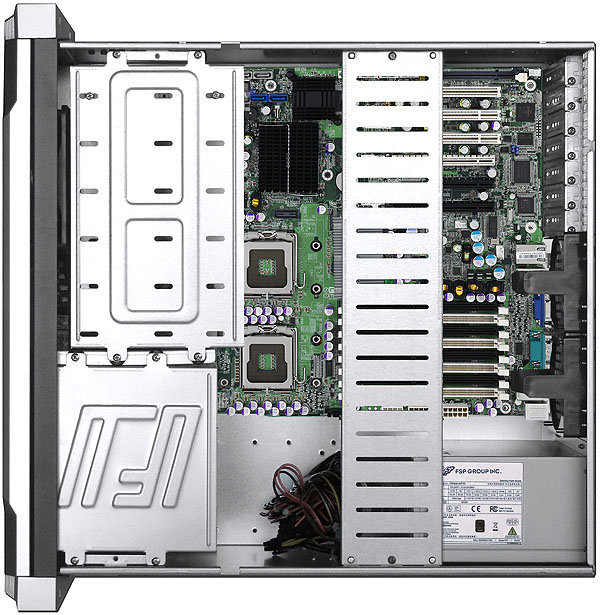

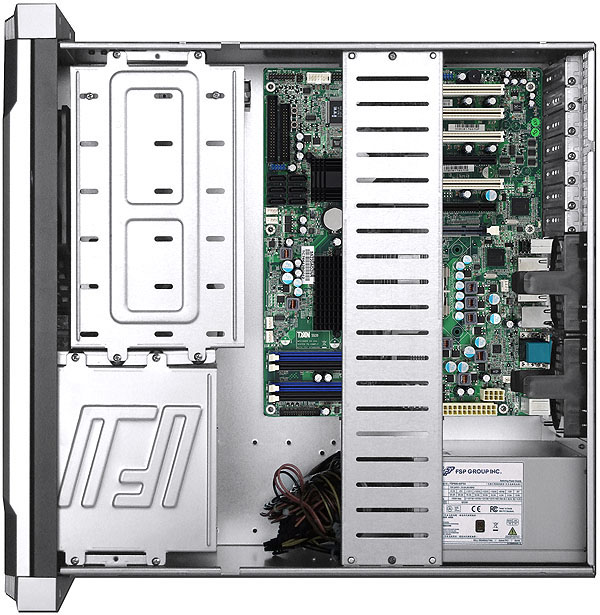

* MB: eATX EEB3.61(12"×13"), ATX(12"x9.6"), MicroATX(9.6"x9.6"), Mini-ITX(6.7"x6.7")

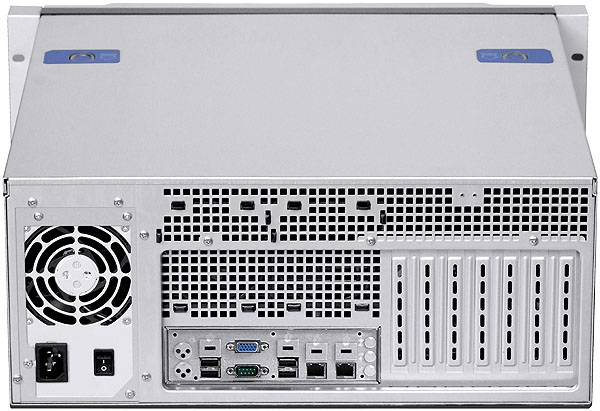

* Support 8cm or 12cm~14cm fan version standard PS2 PSU max. 260mm compatible

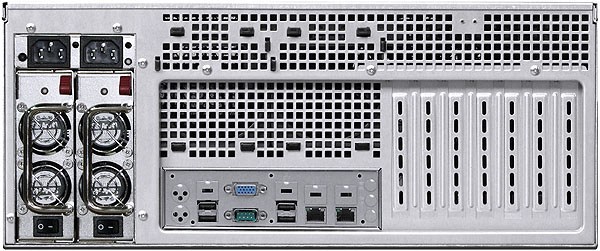

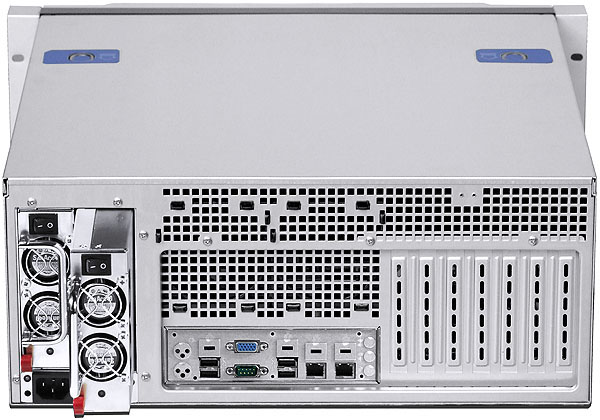

* Support SureStar R4S series 400W~500W PS2 Mini Redundant PS (depth 174mm)
* Support Zippy MRT & MRW series 300W~600W PS2 Mini Redundant PS (depth 185mm)
* Support SureStar R4B series 600W~800W PS2 Mini Redundant PS (depth 199mm)
* Support Zippy MRG series 500W~800W PS2 Mini Redundant PS (depth 200mm)

* Support 7 slot full height expansion cards (max. 240mm deep if HDD installed at front)

* Support 7 slot full height expansion cards (max. 320mm deep if no HDD installed at front)

* Standard paint: scratch-resistant Black textured at front

* Genesys Group chassis with build-in electronics in global 3 years warranty

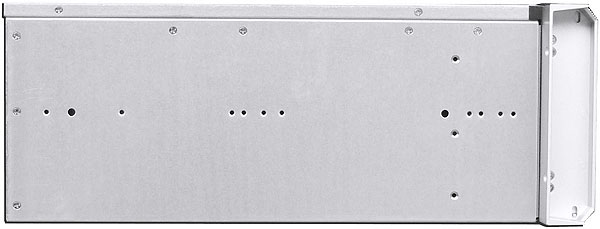

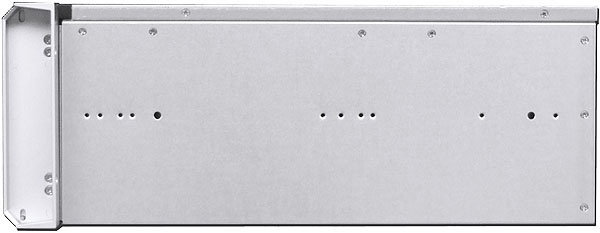

* Chassis dimension: 19" x 4U x 430mm (16.93" deep)

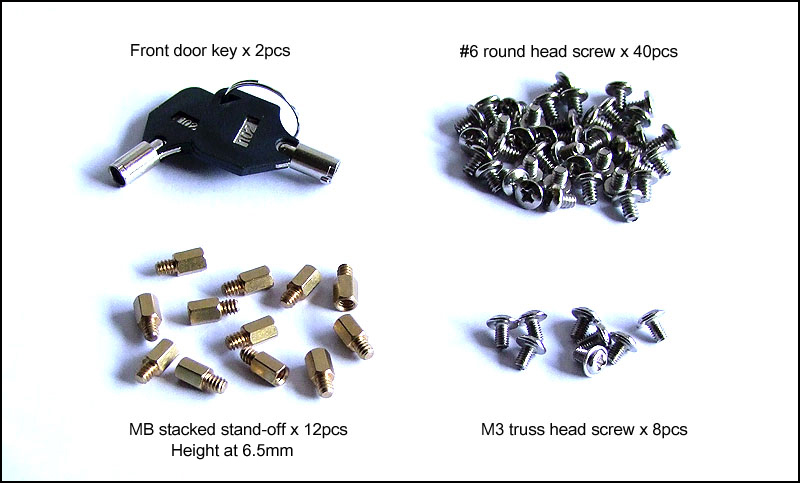

* Accessory: MB stand-off x12, #6 round screw x40, , M3 truss screw x8, key x2
* Package: NW 10.00 KG, GW 12.00 KG, 2.88 CUFT (59x54.5x24.5cm, durable box packed)

Model#

:

E430B

4U black enterprise server chassis

Option A-1

:

PS2 PSU

8cm & 12cm & 14cm fan version PS2 power supply (maximum depth at 260mm)

Option A-2

:

PS2 RPS

SureStar R4S series 400W/500W PS2 Mini Redundant PS (depth at 174mm)

Option A-3

:

PS2 RPS

Zippy MRT & MRW series 300W~600W PS2 Mini Redundant power supply (depth at 185mm)

Option A-4

:

PS2 RPS

SureStar R4B series 600W/700W/800W PS2 Mini Redundant PS (depth at 199mm)

Option A-5

:

PS2 RPS

Zippy MRG series 500W~800W PS2 Mini Redundant power supply (depth at 200mm)

Option B-1

:

NJ-600

600mm 2-layer 3-travel universal rail (part# is 1 pair, cabinet internal depth 600~1200mm compliant)

Option B-2

:

1234U-RMK

1234U rear mounting kit (part# is 1 pair)

Option C

:

D80SM-12

YateLoon 80mmx25mm exhaust fan at small 3pin x 500mm (part# is 1pcs, can install 2pcs at rear)

Option D

:

3U4U-MIDDLEFAN

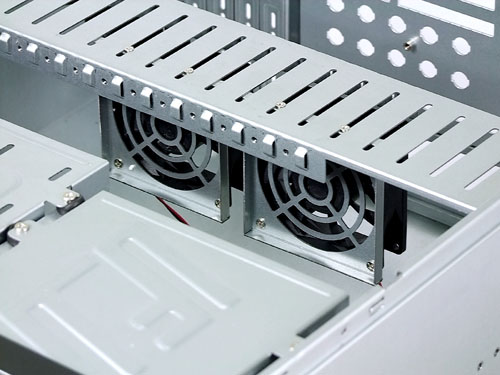

One fan bracket with one Sunon 80mm x 25mm intake fan installed above MB (part# is 1pcs)

Option E

:

25-35-BK

5.25" 3.5" 2.5" multiple HDD bracket

Option F-1

:

2525TO3HDBK

2x5.25" ODD space to 3x3.5" bracket

Option F-2

:

3525TO5HDBK

3x5.25" ODD space to 5x3.5" bracket

Option F-3

:

RW135-12G

1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 12G

Option F-4

:

RW135

1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 6G

Option F-5

:

TL135-12G

1x5.25" to 1x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option F-6

:

TL135

1x5.25" to 1x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option F-7

:

RW225-12G

1x5.25" to 2x2.5" HotSwap Cage SATA/SAS 12G

Option F-8

:

RW625-12G

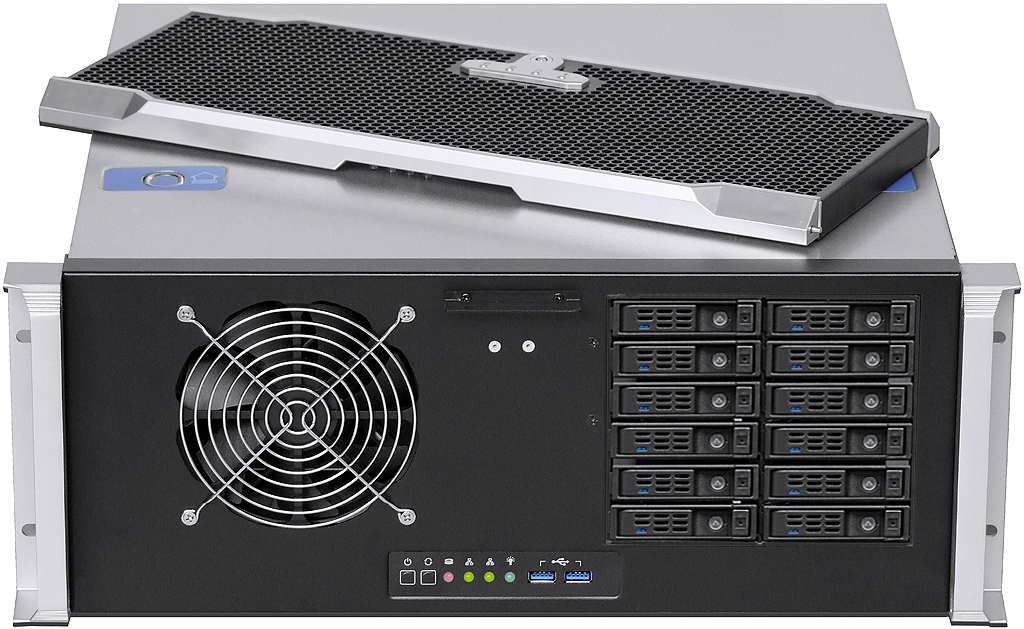

1x5.25" to 6x2.5" HotSwap Cage SATA/SAS 12G

Option F-9

:

RW825-1525

1x5.25" to 8x2.5" HotSwap Cage SATA/SAS 6G

Option F-10

:

RW425-NVMe

1x5.25" to 4x2.5" SSD Removable Cage U.2 NVMe 32G

Option F-11

:

RW425-12G-MS

1x5.25" to 4x2.5" HotSwap Cage SFF-8643 12G

Option F-12

:

RW425-12G

1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 12G

Option F-13

:

RW425

1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 6G

Option F-14

:

RW825

2x5.25" to 8x2.5" HotSwap Cage SATA/SAS 6G

Option F-15

:

RW335-12G

2x5.25" to 3x3.5" HotSwap Cage SATA/SAS 12G

Option F-16

:

RW335

2x5.25" to 3x3.5" HotSwap Cage SATA/SAS 6G

Option F-17

:

TL335-12G

2x5.25" to 3x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option F-18

:

TL335

2x5.25" to 3x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option F-19

:

RW1225

3x5.25" to 12x2.5" HotSwap Cage SATA/SAS 6G

Option F-20

:

RW435-12G-MS

3x5.25" to 4x3.5" HotSwap Cage SFF-8643 12G

Option F-21

:

RW435-12G

3x5.25" to 4x3.5" HotSwap Cage SATA/SAS 12G

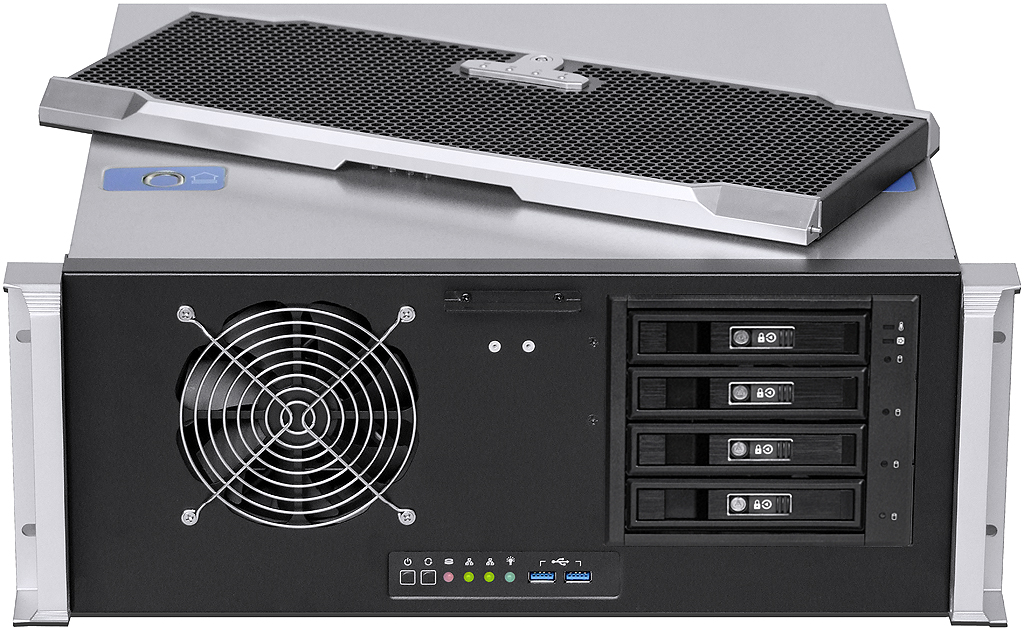

Option F-22

:

RW435

3x5.25" to 4x3.5" HotSwap Cage SATA/SAS 6G

Option F-23

:

TL435-12G-MS

3x5.25" to 4x3.5" TrayLess HotSwap Cage SFF-8643 12G

Option F-24

:

TL435-12G

3x5.25" to 4x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option F-25

:

TL435

3x5.25" to 4x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option F-26

:

RW535-12G

3x5.25" to 5x3.5" HotSwap Cage SATA/SAS 12G

Option F-27

:

RW535

3x5.25" to 5x3.5" HotSwap Cage SATA/SAS 6G

Option F-28

:

TL535-12G

3x5.25" to 5x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option F-29

:

TL535

3x5.25" to 5x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option G-1

:

1MSAS-4SATA-500MM

SFF-8087 Mini-SAS (Host) to Four SATA (Device) cable

Option G-2

:

SFF-8643-500MM

SFF-8643 Mini-SAS HD (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option G-3

:

4SATA-SFF-8643-500MM

Four SATA (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option G-4

:

SFF-8643-4SATA-500MM

SFF-8643 Mini-SAS HD (Host) to Four SATA (Device) cable

Option H-1

:

2U2011A-8080

2U Intel LGA2011 LGA2066 active CPU cooler Square (2U 3U 4U chassis compatible)

Option H-2

:

2U2011A-5694

2U Intel LGA2011 active CPU cooler Narrow (2U 3U 4U chassis compatible)

Option H-3

:

2U115XA

2U Intel LGA115x Xeon 1230 active CPU cooler (2U 3U 4U chassis compatible)

Option H-4

:

2U4094A-SP3

2U AMD EPYC LGA4094 active CPU cooler SP3 (2U 3U 4U chassis compatible)

Option H-5

:

2U1718A-AM5

2U AMD AM4 AM5 active CPU cooler (2U 3U 4U chassis compatible)

Option H-6

:

2U3647A-S82

2U Intel LGA3647 active CPU cooler Square (2U 3U 4U chassis compatible)

Option H-7

:

2U3647A-R82-1

2U Intel LGA3647 active CPU cooler Narrow (2U 3U 4U chassis compatible)

Option H-8

:

2U4189A-M82

2U Intel LGA4189 active CPU cooler (2U 3U 4U chassis compatible)

Option H-9

:

2U1700A-R67

2U Intel LGA1700 active CPU cooler (2U 3U 4U chassis compatible)
