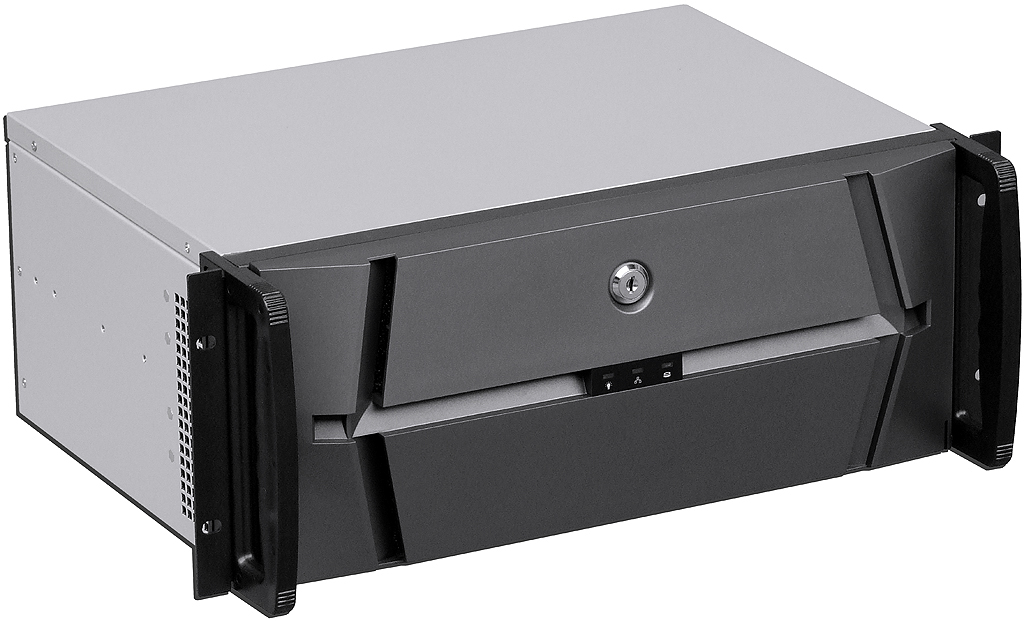

E430e 4U BLACK ENTERPRISE SHORT-DEPTH SERVER CHASSIS

Product announcement or 1st production dated on May 28, 2019, webpage updated on December 04, 2024

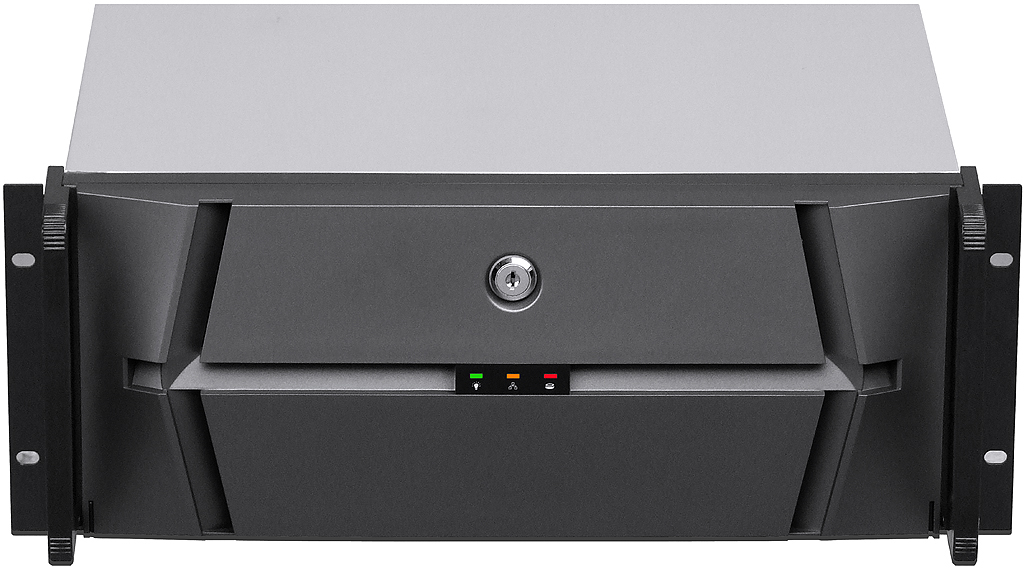

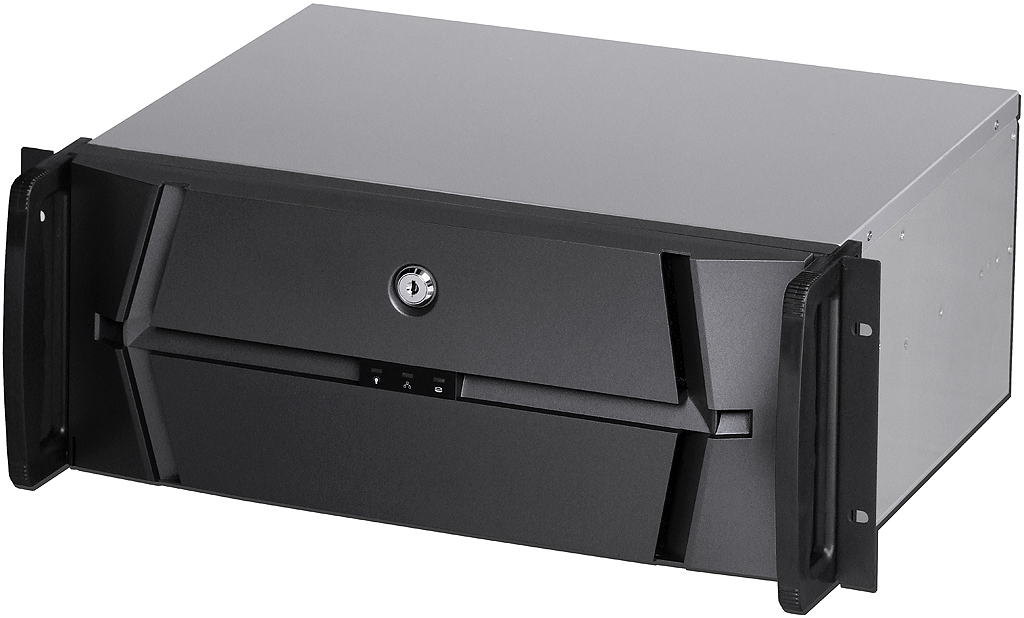

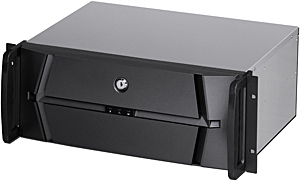

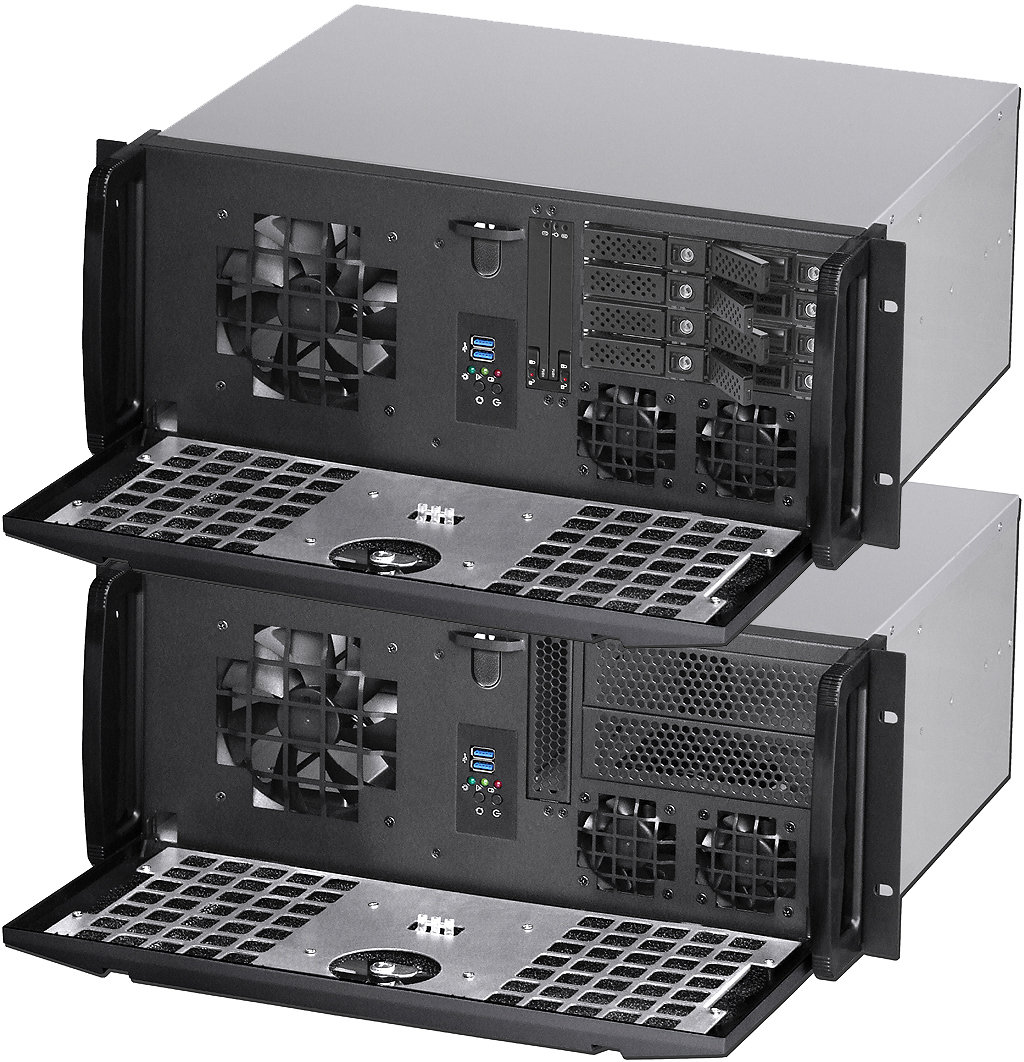

The stealth stylish architecture of the front door design, with stable and low noise fans, in line with good ventilation and dust protection requirements, suitable for the server cooling environment, global quality assurance and warranty for three years. One of the advantages of this E430e server is that the depth is only 300mm, the front can be installed two 5.25" ODD devices, this space can also be equipped with a number of hotswap HDD mobile racks, also this chassis can also install one 3.5" or two 2.5" SSD/HDD. The sheet metal mechanism design using 1.2mm thickness SGCC ultra-high strength material, all sheet metal cut-off surface are smooth folding design to ensure free-damage to hands or fingers, the front of the security door design can also ensure data security, to avoid improper disc burning or USB drive replication data causing security vulnerabilities. In addition to the general standard 12" x 9.6" ATX motherboard, this model can also be installed MicroATX or Mini-ITX motherboard, suitable for a variety of system environments. In addition in the price also absolutely has the advantage of competition, welcome distribution from all over the world.














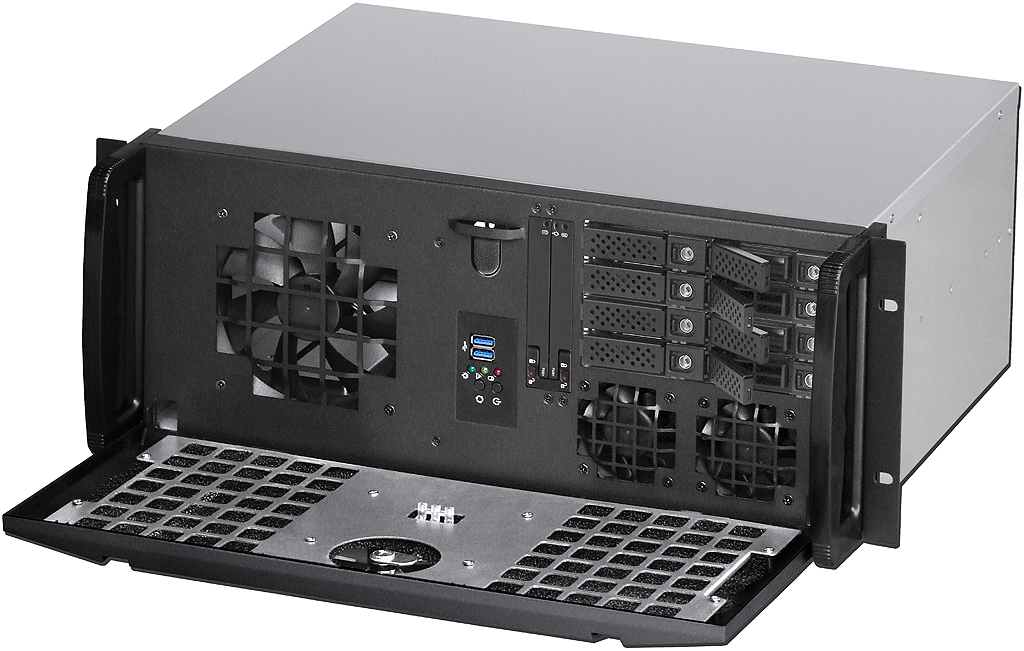

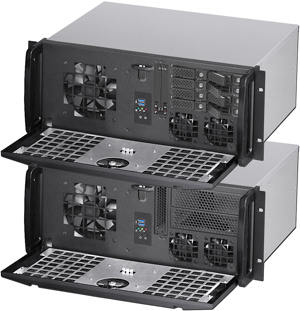

* Drive Space: two 5.25" ODD bay, one 3.5" FDD/HDD bay or two 2.5" SSD/HDD

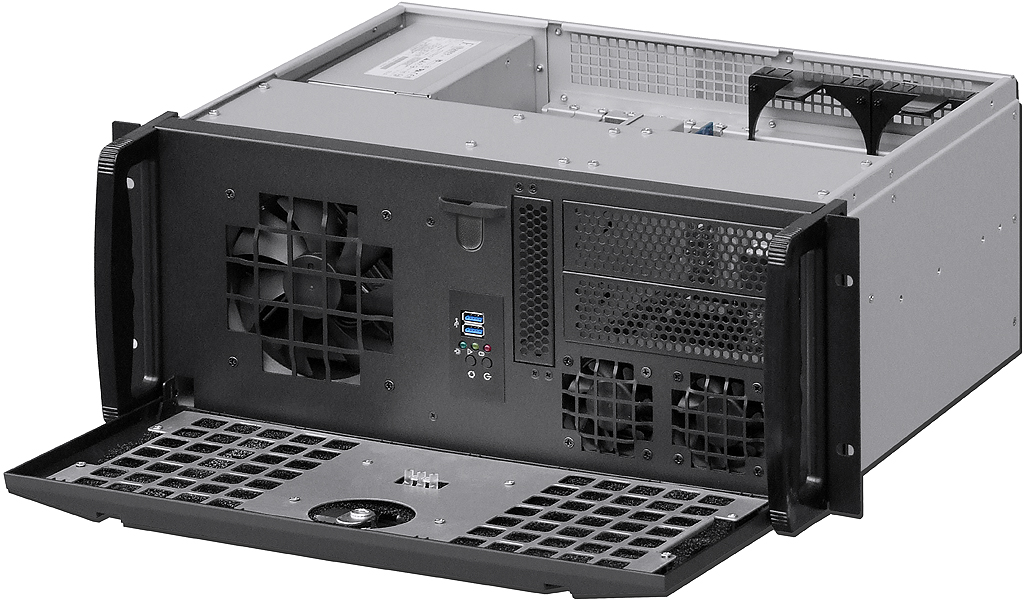

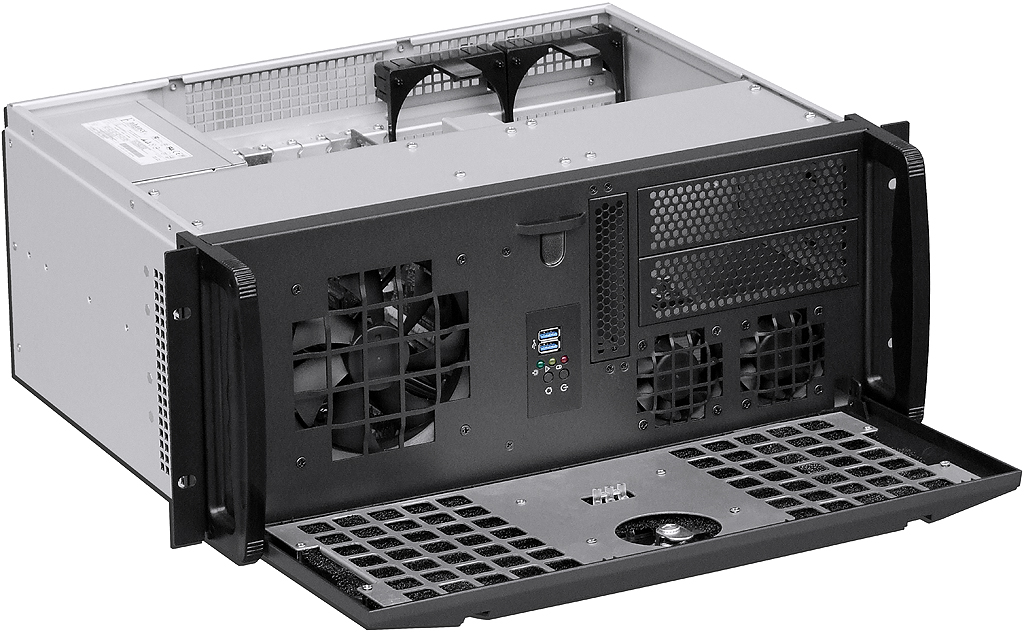

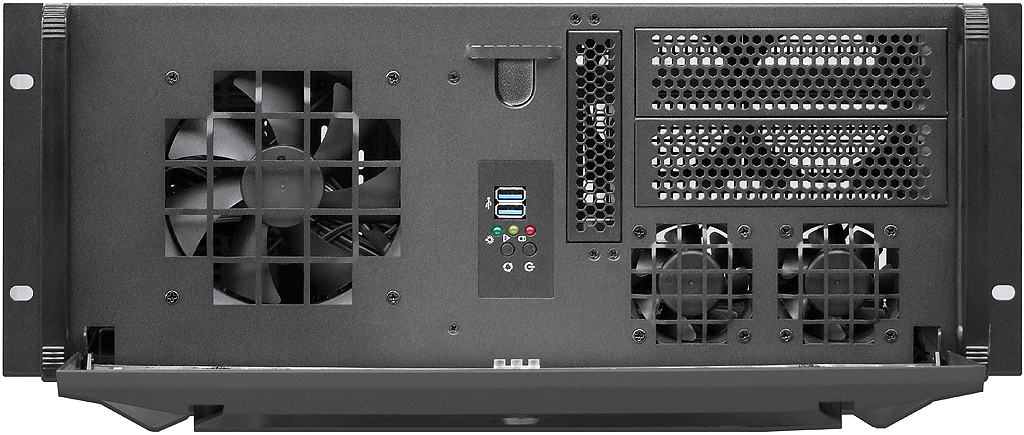

* Standard with two USB 3.0 ports at front bezel (behind the front security door)

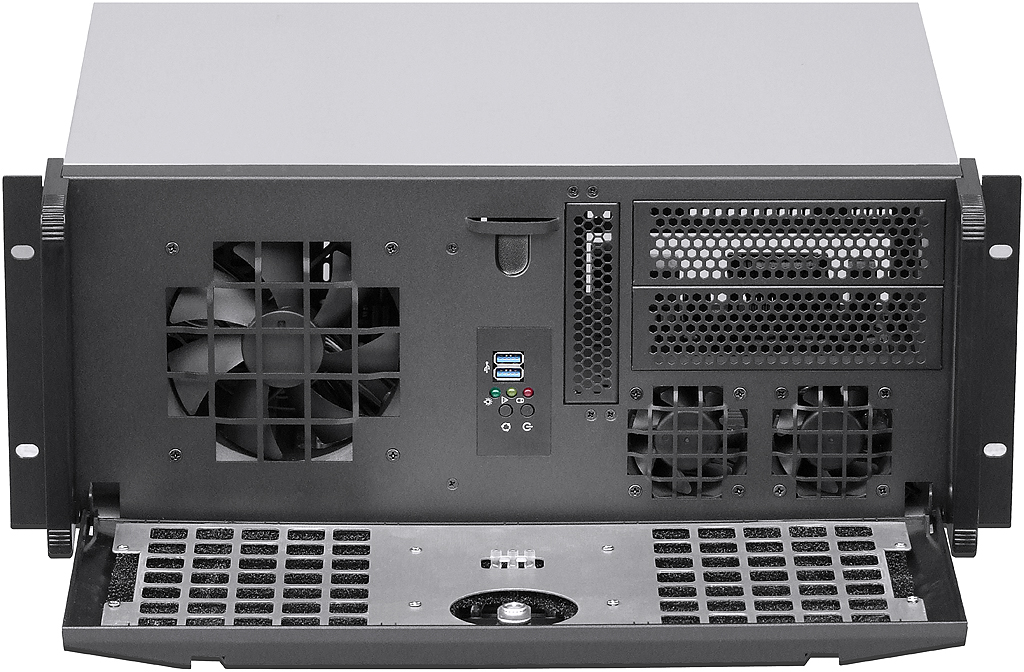

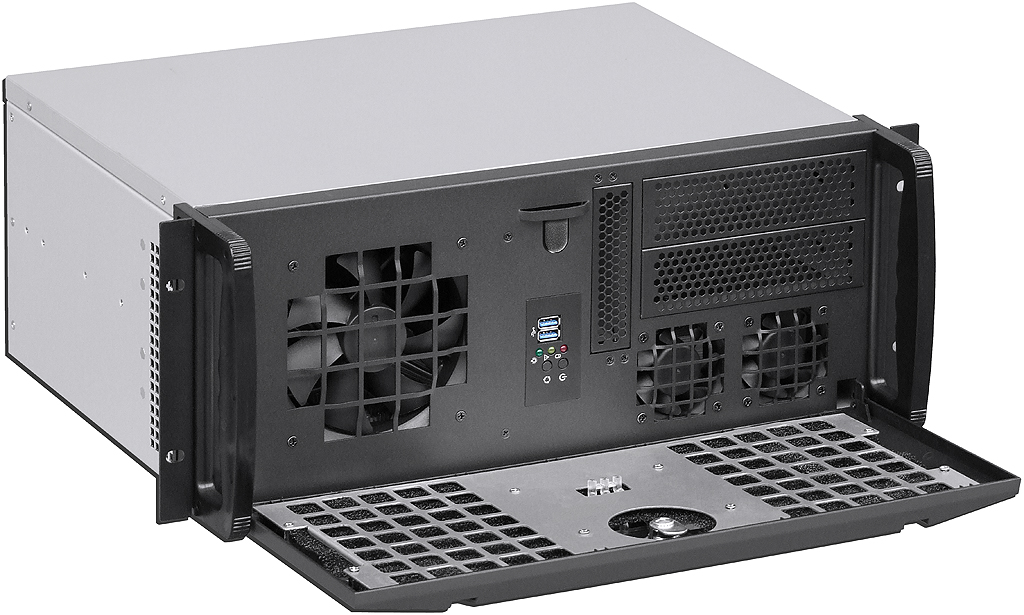

* Standard with one brand new 120mmx25mm intake fan at front (fan part# D12SM-12)

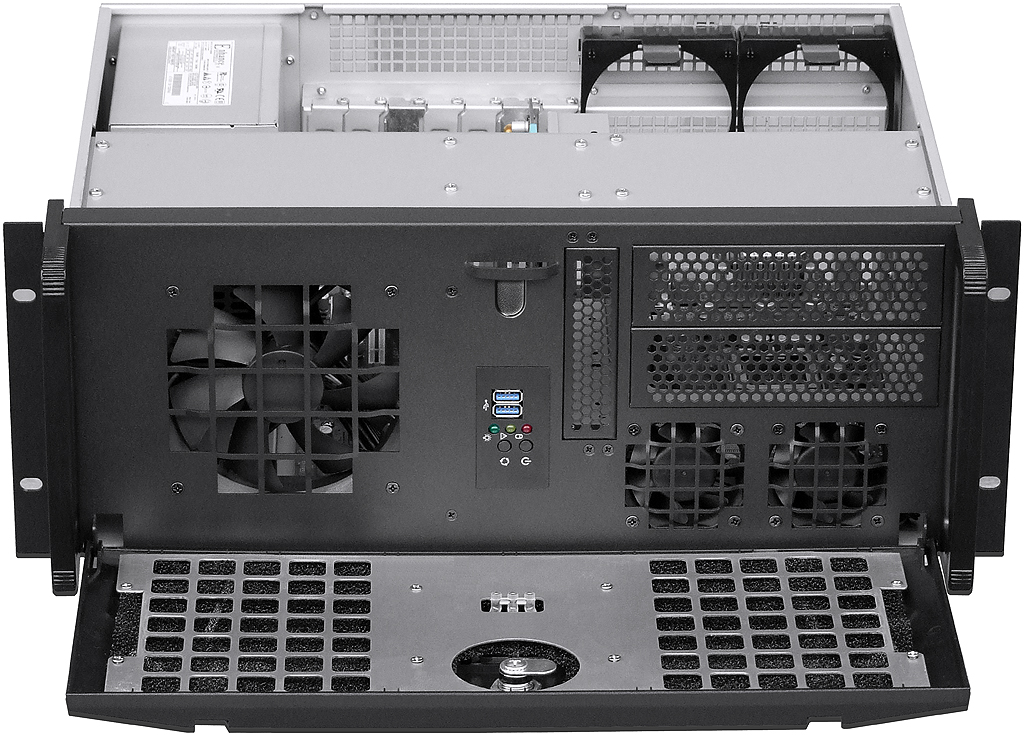

* Standard with two brand new 60mmx25mm intake fans at front (fan part# D60SM-12)

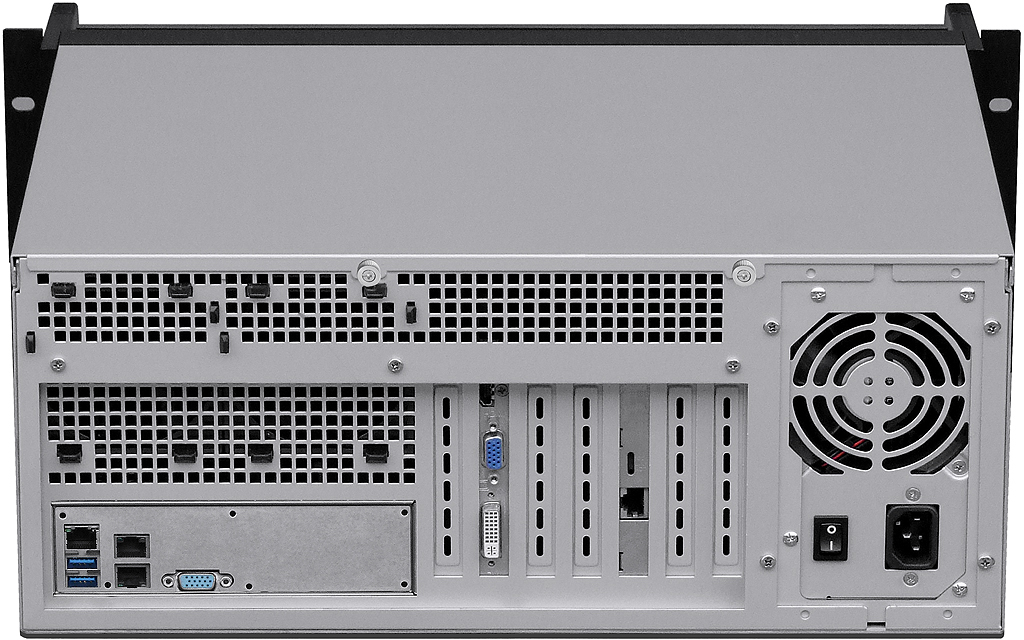

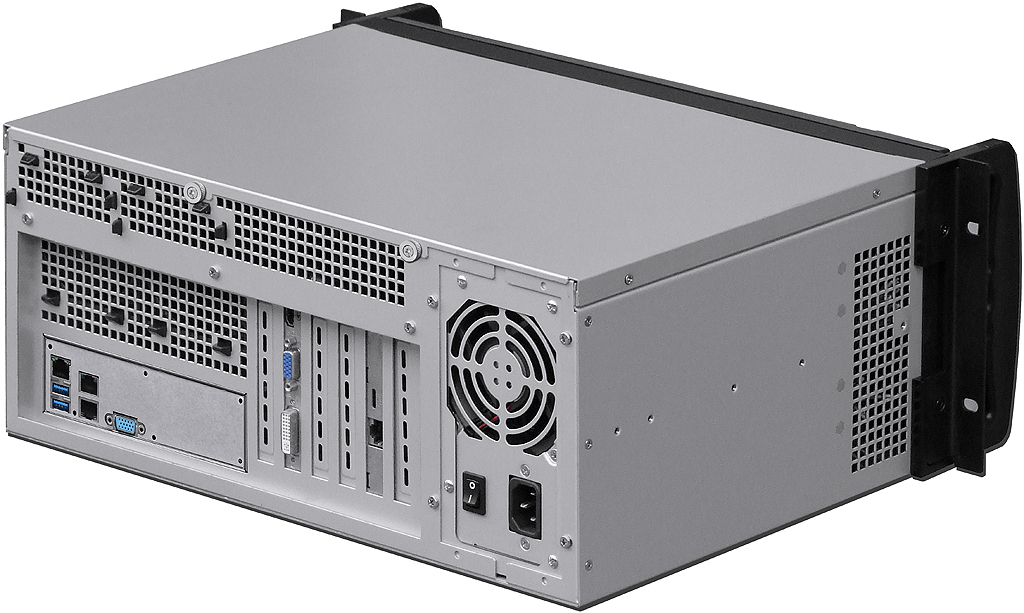

* Build-in two ABS screwless 80mmx25mm fan brackets at rear panel (fans are option)

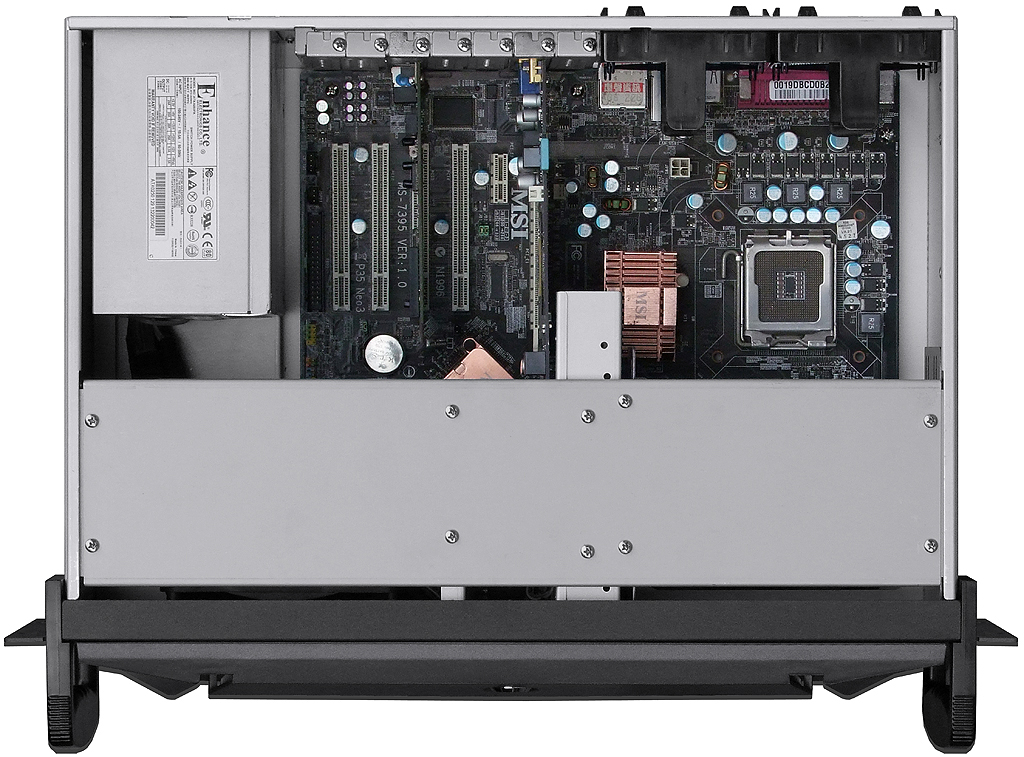

* Compatible motherboard: ATX(12"x9.6"), MicroATX(9.6"x9.6"), Mini-ITX(6.7"x6.7")

* 8cm or 12cm~14cm fan version standard PS2 PSU compatible (depth at 140~200mm)

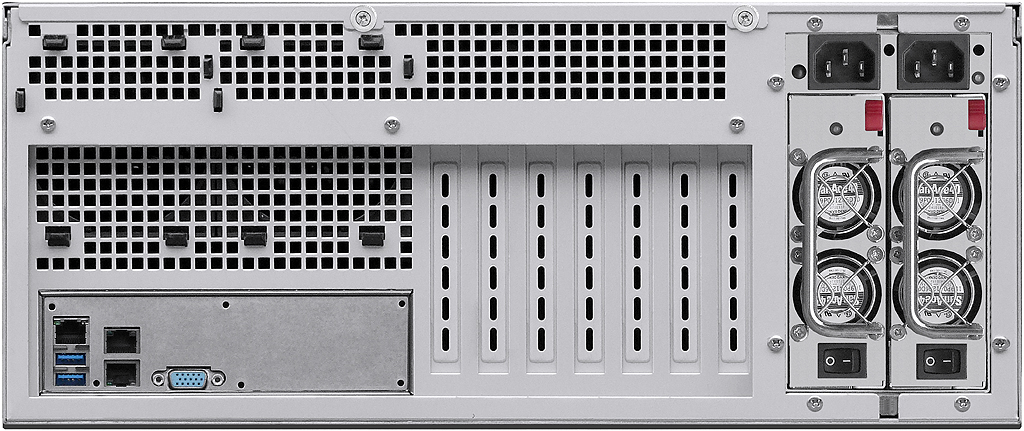

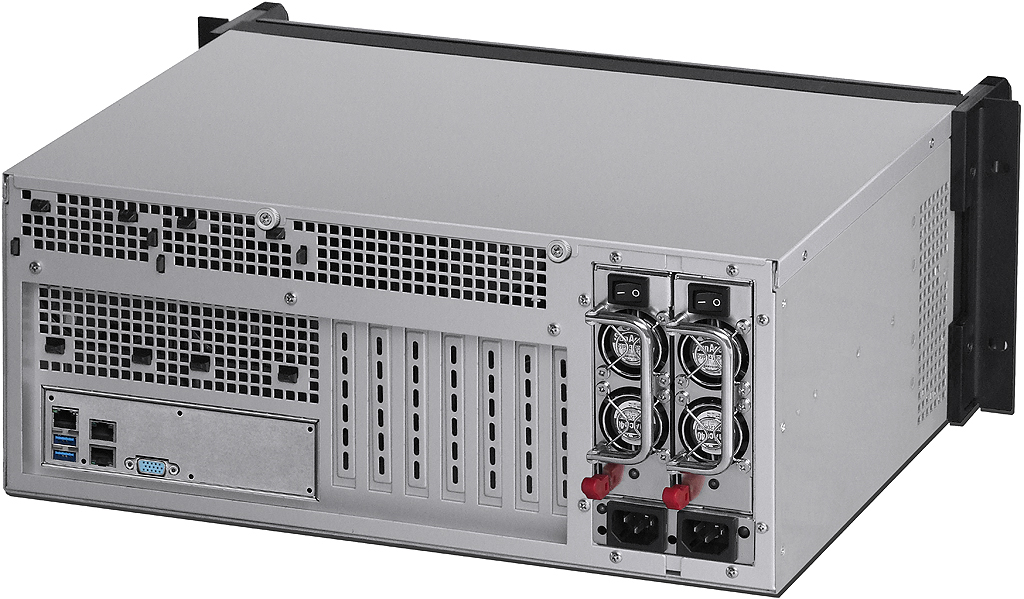

* Support SureStar R4S series 400W~500W PS2 Mini Redundant PS (depth 174mm)
* Support Zippy MRT & MRW series 300W~600W PS2 Mini Redundant PS (depth 185mm)
* Support SureStar R4B series 600W~800W PS2 Mini Redundant PS (depth 199mm)
* Support Zippy MRG series 500W~800W PS2 Mini Redundant PS (depth 200mm)

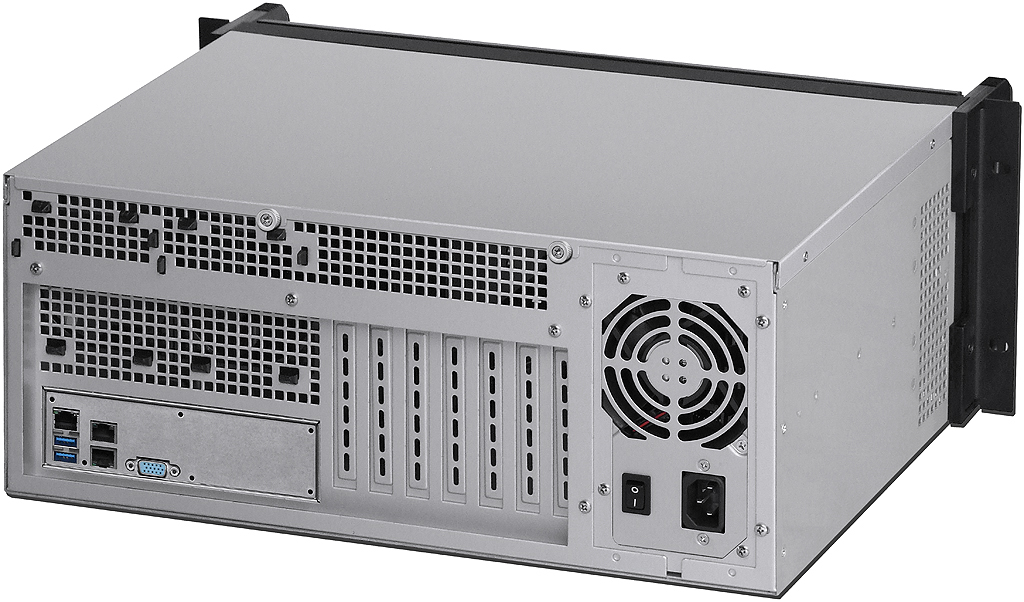

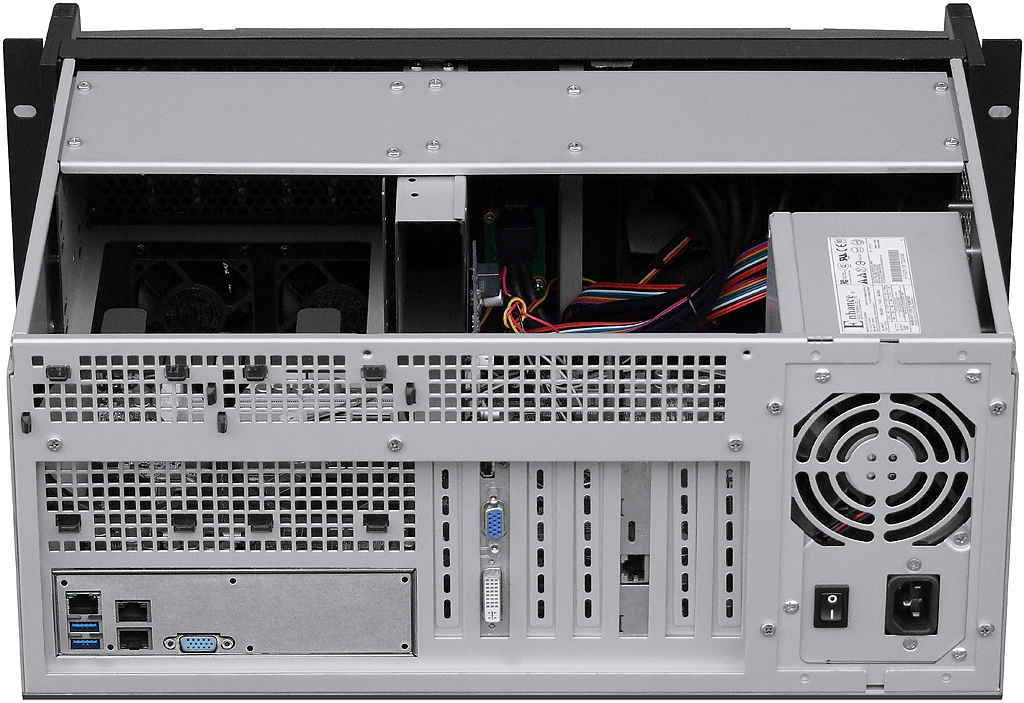

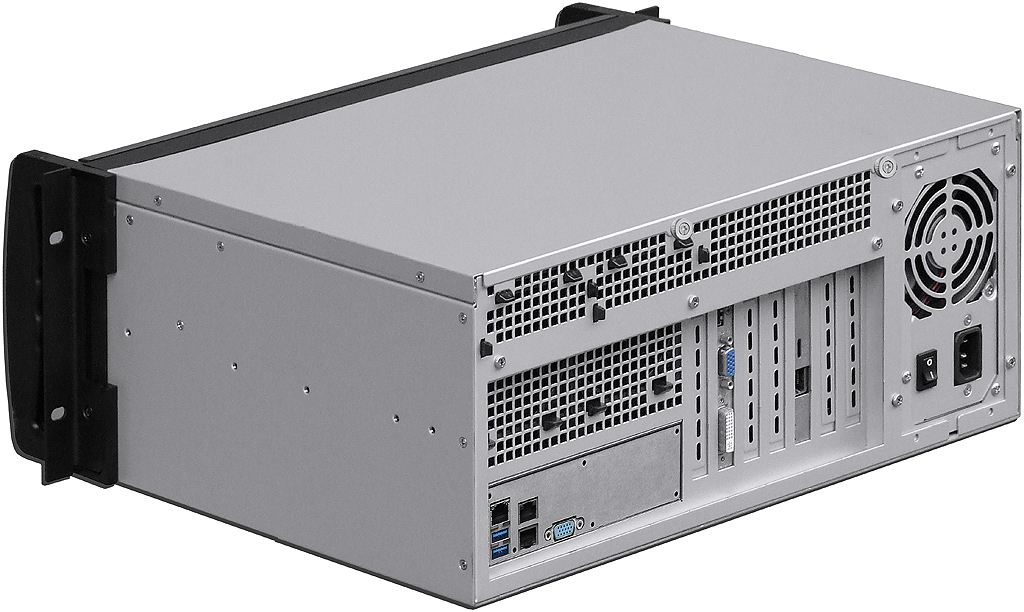

* Support 7 slot full height expansion cards (maximum available depth at 255mm)

* Standard paint: scratch-resistant black textured at front

* Genesys Group chassis with build-in electronics in global 3 years warranty

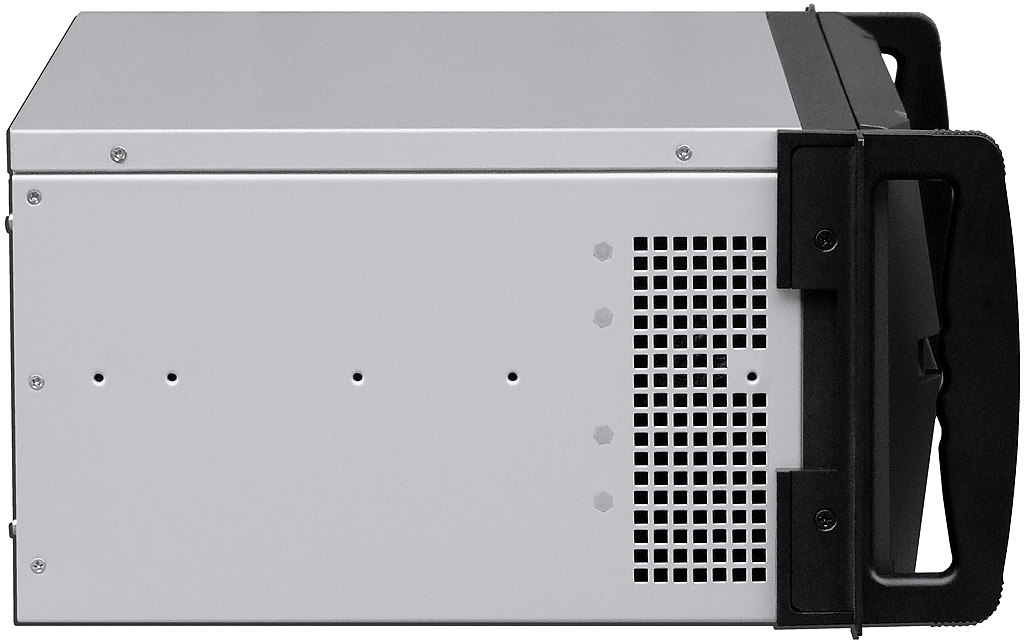

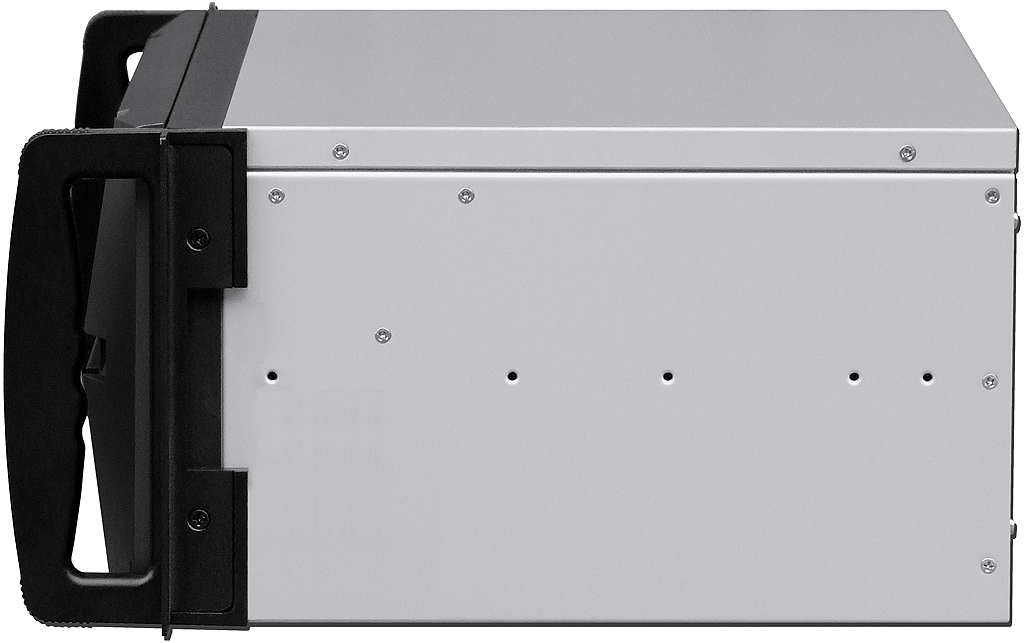

* Chassis dimension: 19" x 4U x 300mm (11.81" deep)

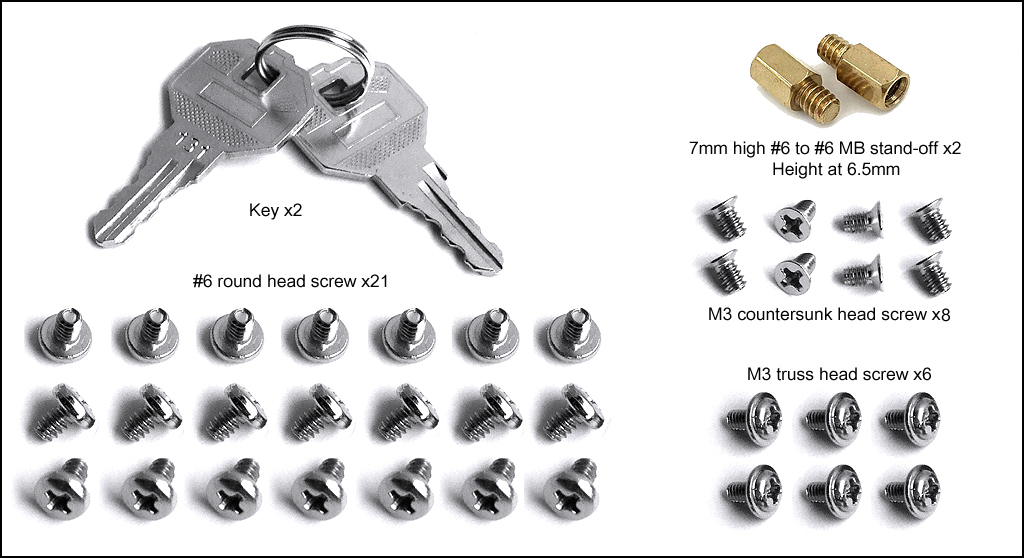

* Accessory: MB stand-off x2, #6 round x21, M3 countersunk x8, M3 truss x6, 2 keys
* Package: NW 8 KGM, GW 9 KGM, 2.21 CUFT (carton size at 43x56x26cm)

* Note 1: Suggest to release the rear panel + PS2 PSU first during system integration

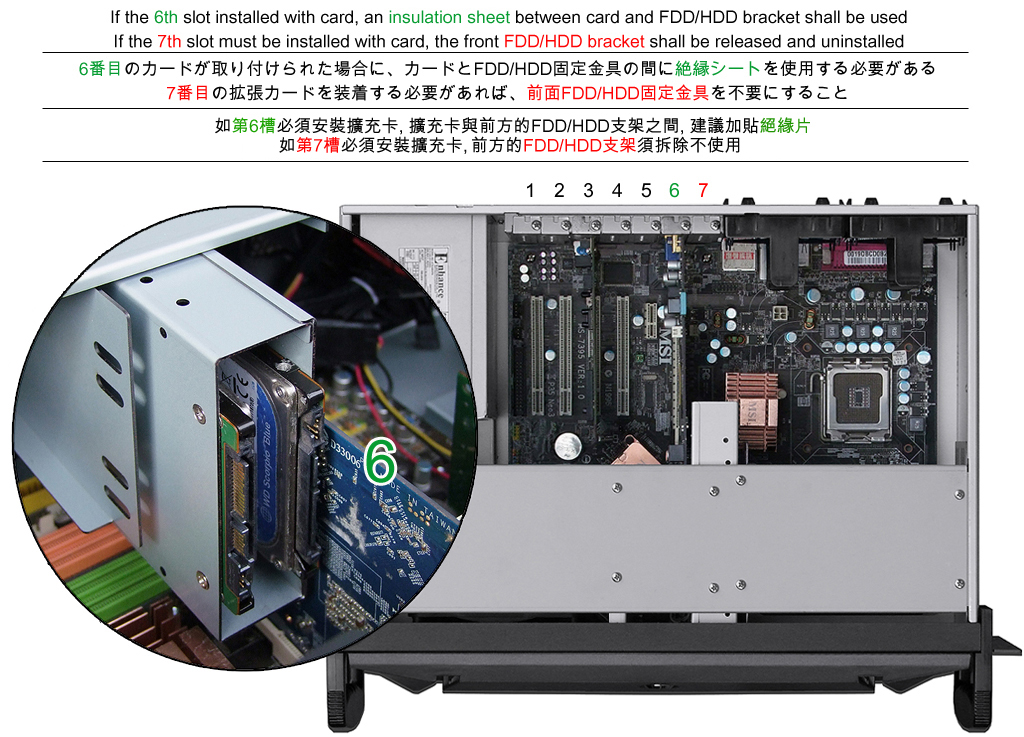

* Note 2: If the 7th slot installed with card, uninstall the front FDD/HDD bracket

* Note 3: If no any 5.25" ODD installed at front, max. CPU cooler height at 150mm

* Note 4: If one 5.25" ODD installed at front, max. CPU cooler height at 100mm

* Note 5: If all two 5.25" ODD installed at front, max. CPU cooler height at 50mm

Model#

:

E430e

4U black enterprise short-depth server chassis

Option A-1

:

PS2 PSU

8cm & 12cm & 14cm fan version PS2 power supply (depth at 140mm~200mm)

Option A-2

:

PS2 RPS

SureStar R4S series 400W/500W PS2 Mini Redundant PS (depth at 174mm)

Option A-3

:

PS2 RPS

Zippy MRT & MRW series 300W~600W PS2 Mini Redundant power supply (depth at 185mm)

Option A-4

:

PS2 RPS

SureStar R4B series 600W/700W/800W PS2 Mini Redundant PS (depth at 199mm)

Option A-5

:

PS2 RPS

Zippy MRG series 500W~800W PS2 Mini Redundant power supply (depth at 200mm)

Option B-1

:

NJ-600

600mm 2-layer 3-travel universal rail (cabinet internal depth 600~1200mm compliant)

Option B-2

:

1234U-RMK

1234U rear mounting kit

Option C

:

D80SM-12

YateLoon 80mmx25mm exhaust fan (part# is 1pcs, can install 2pcs at rear)

Option D-1

:

RW125-NVMe

1x3.5" FDD to 1x2.5" SSD Removable Cage U.2 NVMe 32G

Option D-2

:

RW125-12G

1x3.5" FDD to 1x2.5" HotSwap Cage SATA/SAS 12G

Option D-3

:

TL125-12G

1x3.5" FDD to 1x2.5" TrayLess HotSwap Cage SATA/SAS 12G

Option D-4

:

TL225

1x3.5" FDD to 2x2.5" TrayLess HotSwap Cage SATA/SAS 12G

Option E-1

:

25-35-BK

1x5.25" to 1x3.5" HDD or 1x3.5" to two 2.5" SSD bracket

Option E-2

:

RW135-12G

1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 12G

Option E-3

:

TL135-12G

1x5.25" to 1x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option E-4

:

RW225-NVMe-U

1x5.25" to 2xUSB3 2x2.5" SSD Removable Cage U.2 NVMe 32G

Option E-5

:

RW225-NVMe

1x5.25" to 2x2.5" SSD Removable Cage U.2 NVMe 32G

Option E-6

:

RW225-12G

1x5.25" to 2x2.5" HotSwap Cage SATA/SAS 12G

Option E-7

:

RW625-12G

1x5.25" to 6x2.5" HotSwap Cage SATA/SAS 12G

Option E-8

:

RW825-1525

1x5.25" to 8x2.5" HotSwap Cage SATA/SAS 6G

Option E-9

:

RW425-NVMe

1x5.25" to 4x2.5" SSD Removable Cage U.2 NVMe 32G

Option E-10

:

RW425-12G-MS

1x5.25" to 4x2.5" HotSwap Cage SFF-8643 12G

Option E-11

:

RW425-12G

1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 12G

Option E-12

:

RW425

1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 6G

Option F-1

:

2525TO3HDBK

2x5.25" to 3x3.5" bracket

Option F-2

:

RW335-12G

2x5.25" to 3x3.5" HotSwap Cage SATA/SAS 12G

Option F-3

:

TL335-12G

2x5.25" to 3x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option G-1

:

1MSAS-4SATA-500MM

SFF-8087 Mini-SAS (Host) to Four SATA (Device) cable

Option G-2

:

SFF-8643-500MM

SFF-8643 Mini-SAS HD (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option G-3

:

4SATA-SFF-8643-500MM

Four SATA (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option G-4

:

SFF-8643-4SATA-500MM

SFF-8643 Mini-SAS HD (Host) to Four SATA (Device) cable

Option H-1

:

JB18A

1U Intel LGA115x Xeon 1230 active CPU cooler (fit & ok when two 5.25" ODD installed)

Option H-2

:

JB15C-8080

1U Intel LGA2011 LGA2066 active CPU cooler (fit & ok when two 5.25" ODD installed)

Option H-3

:

1U3647A-R73

1U Intel LGA3647 active CPU cooler Narrow (fit & ok when two 5.25" ODD installed)

Option H-4

:

1U1700A-V12

1U Intel LGA1700 active CPU cooler (fit & ok when two 5.25" ODD installed)

Option H-5

:

2U2011A-8080

2U Intel LGA2011 LGA2066 active CPU cooler Square (2U 3U 4U chassis compatible)

Option H-6

:

2U2011A-5694

2U Intel LGA2011 active CPU cooler Narrow (2U 3U 4U chassis compatible)

Option H-7

:

2U115XA

2U Intel LGA115x Xeon 1230 active CPU cooler (2U 3U 4U chassis compatible)

Option H-8

:

2U4094A-SP3

2U AMD EPYC LGA4094 active CPU cooler SP3 (2U 3U 4U chassis compatible)

Option H-9

:

2U1718A-AM5

2U AMD AM4 AM5 active CPU cooler (2U 3U 4U chassis compatible)

Option H-10

:

2U3647A-S82

2U Intel LGA3647 active CPU cooler Square (2U 3U 4U chassis compatible)

Option H-11

:

2U3647A-R82-1

2U Intel LGA3647 active CPU cooler Narrow (2U 3U 4U chassis compatible)

Option H-12

:

2U4189A-M82

2U Intel LGA4189 active CPU cooler (2U 3U 4U chassis compatible)

Option H-13

:

2U1700A-R67

2U Intel LGA1700 active CPU cooler (2U 3U 4U chassis compatible)
