E450e 4U BLACK ENTERPRISE SERVER CHASSIS

Product announcement & 1st production on April 27, 2018, webpage updated on September 01, 2023

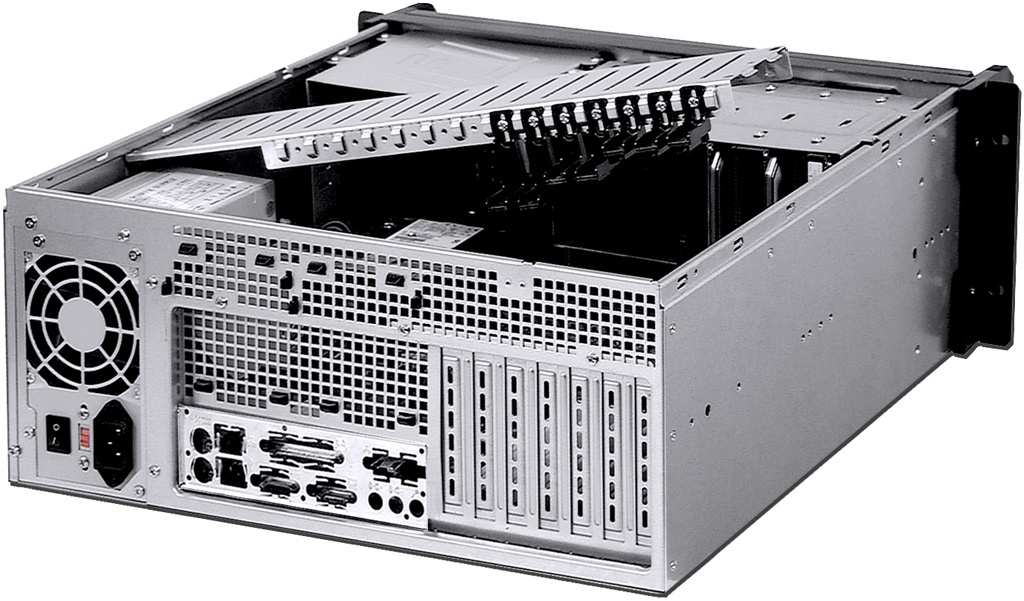

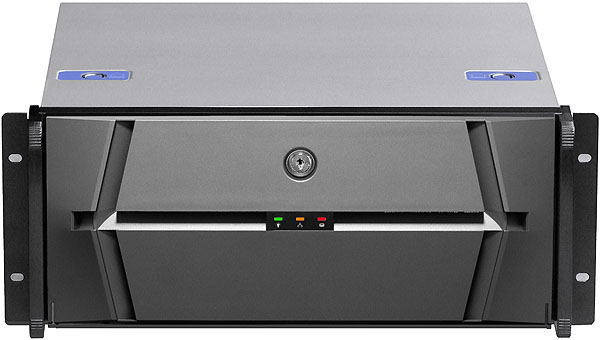

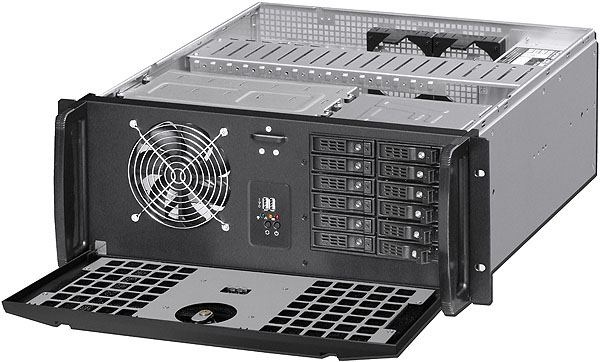

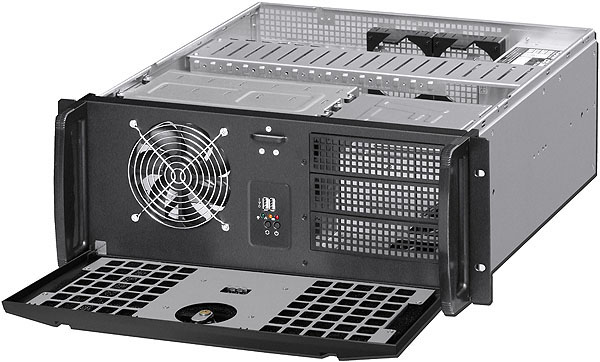

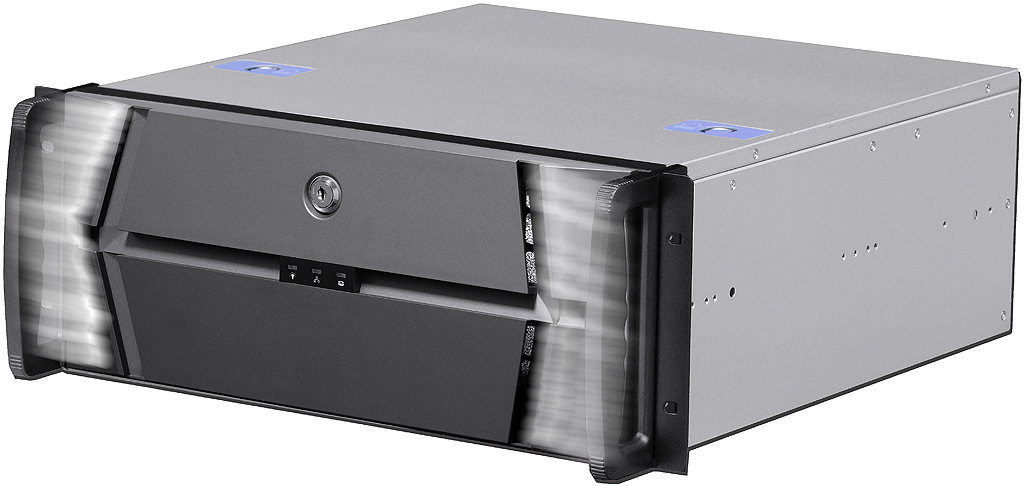

The stealth stylish architecture of the front door design, with stable and low noise fans, in line with good ventilation and dust protection requirements, suitable for the server cooling environment, global quality assurance and warranty for three years. One of the advantages of this E450e server chassis is the depth at 450mm only. Three 5.25-inch ODD devices can be installed at front side which can also be replaced with a variety of hot swappable HDD mobile racks. Up to 7 sets of 3.5-inch HDD can be installed internally as well. With the sheet metal mechanism, the design of the screwless top cover by hand-free tool can effectively reduce the system assembly and maintenance time. This design uses the 1.2mm thickness SGCC Ultra high strength sheet metal material, all the cutting sections of the sheet metal are made of smooth folding design to ensure free-damage to hands. The security door design ensures data security applicable to a variety of system environments and avoid improper DVDRW burning or removable USB drive replication data causing security vulnerabilities. In addition to installing the general standard 12"x9.6" ATX motherboard, it can also install eATX 12"x13" serverboard as well. Price advantage is also competitive, welcome world distribution from all over the world.

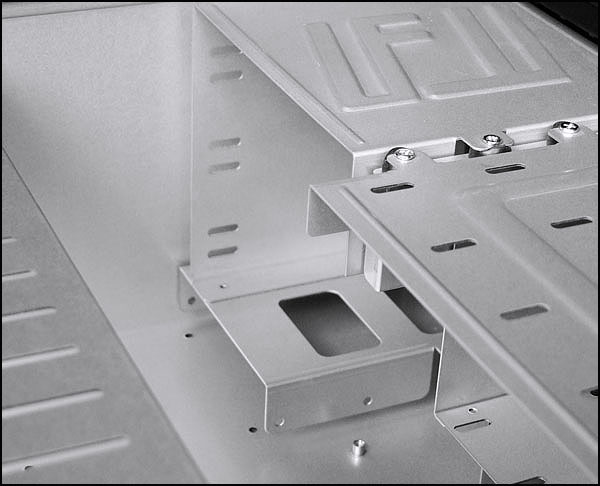

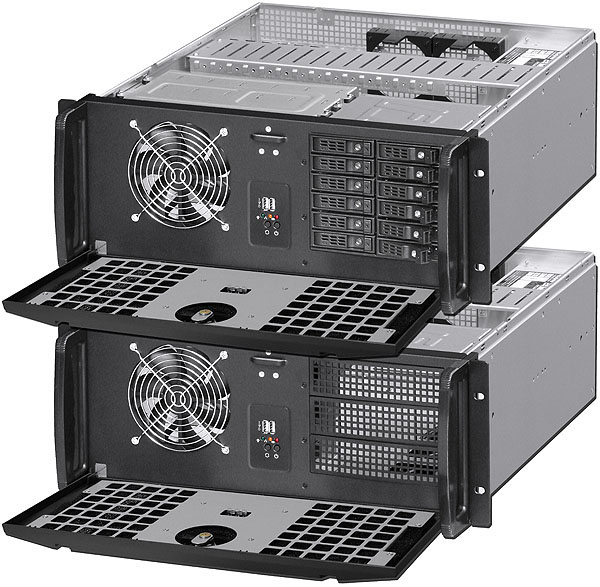

* Total 10 bay: 3 x 5.25" ODD & 7 x 3.5" HDD bay (7 HDD if 12"x9.6" ATX MB installed)
* All bays equipped with damping function to reduce vibration & extend storage life

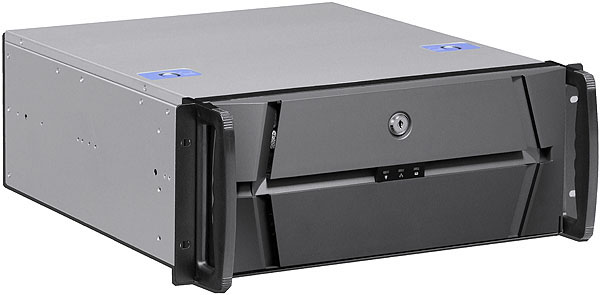

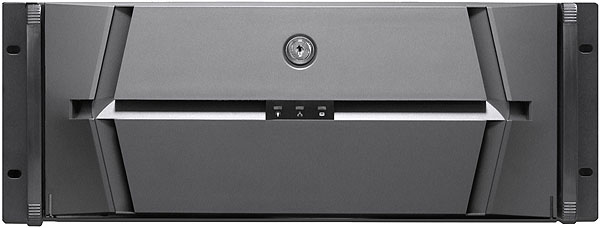

* Equipped with front door by a security lock & with removable dust air filter function
* Screwless hand-free top cover design (screws can also be used & fixed)
* Two USB 2.0 ports and LAN/HDD/Power LED at front bezel (two USB 3.0 as option)

* Standard with one brand new 120mmx25mm intake fan at front (fan part# D12SM-12)

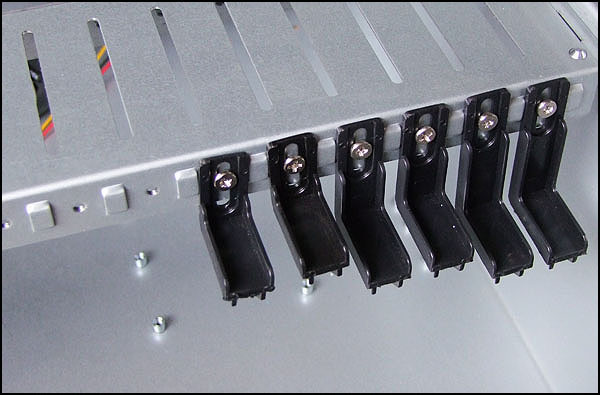

* Equipped with 6 short-medium-long hold-down card clamps upward & downward allowed

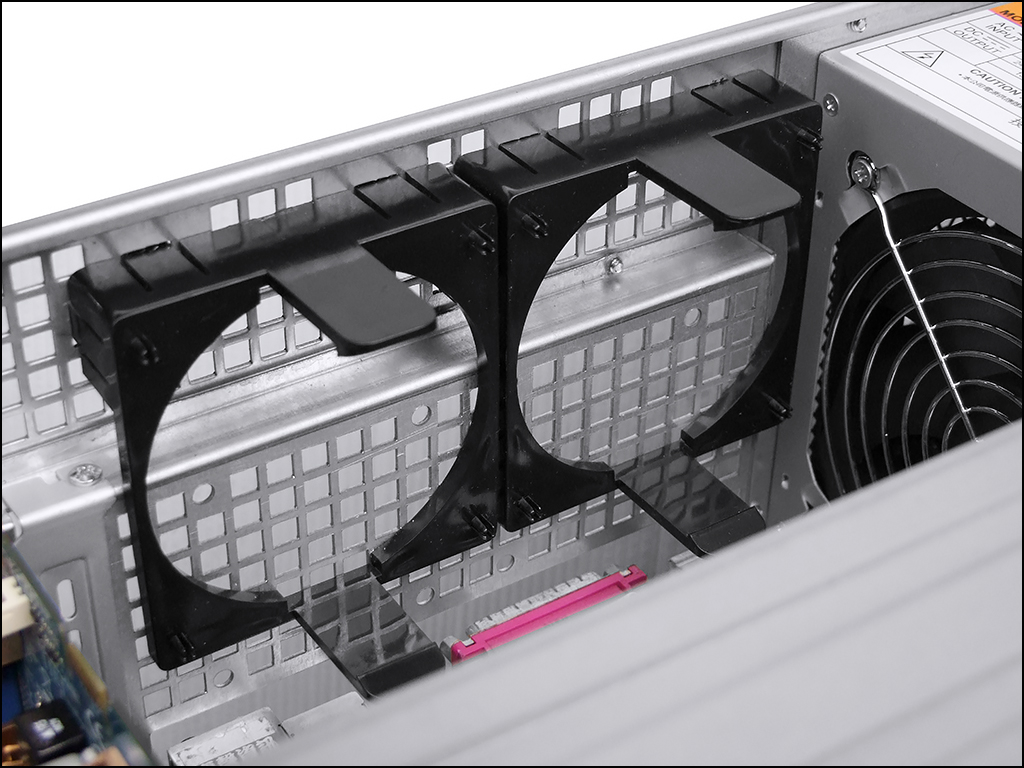

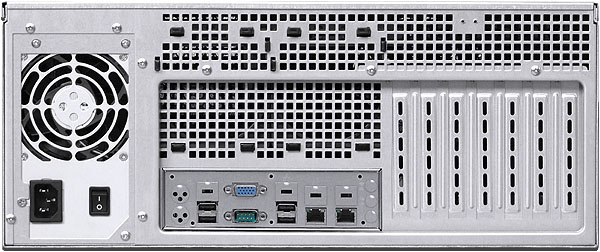

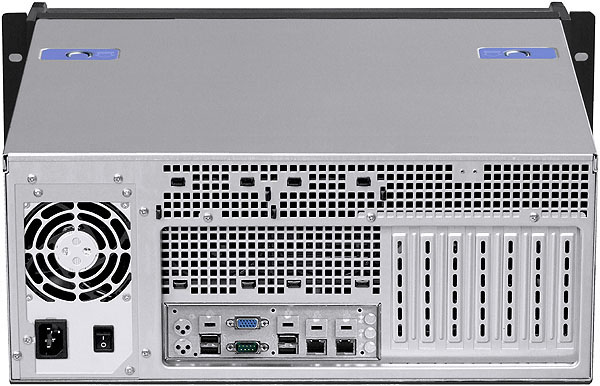

* Build-in two ABS screwless 80mmx25mm fan brackets at rear panel (fans are option)

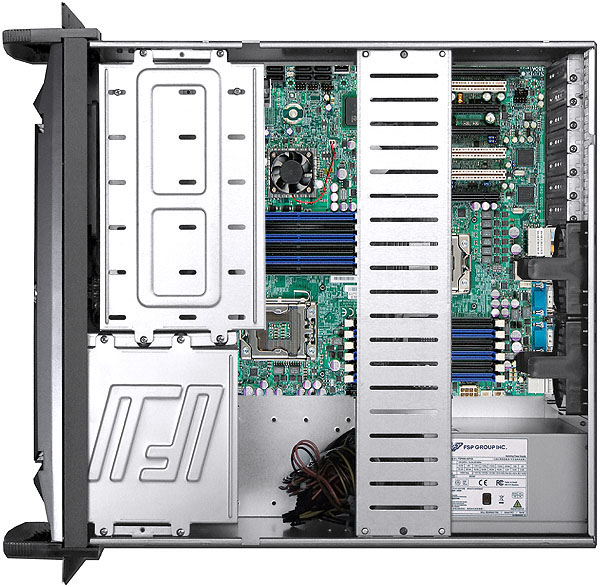

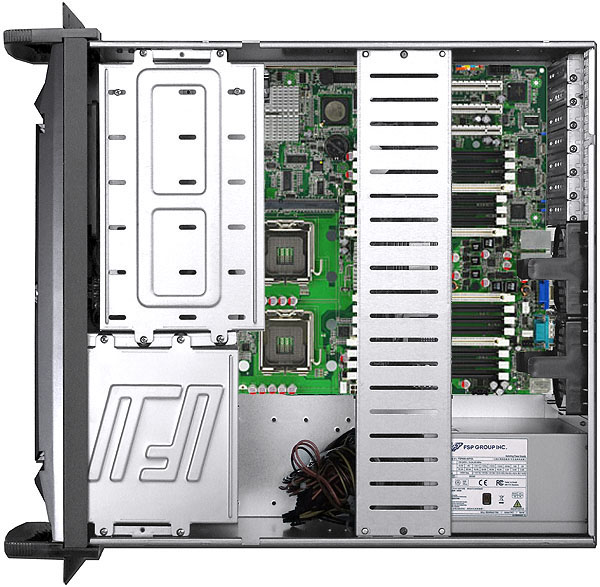

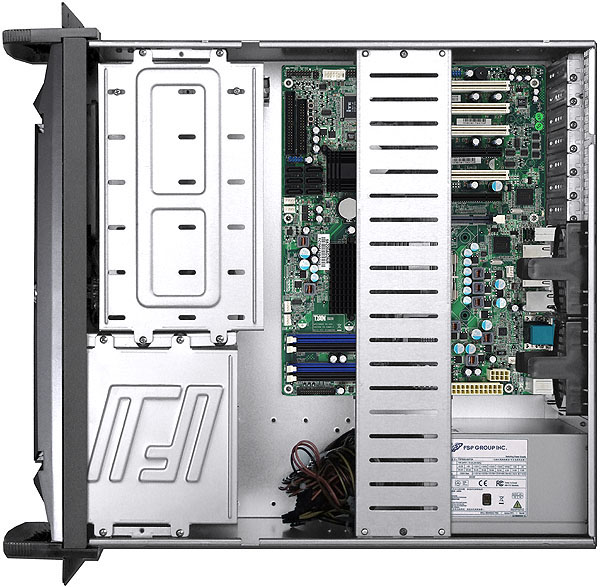

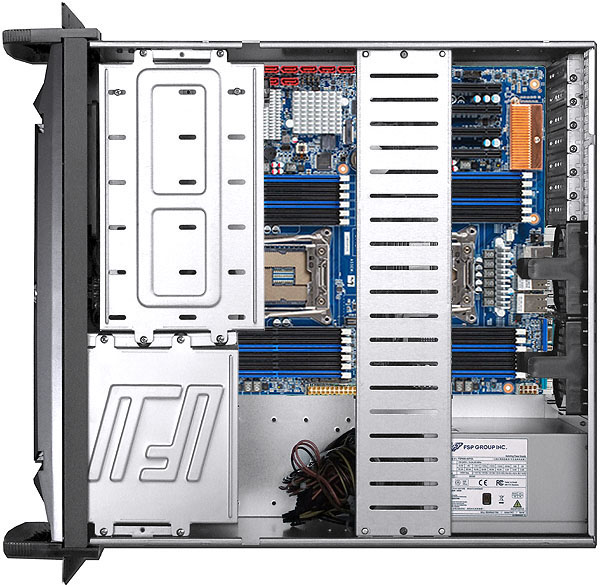

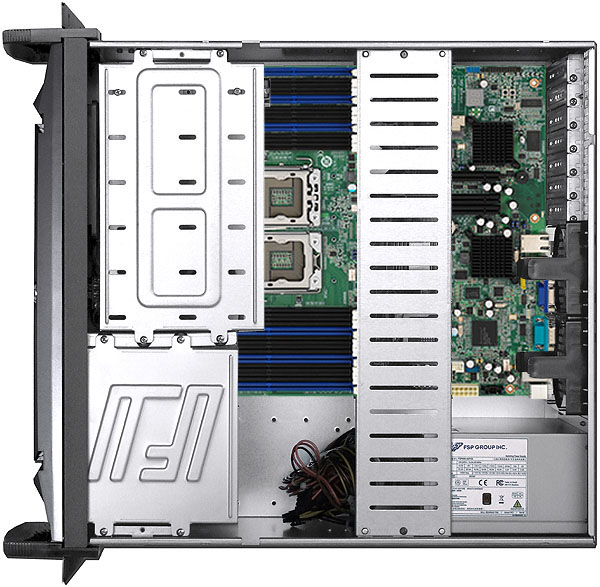

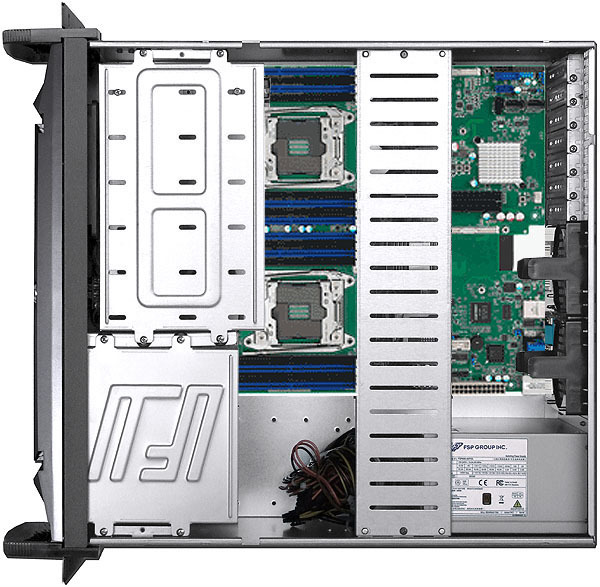

* MB: eATX EEB3.61(12"×13"), ATX(12"x9.6"), MicroATX(9.6"x9.6"), Mini-ITX(6.7"x6.7")

* 8cm or 12cm~14cm fan version standard PS2 PSU compatible (depth at 140~260mm)

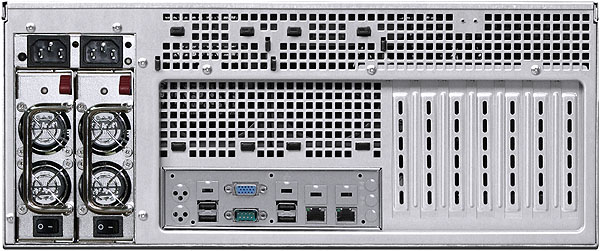

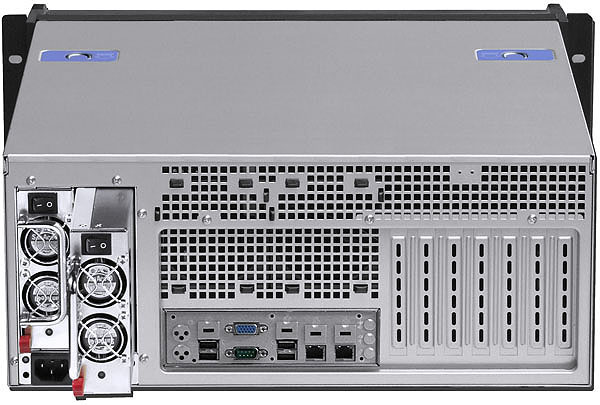

* Support SureStar R4S series 400W~500W PS2 Mini Redundant PS (depth 174mm)
* Support Zippy MRT & MRW series 300W~600W PS2 Mini Redundant PS (depth 185mm)
* Support SureStar R4B series 600W~800W PS2 Mini Redundant PS (depth 199mm)
* Support Zippy MRG series 500W~800W PS2 Mini Redundant PS (depth 200mm)

* Support 7 full height expansion cards (max. 240mm deep if HDD installed at front)

* Support 7 full height expansion cards (max. 320mm deep if no HDD installed at front)

* Standard paint: scratch-resistant black textured at front

* Genesys Group chassis with build-in electronics in global 3 years warranty
* Chassis dimension: 19" x 4U x 450mm (17.71" deep)

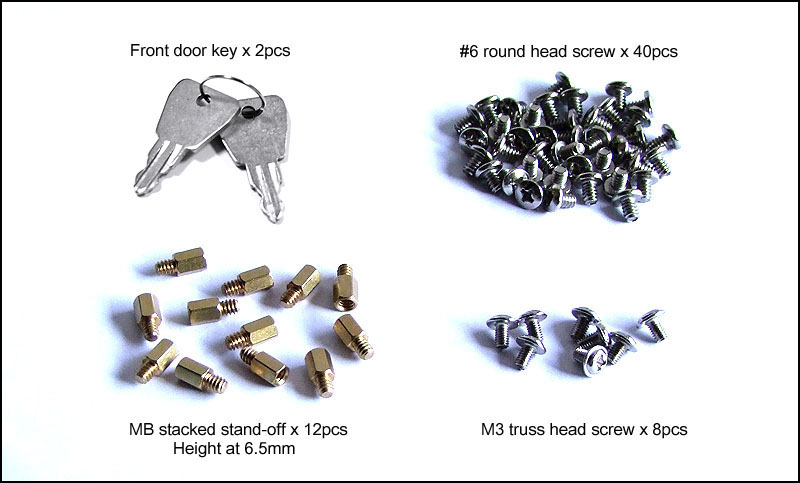

* Accessory: MB stand-off x12, #6 round screw x40, M3 truss screw x8, key x2
* Package: NW 9 KGM, GW 10.8 KGM, 3.19 CUFT (carton size at 62x56x26cm)

Model#

:

E450e

4U black enterprise server chassis

Option A-1

:

PS2 PSU

8cm & 12cm & 14cm fan version PS2 power supply (maximum depth at 260mm)

Option A-2

:

PS2 RPS

SureStar R4S series 400W/500W PS2 Mini Redundant PS (depth at 174mm)

Option A-3

:

PS2 RPS

Zippy MRT & MRW series 300W~600W PS2 Mini Redundant power supply (depth at 185mm)

Option A-4

:

PS2 RPS

SureStar R4B series 600W/700W/800W PS2 Mini Redundant PS (depth at 199mm)

Option A-5

:

PS2 RPS

Zippy MRG series 500W~800W PS2 Mini Redundant power supply (depth at 200mm)

Option B-1

:

NJ-600

600mm 2-layer 3-travel universal rail (cabinet internal depth 600~1200mm compliant)

Option B-2

:

1234U-RMK

1234U rear mounting kit

Option C

:

D80SM-12

YateLoon 80mmx25mm exhaust fan at small 3pin x 500mm (part# is 1pcs, can install 2pcs at rear)

Option D

:

25-35-BK

1x5.25" to 1x3.5" HDD or 1x3.5" to two 2.5" SSD bracket

Option E-1

:

2525TO3HDBK

2x5.25" to 3x3.5" bracket

Option E-2

:

3525TO5HDBK

3x5.25" to 5x3.5" bracket

Option E-3

:

RW135-12G

1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 12G

Option E-4

:

RW135

1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 6G

Option E-5

:

TL135-12G

1x5.25" to 1x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option E-6

:

TL135

1x5.25" to 1x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option E-7

:

RW225-12G

1x5.25" to 2x2.5" HotSwap Cage SATA/SAS 12G

Option E-8

:

RW625-12G

1x5.25" to 6x2.5" HotSwap Cage SATA/SAS 12G

Option E-9

:

RW825-1525

1x5.25" to 8x2.5" HotSwap Cage SATA/SAS 6G

Option E-10

:

RW425-NVMe

1x5.25" to 4x2.5" SSD Removable Cage U.2 NVMe 32G

Option E-11

:

RW425-12G-MS

1x5.25" to 4x2.5" HotSwap Cage SFF-8643 12G

Option E-12

:

RW425-12G

1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 12G

Option E-13

:

RW425

1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 6G

Option E-14

:

RW825

2x5.25" to 8x2.5" HotSwap Cage SATA/SAS 6G

Option E-15

:

RW335-12G

2x5.25" to 3x3.5" HotSwap Cage SATA/SAS 12G

Option E-16

:

RW335

2x5.25" to 3x3.5" HotSwap Cage SATA/SAS 6G

Option E-17

:

TL335-12G

2x5.25" to 3x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option E-18

:

TL335

2x5.25" to 3x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option E-19

:

RW1225

3x5.25" to 12x2.5" HotSwap Cage SATA/SAS 6G

Option E-20

:

RW435-12G-MS

3x5.25" to 4x3.5" HotSwap Cage SFF-8643 12G

Option E-21

:

RW435-12G

3x5.25" to 4x3.5" HotSwap Cage SATA/SAS 12G

Option E-22

:

RW435

3x5.25" to 4x3.5" HotSwap Cage SATA/SAS 6G

Option E-23

:

TL435-12G-MS

3x5.25" to 4x3.5" TrayLess HotSwap Cage SFF-8643 12G

Option E-24

:

TL435-12G

3x5.25" to 4x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option E-25

:

TL435

3x5.25" to 4x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option E-26

:

RW535-12G

3x5.25" to 5x3.5" HotSwap Cage SATA/SAS 12G

Option E-27

:

RW535

3x5.25" to 5x3.5" HotSwap Cage SATA/SAS 6G

Option E-28

:

TL535-12G

3x5.25" to 5x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option E-29

:

TL535

3x5.25" to 5x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option F-1

:

1MSAS-4SATA-500MM

SFF-8087 Mini-SAS (Host) to Four SATA (Device) cable

Option F-2

:

SFF-8643-500MM

SFF-8643 Mini-SAS HD (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option F-3

:

4SATA-SFF-8643-500MM

Four SATA (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option F-4

:

SFF-8643-4SATA-500MM

SFF-8643 Mini-SAS HD (Host) to Four SATA (Device) cable

Option G-1

:

2U2011A-8080

2U Intel LGA2011 LGA2066 active CPU cooler Square (2U 3U 4U chassis compatible)

Option G-2

:

2U2011A-5694

2U Intel LGA2011 active CPU cooler Narrow (2U 3U 4U chassis compatible)

Option G-3

:

2U115XA

2U Intel LGA115x Xeon 1230 active CPU cooler (2U 3U 4U chassis compatible)

Option G-4

:

2U4094A-SP3

2U AMD EPYC LGA4094 active CPU cooler SP3 (2U 3U 4U chassis compatible)

Option G-5

:

2U1331A-AM4

2U AMD LGA1331 active CPU cooler AM4 (2U 3U 4U chassis compatible)

Option G-6

:

2U3647A-S82

2U Intel LGA3647 active CPU cooler Square (2U 3U 4U chassis compatible)

Option G-7

:

2U3647A-R82-1

2U Intel LGA3647 active CPU cooler Narrow (2U 3U 4U chassis compatible)
