E451B 4U BLACK ATX ENTERPRISE SERVER CHASSIS

Design and 1st production and shipment launched on October 30, 2015, webpage updated on December 04, 2024

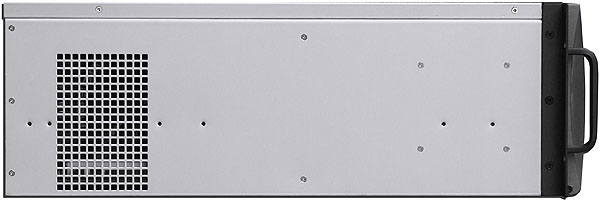

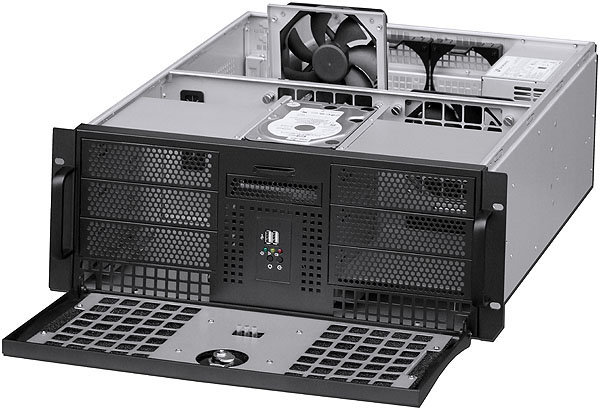

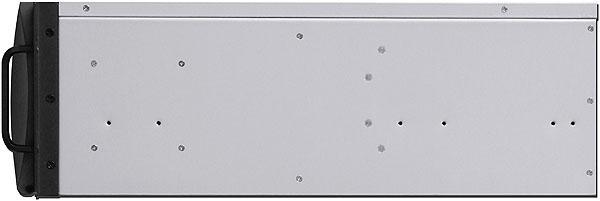

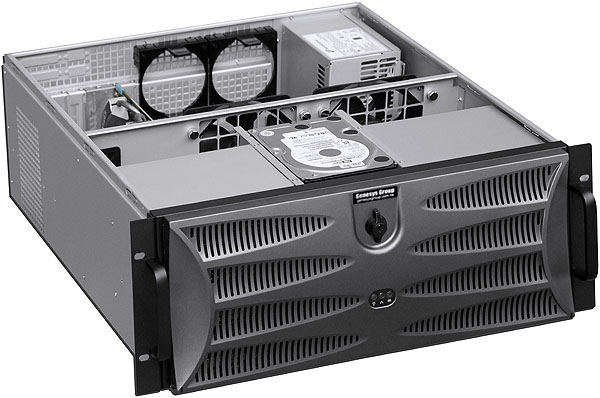

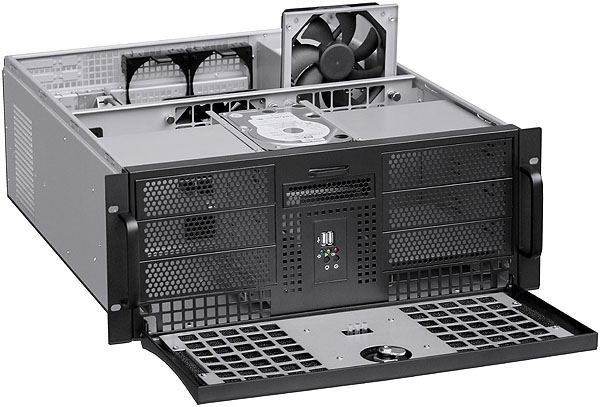

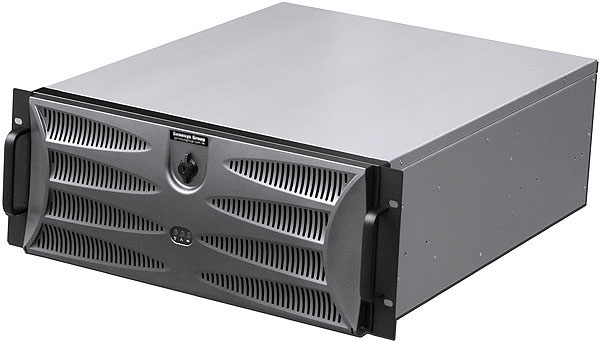

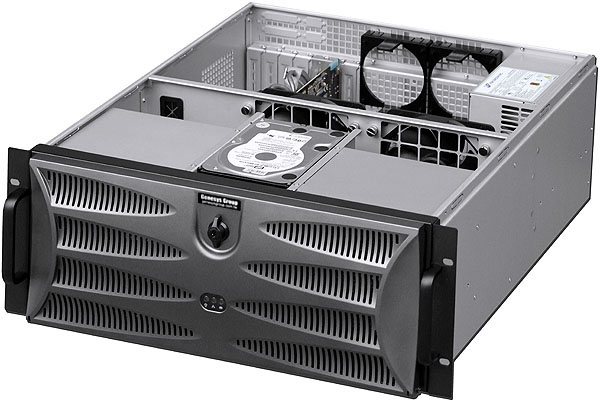

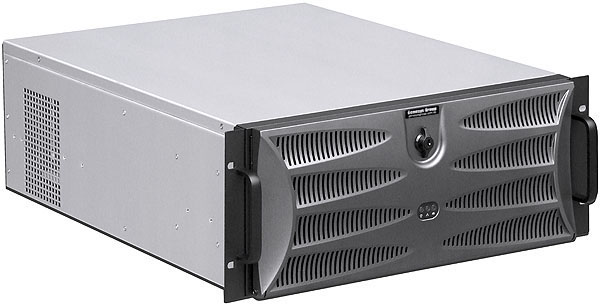

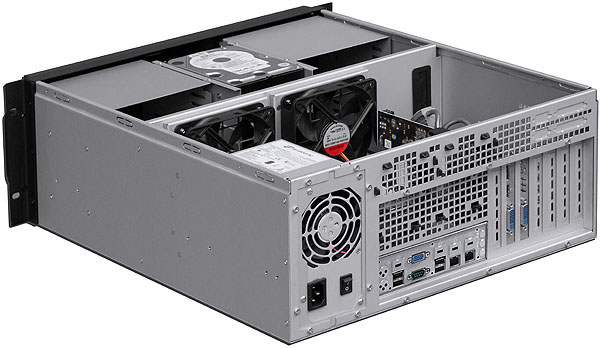

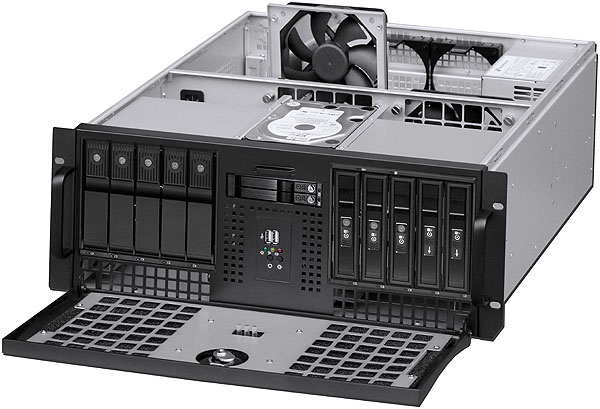

4U E451B server chassis designed as one of the latest products, its rugged strength of mechanism by SGCC sheet metal thickness at 1.2mm~2.0mm. With dust-proof security butterfly key-lock front door, which is made of ABS material outside and high-strength sheet material inside. The die-cast aluminum front handles enhances the body strength. Storage device for Six 5.25" ODD and Eight 3.5" HDD built-in space, optional SFF-8087 6G SAS or the latest hotswappable 12G SFF-8643 HD MiniSAS mobile racks also compatible with this chassis as well. It meets ATX 12" x 9.6" and smaller form factor motherboard, standard PS2 or PS2 Mini-Redundant power supply also compatible, Suitable for all kinds of system environment, and also have a competitive advantage on the price, welcome the world distribution.

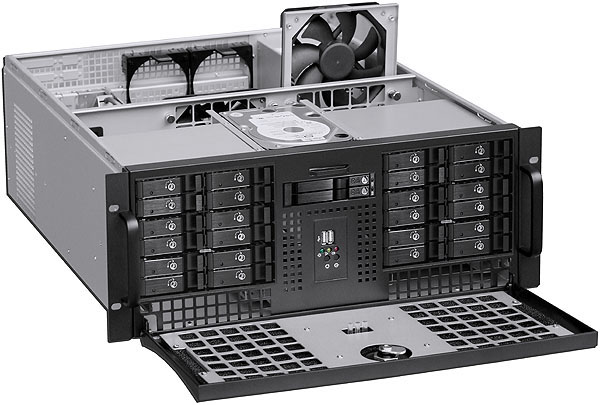

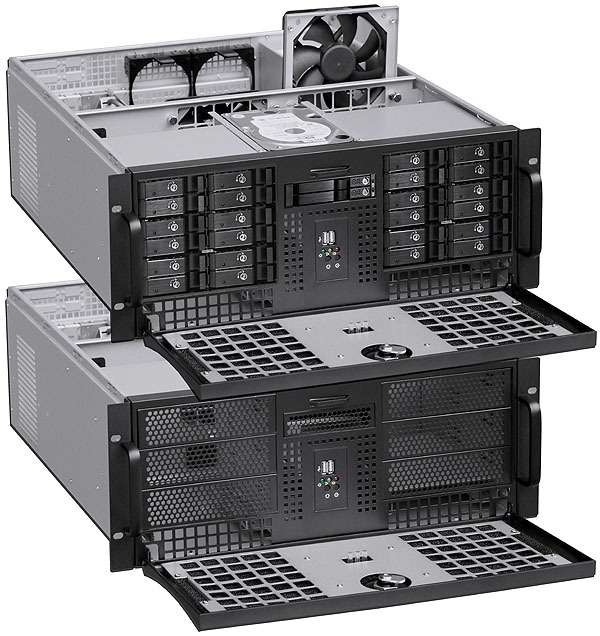

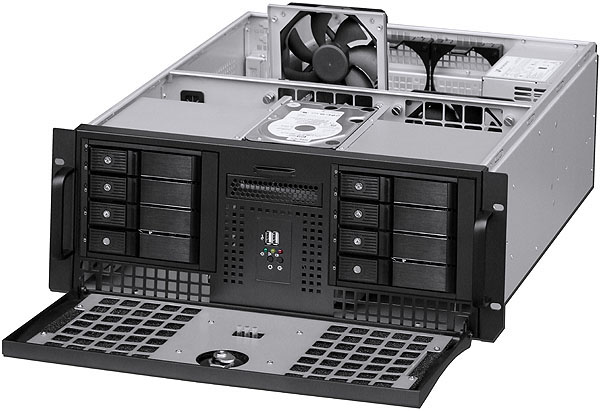

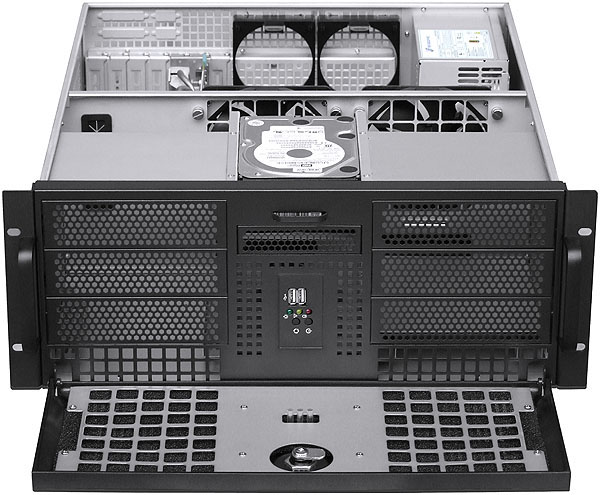

* 14 Drive Capacity: 6x5.25" ODD, 8x3.5" HDD (one of them can be 3.5" FDD)
* HDD drive bay equipped with anti-vibration function, valid to extend HDD life

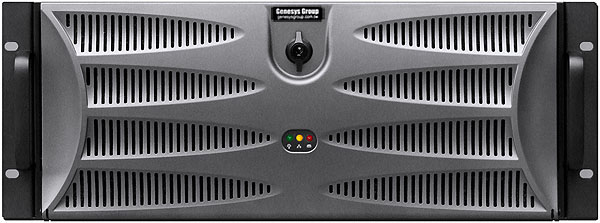

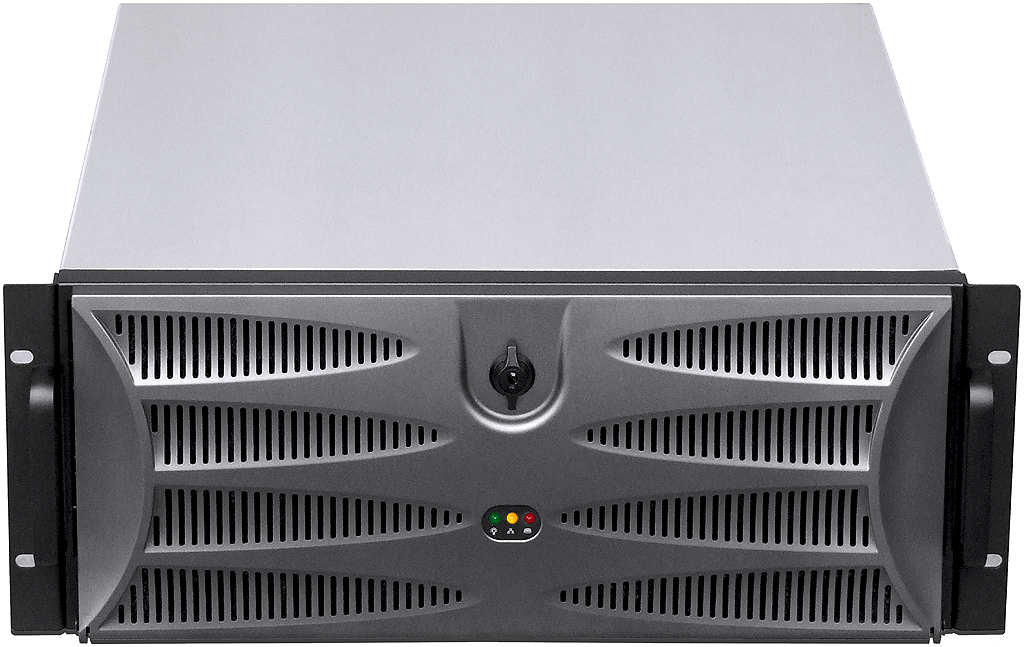

* Equipped with security butterfly front door & changeable dust proof filter

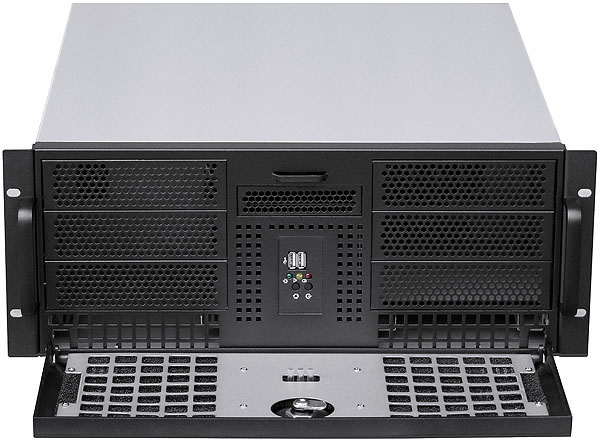

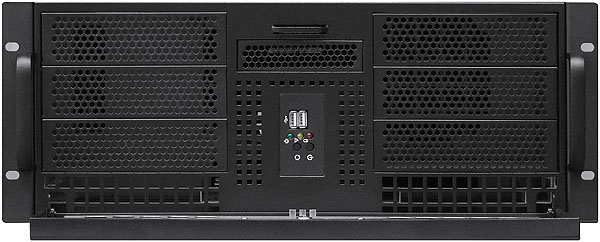

* Two USB 2.0 ports and LAN/HDD/Power LED at front bezel (two USB 3.0 as option)

* Equipped with durable aluminum die-casting front handles

* SGCC sheet metal by 1.2mm~2.0mm thickness with protective sheet on surface

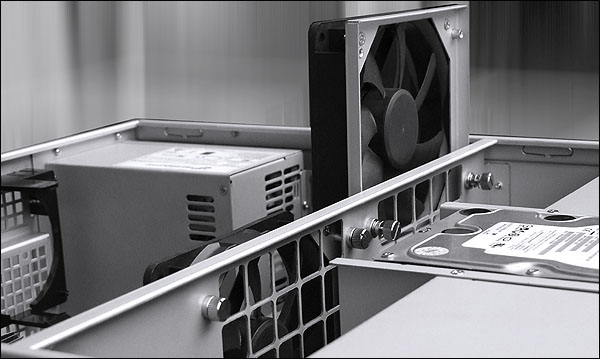

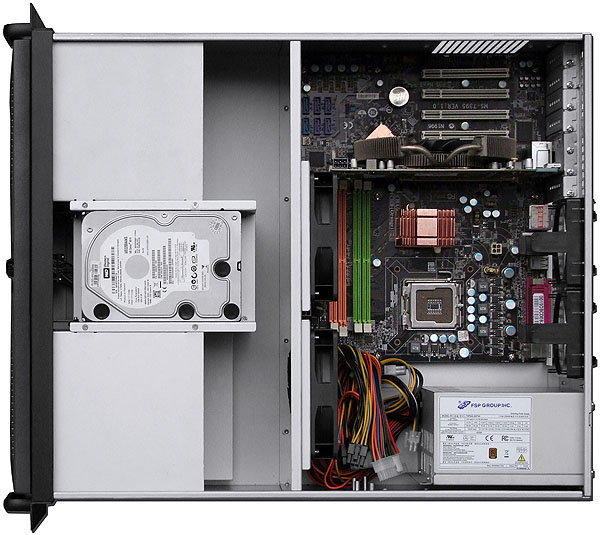

* Two easy-swap 120mmx25mm fans in the middle (fan part# D12SM-12)

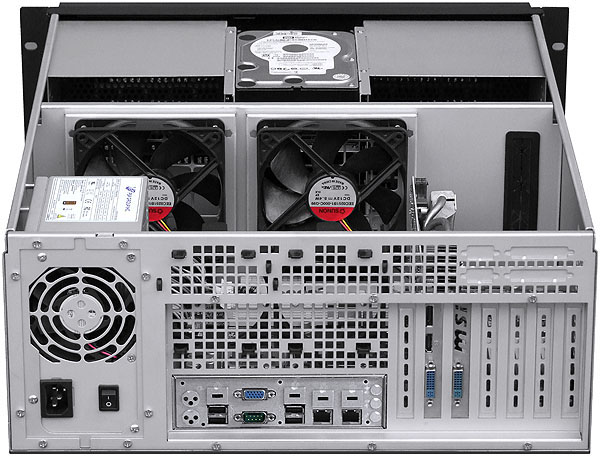

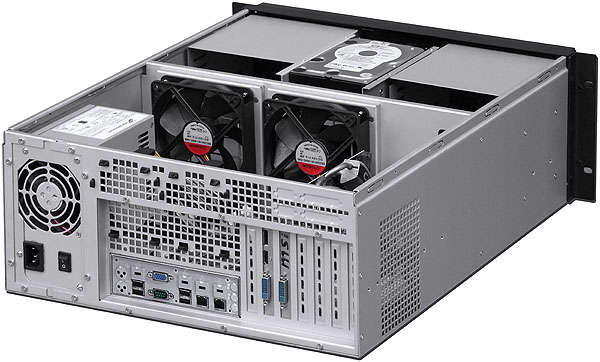

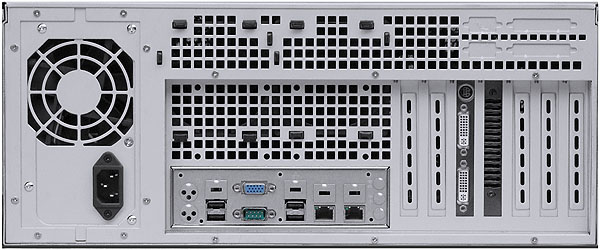

* Two ABS screwless 80mmx25mm fan brackets at rear panel (fans are option)
* Compatible MB: ATX(12"x9.6"), MicroATX(9.6"x9.6"), Mini-ITX(6.7"x6.7")
* 8cm or 12cm~14cm fan version standard PS2 PSU compatible (depth at 140~200mm)

* Support SureStar R4S series 400W~500W PS2 Mini Redundant PS (depth 174mm)
* Support Zippy MRT & MRW series 300W~600W PS2 Mini Redundant PS (depth 185mm)
* Support SureStar R4B series 600W~800W PS2 Mini Redundant PS (depth 199mm)
* Support Zippy MRG series 500W~800W PS2 Mini Redundant PS (depth 200mm)

* 7 slot expansion cards (max. depth 1st~6th slot at 240mm, 7th slot at 210mm)
* Standard paint: scratch-resistant black textured at front

* Genesys Group chassis with build-in electronics in global 3 years warranty
* Chassis dimension: 19" x 4U x 510mm (20.08" deep)

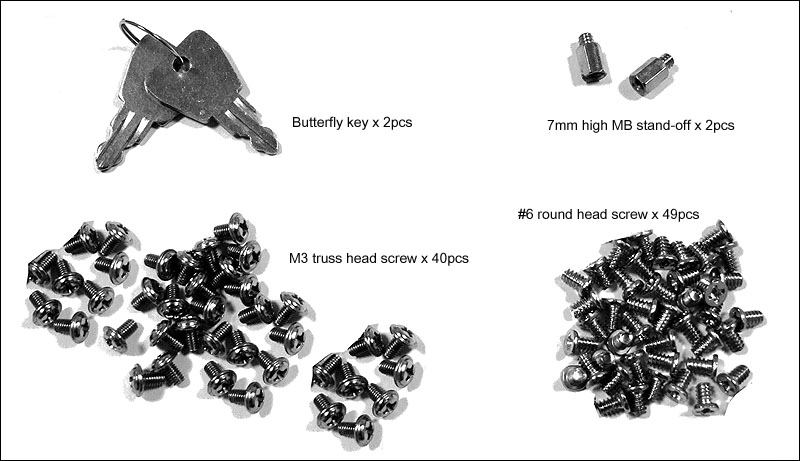

* Accessory: M3 truss x40, #6 round x49, 7mm high stand-off x2, key x2
* Package: NW 12 KGM, GW 14.00 KGM, 3.48 CUFT (carton size at 64x57x27cm)







Model#

:

E451B

4U black ATX enterprise server chassis

Option A-1

:

PS2 PSU

8cm & 12cm & 14cm fan version PS2 power supply (depth at 140mm~200mm)

Option A-2

:

PS2 RPS

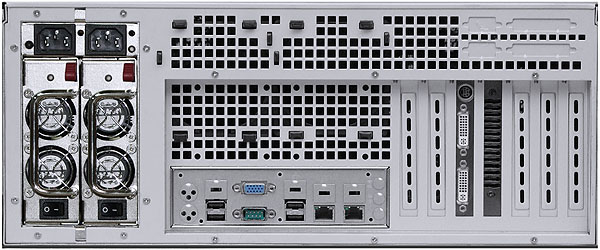

SureStar R4S series 400W/500W PS2 Mini Redundant PS (depth at 174mm)

Option A-3

:

PS2 RPS

Zippy MRT & MRW series 300W~600W PS2 Mini Redundant power supply (depth at 185mm)

Option A-4

:

PS2 RPS

SureStar R4B series 600W/700W/800W PS2 Mini Redundant PS (depth at 199mm)

Option A-5

:

PS2 RPS

Zippy MRG series 500W~800W PS2 Mini Redundant power supply (depth at 200mm)

Option B-1

:

NJ-600

600mm 2-layer 3-travel universal rail (cabinet internal depth 600~1200mm compliant)

Option B-2

:

1234U-RMK

1234U rear mounting kit

Option C

:

D80SM-12

Exhaust 80mmx25mm fan installed above I/O shield (part# is 1pcs, can install 2pcs at rear)

Option D-1

:

RW125-NVMe

1x3.5" FDD to 1x2.5" SSD Removable Cage U.2 NVMe 32G

Option D-2

:

RW125-12G

1x3.5" FDD to 1x2.5" HotSwap Cage SATA/SAS 12G

Option D-3

:

TL125-12G

1x3.5" FDD to 1x2.5" TrayLess HotSwap Cage SATA/SAS 12G

Option D-4

:

TL225

1x3.5" FDD to 2x2.5" TrayLess HotSwap Cage SATA/SAS 12G

Option E-1

:

25-35-BK

1x5.25" to 1x3.5" HDD or 1x3.5" to two 2.5" SSD bracket

Option E-2

:

RW135-12G

1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 12G

Option E-3

:

RW135

1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 6G

Option E-4

:

TL135-12G

1x5.25" to 1x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option E-5

:

TL135

1x5.25" to 1x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option E-6

:

RW225-NVMe-U

1x5.25" to 2xUSB3 2x2.5" SSD Removable Cage U.2 NVMe 32G

Option E-7

:

RW225-NVMe

1x5.25" to 2x2.5" SSD Removable Cage U.2 NVMe 32G

Option E-8

:

RW225-12G

1x5.25" to 2x2.5" HotSwap Cage SATA/SAS 12G

Option E-9

:

RW625-12G

1x5.25" to 6x2.5" HotSwap Cage SATA/SAS 12G

Option E-10

:

RW825-1525

1x5.25" to 8x2.5" HotSwap Cage SATA/SAS 6G

Option E-11

:

RW425-NVMe

1x5.25" to 4x2.5" SSD Removable Cage U.2 NVMe 32G

Option E-12

:

RW425-12G-MS

1x5.25" to 4x2.5" HotSwap Cage SFF-8643 12G

Option E-13

:

RW425-12G

1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 12G

Option E-14

:

RW425

1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 6G

Option F-1

:

2525TO3HDBK

2x5.25" to 3x3.5" bracket

Option F-2

:

RW335-12G

2x5.25" to 3x3.5" HotSwap Cage SATA/SAS 12G

Option F-3

:

RW335

2x5.25" to 3x3.5" HotSwap Cage SATA/SAS 6G

Option F-4

:

TL335-12G

2x5.25" to 3x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option F-5

:

TL335

2x5.25" to 3x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option G-1

:

3525TO5HDBK

3x5.25" to 5x3.5" bracket

Option G-2

:

RW435-12G-MS

3x5.25" to 4x3.5" HotSwap Cage SFF-8643 12G

Option G-3

:

RW435-12G

3x5.25" to 4x3.5" HotSwap Cage SATA/SAS 12G

Option G-4

:

RW435

3x5.25" to 4x3.5" HotSwap Cage SATA/SAS 6G

Option G-5

:

TL435-12G-MS

3x5.25" to 4x3.5" TrayLess HotSwap Cage SFF-8643 12G

Option G-6

:

TL435-12G

3x5.25" to 4x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option G-7

:

TL435

3x5.25" to 4x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option G-8

:

RW535-12G

3x5.25" to 5x3.5" HotSwap Cage SATA/SAS 12G

Option G-9

:

RW535

3x5.25" to 5x3.5" HotSwap Cage SATA/SAS 6G

Option G-10

:

TL535-12G

3x5.25" to 5x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option G-11

:

TL535

3x5.25" to 5x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option H-1

:

1MSAS-4SATA-500MM

SFF-8087 Mini-SAS (Host) to Four SATA (Device) cable

Option H-2

:

SFF-8643-500MM

SFF-8643 Mini-SAS HD (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option H-3

:

4SATA-SFF-8643-500MM

Four SATA (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option H-4

:

SFF-8643-4SATA-500MM

SFF-8643 Mini-SAS HD (Host) to Four SATA (Device) cable

Option I-1

:

2U2011A-8080

2U Intel LGA2011 LGA2066 active CPU cooler Square (2U 3U 4U chassis compatible)

Option I-2

:

2U2011A-5694

2U Intel LGA2011 active CPU cooler Narrow (2U 3U 4U chassis compatible)

Option I-3

:

2U115XA

2U Intel LGA115x Xeon 1230 active CPU cooler (2U 3U 4U chassis compatible)

Option I-4

:

2U4094A-SP3

2U AMD EPYC LGA4094 active CPU cooler SP3 (2U 3U 4U chassis compatible)

Option I-5

:

2U1718A-AM5

2U AMD AM4 AM5 active CPU cooler (2U 3U 4U chassis compatible)

Option I-6

:

2U3647A-S82

2U Intel LGA3647 active CPU cooler Square (2U 3U 4U chassis compatible)

Option I-7

:

2U3647A-R82-1

2U Intel LGA3647 active CPU cooler Narrow (2U 3U 4U chassis compatible)

Option I-8

:

2U4189A-M82

2U Intel LGA4189 active CPU cooler (2U 3U 4U chassis compatible)

Option I-9

:

2U1700A-R67

2U Intel LGA1700 active CPU cooler (2U 3U 4U chassis compatible)



Catalogue       Dimension Drawing       Chassis Quick Assembly Manual
