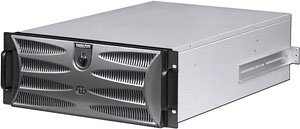

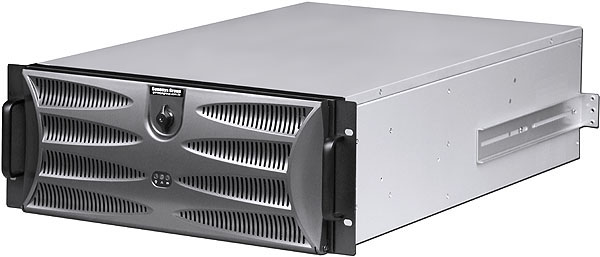

E465B 4U BLACK eATX ENTERPRISE SERVER CHASSIS

Design and intellectual property launched on June 15, 2012, webpage updated on December 04, 2024

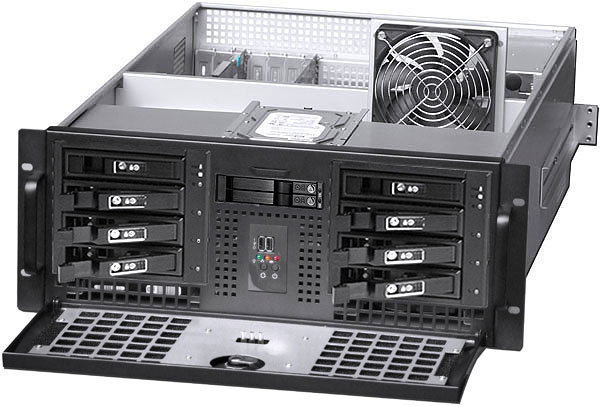

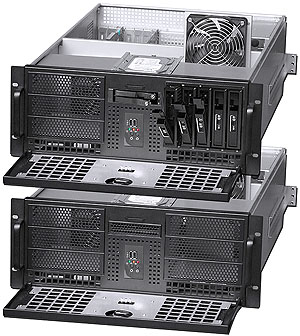

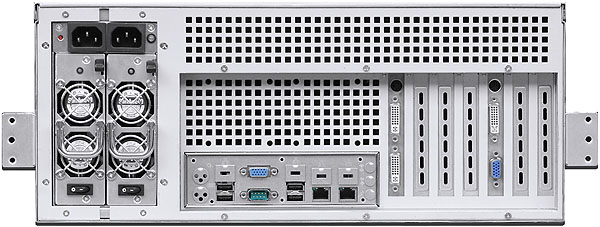

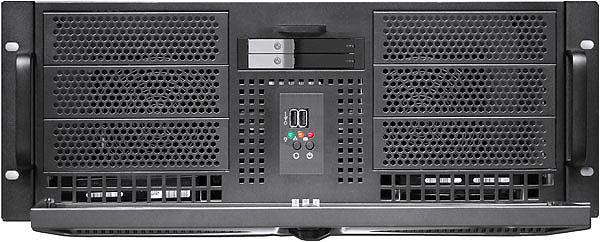

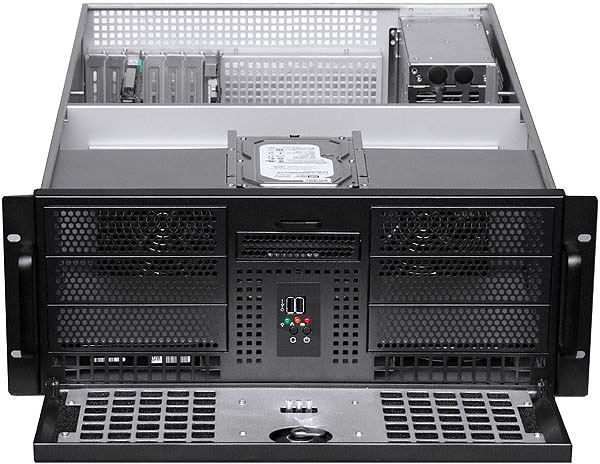

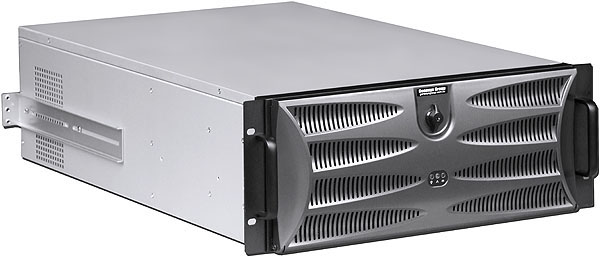

4U E465B is the newest design to meet 12"x13" & LGA2011 eATX MB mounting holes and smaller motherboard at the same time. It can install not only regular PS2 power supply but also most PS2 Mini-Redundant power supply in the market as well, and can be precisely mounted both front and rear side of power supply with chassis. Drive capacity can support 6xODD (max. 220mm deep 5.25" devices), and 8x3.5" and 2x2.5" HDD, and one of the 3.5" space allows a 3.5" FDD housing for optional two 2.5" hotswap mobile rack module as OS drives. All sheet metal mechanism use high-class SECC 1.2mm~2.0mm thickness metal that makes sure the whole chassis to be durable, all items provide global 3 years warranty, welcome distribution world wide.

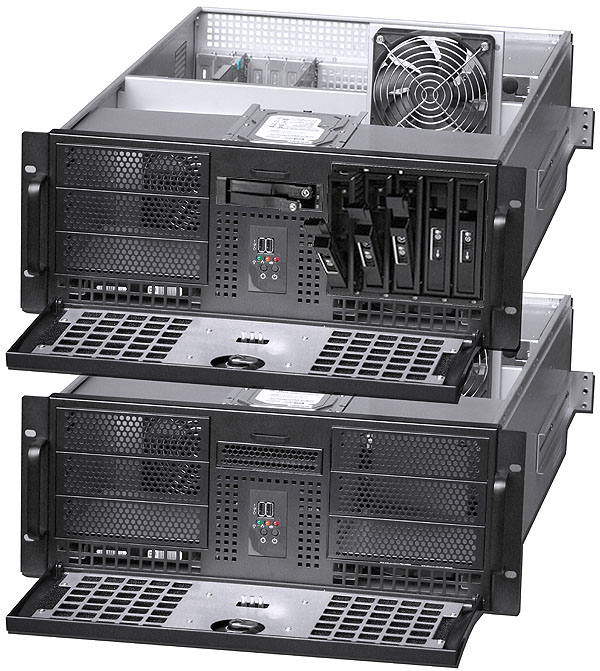

* 16 Drive Capacity: 6x5.25" ODD, 2x2.5" HDD, 8x3.5" HDD (one of them can be FDD)
* Drive bay equipped with anti-vibration function, extend storage appliance life

* Equipped with strong aluminum die-casting handles

* Equipped with high-class SECC sheet metal 1.2mm~2.0mm

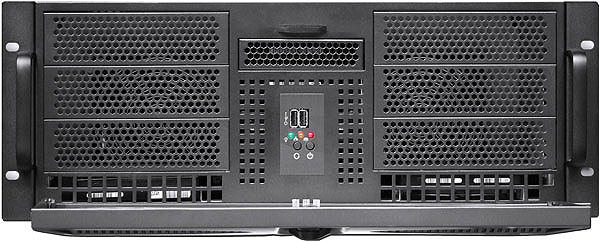

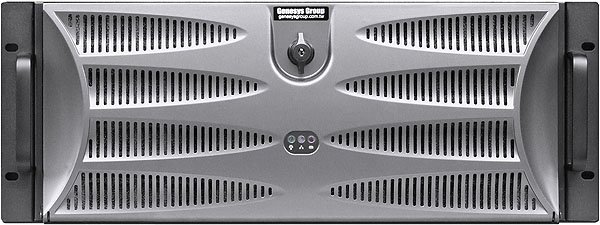

* Two USB 2.0 ports and LAN/HDD/Power LED at front bezel (two USB 3.0 as option)
* Two easy-swap 120mmx25mm 2-ball bearing fans in the middle (fan part# SunTai12025)

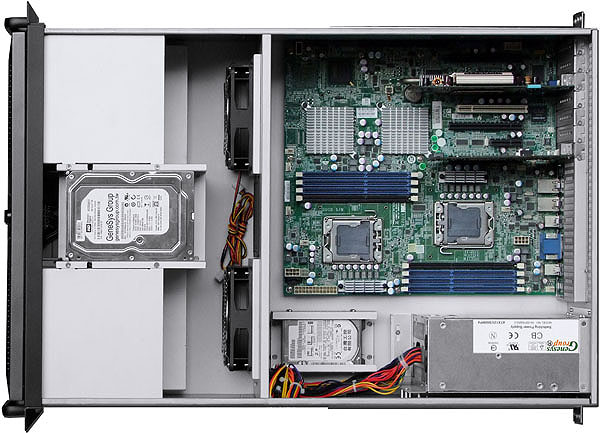

* MB: eATX EEB3.61(12"×13"), ATX(12"x9.6"), MicroATX(9.6"x9.6"), Mini-ITX(6.7"x6.7")
* 8cm or 12cm~14cm fan version standard PS2 PSU compatible (depth at 140~200mm)

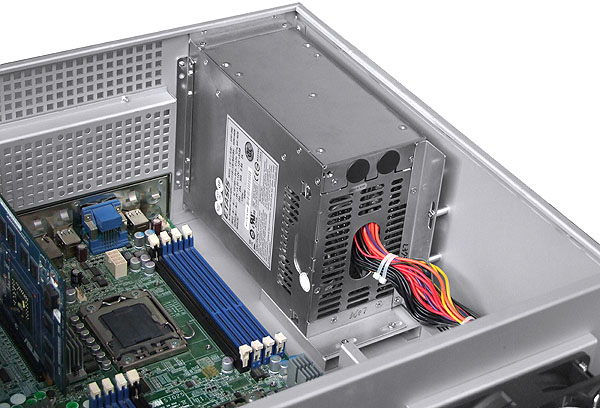

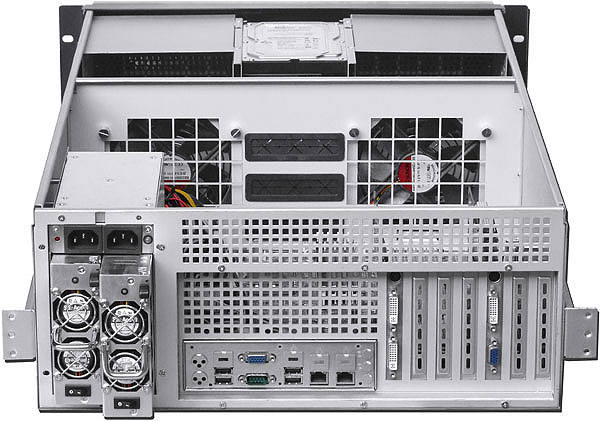

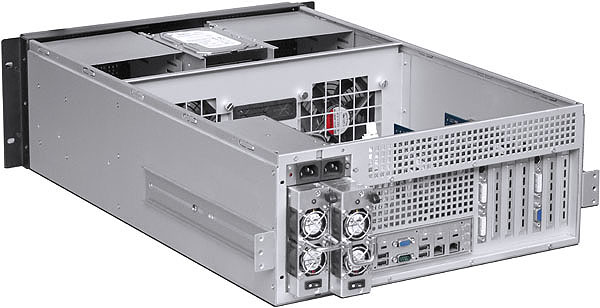

* Support SureStar R4S series 400W~500W PS2 Mini Redundant PS (depth 174mm)
* Support Zippy MRT & MRW series 300W~600W PS2 Mini Redundant PS (depth 185mm)
* Support SureStar R4B series 600W~800W PS2 Mini Redundant PS (depth 199mm)
* Support Zippy MRG series 500W~800W PS2 Mini Redundant PS (depth 200mm)

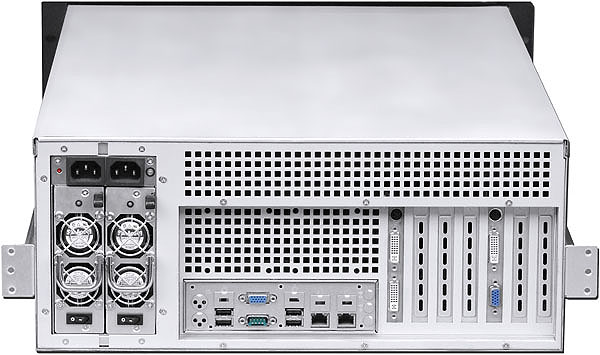

* Support 7 slot full height expansion cards (maximum 342mm deep cards)

* Standard paint: scratch-resistant black textured at front
* Genesys Group chassis with build-in electronics in global 3 years warranty
* Chassis dimension: 19" x 4U x 650mm (25.59" deep)

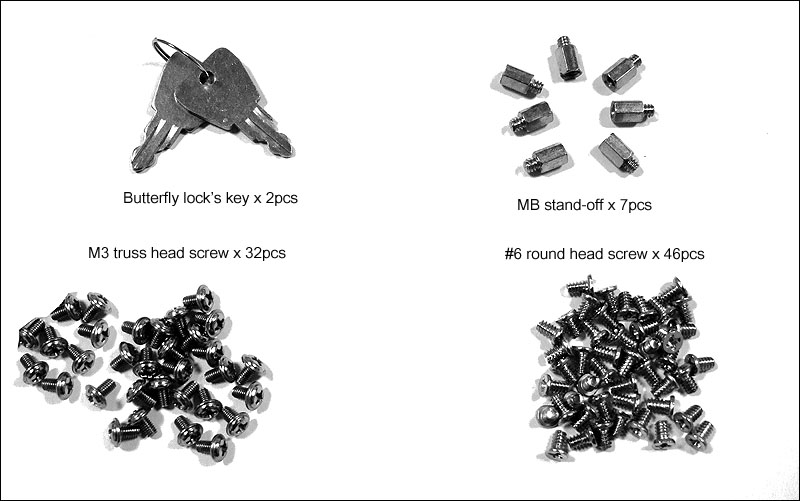

* Accessory: M3 truss x32pcs, #6 round x46pcs, MB stand-off x7pcs, key x2pcs
* Package: NW 15 KGM, GW 17.00 KGM, 4.09 CUFT (carton size at 56x78x26.5cm)







Model#

:

E465B

4U black eATX enterprise server chassis

Option A-1

:

PS2 PSU

8cm & 12cm & 14cm fan version PS2 power supply (depth at 140mm~200mm)

Option A-2

:

PS2 RPS

SureStar R4S series 400W/500W PS2 Mini Redundant PS (depth at 174mm)

Option A-3

:

PS2 RPS

Zippy MRT & MRW series 300W~600W PS2 Mini Redundant power supply (depth at 185mm)

Option A-4

:

PS2 RPS

SureStar R4B series 600W/700W/800W PS2 Mini Redundant PS (depth at 199mm)

Option A-5

:

PS2 RPS

Zippy MRG series 500W~800W PS2 Mini Redundant power supply (depth at 200mm)

Option B-1

:

NJ-600

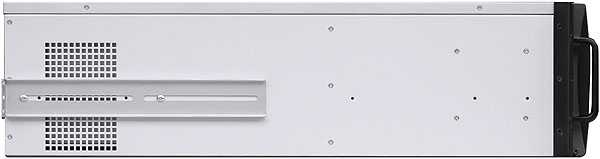

600mm 2-layer 3-travel universal rail (cabinet internal depth 600~1200mm compliant)

Option B-2

:

1234U-RMK

1234U rear mounting kit

Option C

:

SUNON6025

Exhaust 60mmx25mm fan installed above I/O shield (part# is 1pcs, can install 2pcs at rear panel)

Option D

:

25-35-BK

5.25" 3.5" 2.5" multiple HDD bracket

Option E-1

:

RW125-12G

1x3.5" FDD to 1x2.5" HotSwap Cage SATA/SAS 12G

Option E-2

:

TL125-12G

1x3.5" FDD to 1x2.5" TrayLess HotSwap Cage SATA/SAS 12G

Option E-3

:

TL225-12G

1x3.5" FDD to 2x2.5" TrayLess HotSwap Cage SATA/SAS 12G

Option E-4

:

TL225

1x3.5" FDD to 2x2.5" TrayLess HotSwap Cage SATA/SAS 6G

Option F-1

:

2525TO3HDBK

2x5.25" ODD space to 3x3.5" bracket

Option F-2

:

3525TO5HDBK

3x5.25" ODD space to 5x3.5" bracket

Option F-3

:

RW135-12G

1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 12G

Option F-4

:

RW135

1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 6G

Option F-5

:

TL135-12G

1x5.25" to 1x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option F-6

:

TL135

1x5.25" to 1x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option F-7

:

RW225-12G

1x5.25" to 2x2.5" HotSwap Cage SATA/SAS 12G

Option F-8

:

RW625-12G

1x5.25" to 6x2.5" HotSwap Cage SATA/SAS 12G

Option F-9

:

RW825-1525

1x5.25" to 8x2.5" HotSwap Cage SATA/SAS 6G

Option F-10

:

RW425-NVMe

1x5.25" to 4x2.5" SSD Removable Cage U.2 NVMe 32G

Option F-11

:

RW425-12G-MS

1x5.25" to 4x2.5" HotSwap Cage SFF-8643 12G

Option F-12

:

RW425-12G

1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 12G

Option F-13

:

RW425

1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 6G

Option F-14

:

RW825

2x5.25" to 8x2.5" HotSwap Cage SATA/SAS 6G

Option F-15

:

RW335-12G

2x5.25" to 3x3.5" HotSwap Cage SATA/SAS 12G

Option F-16

:

RW335

2x5.25" to 3x3.5" HotSwap Cage SATA/SAS 6G

Option F-17

:

TL335-12G

2x5.25" to 3x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option F-18

:

TL335

2x5.25" to 3x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option F-19

:

RW1225

3x5.25" to 12x2.5" HotSwap Cage SATA/SAS 6G

Option F-20

:

RW435-12G-MS

3x5.25" to 4x3.5" HotSwap Cage SFF-8643 12G

Option F-21

:

RW435-12G

3x5.25" to 4x3.5" HotSwap Cage SATA/SAS 12G

Option F-22

:

RW435

3x5.25" to 4x3.5" HotSwap Cage SATA/SAS 6G

Option F-23

:

TL435-12G-MS

3x5.25" to 4x3.5" TrayLess HotSwap Cage SFF-8643 12G

Option F-24

:

TL435-12G

3x5.25" to 4x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option F-25

:

TL435

3x5.25" to 4x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option F-26

:

RW535-12G

3x5.25" to 5x3.5" HotSwap Cage SATA/SAS 12G

Option F-27

:

RW535

3x5.25" to 5x3.5" HotSwap Cage SATA/SAS 6G

Option F-28

:

TL535-12G

3x5.25" to 5x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option F-29

:

TL535

3x5.25" to 5x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option G-1

:

1MSAS-4SATA-500MM

SFF-8087 Mini-SAS (Host) to Four SATA (Device) cable

Option G-2

:

SFF-8643-500MM

SFF-8643 Mini-SAS HD (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option G-3

:

4SATA-SFF-8643-500MM

Four SATA (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option G-4

:

SFF-8643-4SATA-500MM

SFF-8643 Mini-SAS HD (Host) to Four SATA (Device) cable

Option H-1

:

2U2011A-8080

2U Intel LGA2011 LGA2066 active CPU cooler Square (2U 3U 4U chassis compatible)

Option H-2

:

2U2011A-5694

2U Intel LGA2011 active CPU cooler Narrow (2U 3U 4U chassis compatible)

Option H-3

:

2U115XA

2U Intel LGA115x Xeon 1230 active CPU cooler (2U 3U 4U chassis compatible)

Option H-4

:

2U4094A-SP3

2U AMD EPYC LGA4094 active CPU cooler SP3 (2U 3U 4U chassis compatible)

Option H-5

:

2U1718A-AM5

2U AMD AM4 AM5 active CPU cooler (2U 3U 4U chassis compatible)

Option H-6

:

2U3647A-S82

2U Intel LGA3647 active CPU cooler Square (2U 3U 4U chassis compatible)

Option H-7

:

2U3647A-R82-1

2U Intel LGA3647 active CPU cooler Narrow (2U 3U 4U chassis compatible)

Option H-8

:

2U4189A-M82

2U Intel LGA4189 active CPU cooler (2U 3U 4U chassis compatible)

Option H-9

:

2U1700A-R67

2U Intel LGA1700 active CPU cooler (2U 3U 4U chassis compatible)
