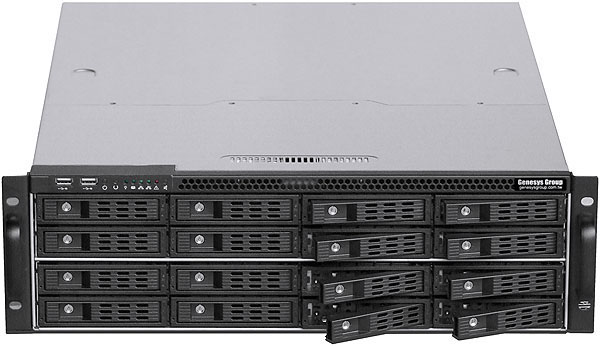

S316B-ATX 3U HOTSWAP SYMMETRICAL SERVER CHASSIS
1U 2U 3U 4U front/rear symmetrical compartment patent & copyright officially announced on August 20, 2013 in Taiwan, China, Thailand, Korea, Japan, USA, England, EU, Russia, India. Official Taiwan patent# M468864 & China patent# 3434937.

Product announcement & 1st production dated on April 08, 2016, webpage updated on December 06, 2023



The ATX and MicroATX and Mini-ITX with multi-core processor platform have already the trend nowadays, the most prominent feature of S316B-ATX is the short depth at 583.3mm only, and also compatible with 16 sets of 3.5" hotswap drives as well as 2 sets of 2.5" internal hard drive space, excellent matching and application of RAID controller card installed to comply with this storage server in the cloud environment. A large number and variety of choice of hard disk access space, front and rear symmetrical bodies patented design can also enhance the system integration flexibility and overall strength, also the whole bodies do not skew or distort to achieve robust and ensure the security and stability of the system. Cooling by several 2-ball bearing fans as standard and effective cooling system, combines the advantages of multi-functional and competitive price, welcome worldwide distribution.







               stainless tray  stainless 3.5" HDD tray



S316B-ATX



S316B-eATX (stay tune)

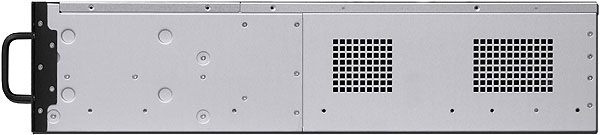

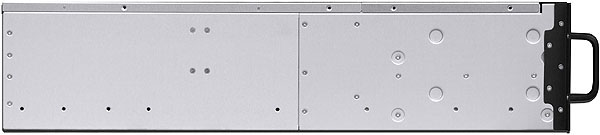

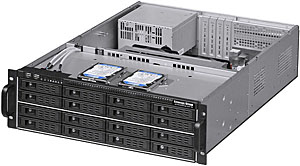

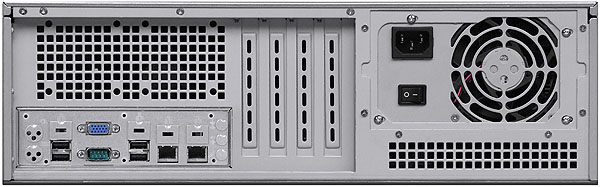

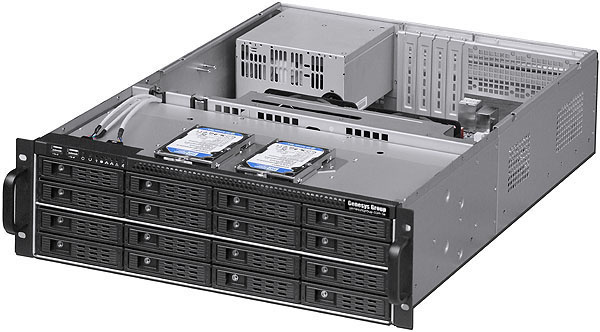

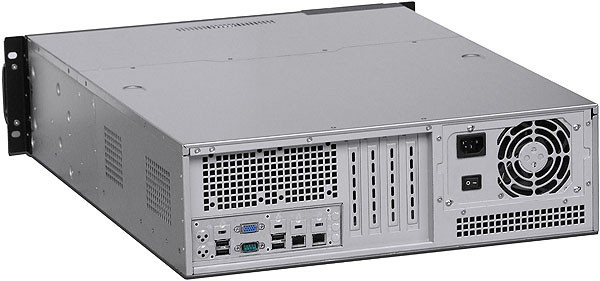

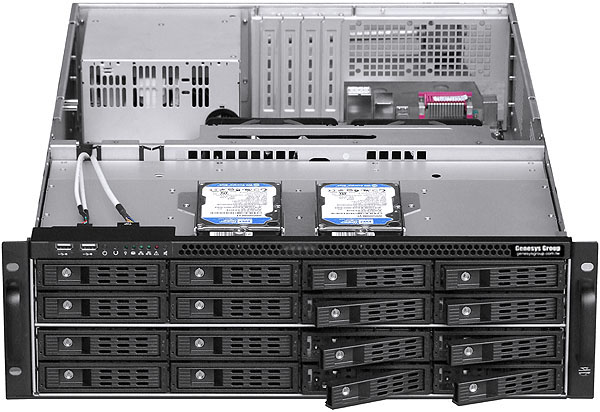

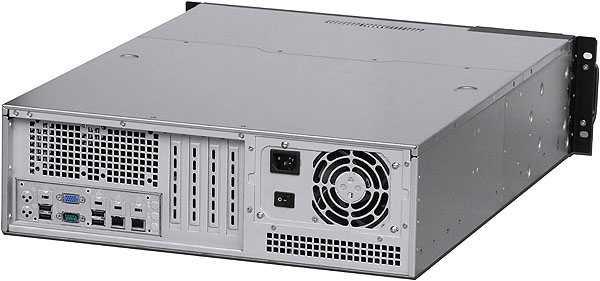

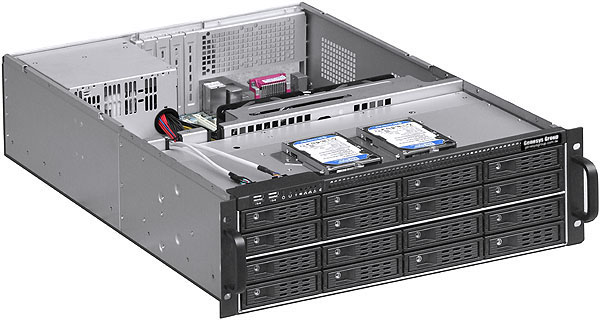

* Two internal 2.5" HDD bay:

   7mm~9.5mm height of 2.5" EasySwap HDD/SSD compatible

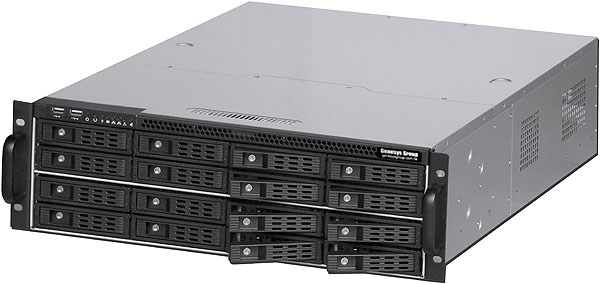

* 16 hotswap 3.5" HDD bay (2.5" SSD also installable in 3.5" HDD space):

   SATA1/2/3 & SAS1/2 HDD 6Gbps, max. height at 26.1mm (RAID card required)

   or SATA3.2/3.3 & SAS3 HDD 12Gbps, max. height at 26.1mm (RAID card required)

* Left LED of tray: Green power LED

* Right LED of tray: Blue access LED (solid Red light if HDD temp over 60-degree C)

* Stainless & Hair surface proceeded mobile rack structure with security keylock

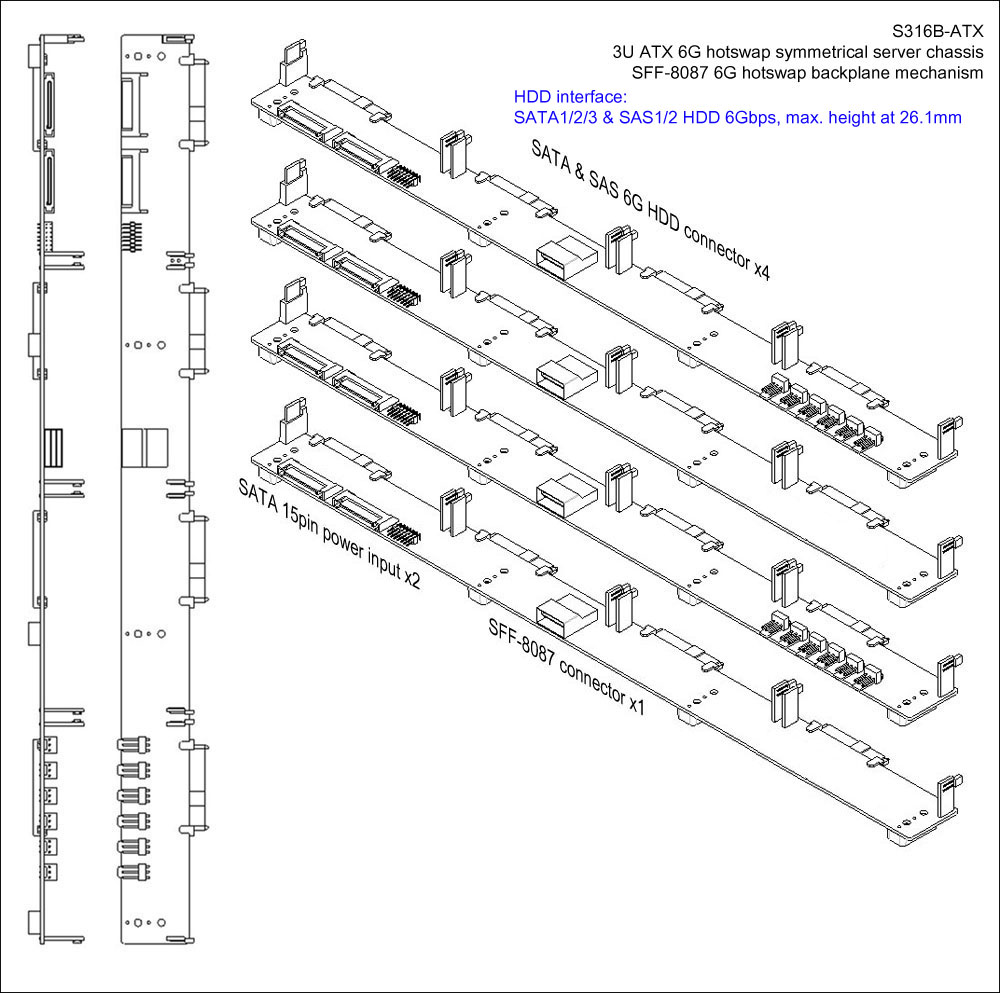

* 4 Hotswap 6G SFF-8087 backplanes: 1 to 4 MiniSAS connector (S316B-ATX)

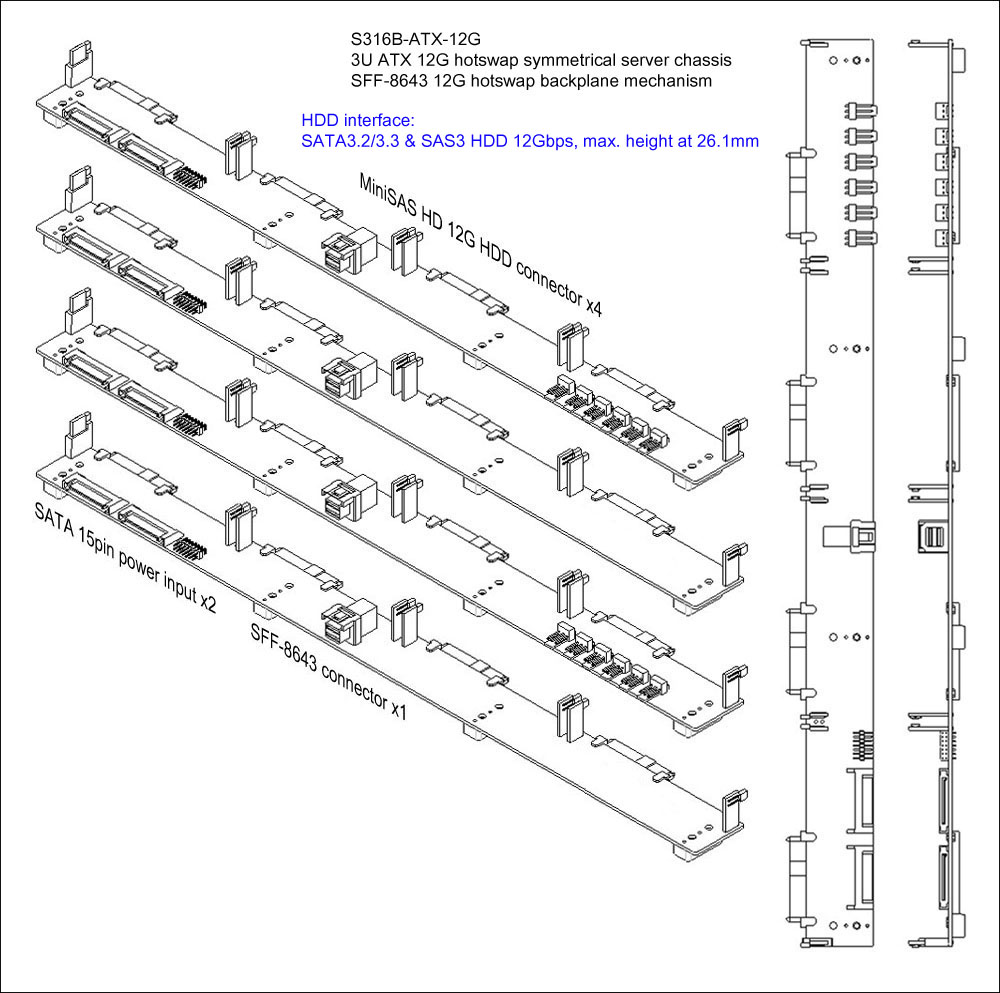

* 4 Hotswap 12G SFF-8643 backplanes: 1 to 4 MiniSAS HD connector (S316B-ATX-12G)

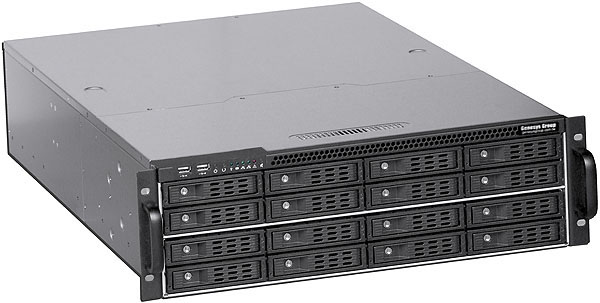

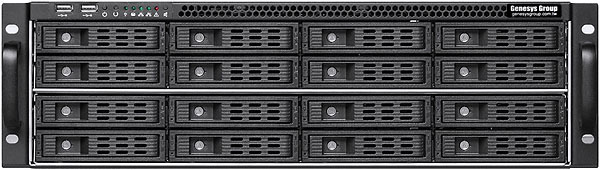

* Front bezel equipped with two USB 2.0 ports

* Equipped with heavy duty durable aluminum die-casting handles

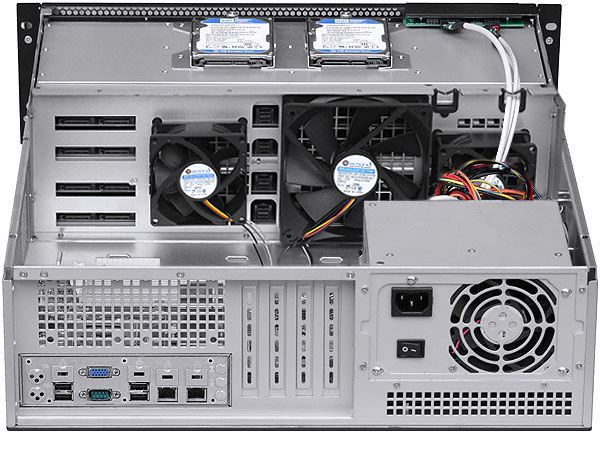

* One SunTai 12025 & two SunTai 8025 2ball bearing EasySwap fans against HDD

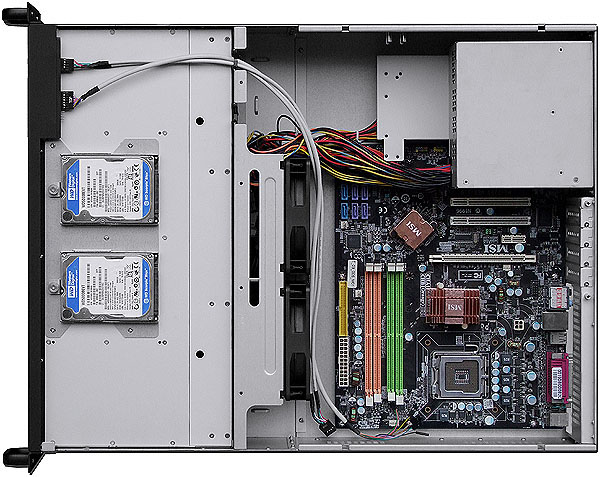

* MB: CEB (12"×10.5"), ATX(12"x9.6"), MicroATX(9.6"x9.6"), Mini-ITX(6.7"x6.7")

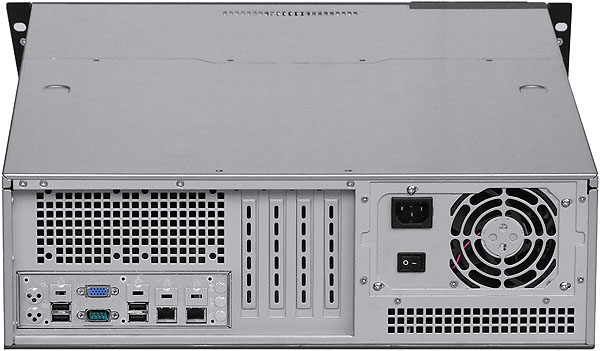

* 8cm or 12cm~14cm fan version standard PS2 PSU compatible (max. depth 280mm)

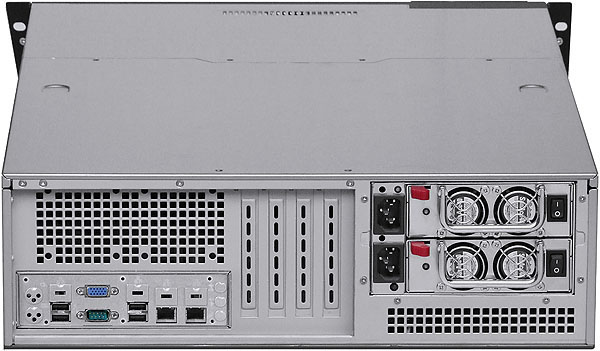

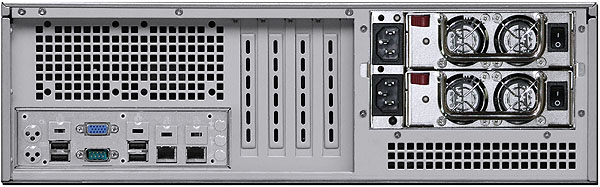

* Support SureStar R4S series 400W~500W PS2 Mini Redundant PS (depth 174mm)
* Support Zippy MRT & MRW series 300W~600W PS2 Mini Redundant PS (depth 185mm)
* Support SureStar R4B series 600W~800W PS2 Mini Redundant PS (depth 199mm)
* Support Zippy MRG series 500W~800W PS2 Mini Redundant PS (depth 200mm)

* Support 4 slot full height expansion cards at max. 270mm deep
* Major sheet metal by SGCC 1.2mm~2.0mm thickness with no burr & sharp corner

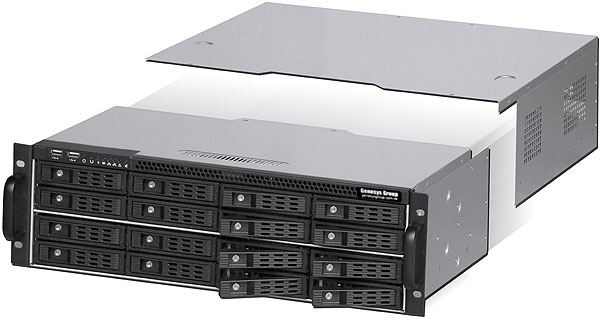

* Patented front/rear symmetrical body design makes system flexibility & durable
* Standard paint: scratch-resistant black textured at front
* Genesys Group chassis with build-in electronics in global 3 years warranty
* Chassis dimension: 19" x 3U x 583.3mm (22.96" deep)

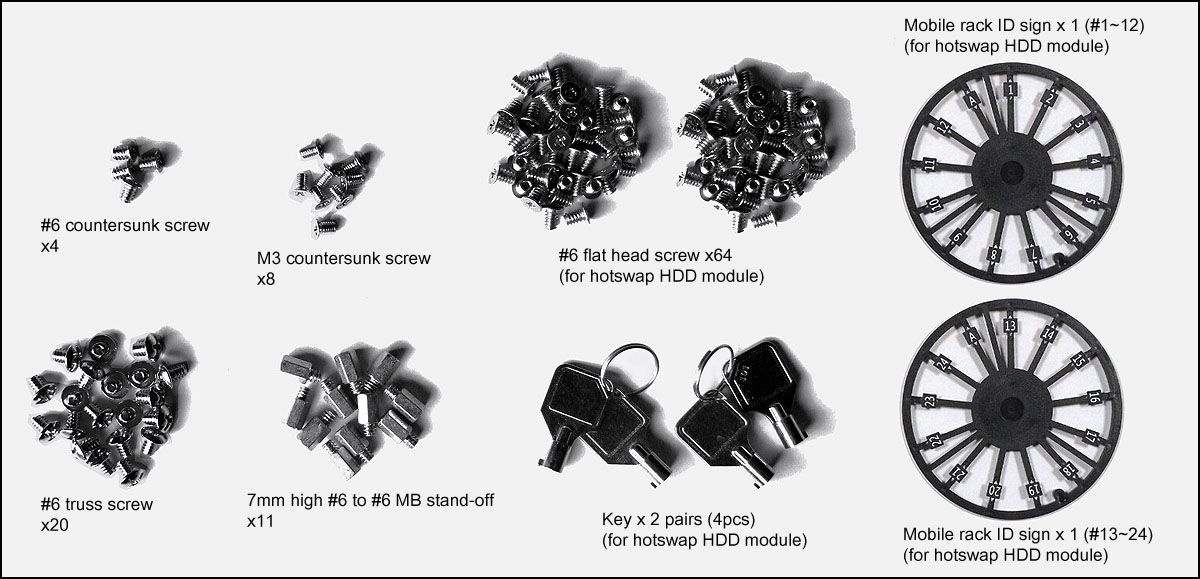

* Accessory: Key x4, MB stand-off x11, #6 truss screw x20, #6 countersunk screw x4,

   M3 countersunk screw x8, hotswap mobile rack module's ID sign & parts x1 set

* Package: NW 13 KGM, GW 16 KGM, 4.59 CUFT (27x77x62.5cm, double cartons)

* Note: Most full height GPU cards with power input on top side will not fit with 3U

Model#

:

S316B-ATX

3U ATX 6G hotswap symmetrical server chassis (6G version)

Model#

:

S316B-ATX-12G

3U ATX 12G hotswap symmetrical server chassis (12G version)

Option A-1

:

PS2 PSU

8cm & 12cm & 14cm fan version PS2 power supply (depth at 140mm~280mm)

Option A-2

:

PS2 RPS

SureStar R4S series 400W/500W PS2 Mini Redundant PS (depth at 174mm)

Option A-3

:

PS2 RPS

Zippy MRT & MRW series 300W~600W PS2 Mini Redundant power supply (depth at 185mm)

Option A-4

:

PS2 RPS

SureStar R4B series 600W/700W/800W PS2 Mini Redundant PS (depth at 199mm)

Option A-5

:

PS2 RPS

Zippy MRG series 500W~800W PS2 Mini Redundant power supply (depth at 200mm)

Option B-1

:

NJ-S632

632mm 3-travel slimline slide rail (compatible rack external depth 700~1000mm)

Option B-2

:

SRMK-550

550mm Slimline rear mounting kit (part# is 1 pair)

Option C

:

SunTai6025

Exhaust 60mmx25mm fan installed above I/O (part# is 1pcs, can install 2pcs at rear panel)

Option D-1

:

4SATA-1MSAS-500MM

Four SATA (Host) to SFF-8087 Mini-SAS (Device) cable

Option D-2

:

1MSAS-1MSAS-500MM

SFF-8087 Mini-SAS (Host) to SFF-8087 Mini-SAS (Device) cable

Option D-3

:

SFF-8643-500MM

SFF-8643 Mini-SAS HD (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option D-4

:

4SATA-SFF-8643-500MM

Four SATA (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option E-1

:

2U2011A-8080

2U Intel LGA2011 LGA2066 active CPU cooler Square (2U 3U 4U chassis compatible)

Option E-2

:

2U2011A-5694

2U Intel LGA2011 active CPU cooler Narrow (2U 3U 4U chassis compatible)

Option E-3

:

2U115XA

2U Intel LGA115x Xeon 1230 active CPU cooler (2U 3U 4U chassis compatible)

Option E-4

:

2U4094A-SP3

2U AMD EPYC LGA4094 active CPU cooler SP3 (2U 3U 4U chassis compatible)

Option E-5

:

2U1331A-AM4

2U AMD LGA1331 active CPU cooler AM4 (2U 3U 4U chassis compatible)

Option E-6

:

2U3647A-S82

2U Intel LGA3647 active CPU cooler Square (2U 3U 4U chassis compatible)

Option E-7

:

2U3647A-R82-1

2U Intel LGA3647 active CPU cooler Narrow (2U 3U 4U chassis compatible)

Option E-8

:

2U4189A-M82

2U Intel LGA4189 active CPU cooler (2U 3U 4U chassis compatible)

Option E-9

:

2U1700A-V15

2U Intel LGA1700 active CPU cooler (2U 3U 4U chassis compatible)

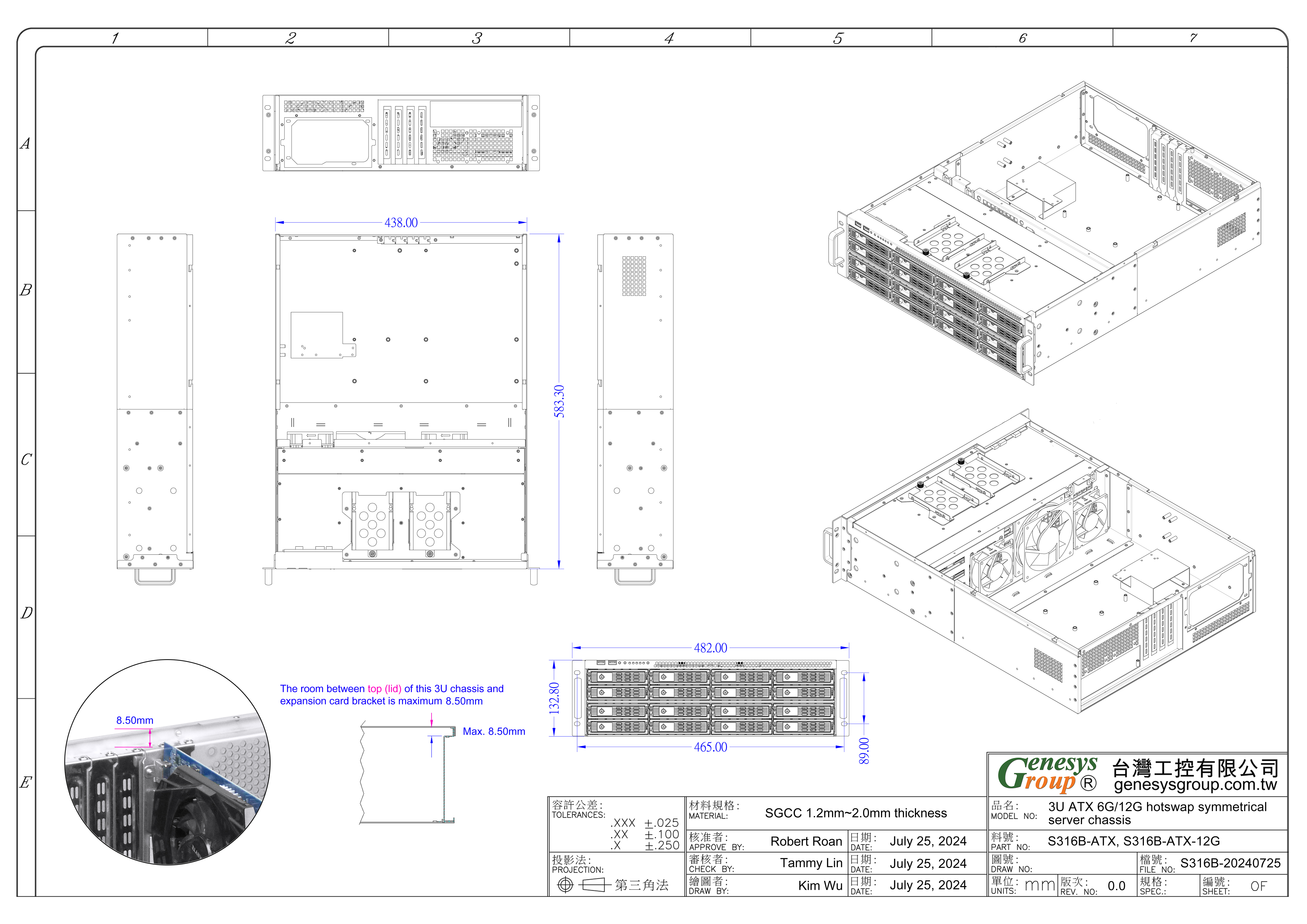

Catalogue       Dimension Drawing in PDF          Dimension Drawing in JPG
