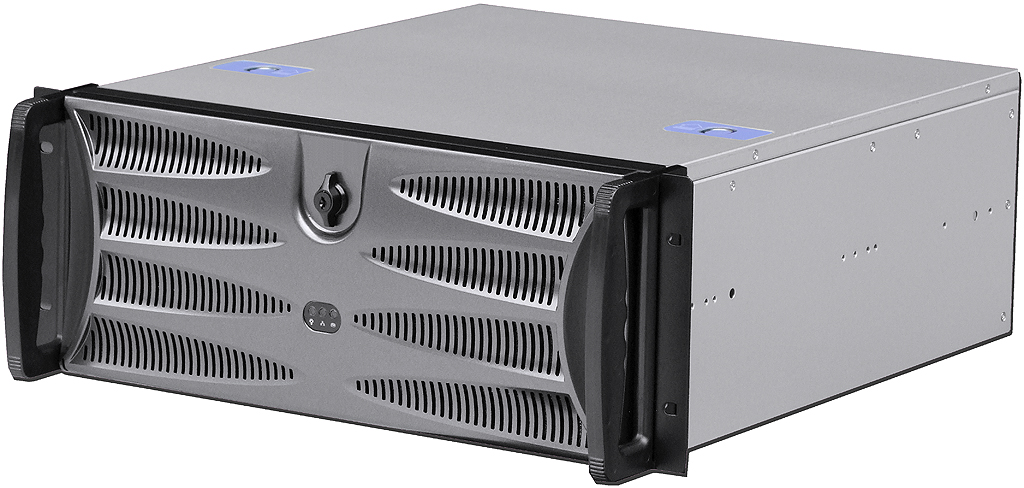

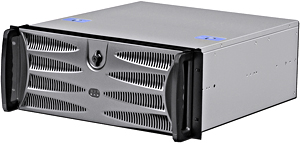

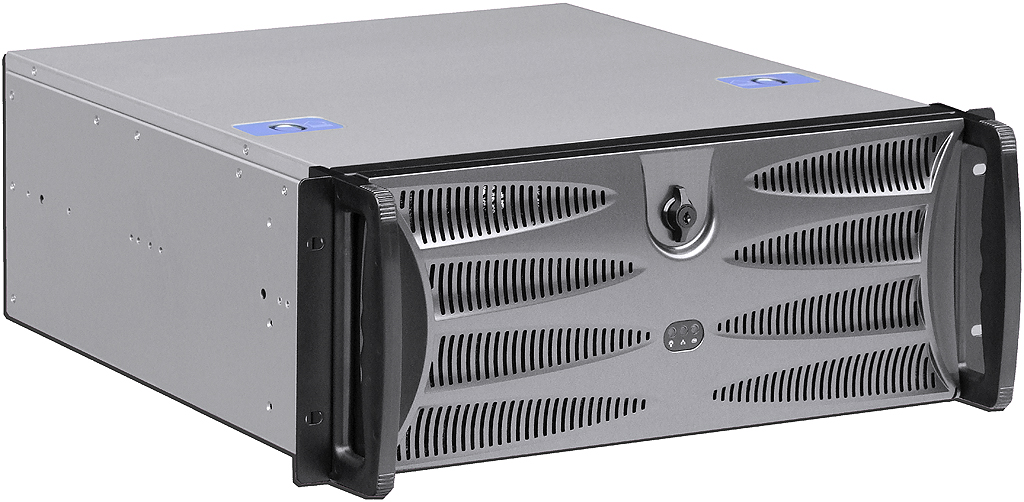

E450B 4U BLACK ENTERPRISE SERVER CHASSIS
Design and 1st production and shipment launched on April 27, 2012, webpage updated on June 03, 2021



The features of E450B are, the unique stylish front door and good cooling as well as the dust proof design, its hand tool free top cover with screwless design reduces time for system integration and maintenance. It uses SGCC 1.2mm thickness of sheet metal that the edges or the other parts of section designed with no-burrs protection keeping away from hurting hands. The security front door can be also ensured the data will not be leaked by inappropriate access such as DVD burn in or removable USB drive. Additionally, it can be installed with not only regular 12"x9.6"ATX motherboard but also 12"x13" eATX serverboard within 450mm depth of chassis, welcome worldwide distribution.











Genesys Group 4U E450B showed up in the movie Black & White Episode 2



* Drive Space: 3 x 5.25" ODD & 7 x 3.5" HDD (max. 7 HDD allowed if ATX MB installed)
* Drive bay equipped with anti-vibration function
, extend storage appliance life

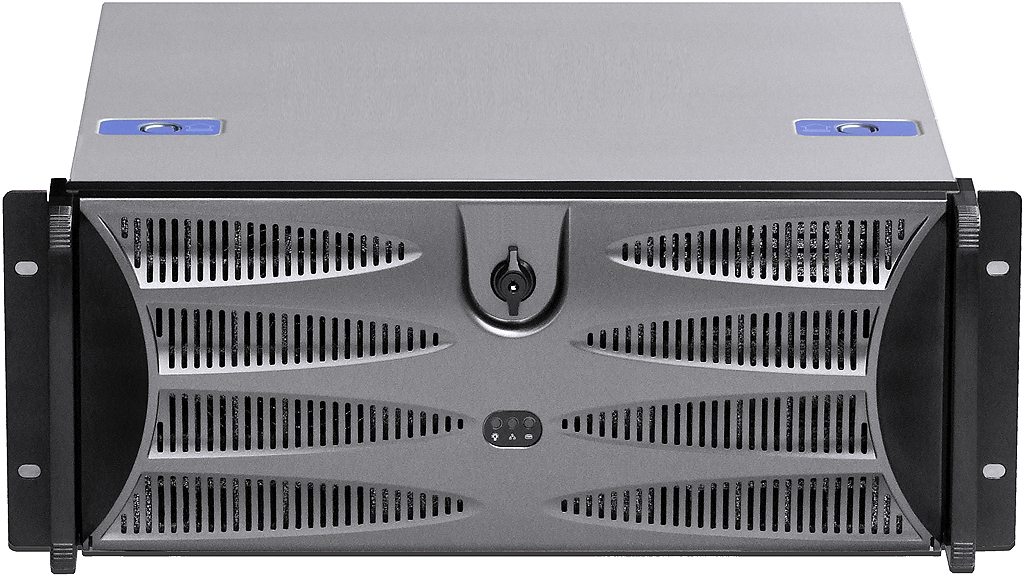

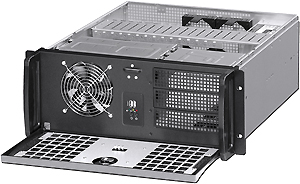

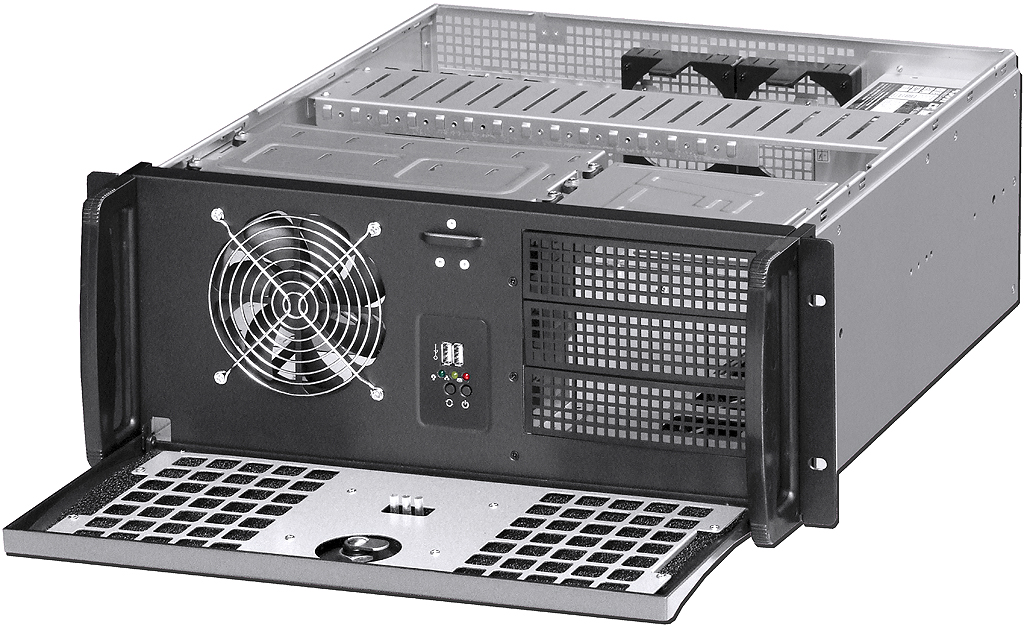

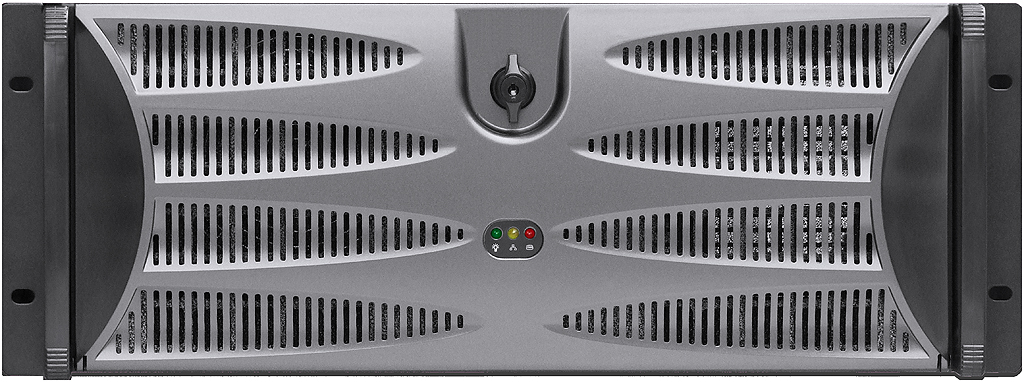

* Front butterfly keylock security door with removable dustproof filter
* With hand tool free screwless top cover (
fixed by screws is also compatible)
* Two USB 2.0 ports and LAN/HDD/Power LED at front bezel (two USB 3.0 as option)

* Standard with one brand new 120mmx25mm intake fan at front (fan part# D12SM-12)

* Build-in plug-in card holder with 6 short-medium-long card clamp (up and down)
* Build-in two ABS screwless 80mmx25mm fan brackets at rear panel (fans are option)

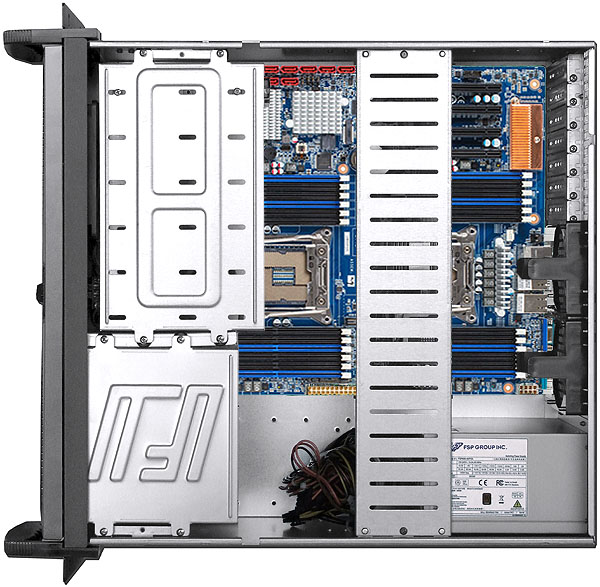

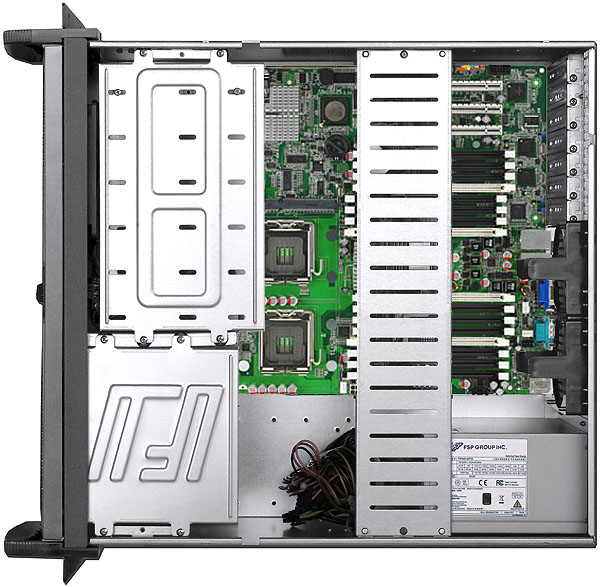

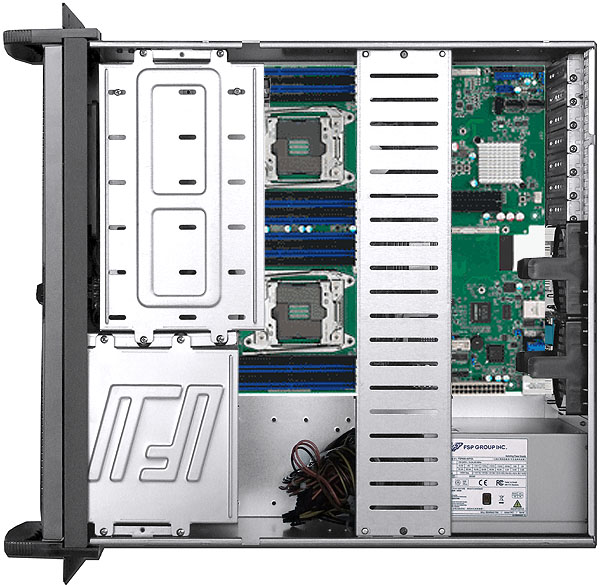

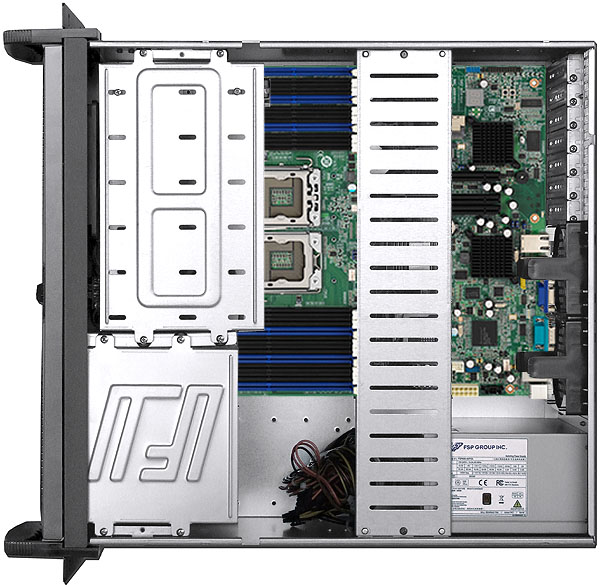

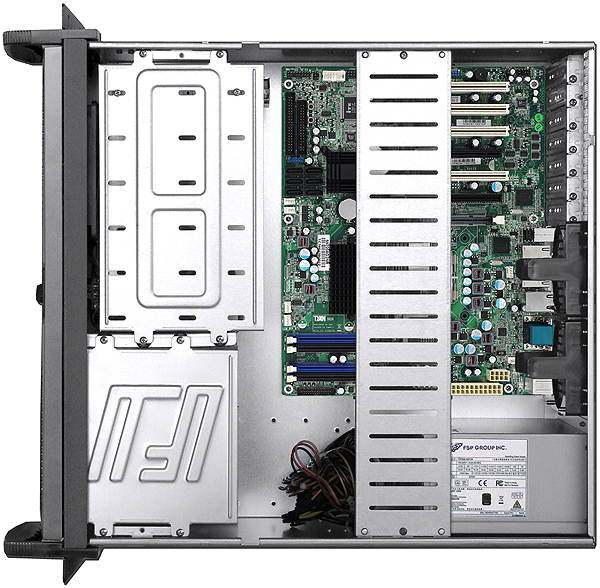

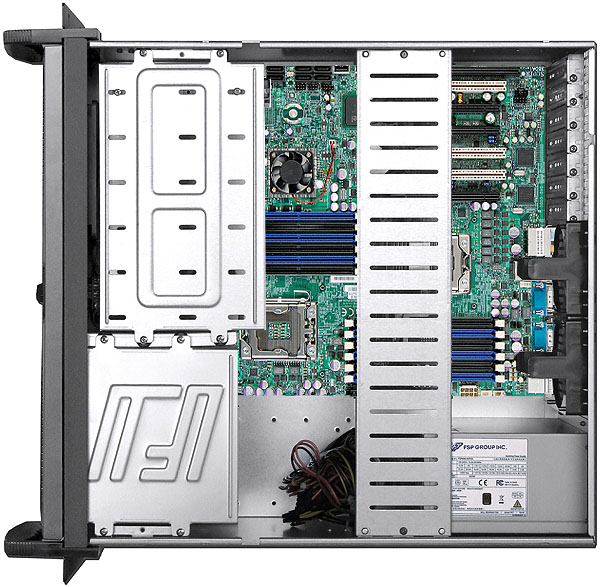

* MB: eATX EEB3.61(12"×13"), ATX(12"x9.6"), MicroATX(9.6"x9.6"), Mini-ITX(6.7"x6.7")

* 8cm or 12cm~14cm fan version standard PS2 PSU compatible (depth at 140~260mm)

* Support SureStar R4S series 400W~500W PS2 Mini Redundant PS (depth 174mm)
* Support Zippy MRT & MRW series 300W~600W PS2 Mini Redundant PS (depth 185mm)
* Support SureStar R4B series 600W~800W PS2 Mini Redundant PS (depth 199mm)
* Support Zippy MRG series 500W~800W PS2 Mini Redundant PS (depth 200mm)

* Support 7 slot full height expansion cards (max. 240mm deep if HDD installed at front)

* Support 7 slot full height expansion cards (max. 320mm deep if no HDD installed at front)

* Standard paint: scratch-resistant Black textured at front

* Genesys Group branded server chassis in global 3 years warranty
* Chassis dimension: 19" x 4U x 450mm (17.71" deep)

* Accessory: MB stand-off x12, #6 round screw x40, , M3 truss screw x8, key x2
* Package: NW 10KGM, GW 12 KGM, 3.19 CUFT (carton size at 62x56x26cm
)

Model#

:

E450B

4U black enterprise server chassis

Option A-1

:

PS2 PSU

8cm & 12cm & 14cm fan version PS2 power supply (depth at 140mm~260mm)

Option A-2

:

PS2 RPS

SureStar R4S series 400W/500W PS2 Mini Redundant PS (depth at 174mm)

Option A-3

:

PS2 RPS

Zippy MRT & MRW series 300W~600W PS2 Mini Redundant power supply (depth at 185mm)

Option A-4

:

PS2 RPS

SureStar R4B series 600W/700W/800W PS2 Mini Redundant PS (depth at 199mm)

Option A-5

:

PS2 RPS

Zippy MRG series 500W~800W PS2 Mini Redundant power supply (depth at 200mm)

Option B-1

:

NJ-600

600mm 2-layer 3-travel universal rail (cabinet internal depth 600~1200mm compliant)

Option B-2

:

1234U-RMK

1234U rear mounting kit

Option C

:

D80SM-12

YateLoon 80mmx25mm exhaust fan at small 3pin x 500mm (part# is 1pcs, can install 2pcs at rear)

Option D

:

25-35-BK

1x5.25" to 1x3.5" HDD or 1x3.5" to two 2.5" SSD bracket

Option E-1

:

2525TO3HDBK

2x5.25" to 3x3.5" bracket

Option E-2

:

3525TO5HDBK

3x5.25" to 5x3.5" bracket

Option E-3

:

RW135-12G

1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 12G

Option E-4

:

RW135

1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 6G

Option E-5

:

TL135-12G

1x5.25" to 1x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option E-6

:

TL135

1x5.25" to 1x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option E-7

:

RW225-12G

1x5.25" to 2x2.5" HotSwap Cage SATA/SAS 12G

Option E-8

:

RW625-12G

1x5.25" to 6x2.5" HotSwap Cage SATA/SAS 12G

Option E-9

:

RW825-1525

1x5.25" to 8x2.5" HotSwap Cage SATA/SAS 6G

Option E-10

:

RW425-NVMe

1x5.25" to 4x2.5" SSD Removable Cage U.2 NVMe 32G

Option E-11

:

RW425-12G-MS

1x5.25" to 4x2.5" HotSwap Cage SFF-8643 12G

Option E-12

:

RW425-12G

1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 12G

Option E-13

:

RW425

1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 6G

Option E-14

:

RW825

2x5.25" to 8x2.5" HotSwap Cage SATA/SAS 6G

Option E-15

:

RW335-12G

2x5.25" to 3x3.5" HotSwap Cage SATA/SAS 12G

Option E-16

:

RW335

2x5.25" to 3x3.5" HotSwap Cage SATA/SAS 6G

Option E-17

:

TL335-12G

2x5.25" to 3x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option E-18

:

TL335

2x5.25" to 3x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option E-19

:

RW1225

3x5.25" to 12x2.5" HotSwap Cage SATA/SAS 6G

Option E-20

:

RW435-12G-MS

3x5.25" to 4x3.5" HotSwap Cage SFF-8643 12G

Option E-21

:

RW435-12G

3x5.25" to 4x3.5" HotSwap Cage SATA/SAS 12G

Option E-22

:

RW435

3x5.25" to 4x3.5" HotSwap Cage SATA/SAS 6G

Option E-23

:

TL435-12G-MS

3x5.25" to 4x3.5" TrayLess HotSwap Cage SFF-8643 12G

Option E-24

:

TL435-12G

3x5.25" to 4x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option E-25

:

TL435

3x5.25" to 4x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option E-26

:

RW535-12G

3x5.25" to 5x3.5" HotSwap Cage SATA/SAS 12G

Option E-27

:

RW535

3x5.25" to 5x3.5" HotSwap Cage SATA/SAS 6G

Option E-28

:

TL535-12G

3x5.25" to 5x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option E-29

:

TL535

3x5.25" to 5x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option F-1

:

1MSAS-4SATA-500MM

SFF-8087 Mini-SAS (Host) to Four SATA (Device) cable

Option F-2

:

SFF-8643-500MM

SFF-8643 Mini-SAS HD (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option F-3

:

4SATA-SFF-8643-500MM

Four SATA (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option F-4

:

SFF-8643-4SATA-500MM

SFF-8643 Mini-SAS HD (Host) to Four SATA (Device) cable

Option G-1

:

2U2011A-8080

2U Intel LGA2011 LGA2066 active CPU cooler Square (2U 3U 4U chassis compatible)

Option G-2

:

2U2011A-5694

2U Intel LGA2011 active CPU cooler Narrow (2U 3U 4U chassis compatible)

Option G-3

:

2U115XA

2U Intel LGA115x Xeon 1230 active CPU cooler (2U 3U 4U chassis compatible)

Option G-4

:

2U4094A-SP3

2U AMD EPYC LGA4094 active CPU cooler SP3 (2U 3U 4U chassis compatible)

Option G-5

:

2U1331A-AM4

2U AMD LGA1331 active CPU cooler AM4 (2U 3U 4U chassis compatible)

Option G-6

:

2U3647A-S82

2U Intel LGA3647 active CPU cooler Square (2U 3U 4U chassis compatible)

Option G-7

:

2U3647A-R82-1

2U Intel LGA3647 active CPU cooler Narrow (2U 3U 4U chassis compatible)

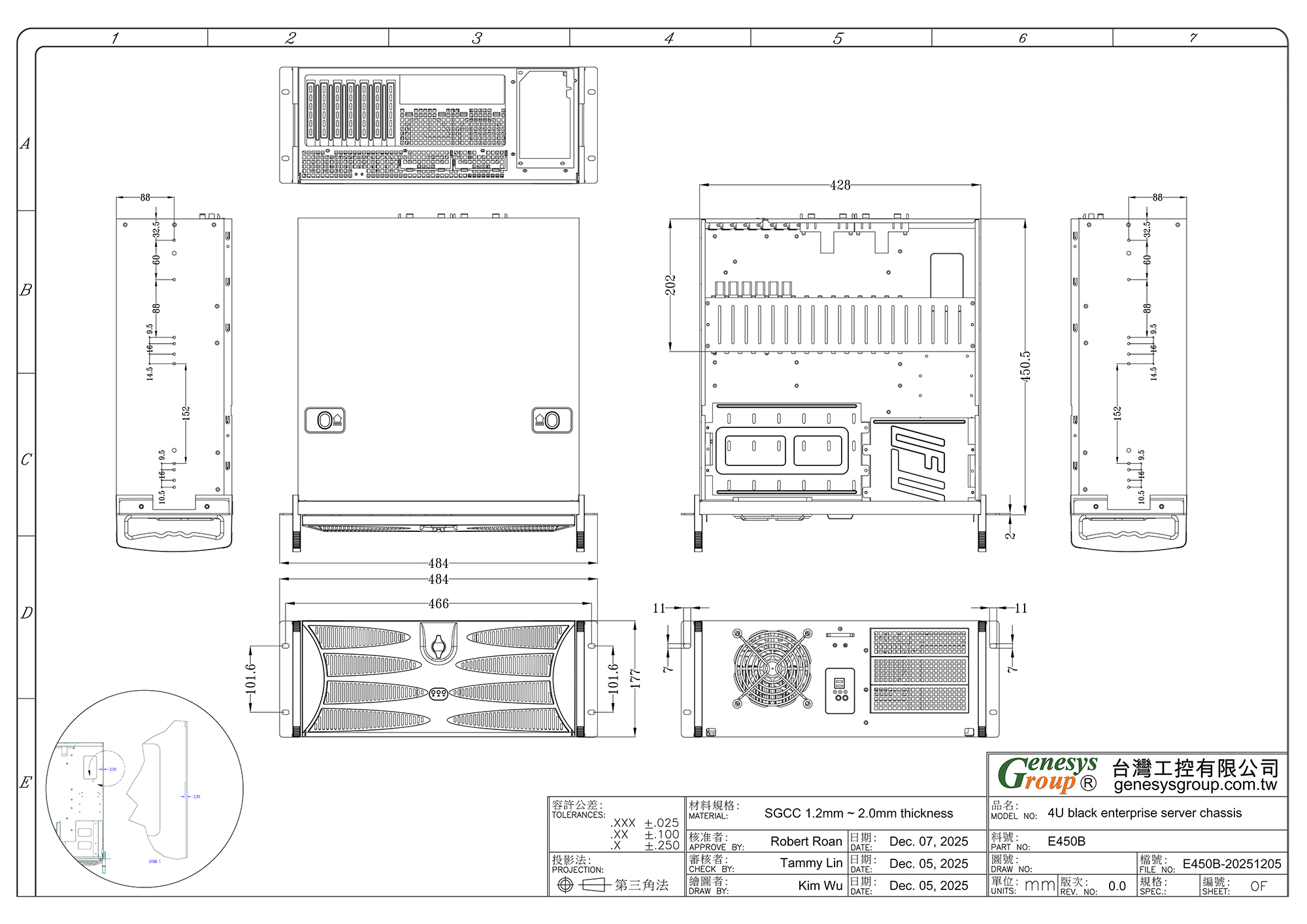

  Catalogue        Dimension Drawing        Chassis Quick Assembly Manual
