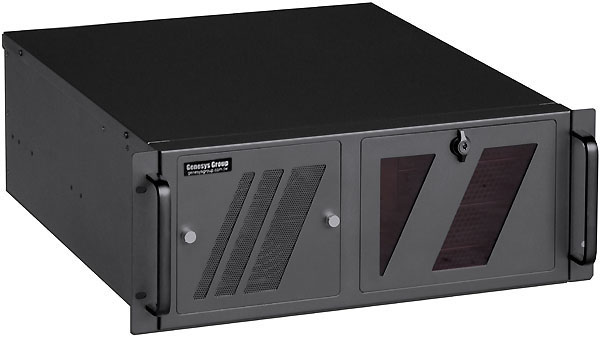

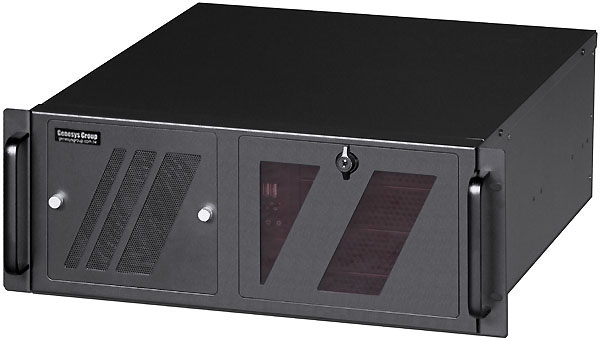

C480A 4U BLACK ATX RACKMOUNT SERVER CHASSIS

Product announcement & 1st production dated on May 18, 2015, webpage updated on September 17, 2020



C480A is designed and made by precise tooling as the newest and rugged 4U chassis product, it features the main construction build by 1.2mm~2.0mm sheet metal thickness, and ensures the production process made no cutting corners as well as the burrs, the handles are also made of high-strength aluminum alloy die-casting, the whole overall body strength by the durable mechanism and all electronic components including fans also supported with global quality guarantee at least for 3 years. The front 12cm dust filtering shield with the quick assembly by captive hand screw design, and quick system maintenance without opening the front door. The storage devices up to a maximum of 3 x 5.25" and 9 x 3.5" HDD space all equipped with vibration reduction device which can effectively extend the life of data storage system, also the internal compartment inside of the chassis can be mounted maximum 12" x 10.5" dual CPU motherboard, and allow the expansion cards' hold-down clamps to be height adjustable and forward or backward position adjustable in order to ensure the stability during the travel of transportation. Power supplies also support PS2 or a variety of PS2 Mini-Redundant power supply to be accurate perfect mounting of the front and the rear side as well. Prices also have great competitiveness, call or send inquires at any time and welcome global distribution.











* 12 Drives Capacity:

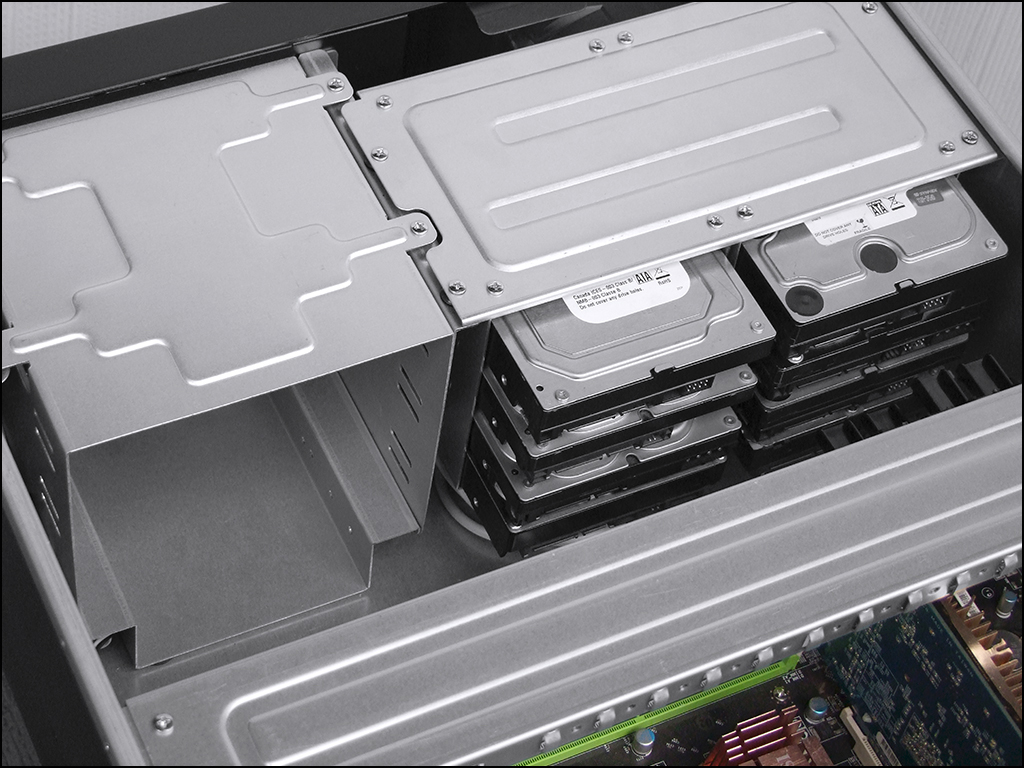

   3 x 5.25" ODD & 9 x 3.5" HDD bay horizontally installable (one of 3.5" allows FDD)

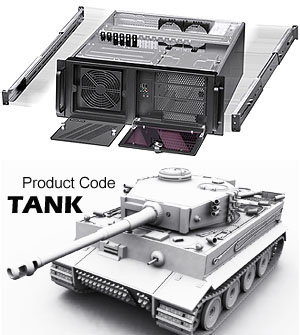

* The main sheet metal constructed by 1.2mm~2.0mm SGCC mechanism
* High strength aluminum alloy die casting handles ensure stability during rackmounting

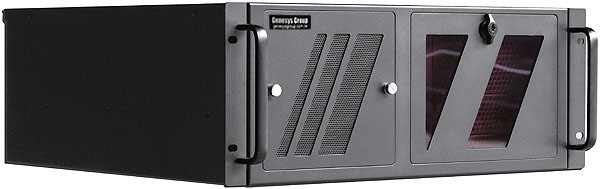

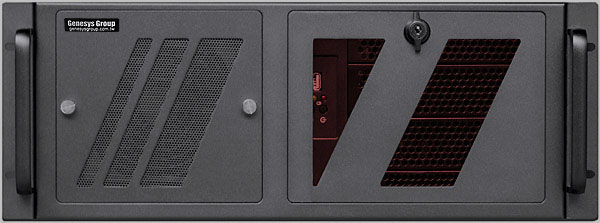

* Equipped with aluminum alloy butterfly keylock & advanced door with acrylic window

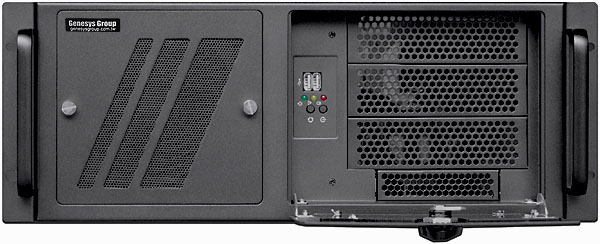

* Two USB 2.0 ports and LAN/HDD/Power LED at front bezel (two USB 3.0 as option)

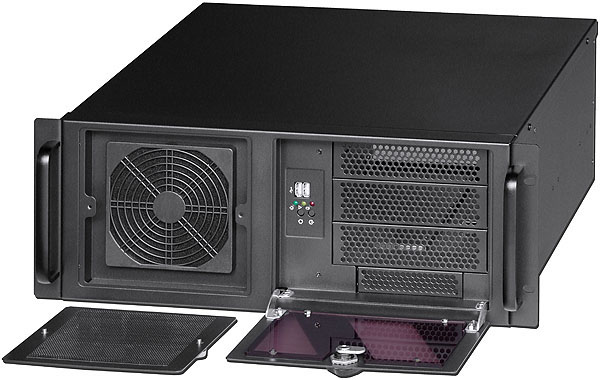

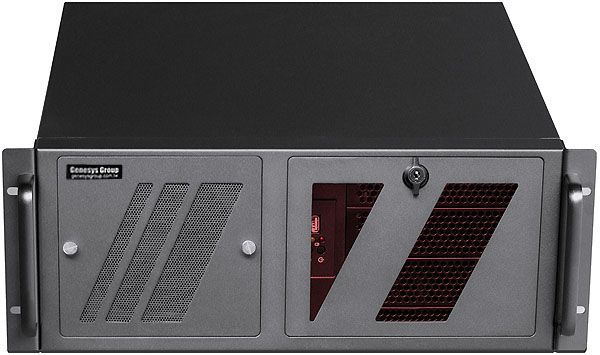

* Front 12cm dust filter with captive hand screws without opening the front door
* One 120mm x 25mm cooling fan behind the dust filter (fan part# D12SM-12)

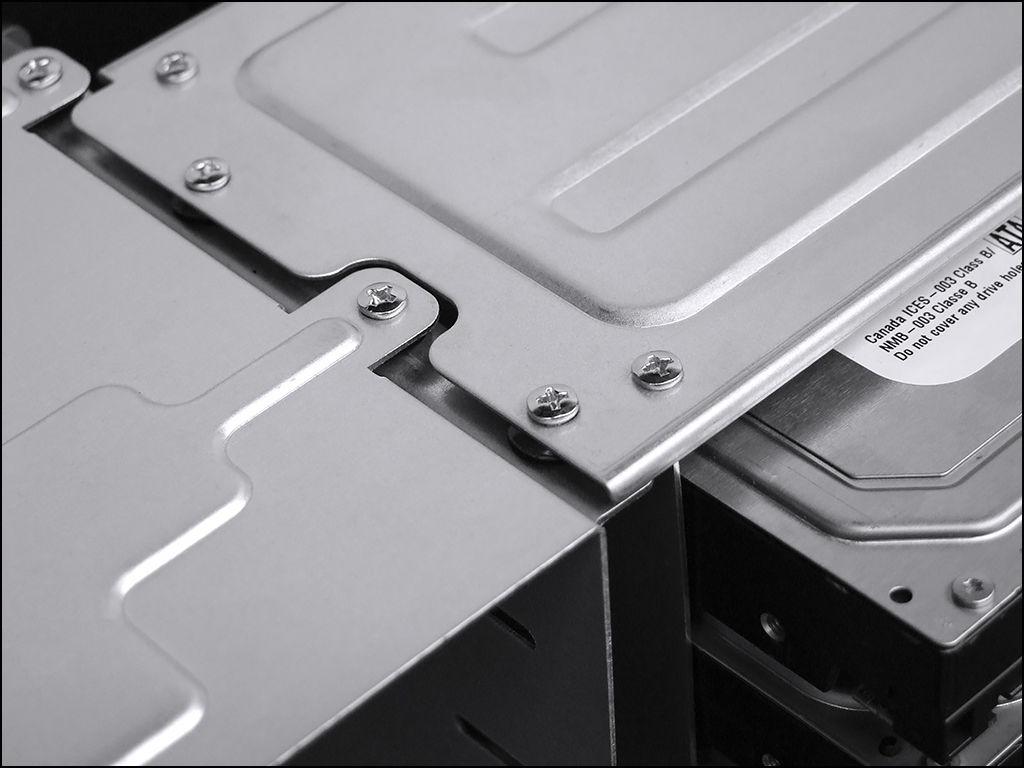

* Equipped with vibration reduction for all HDD and ODD, extend storage appliance life

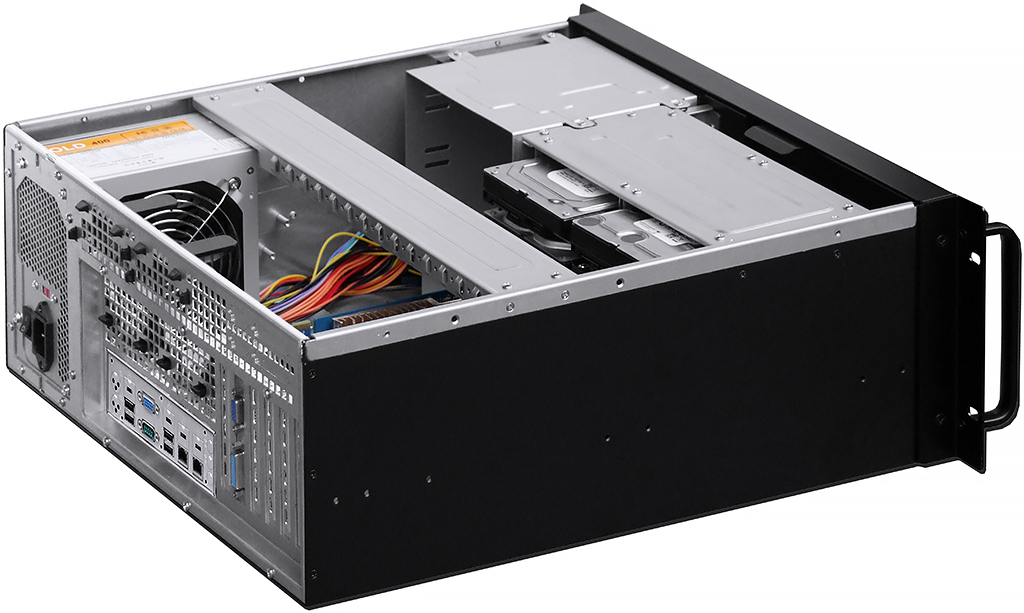

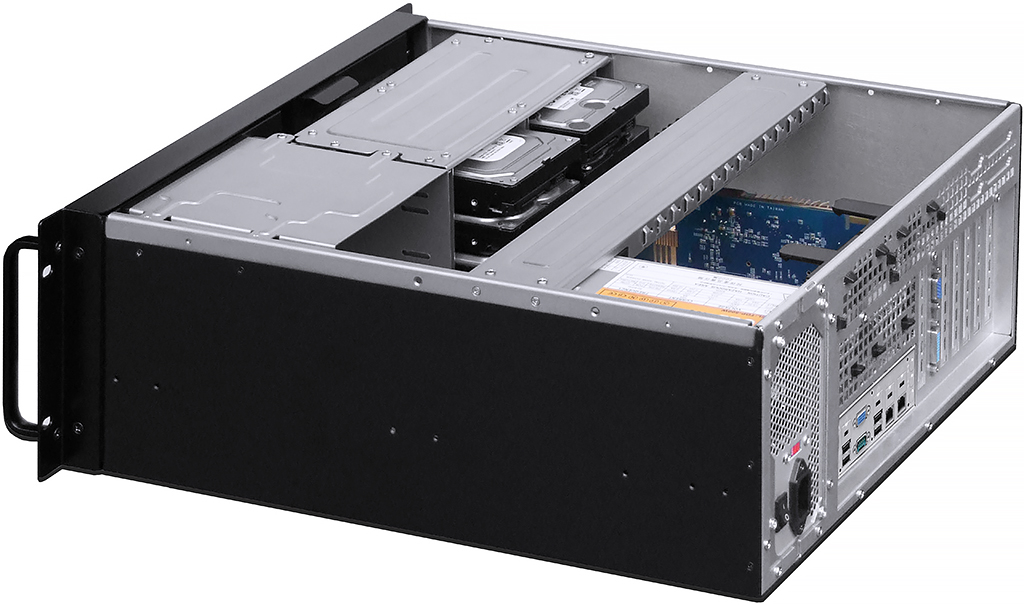

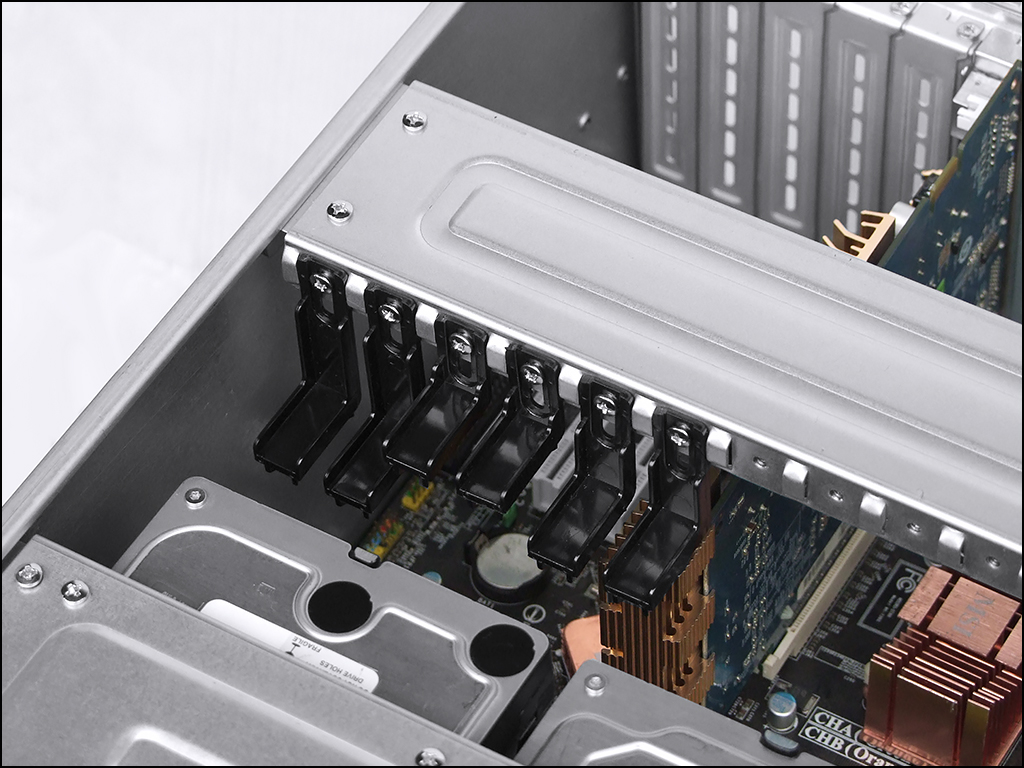

* Forward & backward adjustable hold-down card clamp with 6 height adjustable clamps

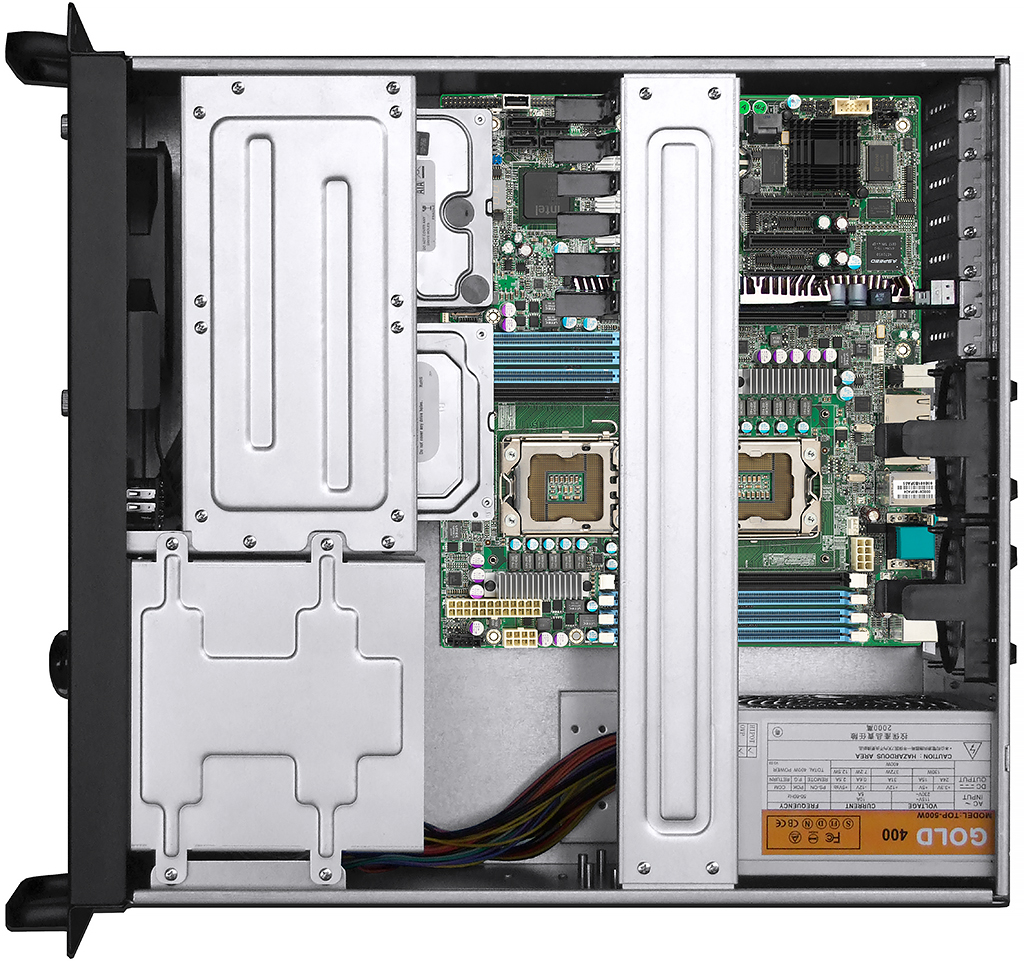

* MB: CEB (12"×10.5"), ATX(12"x9.6"), MicroATX(9.6"x9.6"), Mini-ITX(6.7"x6.7")
* 7-slot full height expansion cards up to max. 230mm deep (if HDD installed)
* 7-slot full height expansion cards up to max. 282mm deep (if no HDD installed)

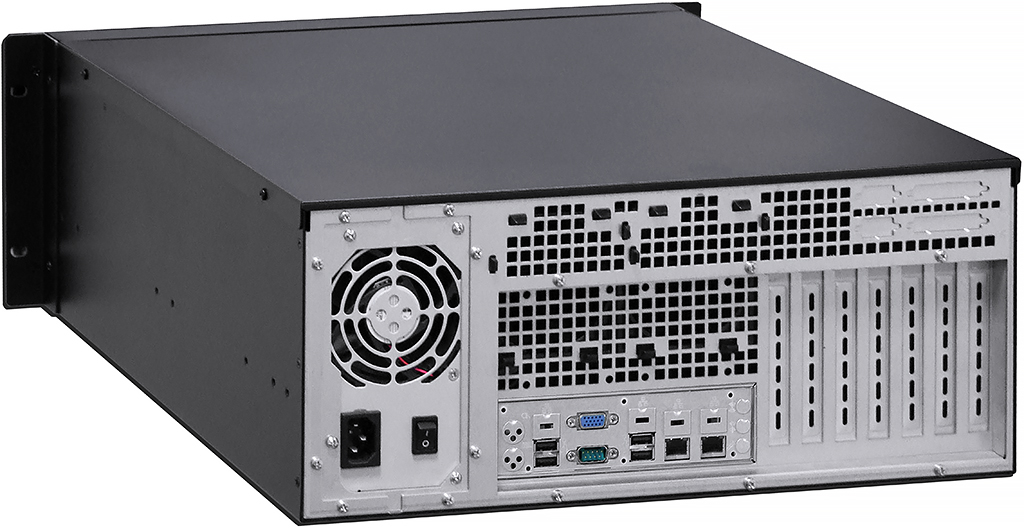

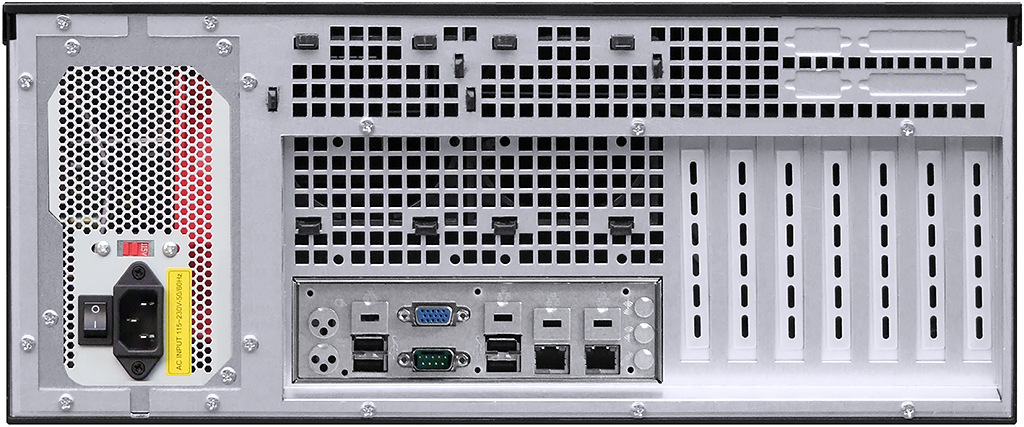

* Build-in two ABS screwless 80mmx25mm fan brackets at rear panel (fans are option)

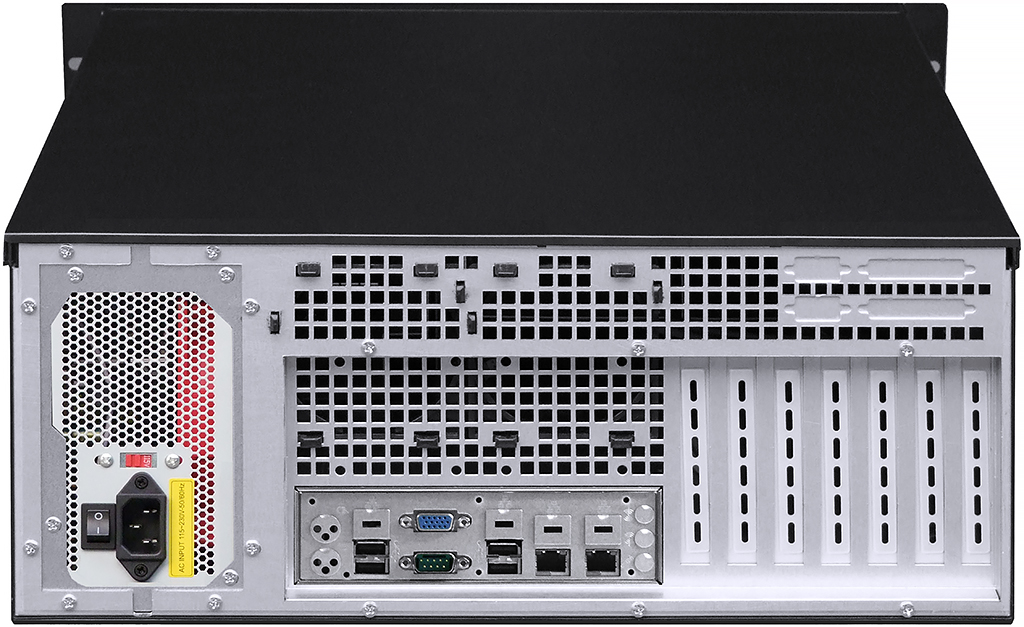

* Support 8cm or 12cm~14cm fan version standard PS2 PSU max. 220mm compatible

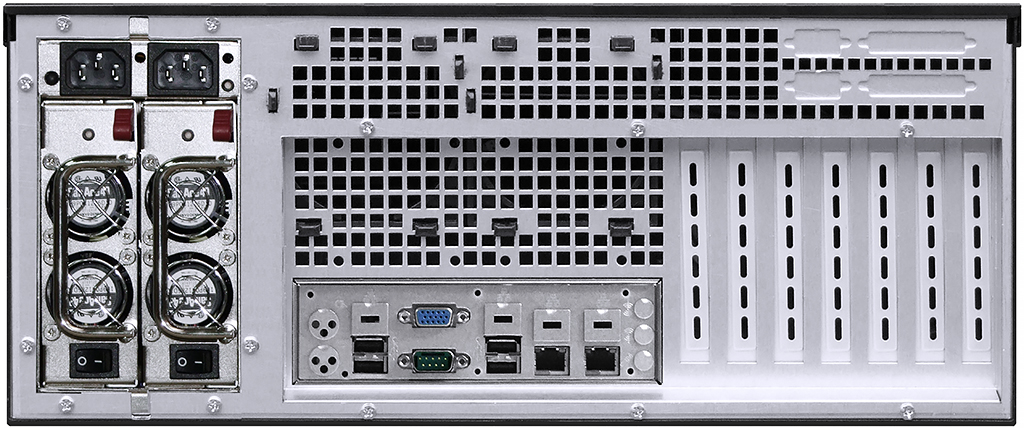

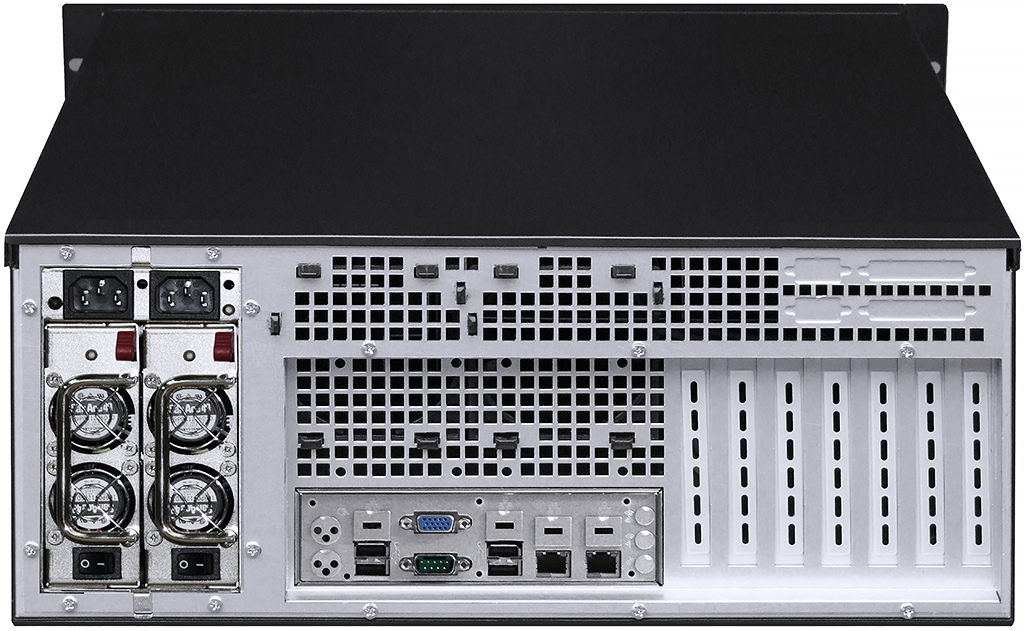

* Support SureStar R4S series 400W~500W PS2 Mini Redundant PS (depth 174mm)
* Support Zippy MRT & MRW series 300W~600W PS2 Mini Redundant PS (depth 185mm)
* Support SureStar R4B series 600W~800W PS2 Mini Redundant PS (depth 199mm)
* Support Zippy MRG series 500W~800W PS2 Mini Redundant PS (depth 200mm)

* Standard paint: scratch-resistant Black textured or scratch-resistant Beige RAL 9018
* Genesys Group branded server chassis model (with build-in fans) global 3 years warranty
* Chassis dimension: 19" x 4U x 480mm (18.89" deep)

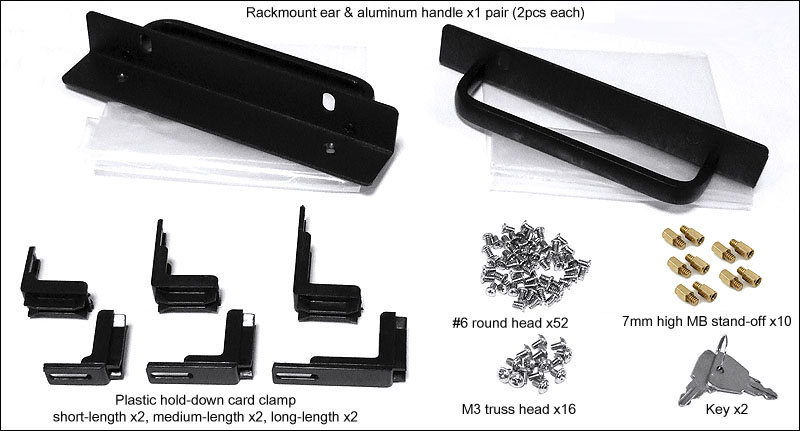

* Accessory pack: MB stand-off x10, #6 round x52, M3 truss x16, key x2, hold-down card

   clamp x6, ear & handle x1 pair
* Package: NW 12.00 KG, GW 14.00 KG, 3.03 CUFT (carton size at 60x55x26cm)

Model#

:

C480A

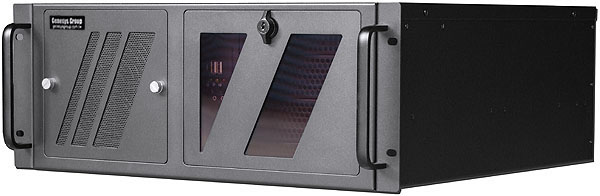

4U black ATX rackmount server chassis

Model#

:

C480AW

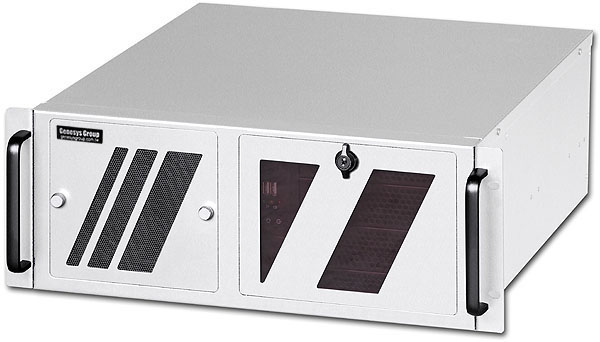

4U beige ATX rackmount server chassis

Option A-1

:

PS2 PSU

8cm & 12cm & 14cm fan version PS2 power supply (depth at 140mm~220mm)

Option A-2

:

PS2 RPS

SureStar R4S series 400W/500W PS2 Mini Redundant PS (depth at 174mm)

Option A-3

:

PS2 RPS

Zippy MRT & MRW series 300W~600W PS2 Mini Redundant power supply (depth at 185mm)

Option A-4

:

PS2 RPS

SureStar R4B series 600W/700W/800W PS2 Mini Redundant PS (depth at 199mm)

Option A-5

:

PS2 RPS

Zippy MRG series 500W~800W PS2 Mini Redundant power supply (depth at 200mm)

Option B-1

:

NJ-600

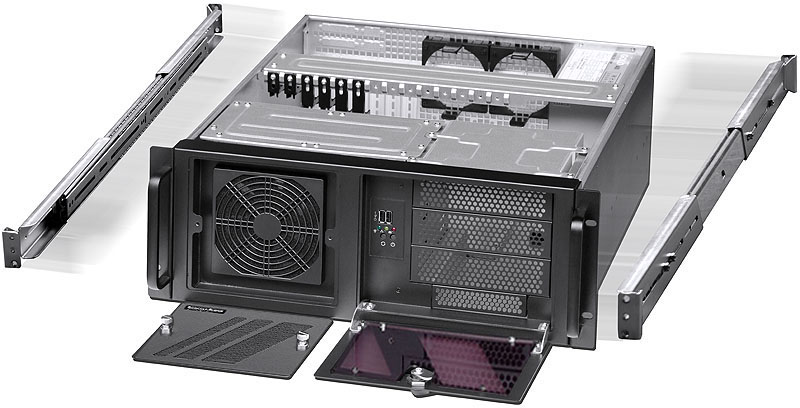

600mm 2-layer 3-travel universal rail (cabinet internal depth 600~1200mm compliant)

Option B-2

:

1234U-RMK

1234U rear mounting kit

Option C

:

25-35-BK

5.25" 3.5" 2.5" multiple HDD bracket

Option D

:

D80SM-12

YateLoon 80mmx25mm exhaust cooling fan (part# is 1pcs, can install 2pcs at rear panel)

Option E-1

:

RW125-12G

1x3.5" FDD to 1x2.5" HotSwap Cage SATA/SAS 12G

Option E-2

:

TL125-12G

1x3.5" FDD to 1x2.5" TrayLess HotSwap Cage SATA/SAS 12G

Option E-3

:

TL225-12G

1x3.5" FDD to 2x2.5" TrayLess HotSwap Cage SATA/SAS 12G

Option E-4

:

TL225

1x3.5" FDD to 2x2.5" TrayLess HotSwap Cage SATA/SAS 6G

Option F-1

:

2525TO3HDBK

2x5.25" ODD space to 3x3.5" bracket

Option F-2

:

3525TO5HDBK

3x5.25" ODD space to 5x3.5" bracket

Option F-3

:

RW135-12G

1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 12G

Option F-4

:

RW135

1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 6G

Option F-5

:

TL135-12G

1x5.25" to 1x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option F-6

:

TL135

1x5.25" to 1x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option F-7

:

RW225-12G

1x5.25" to 2x2.5" HotSwap Cage SATA/SAS 12G

Option F-8

:

RW625-12G

1x5.25" to 6x2.5" HotSwap Cage SATA/SAS 12G

Option F-9

:

RW825-1525

1x5.25" to 8x2.5" HotSwap Cage SATA/SAS 6G

Option F-10

:

RW425-NVMe

1x5.25" to 4x2.5" SSD Removable Cage U.2 NVMe 32G

Option F-11

:

RW425-12G-MS

1x5.25" to 4x2.5" HotSwap Cage SFF-8643 12G

Option F-12

:

RW425-12G

1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 12G

Option F-13

:

RW425

1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 6G

Option F-14

:

RW825

2x5.25" to 8x2.5" HotSwap Cage SATA/SAS 6G

Option F-15

:

RW335-12G

2x5.25" to 3x3.5" HotSwap Cage SATA/SAS 12G

Option F-16

:

RW335

2x5.25" to 3x3.5" HotSwap Cage SATA/SAS 6G

Option F-17

:

TL335-12G

2x5.25" to 3x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option F-18

:

TL335

2x5.25" to 3x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option F-19

:

RW1225

3x5.25" to 12x2.5" HotSwap Cage SATA/SAS 6G

Option F-20

:

RW435-12G-MS

3x5.25" to 4x3.5" HotSwap Cage SFF-8643 12G

Option F-21

:

RW435-12G

3x5.25" to 4x3.5" HotSwap Cage SATA/SAS 12G

Option F-22

:

RW435

3x5.25" to 4x3.5" HotSwap Cage SATA/SAS 6G

Option F-23

:

TL435-12G-MS

3x5.25" to 4x3.5" TrayLess HotSwap Cage SFF-8643 12G

Option F-24

:

TL435-12G

3x5.25" to 4x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option F-25

:

TL435

3x5.25" to 4x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option F-26

:

RW535-12G

3x5.25" to 5x3.5" HotSwap Cage SATA/SAS 12G

Option F-27

:

RW535

3x5.25" to 5x3.5" HotSwap Cage SATA/SAS 6G

Option F-28

:

TL535-12G

3x5.25" to 5x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option F-29

:

TL535

3x5.25" to 5x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option G-1

:

1MSAS-4SATA-500MM

SFF-8087 Mini-SAS (Host) to Four SATA (Device) cable

Option G-2

:

SFF-8643-500MM

SFF-8643 Mini-SAS HD (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option G-3

:

4SATA-SFF-8643-500MM

Four SATA (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option G-4

:

SFF-8643-4SATA-500MM

SFF-8643 Mini-SAS HD (Host) to Four SATA (Device) cable

Option H-1

:

2U2011A-8080

2U Intel LGA2011 LGA2066 active CPU cooler Square (2U 3U 4U chassis compatible)

Option H-2

:

2U2011A-5694

2U Intel LGA2011 active CPU cooler Narrow (2U 3U 4U chassis compatible)

Option H-3

:

2U115XA

2U Intel LGA115x Xeon 1230 active CPU cooler (2U 3U 4U chassis compatible)

Option H-4

:

2U4094A-SP3

2U AMD EPYC LGA4094 active CPU cooler SP3 (2U 3U 4U chassis compatible)

Option H-5

:

2U1331A-AM4

2U AMD LGA1331 active CPU cooler AM4 (2U 3U 4U chassis compatible)

Option H-6

:

2U3647A-S82

2U Intel LGA3647 active CPU cooler Square (2U 3U 4U chassis compatible)

Option H-7

:

2U3647A-R82-1

2U Intel LGA3647 active CPU cooler Narrow (2U 3U 4U chassis compatible)
