ATX & MICRO ATX PLATFORM
webpage updated on
December 04,
2024
ATX 12" x 9.6" and Micro ATX 9.6 "x 9.6" motherboard
form factor compatible, in line with the enterprise server or
multifunctional application such as Cloud, NAS, workstation, NVR, HDD hotswap mode, data storage system, multifunctional for DeskTop, MiniTower,
Wallmount construction.
|
 |

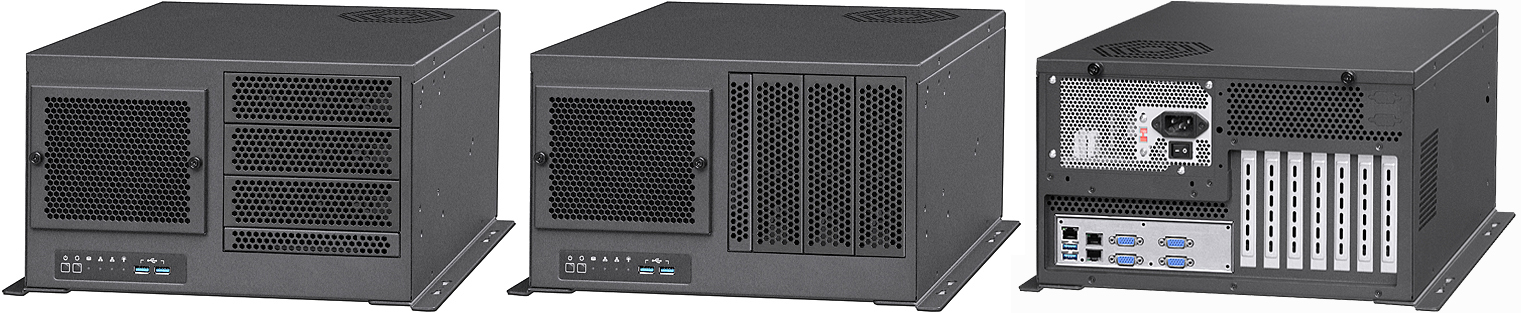

ATX-100B ATX DESKTOP-MINITOWER-WALLMOUNT
CHASSIS
The front bezel
equipped with removable air filter device design, PS2
or PS2 RPS power supply compatible
Three
90-degree rotatable
5.25" ODD
and two 2.5" SSD,
7-slot full height & size
expansion cards at max. 360mm
Chassis dimension:
D.410 x W.330 x H.196
/mm |
| |
|
|
 |
ATX-101B GPU ATX DESKTOP-MINITOWER-WALLMOUNT
CHASSIS
Front can be
installed with one 5.25" ODD & one 3.5" FDD/HDD
(two M.2 NVMe swappable mobile rack as option),
Rear can be installed with one 3.5" HDD or two 2.5" SSD,
Maximum 280mm deep 7 cards installable
Chassis dimension:
D.320 x W.375 x H.160
/mm |
| |
|
|
 |
MICRO-100B MICROATX DESKTOP-MINITOWER-WALLMOUNT
CHASSIS
The front bezel
equipped with butterfly keylock door and removable air filter device
design, compatible with standard 1U FlexATX
300W~400W power supply, drive bay for 1 x 3.5" FDD & 4 x 3.5" HDD
& 3 x 5.25"
ODD, 4 x full-height expansion cards at
maximum 260mm length compatible, chassis dimension is D.460 x W.330 x H.190
/mm |
| |
|
|
 |
MICRO-101B MICROATX DESKTOP-MINITOWER-WALLMOUNT
CHASSIS
Front bezel with four USB
2.0, 1U FlexATX
250W~300W power supply compatible, storage space for one
slim
ODD and two 2.5" SSD/HDD, four low profile
expansion cards with max. 200mm deep allowed
Chassis dimension: D.312 x W.300 x H.88
/mm |
| |
|
|
 |
MICRO-102B MICROATX DESKTOP-MINITOWER-WALLMOUNT
CHASSIS
Front bezel with two USB
2.0, SFX or PS2 power supply compatible
Storage space for one
2.5" and one 3.5" SSD/HDD, four expansion cards with max.
350mm deep allowed
Chassis dimension: D.400 x W.270 x H.170
/mm |
|
|
|
 |
MICRO-103B MICROATX DESKTOP-MINITOWER-WALLMOUNT
CHASSIS
Front bezel with two USB
3.0, 1U FlexATX
250W~300W power supply compatible, storage space for one
slim
ODD and four 2.5" SSD/HDD, four low profile
expansion cards with max. 280mm deep allowed
Chassis dimension:
D.355 x W.350 x H.88.2
/mm |
|
|
|
 |
MICRO-104B MICROATX DESKTOP-MINITOWER
CHASSIS
Security key-lock
front door, desktop or mini tower mode allowed,
can install standard PS2 power supply,
drive space allows 2 x 5.25" ODD
& 3 x 3.5" FDD/HDD, 4 standard profile
and full-size expansion cards compatible,
Chassis dimension:
D.420.5 x W.177 x H.400
/mm |
|
|
|
|
